Product type	Portable CD player/recorder with stereo radio
Brand	ROADSTAR
Model	CDR4208MP
Mains power supply	AC 230 V~50 Hz
Battery power	6 UM-2 batteries (type C)
Power consumption	11 W
Radio bands	FM 87.5 - 108 MHz / MW 540 - 1600 kHz
Output power	2 x 1.5 W
Compatible disc types	CD audio, CD-R, CD-RW, MP3
Laser pickup	3-beam, semiconductor laser
Audio encoding	16-bit linear
Maximum programming	20 tracks (CD) / 99 tracks (MP3)
CD/MP3 functions	Play, pause, stop, skip forward/backward, search, repeat (track/album/all), programming, folder navigation (MP3)
FM antenna	Built-in wire antenna to extend
MW antenna	Built-in ferrite (orient the device)
Safety	Double insulation, invisible laser radiation, do not open the casing
Automatic stop	After 10 minutes without audio signal (CD or radio)
Disc maintenance	Clean with a soft cloth from the center outward; do not use solvents
Repairability	No user-serviceable parts; contact a qualified technician
Included accessories	Power cord, user manual

Frequently Asked Questions - CDR4208MP ROADSTAR

How to play an audio CD?

Set the function selector to CD/MP3. Open the lid, insert a disc (label side up) and close. Press Play/Pause (▶II). Playback starts automatically.

How to program tracks?

In CD mode, press Stop (■), then Program/P-Mode. Use the skip buttons to select a track, then press Program/P-Mode to store it. Repeat for up to 20 tracks (CD) or 99 (MP3). Start playback with Play/Pause.

How to repeat a track, album, or entire CD?

During playback, press Program/P-Mode several times: once to repeat the track (icon 1), twice for the album (FOLDER in MP3), three times for the entire CD (icon ALL). To cancel, press until the indicators disappear.

How to use the radio?

Set the function selector to RADIO (display shows 'Tun'). Choose the band (FM/MW) with the band selector. Turn the tuning knob to tune a station. Adjust the volume. The FM antenna must be extended for better reception.

How to switch radio band (FM/MW)?

Use the band selector (button or slider) to switch between FM and MW. The display shows the selected band.

What disc types are compatible?

This device plays audio CDs, CD-R, CD-RW, and discs containing MP3 files. Home-recorded CDs may not play due to the quality of the media or recording process.

What to do if the CD does not play?

Check that the disc is clean and scratch-free. Make sure it is inserted with the label side up. For CD-R/RW, some poor-quality media may not be recognized. If the problem persists, try another disc.

How to clean a compact disc?

Gently wipe the surface with a soft cloth from the center outward. Never use chemical solvents like benzene or anti-static sprays, as they can damage the disc.

What safety precautions should be observed?

Do not expose the device to rain or moisture. Never remove the cover: invisible laser radiation is emitted inside. Entrust any repairs to a qualified technician. Unplug the device if not used for an extended period.

How to power the device (mains or batteries)?

For mains operation, plug the power cord into a AC 230 V~50 Hz socket. For batteries, open the compartment and insert 6 UM-2 batteries respecting the polarities. Batteries should be removed if the device is not used for an extended period.

USER MANUAL CDR4208MP ROADSTAR

Roadstar Management SA, via Passeggiata 7, CH 6883 Novazzano (Switzerland)

Roadstar

Is a registered Trademark of Roadstar S.A. - Switzerland All rights reserved

INDEX

English	Page	1
Deutsch	Seite	9
François	Page	17
Italiano	Pagina	25
Espanol	Págrina	33
Portuguès	Pagina	41

- Your new unit was manufactured and assembled - under strict ROADSTAR quality control. - Thank-you for purchasing our product for your music enjoyment. - Before operating the unit, please read this instruction manual carefully. Keep it also handy for further future references.
In neu ges Geit wurde unter Beatchung der strengen ROADSTAR-Qualitätsvorschriften gefertigt. Wir darken Hinnen für den Kauf unseres Produktives und wünschen Hinnen optimalen Hörgenuss.itte lessen Sie diese Bediunensionsanleitung durch, und haben Sie sie auf, um jederzeit darin nachschilagen zu denen.
Votre nouvel appellé a été fabriké et morté en
étant soumis aux nombreaux testsROADSTAR. Nous espèriés que cet appellé vousdonnera entière satisfaction. Avant de vousdonner àces activités,veuilliez fire attentivement ce manuel d'instructions.Conservezyle à portée de main à fin de reference ultérieure.
Il vosto novo acquarecchio è stato prodotto ed assemblato sulla stretto controllo di qualità ROADSTAR Vi negrazio di aver acquistato un nuovo prodotto per il vosto piacere d'ascollo. Prima di procedere allutilizzo dell'apprecchio, legge attendente la manuale d'istruzioni e tenetelo sempre a portata di mano per futuri riferimento.
Vuestro nuevo sistemas ha sido construido seguin las normas estrcitas de control de calidad ROADSTAR. La felicitermos y le damos las gratias por su eleccion de este asparado. Por favor lear el manual antes deponer en functionamento el equipo y guardar esta documentation en case de que se necesse neutramente.
Se novo aparalho foi constituiu e montado sob a estrito contro de qualificacao da ROADSTAR. Agracedecemos por ter comprado meuuto para a sua diversao. Antes de uso esta unidade é necessario ler com atencao este manual de instruções pare que possa ser usaada apropriadamente; mantinha omanual ao seu alcance para otheras informacoes.

CDR-4208MP

English En

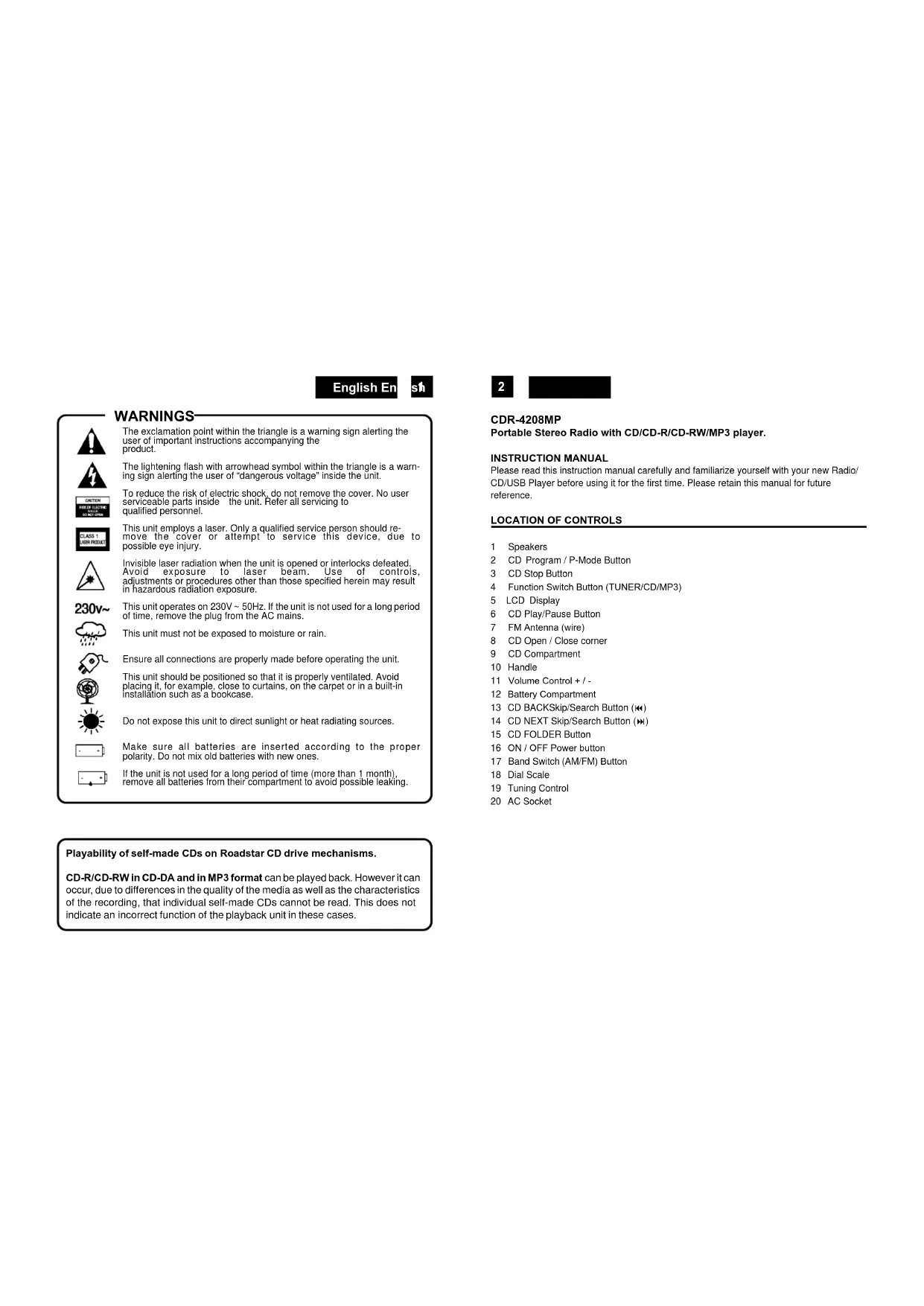

WARNING

The exclamation point within the triangle is a warning sign alerting the user of important instructions accompanying the product.

The lightening flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the unit.

To reduce the risk of electric shock, do not remove the cover. No user serviceable parts inside the unit. Refer all servicing to qualified personnel.

This unit employs a laser. Only a qualified service person should remove the cover or attempt to service this device, due to possible eye injury.

Invisible laser radiation when the unit is opened or interlocks defeated. Avoid exposure to laser beam. Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure.

This unit operates on 230V 50Hz If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. Avoid placing it, for example, close to curtains, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Make sure all batteries are inserted according to the proper polarity. Do not mix old batteries with new ones.

If the unit is not used for a long period of time (more than 1 month), remove all batteries from their compartment to avoid possible leaking.

2

CDR-4208MP

Portable Stereo Radio with CD/CD-R/RW/MP3 player.

INSTRUCTION MANUAL

Please read this instruction manual carefully and familiarize yourself with your new Radio/CD/USB Player before using it for the first time. Please retain this manual for future reference.

LOCATION OF CONTROLS

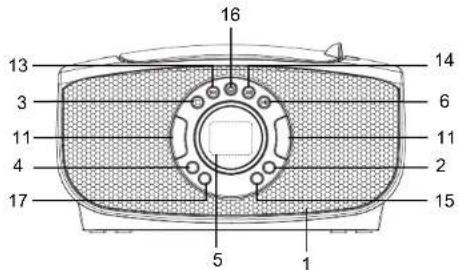

1 Speakers
2 CD Program / P-Mode Button
3 CD Stop Button
4 Function Switch Button (TUNER/CD/MP3)
5 LCD Display
6 CD Play/Pause Button
7 FM Antenna (wire)

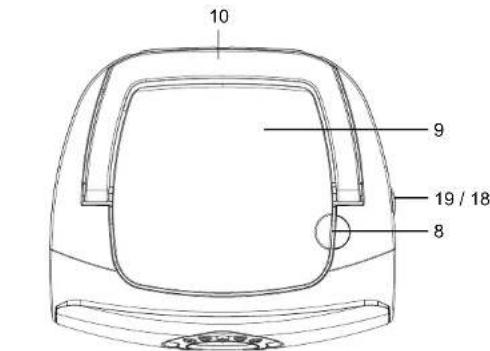

8 CD Open / Close corner
9 CD Compartment
10 Handle
11 Volume Control +/ -
12 Battery Compare
13 CD BACKSkip/Search Button (4)
14 CD NEXT Skip/Search Button 已
15 CD FOLDER Button
16 ON/OFF Power button
17 Band Switch (AM/FM) Button
18 Dial Scale
19 Tuning Control

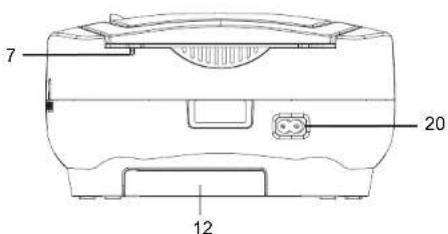

20 AC Socket

English En

sb

CONNECTING TO POWER

Before switching on make sure that the voltage of your electricity supply is the same as that indicated on the rating plate.

For your own safety read the following instructions carefully before attempting to connect this unit to the mains.

This unit is designed to operate on AC 230V 50Hz current only. Connecting it to other power sources may damage the unit.

Caution

To prevent electric shock disconnect from the mains before removing cover. No user serviceable parts inside. Refer servicing to qualified service personnel.

Safety Precaution

Do not allow this unit to be exposed to rain or moisture.

Mains Supply: AC230Volts / 50Hz - AC only

This symbol means that this unit is double insulated. An earth connection is not required.

POWER SUPPLY

• Remove the stereo carefully from the box, retaining the packaging for future use.
• Please read this instruction book carefully before operating this unit.

AC Power Operation

Plug the supplied AC power cord into the AC power socket on the back of this portable stereo. Connect the AC Power Cord to your AC household mains outlet and switch on the mains supply. Make sure the voltage is compatible.

Battery Operation

• Remove mains lead from the unit for battery operation.
• Open the Battery Compartment (12) at the back of the stereo and insert 6 UM-2 batteries following the polarity diagram shown inside the battery compartment.
• Batteries should be removed from the compartment if the unit is not to be used for some time.
• Flat batteries should be removed from the unit to avoid leakage.

4

RADIO OPERATION

1. Set the Function Selector (4) to the TUNER position ("Tun" appear on the display).
2. Select the desired frequency band (AM or FM) with the Band Selector (17) Button.
3. Tune to the desired radio station by turning the Tuning control (19).
4. Press and adjust the Volume +/- (11) control to the desired level.
5. To turn off the radio, predd the ON/OFF button (16) to the OFF position.

Antenna

For FM reception there is a built-in wired FM antenna (7) at the rear of the unit. Extend the antenna and move it around to obtain the best reception.
For MW reception the signals are picked up through a built-in ferrite antenna. Your may have to orient the unit to obtain the best reception.

VERY IMPORTANT: This unit has a built-in circuit to switch OFF automatically the unit after 10 minutes that NO Audio is played from CD or Radio.

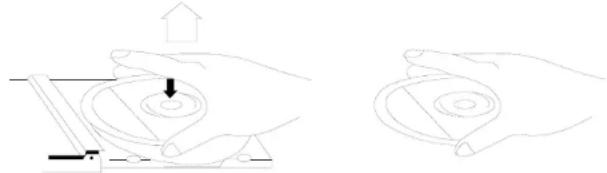

• To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges.

• Fingerprints and dust should be carefully wiped off the disc's recorded surface with a soft cloth. Unlike conventional records, compact discs have no grooves to collect dust and microscopic debris so gently wiping with a soft cloth should remove most particles. Wipe in a straight line from the inside to the outside of the disc. Small dust particles and light stains will have absolutely no effect on reproduction quality.
• Never use chemicals such as record sprays, antistatic sprays, benzine, or thinkers to

English En s6

clean compact discs. These chemicals can irreparably damage the disc's surface.

• Discs should be returned to their cases after use. This avoids serious scratches that could cause the Laser pickup to skip.
• Do not expose discs to direct sunlight, high humidity, or high temperatures for extended periods. Long exposure to high temperatures can warp the disc.
• Do not stick paper or write anything with a ballpoint pen on the label side of the disc.

CD/MP3/USB PLAYBACK

Loading and Unloading Compact Discs

1. Press and set the Function Button (4) to the CD/MP3 Position.
2. Open the disc compartment by lifting the CD OPEN corner (8).
3. When the door has opened, remove a disc from its case and place it carefully in the compartment with the label side facing up. Locate 3^ discs, on the central spindle in the compartment.
4. Close the door by pressing on the corner of the CD door.

The total number of tracks appears on the display. Press PLAY/PAUSE/Button (▶II) (6) During playback, the actual track appears.

1. Press and adjust the VOLUME control (11) to your desired listening level.
2. To stop playback temporarily, press the PLAY/PAUSE (▶ II) button (6) once. The Play indicator will flash on the display. Press the PLAY/PAUSE (▶ II) button again to resume playback.
3. To stop playback, press the STOP (■) (3) button once.
4. To switch OFF the unit select OFF with the Function Selector (4).

Notes:

• When the CD door is accidentally opened during playback, "OP" will appear on the display.
• Wait until the disc is fully stopped before opening the CD (9) compartment.
• This unit can play 3'' (8cm) single CDs without an adaptor.

6

FOLDER FUNCTION IN MP3 MODE

1. Press the ALBUM button (15) to select the desired ALBUMnumber.

LOCATING APARTICULAR TRACK OR POINT OF THE TRACK

1. Press t he SKIP DN (13) button once to go back to the beginning of the current track.
2. Press the SKIP DN button repeatedly to go back to previous tracks.
3. Press the SKIP UP (H)(14) button repeatedly to go to next tracks.
4. Press and hold either SKIP UP or SKIP DN button to search backwards or forwards, at high speed, a particular point of track.

Note: Low level audio will be heard during the search process to assist in locating the correct point in the track.

REPEAT PLAYBACK WITH AUDIO CD

1. Press t he PLAY/PAUSE button (6).
2. To repeat the same track, press the PROGRAM/ P-MODE button (2) once. The indicator will flash on the display. The CD will start single repeat playback until STOP button (3) is pressed. Press the PROGRAM/P-MODE button button 4 times more to cancel single repeat. The indicator disappears from the display.
3. To repeat the entire disc, press the PROGRAM/ P-MODE button twice. will appear on the display. Press the PROGRAM/ P-MODE button button 3 times more to cancel all disc repeat. The indicator disappears from the display.

REPEAT PLAYBACK WITH CD/MP3

1. Press t he PLAY/PAUSE button (6).

2. To repeat the same track, press the PROGRAM/ P-MODE button (2) once. The indicator will flash on the display. The CD will start single repeat playback until STOP button (3) is pressed. Press the PROGRAM/P-MODE button button 4 times more to cancel single repeat. The indicator

English En

sF

disappears from the display.

1. To repeat the FOLDER (ALBUM), press the PROGRAM/ P-MODE button 2 times. FOLDER will appear on the display. Press the P-MODE button 3 times more to cancel FOLDER repeat. The indicator FOLDER disappears from the display.
2. To repeat the entire disc, press the PROGRAM/ P-MODE button 3 times and appear on the display. Press the PROGRAM/ P-MODE button 2 times more to cancel all disc repeats. The indicator disappears from the display.

PROGRAMMED PLAYBACK FOR CD

INCD/USB

1. Press the PLAY/PAUSE button (6) and after 5 seconds the STOP button (3).
2. Press the PROGRAM/P-MODE button (2). The track number "P-01" will appear and "PROG" will appear on the display indicating the first selection.
3. Press SKIP DN ( ) or SKIP UP ( ) button to select the desired track to be programmed. The track number which will be programmed will appear on the display.
4. Press once the PROGRAM/ P-MODE button to enter the track into memory. "P-02" will appear.
5. Repeat the steps 3 and 4 to program up to 20 tracks in CD or 99 tracks in MP3.
6. Press PLAY/PAUSE (▶II) button (6) once to start programmed playback.
7. To cancel programmed playback, press the STOP button (3) twice

Note: During program playback, if you wish to repeat the entire programmed playback, press the PROGRAM/ P-MODE button (2) repeatedly until the indicator appears on the display.

IMPORTANT

Since movement of the CD mechanism and the sensitive circuitry may cause interference to a radio tuner nearby switch this unit off while operating other radio devices.

This product utilizes a laser

Danger - Invisible laser radiation when opened and interlock failed or defeated. Avoid direct exposure to the beam.

Caution - Use of controls, adjustments, or procedures not listed in this manual may result in hazardous radiation exposure.

Concerning Compact Discs

Only compact discs identified with this mark can be used with this player.

8

SPECIFICATIONS

Power Supply

AC: 230V~50Hz

Batteries: 6 x UM-2

Radio Frequency Coverage

PM: 87.5 - 108 MHz

MW: 540-1600 kHz

General

Output Power 2x1.5 Watt

CD Player

Pick Up: 3-Beam. Semiconductor Laser

Encoding: 16-Bit Linear

Power Consumption 11 W

Note: Specifications and the design are subject to possible modifications without notice due to improvement.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.

Deutsch

SICHERHEITSHINWEISE

FM: 87.5 - 108 MHz
MW: 540 - 1600 kHz

Generale

Potenza 2x1.5Watt

Lettore CD

Alcance: 3-Raios, Laser Semi-conductor

Encoding: 16-Bit Linear

Consumo
