Product Type	Continuous halogen flash lamp for studio
Brand	Elinchrom
Model	Zoom Scanlite Halogen (20998)
Dimensions (L x W x H)	245 x 155 x 205 mm (with cap)
Weight	1.2 kg (with bulb, glass dome and cap)
Power Supply	Multi-voltage 120 V or 230 V AC, 50/60 Hz
Halogen lamp power	300 W or 650 W (depending on configuration)
Color Temperature	3200 K
Zoom Function	Adjustable lighting angle from 20° to 50° with 21 cm reflector
Cooling	Silent variable-speed fan controlled electronically
Overheat protection	Automatic lamp cut-off with red LED indicator
Switch	Toggle ON/OFF
Bayonet mount	With locking for Elinchrom accessories
Umbrella support	Diameter 7 mm
Tripod mount	Standard 5/8" adapter
Included accessories	Mains cable, clear glass dome, 300W and 650W halogen bulbs, fuses, protective cap
Maintenance	Clean with a dry cloth; do not use water; check cleanliness of ventilation grilles
Safety	Always use the protective dome; do not open the device; maintain a minimum distance of 1 m from flammable objects
Warranty	24 months for manufacturing defects

Frequently Asked Questions - Zoom Scanlite Halogen Elinchrom

What is the Zoom function of the Scanlite Halogen?

The Zoom function allows you to vary the lighting angle from 20° (spot) to 50° (wide) using a button located on the sides of the housing. It requires the 21 cm reflector (ref. 26141).

What types of halogen bulbs can I use?

The lamp accepts 300 W and 650 W halogen bulbs, in 120 V or 230 V. Make sure to choose the appropriate fuse according to the correspondence table provided in the manual.

How does the smart cooling work?

The fan automatically adjusts its speed according to the internal temperature. In case of overheating, the lamp turns off and a red LED lights up; it turns back on after cooling.

Can I use accessories from other brands?

It is recommended to use only original Elinchrom accessories and reflectors. Using third-party accessories may damage the device and void the warranty.

How do I mount an accessory on the bayonet?

Turn off the lamp and unplug the cord. Turn the locking ring counterclockwise, insert the accessory, turn it clockwise, then lock the ring. Check that the accessory is securely held.

What should I do if the lamp turns off automatically?

This is overheat protection. Leave the lamp plugged in: the fan continues to cool the device. The lamp will turn back on automatically once the temperature returns to normal.

How to clean the Scanlite Halogen?

Use a dry cloth to remove dust. Never use water. Make sure the ventilation grilles are not blocked (e.g., by adhesive tape).

What is the typical lifespan of the halogen bulb?

Lifespan depends on usage, but halogen bulbs are designed to last several hundred hours. Replace them as soon as they darken or flicker.

Can I use the Scanlite outdoors?

Yes, but protect it from moisture and ensure good ventilation. Avoid direct sunlight exposure to prevent overheating. Do not use near flammable materials.

Where to find spare parts and bulbs?

Contact your local Elinchrom distributor or visit www.elinchrom.com. Use only genuine Elinchrom parts to ensure safety and proper operation.

USER MANUAL Zoom Scanlite Halogen Elinchrom

Exterior view of a Elinchrom creative magic lighting technology device (no signage or text on body)

User Manual

Table of contents

EN

Introduction 3

Declaration of conformity 4

CE marking 4

Disposal and recycling 4

Characteristics 5

User Safety Information 5

Before You Start 6

Operating your SCANLITE 7

Fitting Accessories 7

SCANLITE Accessories 8

Technical Data 9

Maintenance 11

Caution 12

Warranty

51

INTRODUCTION

Dear photographer

Thank you for buying the ELINCHROM SCANLITE. All Elinchrom products are manufactured using the most advanced technology. Carefully selected components are used to ensure the highest quality and the equipment is submitted to many tests both during and after manufacture. We trust that it will give you many years of reliable service.

Please read the instructions carefully, before use, for your safety and to obtain maximum benefit from many features.

Your Elinchrom-Team

Please read carefully the notes about this manual...

This manual may show images of products with accessories, which are not part of sets or single units. Elinchrom set and single unit configurations may change without advice and may differ in other countries.

Please find actual configurations at www.elinchrom.com

For further details, upgrades, news and the latest information about the Elinchrom System, please regularly visit the Elinchrom website. The latest user guides and technical specifications can be downloaded in the “Support” area.

Technical data, features and functions of Elinchrom flash units, accessories and the EL-Skyport system may change without advice. The listed values can differ due to tolerances in components, or measuring instruments. Technical data, subject to change. No guarantee for misprints.

DECLARATION OF CONFORMITY

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Product name: SCANLITE Halogen

Trade name: ELINCHROM

Model number(s): 20998

Name of responsible party: Elinchrom S.A. Av. De Longemalle 11 CH - 1020 Renens / Switzerland

Phone: [phone]

Fax: [phone]

E-Mail: [e-mail]

ELINCHROM S.A. hereby declares that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rules, and that all the necessary steps have been taken and are in force to assure that the production units of the same equipment will continue to comply with the Commissions requirements.

CE MARKING

The shipped version of this device complies with the requirements of EMC directives

(EMC 2004/108/EC) «Electromagnetic compatibility» and (Low voltage 2006/95/EC) «Low voltage directive».

DISPOSAL AND RECYCLING

This device has been manufactured to the highest standards from materials, which can be recycled or disposed of in a manner that is not environmentally damaging. The device may be taken back after use to be recycled, provided that it is returned in a condition that is the result of normal use. Any components not reclaimable will be disposed of in an environmentally acceptable manner.

If you have any question on disposal, please contact your local office or your local ELINCHROM agent. Please visit our website and find your local ELINCHROM agents.

CHARACTERISTICS

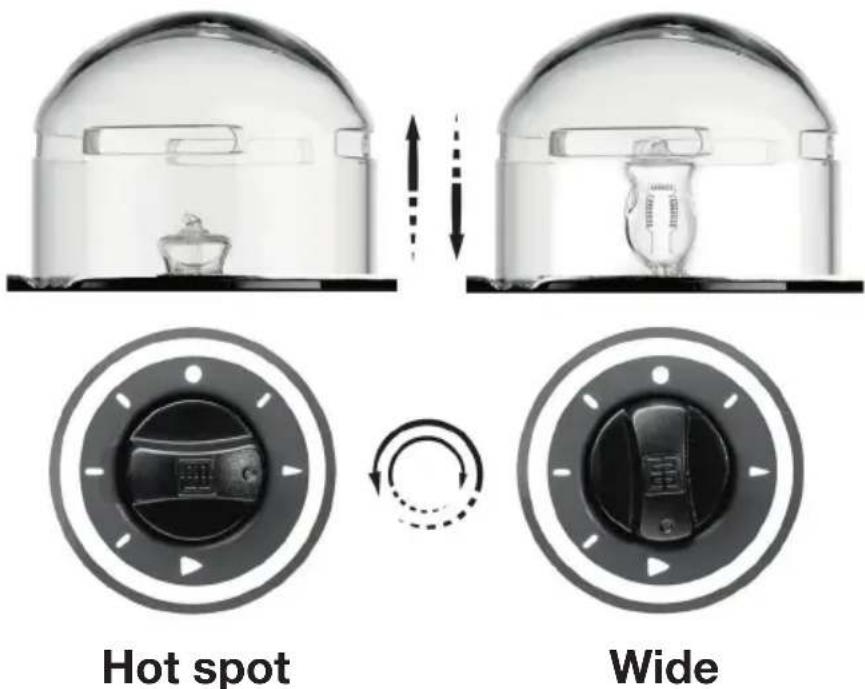

• NEW: ZOOM function for the halogen lamp.
• The ZOOM function is available from the left and right housing side.
  • ZOOM angle 20^ to 50^ , with 21 cm Reflector // 26141.
  • For 300 - 650 W halogen lamps.
  • NEW: Protection glass dome included.
  • Halogen lamp on/off switch.
  • NEW: Centred umbrella fitting (7 mm).
  • Extra umbrella fitting for other umbrella shaft sizes.
• NEW: Intelligent low noise fan cooling system. Electronically controlled fan spins slower or faster depending on the internal temperature of the head.
  • Large handle with rubber grip.
  • Small, robust and lightweight housing.

USER SAFETY INFORMATION OUTDOORS, STUDIO & GENERAL USE

The halogen SCANLITE is a powerful light source. Please be aware of the danger, or inconvenience, that they may present to others such as example children.

• Keep units out of reach of unauthorised persons whenever possible.
• Do not use in restricted area (like hospitals, always ask permission before).
• Do not use near flammable / explosive material. Keep minimum 1m distance to objects, or more if needed.
• The unit and accessories may become very hot during and after use! To avoid injuries, handle with isolating cloth or wait until parts have cooled down.
• Never direct light into the eyes of a subject without warning. Close use may affect eyesight.
• Protect the SCANLITE when used in humid conditions, but ensure ventilation for cooling!
• Acclimatizing: If the unit has been exposed to very cold conditions, sudden exposure to warm or humid air may cause condensation and malfunction.
  • Prevent direct sunlight, which might heat up the head.
• Do not open the unit. In the event of damage, apparent failure, please contact the Elinchrom Service Centre.

User Manual

• Halogen lamps may generate high pressure during operation. Explosions may occur with aged halogen lamps and incorrect fuse. For this reason the lamp is covered with a glass dome.
• Damaged cables, glass domes and cases must be immediately replaced by customer service.

SAFETY NOTE FOR ACCESSORIES

• Rotalux softboxes and umbrellas are limited to 300 W halogen lamps.
- Metal reflectors can be used with 650 W halogen lamps, except small or narrow reflectors such as snoots and grids for Reflectors, which can be damaged or even burned by the excessive heat of the halogen lamp.
- Not used SCANLITE's should be switched off.
- Ensure that the ventilation system of the SCANLITE works correctly.
- No guarantee when materials are misused or damaged by excessive heat.

BEFORE YOU START

• Ensure that the SCANLITE is switched OFF and the mains plug is removed, before mounting the halogen lamp.
• Ensure that the halogen lamp voltage and the fuse correspond to the mains voltage 110 V or 230 V
• Ensure that the SCANLITE is in a workable condition. Do not use the SCANLITE if the cable, fan or the housing show any kind of damage.

ATTENTION

• Always switch the SCANLITE off and wait until the unit cooled down, before replacing halogen lamps or accessories! Note; for faster cooling of the halogen lamp and the SCANLITE, switch the light off, with the ON / OFF switch on the top of the head. The fan cooling is active, wait 5 minutes at least, before removing the mains plug.
• The ambient temperature whilst the unit is in use: min. -20°C (-4°F) up to max. 35°C (95°F)

THIRD PARTY MANUFACTURERS

Use only original Elinchrom accessories and reflectors. The warranty does not cover damages forced by third party accessories and reflectors.

Before connecting the mains plug to the mains socket, ensure that the On/Off switch is in position Off: "0" must be visible on the switch (to prevent arcing mains plug contacts).

Then connect the mains cable to the mains socket => the fan spins and the cooling system is active.

Switch the halogen light on, press the On / Off switch to the On position.

After using the SCANLITE, switch the halogen light off, but do not remove the mains plug before the fan cooled down the temperature of the SCANLITE.

SCANLITE INTELLIGENT FAN COOLING AND OVERHEAT PROTECTION

The fan speed is electronically controlled. Close to the on/off switch is a small LED, which lights up in case of over heating. The overheat protection shuts the Halogen lamp down at high internal temperature. After cooling down, the Halogen lamp switches on automatically and the red LED turns off.

FITTING ACCESSORIES

1. Always switch the unit off before attaching accessories.
2. Disconnect the mains cable.
3. Mount the SCANLITE Head to a tripod and lock the security screw.
4. Turn the locking ring of the reflector bayonet anticlockwise in OPEN position.
5. Insert an accessory and turn it clockwise until you hear it click into place.
6. Turn the locking ring clockwise to close the bayonet, indicated by the white mark on the bayonet ring.
7. Check if the Reflector is correctly fitted.
8. Reconnect the mains cable and switch the unit on.

User Manual

SCANLITE ACCESSORIES

HALOGEN LAMPS:

300 W / 230 V Halogen GX 6.35 // 23022

300 W / 110 V Halogen GX 6.35 // 23030

650 W / 230 V Halogen GX 6.35 // 23005

650 W / 110 V Halogen GX 6.35 // 23027

GLASS DOMES

Glass Dome, transparent (standard configuration) // 24918

Glass Dome, frosted // 24919

TECHNICAL DATA: SCANLITE
SCANLITE HALOGEN	650 W 300 W
Voltage 230 V	120 V 230 V 120 V
Aperture 2 m / 100 ISO / 1/30 s Refl. HP (26137), Zoom Pos. 0	11 8.0	710 8.0 5.6		710
Lux 12500	9500 8500 5500
Lumen 20000	20000 9600 8100
Multi-voltage The SCANLITE Heads can be used with 110 V or 230 V. Only the Halogen lamp and the fuse must apply to the correct voltages and values!
Colour temperature	3200 K
Glass Dome TRANSPARENT	24918
Glass Dome FORSTED	24919
Modelling light 230 V	Standard configuration: 300 W / 230 V Halogen GX 6.35 // 23022.
Modelling light 110 V	Standard configuration: 300 W / 110 V Halogen GX 6.35 // 23030.
Controls	Modelling lamp on/off and Zoom function.
Intelligent Fan Cooling	Fan speed is electronically temperature controlled. The overheat protection shuts down the Halogen lamp at high internal temperature, after cooling down the Halogen lamp switches on automatically.
Included extras	Mains cable, Glass Dome transparent, Halogen Lamp 300 W / 650 W, Fuses, ZOOM-Function, Umbrella Support, Reflector Locking Bayonet.
Tripod adaption	Standard 5/8".
Dimensions, L x W x H / mm	245 x 155 x 205 (with protective cover).240 x 155 x 205 (with glass dome).
Weight, kg	1.2 kg (with protective cover, glass dome and Halogen lamp).
Order Code	20998

REFLECTOR ZOOM TABLE

REFLECTOR ∅	EL-NO. HOT SPOT WIDE
Reflector Maxi Spot 29° 40 cm 2	6149 5° 6°
Reflector HP 48° 26 cm 2613	7 22° 40°

SCANLITE HALOGEN LAMPS / FUSES

HALOGEN LAMP FUSES
POWER VOLTAGE EL-NR CURRENT REACTION					EL-NR(10 PCS)
150W	230VAC	23032	2 A	FAST «F»	19032
200W	230VAC	23034	2 A	FAST «F»	19032
300W	230VAC	23022	2.5 A	FAST «F»	19033
500 W	230VAC	(*)	5 A	FAST «F»	19036
650 W	230VAC	23005	5 A	FAST «F»	19036
150W	120VAC	23031	2 A	FAST «F»	19032
200W	120VAC	(*)	2 A	FAST «F»	19032
300W	120VAC	23030	5 A	FAST «F»	19036
500 W	120VAC	(*)	10 A	FAST «F»	19038
650 W	120VAC	23027	10 A	FAST «F»	19038

(*) not available from Elinchrom

MAINTENANCE

The SCANLITE Head requires only very little maintenance. To ensure secure operation please check the following points regularly before connecting the Head to the mains:

• Ensure that the Halogen lamp and the glass dome are correctly fitted.
• Do not use water to clean the Zoom Head from dust and dirt.
  • Ventilation grids must be clean and free of any tape etc.
• When the SCANLITE Head is connected to the mains, check that the fan cooling is active.

CAUTION:

Under no circumstances open any part of the equipment. The SCANLITE Head is not user serviceable and there is dangerous high voltage. In the event of difficulties contact your Elinchrom Service partner.

REGULAR CHECK

National safety regulations may require frequent safety checks of the electrical equipment. The SCANLITE Head should be checked once a year. This check not only guarantees safety, it also protects the value of the unit.

RETURN TO CUSTOMER SERVICE

To achieve maximum protection of the unit when sending it in for service, the original packaging should be kept.

SALES / SERVICE / RENTAL

For service and sales, please contact your local Elinchrom Distributor. For more information, contact and support, please visit www.elinchrom.com / Distributors

Gebrauchsanleitung

INHALT

DE

Einleitung 13

SCANLITE Accessories 27

DÉCLARATION DE CONFORMITÉ

SCANLITE ACCESSORIES

LAMPES HALOGÈNES DISPONIBLES:

300 W / 230 V GX 6.35 // 23022

300 W / 120 V GX 6.35 // 23030

650 W / 230 V GX 6.35 // 23005

650 W / 120 V GX 6.35 // 23027

CLOCHES DE PROTECTION EN VERRE

Cloche en verre transparent (configuration standard) // 24918

This ELINCHROM product will be repaired free of charge by the vending agent if during a period of 24 months from date of purchase its working order is impaired through a manufacturing or material defect. The faulty product should be immediately sent to the authorized dealer or ELINCHROM agent. This guarantee is not valid for equipment which has been misused, dismantled, modified, or repaired by persons not belonging to the ELINCHROM distribution network. It does not cover flash tubes, lamps and the normal ageing of capacitors. No responsibilities can be accepted for damage, resulting from unsatisfactory operation of the equipment, such as wasted film or other expenses.

In case you cannot register your Elinchrom unit via internet, please fill in the Guarantee card and post it to ELINCHROM.
