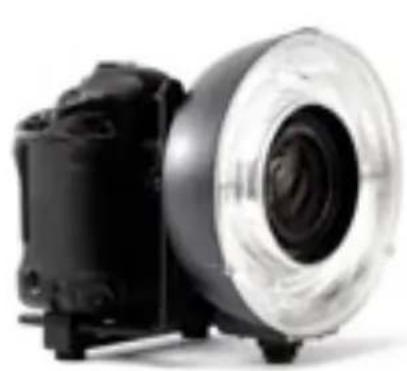

| Product type | Ring flash |
| Brand | Elinchrom |
| Model | Quadra Ringflash ECO |
| Maximum supported power | 400 Ws |
| Compatible generators | Ranger Quadra AS / RX-AS |
| Flash duration (socket A, max) | 1/1000 s (t0.5), 1/500 s (t0.1) |
| Flash duration (socket A, min) | 1/600 s (t0.5), 1/300 s (t0.1) |
| Aperture at 2 m, 100 ISO, max power | 11.8 |
| Color temperature | 5500 °K |
| Inner/outer diameter | 9.5 cm / 19 cm |
| Cable length | 2 m (removable) |
| Camera mounting screw | 1/4" (6.35 mm) |
| Tripod sockets | 1/4" and 3/8" (6.35 and 9.65 mm) |
| Dimensions with bracket | 21 x 20 x 21 cm |
| Weight with 2 m cable | 1 kg |
| Flash tube protection | Transparent synthetic safety disc |
| Included accessories | Opal diffuser cap, 2 m cable, UV toroidal flash tube |
| Product code | 20492 |
| Number of pages in manual | 31 |
| Available languages | French, German, English |
| Maintenance | Dusting and wiping off moisture marks. Do not open. |
| Safety | Turn off the generator before connection/disconnection. Do not use with other generators. |
| Warranty | 24 months |
Frequently Asked Questions - Quadra Ringflash ECO Elinchrom
User questions about Quadra Ringflash ECO Elinchrom
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Flash in PDF format for free! Find your manual Quadra Ringflash ECO - Elinchrom and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Quadra Ringflash ECO by Elinchrom.
USER MANUAL Quadra Ringflash ECO Elinchrom
Declaration of conformity 4
CE / Disposal 4
RQ Ringflash ECO Characteristics 4
User Safety Information Outdoors, Studio & general use 5
Before You Start 6
Technical Data 7
Maintenance 8
Camera Positioning 9
Warranty 27
EN
Dear photographer and photo enthusiast,
Thank you for buying the RQ Ringflash ECO for the Ranger Quadra Battery Power Pack. All Elinchrom products are manufactured using the most advanced technology. Carefully selected components are used to ensure the highest quality and the equipment is submitted to many controls both during and after manufacture.
We trust that it will give you many years of reliable service.
Please read the instructions carefully, before use, for your safety and to obtain the maximum benefit from the many features.
Your Elinchrom-Team
Please read carefully the notes about this manual...
This manual may show images of products with accessories, which are not part of Sets or single units.
Elinchrom Set and single unit configurations may change without advise and they might be different in other countries.
Actual configurations please find at www.elinchrom.com
For further details, upgrades, news, the latest information about the Elinchrom System, please visit frequently the Elinchrom website. In the Support area, the latest user guides and technical specifications can be downloaded. Technical data, features and functions of Elinchrom flash units and the EL-Skyport system may change without advise.
The listed values can differ due to tolerances in components, or measuring instruments.
Technical data, subject to change. No guarantee for misprints.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- This device must accept any interference received, including interference that may cause undesired operation.
Product name: RQ Ringflash ECO
Trade name: ELINCHROM
Model number(s): 20492
Name of responsible party: Elinchrom S.A.
Av. De Longemalle 11
CH - 1020 Renens / Switzerland
Phone: +41 21 637 26 77
Fax: +41 21 637 26 81
ELINCHROM S.A. hereby declares that the equipment bearing the trade name and model number specified above was tested conforming to the applicable FCC rules, and that all the necessary steps have been taken and are in force to assure that the production units of the same equipment will continue to comply with the Commissions requirements.
CE marking
The shipped version of this device complies with the requirements of EMC directives (EMC 2004/108/EC) «Electromagnetic compatibility» and (Low voltage 2006/95/EC) «Low voltage directive».
Disposal and recycling
This device has been manufactured to the highest standards from materials which can be recycled or disposed of in a manner that is not environmentally damaging. The device may be taken back after use to be recycled, provided that it is returned in a condition that is the result of normal use. Any components not reclaimable will be disposed of in an environmentally acceptable manner.
If you have any question on disposal, please contact your local office or your local ELINCHROM Agent (please visit our website for a list of all ELINCHROM agents worldwide).
Because a portable Ringflash is frequently used «on location» please be aware of the danger, or inconvenience, which it may represent to others for example children.
- Keep flash units out of reach of unauthorised persons whenever possible.
- Do not use in restricted area (like hospitals, always ask permission before).
- Do not use near flammable / explosive material.
• Always switch off the unit before connecting or disconnecting heads.
- The unit and the flash tube may become very hot during and after use! To avoid injuries, handle with isolating cloth or wait until parts have cooled down.
- Never flash into the eyes of a subject without warning. Close use may affect eyesight.
- There is high voltage and there can be high currents, so please apply all the usual safety precautions when handling the unit, changing flash cables, as you would with mains powered electronic flash.
- Protect the RQ Ringflash ECO & Quadra power pack when used in humid conditions.
- Flash cables must be connected correctly at both ends. Use this cable only for Ranger Quadra.
- Acclimatizing: If the unit has been exposed to very cold conditions, sudden exposure to warm or humid air may cause condensation and malfunction.
- Prevent direct sunlight, which might heat up the RQ Ringflash ECO and the Quadra power pack.
- Do not open the unit. In the event of damage or apparent failure, a defect flash tube, please contact the Elinchrom Service Centre.
- Flash tubes generate high pressure during operation and can therefore explode. For this reason the flashtube is covered with a transparent security plastic cover. In case of a damaged flash tube or a broken security cover the Ringflash must be immediately unplugged from the Ranger Quadra and sent to an authorized Elinchrom customer service.
- Only lamp connectors with immaculate contacts must be used, burned or/and corroded contacts may cause explosions in the area of connectors and lamp sockets.
- Do not route cables across the studio floor if possible, so that damage is excluded. If routing across the studio floor cannot be omitted, then it must be ensured that vehicles, ladders, etc do not damage cables. Damaged cables and cases must be immediately replaced by customer service.
- The RQ Ringflash ECO may not be used for any other purpose, especially not for other electrical appliances. Use this unit only with the Ranger Quadra Power Pack
Before You Start
Ranger Quadra AS and the RQ Ringflash ECO are portable units, which will be frequently used «on location». Please be aware of the danger, or inconvenience, which it may represent to others for example children.
- Connect the flash cable with the security locking ring first to the RQ RF ECO and than to the RQ power pack.
- Ensure that the RQ power pack is switched OFF.
- Only correct fitted flash cable connections are secured against arching, moister and dust.
• Power pack outlets not in use must be protected with the security covers. - Check all connections again; the cable must be locked with the security ring and than switch on the unit.
- Now adjust / align the camera and start your lighting experience.
Attention
• Always switch off the unit before connecting or disconnecting the RQ Ringflash ECO!
• The ambient temperature whilst charging: min. 0°C (32°F) up to max. 40°C (104°F)
- The ambient temperature whilst the unit is in use: min. -20°C (-4°F) up to max. 40°C (104°F)
Third party manufacturers
Even, similar flashhead sockets and plugs are used by other manufacturers, the Ringflash cannot be connected to generators from these manufacturers. Ask your Elinchrom service if suitable adapter cords for those brands exist.
RQ Ringflash ECO Characteristics
- Up to 400 ws maximum flash power, for the Ranger Quadra RX Battery power pack.
- Detachable high quality flash cable for maximum power and flexibility, available in 1 m / 2 m standard / 5m / 10 m.
- Included reliable quality 2-pole flash tube with internal reflector and transparent plastic protection.
- Included white diffuser cap to modify the light characteristics into a semi diffuse light source.
• Included camera bracket to fit a wide range of cameras.
EN
| RQ Ringflash ECO | |
| Max. flash power 400 Ws / only Ranger Quadra | |
| Compatible power packs Ranger Quadra AS | Ranger Quadra RX - AS |
| Flash duration at full power t 0.5 – t 0.1 Plug A: 1/1000 – 1/500Plug B: 1/2500 – 1/1200 | |
| Flash duration at min. power t 0.5 – t 0.1 Plug A: 1/600 – 1/300Plug B: 1/1400 – 1/800 | |
| F-stop 2 m, ISO 100, at full power 11.8 (- 0.5 f-stop w. diffuser) | |
| Colour temperature at full power 5500 °K | |
| Inner / outer diameter 9.5 cm / 19 cm | |
| Cable length 2 m | |
| Camera / Tripod adaption 1/4” // 1/4” and 3/8” | |
| Dimensions (L x W x H) 21 x 20 x 21 cm | |
| Weight including cable 1 kg | |
| Matt glass diffuser Included white Plexiglas diffuser | |
| Supplied with Plastic protection filter / detachable 2 m flash cable /UV coated 2 pole standard flashtube | |
| RQ Ringflash ECO | 20492 |
The Ringflash needs only very few maintenance by the user. The unit should be dry cleaned from dust from time to time. Before cleaning the Ringflash switch the power pack off before disconnecting.
Caution:
Under no circumstances is any part of the equipment to be opened. The equipment is not user serviceable and there is dangerous high voltage. In the event of difficulty notify your dealer.
Regular check
National safety regulations require frequent safety checks of the electrical equipment. The Ringflash should be checked once a year. This checking not only guarantees safety, it also protects the value of the unit.
Return to customer service
To achieve a maximum protection of the unit sending it in for service, the original packaging should be kept.
Sales / Service
For service and sales, please contact your local Elinchrom Distributor. For more information, contact and support please visit www.elinchrom.com / Distributors
EN


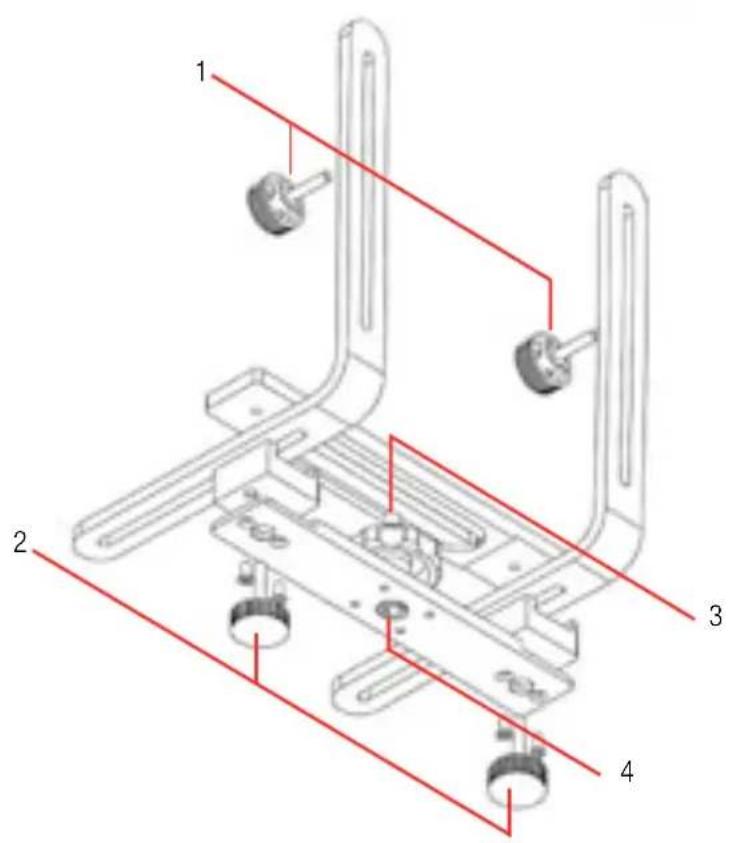

- Locking screw for vertical shift
- Locking screw for horizontal shift
- Screw 1/4" for mounting the camera and for left - right shift
- Thread 1/4" and 3/8" for mounting to a camera tripod
Positioning
The Ringflash can be mounted to a camera tripod by using one of the two threads [4], respectively (1/4" and 3/8", respectively). The camera lens is to be led through the opening of the ring flash and then correctly positioned and carefully fixed by using screw [3]. Then re-mount the rail by screwing both screws [2]. The Ringflash unit can be vertically and horizontally shifted within the slots for precise positioning of the camera by using screws [1], [2] and [3], respectively.

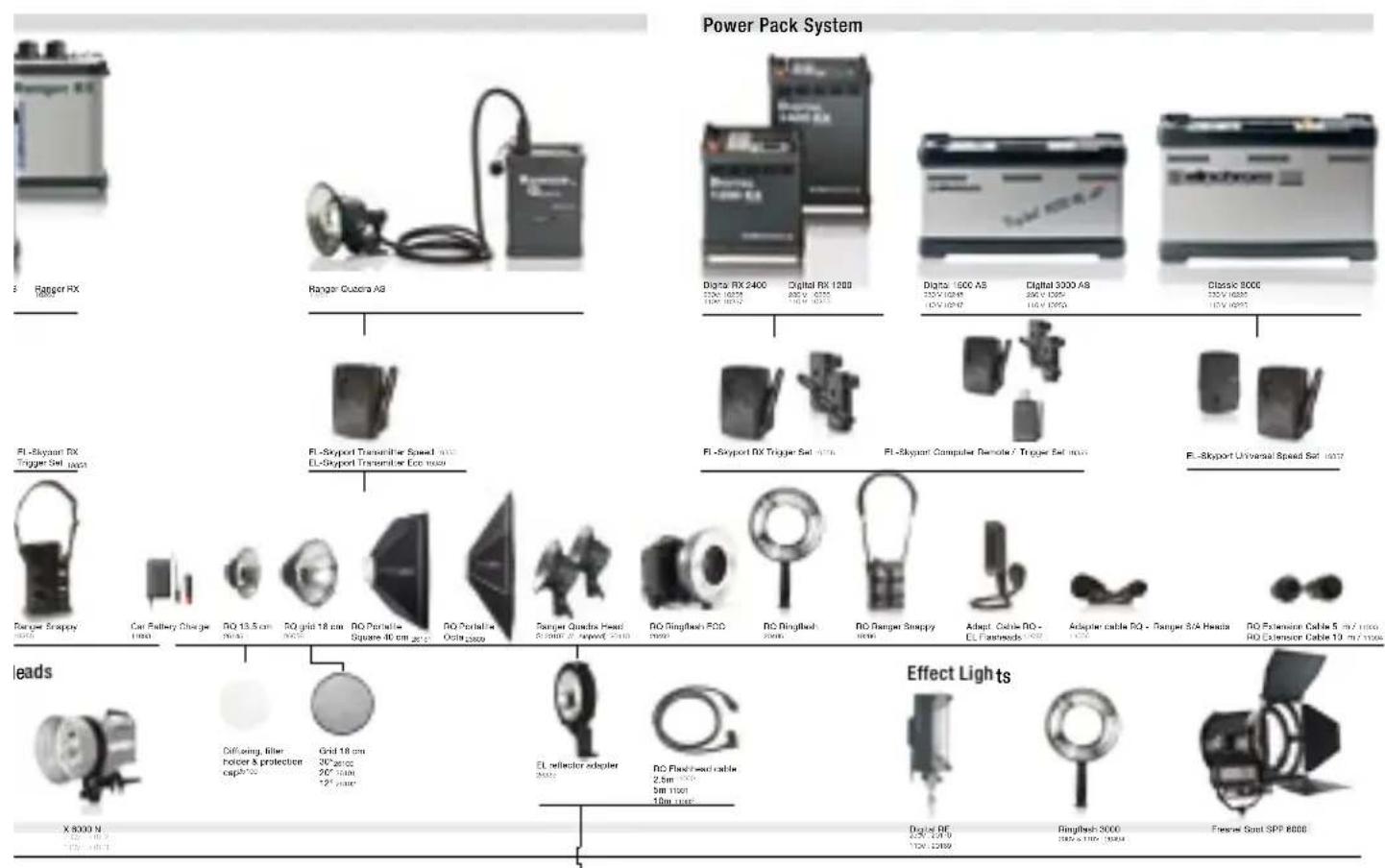

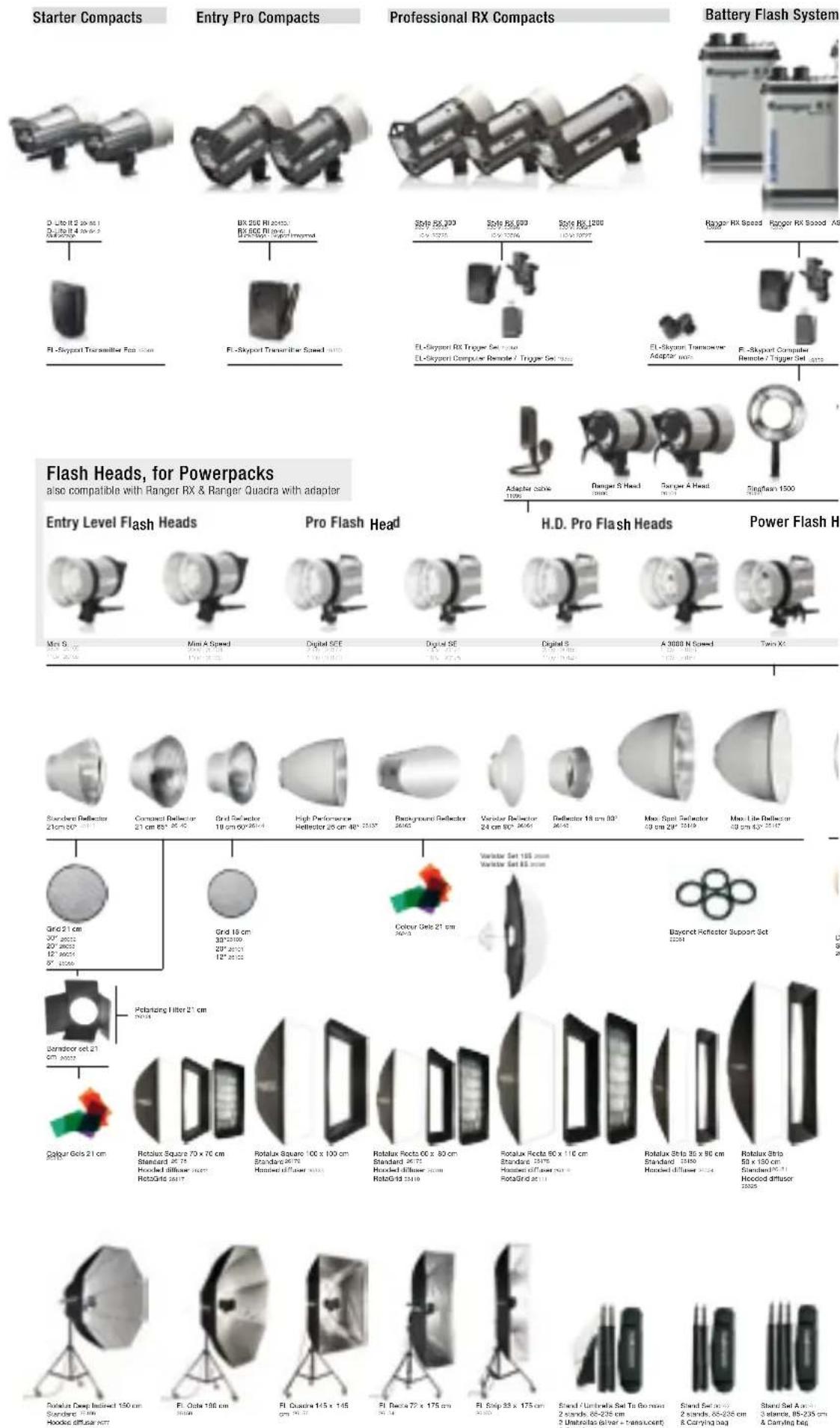

Einleitung 11
Trade name: ELINCHROM
Modellnummer(n): 20492
CH - 1020 Renens / Switzerland
Tel.: +41 21 637 26 77
Fax: +41 21 637 26 81
This ELINCHROM product will be repaired free of charge by the vending agent if during a period of 24 months from date of purchase its working order is impaired through a manufacturing or material defect. The faulty product should be immediately sent to the authorized dealer or ELINCHROM agent. This guarantee is not valid for equipment which has been misused, dismantled, modified, or repaired by persons not belonging to the ELINCHROM distribution network. It does not cover flash tubes, lamps and the normal ageing of capacitors. No responsibilities can be accepted for damage, resulting from unsatisfactory operation of the equipment, such as wasted film or other expenses.
Stand / Umbrellas Set To Go more
2 stands. 88-235 cm
2 Umbrellas (silver + transparent)
8 Carrying bag
Please „register“ your Elinchrom product online under:
In case you cannot register your Elinchrom unit via internet, please fill in the Guarantee card and post it to ELINCHROM.
