Product Type	Powerline Adapter with Wi-Fi Access Point
Brand	TP-Link
Model	TLWPA281
Powerline Technology	HomePlug AV2 (up to 1200 Mbps)
Wi-Fi Bands	Dual band simultaneous 2.4 GHz + 5 GHz
Theoretical Wi-Fi Speed	Up to 300 Mbps (2.4 GHz) + 867 Mbps (5 GHz)
Ethernet Ports	1 Gigabit LAN port
Buttons	Pair (Powerline pairing), Wi-Fi (WPS/configuration), Reset
LED Indicators	Power, Powerline, Wi-Fi 2.4 GHz, Wi-Fi 5 GHz
Pass-through socket	Yes, integrated female socket
Installation	Plug & Play, pairing via Pair button or WPS
Network Security	AES 128-bit encryption, secure pairing
Power Supply	Directly on mains socket (100-240 V, 50/60 Hz)
Power Consumption	Approximately 8 W in operation, less than 0.3 W in standby
Dimensions (W × H × D)	86 × 76 × 53 mm
Weight	Approximately 180 g
Operating Temperature	0 °C to 40 °C
Operating Humidity	10 % to 90 % RH (non-condensing)
Maintenance and Cleaning	Disconnect before cleaning; use a soft dry cloth
Warranty	3 years (limited, subject to TP-Link conditions)
Repairability	No user-serviceable parts; contact customer service
Standards and Certifications	CE, RoHS, 2014/53/EU, 2009/125/EC

Frequently Asked Questions - TLWPA281 TP-LINK

How to reset my TP-Link TLWPA281 Powerline adapter?

Press and hold the Reset button (using a paperclip) for about 10 seconds until all LEDs turn off and then back on. The reset is then complete.

Why don't I have internet access via my Powerline network?

Check that all Powerline adapters are on the same electrical circuit and that the Powerline LED is on. Make sure Ethernet cables are properly connected and that your internet connection works directly on the router.

How to pair a new Powerline adapter to the existing network?

Press the Pair button on an already connected adapter for 1 second (its Powerline LED blinks). Within 2 minutes, press the Pair button on the new adapter for 1 second. The Powerline LED stays solid when pairing is successful.

Can I plug the Powerline adapter into a power strip?

No, plug it directly into a wall socket. If the adapter has a pass-through socket, you can plug the power strip into it, but not another Powerline adapter.

How to copy my router's Wi-Fi settings to the Powerline extender?

Place the extender near the router. Press the WPS button on your router, then within 2 minutes press the Wi-Fi button on the extender for 1 second. The Wi-Fi LEDs blink and then stay on once copying is successful.

What to do if the Powerline LED blinks or is red?

This indicates a poor signal quality. Move the extender to another power outlet, ideally on the same circuit as the main adapter.

How to manually configure Wi-Fi settings?

Log in to the web interface of the extender (via its IP address) or use the tpPLC app available on Apple Store and Google Play.

Can I add multiple Powerline adapters to the same network?

Yes, you can add up to 16 adapters (according to HomePlug standards). Pair them one by one following the Pair procedure.

What if my extender does not reconnect after moving it?

Ensure all adapters are on the same electrical circuit. Re-pair the extender with the main adapter. Check for interference (dryer, air conditioner) nearby.

Is the device compatible with non-TP-Link routers?

Yes, the Powerline adapter works with any router that has an Ethernet port. The WPS function can be used if the router supports WPS (Wi-Fi Protected Setup).

USER MANUAL TLWPA281 TP-LINK

TP-Link Technologies Co., Ltd. South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science

& Technology Park, Shennan Rd, Nanshan, Shenzhen, China

TP-Link UK Limited Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

TP-Link Hellas Ltd. Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-Link is a registered trademark of TP-Link

Technologies Co., Ltd. Other brands and product names are trademarks or registered trademarks of their respective holders.

No part of the specifications may be reproduced in any form or by any means or used to make any

derivative such as transition, transformation, or adaptation without permission from IP-Link Technologies Co. Ltd. Copyright © 2018 IP-Link Technologies Co. Ltd. All rights reserved.

MADE IN CHINA

7106507825 REV2.1.1

tp-link

Quick Installation Guide

Powerline Extender

CONTENTS

01 / Deutsch
05 / English
09 / Español
13 / Ελληνικά
17 / Français
21 / Italiano
25 / Português
29 / Suomi
33 / Nederlands
37 / Svenska
41 / Norsk
45 / Dansk

Deutsch

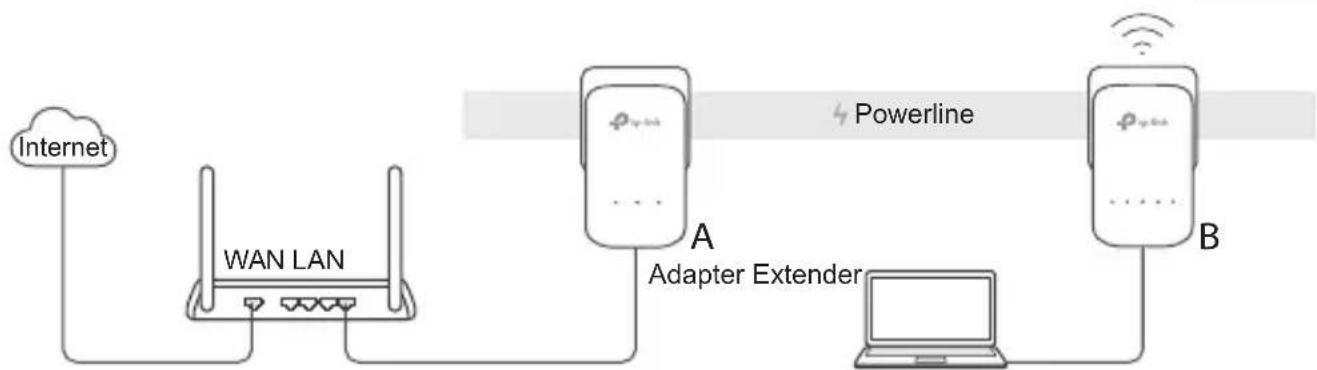


Deutsch

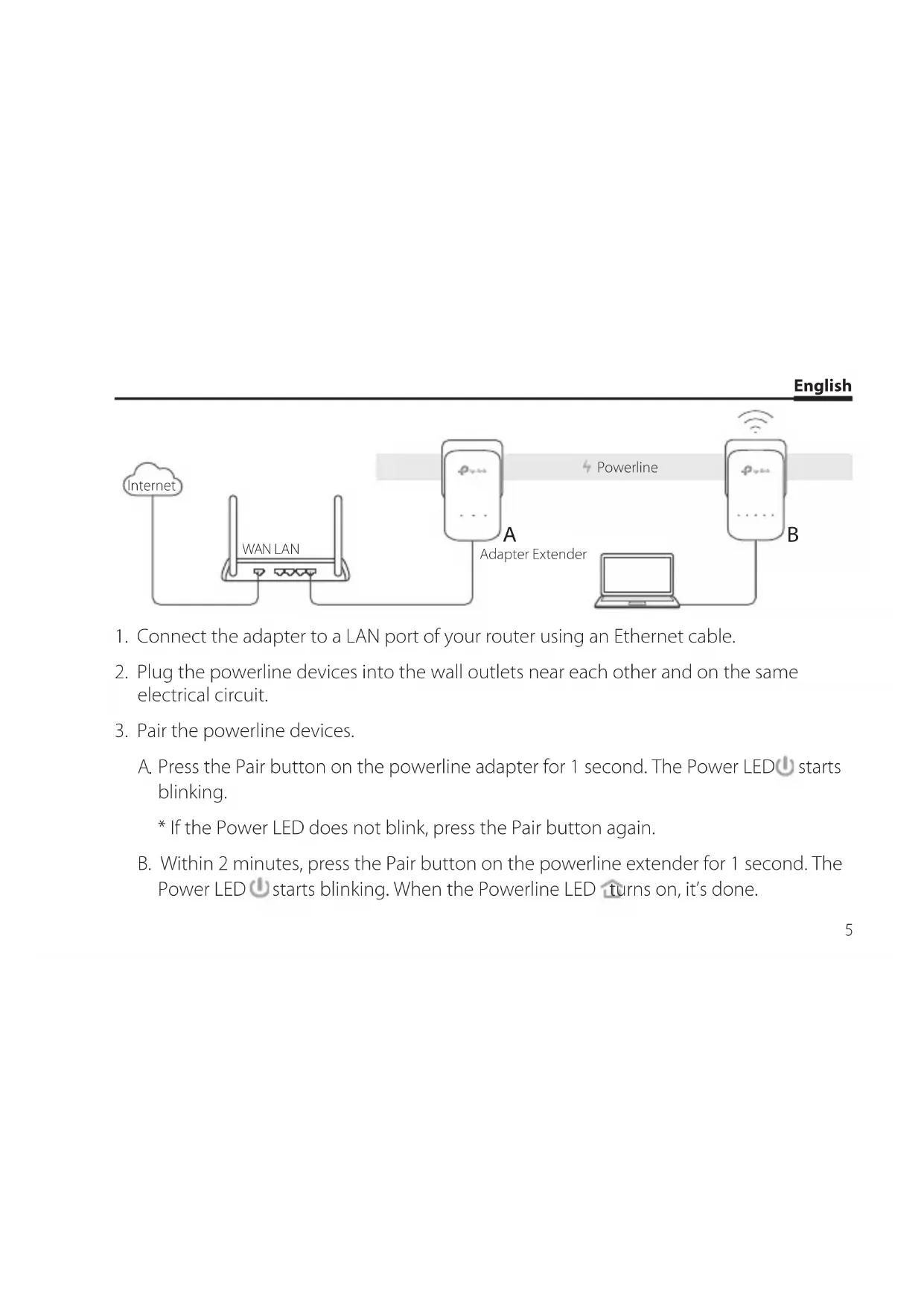

1. Connect the adapter to a LAN port of your router using an Ethernet cable.
2. Plug the powerline devices into the wall outlets near each other and on the same electrical circuit.
3. Pair the powerline devices.

A. Press the Pair button on the powerline adapter for 1 second. The Power LED starts blinking.

* If the Power LED does not blink, press the Pair button again.

B. Within 2 minutes, press the Pair button on the powerline extender for 1 second. The Power LED ⏻ starts blinking. When the Powerline LED turns on, it's done.

English

1. Relocate the powerline extender to a new location. Connect to the Wi-Fi using the SSID and password on the product label.

* A blinking or red Powerline LED 🔒 indicates poor signal strength. Move the extender to another location.

1. Enjoy!

Tips: You can add more powerline devices to the existing powerline network by pairing these devices.

Attention

- Plug the powerline devices directly into the wall outlets but not the power strips.

- For passthrough powerline devices, plug the power strips into the integrated electrical sockets of the powerline devices.

Copy Wi-Fi Settings from Router to Extender

If your router supports WPS, you can follow the steps below to automatically copy the router's Wi-Fi settings (SSID and password) to the powerline extender.

1. Plug in the powerline extender near your router. Press the WPS button on your router.
2. Within 2 minutes, press the Wi-Fi button on the extender for 1 second.
3. When the 2.4GHz Wi-Fi LED and 5GHz Wi-Fi LED on the extender blink quickly for 3 seconds, and then stay on, it's done!

* 5GHz Wi-Fi is not available on single-band products. For multiple-band products, the powerline extender copies by default both 2.4GHz and 5GHz wireless settings at the same time. If it fails to copy both, your router may be only able to clone one band at a time. Please check your router's manual for support.

Note: The wireless settings can also be configured through the powerline extender's web interface or through the tpPLC app. You can download the app from the App Store or Google Play, or simply scan the QR code.

English

FAQ (Frequently Asked Questions)

Q1. How do I reset my powerline extender?

A. With the extender powered on, press and hold the Reset button (use a pin if it is a hole) until all LEDs turn off. When all LEDs turn on again, the reset process is complete.

Q2. How to troubleshoot if there is no internet connection in my powerline network?

A1. Make sure all adapters and extenders are on the same electrical circuit.

A2. Make sure all Powerline LEDs 📋 are on. If not, pair your adapters and extenders again.

A3. Make sure all hardware connections are correctly and securely connected.

A4. Check if you have an internet connection by connecting the computer directly to the modem or router.

Q3. What can I do if a successfully-paired extender does not reconnect after being relocated?

A1. Make sure all powerline devices are on the same electrical circuit.

A2. Pair it again with another adapter or extender, and make sure the Powerline LED is on before relocating it.

A3. Check for possible interference, such as washers, air conditioners or other household appliances that may be too close to one of the powerline adapters or extenders.

Español

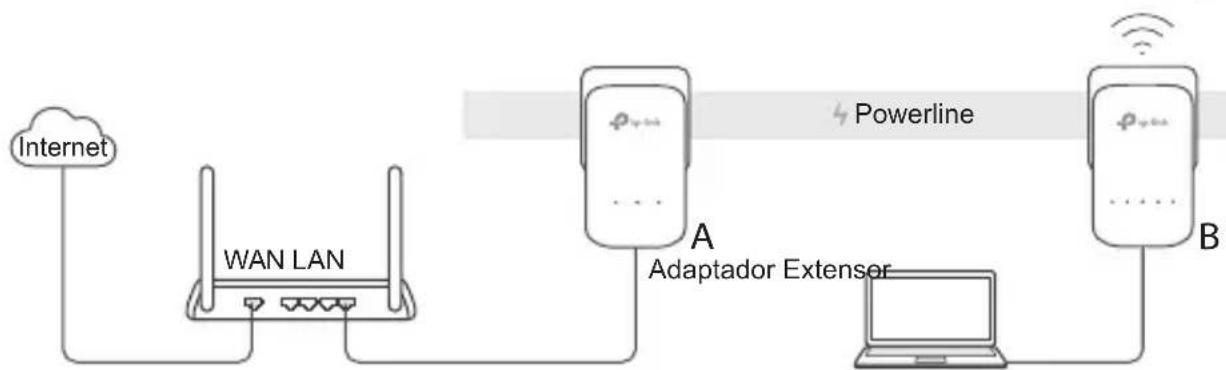


Español

Français

Italiano

Domande Frequenti

Português

FAQ (Perguntas Frequentes)

Suomi

Svenska

Norsk

Dansk

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2009/125/EC and 2011/65/EU.

The original EU declaration of conformity may be found at http://www.tp-link.com/en/ce.

Español

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device.
• Do not use the device where wireless devices are not allowed.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• For passthrough devices, plug the power strips into the integrated electrical sockets of the devices, but devices of the same or another type not be stacked in normal use.
• Plug the powerline devices directly into the wall outlets but not the power strips.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Three Years Limited Product Warranty

For TP-Link Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for a period of THREE YEARS form the date of original retail purchase by the end-user purchaser.
