USER MANUAL 10x25 mm CamLink

Black DAX LINK binoculars with visible lens and screen (no text or symbols on the device itself)

Type: CL-LANGHAM825

CL-LANGHAM1025

Document version: 1

Panoramic black-and-white landscape photo of snow-capped mountains and forested terrain under cloudy skies (no text or symbols)

• GB	-	Nitrogen-Filled Waterproof Binoculars	-	User manual	3
• DE	-	Stickstoffgefülltes, wasserdichtes Fernglas	-	Bedienungsanleitung	5
• FR	-	Jumelles étanches remplies d'azote	-	Manuel de l'utilisateur	7
• NL -		Waterbestendige met Stikstof Gevulde Verrekijker	-	Gebruikershandleiding	9
• ES	-	Prismáticos impermeables rellenos de nitrógeno	-	Manual de Usuario	11
• IT	-	Binocolo impermeabile riempito con azoto	-	Manuale Utente	13
• FI	-	Typellä täytetyt vesitiiviit kiikarit	-	Käyttöopas	15
• SE	-	Kvävefyllda vattentäta kikare	-	Bruksanvisning	17
• NO	-	Nitrogen-Filled Waterproof Binoculars	-	Brukermanual	19
• DK	-	Kvælstoffyldt vandtæt kikkert	-	Brugervejledning	21
• CZ	-	Dalekohled plněný dusíkem	-	Návod k použití	23
• HU	-	Nitrogénnel töltött vízálló távcső	-	Használati útmutató	25
• GR	-	Aðiáβροχα κιάλια γεμισμένα με άζωτο	-	Εγχειρίδιο Χρήστη	27
• RO	-	Binoclu impermeabil umplut cu azot	-	Manual de instructiuni	29
• RU	-	Азото наполненный влагозащитный бинокль	-	Руководство пользователя	31

CAMLINK

Nedis B.V., part of the Nedis Group

De Tweeling 28

5215 MC 's-Hertogenbosch

The Netherlands

Tel: [phone]

Fax: [phone]

Web: www.nedis.com or www.nedis.nl

© Any unauthorised use of the information in this manual is prohibited. No part of this manual may be reproduced, stored in a database or retrieval system, or published, in any form or in any way, electronically or mechanically, by print, photocopy, microfilm or by any other means without the express written permission of NEDIS.

CAMLINK

GB – English

Introduction

These binoculars are designed and built using the latest waterproof and anti-fogging technology. Integral O-ring seals give complete moisture protection. Dry nitrogen filling of the binoculars also prevents the internal optics from fogging.

Package contents:

• Binoculars
• Carry case
• Camera strap
• Manual

CAUTION

DO NOT LOOK DIRECTLY AT THE SUN THROUGH YOUR BINOCULARS TO AVOID SEVERE EYE DAMAGE.

Technical specifications

CL-LANGHAM825

Type: 8 x 25

Magnification: 8x

Objective lens diameter: 25 mm

Type of prism: BaK-4 Roof Prism

Lens coating: Fully coated, broad band multicoated objective lens

View angle: 6.4°

Field of view at 1000 m: 115 m

Field of view at 1000 yd: 345 ft

Exit pupil: 3.1 mm

Minimum focal length: 5 m

Dioptre adjustment length:+-5

Weight: 344 g

CL-LANGHAM1025

Type: 10 x 25

Magnification: 10x

Objective lens diameter: 25 mm

Type of prism: BaK-4 Roof Prism

Lens coating: Fully coated, broad band multicoated objective lens

View angle: 5.3°

Field of view at 1000 m: 96 m

Field of view at 1000 yd: 288 ft

Exit pupil: 2.5 mm

Minimum focal length: 5 m

Dioptre adjustment length:+-5

Weight: 346 g

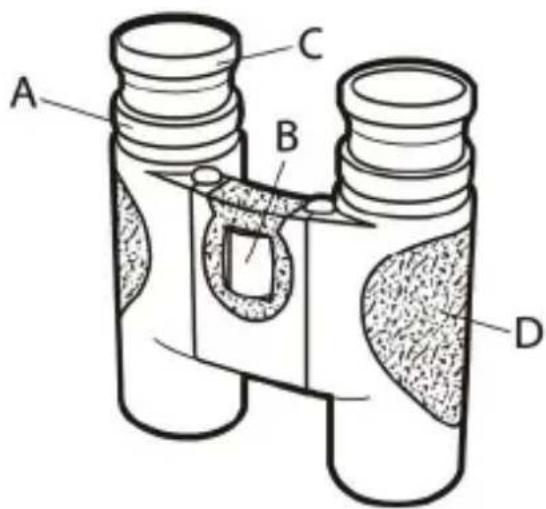

User instructions

A C B D

A: Diopter adjustment

B: Focus wheel

C: Twist up eye cups

D: Textured grip

CAMLINK

How to adjust the binoculars to your eyes

The distance between the eyes, which is called the interpupillary distance, varies from person to person.

To achieve perfect alignment of the binocular's lenses to your eyes, follow these simple steps:

1. Hold your binoculars in the normal viewing position.
2. Grasp each barrel firmly. Gently move the barrels closer together or further apart until you see a single circular field. Note the settings for future use.

How to adjust for individual eye strength

As individual eyesight varies from one person to another, there is a dioptre ring that allows you to fine-tune the binoculars to your vision as described below:

1. Adjust interpupillary distance as described above.
2. Set the dioptre setting to zero and view a distant object.
3. Keep both eyes open at all times.
4. Using a lens cap, cover the right front objective lens (the side with the dioptre ring).
5. Adjust the central focus wheel to focus on a distant object with fine detail (e.g. brick wall, tree branches etc.) until it appears as sharp as possible.
6. Uncover the right objective lens and cover the left objective lens, then view the same object.
7. Turn the dioptre ring until the object is as sharp as possible. Do not try to force the dioptre ring beyond its stop position as this may damage it.
8. Your binoculars should now be adjusted to your eyes. Simply turn the central focus wheel to focus the binoculars to any distance. Make a note of the dioptre setting for your eyes for future use.

Eyecups (for spectacles/sunglasses users)

Make sure the eyecups are in the twist-down position if you wear spectacles. This will bring your eyes closer to the binoculars' lenses to improve your field of view.

Maintenance

Caring for your binoculars

1. Always store your binoculars with eyecups extended. This avoids excessive stress and wear and tear on the eyecups when folded down.

2. Do not drop the binoculars.

3. Store in a cool and dry place.

Cleaning

1. Blow away any loose dust or debris on the lens (or use a soft lens brush).
2. To remove dirt or finger prints, clean gently with a good quality soft lens cloth. An unsuitable cloth or unnecessary rubbing may scratch the lens surface and eventually cause permanent damage. A microfibre cleaning cloth (available at most photo dealers) is ideal for routine cleaning of the optical surfaces.

For a more thorough cleaning, photographic lens tissue and photographic-type lens cleaning fluid or isopropyl alcohol may be used. Always apply cleaning fluid to the cleaning cloth - never directly to the lens.

Warranty

No guarantee or liability can be accepted for any changes and modifications of the product or damage caused due to incorrect use of this product.

Disclaimer

Designs and specifications are subject to change without notice.

All logos brands and product names are trademarks or registered trademarks of their respective holders and are hereby recognised as such. Keep this manual and packaging for future reference.
