SENSUIJ SM2200 - Massage device IMETEC - Free user manual and instructions

USER MANUAL SENSUIJ SM2200 IMETEC

Instructions for Use

SEDILE MASSAGGIANTE

SEDILE MASSAGGIANTE

ASIENTO MASAJEADOR

ASSENTO MASSAGEANTE

MASAŽNA BLAZINA ZA SEDEŽ

МАСАЖИРАЩО КРЕСЛО

ΚΑΘΙΣΜΑ ΜΑΣΑΖ

SIEGE MASSANT

МАССАЖНОЕ КРЕСЛО

MASSAGE SEAT

IMETEC

IT pagina 1

ES página 6

PT página 11

SL stran 16

BG страница 21

EL σελίδα 26

FR page 31

RU страница 36

EN page 41

TA6

Technical diagram of a medical device with numbered parts for identification and assembly reference.

TYPE G0201

In: 12V --- 3A

MANUALE DI ISTRUZIONI PER L'USO DEL MASSAGGIATORE

PROBLEMAS[E[SOLUÇÕES

ASSISTÊNCIA E GARANTIA

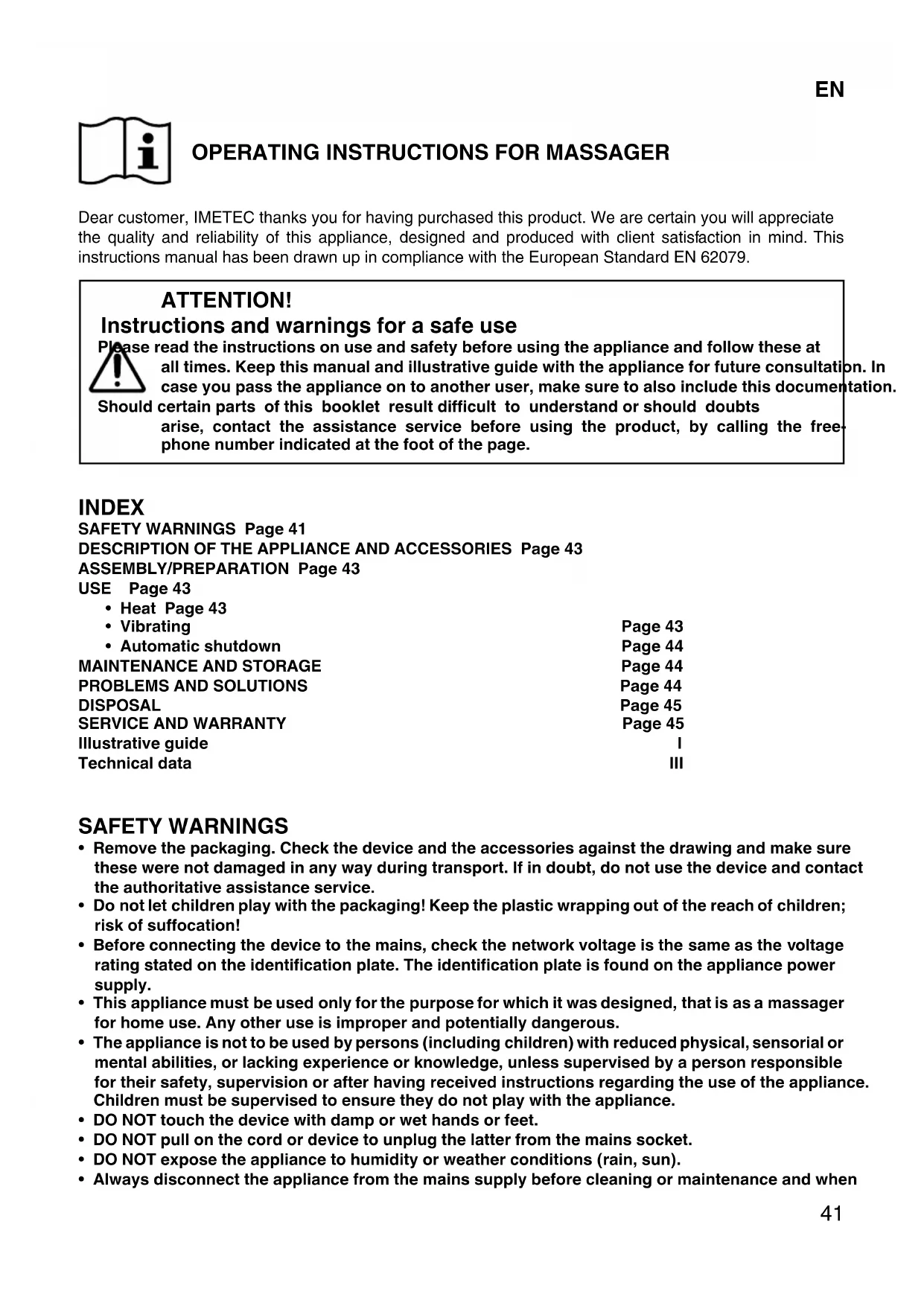

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and produced with client satisfaction in mind. This instructions manual has been drawn up in compliance with the European Standard EN 62079.

ATTENTION!

Instructions and warnings for a safe use

Please read the instructions on use and safety before using the appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. In case you pass the appliance on to another user, make sure to also include this documentation.

Should certain parts of this booklet result difficult to understand or should doubts arise, contact the assistance service before using the product, by calling the free-phone number indicated at the foot of the page.

INDEX

SAFETY WARNINGS Page 41

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES Page 43

ASSEMBLY/PREPARATION Page 43

USE Page 43

• Heat Page 43
• Vibrating Page 43
  • Automatic shutdown Page 44

MAINTENANCE AND STORAGE Page 44

PROBLEMS AND SOLUTIONS Page 44

DISPOSAL Page 45

SERVICE AND WARRANTY Page 45

Illustrative guide

Technical data III

SAFETY WARNINGS

• Remove the packaging. Check the device and the accessories against the drawing and make sure these were not damaged in any way during transport. If in doubt, do not use the device and contact the authoritative assistance service.
• Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
• Before connecting the device to the mains, check the network voltage is the same as the voltage rating stated on the identification plate. The identification plate is found on the appliance power supply.
• This appliance must be used only for the purpose for which it was designed, that is as a massager for home use. Any other use is improper and potentially dangerous.
• The appliance is not to be used by persons (including children) with reduced physical, sensorial or mental abilities, or lacking experience or knowledge, unless supervised by a person responsible for their safety, supervision or after having received instructions regarding the use of the appliance. Children must be supervised to ensure they do not play with the appliance.
• DO NOT touch the device with damp or wet hands or feet.
• DO NOT pull on the cord or device to unplug the latter from the mains socket.
• DO NOT expose the appliance to humidity or weather conditions (rain, sun).
  • Always disconnect the appliance from the mains supply before cleaning or maintenance and when

EN

the appliance is not in use.

• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• If the cable is damaged, it must be replaced by a cable or special unit available at authorised Technical Assistance Centres.
• Always disconnect the appliance from the mains supply before cleaning or maintenance and when the appliance is not in use.
• Never submerge the appliance in water or other liquids.
• Do not use the product under blankets or pillows or in combination with electric blankets and /or electric heating pads.
• Avoid contact with pointed or sharp objects which can damage the appliance.
• Do not crush the product, do not fold it and do not use it outdoors.

ATTENTION!

BEFORE USING THIS APPLIANCE:

• If doubtful for health reasons, seek Doctor's advice before use. Above all in the event of:
  a) blood circulation problems or reduced skin sensitivity;
  b) presence of serious illness or following an operation;
  c) presence of colds with fever, varicose veins, thrombosis, vein inflammation, jaundice, diabetes, nerve related illnesses (such as sciatica), tuberculosis, tumours, haemorrhoids, bruises or acute inflammations.
• The appliance is not recommended for use by carriers of pacemakers, implants and other similar devices, by pregnant women, with pain of an unknown nature.
• Do not use the appliance in the following cases:
  a. on animals;
  b. in the presence of disc hernias or pathological conditions of the spinal cord;
  c. in the presence of illnesses of the cardio-circulatory system and headache;
  d. in the presence of swelling, burns, open wounds, fresh wounds, haematomas, haemorrhages, or other injuries on the back or legs;
  e. during sleep;
  f. after taking medicine or consumed alcohol or drugs.
• Do not use for longer than the recommended periods. After 15 minutes of treatment it is advisable to rest for at least 20 minutes.
• The appliance is designed exclusively for home use and must not be used for professional and/or medical purposes.
• The appliance has a heated surface. Persons insensitive to heat must be careful when using the appliance.

ATTENTION!

The massage must always give pleasure and relaxation. Change position or stop the massage if feeling pain or discomfort. Never rest against the massaging heads when you change the position of the body or of the pillow.

Do not insert or block any type of object or fingers between the rotating massaging heads and their supports.

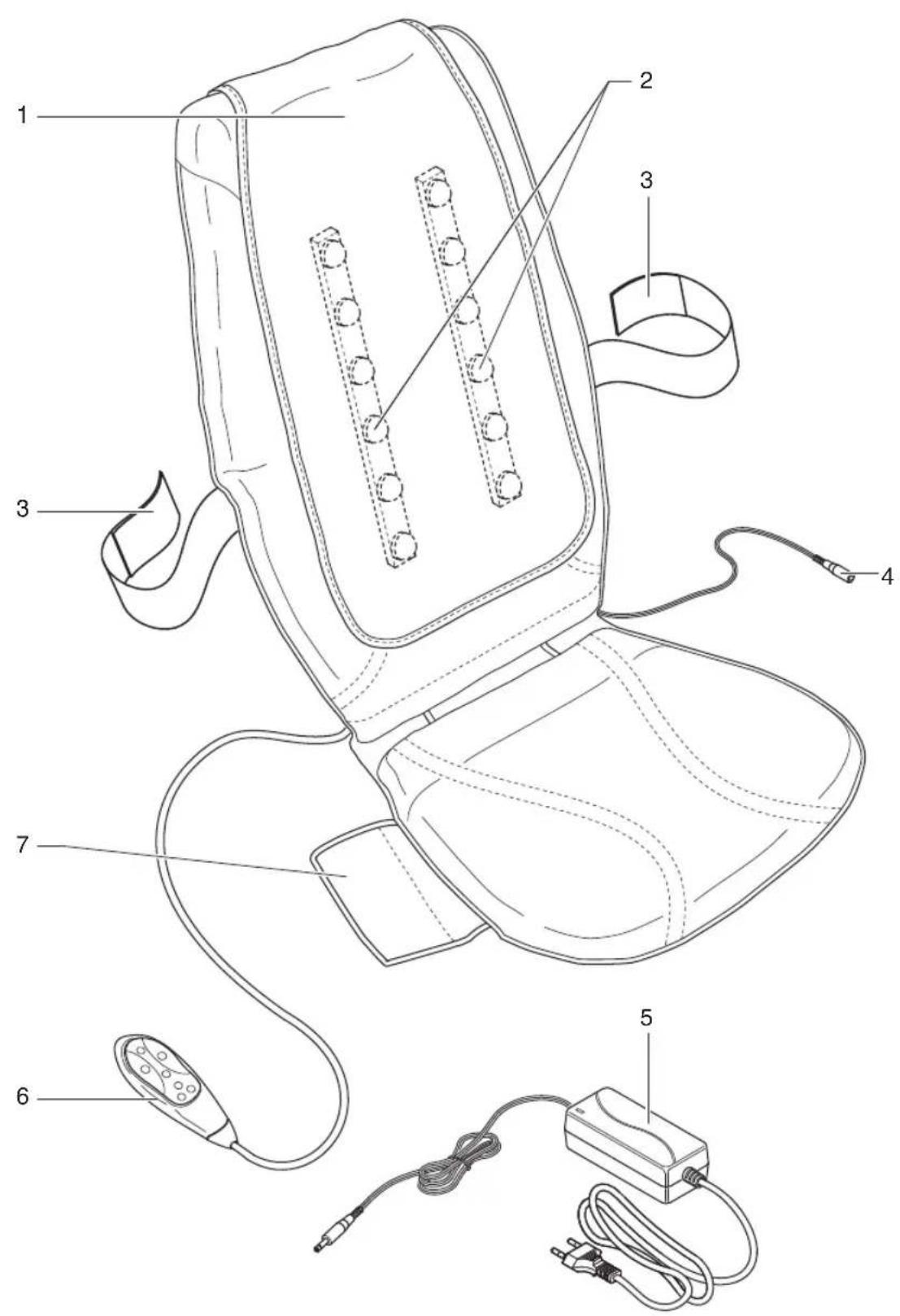

DESCRIPTION[OF[THE[APPLIANCE[AND[ACCESSORIES](fig.[A])

1. removable pillow
2. back rotating massaging heads
3. securing straps
4. connectors
5. mains power supply with connector
6. control
7. control sleeve pocket

ASSEMBLY/PREPARATION

• Unpack the product and remove the stops used for transport.
• Check that it is integral and undamaged.
• The massager is supplied with Velcro securing straps making it possible to adapt it to the majority of chairs available on the market. Pass the two straps (3) behind the chair back and secure them to each other using the Velcro. If you prefer, simply rest the massager on your chair or armchair. Do not use it on wooden surfaces as they may be damaged.

ATTENTION]

assager[is[unsuitable[for[use[in[a]car.

• Connect the transformer to the massager via the specific connectors (4).
• Connect the product to the domestic mains.

USE

• Press the POWER button once to turn the massager on.
• Press the Ⓤ key for a massage with clockwise movement.
• Or else press the Ⓤ key for a massage with anti-clockwise movement.
• Press the EXTRA SOFT" button if wanting a soft and slow moving massage.
• Press the SOFT button if wanting a massage with greater intensity.

HEAT: heating function.

- Press the HEAT button to activate heat during the massage.

- Press it again to deactivate it.

VIBRATING: vibrating massage buttock area

Press the VIBRATING button to activate the vibrating massage in the sitting area. The seat will vibrate at minimum level and the LED next to the letter (L) Low vibrating level will switch-on. To increase intensity to (M) Medium vibrating level, press the key again, the corresponding LED will switch-on.

Finally, to pass to (H) High vibrating level, press the key again.

To deactivate the massage press the VIBRATING key after the (H) High level again.

- Press POWER again to turn the massager off.

Remove the pillow if wanting a more intense massage.

If wanting a more delicate massage, use a towel as well as the pillow.

EN

AUTOMATIC[SHUTDO _II N

The massager turns itself off automatically after 15 minutes. This function does not replace the normal turning off of the product, which must be off when not in use.

When the product is switched off, the massaging mechanism always returns to "LOWER" position. When switched on again, the massage starts from this position.

Disconnect the plug after use.

Always disconnect the appliance from the mains supply before cleaning or maintenance and when the appliance is not in use.

The massager can be cleaned with a soft slightly damp cloth. It is also possible to use a light detergent.

Keep the massaging appliance out of children's reach in a cool dry place.

PROBLEMS[AND[SOLUTIONS

These appliances are built with the highest standards. No parts can be repaired by the user. If the appliance does not work, follow the solutions.

Problem[Possible[cause]Solution
The appliance makes noise during use.	This is evitable, but the appliance is not faulty.	It does not affect the duration of the appliance.
Noise during the massage grows.	Has it been used for too long without interruption?	Turn the appliance off and have it rest for over an hour.
Irregular right or left movements of massager mechanism.	It is structural. It is not an alteration.
It does not move or else it stops during the massage.	Has it switched off because of the timer?	Press the start button again.
	Is the plug still in the socket?	Insert the plug in the socket.
	Is the switch on? Turn the appliance on.
	Has the appliance turned off for excessive weight?	Remove the weight and wait a few minutes. The appliance will turn back on.

If other situations not included above should occur, pull out the plug, wait a few minutes, put the plug back in and turn the appliance back on.

Should the appliance keep on having problems, contact the authorised assistance centre.

DISPOSAL

The product packaging consists of recyclable materials. Dispose of it in compliance with the environmental protection standards.

The product must be disposed of properly, in accordance with the provisions of European standard 2002/96/EC. The device is made of recyclable materials that can be re-used to avoid environmental pollution. For further information, contact the local disposal body or the appliance dealer.

SERVICE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's customer assistance service by calling the free-phone number below (only in Italy) or consulting the website. The appliance is covered by the manufacturer's warranty. For details, read the attached warranty sheet.

Failure to comply with the use and maintenance instructions provided in this user manual will invalidate all and any rights to the manufacturer's warranty.
