SENSUIJ MC1200 - Massage device IMETEC - Free user manual and instructions

Product type	Shoulder and neck massager
Brand	Imetec
Model	SENSUIJ MC1200
Power supply	Mains adapter (100-240 V~, 50/60 Hz)
Massage functions	Shiatsu (kneading) and Stone (vibration)
Heating function	Yes (HEAT)
Automatic shut-off	After 15 minutes
Number of massage heads	2 (rotating heads)
Massage modes	2 combinable modes (Shiatsu + Stone)
Manual control	Yes (POWER switch and SHIATSU/STONE/HEAT buttons)
Maintenance	Soft slightly damp cloth, mild detergent
Cleaning	Unplug before cleaning, do not immerse
Safety	Not recommended for people with pacemakers, pregnant women, etc.
Warranty	Manufacturer's warranty (see attached sheet)
After-sales service	Authorized center, Toll-free number

Frequently Asked Questions - SENSUIJ MC1200 IMETEC

How to use the SENSUIJ MC1200 massager?

Place the massager on your shoulders, pull the straps for a better grip, then press the POWER button to turn it on. Select the desired massage mode (SHIATSU or STONE) and optionally the HEAT heating function.

How to clean the device?

Always unplug the device before cleaning. Use a soft slightly damp cloth, possibly with a mild detergent. Never immerse the device in water.

What types of massage does the device offer?

The device offers two types of massage: SHIATSU (cervical kneading) and STONE (vibration). They can be used simultaneously.

Can I use the heating function alone?

No, the HEAT function can only be activated after starting a massage (SHIATSU or STONE).

Does the device shut off automatically?

Yes, the device automatically shuts off after 15 minutes of use. This function does not replace manual shutdown.

What to do if the device makes noise?

Some noise is normal and does not affect the lifespan. If the noise increases, the device may have been used too long without a break. Turn it off and let it rest for more than an hour.

Can I use the device if I have a pacemaker?

No, use is not recommended for people with pacemakers, implants, or other similar devices.

Is the device suitable for pregnant women?

No, use is not recommended for pregnant women.

How to connect the device?

Connect the transformer connector to the massager, then plug the power supply into a household mains socket. Do not use on board a vehicle.

What to do if the device does not work?

Check that the plug is properly inserted, that the switch is on, and that the timer has not stopped the device. If the problem persists, contact an authorized service center.

USER MANUAL SENSUIJ MC1200 IMETEC

Instructions for Use

MASSAGGIATORE CERVICALE

MASSAGGIATORE CERVICALE

MASAJEADOR CERVICAL

MASSAGEADOR CERVICAL

MASAŽNA BLAZINA ZA VRAT

МАСАЖОР ЗА ШИЯТА

Line drawing of a connected electronic device with labeled parts (no text or symbols beyond labels)

Line drawing of a person seated in a car seat, wearing a medical device (no text or symbols)

TYPE H3601

In: 12V--- 2,5A

MANUALE DI ISTRUZIONI PER L'USO DEL MASSAGGIATORE

Tel. +39.035.688.111 Fax +39.035.320.149

Tel. +39.035.688.111 Fax +39.035.320.149

(人人MIN) 0180 0810 (MINY) MI000386

MANUAL DE INSTRUÇÕES DE USO DO MASSAGEADOR

PROBLEMAS E SOLUÇÕES

ELIMINAÇÃO

ASSISTÊNCIA E GARANTIA

Guia ilustrado

Dados técnicos

Pág. 12

Pág. 12

Pág. 12

I-II

III

ADVERTÊNCIAS DE SEGURANÇA

PROBLEMAS E SOLUÇÕES

ASSISTÊNCIA E GARANTIA

Tel. +39.035.688.111 Fax +39.035.320.149

(人人MIN) 0810 (MINY) MI000386

PRIROČNIK Z NAVODILI ZA UPORABO MASAŽNE BLAZINE

Tel. +39.035.688.111 Telefaks +39.035.320.149

(人人WW) 0180 0810 (MINN)

Tel. +39.035.688.111 Fax +39.035.320.149

Tηλ. +39.035.688.111 Φαξ +39.035.320.149

(人人MIN) 0180 0810 (MINY) MI000386

MANUEL D'INSTRUCTIONS POUR L'UTILISATION DU COUSSIN MASSEUR

(人人WW) 0180 0810 (MINN) 98000W

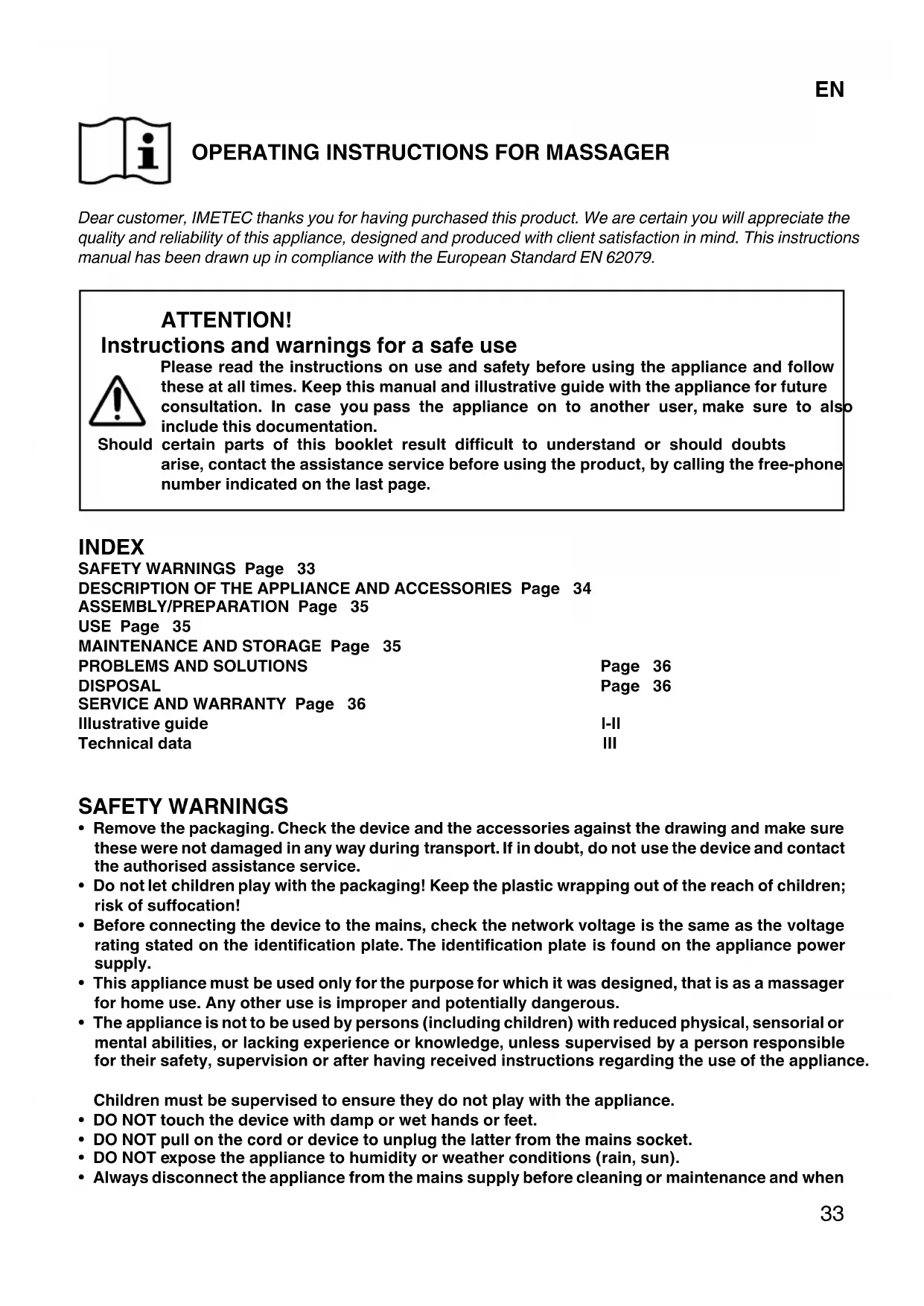

OPERATING INSTRUCTIONS FOR MASSAGER

Dear customer, IMETEC thanks you for having purchased this product. We are certain you will appreciate the quality and reliability of this appliance, designed and produced with client satisfaction in mind. This instructions manual has been drawn up in compliance with the European Standard EN 62079.

ATTENTION!

Instructions and warnings for a safe use

Should

Please read the instructions on use and safety before using the appliance and follow these at all times. Keep this manual and illustrative guide with the appliance for future consultation. In case you pass the appliance on to another user, make sure to also include this documentation.

certain parts of this booklet result difficult to understand or should doubts arise, contact the assistance service before using the product, by calling the free-phone number indicated on the last page.

INDEX

SAFETY WARNINGS Page 33

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES Page 34

ASSEMBLY/PREPARATION Page 35

USE Page 35

MAINTENANCE AND STORAGE Page 35

PROBLEMS AND SOLUTIONS

Page 36

DISPOSAL

Page 36

SERVICE AND WARRANTY Page 36

Illustrative guide

I-II

Technical data

III

SAFETY WARNINGS

• Remove the packaging. Check the device and the accessories against the drawing and make sure these were not damaged in any way during transport. If in doubt, do not use the device and contact the authorised assistance service.
• Do not let children play with the packaging! Keep the plastic wrapping out of the reach of children; risk of suffocation!
• Before connecting the device to the mains, check the network voltage is the same as the voltage rating stated on the identification plate. The identification plate is found on the appliance power supply.
• This appliance must be used only for the purpose for which it was designed, that is as a massager for home use. Any other use is improper and potentially dangerous.
• The appliance is not to be used by persons (including children) with reduced physical, sensorial or mental abilities, or lacking experience or knowledge, unless supervised by a person responsible for their safety, supervision or after having received instructions regarding the use of the appliance.

Children must be supervised to ensure they do not play with the appliance.

• DO NOT touch the device with damp or wet hands or feet.
• DO NOT pull on the cord or device to unplug the latter from the mains socket.
• DO NOT expose the appliance to humidity or weather conditions (rain, sun).
  • Always disconnect the appliance from the mains supply before cleaning or maintenance and when

EN

the appliance is not in use.

• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• If the cable is damaged, it must be replaced by a cable or special unit available at authorised Technical Assistance Centres.
• If the power cable is damaged it must be replaced by a technical after-sales service centre, so as to prevent all risks.
• Never submerge the appliance in water or other liquids.
• Do not use the product under blankets or pillows or in combination with electric blankets and /or electric heating pads.
• Avoid contact with pointed or sharp objects which can damage the appliance.
• Do not crush the product, do not fold it and do not use it outdoors.
• If doubtful for health reasons, seek Doctor's advice before use. Above all in the event of:

a. blood circulation problems or reduced skin sensitivity;
b. presence of serious illness or following an operation;
c. presence of colds with fever, varicose veins, thrombosis, vein inflammation, jaundice, diabetes, nerve related illnesses (such as sciatica), tuberculosis, tumours, haemorrhoids, bruises or acute inflammations.

• The appliance is not recommended for use by carriers of pacemakers, implants and other similar devices, by pregnant women, with pain of an unknown nature.
• Do not use the appliance in the following cases:

a. on animals;
b. in the presence of disc hernias or pathological conditions of the spinal cord;
c. in the presence of illnesses of the cardio-circulatory system and headache;
d. in the presence of swelling, burns, open wounds, fresh wounds, haematomas, haemorrhages, or other injuries on the back or legs;
e. during sleep;
f. after taking medicine or consumed alcohol or drugs.

• Do not use for longer than the recommended periods. After 15 minutes of treatment it is advisable to rest for at least 20 minutes.
• The appliance is designed exclusively for home use and must not be used for professional and/or medical purposes.

ATTENTION!

The massage must always give pleasure and relaxation. Change position or stop the massage if feeling pain or discomfort.

Never rest against the massaging heads when you change the position of the body or of the pillow.

Do not insert or block any type of object or fingers between the rotating massaging heads and their supports.

DESCRIPTION OF THE APPLIANCE AND ACCESSORIES (fig. A)

1. massaging heads
2. control
3. laces

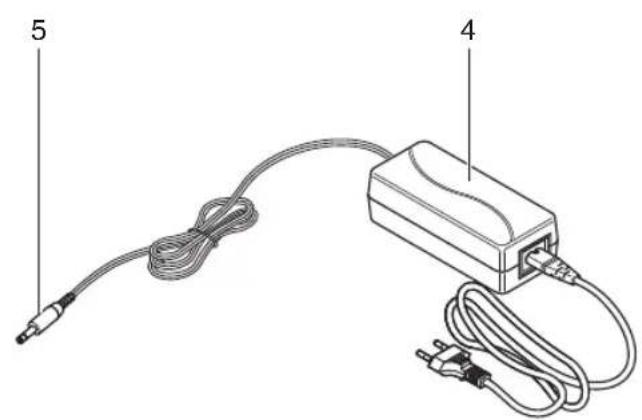

4. mains power supply with connector
5. connector

ASSEMBLY/PREPARATION[

• Unpack the product.
• Check that it is integral and undamaged.
• Connect the transformer to the massager pillow: insert connector (5) into connector socket.
• Connect the mains power supply (4) to the domestic mains.

ATTENTION]

[The]massager[pillow]is[unsuitable]for[use[in]a[car.

USE

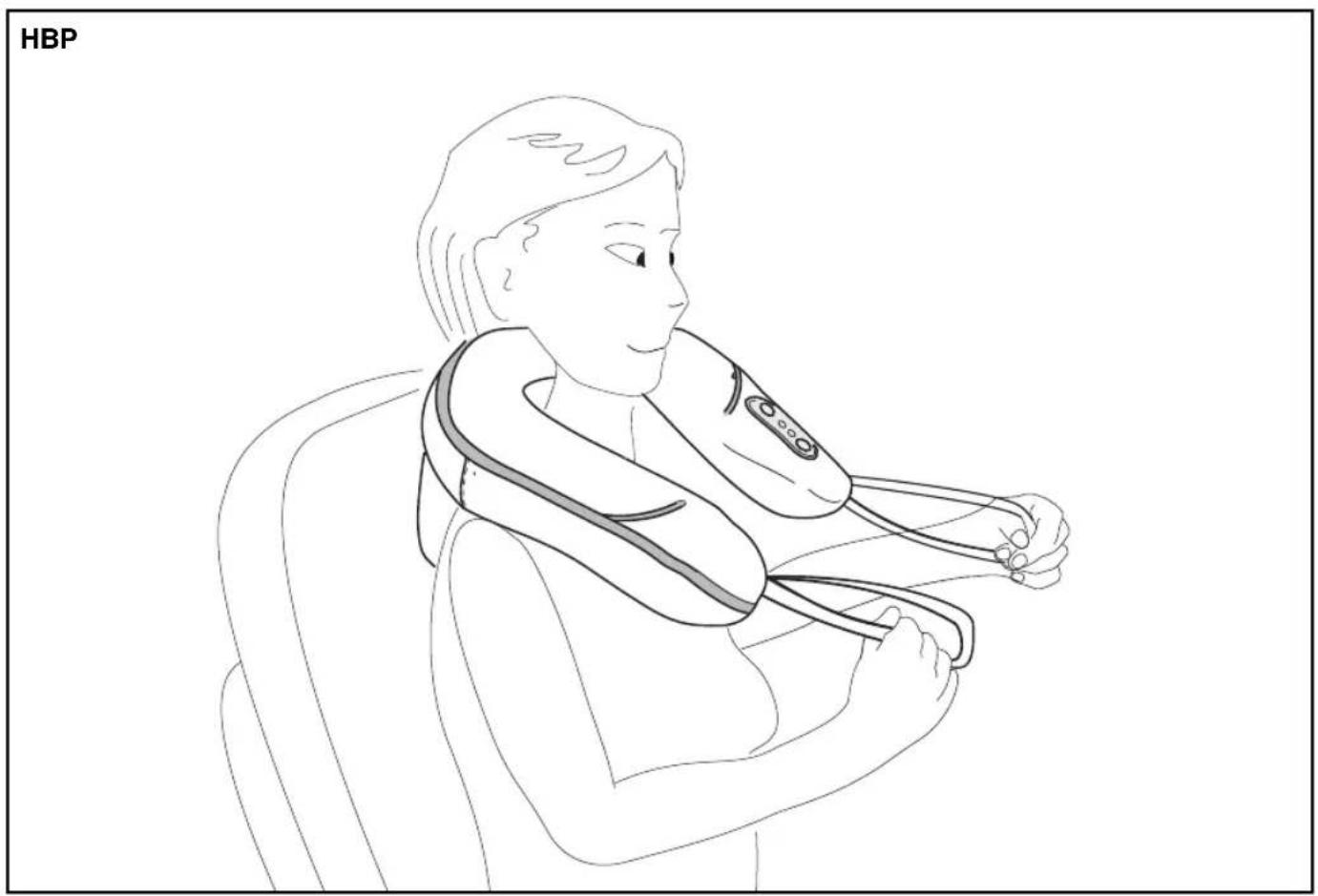

• Position the massager on the shoulders as in fig.2.
• Pull the handles as in Fig. 2 so that the massager adheres well to the shoulders and neck.
• Press the POWER button (2) once to turn the massager pillow on. The corresponding LED will turn on.

Two types of massage can be selected:

•[ SHIATSU[

•[ STONE

SHIATSU

• Press the SHIATSU button to activate the cervical massage.
• Press it again to deactivate it.

STONE[

• Press the STONE button to activate the vibration massage.
• Press it again to deactivate it.

Note:[The]two[massages,[SHIATSU]and[STONE,can]be[selected]simultaneously.

HEAT: heating function.

• Press the HEAT button to activate heat during the massage.
• Press it again to deactivate it.

Note: [[the][HEAT][function][can][be][activated][only][after][having[activated][the][SHIATSU][or][STONE] massage.

• Press POWER again to turn the massager pillow off.
  • After 15 minutes of treatment it is advisable to rest for at least 20 minutes.
• Disconnect the plug after use.

AUTOMATIC[SHUTDOWN

The massager pillow turns itself off automatically after 15 minutes. This function does not replace the normal turning off of the product, which must be off when not in use.

Always disconnect the appliance from the mains supply before cleaning or maintenance and when the appliance is not in use.

The massager can be cleaned with a soft slightly damp cloth. It is also possible to use a light detergent. Keep the massager out of children's reach in a cool dry place. Keep it in the original packaging. Avoid contact with pointed or sharp objects which can damage the appliance.

EN

PROBLEMS AND SOLUTIONS

These appliances are built with the highest standards. No parts can be repaired by the user. If the appliance does not work, follow the solutions.

Problem Possible cause Solution
The appliance makes noise during use.	This is evitable, but the appliance is not faulty.	It does not affect the duration of the appliance.
Noise during the massage grows.	Has it been used for too long without interruption?	Turn the appliance off and have it rest for over an hour.
Irregular right or left movements of massager pillow mechanism.	It is structural. It is not an alteration.
It does not move or else it stops during the massage.	The timer stopped the appliance.	Press the start button again.
	Is the plug still in the socket?	Insert the plug in the socket.
	Is the switch on? Turn the appliance on.
	Has the appliance turned off for excessive weight?	Remove the weight and wait a few minutes. The appliance will turn back on.

If other situations not included above should occur, pull out the plug, wait a few minutes, put the plug back in and turn the appliance back on.

Should the appliance keep on having problems, contact the authorised assistance centre.

DISPOSAL

The product packaging consists of recyclable materials. Dispose of it in compliance with the environmental protection standards.

The product must be disposed of properly, in accordance with the provisions of European standard 2002/96/EC. The device is made of recyclable materials that can be re-used to avoid environmental pollution. For further information, contact the local disposal body or the appliance dealer.

SERVICE AND WARRANTY

To request repairs or purchase spare parts, please contact IMETEC's customer assistance service by calling the free-phone number below (only in Italy) or consulting the website. The appliance is covered by the manufacturer's warranty. For details, read the attached warranty sheet.

Failure to comply with the use and maintenance instructions provided in this user manual will invalidate all and any rights to the manufacturer's warranty.

IMETEC

www.imetec.com

Tenacta Group S.p.A. Via Piemonte 5/11 24052 Azzano S. Paolo (BG) ITALY

Tel. +39.035.688.111 Fax +39.035.320.149

0810(MMYY) 0180

MI000386
