USER MANUAL AMB09CA TARGUS

1 YEAR LIMITED WARRANTY: We pride ourselves on the quality of our products. For complete warranty details and a list of our worldwide offices, please visit www.targus.com. Features and specifications are subject to change without notice. Microsoft, Windows and Windows Vista are registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. Mac is a trademark of Apple Inc., registered in the U.S. and other countries. Logitech is a registered trademark of Logitech International in the United States and other countries. All trademarks and registered trademarks are the property of their respective owners. ©2009 Targus Group International, Inc. All rights reserved.

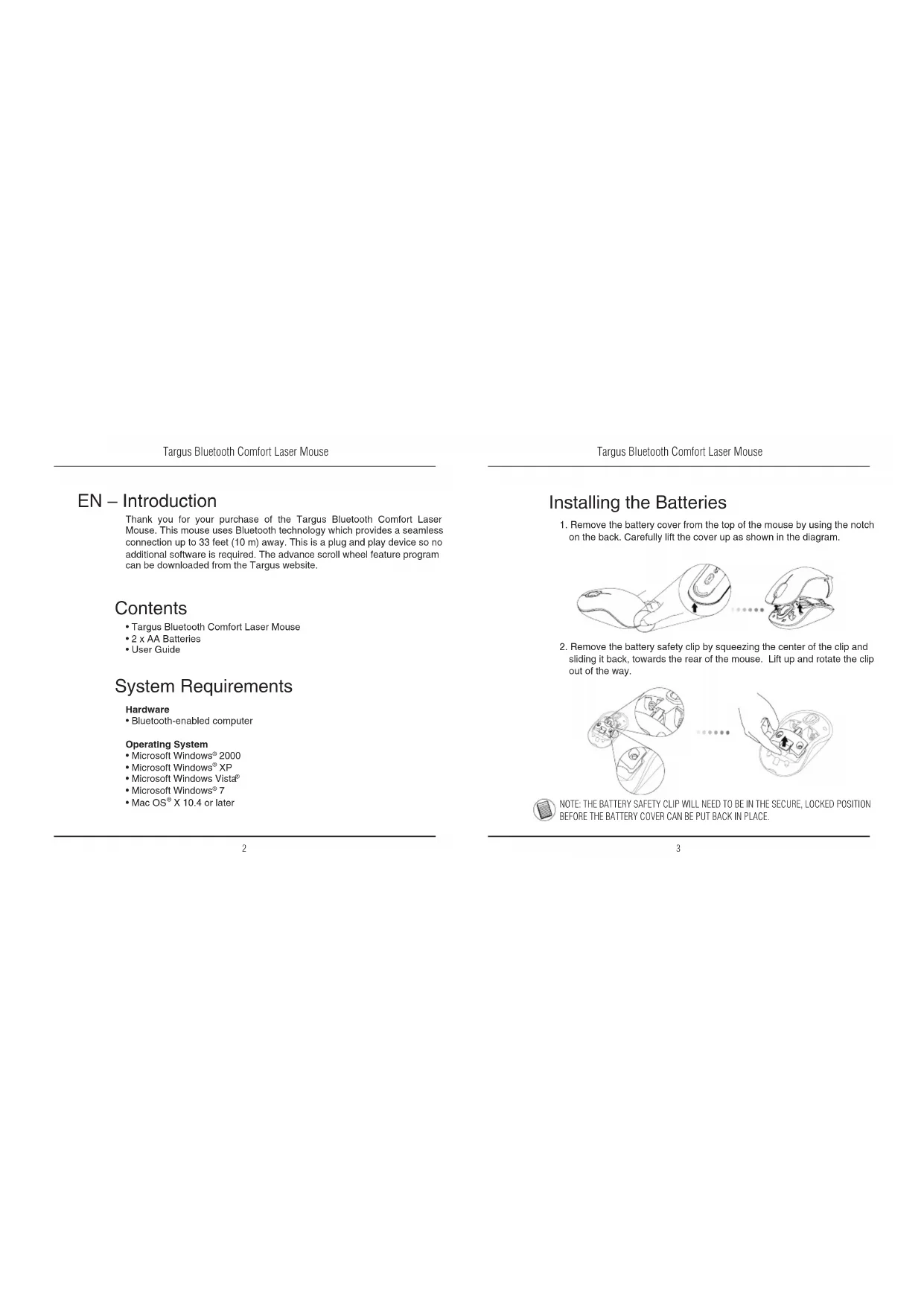

Thank you for your purchase of the Targus Bluetooth Comfort Laser Mouse. This mouse uses Bluetooth technology which provides a seamless connection up to 33 feet (10 m) away. This is a plug and play device so no additional software is required. The advance scroll wheel feature program can be downloaded from the Targus website.

Contents

• Targus Bluetooth Comfort Laser Mouse
- 2 x AA Batteries
- User Guide

System Requirements

Hardware

- Bluetooth-enabled computer

Operating System

• Microsoft Windows® 2000
• Microsoft Windows® XP
- Microsoft Windows Vista ^9
- Microsoft Windows ^® 7
• Mac OS ^® X 10.4 or later

Targus Bluetooth Comfort Laser Mouse

Installing the Batteries

1. Remove the battery cover from the top of the mouse by using the notch on the back. Carefully lift the cover up as shown in the diagram.

Line drawing of a computer mouse with an open grip and a close-up view showing the interior (no text or symbols)

1. Remove the battery safety clip by squeezing the center of the clip and sliding it back, towards the rear of the mouse. Lift up and rotate the clip out of the way.

Diagram showing two views of a device with internal components, connected by a hand (no text or symbols present)

NOTE: THE BATTERY SAFETY CLIP WILL NEED TO BE IN THE SECURE, LOCKED POSITION BEFORE THE BATTERY COVER CAN BE PUT BACK IN PLACE.

Targus Bluetooth Comfort Laser Mouse

1. Slide and lift to remove the battery holder as shown.

Diagram showing a mechanical assembly before and after disassembly, with no visible text or symbols

1. Insert the two AA batteries, making sure that the positive (+) and negative (-) ends of each battery match the polarity indicators inside the battery compartment.

Targus Bluetooth Comfort Laser Mouse

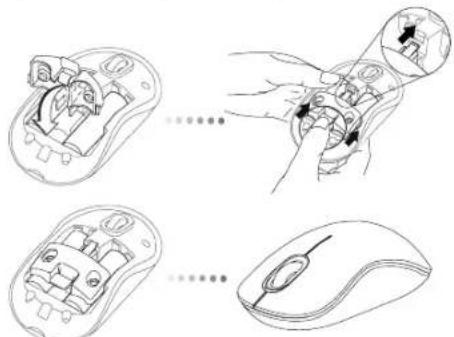

1. Replace the battery safety clip and by sliding it forward until it clicks into place and then replace the battery cover.

Diagram showing three steps of a computer mouse with internal components and hand placement, including a close-up view of the interior.

1. Turn on the mouse by pressing the power On/Off button on the bottom of the mouse. Hold for 3 seconds and then release.

Diagram showing a hand pressing a button onto an electronic device, with a separate control panel nearby (no text or symbols)

Power button

Targus Bluetooth Comfort Laser Mouse

Power On:

Press and hold the power button for 3 seconds and then release.

The battery life indicator will briefly light up showing the current power level of the

batteries.

Power Off:

Press and hold the power button for 3 seconds and then release.

The battery life indicator will briefly light up and then fade out.

Battery Check:

After the mouse is turned on, quickly press and release the power button. The

battery life indicator will light up showing the current power level of the batteries.

Initial Mouse Setup

Enable Discovery mode:

The mouse will go into pairing mode automatically after it is powered on. The 1st and 3rd LEDs will flash alternately for 60 seconds; this indicates that the pairing sequence is in operation. Once the connection is established, the 1st and 3rd LED lights will light up steadily for 3 seconds.

If the connection is not established by the end of 60 seconds, the mouse will go into sleep mode. Click on any mouse button to exit from sleep mode. The pairing sequence will re-start automatically.

Targus Bluetooth Comfort Laser Mouse

Power Saving mode:

After an extended period of time, if the mouse is not used, it will automatically enter power saving mode to conserve power and increase battery life. Click on any mouse button to resume the normal operation. The mouse may take a few seconds to reconnect with your computer.

Battery Life Indicator

3 LEDs lit Full power
2 LEDs lit Half power
1 LED lit Low power

NOTE: WHEN THE FIRST LIGHT IS BLINKING, PLEASE REPLACE THE BATTERIES

Power Management

- To extend the life of your battery, turn off the mouse while travelling or when you're not using it.

Targus Bluetooth Comfort Laser Mouse

Initial Configuration

Before you can begin using your Bluetooth ^® mouse, you will first need to perform some initial setup steps.

NOTE: PLEASE USE THE LATEST BLUETOOTH DEVICE DRIVER. INSTRUCTION SCREENS MIGHT VARY DEPENDING ON THE VERSION OF YOUR BLUETOOTH DEVICE DRIVER.

Diagram showing a hand holding a device connected to a control panel and a laptop, with icons for wireless connectivity.

Targus Bluetooth Comfort Laser Mouse

Connecting with Bluetooth Software: WIDCOMM or Microsoft (Windows XP & Windows Vista)

1. Go to the Bluetooth Places icon located on your desktop or in the system tray and double click, then click Add a Bluetooth Device.

Displays My Bluetooth Phone Start Menu Advanced Configuration OK (OK) (Windows XP) Start Menu Start Menu End Menu Start Menu End Menu Start Menu End Menu (Windows Vista)

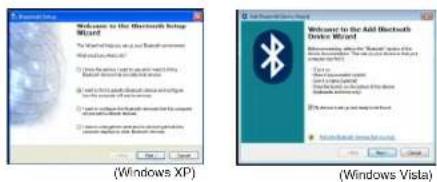

1. The Bluetooth Wizard screen will prompt. Please follow the onscreen instructions.

Microsoft Teams Welcome to the Microsofts Setup Wizard The Windows XP is not a new version of the Windows Server [ ] (Windows XP) [ ] (Windows Vista)

Targus Bluetooth Comfort Laser Mouse

1. Power on the mouse and it will automatically go into discovery mode. Click Next to continue pairing and the computer will search for the mouse.

(Windows XP)

(Windows Vista)

1. The confirmation window will appear after the computer finishes detecting the Bluetooth devices. Select the Bluetooth Wireless Mouse and click Next to continue. (There may be one or more different Bluetooth devices detected.) If the mouse is not detected, please make sure the power is on and in discovery mode. Press Search Again to re-pair the device.

(Windows XP)

(Windows Vista)

Targus Bluetooth Comfort Laser Mouse

1. After selecting the correct device, the computer will finish establishing the connection. Please wait until the setup is completed.

(Windows XP)

(Windows Vista)

Targus Bluetooth Comfort Laser Mouse

Connecting with Bluetooth Software: TOSHIBA (Windows Vista)

1. Double click on the Bluetooth Manager icon in the system tray, and then click Add New Connection.

1. Power on the mouse and it will automatically go into discovery mode. Click Next to continue pairing and the computer will search for the mouse.

Targus Bluetooth Comfort Laser Mouse

1. The computer will now search for the Bluetooth mouse and other Bluetooth devices. Please wait until the search is completed. Choose the device you wish to connect. There may be more than one Bluetooth device detected. Select Bluetooth Wireless Mouse and click Next to continue. If the mouse is not detected, please make sure the mouse is in discovery mode and click Refresh.

Add New Connection Wizard Scanning for Bluetooth drive. Add New Connection Wizard Select choice Device contains Bluetooth device you will find your Bluetooth device Bluetooth Host Bluetooth Host Windows 100 Status: 100% OK Save Cancel

1. The computer will begin connecting with the device.

Add to Windows 9.0 (Windows) Please wait while record search for wireless device services. Add to Windows 9.0 (Windows) Please wait while the record system for adding information. Allowing a USB drive to the server If you want.

Targus Bluetooth Comfort Laser Mouse

1. The connection is established and setup is complete. The device is ready to use. If the connection is not successful, please click Back and search the device again. You can continue to add other Bluetooth devices or close the window.

Bluetooth Settings Bluetooth - Web Help Bluetooth Wireless Music New Connector Logic Cable

Targus Bluetooth Comfort Laser Mouse

Bluetooth Software: Mac

1. Go to the Bluetooth icon located on your desktop or in the system bar and click the icon to begin setup. Select "Turn Bluetooth On" to activate the Bluetooth function on your Mac.

1. Scroll down the list and select "Set up Bluetooth Device..."

1. The Bluetooth Setup Assistant will begin. Please follow the on-screen instructions.

Welcome to the Raracki Group Network My company has a business service configuration. The Raracki Group is also closed. This is not and is not allowed to continue to use this option.

Targus Bluetooth Comfort Laser Mouse

1. Select "mouse" and click continue to proceed with setup. Your mouse will need to be in "discovery" mode to connect. Power on the mouse and it will automatically go into discovery mode.

Microsoft Azure Advanced Microsoft Azure Key Up Running with the mouse Running too quickly then coming Start Up Number Device

1. Your computer will begin to search for the mouse. Once the mouse is found, it will show up in the list. Highlight your mouse and press continue.

Bluetooth Noise Assistant Searching for your voice What you can't use the Bluetooth Noise. If you want to use the audio, please use your voice on the Bluetooth Noise Panel (LED) and use the Bluetooth Noise Panel (LED) to access your voice to your voice. To check for your voice: 100 MHz To access your voice: 100 MHz To access your voice: 100 MHz

Targus Bluetooth Comfort Laser Mouse

1. The Bluetooth mouse will now begin pairing. Click continue to proceed.

Microsoft New Document Default Service Type The Microsoft Setup is selected with any other Microsoft Devices to be used in the Windows OS. The Windows 95% desktop will not use any additional or more information on this device. For your device, it is also available to another OS. If you are currently installed, then to access to the Windows 95% desktop. ● Default ○ Default ○ Mobile phone ○ Desktop ○ Unknown To Use OK/Cancel

1. Congratulations. Your Bluetooth mouse is setup and ready to use. You can choose to setup another device or click Quit to exit setup.

Bluetooth Disk Options Explanation Composational: "Your computer is now set up to use your Bluetooth disk." Use the Web-Resident agent if you want to change any of these settings. Set to Additional Service Go Next Next

Targus Bluetooth Comfort Laser Mouse

Programming Your Mouse (Windows Only)

To access the advanced scroll wheel features you will need to download and install the software driver. This can be downloaded from the following location:

Visit www.targus.com to download and install the driver.

Once installation is complete, open the driver software and select the desired setting for the scroll-wheel button. Close the driver software application and you're ready to go. Activate your selected feature by pressing down on the scroll wheel.

Line drawing of a hand using a pen to press or install a computer mouse (no text or symbols present)

Targus Bluetooth Comfort Laser Mouse

Troubleshooting

The mouse is not working.

• Make sure that the polarity of the batteries is correct. The positive (+) and negative (-) ends of each battery must match the positive (+) and negative (-) connections in the battery housing.
• Make sure the batteries are charged. Recharge or replace if necessary.
• Verify that the computer is Bluetooth enabled.

• Verify that the device drivers are installed:

• Click Start/ Settings/ Control Panel/ System/ Hardware/ Device Manager

• Check under "Bluetooth Devices" that a "Soft-Touch Bluetooth" is installed
• Paired devices are always displayed in My Bluetooth Places, even if the mouse is out of range or not powered up.

Targus Bluetooth Comfort Laser Mouse

CAUTION

LASER RADIATION. DO NOT STARE INTO THE BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS. CLASS I LASER PRODUCT. NEVER POINT A LASER BEAM INTO A PERSON'S EYES OR VIEW A LASER BEAM DIRECTLY, AS PROLONGED EXPOSURE CAN BE HAZARDOUS TO THE EYES. MOMENTARY EXPOSURE FROM A LASER POINTER, SUCH AS AN INADVERTENT SWEEP OF THE LIGHT ACROSS A PERSON'S EYES, MAY CAUSE TEMPORARY FLASH BLINDNESS SIMILAR TO THE EFFECT OF A CAMERA FLASH BULB. ALTHOUGH THIS CONDITION IS TEMPORARY, IT CAN BECOME MORE DANGEROUS IF THE EXPOSED PERSON IS ENGAGED IN A VISION-CRITICAL ACTIVITY SUCH AS DRIVING.

Targus Bluetooth Comfort Laser Mouse

Technical Support

For technical questions, please visit: Internet: www.targus.com/support.asp Email: [e-mail]

Product Registration

Targus recommends that you register your Targus accessory shortly after purchasing it. Go to:
http://www.targus.com/registration.asp
You will need to provide your full name, email address, country of residence and product information.

Warranty

Targus warrants this product to be free from defects in materials and workmanship for one year. If your Targus accessory is found to be defective within that time, we will promptly repair or replace it. This warranty does not cover accidental damage, wear and tear, or consequential or incidental loss. Under no conditions is Targus liable for loss of, or damage to devices; nor loss of, or damage to, programs, records, or data; nor any consequential or incidental damages, even if Targus has been informed of their possibility. This warranty does not affect your statutory rights.

Regulatory Compliance

This device complies with Part 15 of the FCC Rules and Industrial Canada RSS-210.

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

Compliance with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007

FCC Statement

Tested to Comply

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna;
- Increase the separation between the equipment and receiver;
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected:
- Consult the dealer or an experienced radio/TV technician for help.

Changes or modifications not authorized by the party responsible for compliance could void the user's authority to operate this product.

Microsoft, Windows, and Windows Vista are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. All trademarks and registered trademarks are the properties of their respective owners. All rights reserved.

FR – Introduction

Line drawing of a computer mouse with an inset showing the internal components (no text or symbols)

Diagram showing two hand positions of a device with internal components, no text or symbols present

REMARQUE : VÉRIFIEZ QUE LA BRIDE DE SÉCURITÉ EST FIXÉE DANS SA POSITION AVANT DE REMETTRE LE COUVERCLE DU COMPARTIMENT DE PILES.

Targus Bluetooth Comfort Laser Mouse

Diagram showing two mechanical or electrical component assemblies with arrows indicating motion (no text or symbols)

Diagram showing three steps of computer control: disassembly, hand manipulation, and use case.

Diagram showing a hand inserting a plug into a device with a connector, next to a vertical control panel (no text or symbols)

Diagram showing a hand holding a device connected to a control panel and a laptop, with icons for wireless connectivity.

Targus Bluetooth Comfort Laser Mouse

Add New Connection Window Scanning for Microsoft Windows Scanning for Microsoft Internet Explorer Add New Connection Window Select your access: Choose to choose for Microsoft's device you will use Microsoft Windows Windows 123 Windows 123 Other OSOS OK Cancel

Microsoft Teams Manager Backstage New System New with the Project New by clicking the next project Set Up Another Project Save... Delete

Bluetooth Reset Not Use Starting for your website: What is you looking at this site, but you should have a much better Copyright. If you will not use any other local or local sites, you can use the www.elell.com/100% (http://www.elell.com) you can use the website to get your website. This is [ ] 2017-03-26 To Back Cancel

Targus Bluetooth Comfort Laser Mouse

Bluetooth Setup Options Configuration Congregulation: You computer is now set as to use your Bluetooth mode. Use My Setup Assistant again if you want to replace any of these settings. Set to Another Device Get Back 1 Stop

Targus Bluetooth Comfort Laser Mouse

Programmation de la souris (Windows Only)

Line drawing of a hand holding a computer mouse with a screwdriver (no text or symbols)

Guide de dépannage

CLASS 1 LASER PRODUCT

ATTENTION

RAYONNEMENT LASER. NE FIXEZ PAS LE FAISCEAU ET NE L'EXAMINEZ PAS DIRECTEMENT AU MOYEN D'INSTRUMENTS OPTIQUES. PRODUIT LASER DE CLASSE I.

NE DIRIGEZ JAMAIS UN FAISCEAU LASER VERS LES YEUX D'UNE PERSONNE ET NE REGARDEZ JAMAIS DIRECTEMENT UN FAISCEAU LASER, TOUTE EXPOSITION PROLONGÉE À UN FAISCEAU LASER POUVANT ÊTRE DANGEREUX POUR LES YEUX.

UNE EXPOSITION MOMENTANÉE À UN POINTEUR LASER RÉSULTANT PAR EXEMPLE DU PASSAGE ACCIDENTEL DU FAISCEAU DANS LES YEUX D'UNE PERSONNE PEUT AVOIR POUR CONSÉQUENCE UN AVEUGLEMENT PAR L'ÉCLAIR TEMPORAIRE SIMILAIRE AUX EFFETS PROVOQUÉS PAR L'AMPOULE DE FLASH D'UN APPAREIL PHOTO. BIEN QUE CET ÉTAT SOIT TEMPORAIRE, IL PEUT SE RÉVÉLER DANGEREUX SI LA PERSONNE EXPOSÉE EST ENGAGÉE DANS UNE ACTIVITÉ DANS LE CADRE DE LAQUELLE SA VUE LUI EST INDISPENSABLE (CONDUIRE, PAR EXEMPLE).

Targus Bluetooth Comfort Laser Mouse

Support technique
