Product type	Fridge-freezer
Brand	SHARP
Model	SJ340VSL
Height (mm)	1065
Width (mm)	600 (estimate)
Depth (mm)	1145
Refrigerant	R600a (isobutane)
Insulating gas	Cyclopentane
Defrosting	Automatic
Lighting	LED
Deodorizing zone	Integrated catalyst
Temperature indicator	Yes, coldest zone
Temperature settings	Separate for fridge and freezer
Ice making	Ice tray and bin included
Accessories	Shelves, door bins, egg tray, ice tray
Installation	Freestanding, minimum ventilation space: 90mm at the rear, 60mm on sides and above
Safety	Flammable refrigerant, do not use sharp objects, do not block openings
Maintenance and cleaning	Soapy water, avoid solvents and abrasives
Spare parts	LED bulb replaceable by an authorized technician
Repairability	Contact authorized SHARP after-sales service

Frequently Asked Questions - SJ340VSL SHARP

What to do if the temperature indicator turns white?

If the temperature indicator turns white, it means the temperature is too high. Increase the refrigerator temperature control setting to MAX and wait 6 hours before checking again. The indicator should remain blue.

How to adjust the temperature of the refrigerator and freezer?

Use the REFRIGERATOR TEMP. CONTROL and FREEZER TEMP. CONTROL buttons. The refrigerator setting controls the compressor: more towards MAX makes both compartments colder. The freezer setting regulates cold air: MAX gives more cold to the freezer but less to the refrigerator. Adjust according to seasons.

Why is the refrigerator making noise?

Noises are normal: loud compressor noise at start-up then decreases, noise once a day after defrosting, gurgling of refrigerant, cracking of walls. If the noise persists or becomes abnormal, contact after-sales service.

Why is there frost or condensation inside or outside?

This can happen with high humidity, frequent door openings, or unpacked water-rich foods. Wipe with a cloth. Ensure the door is properly closed and foods are covered.

What to do if food freezes in the refrigerator compartment?

Check the REFRIGERATOR TEMP. CONTROL setting: if it is on MAX or if the ambient temperature is low, food may freeze. Turn the knob towards MIN to reduce cold.

How to clean the inside of the refrigerator?

Remove shelves and door bins, wash them with warm soapy water. Clean the inside with a cloth soaked in soapy water, then rinse with clean water. Do not use solvents or abrasives. For the door gasket, use a wet toothbrush.

What to do in case of a power outage?

Wait at least 5 minutes before reconnecting the power. During the outage, avoid opening doors to maintain cold. If the outage is prolonged, remove food, clean, and leave doors open.

How to make ice cubes?

Fill the ice tray with water and place it in the freezer. Once the cubes are ready, turn the handle clockwise to empty them into the ice bin. Never pour oil into the bin.

Why is there an unpleasant odor in the compartment?

Pack foods that give off a strong odor. The catalyst deodorizing system cannot eliminate all odors. Clean the inside regularly and check for expired foods.

What to do if the LED lighting stops working?

The LED bulb must be replaced only by a qualified technician. Contact authorized SHARP after-sales service for replacement. Do not attempt to replace it yourself.

USER MANUAL SJ340VSL SHARP

Front view of a beige rectangular refrigerator with black lid (no visible text or symbols)

SJ-300V SJ-340V

SJ-380V SJ-420V

- Household use only • Free standing type

E FRIGORIFICO-CONGELADOR MANUAL DE MANEJO.... 7

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

WARNING

This refrigerator contains flammable refrigerant (R600a: isobutane) and insulation blowing gas (cyclopentane). Observe the following rules to prevent ignition and explosion.

The refrigeration system behind and inside the • refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

Do not use mechanical devices or other means to accelerate the defrosting process. (This refrigerator has adopted automatic defrosting system.)

Do not use electric appliances inside the refrigerator. Use only the specified parts for the refrigerator compartment light.

Do not block the openings on the circumference of the refrigerator.

- Do not use flammable sprays, such as spray paint near the refrigerator. It may cause explosion or fire.

If the refrigeration system should get punctured, do not touch the wall outlet and do not use open flames. Open the window and air out the room. Then ask a service agent approved by SHARP for servicing.

This refrigerator should be disposed appropriately. • Take the refrigerator to a recycling plant for flammable refrigerant and insulation blowing gases.

Do not store highly volatile and flammable materials such as ether, petrol, propane gas, aerosol cans, adhesive agents and pure alcohol etc.

These materials are liable to explode.

Dust deposited on the power plug may cause fire. Wipe it off carefully.

Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the magnetic door seals to prevent child entrapment.)

CAUTION

Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

Do not touch foods or metal containers in the freezer ■ compartment with your wet hands. This may cause frostbite.

Do not use an extension cord or adapter plug. ■

Do not place bottled and canned drinks in the freezer as ■ they may crack when frozen.

Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

■Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

■ Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

in case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

Do not place objects containing liquid or unsteady objects on top of refrigerator.

This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

Information on Disposal for Users (private households)

Attention:

Your product is marked with this symbol.

It means that used electrical and electronic products should not be mixed with general household waste.

There is a separate collection system for these products.

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by member states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

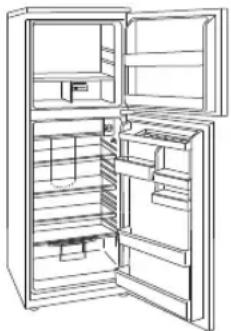

DESCRIPTION

Freezer shelf Freezer temp.control knob Ice cube tray Ice cube box Fresh room Refrigerator temp. control knob Refrigerator LED light Refrigerator shelf* Vegetable shelf* Vegetable crisper Adjustable foot Magnetic door seal Door pocket * Egg holder * Egg pocket Light switch Small pocket (right) * Small pocket (left) Bottle pocket Door pocket * Magnetic door seal < SJ-380V >

• 2 star section for storing frozen food only.

Model name 300V	340V 380V	420V
Refrigerator shelf	3 3 3 3
Vegetable shelf	1 1 1 1
Door pocket 3 3 3 3
Egg holder	-	-	1	1
Small pocket (right) 1 1 1 2

More foods can be stored by removing the following accessories as indicated in the figure below.

Ice cube tray, Ice cube box, Freezer shelf

INSTALLATION

WARNING

■ Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.

1. Keep adequate ventilation space around the refrigerator.

2. The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption.

3. It is possible to use the refrigerator with a less amount of power consumption by keeping greater space.

4. If using the refrigerator in the space below dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure.

5. Using the front Adjustable foot, ensure that the refrigerator is positioned firmly and level on the floor.

NOTE:

• Position your refrigerator so that the plug is accessible.
• Keep your refrigerator out of direct sunlight.
• Do not place next to heat generating appliance.
• Do not place directly on the ground. Provide suitable stand.

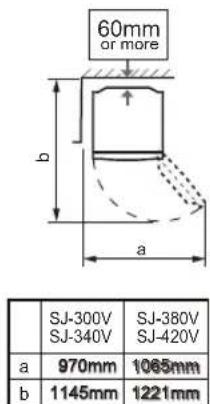

90mm or more 60mm or more 60mm or more Adjustable foot

60mm or more b a SJ-300V SJ-340V SJ-380V SJ-420V a 970mm 1065mm b 1145mm 1221mm

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

OPERATION

Controlling temperatures

MIN. MID. MAX. Coldest Normal less cold colder

• FREEZER TEMP. CONTROL regulates the quantity of cold air to the freezer.
• If the freezer does not cool even when setting FREEZER TEMP. CONTROL to MAX, set REFRIGERATOR TEMP. CONTROL to MAX as well.
• With FREEZER TEMP. CONTROL set to MAX, there will be less cold air directed to the refrigerator compartment, and the refrigerator compartment may not become cold enough.

REFRIGERATOR TEMP.CONTROL

• REFRIGERATOR TEMP. CONTROL controls the
compressor running time of the refrigeration system.
- MAX setting will result in colder temperature in the both (refrigerator and freezer) compartments.
- The freezer compartment may not cool sufficiently when leaving REFRIGERATOR TEMP. CONTROL as MIN for an extensive period. To cool the freezer compartment properly, set REFRIGERATOR TEMP. CONTROL closer to MAX.

■ Over 35°C ambient temperature

MIN. MID. MAX. Coldest towards MIN towards MAX Coldest MAX. MIN.

This is because MAX setting (FREEZER TEMP. CONTROL) may result in too little air flow to the refrigerator compartment, causing too warm temperature in the refrigerator compartment.

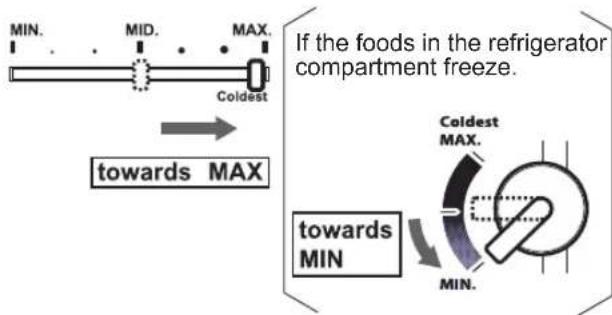

■ Under 10°C ambient temperature
    note right of A: If the foods in the refrigerator compartment freeze.
    note right of C: towards MIN

This is because the compressor operation is too short in winter, and not enough cold air is provided to the freezer compartment.

Hints when making ice

When the ice cubes are made, hold the Ice cube tray upside down whilst twisting either end in opposite directions, allowing the ice cubes to drop out.

Ice cube tray

Illustration of hands using a robotic arm to process food preparation, with a smaller container filled with small cubes (no text or symbols)

NOTE:

To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

Deodorizing unit

Deodorizing catalyst is installed on the routes of cold air. No operation and cleaning are required.

Defrosting

Defrosting is fully automatic due to a unique energy saving system.

Indicator of temperature

This refrigerator is provided with a indicator of temperature in the refrigerator compartment to allow you to control the average temperature in the coldest zone.

COLDEST ZONE

The symbol indicates the coldest zone in the refrigerator compartment.

(The door pocket positioned at the same height isn't the coldest zone.)

Symbol

CHECKING THE TEMPERATURE IN THE COLDEST ZONE

You can carry out regular checks to ensure the temperature in the coldest zone is correct and, if necessary, adjust the refrigerator temp. control as indicated in the chapter "Controlling Temperature". To maintain a correct temperature inside the appliance, check that the indicator of temperature is always BLUE. If the indicator of temperature turns WHITE, the temperature is too high; in this case, increase the refrigerator temp. control setting and wait for 6 hours before checking the indicator of temperature again.

Correct setting

Temperature too high, adjust the refrigerator temp. control.

NOTE:

• The internal temperature of the refrigerator depends on various factors such as the ambient temperature of the room, the amount of food stored and the frequency of door opening.
• When fresh food has been introduced or the door has been left open for some time, it is normal for the indicator of temperature to turn WHITE.

WARNING

■ Unplug the refrigerator first to prevent electric shock.
■ Do not splash water directly on the outer cabinet or the interior. This may lead to rusting and deterioration of the electrical insulation.

IMPORTANT

To prevent cracking on inside surfaces and plastic components, follow these tips.

• Wipe any food oils adhered to plastic components.
• Some household chemicals may cause damage, so use only diluted washing-up liquid (soapy water).

• If undiluted detergent is used or soapy water is not wiped off thoroughly, cracking of plastic parts can result.

• Remove the shelves and pockets from the cabinet and door. Wash them in warm soapy dishwashing water; rinse in clean water and dry.

• Clean the inside with a cloth soaked in warm soapy dishwashing water. Then, use cold water to wipe off soapy water.
• Wipe the exterior with a soft cloth each time it is soiled.
• Clean the Magnetic door seal with a toothbrush and warm soapy dishwashing water.

NOTE:

• To prevent damage to your refrigerator, do not use heavy duty cleansers or solvents (lacquer, paint, polishing powder, benzine, boiled water, etc.).
• If the power supply is disconnected, please wait for at least 5 minutes before re-connecting power.
• Do not drop objects inside the refrigerator or strike the inner wall. This may cause the inner surface to crack.

When the compartment light is blown

Contact the service agent approved by SHARP to request a replacement compartment light. The compartment light is not to be removed other than by qualified service personnel.

Switching off your refrigerator

If you switch your refrigerator off when you are going away for an extended period, remove all food, clean the interior thoroughly. Remove the power cord plug from the power socket and leave all doors open.

STORING FOOD

Refrigeration reduces the rate of food spoilage.

To maximize the shelf life of perishable food products, ensure that the food is of the freshest possible quality. The following is a general guide to help promote longer food storage.

Fruit / Vegetables

To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the vegetable crisper.

Dairy Products & Eggs

• Most dairy products have a use by date on the outer packaging which informs the recommended temperature and shelf life of the product.
• Eggs should be stored in the Egg pocket.

Meats / Fish / Poultry

• Place on a plate or dish and cover with paper or plastic wrap.
• For larger cuts of meat, fish, or poultry, place to the rear of the shelves.
• Ensure all cooked food is wrapped securely or placed in an airtight container.

NOTE:

• Evenly place the food on the shelves to allow the cooling air to circulate efficiently.
• Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.
• Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.
• Do not place food directly in front of cold air outlet. This may lead to the food freezing.
• Keep the door securely closed.

Vegetable shelf

FOR BEST FREEZING

• Quality of foods should be fresh.
- Freeze small quantities of food at a time to freeze them quickly.
- Food should be properly stored or covered and the air should be removed to seal tightly.
• Evenly place the food in the freezer.
- Label bags or containers to keep an inventory of freezing food.

BEFORE YOU CALL FOR SERVICE

Before you call for service, check the following points.

	SolutionProblem
The outside of a cabinet is hot when touched.	It is normal. The hot pipe is in the cabinet in order to prevent dew generation.
When there is refrigerator noise.	It is normal for the refrigerator to produce the following sounds.Loud noise produced by the compressor when operation starts--- Sound becomes quieter after a while.Loud noise produced once a day by the compressor--- Operating sound produced immediately after automatic defrost operation.Sound of flowing fluid (gurgling sound, fizzing sound)--- Sound of refrigerant flowing in pipes (sound may become louder from time to time).Cracking or crunching sound, Squeaking sound--- Sound produced by expansion and contraction of inner walls and internal parts during cooling.
Frosting or dew generation occurs inside or outside the refrigerator.	This may occur in one of the following cases. Use a wet cloth for wiping frost and a dry cloth for wiping dew.When the ambient humidity is high.When the door is frequently opened and closed.When foods containing plenty of moisture are stored. (Wrapping is required.)
The foods in the refrigerator compartment freeze.	Is the refrigerator operated for a long time with REFRIGERATOR TEMP.CONTROL set at MAX?Low ambient temperature may cause placed foods to freeze even if REFRIGERATOR TEMP. CONTROL is set to MIN.
It smells in the compartment. • Wrapping	is required for the foods with strong smell.Deodorizing unit cannot remove all of smell.

IF YOU STILL REQUIRE SERVICE

Refer to your nearest service agent approved by SHARP.

Tips for saving energy

Keep the ventilation space as much as ■ possible around the refrigerator.

Keep your refrigerator out of direct sunlight, ■ and do not place next to heat generating appliance.

Open your refrigerator door as briefly as ■ possible.

Hot foods should be cooled before storing. ■

Place the food evenly on the shelves to allow ■ the cooling air to circulate efficiently.

The amount of power consumption of this model is measured according to the international standard of the refrigerator performance.

If the refrigerator is operated with these accessories[lce cube tray, Ice cube box] taken out, it works under the most energy-efficient condition.

- The amount of power consumption of this model is measured with these accessories taken out as indicated on the right figure.

- The amount of power consumption of this model is measured under the space dimensions on the right figure.

Line drawing of an open refrigerator with doors open (no text or symbols)

90mm 300 mm 300 mm 60 mm

Illustration of hands using a calculator and a tray with small blocks, no text or symbols present

NOTAS:

Line drawing of an open refrigerator with doors open (no text or symbols)

MIN. MID. MAX. Coldest verso MIN

verso MAX Coldest MAX. MIN.

Illustration of hands using a tool to process small blocks into a container (no text or symbols present)

NOTA:

Line drawing of an open refrigerator with doors open (no text or symbols)

Pure technical diagram of a mechanical or fluidic component with no text, numbers, or symbols

Line drawing of an open refrigerator with doors open (no text or symbols)

Illustration of hands using a tool to process food items into a tray (no text or symbols visible)

OBSERVAÇÕES:

Line drawing of an open refrigerator with doors open (no text or symbols)

MIN. MID. MAX. Coldest COVTÁ ȘTO MAX KOVȚA ȘTO MIN Coldest MAX. MIN.

Illustration of hands using a robotic arm to generate small cubes in a container (no text or symbols)

ΣΗΜΕΙΩΣΗ:

Line drawing of an open refrigerator with doors open (no text or symbols)

90 x1λ 300 x1λ 300 x1λ 60 x1λ

Illustration of hands using a handheld abacus to generate small cubes in a tray (no text or symbols)

HINWEISE:

Line drawing of an open refrigerator with doors open (no text or symbols)

60mm of meer b a SJ-300V SJ-340V SJ-380V SJ-420V a 970mm 1065mm b 1145mm 1221mm

Illustration of a hand using a brush to process a grid of small blocks into a container (no text or symbols present)

N.B.:

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Illustration of hands using a traditional abacus to generate 3D-printed cubes (no text or symbols present)

UWAGA:

Line drawing of an open refrigerator with doors open (no text or symbols)

Front view of a refrigerator with open doors and internal compartments (no text or symbols visible)

ÜZEMBE HELYEZÉS

FIGYELMEZTETÉS

Line drawing of an open refrigerator with multiple doors and shelves (no text or symbols)

MIN. MID. MAX. Coldest câtre MIN

câtre MAX Coldest MAX. MIN.

Line drawing of an open refrigerator with doors open (no text or symbols)

Front view of a refrigerator with open doors and internal compartments (no text or symbols visible)

INSTALACE

BEZPEČNOSTNÍ POKYNY

60mm a vice b a

	SJ-300VSJ-340V	SJ-380VSJ-420V
a	970mm	1065mm
b	1145mm	1221mm

NASTAVENÍ TEPLOTY CHLADNIČKY

(REFRIGERATOR TEMP. CONTROL)

Illustration of hands using a calculator and a tray with small blocks (no text or symbols)

POZNÁMKA:

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

90mm 60 mm 300 mm 800

Čakujeme vám, že ste si kúpili práve výrobok značky SHARP. Pred použitím chladničky značky SHARP si láskavo preštuđujte návod na obsluhu. Nová chladnička vám tak prinesie najväčší úžitok.

UPOZORNENIE

Illustration of hands using a hand tools a small abacus and a tray of small cubes (no text or symbols present)

POZNÁMKA:

Line drawing of an open refrigerator with doors open (no text or symbols)

90mm 60 mm mm 300 mm 300

Illustration of hands using a computer and a tray with small objects, no text or symbols present

PASTABA:

Line drawing of an open refrigerator with doors open (no text or symbols)

Illustration of hands using a hand tool to process an abacus and a tray with beads (no text or symbols)

UZMANĪBU:

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

90 mm 60 mm mm 300 mm 300

Illustration of hands using a robotic arm to interact with a grid of small objects inside a container (no text or symbols present)

MÄRKUS:

Line drawing of an open refrigerator with doors open (no text or symbols)

Illustration of a double refrigerator with open doors and internal compartments (no text or symbols)

NAMESTITEV

OPOZORILO

Illustration of hands using a traditional abacus to generate 3D blocks, with no text or symbols present.

OPOMBA:

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

Poraba energije pri tem modelu se • meri v prostorskih razmerah, ki so prikazane na sliki desno.

90 mm 60 mm 300 mm 300

Illustration of a hand using a keyboard to process a small object into a container (no text or symbols present)

ПРИМИТКА:

Line drawing of an open refrigerator with doors open (no text or symbols)

90 MM 300 MM 300 MM 60 MM

Coldest MAX. Normalno po-studeno po-malko studeno MIN.

Line drawing of an open refrigerator with doors open (no text or symbols)

90MM 300 MM 300 MM 60 MM

Illustration of hands using a handheld tool to generate small blocks in a container (no text or symbols)

УВАГА :

Pure technical diagram of a mechanical or fluidic component with no text, numbers, or symbols

Line drawing of an open refrigerator with doors open (no text or symbols)

90MM 300MM 300MM 60MM

SHARP

SHARP CORPORATION

SHARP ELECTRONICS (EUROPE) GMBH.

Sonninstrasse 3, 20097 Hamburg

Federal Republic of Germany

Printed in Thailand
