RMIO64-D - Audio Interface YAMAHA - Free user manual and instructions

USER MANUAL RMIO64-D YAMAHA

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The above warning is located on the top of the unit.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

IMPORTANT SAFETY INSTRUCTIONS

1 Read these instructions.
2 Keep these instructions.
3 Heed all warnings.
4 Follow all instructions.
5 Do not use this apparatus near water.
6 Clean only with dry cloth.
7 Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10 Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11 Only use attachments/accessories specified by the manufacturer.
12 Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
13 Unplug this apparatus during lightning storms or when unused for long periods of time.
14 Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

(UL60065_03)

PRECAUTIONS CONCERNANT LA SECURITE

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

1. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.
2. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of other electronic devices. Compliance with FCC

regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

• This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(class B)

COMPLIANCE INFORMATION STATEMENT (DECLARATION OF CONFORMITY PROCEDURE)

Responsible Party : Yamaha Corporation of America

Address: 6600 Orangethorpe Ave., Buena Park, Calif. 90620

Telephone:[phone]

Type of Equipment : Audio Interface

Model Name: RMio64-D

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions:

1) this device may not cause harmful interference, and
2) this device must accept any interference received including interference that may cause undesired operation.

See user manual instructions if interference to radio reception is suspected.

• This applies only to products distributed by YAMAHA CORPORATION OF AMERICA.

(FCC DoC)

IMPORTANT NOTICE FOR THE UNITED KINGDOM

Connecting the Plug and Cord

WARNING: THIS APPARATUS MUST BE EARTHED IMPORTANT. The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW : EARTH

BLUE : NEUTRAL

BROWN : LIVE

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

The wire which is coloured GREEN-and-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth symbol or colored GREEN or GREEN-and-YELLOW.

The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured BLACK.

The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured RED.

(3 wires)

Workgroup Manager 16

Monitoring direct 16

Dépannage 17

Mise à jour 17

Acheminement/Assignnation 17

Voyant MADI [SRC WCLK IN] Touche MADI [SRC WCLK IN]

Voyant MADI [INPUT RATE Fs 44.1kHz] Voyant MADI [INPUT RATE Fs 48kHz]

Voyant MADI [INPUT RATE 1Fs] Voyant MADI [INPUT RATE 2Fs] Voyant MADI [INPUT RATE 4Fs] Touche MADI [INPUT RATE] 1Fs/2Fs/4Fs

Voyant Dante [PRIMARY LINK/ACT]

Voyant Dante [PRIMARY 1G]

Voyant Dante [SECONDARY LINK/ACT] Voyant Dante [SECONDARY 1G]

RMio64-D (ID n° 2)
PRIMARY

Réseau en étoile

Acheminement/Assignment

Assignnation (Acheminement audio) 14, 17

C

Assignnation (Acheminement audio) 14, 17

Commutateur DIP 10, 11, 12

Monitoring direct 16

Montage en rack 7

R

General Specifications

Sampling Frequency	Internal	44.1kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±50ppm
		48kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±50ppm
		88.2kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±50ppm
		96kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±50ppm
		176.4kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±50ppm
		192kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±50ppm
	External	44.1kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±200ppm
		48kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±200ppm
		88.2kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±200ppm
		96kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±200ppm
		176.4kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±200ppm
		192kHz	+4.1667%/+0.1%/-0.1%/-4.0%	±200ppm
MADI Channels & Formats	fs=44.1kHz/48kHz:	MADI Single fs 44.1/48k frame, 56/64 channels
	fs=88.2kHz/96kHz:	MADI Double fs 44.1/48k frame, 28/32 channels
		MADI Double fs 88.2/96k frame, 28/32 channels
	fs=176.4kHz/192kHz:	MADI Quad fs 44.1/48k frame, 14/16 channels
SRC	SRC Lock Range:	38.59kHz – 216kHz
	Sample Rate Ratio Limit:	6:1
Dimensions (WxHxD) and Net Weight	480 x 44 x 374 mm, 4.7 kg
Power Requirements (wattage)	25W
Power Requirements (voltage and hertz)	US/Canada:	120V 60Hz
	Japan:	100V 50/60Hz
	China:	110 – 240V 50/60Hz
	Korea:	220V 60Hz
	Others:	110 – 240V 50/60Hz
Temperature Range	Operating temperature range:	0 – 40 °C
	Storage temperature range:	-20 – 60 °C
Included Accessories	Owner's Manual, AC power cord

*The contents of this manual apply to the latest specifications as of the printing date. Since Yamaha makes continuous improvements to the product, this manual may not apply to the specifications of your particular product. To obtain the latest manual, access the Yamaha website then download the manual file. Since specifications, equipment or separately sold accessories may not be the same in every locale, please check with your Yamaha dealer.

Digital I/O Characteristics

Terminal	Format	Data length	Level	Connector
Primary/Secondary	Dante	24-bit	1000Base-T	etherCON x 2

Terminal	Format	Data length	Level	Connector
MADI IN 1 – 64	AES10-2008 (MADI)	24-bit	ECL	BNC Connector
			-31 – -14dBm	SC Connector
MADI OUT 1 – 64			ECL	BNC Connector
			-20 – -14dBm	SC Connector

Control I/O Characteristics

Terminal		Level	Connector
WORD CLOCK	IN	TTL/75Ω terminated	BNC Connector
	IN for SRC	TTL/75Ω terminated	BNC Connector
	OUT	TTL/75Ω	BNC Connector
System Link Out		1.0±0.2Vp-p/75Ω*	BNC Connector

*AES-3id

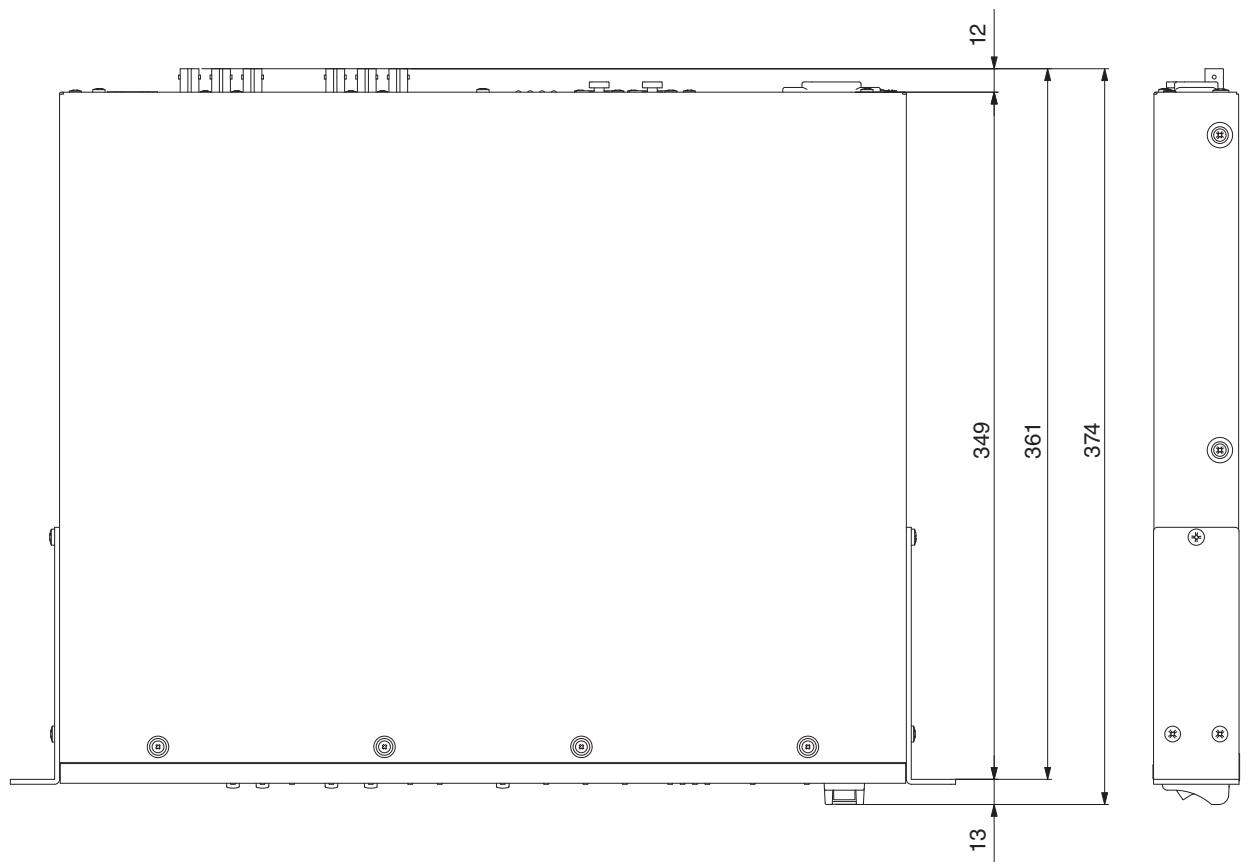

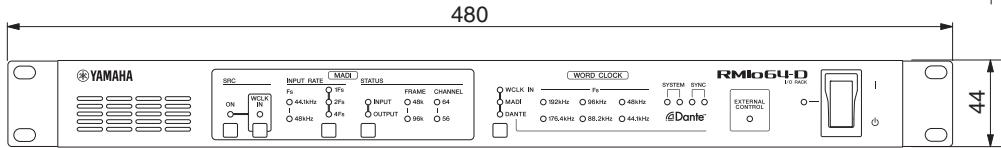

Dimensions

Unit: mm

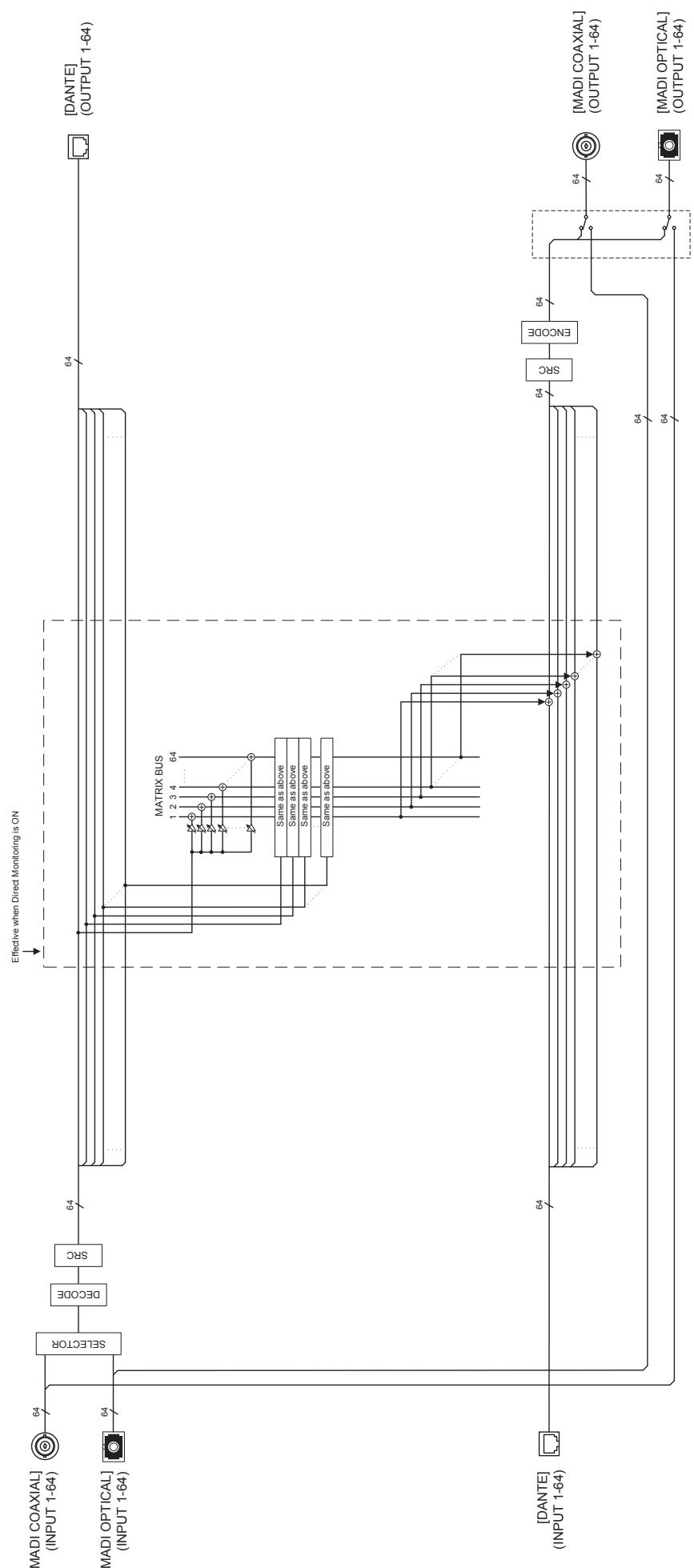

[MADI INPUT] (1-64)
(up to 64ch@44.1/48kHz, up to 32ch@88.2/96kHz, up to 16ch@176.4/192kHz)

[MADI OUTPUT] (1-64)
(up to 64ch@44.1/48kHz, up to 32ch@88.2/96kHz, up to 16ch@176.4/192kHz)
