USER MANUAL GS36NBW30 SIEMENS

Free-standing appliance

Using the installation instructions ..... 9

Installation location 9

Installing appliances

next to each other 10

Changing over the door hinges ..... 10

Changing the door handle 11

Fitting the wall spacer 11

Aligning the appliance 11

Illustration showing a hand holding a folded document with a curved arrow indicating direction or transformation.

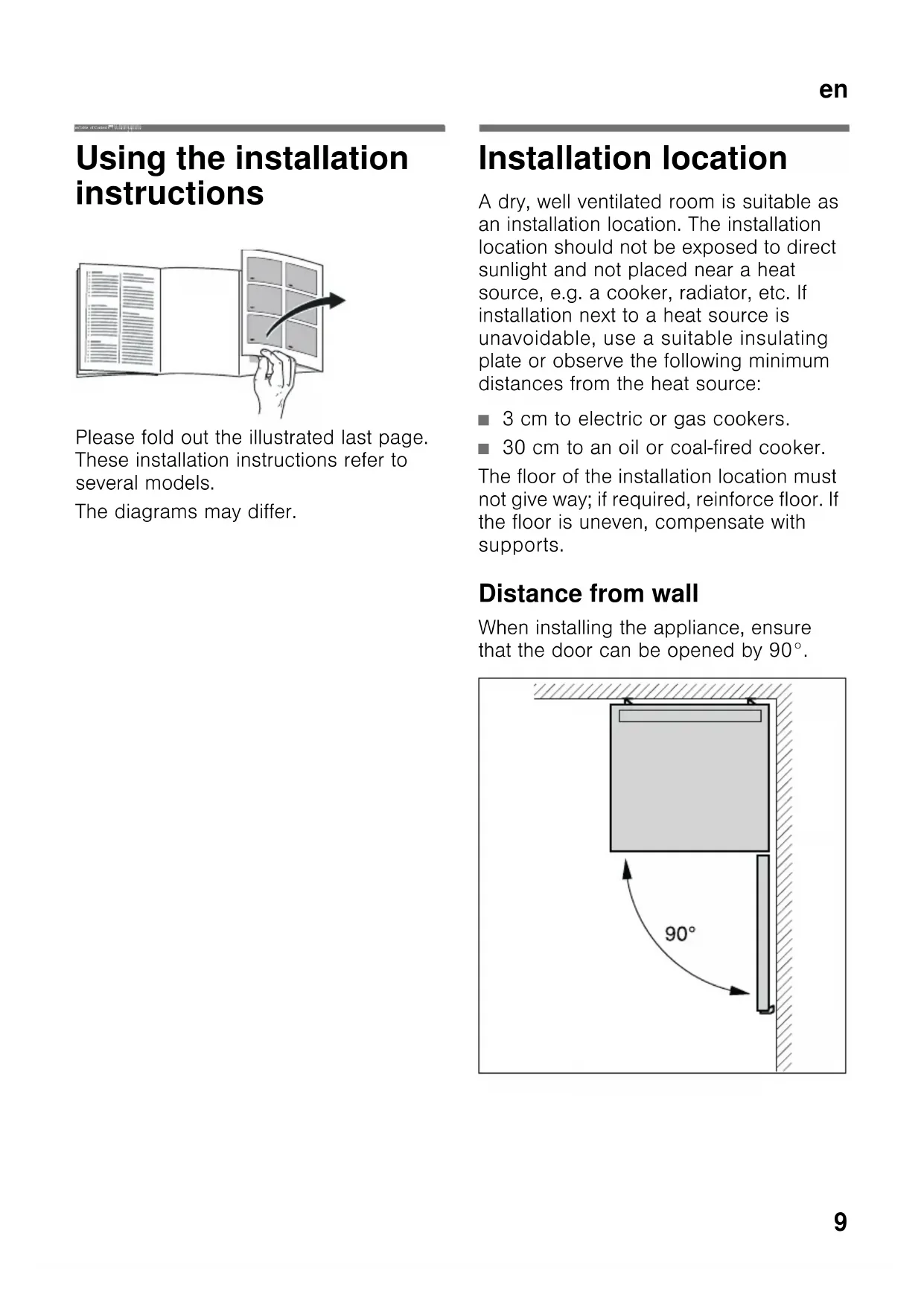

Using the installation instructions

Illustration showing a hand holding an open document with a curved arrow pointing to a grid-like panel, indicating transformation or mapping.

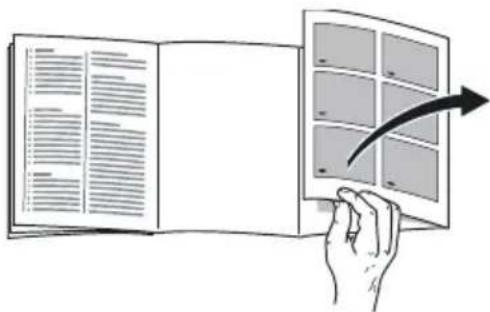

Please fold out the illustrated last page. These installation instructions refer to several models.

The diagrams may differ.

Installation location

A dry, well ventilated room is suitable as an installation location. The installation location should not be exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc. If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following minimum distances from the heat source:

■ 3 cm to electric or gas cookers.
■ 30 cm to an oil or coal-fired cooker.

The floor of the installation location must not give way; if required, reinforce floor. If the floor is uneven, compensate with supports.

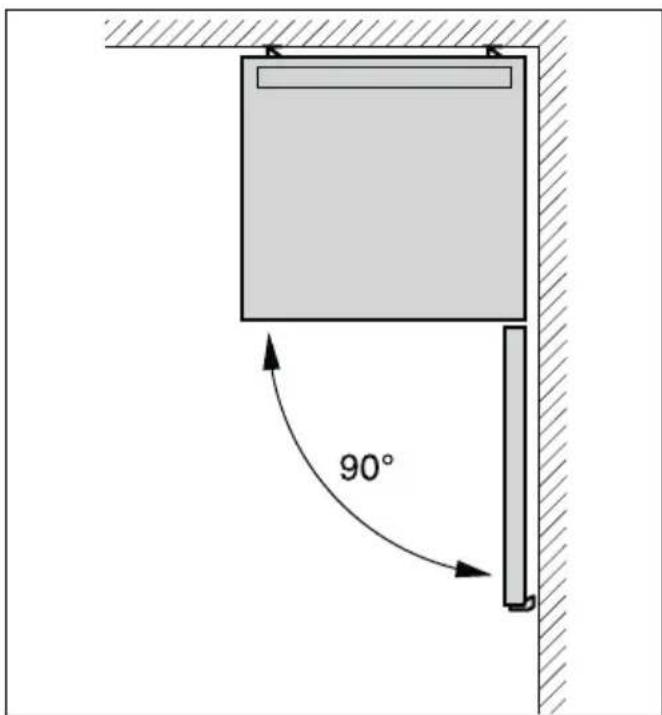

Distance from wall

When installing the appliance, ensure that the door can be opened by 90°.

90°

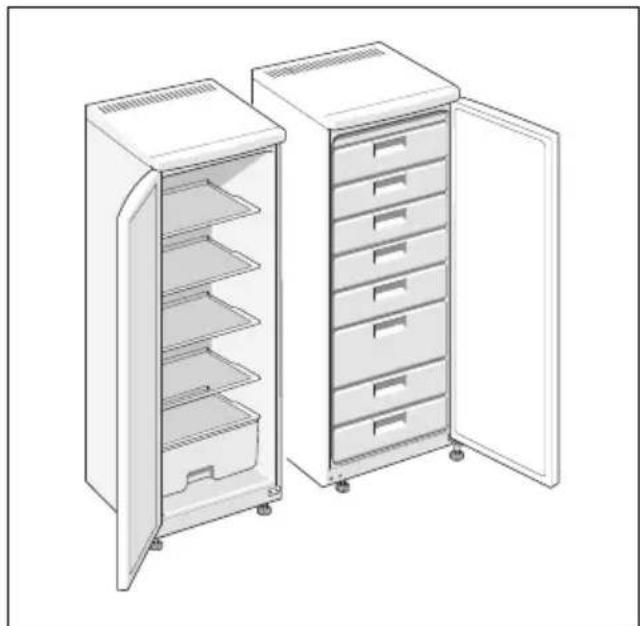

Installing appliances next to each other

Fig. 2

When installing two appliances, ensure that the refrigerator is on the left and the freezer is on the right.

The right side panel of the refrigerator is heated slightly. This prevents condensation from forming between the appliances.

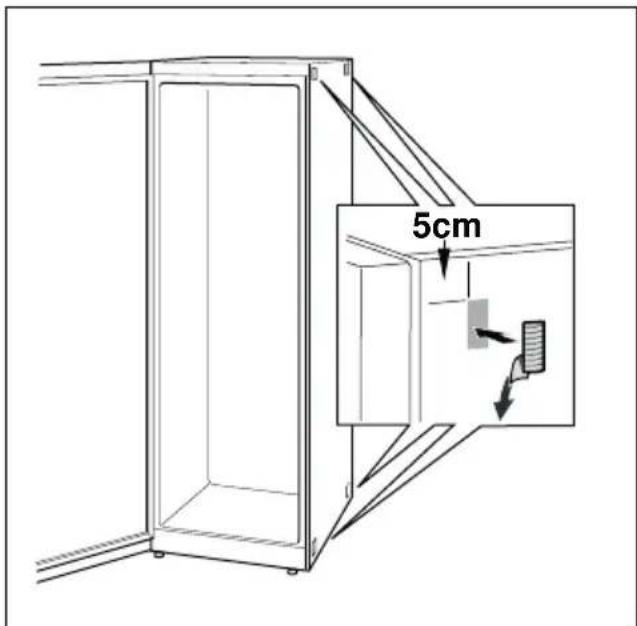

Attaching spacers

Fig. 3

1. On the right side of the refrigerator degrease the adhesive areas with petroleum ether or spirit.
2. Stick spacers in all four corners at a distance of 5 cm from the side edges to ensure a minimum gap between the appliances.

Note

You can purchase a connection set from your dealer.

Changing over the door hinges

(if required)

We recommend that you have the door hinges changed over by our customer service. You can find out the costs for changing over the door hinges from your appropriate customer service.

Warning

While changing over the door hinges, ensure that the appliance is not connected to the power supply. Pull out the mains plug beforehand. To prevent damaging the back of the appliance, place adequate padding underneath. Carefully place the appliance on its back.

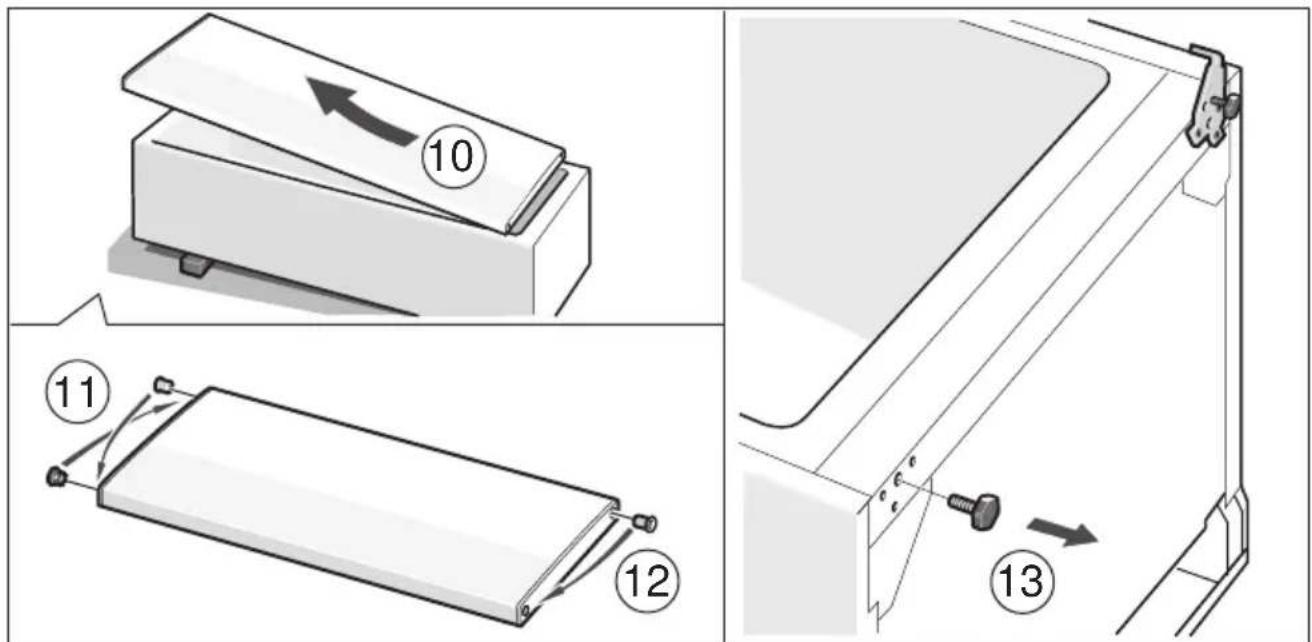

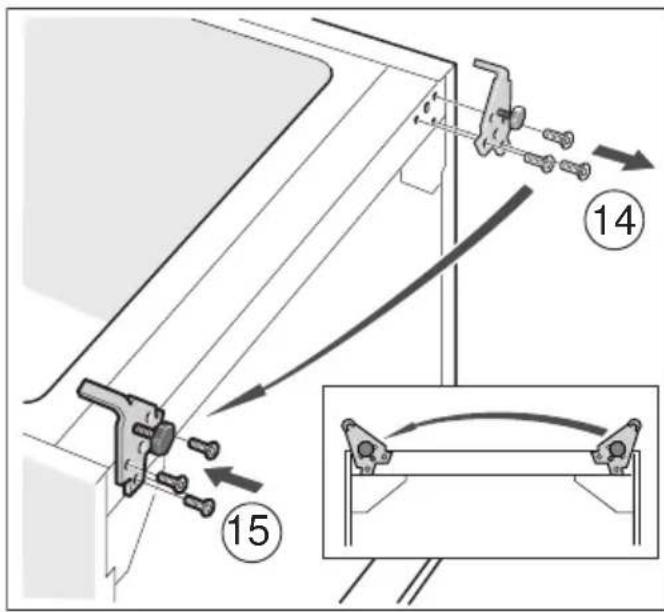

Change over the door hinges in numerical sequence. Fig. 1

Note

If the appliance is placed on its back, ensure that the wall spacer is not fitted.

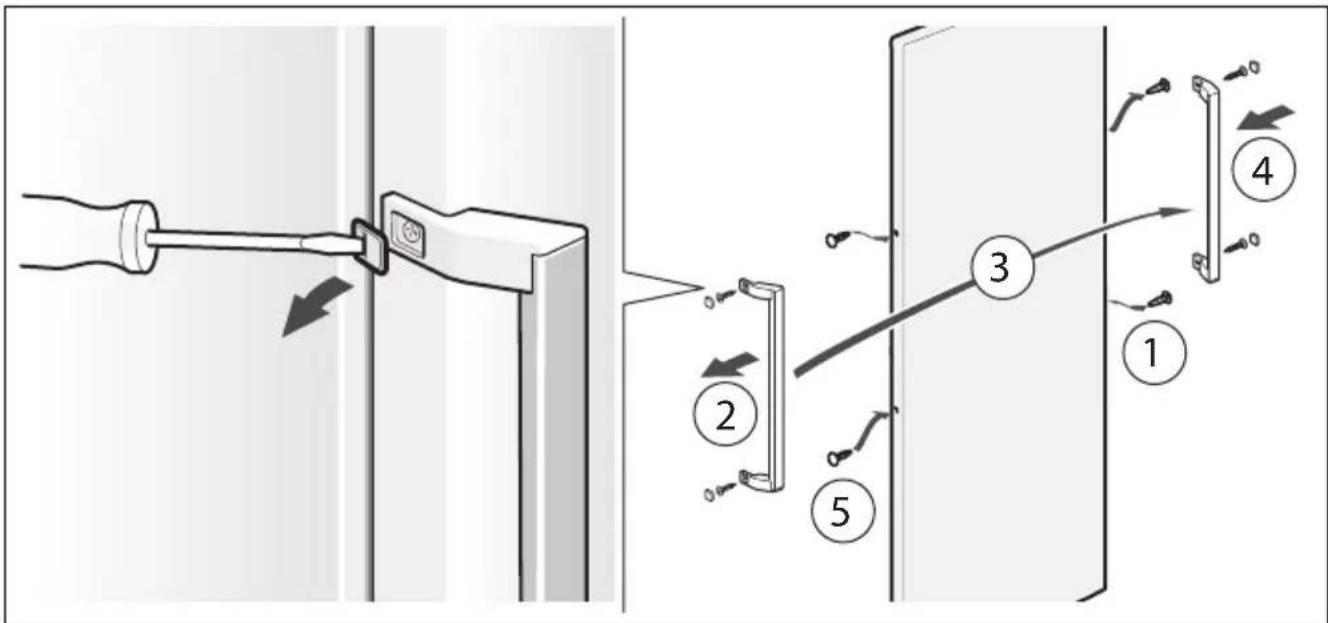

Changing the door handle

(if required)

Fig. 4

Change the door handle in numerical sequence.

Fitting the wall spacer

Fig. 5

If available:

Fit wall spacers to obtain the indicated energy absorption of the appliance.

A reduced wall gap will not restrict the function of the appliance. The energy absorption may then change slightly.

Aligning the appliance

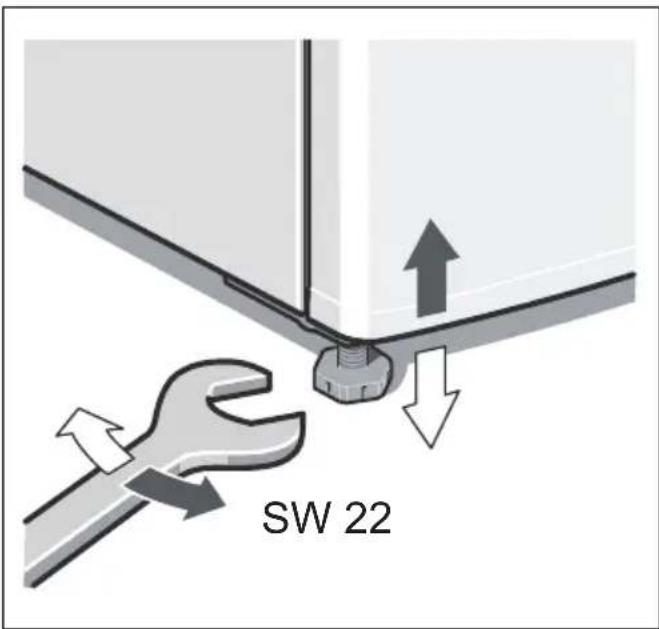

Place the appliance in the designated location and align. The appliance must be level. If the floor is uneven, use the front height-adjustable feet. Adjust the height-adjustable feet with a wrench.

Note

The appliance must be upright. Please align it with a spirit level.

SW 22

Illustration showing a hand holding an open document with a curved arrow pointing to a grid-like panel, indicating transformation or mapping.

Illustration showing a hand holding an open notebook with a curved arrow pointing to a grid-like document, indicating a transformation or mapping.

Illustration showing a hand holding an open book with a curved arrow pointing to a grid-like document, indicating a transformation or mapping.

Illustration showing a hand holding a folded document with a curved arrow pointing to a grid-like panel, indicating a transformation or mapping process.

Illustration showing a hand holding an open notebook with a curved arrow pointing to a grid-like document, indicating a transformation or mapping.

Illustration showing a hand holding a folded document with a curved arrow pointing to a grid-like structure, alongside an open notebook with text pages.

Illustration showing a hand holding a folded document with a curved arrow pointing to a grid layout, alongside an open book with text pages.

Illustration showing a hand holding a folded document with a curved arrow indicating direction or transformation.

Illustration showing a hand holding a folded document with a curved arrow pointing to a grid layout, alongside an open book with text pages.

Illustration showing a hand holding an open document with a curved arrow pointing to a grid-like panel, indicating a transformation or mapping process.

Illustration showing a hand holding a folded document with a curved arrow pointing to a grid-like panel, alongside an open book with text pages.

Illustration showing a hand holding a folded document with a curved arrow indicating direction or transformation.

Illustration showing a hand holding a folded document with a curved arrow pointing to it, indicating a transformation or mapping process.

Diagram illustrating safety warning and hazard of a refrigerator with labeled components and symbols

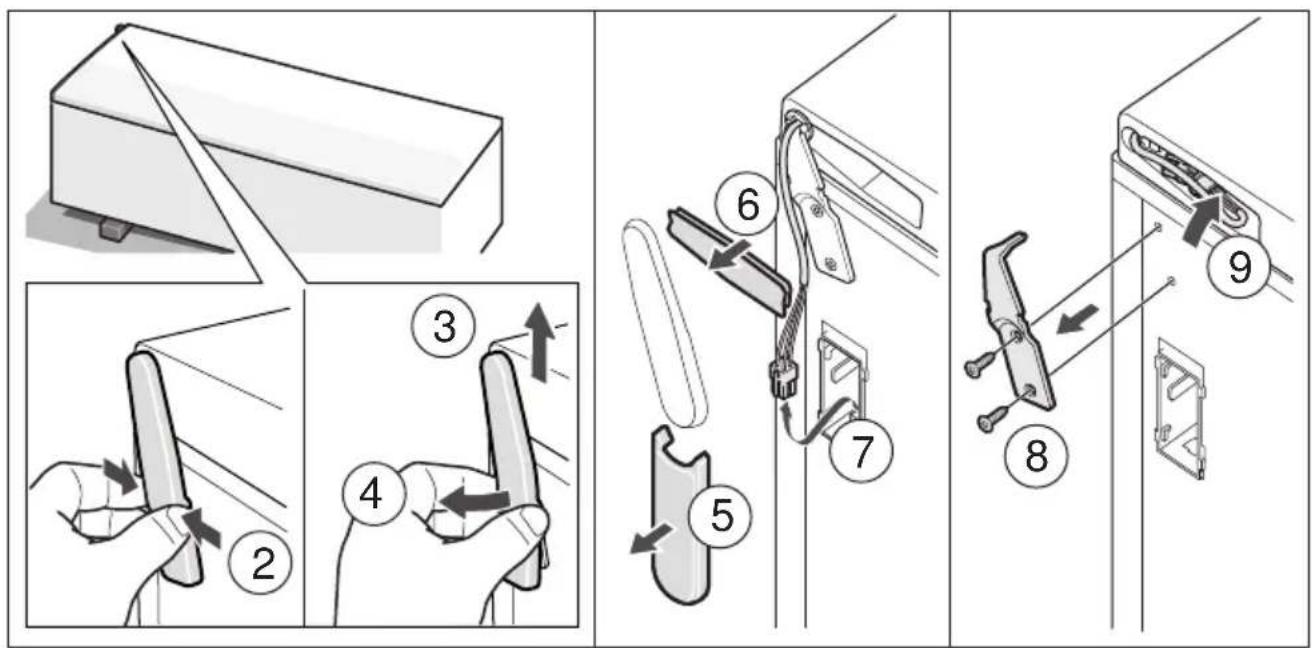

Diagram illustrating the step-by-step installation of a door lock mechanism, showing hand positioning and adjustment steps numbered 2 to 9.

Technical diagram showing three steps of a mechanical device with numbered components and directional arrows indicating motion.

Technical diagram showing mechanical assembly steps with numbered annotations (14, 15) and directional arrows indicating motion or movement.

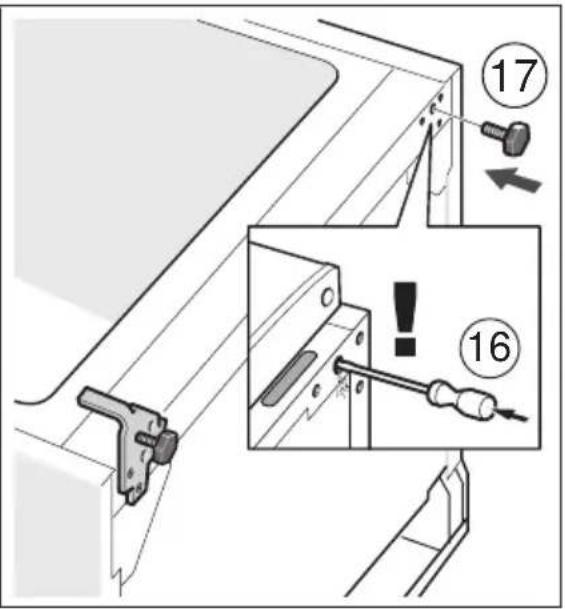

Technical diagram showing a mechanical assembly with numbered components and a warning label indicating failure or error.

Technical diagram showing mechanical assembly with numbered components and directional arrows indicating motion or movement.

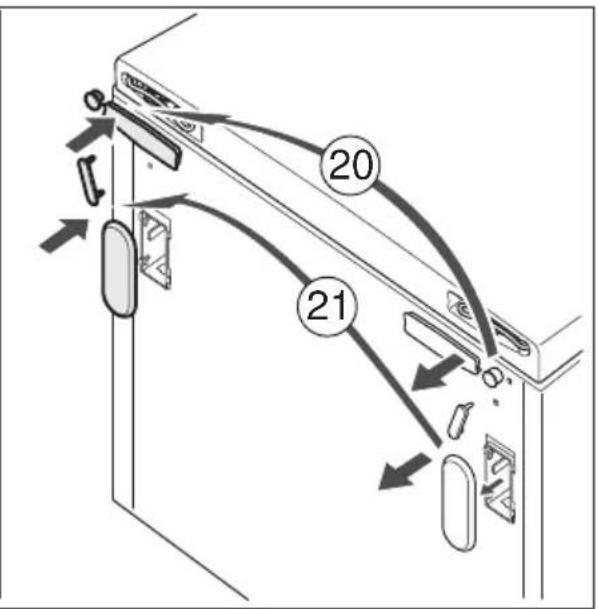

20 21

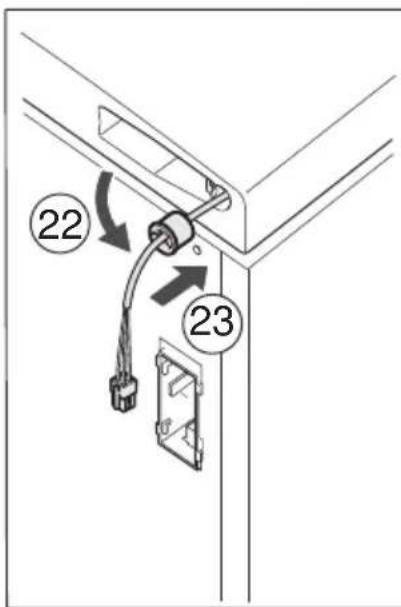

22 23

24

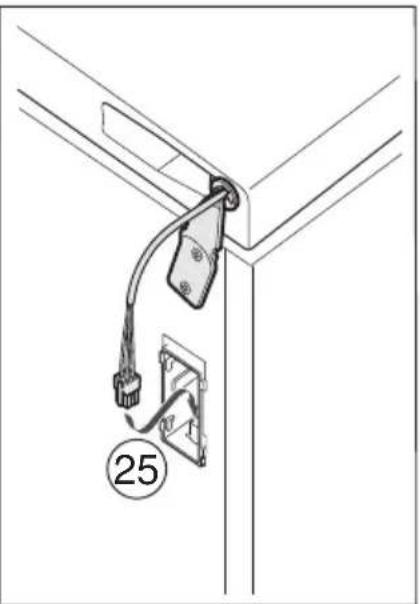

Technical diagram showing a cable being inserted into a wall-mounted electrical outlet, with no visible text or symbols.

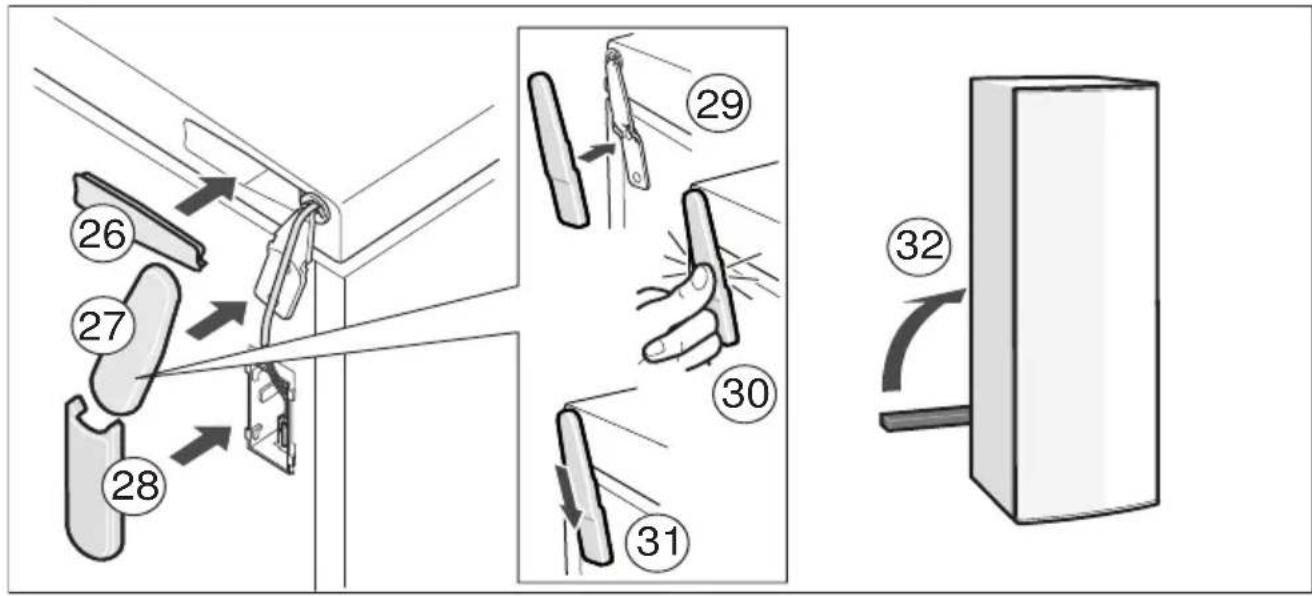

26 27 28 29 30 31 32

1

Illustration of two open refrigerator units with different internal compartments (no text or symbols)

2

5cm

3

Diagram illustrating a door lock mechanism with labeled components and directional arrows indicating movement or assembly.

4

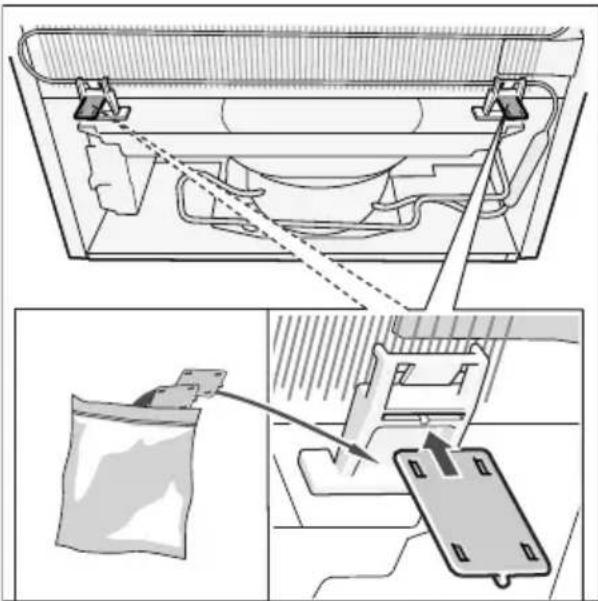

Technical diagram showing a mechanical assembly with a bag and a device, no visible text or symbols

5
