USER MANUAL SL6477SSV Speedlink

Illuminated USB-Hub Keyboard

SL-6477-SSV

DE

SICHERHEITSHINWEISE

Wichtig!

ArticleNumber: SL-6474-SSV

Schnittstelle: USB

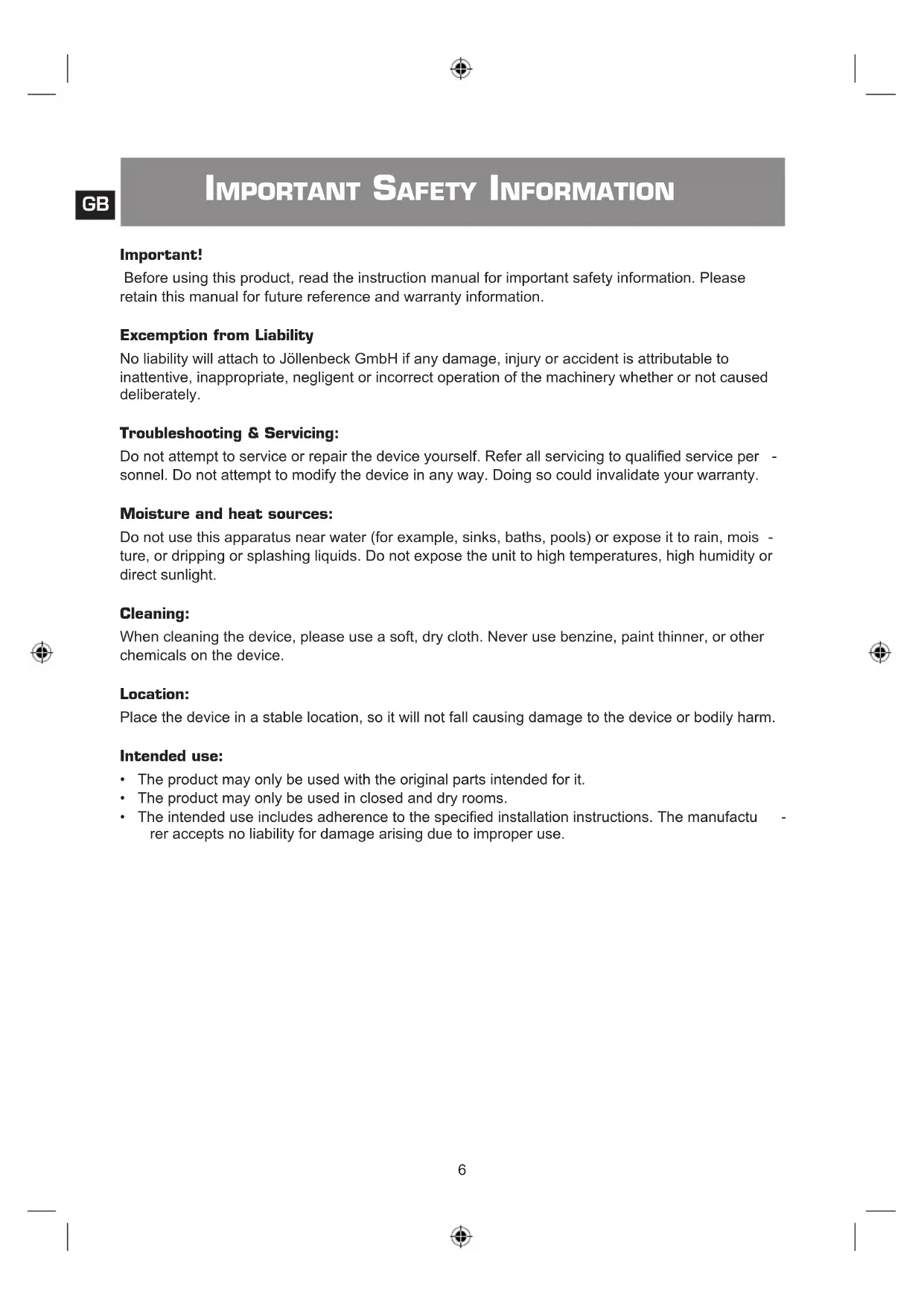

IMPORTANT SAFETY INFORMATION

Important!

Before using this product, read the instruction manual for important safety information. Please retain this manual for future reference and warranty information.

Exemption from Liability

No liability will attach to Jöllenbeck GmbH if any damage, injury or accident is attributable to inattentive, inappropriate, negligent or incorrect operation of the machinery whether or not caused deliberately.

Troubleshooting & Servicing:

Do not attempt to service or repair the device yourself. Refer all servicing to qualified service personnel. Do not attempt to modify the device in any way. Doing so could invalidate your warranty.

Moisture and heat sources:

Do not use this apparatus near water (for example, sinks, baths, pools) or expose it to rain, moisture, or dripping or splashing liquids. Do not expose the unit to high temperatures, high humidity or direct sunlight.

Cleaning:

When cleaning the device, please use a soft, dry cloth. Never use benzine, paint thinner, or other chemicals on the device.

Location:

Place the device in a stable location, so it will not fall causing damage to the device or bodily harm.

Intended use:

• The product may only be used with the original parts intended for it.
  The product may only be used in closed and dry rooms.
• The intended use includes adherence to the specified installation instructions. The manufacturer accepts no liability for damage arising due to improper use.

Introduction

Thank you for purchasing the QuickTouch USB-hub Keyboard. This product is specifically tailored to the user, provides outstanding convenience and efficiency when working at the PC.

GB

Features

• Particularly small keyboard with low space requirement
• Connects to USB port of the PC
  Hotkeys for direct access to: My computer, e-mails, media playback and operation
• With passive dual 1.1 USB hub for additional USB devices

System requirements

• Windows 95/98/98SE/2000/ME/XP
• USB port

Driver installation

Note: For Windows 98/98SE/2000 systems the multimedia keys will function only after software installation.

Please download latest software from our web site:

http://www.speed-link.com

1. Double click on the file "setup.exe".
2. Follow the instructions on the screen.
3. Restart your PC when you are asked.

Hardware installation

Note: Please note that Windows 95/NT do not support USB devices.

USB connection

1. Connect the USB cable to the corresponding USB port of your computer. The plug&play function of your computer will detect the new device automatically.
2. Windows may ask you to insert the Windows Installation CD. Follow the instructions on the screen.

USB hub

The Dual USB-Hub is especially designed for mice, numpads, memory sticks or similar devices. Devices with higher power requirements will not receive sufficient power from this USB hub.

Hotkey Functions

GB

	Opens the last web page displayed
	Opens the next web page having been displayed before
	Opens the standard internet browser
	Opens the standard e-mail client
	Switches the computer into standby mode
	Reduces volume
	Increases volume
	Previous track
	Starts/pauses replay of the media player
	Next track
	Stops media replay
	Switches the background illumination on/off

Key Assignment

	Status
Key	Fn	Num Lock	Fn	Num Lock	Fn	Num Lock	Fn	Num Lock
	OFF OFF ON OFF		OFF ON ON
77 &	Pos17 & 7
88 *			↑		8 * 8
99 (	PgUp 9 (9
00 )*0) *
U	U		←		U		4
II			I		5
O	O		→		O		6
P	P		-		P		-
J	J		End		J		1
K	K		↓		K		2
L	L		PgDn		L		3
: ;	: ;		+		: ;		+
M	M		Ins		M		0
> .	> .		Del		> .		,
? /	? /		/		? /		/

Specifications

Article no: SL-6474-SSV
- Interface: USB
- Intended use: Computer keyboard for home use

Guarantee

We guarantee this product in respect of workmanship and all built-in components for a period of two years from date of purchase.

If you need help...

In case of technical problems don't hesitate to contact our technical support. The hotline number is given on the back page of this manual.
