Thank you for purchasing this Samsung product. To receive more complete service, please register your product at:

www.samsung.com/global/register

Model Serial No.

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. (See back cover for more informations.)

Precautions When Displaying a Still Image

A still image may cause permanent damage to the TV screen.

• Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image retention. This image retention is also known as "screen burn". To avoid such image retention, reduce the degree of brightness and contrast of the screen when displaying a still image.
• Watching the LCD TV in 4:3 format for a long period of time may leave traces of borders displayed on the left, right and center of the screen caused by the difference of light emission on the screen. Playing a DVD or a game console may cause a similar effect to the screen. Damages caused by the above effect are not covered by the Warranty.
• Displaying still images from Video games and PC for longer than a certain period of time may produce partial after-images. To prevent this effect, reduce the 'brightness' and 'contrast' when displaying still images.

Contents

CONNECTING AND PREPARING YOUR TV

List of Parts 2
Installing the Stand 2
Installing the Wall Mount Kit 2
Viewing the Control Panel 3
Viewing the Connection Panel 4
Viewing the Remote Control 6
Installing Batteries in the Remote Control 7
Switching On and Off 7
Placing Your Television in Standby Mode. 7
Viewing the Menus 8

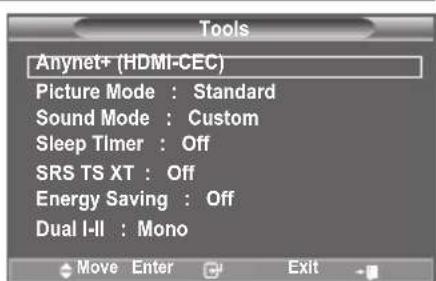

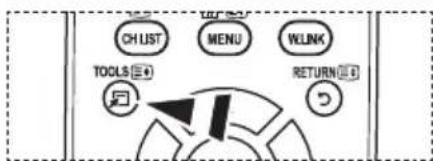

Using the TOOLS Button 8

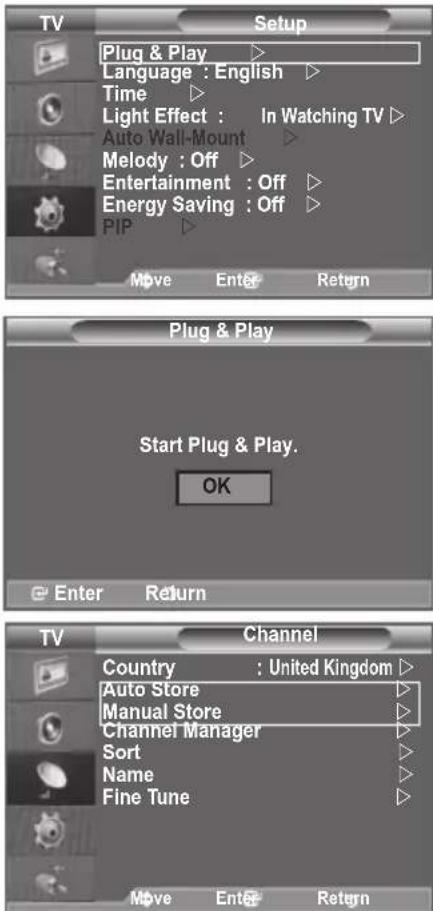

Plug & Play 9

SETTING THE CHANNELS

Storing Channels Automatically 10

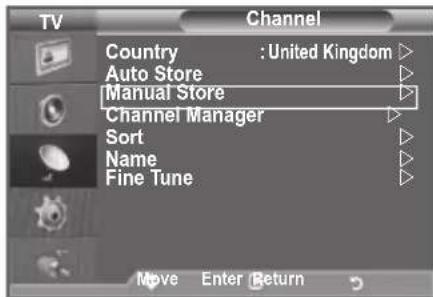

Storing Channels Manually 11

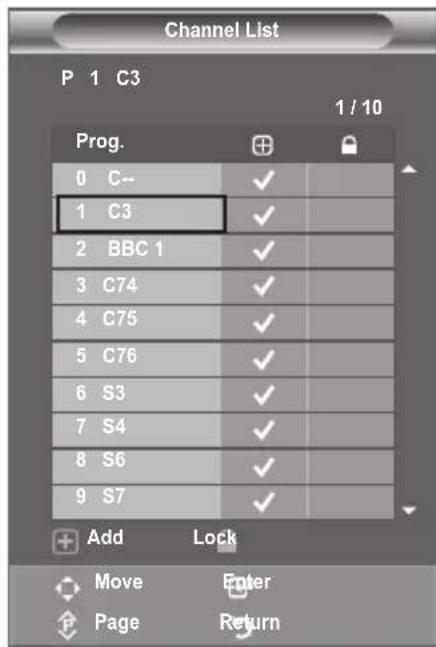

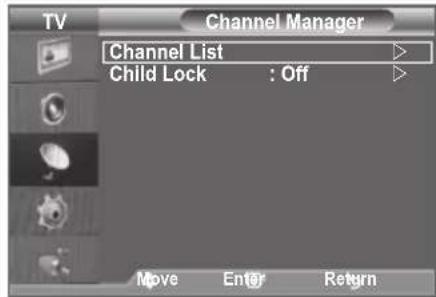

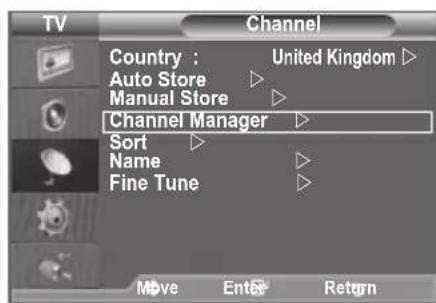

Adding / Locking Channels 12

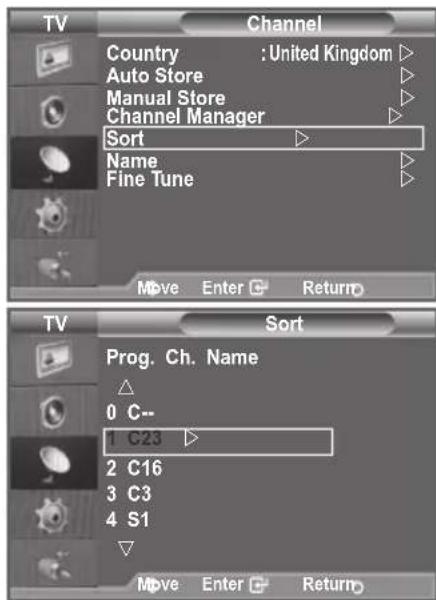

Sorting the Stored Channels 13
Assigning Channels Names 13

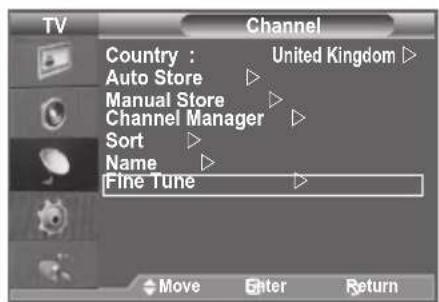

Fine Tuning Channel Reception 14

SETTING THE PICTURE

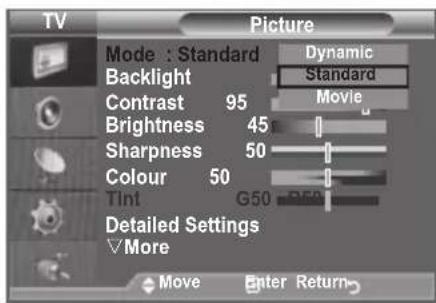

Changing the Picture Standard 15
Adjusting the Custom Picture 16

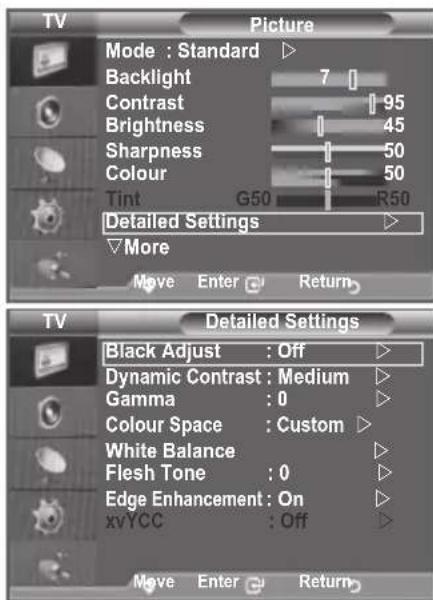

Configuring Detailed Settings on the Picture ... 16

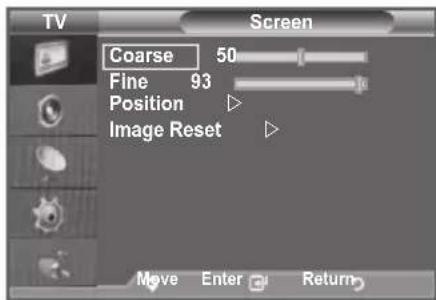

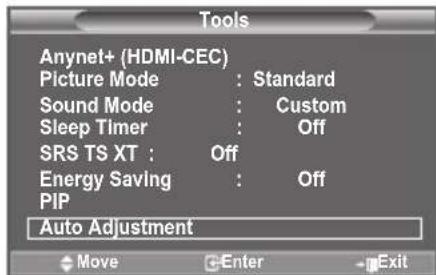

Resetting the Picture Settings to the Factory Defaults 17
Configuring Picture Option 18
Viewing the Picture In Picture (PIP) 20

SETTING THE SOUND

Sound Features 21
Selecting the Sound Mode 22
Connecting Headphones (Sold separately) 22

SETTING THE TIME

Setting and Displaying the Current Time 23

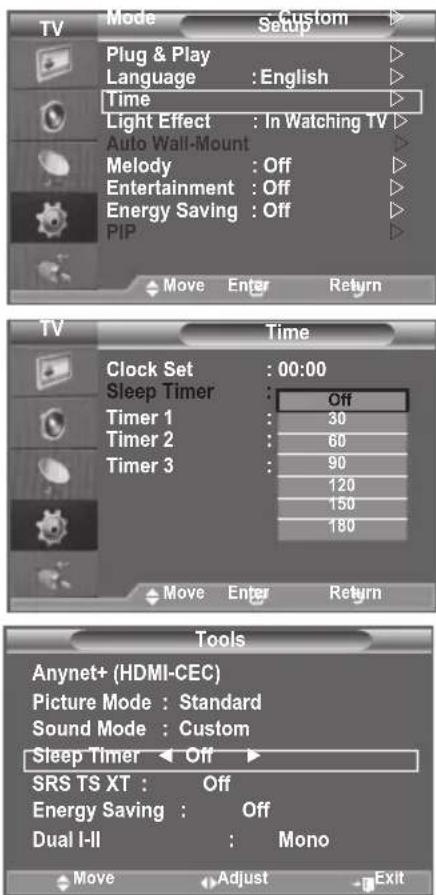

Setting the Sleep Timer 23
Switching the Television On and Off Automatically 24

FUNCTION DESCRIPTION

Choosing Your Language 24

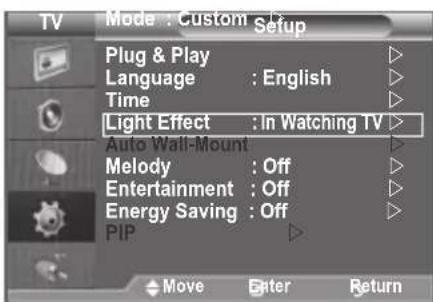

Setting the Light Effect (depending on the model) 25

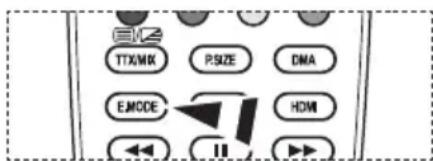

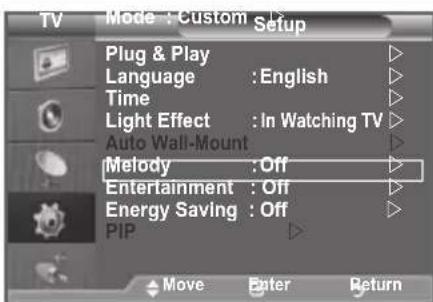

Melody / Entertainment / Energy Saving 25

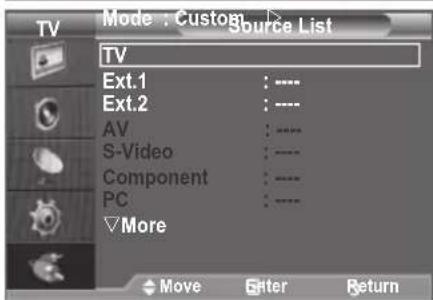

Selecting the Source 27
Editing the Input Source Names 27

SETTING THE PC

Setting up Your PC Software (Based on Windows XP) 28
Display Modes 28
Setting up the TV with your PC 29

WISELINK

Using the WISELINK Function 30

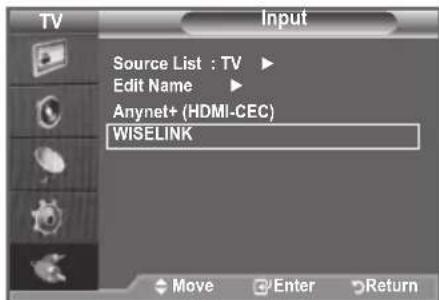

Using the WISELINK Menu 31

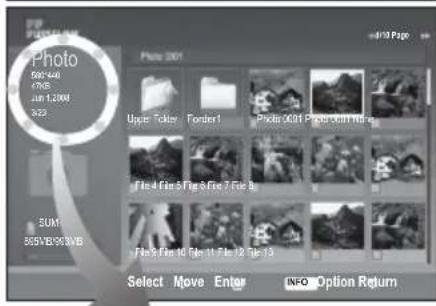

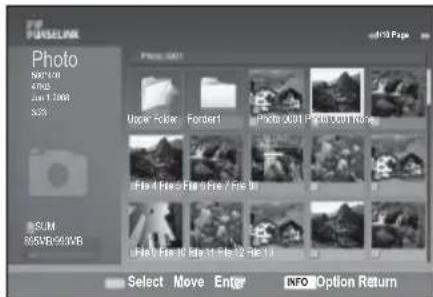

Using the PHOTO (JPEG) List 32
Using the MP3 List 35
Using the Setup Menu 36

ABOUT ANYNET

What is Anynet+? 37

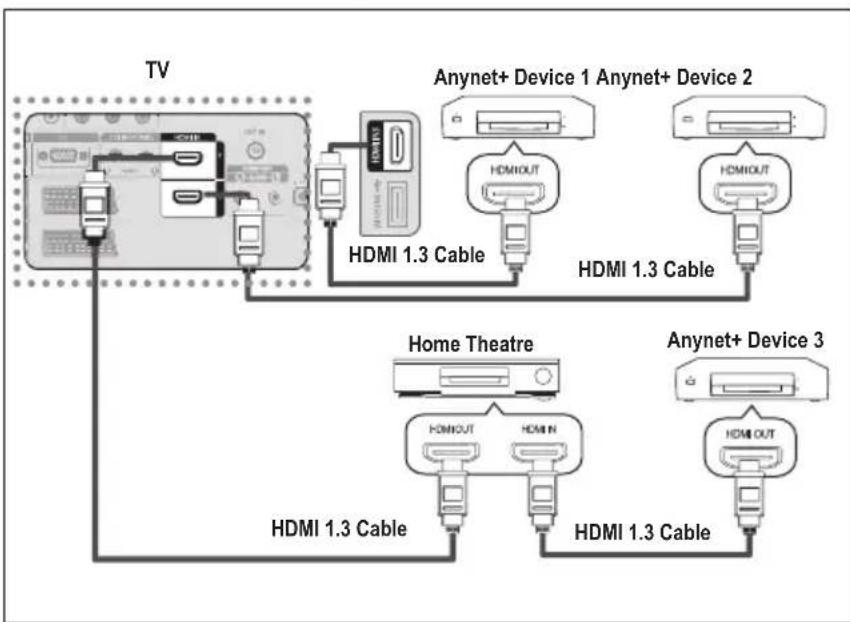

Connecting Anynet+ Devices 37
Setting Up Anynet+ 38

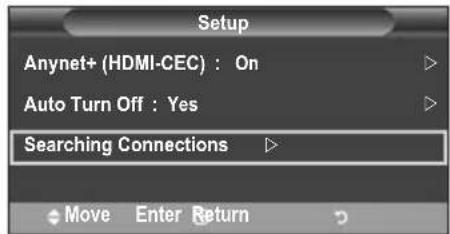

Scanning and Switching between Anynet+ Devices 39
Recording 41

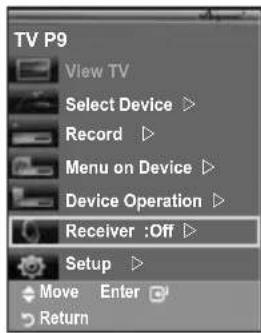

Listening through a Receiver 41
Check Points before Requesting Service 42

RECOMMENDATIONS FOR USE

Teletext Feature 43
Auto Wall-Mount (Sold separately) 45

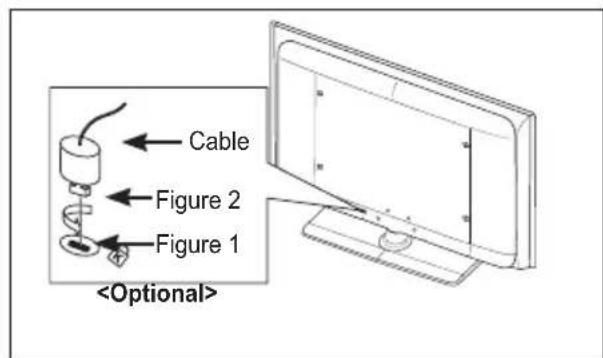

Using the Anti-Theft Kensington Lock (depending on the model) 46
Troubleshooting: Before Contacting Service Personnel 47
Technical and Environmental Specifications ... 48

Symbol Press Note One-Touch

Button

List of Parts

Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer.

M4XL16

Remote Control & Batteries (AAA x 2)

Power Cord Cover-Bottom

Stand Screw X4

Stand Cleaning Cloth

• Owner's Instructions

Warranty card

Safety Guide

• Registration Cards

Warranty card / Safety Guide / Registration Cards (Not available in all locations)
The stand and stand screw may not be included depending on the model.

Installing the Stand

1. Connect your LCD TV and the stand.

Two or more people should carry the TV.

Make sure to distinguish between the front and back of the stand when assembling them.

1. Fasten two screws at position 1 and then fasten two screw at position 2.

Stand the product up and fasten the screws. If you fasten the screws with the LCD TV placed down, it may lean to one side.
The stand is installed for models with the screen size of 37 inch and above.

Installing the Wall Mount Kit

Wall mount items (sold separately) allow you to mount the TV on the wall.

For detailed information on installing the wall mount, see the instructions provided with the Wall Mount items. Contact a technician for assistance when installing the wall mounted bracket.

Samsung Electronics is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV on your own.

Do not install your Wall Mount Kit while your TV is turned on. It may result in personal injury due to electric shock.

Remove the stand and cover the bottom hole with a cap and fasten with two screws.

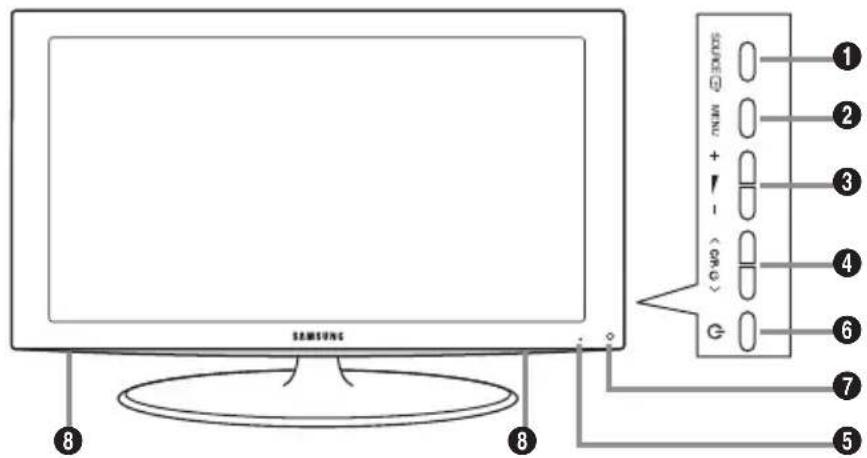

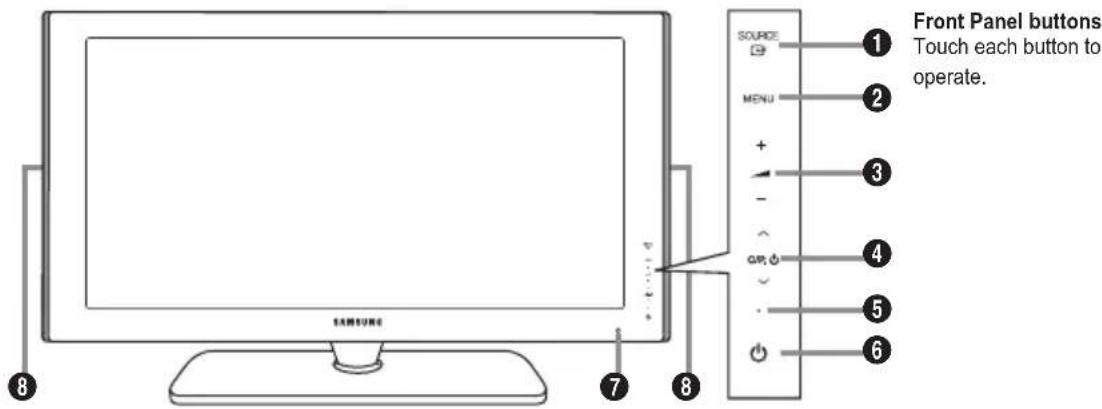

Side Panel buttons

The product colour and shape may vary depending on the model.

SOURCE

Toggles between all the available input sources (TV, Ext.1, Ext.2, AV, S-Video, Component, PC, HDMI1, HDMI2, HDMI3). In the on-screen menu, use this button as you use the ENTER button on the remote control.

2 MENU

Press to see an on-screen menu of your TV's features.

3 - +

Press to decrease or increase the volume. In the on-screen menu, use the buttons as you use the and buttons on the remote control.

C/P.

Press to change channels. In the on-screen menu, use the C / P buttons as you use the and buttons on the remote control. (Without the Remote Control, you can turn on the TV by using the Channel buttons.)

5 Power Indicator

Blinks and turns off when the power is on and lights up in stand-by mode.

(Power)

Press to turn the TV on and off.

Remote Control Sensor

Aim the remote control towards this spot on the TV.

8 Speakers

The product colour and shape may vary depending on the model.

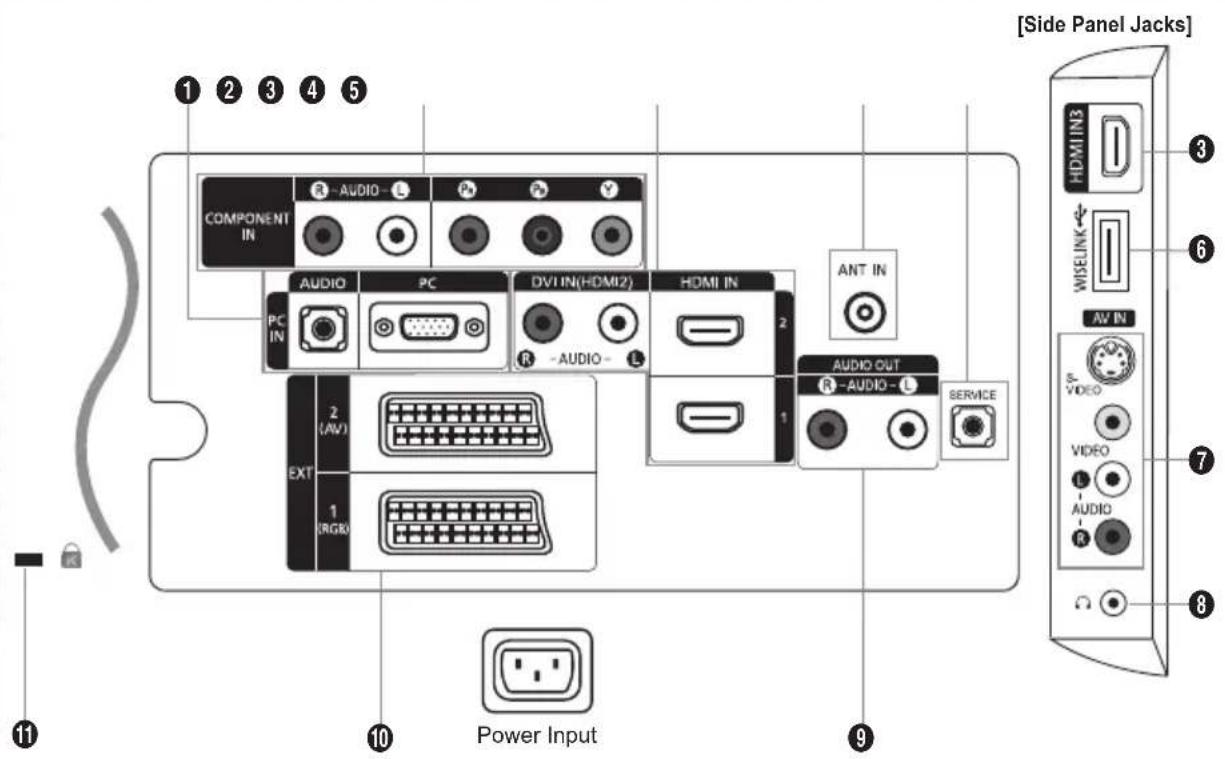

Whenever you connect an external device to your TV, make sure that power on the unit is turned off
When connecting an external device, match the colour of the connection terminal to the cable.

PC IN [PC] / [AUDIO]

• Connect to the video and audio output jack on your PC.

2 COMPONENT IN

• Connect component video cables (optional) to component connector ("PR", "PB", "Y") on the rear of your set and the other ends to corresponding component video out connectors on the DVD.
• If you wish to connect both the Set-Top Box and DVD, you should connect the Set-Top Box to the DVD and connect the DVD to component connector ("PR", "Pb", "Y") on your set.
• The PR, PB and Y connectors on your component devices (DVD) are sometimes labeled Y, B-Y and R-Y or Y, Cb and Cr.
• Connect RCA audio cables (optional) to "R - AUDIO - L" on the rear of your set and the other ends to corresponding audio out connectors on the DVD.

HDMI IN 1, HDMI IN 2, HDMI IN 3

Supports connections between HDMI-connection-enabled AV devices (Set-Top Boxes, DVD players)
- No additional Audio connection is needed for an HDMI to HDMI connection.
- When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.

What is HDMI?

• "High Definition Multimedia interface" allows the transmission of high definition digital video data and multiple channels of digital audio.
• The HDMI/DVI terminal supports DVI connection to an extended device with the appropriate cable (not supplied). The difference between HDMI and DVI is that the HDMI device is smaller in size, has the HDCP (High Bandwidth Digital Copy Protection) coding feature installed, and supports multi-channel digital audio.

The TV may not output sound and pictures may be displayed with abnormal colour when DVD players/Cable Boxes/Satellite receivers supporting HDMI versions older than 1.3 are connected. When connecting an older HDMI cable and there is no sound, connect the HDMI cable to the HDMI IN 2 jack and the audio cables to the DVI IN (HDMI2) [R-AUDIO-L] jacks on the back of the TV. If this happens, contact the company that provided the DVD player/Cable Box/Satellite receiver to confirm the HDMI version, then request a firmware update. HDMI cables that are not 1.3 may cause annoying flicker or no screen display.

DVI IN(HDMI2) [R-AUDIO-L]

• DVI audio outputs for external devices.

Supported modes for HDMI/DVI and Component

	480i 480p	576i 576p	720p	1080i	1080p
HDMI/DVI 50Hz	X	X	X	O	O	O	O
HDMI/DVI 60Hz	X	O	X	X	O	O	O
Component	O O O O	O O O

4 ANT IN

To view television channels correctly, a signal must be received by the set from one of the following sources:

• An outdoor aerial / A cable television network / A satellite network

5 SERVICE

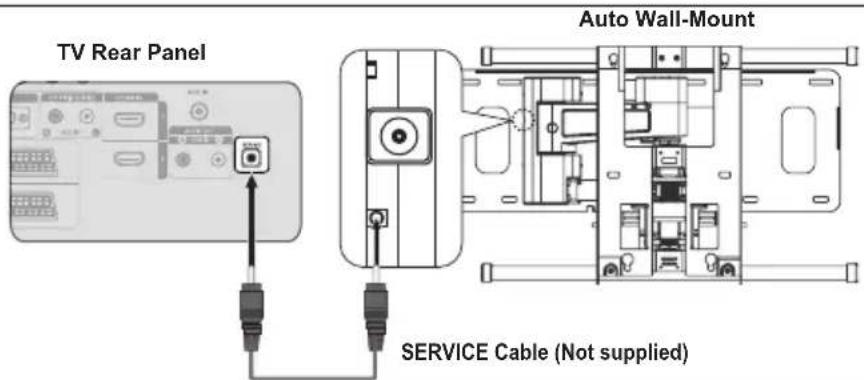

Connect this to the jack on the optional wall mount bracket. This will allow you to adjust the TV viewing angle using your remote control.

6 WISELINK

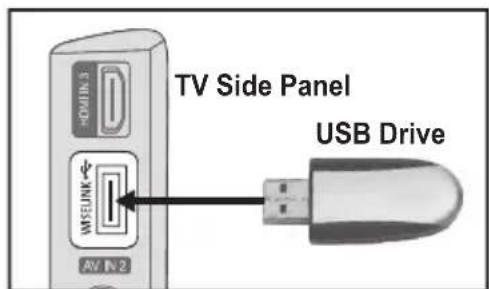

• Connect a USB mass storage device to view photo files (JPEG) and play audio files (MP3)

S-VIDEO or VIDEO / R-AUDIO-L

• Connect RCA or S-VIDEO cable to an appropriate external A/V device such as VCR, DVD or Camcorder.
• Connect RCA audio cables to "R-AUDIO-L" on your set and the other ends to corresponding audio out connectors on the A/V device.

Headphones jack

• Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled.

9 AUDIO OUT [R-AUDIO-L]

• Connect RCA audio cables to AUDIO OUT [R-AUDIO-L] on the rear of your set and the other ends to corresponding audio in connectors on the Amplifier or DVD Home Theatre.

EXT1,EXT2

Connector	Input Output
	Video Audio (L/R) RGB Video + Audio (L/R)
EXT 1 O O O	Only TV output is available.
EXT 2 O O Output you can choose.

• Inputs or outputs for external devices, such as VCR, DVD, video game device or video disc players.

Kensington Lock (depending on the model)

• The Kensington lock (optional) is a device used to physically fix the system when used in a public place.
• If you want to use a locking device, contact the dealer where you purchased the TV.
• The location of the kensington lock may be different depending on its model.

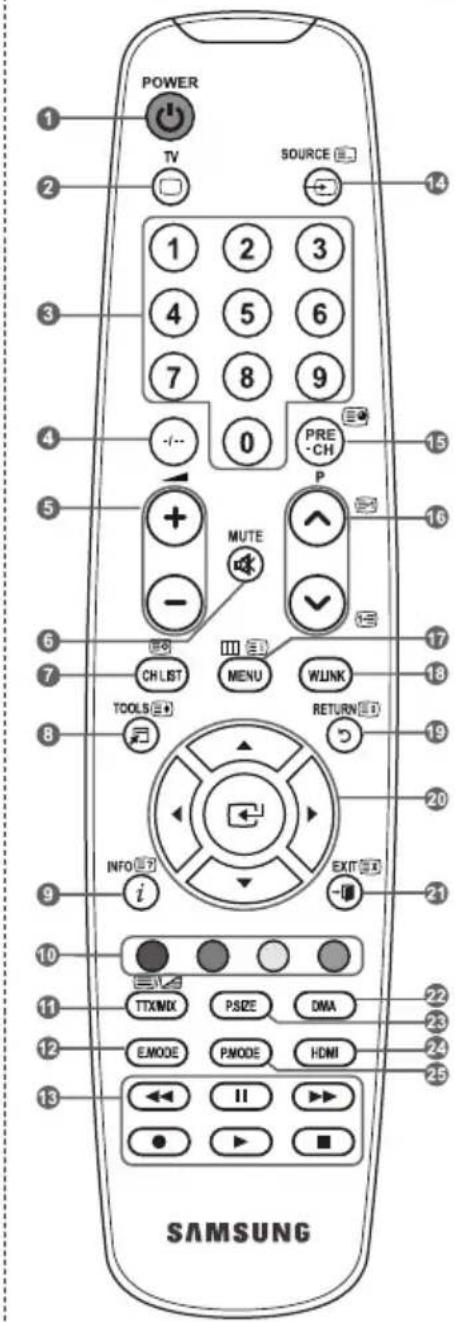

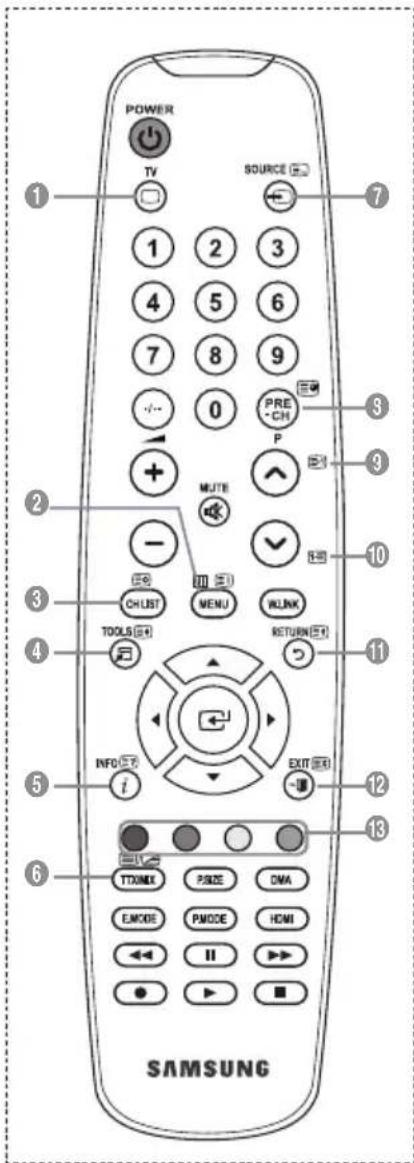

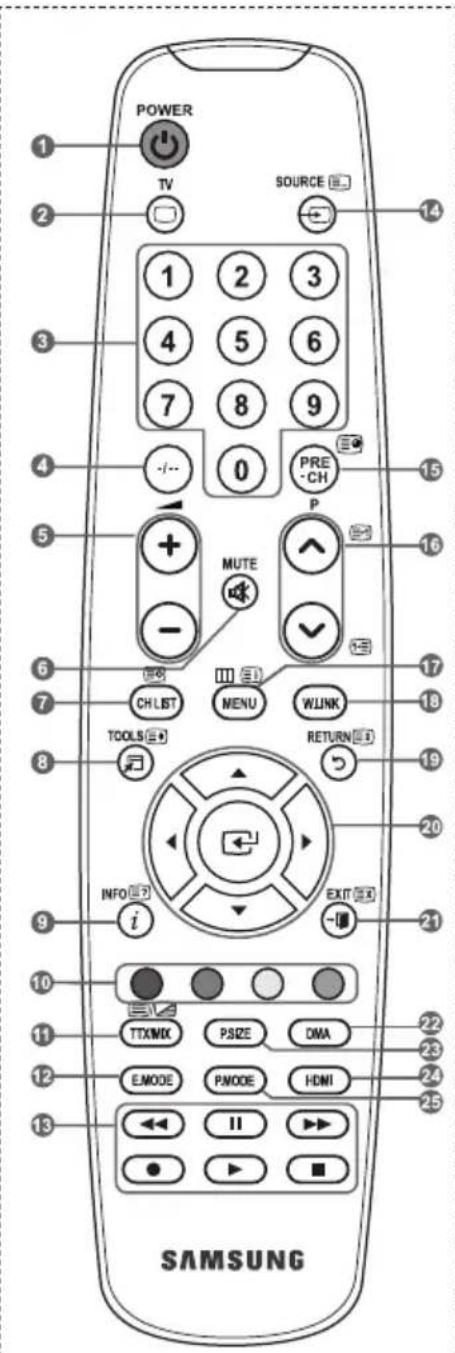

Viewing the Remote Control

Press to select the optional display and sound modes for sports, cinema and games.

Use these buttons in the DMA, WISELINK, and Anynet+.

Television Standby button
2 Selects the TV mode directly
Number buttons for direct channel access
One/Two-digit channel selection
5 :Volume increase Volume decrease
6 Temporary sound switch-Temporanyocinowithen on the off operating procedures,
It display "Channel List" on the screen.
Use to quickly select frequently used functions.
Use to see information on the current broadcast
Colour buttons :Colour buttons Use these buttons in the Channel list and WISELINK, etc.
20 Control the cursor in the menu
Exit the on-screen menu
Use this when connecting a SAMSUNG DMA (Digital Media Adapter) device through an HDMI interface and switching to DMA mode. (The DMA button is optional.) For
poranyoneinfo switch on the operating procedures, refer to the user manual of the DMA. This button is available when "Anynet+(HDMI-CEC)" is "On" (see page 38)
Picture size selection
Selects the HDMI mode directly.
Picture effect selection

This remote can be used to control recording on Samsung recorders with the Anynet+ feature)

Available source selection
Previous channel
16 P: Next channel P: Previous chann
17 Displays the main on-screen menu
This function enables you to view and play photo and music files from an external device.
19 Returns to the previous menu

Teletext Functions

Exit from the teletext display
7 Teletext store
Teletext size selection
Teletext reveal
10 Fastext topic selection
1 Alternately select Teletext, Double, or Mix.
14 Teletext mode selection (LIST/FLOF)
15 Teletext sub page
16 P: Teletext next page P: Teletext previous page
Teletext index
19 Teletext hold
Teletext cancel

The performance of the remote control may be affected by bright light.

Installing Batteries in the Remote Control

1. Lift the cover at the back of the remote control upward as shown in the figure.
2. Install two AAA size batteries.

Make sure to match the "+" and "-" ends of the batteries with the diagram inside the compartment.

1. Replace the cover.

   Remove the batteries and store them in a cool, dry place if you won't be using the remote control for a long time.

If the remote control doesn't work, check the following:

1. Is the TV power on?
2. Are the plus and minus ends of the batteries reversed?
3. Are the batteries drained?
4. Is there a power outage, or is the power cord unplugged?
5. Is there a special fluorescent light or neon sign nearby?

Switching On and Off

The mains lead is attached to the rear of your set.

1. Plug the mains lead into an appropriate socket.

The standby indicator lights up on your set.

1. Press the button on your set.

You also can press the POWER button or the TV button on the remote control to turn the TV on.
The programme that you were watching last is reselected automatically.

1. Press the numeric button (0~9) or channel up/down (/) button on the remote control or CIP. button on your set.
   When you switch the set on for the very first time, you will be asked to choose language in which the menus are to be displayed.
2. To switch your set off, press the POWER button again.

Placing Your Television in Standby Mode

Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (during a meal, for example).

1. Press the POWER button on the remote control.

The screen is turned off and a red standby indicator appears on your set.

1. To switch your set back on, simply press the POWER, numeric buttons (0~9), TV button or channel up/down ( / ) button again.

Do not leave your set in standby mode for long periods of time (when you are away on holiday, for example).

It is best to unplug the set from the mains and aerial.

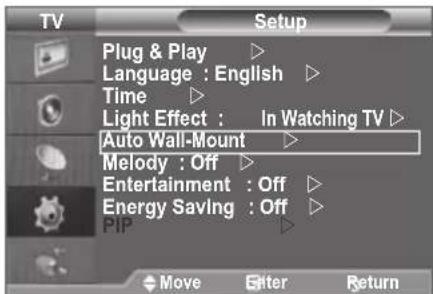

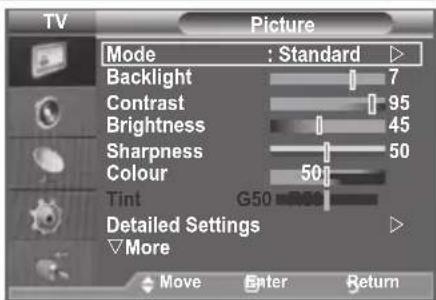

Viewing the Menus

1. With the power on, press the MENU button.

The main menu appears on the screen. The menu's left side has icons: Picture, Sound, Channel, Setup, Input.

1. Press the or button to select one of the icons.

Then press the ENTER button to access the icon's sub-menu.

1. Press the EXIT button to exit.

The on-screen menus disappear from the screen after about one minute.

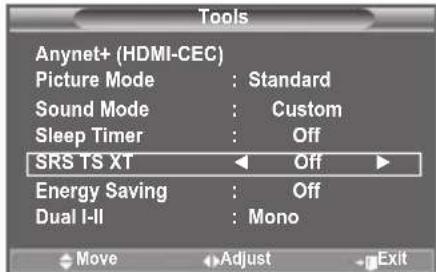

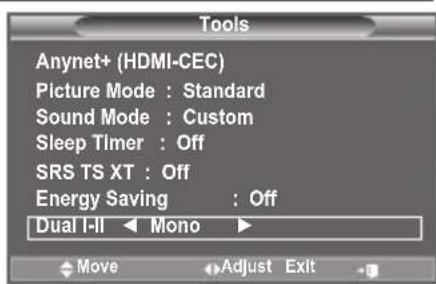

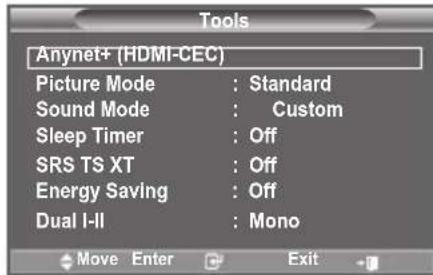

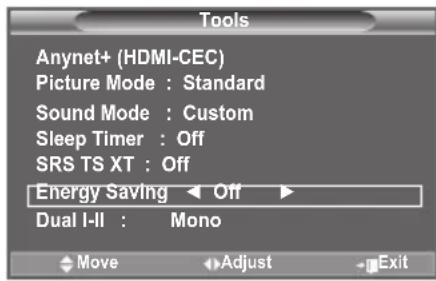

Using the TOOLS Button

You can use the TOOLS button to select your frequently used functions quickly and easily. The "Tools" menu change depending on which external input mode you are viewing.

1. Press the TOOLS button.

The "Tools" menu will appear.

1. Press the or button to select a menu.
2. Press the / / / ENTER按钮 to display, change, or use the selected items. For a more detailed description of each function, refer to the corresponding page.

Anynet+ (HDMI-CEC), see page 38
Picture Mode, see page 15

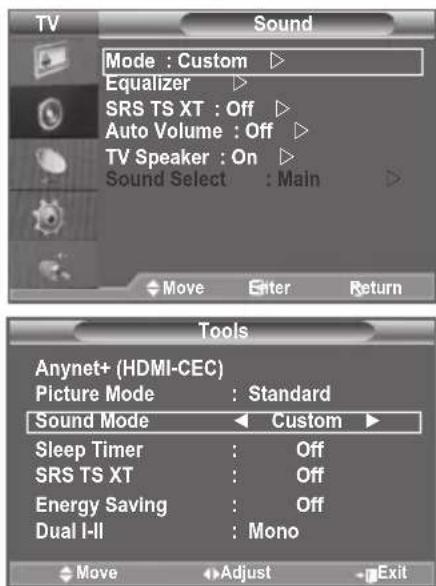

Sound Mode, see page 21
Sleep Timer, see page 23
SRS TS XT, see page 21
Energy Saving, see page 26
Dual I-II, see page 22

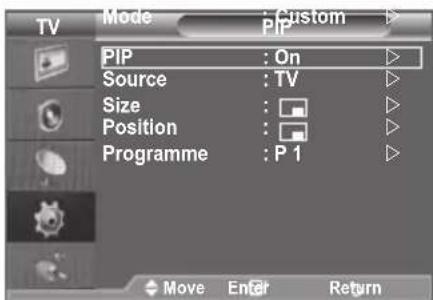

PIP, see page 20
Auto Adjustment, see page 29

Plug & Play

When the TV is initially powered on, several basic settings proceed automatically and subsequently. The following settings are available.

The Screen Saver is activated if there is no remote control key input for longer than 1 minute while "Plug & Play" is running.
The Screen Saver is activated if there is no operating signal for longer than 15 minutes.

1. Press the POWER button on the remote control.

The message "Start Plug & Play" is displayed with "OK" selected.

1. Select the appropriate language by pressing the or button.

Press the ENTER button to confirm your choice.

1. Press the or button to select "Store Demo" or "Home Use", then the ENTER button.

We recommend setting the TV to "Home Use" mode for the best picture in your home environment.

"Store Demo" mode is only intended for use in retail environments.
If the unit is accidentally set to "Store Demo" mode and you want to return to "Home Use" (Standard): Press the Volume button on the TV. When the volume OSD is displayed, press and hold the MENU button on the TV for 5 seconds.

1. The message "Check antenna input." is displayed with "OK" selected.

Press the ENTER button.

Please check that the antenna cable is connected correctly.

1. Select the appropriate country by pressing the or button.

Press the ENTER button to confirm your choice.

1. The "Auto Store" menu is displayed with the "Start" selected. Press the ENTER button.

The channel search will start and end automatically.
Press the ENTER button at any time to interrupt the memorization process.

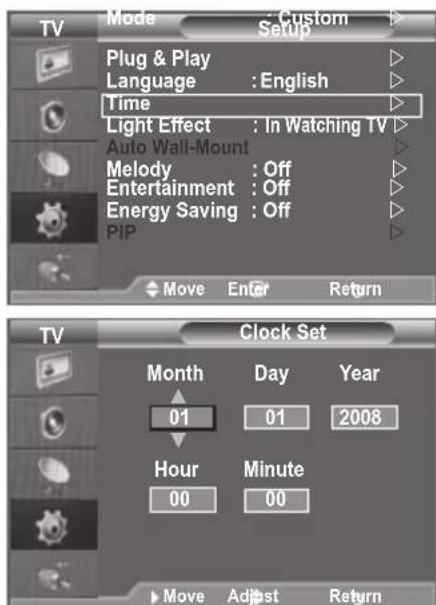

After all the available channels are stored, the "Clock Set" menu appears.

1. Press the ENTER button.

Select the "Month", "Day", "Year", "Hour", or "Minute" by pressing the or button.

Set the "Month", "Day", "Year", "Hour", or "Minute" by pressing the or button.

You can also set the "Month", "Day", "Year", "Hour" and "Minute" by pressing the number buttons on the remote control.

1. Press the ENTER button to confirm your setting. The message "Enjoy your viewing" is displayed.

When you have finished, press the ENTER button.

Even if the ENTER button is not pressed, the message will automatically disappear after several seconds.

Language: Select your language.
Country: Select your country.
Auto Store: Automatically scans for and stores channels available in the local area.
Clock Set: Sets the current time for the TV clock.

If you want to reset this feature...

1. Press the MENU button to display the menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the ENTER button again, to select "Plug & Play". For further details on setting up options, refer to the page 9. The "Plug & Play" feature is only available in the TV mode.

• Storing Channels Automatically
• Storing Channels Manually

Storing Channels Automatically

You can scan for the frequency ranges available to you (and availability depends on your country). Automatically allocated programme numbers may not correspond to actual or desired programme numbers. However, you can sort numbers manually and clear any channels you do not wish to watch.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the ENTER button to select "Country".
3. Select the appropriate country by pressing the or button. Press the ENTER button to confirm your choice.
4. Press the or button to select "Auto Store", then press the ENTER button.
5. Press the ENTER button.

The TV will begin memorizing all of the available channels.

Press the ENTER button at any time to interrupt the memorization process and return to the "Channel" menu.

1. After all the available channels are stored, the "Sort" menu appears. (refer to page 13)

Storing Channels Manually

You can store television channels, including those received via cable networks.

When storing channels manually, you can choose:

Whether or not to store each of the channels found.
The programme number of each stored channel which you wish to identify.
1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

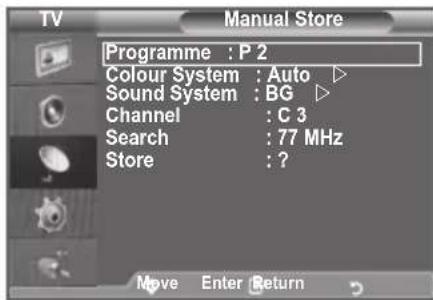

1. Press the or button to select "Manual Store", then press the ENTER button.
2. Select the required option by pressing the or button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Programme (Programme number to be assigned to a channel)

• Press the or button until you find the correct number.

You can also select the channel number directly by pressing the numeric buttons (0 9)

Colour System: Auto/PAL/SECAM/NTSC4.43

• Press the or button to select the required colour standard.

Sound System:BG/DK/II/L

• Press the or button to select the required sound standard.

Channel (When you know the number of the channel to be stored)

• Press the or button to select C (Air channel) or S (Cable channel).
• Press the button, then press the or button to select the required number.

You can also select the channel number directly by pressing the numeric buttons (0 9)
If there is abnormal sound or no sound, re-select the sound standard required.

Search (When you do not know the channel numbers)

Press the or button to start the search.
Theuner scans the frequency range until the first channel or the channel that you selected is received on the screen.

Store (When you store the channel and associated programme number)

• Set to "OK" by pressing the ENTER button.

Channel mode

• P (Programme mode): When completing tuning, the broadcasting stations in your area have been assigned to position numbers from P00 to P99. You can select a channel by entering the position number in this mode.
  C (Air channel mode): You can select a channel by entering the assigned number to each air broadcasting station in this mode.
• S (Cable channel mode): You can select a channel by entering the assigned number for each cable channel in this mode.

Adding / Locking Channels

Using the Channel Manager, you can conveniently lock or add channels.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Channel Manager", then press the ENTER button.

Adding channels

Using the Channel List, you can add channels.

1. Select Channel List by pressing the ENTER button.
2. Move to the ( ) field by pressing the ▲, ▼, △ or ▶ button, select a channel to be added, and press the ENTER button to add the channel.

If you press the ENTER button again, the symbol next to the channel disappears and the channel is not added.
" is active when "Child Lock" is selected to "On".

Locking channels

This feature allows you to prevent unauthorized users, such as children, from watching unsuitable programmes by muting out video and audio.

1. Press the or button to select "Child Lock", then press the ENTER button.
2. Select "On" by pressing the or button, then press the ENTER button.
3. Press the or button to select "Channel List", then press the ENTER button.
4. Move to the ( ) held by pressing the ▲, ▼, △ or ▶ button, select a channel to be locked, and press the ENTER button.

If you press the ENTER button again, the ( ) symbol next to the channel disappears and the channel lock is cancelled.
A blue screen is displayed when "Child Lock" is activated.

1. Press the EXIT button to exit.

Select "On" or "Off" in "Child Lock" to easily turn the channels which selected on "▶" to be active or inactive.

You can select these options by simply pressing the CH LIST button on the remote control

Sorting the Stored Channels

This operation allows you to change the programme numbers of the stored channels.

This operation may be necessary after using the auto store.

1. Press the MENU button to display the menu.
   Press the or button to select "Channel", then press the ENTER button.
2. Press the or button to select "Sort", then press the ENTER button.
3. Select the channel number that you wish to change by pressing the or button repeatedly.
   Press the ENTER button.
   The selected channel number and name are moved to right side.
4. Press the or button to move to the position in which you would like to change and then press the ENTER button.
   The selected channel is exchanged with the one previously stored to the chosen number.
5. Repeat steps 3 to 4 for another channel to be sorted.
6. Press the EXIT button to exit.

Assigning Channels Names

Channel names will be assigned automatically when channel information is broadcast. These names can be changed, allowing you to assign new names.

1. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

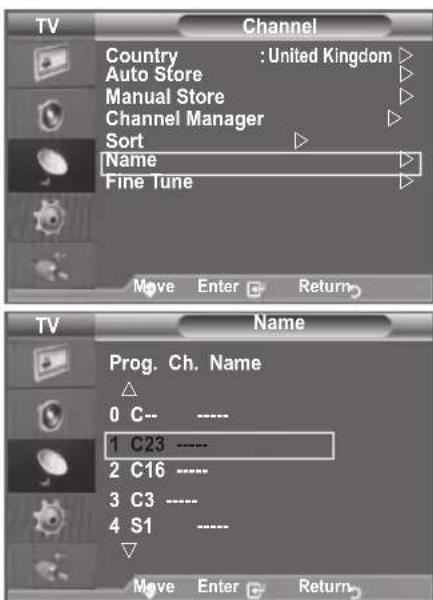

1. Press the or button to select "Name", then press the ENTER button.

2. If necessary, select the channel to be assigned to a new name by pressing the or button. Press the ENTER button

The selection bar is displayed around the name box.

To... Then...
Select a letter, number or symbol	Press the ▲ or ▼ button
Move on the next letter Press the	button
Move back the previous letter Press the	< button
Confirm the name	Press the ENTER□ button

The following characters are available: Letters of the alphabet (A~Z) / Numbers (0~9) / Special characters (+, -, *, /, space)

1. Repeat steps 3 to 4 for each channel to be assigned to a new name.
2. Press the EXIT button to exit.

Fine Tuning Channel Reception

Use fine tuning to manually adjust a particular channel for optimal reception.

1. Use the number buttons to directly select the channel that you want to fine tune.
2. Press the MENU button to display the menu.

Press the or button to select "Channel", then press the ENTER button.

1. Press the or button to select "Fine Tune", then press the ENTER button.
2. Press the or button to adjust the fine tuning. Press the ENTER button.
3. Press the EXIT button to exit.

Fine tuned channels that have been saved are marked with an asterisk ** on the right-hand side of the channel number in the channel banner. And the channel number turns red.
To reset the fine-tuning, select "Reset" by pressing the or button and then press the ENTER button.

Changing the Picture Standard

You can select the type of picture which best corresponds to your viewing requirements.

1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

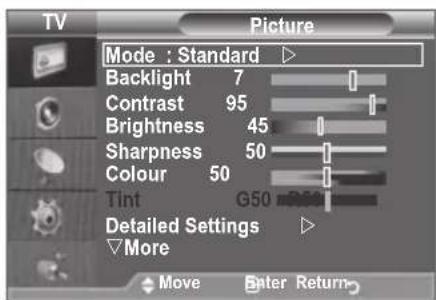

1. Press the ENTER button again, to select "Mode".
2. Press the or button to select the desired picture effect.

Press the ENTER button.

1. Press the EXIT button to exit.

Dynamic: Selects the picture for high-definition in a bright room.
Standard: Selects the picture for optimum display in a normal environment.
Movie: Selects the picture for comfortable display in a dark room.

The Picture mode must be adjusted separately for each input source.

You can also press the P.MODE button on the remote control to select one of the picture settings.

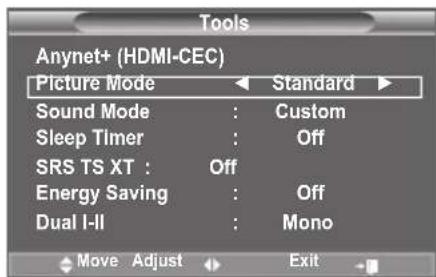

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Picture Mode".
3. Press the or button to select the desired picture mode.
4. Press the EXIT or TOOLS button to exit.

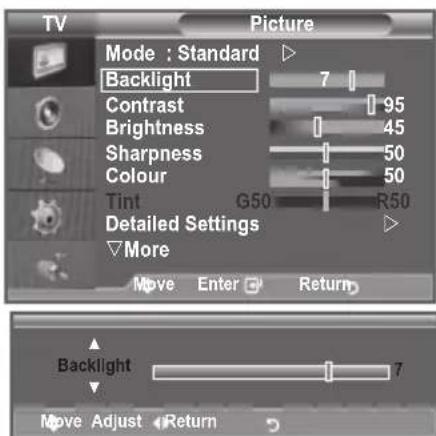

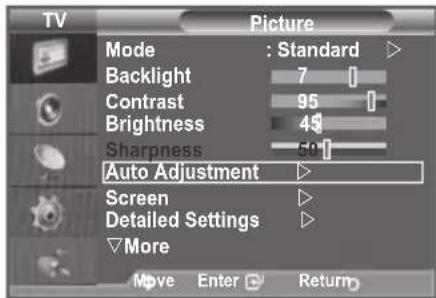

Adjusting the Custom Picture

Your set has several settings which allow you to control picture quality.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3.
2. Press the or button to select a particular item. Press the ENTER button.
3. Press the or button to decrease or increase the value of a particular item. Press the ENTER button.
4. Press the EXIT button to exit.

Backlight: Adjusts the screen brightness by adjusting the LCD backlight brightness. (0 10)
Contrast: Adjusts the lightness and darkness between objects and the background.
Brightness: Adjusts the brightness of the whole screen.
Sharpness: Adjusts the outline of objects to either sharpen them or make them more dull.
Colour: Adjusts the colours, making them lighter or darker.
Tint: Adjusts the colour of objects, making them more red or green for a more natural look.

The adjusted values are stored according to the selected Picture mode.
In PC mode, you can only make changes to "Backlight", "Contrast" and "Brightness".
TV, Ext., AV, S-Video modes of the PAL system, you cannot use the "Tint" Function.
You can return to the factory defaults picture settings by selecting the "Reset". (Refer to "Resetting the Picture Settings to the Factory Defaults" on page 17)

Configuring Detailed Settings on the Picture

You can set detailed picture settings.

1. Press the MENU button to display the menu.
   Press the ENTER button, to select "Picture".
2. Press the ENTER button to select "Mode".
   Press the or button to select "Standard" or "Movie", then press the ENTER button.
3. Press the or button to select "Detailed Settings", then press the ENTER button.
4. Select the required option by pressing the or button, then press the ENTER button.
5. When you are satisfied with your setting, press the ENTER button.
6. Press the EXIT button to exit.
   Detailed Settings" is available in "Standard" or "Movie" mode.
   In PC mode, you can only make changes to "Dynamic Contrast", "Gamma" and "White Balance" from among the "Detailed Settings" items.

Black Adjust: Off/Low/Medium/High

You can directly select the black level on the screen to adjust the screen depth.

Dynamic Contrast: Off/Low/Medium/High

You can adjust the screen contrast so that the optimal contrast is provided.

Gamma: -3 +3

You can adjust the Primary Colour (Red, Green, Blue) Intensity.

Press the or button until you reach the optimal setting.

Colour Space: Auto/Native/Custom

Colour space is a Colour matrix composed of "Red", "Green" and "Blue" Colours.

Select your favourite Colour space to experience the most natural Colour.

Auto: Auto Color Space automatically adjusts to the most natural color tone based on program sources.
Native: Native Color Space offers deep and rich color tone.
Custom: Adjusts the color range to suit your preference.

Customizing the Colour Space

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Adjusts the Colour range to suit your preference.

"Colour" is available when "Colour Space" is set to "Custom".

Press the or button to select "Red", "Green", "Blue", "Yellow", "Cyan" or "Magenta".

Press the ENTER button.

Red/Green/Blue: In "Colour", you can adjust the RGB values for the selected colour.

Press the or button to select "Red", "Green" or "Blue" to change it.

Press the ENTER button.

Press the or button to decrease or increase the value of a particular item. Press the

ENTER button.

Reset: Resets the colour space to the default values.

White Balance: R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain/Reset

You can adjust the colour temperature for more natural picture colours.

R-Offset/G-Offset/B-Offset/R-Gain/G-Gain/B-Gain: Changing the adjustment value will refresh the adjusted screen.

Select the required option by pressing the or button, then press the ENTER button.

Press the or button until you reach the optimal setting.

Reset: The previously adjusted white balance will be reset to the factory defaults.

Flesh Tone: -15 ~ +15

You can emphasize the pink 'flesh tone' in the picture.

Press the or button until you reach the optimal setting.

Changing the adjustment value will refresh the adjusted screen.

Edge Enhancement: Off/On

You can emphasize object boundaries in the picture.

xvYCC: Off/On

Setting the xvYCC mode to On increases detail and colour space when watching movies from an external device (ie. DVD player) connected to the HDMI or Component IN jacks. You must set the Picture Mode to Movie to enjoy this feature.

Only available in "HDMI" and "Component" on "Movie" mode.
If xvYCC function is active, PIP cannot be selected.

Resetting the Picture Settings to the Factory Defaults

You can return to the factory defaults picture settings.

1. To select the desired picture effect, follow the "Changing the Picture Standard" instructions number 1 to 3 (On page 15).
2. Press the or button to select "Reset", then press the ENTER button.
3. Press the or button to select "OK" or "Cancel".

Press the ENTER button.

1. Press the EXIT button to exit.

The "Reset" will be set for each "Picture" mode.

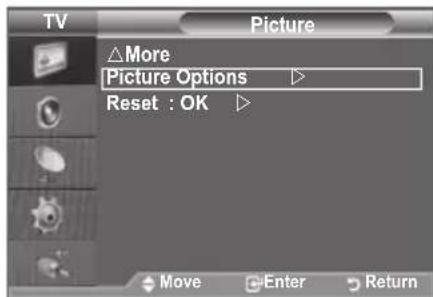

Configuring Picture Option

1. Press the MENU button to display the menu.
   Press the ENTER button, to select "Picture".
2. Press the or button to select "Picture Options", then press the ENTER button.
3. Select the required option by pressing the or button, then press the ENTER button.
4. When you are satisfied with your setting, press the ENTER button.
5. Press the EXIT button to exit.

In PC mode, you can only make changes to the "Colour Tone" and "Size" from among the items in "Picture Options".

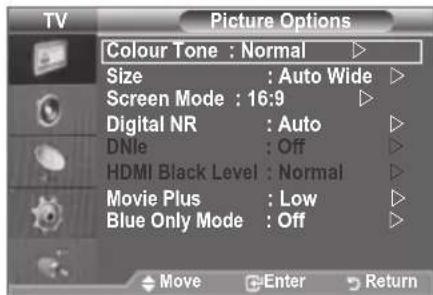

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

You can select the most comfortable colour tone to your eyes.

The adjusted values are stored according to the selected "Picture" mode.
"Warm1" or "Warm2" is only activated when the picture mode is "Movie".

Size: Auto Wide/16:9/Wide Zoom/Zoom/4:3/Just Scan

You can select the picture size which best corresponds to your viewing requirements.

Auto Wide: Automatically adjusts the picture size to the "16:9" aspect ratio.
16:9: Adjusts the picture size to 16:9 appropriate for DVDs or wide broadcasting.
Wide Zoom: Magnify the size of the picture more than 4:3.
Zoom: Magnifies the 16:9 wide picture (in the vertical direction) to fit the screen size.
4:3: This is the default setting for a video movie or normal broadcasting.
Just Scan: Use the function to see the full image without any cutoff when HDMI (720p/1080i/ 1080p) or Component (1080i/1080p) signals are input.

"Auto Wide" function is available only in "TV", "Ext.1", "Ext.2", "AV", and "S-Video" mode.
In PC Mode, only "16:9" and "4:3" mode can be adjusted.

Settings can be adjusted and stored for each external device you have connected to an input of the TV.
Temporary image retention may occur when viewing a static image on the set for more than two hours.
"Wide Zoom": Move the screen up/down using the or button after selecting the by pressing the or ENTER button.
"Zoom": Select by pressing the or button. Use the or button to move the picture up and down. After selecting, use the or button to magnify or reduce the picture size in the vertical direction.
When Double ( mode has been set in PIP, the Picture Size cannot be set.
After selecting "Just Scan" in HDMI (1080i/1080p) or Component (1080i/1080p) mode: Select by pressing the or button. Use the , , or button to move the picture. Reset: Press the or button to select "Reset", then press the ENTER button. You can initialize the setting.

You can select these options by simply pressing the P.SIZE button on the remote control.

Screen Mode: 16:9/Wide Zoom/Zoom/4:3

When setting the picture size to "Auto Wide" in a 16:9 wide TV, you can determine the picture size you want to see the 4:3 WSS (Wide Screen Service) image or nothing. Each individual European country requires different picture size so this function is intended for users to select it.

16:9: Sets the picture to 16:9 wide mode.
Wide Zoom: Magnify the size of the picture more than 4:3.
Zoom: Magnify the size of the picture vertically on screen.
4:3: Sets the picture to 4:3 normal mode.

This function is available in "Auto Wide" mode.
This function is not available in "PC", "Component" or "HDMI" mode.

Digital NR: Off/Low/Medium/High/Auto

If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear on the screen.

When the signal is weak, select one of the other options until the best picture is displayed.

DNle: Off/ Demo/On

This TV includes the DNle function so as to provide a high visual quality. If you set DNle to on, you can view the screen with the DNle feature activated. If you set the DNle to Demo, you can view the applied DNle and normal pictures on the screen, for demonstration purposes. Using this function, you can view the difference in the visual quality.

DNle™ (Digital Natural Image engine) DNle™

This feature brings you more detailed image with 3D noise reduction, detail enhancement, contrast enhancement and white enhancement. New image compensation Algorithm gives brighter, clearer, more detailed image to you. DNle™ technology will fit every signal into your eyes.
This function is not available in "Movie" and "Standard" mode.

HDMI Black Level: Normal/Low

You can directly select the black level on the screen to adjust the screen depth.
This function is active only when the external input connects to HDMI(RGB signals).

Movie Plus: Off/Low/Medium/High/Demo

You can view more natural skin and clear text even in fast moving scenes.

Use this function when watching movies.
This function is not available in "Wide Zoom" and "Zoom" modes.
This function is not available when "PIP" is set to "On".
It is not supported in HDMI 1080p/24Hz mode.

Blue Only Mode: Off/On

This function is for AV device measurement experts. This function displays the blue signal only by removing the red and green signals from the video signal so as to provide a Blue Filter effect that is used to adjust the Colour and Tint of video equipment such as DVD players, Home Theaters, etc.

Using this function, you can adjust the Colour and Tint to preferred values appropriate to the signal level of each video device using the Red/Green/Blue/Cyan/Magenta/Yellow Colour Bar Patterns, without using an additional Blue Filter.

"Blue Only Mode" is available when the picture mode is set to "Movie" or "Standard".

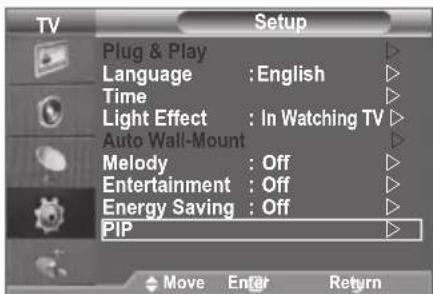

Viewing the Picture In Picture (PIP)

You can display a sub picture within the main picture of set programme or video input. In this way, you can watch the picture of set programme or video input from any connected equipment while watching the main picture.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "PIP", then press the ENTER button.
3. Select the required option by pressing the or button, then press the ENTER button.
4. When you are satisfied with your setting, press the ENTER button.
5. Press the EXIT button to exit.

You may notice that the picture in the PIP window becomes slightly unnatural when you use the main screen to view a game or karaoke.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "PIP", then press the ENTER button.
3. Press the or button to select a particular item.
4. Press the or button to select the required option.
5. Press the EXIT or TOOLS button to exit.

PIP: On/Off

You can activate or deactivate the PIP function.

You can select a source of the sub-picture.

Size: /

You can select a size of the sub-picture.

If main picture is in "HDMI" mode, "Size" is available.

Position: /□

You can select a position of the sub-picture.

In Double ( , mode, "Position" cannot be selected.

Programme

You can select a channel of the sub-picture only when the "Source" is set to "TV".

Sound Features

1. Press the MENU button to display the menu. Press the or button to select "Sound", then press the ENTER button.
2. Select the required option by pressing the or button, then press the ENTER button.
3. When you are satisfied with your setting, press the ENTER button.
4. Press the EXIT button to exit.

Mode: Standard/Music/Movie/Speech/Custom

You can select the type of special sound effect to be used when watching a given broadcast.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Sound Mode".
3. Press the or button to select the desired sound mode.
4. Press the EXIT or TOOLS button to exit.

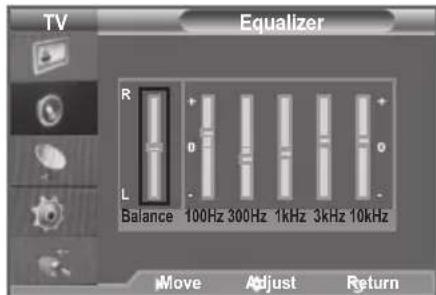

Equalizer: Balance/100Hz/300Hz/1kHz/3kHz/10kHz

The sound settings can be adjusted to suit your personal preferences.

If you make any changes to these settings, the sound mode is automatically switched to "Custom".

SRS TS XT: Off/On

TruSurround XT is a patented SRS technology that solves the problem of playing 5.1 multichannel content over two speakers. TruSurround delivers a compelling, virtual surround sound experience through any two-speaker playback system, including internal television speakers. It is fully compatible with all multichannel formats.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "SRS TS XT".
3. Press the or button to select the "Off" or "On".
4. Press the EXIT or TOOLS button to exit.

TruSurround XT, SRS and symbol are trademarks of SRS Labs, Inc. TruSurround XT technology is incorporated under license from SRS Labs, Inc.

Auto Volume: Off/On

Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust the volume of the desired channel by lowering the sound output when the modulation signal is high or by raising the sound output when the modulation signal is low.

TV Speaker: Off/On

If you want to hear the sound through separate speakers, cancel the internal amplifier.

The + - and MUTE buttons do not operate when the "TV Speaker" is set to Off.
When "TV Speaker" is set to "Off", you can operate only "Sound Select" (in PIP mode) in Sound menu.

Sound Select: Main/Sub

When the PIP feature is activated, you can listen to the sound of the sub (PIP) picture.

• Main: Used to listen to the sound of the main picture.
• Sub: Used to listen to the sound of the sub picture.

Selecting the Sound Mode

You can set the sound mode in the "Tools" menu.
When you set to "Dual I-II", the current sound mode is displayed on the screen.

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Dual I-II".
3. Press the or button to select required option.
4. Press the ENTER button.

	Audio Type Dual	1/2	Default
A2 Stereo	Mono MONO		Automatic change
	Stereo STEREO	← MONO
	Dual DUAL	1←DUAL 2	DUAL 1
NICAM Stereo	Mono MONO		Automatic change
	Stereo MONO	← STEREO
	Dual	MONO←DUAL 1	DUAL 1

If the stereo signal is weak and an automatic switching occurs, then switch to the Mono.
This function is only activated in stereo sound signal. It is deactivated in mono sound signal.
This function is only available in TV mode.

Connecting Headphones (Sold separately)

You can connect a set of headphones to your set if you wish to watch a TV programme without disturbing the other people in the room.

When you insert the head set jack into the corresponding port, you can operate only "Auto Volume" and "Sound Select"(in PIP mode) in Sound menu.

Prolonged use of headphones at a high volume may damage your hearing.
You will not receive sound from the speakers when you connect headphones to the system.
The headphone volume and TV volume are adjusted differently.

Setting and Displaying the Current Time

You can set the TV's clock so that the current time is displayed when you press the INFO button. You must also set the time if you wish to use the automatic On/Off timers.

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "Time", then press the ENTER button.

2. Press the ENTER button to select "Clock Set".

4.

To... Press the....
Move to "Month", "Day", "Year", "Hour" or "Minute"	\( \triangleleft \) or \( \triangleright \) button.
Set the "Month", "Day", "Year", "Hour" or "Minute"	\( \triangleleft \) or \( \triangleright \) button.
Confirm the setting	ENTER按钮

1. Press the EXIT button to exit.

The current time will appear every time you press the INFO button.
You can also set "Year", "Month", "Day", "Hour" and "Minute" by pressing the number buttons on the remote control.

Setting the Sleep Timer

You can select a time period of between 30 and 180 minutes after which the television automatically switches to standby mode.

1. Press the MENU button to display the menu.
   Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Time", then press the ENTER button.
3. Press the or button to select "Sleep Timer", then press the ENTER button.
4. Press the or button repeatedly until the desired time appears (Off, 30, 60, 90, 120, 150, 180).
   Press the ENTER button.
5. Press the EXIT button to exit.
   The TV automatically switches to standby mode when the timer reaches 0.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Sleep Timer".
3. Press the or button to select the minute.
4. Press the EXIT or TOOLS button to exit.

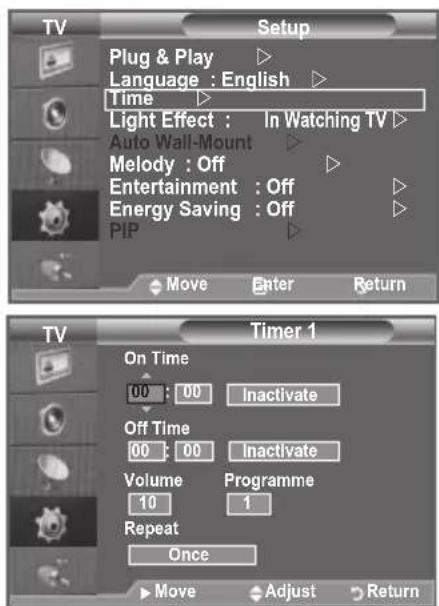

Switching the Television On and Off Automatically

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "Time", then press the ENTER button.

2. Press the or button to select "Timer 1", "Timer 2", "Timer 3", then press the ENTER button. Three different On/Off Timer Settings can be made.

You must set the clock first.

1. Press the or button to select the required item below. Press the or button to adjust to the setting satisfied.

On Time: Select hour, minute and "Activate"/"Inactivate". (To activate timer with the setting satisfied, set to "Activate".)
Off Time: Select hour, minute and "Activate"/"Inactivate". (To activate timer with the setting satisfied, set to "Activate".)
Volume: Select the desired turn on volume level.
Repeat: Select "Once", "Everyday", "Mon~Fri", "Mon~Sat" or "Sat~Sun".
Programme: When the On Timer is active, you can turn on a specific channel.

You can set the hour and minute directly by pressing the number buttons on the remote control.

Auto Power Off

When you set the timer On, the TV will eventually turn off, if no controls are operated for 3 hours after the TV was turned on by timer. This function is only available in timer On mode and prevents overheating, which may occur if a TV is on for too long time.

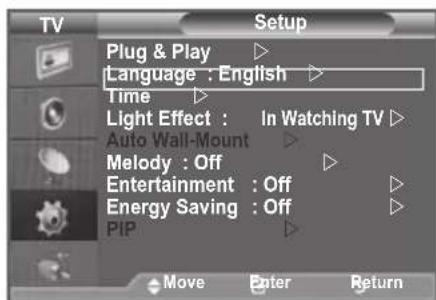

Choosing Your Language

When you start using your set for the first time, you must select the language which will be used for displaying menus and indications.

1. Press the MENU button to display the on-screen menu.

Press the or button to select "Setup", then press the ENTER button.

1. Press the or button to select "Language", then press the ENTER button.

2. Select a particular language by pressing the or button repeatedly.

Press the ENTER button.

1. Press the EXIT button to exit.

Setting the Light Effect (depending on the model)

You can turn on/off the LED on the front of TV according to the situation. Use it for saving power or when the LED dazzles your eyes.

1. Press the MENU button to display the on-screen menu. Press the or button to select "Setup", then press the ENTER button.
2. Press the or button to select "Light Effect", then press the ENTER button.
3. Press the or button to select "Off", "In Standby", "In Watching TV" or "Always".

Press the ENTER button.

Off: LED will not come on.
In Standby: Turns the LED on in standby mode.
In Watching TV: Turns the LED on while watching TV.
Always: LED is always on.

Set the "Light Effect" to "Off" to reduce the power consumption.

1. Press the EXIT button to exit.

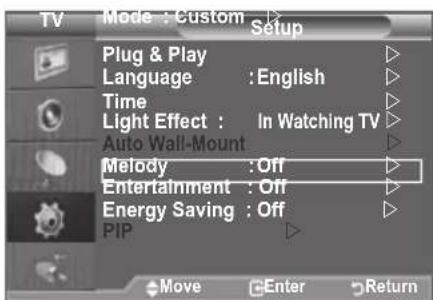

Melody / Entertainment / Energy Saving

1. Press the MENU button to display the menu.

Press the or button to select "Setup", then press the ENTER button.

1. Select the required option by pressing the or button, then press the ENTER button.
2. When you are satisfied with your setting, press the ENTER button.
3. Press the EXIT button to exit.

Melody: Off/Low/Medium/High

The TV power on/off melody sound can be adjusted.

The Melody does not play

• When no sound is output from the TV because the MUTE button has been pressed.

• When no sound is output from the TV because the (Volume) button has been pressed.

• When the TV is turned off by Sleep Timer function.

Entertainment: Off/Sports/Cinema/Game

The "Entertainment" mode enables you to select the optimal display and sound for sports, cinema and games.

• Off: Switch the "Entertainment" function off.

• Sports: Provides the optimal picture and sound quality for sports. You can enjoy more thrilling colour and sound.

• Cinema: Provides the optimal picture and sound quality for cinema. You can experience a richer picture and enhanced sound.
• Game: Provides the optimal picture and sound quality for games. This mode accelerates the playing speed when using an external game console connected to the TV.

If you set any of the three "Entertainment" modes to On, the settings will be locked and can not be adjusted. If you want to make Picture and Sound mode adjustments, the "Entertainment" mode must be turned off.
The "Entertainment" settings are saved for each input source.
If you set any of the three "Entertainment" modes to On, "SRS TS XT" function is not available.

You can press the E.MODE button on the remote control repeatedly to change the "Entertainment" setting.

Energy Saving: Off/Low/Medium/High/Auto

This feature adjusts the screen brightness depending on the surrounding lighting conditions.

• Off: Turns off the energy saving function.
• Low: Sets the TV to low energy saving mode.
• Medium: Sets the TV to medium energy saving mode.

• High: Sets the TV to high energy saving mode.

• Auto: Automatically adjusts the brightness of the TV screen in accordance with the scenes.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Energy Saving".
3. Press the or button to select the "Off", "Low", "Medium", "High" or "Auto".
4. Press the EXIT or TOOLS button to exit.

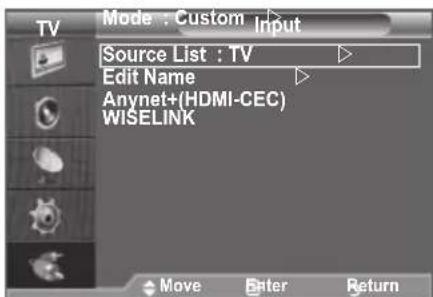

Selecting the Source

You can select among external sources connected to your TV's input jacks.

1. Press the MENU button to display the menu.

Press the or button to select "Input", then press the ENTER button.

1. Press the ENTER button again, to select "Source List".

When no external device is connected to your set, only "TV", "Ext.1", "Ext.2" are activated in the "Source List". "AV", "S-Video", "Component", "PC", "HDMI1", "HDMI2", "HDMI3" are activated only when they are connected to your set.

1. Select the required device by pressing the or button. Press the ENTER button.

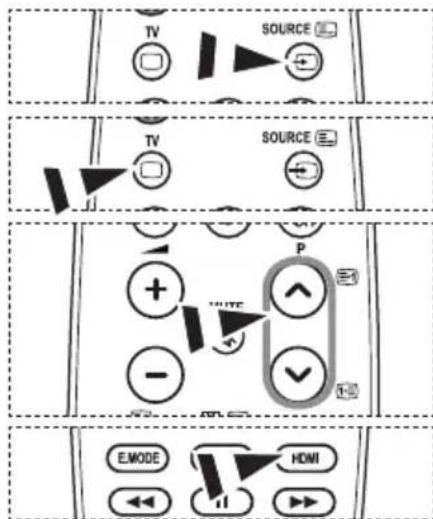

Press the SOURCE button on the remote control to toggle between all the available source.

TV mode can be selected by pressing the TV button, number buttons(0~9), and the P/ / button on the remote control.

You can also watch HDMI mode simply by pressing the HDMI button on the remote control.

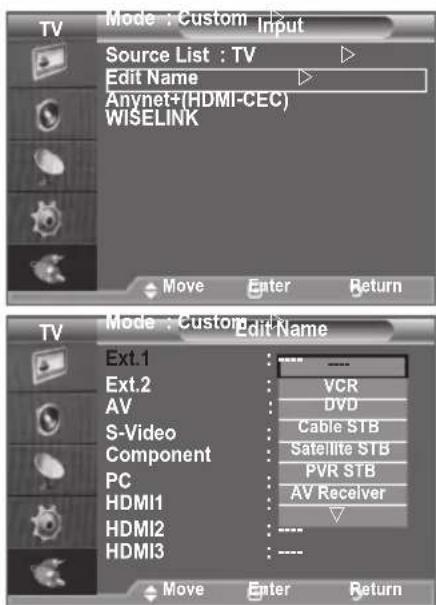

Editing the Input Source Names

Name the device connected to the input jacks to make your input source selection easier.

1. Press the MENU button to display the menu.

Press the or button to select "Input", then press the ENTER button.

1. Press the or button to select "Edit Name", then press the ENTER button.

2. Press the or button to select the device that you wish to edit.

Press the ENTER button.

1. Press the or button to select the required device.

Press the ENTER button.

1. Press the EXIT button to exit.

When a PC with a resolution of 1920 × 1080@60Hz is connected to the HDMI IN 2 port, you should set the "HDMI2" mode to "PC" in the "Edit Name" of the "Input" mode.

Setting up Your PC Software (Based on Windows XP)

The Windows display-settings for a typical computer are shown below. The actual screens on your PC may be different depending upon your particular version of Windows and your particular video card. Even if your actual screens look different, the same, basic set-up information will apply in almost all cases. (If not, contact your computer manufacturer or Samsung Dealer.)

1. First, click on "Control Panel" on the Windows start menu.
2. When the control panel window appears, click on "Appearance and Themes" and a display dialog-box will appear.
3. When the control panel window appears, click on "Display" and a display dialog-box will appear.
4. Navigate to the "Settings" tab on the display dialog-box. The correct size setting (resolution): Optimum- 1920 X 1080 If a vertical-frequency option exists on your display settings dialog box, the correct value is "60" or "60 Hz". Otherwise, just click "OK" and exit the dialog box.

Display Modes

Both screen position and size will vary depending on the type of PC monitor and its resolution. The resolutions in the table are recommended.

D-Sub Input

Mode Resolution		Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
IBM	640 x 350	31.469	70.086	25.175	+/-
	720 x 400	31.469	70.087	28.322	-/+
VESA	640 x 480	31.469	59.940	25.175	-/-
	640 x 480	37.861	72.809	31.500	-/-
	640 x 480	37.500	75.000	31.500	-/-
	800 x 600	37.879	60.317	40.000	+/+
	800 x 600	48.077	72.188	50.000	+/+
	800 x 600	46.875	75.000	49.500	+/+
	1024 x 768	48.363	60.004	65.000	-/-
	1024 x 768	56.476	70.069	75.000	-/-
	1024 x 768	60.023	75.029	78.750	+/+
	1280 x 1024	63.981	60.020	108.000	+/+
	1280 x 1024	79.976	75.025	135.000	+/+
	1360 x 768	47.712	60.015	85.500	+/+
	1600 x 1200	75.000	60.000	162.000	+/+
CVT 1920 x 1080RB 66.587 59.934 138.500 +/-

HDMI/DVI Input

Mode Resolution	Horizontal Frequency (kHz)	Vertical Frequency (Hz)	Pixel Clock Frequency (MHz)	Sync Polarity (H/V)
VESA	640 x 480	31.469	59.940	25.175
	800 x 600	37.879	60.317	40.000
	1024 x 768	48.363	60.004	65.000
	1280 x 1024	63.981	60.020	108.000
	1360 x 768	47.712	60.015	85.500
	1600 x 1200	75.000	60.000	162.000
CEA 1920 x	1080p 67.500 60.000 148.500 +/-

When using an HDMI/DVI cable connection, you must use the HDMI IN 2 jack.
The interlace mode is not supported.
The set might operate abnormally if a non-standard video format is selected.
Separate and Composite modes are supported. SOG is not supported.
Too long or low quality VGA cable can cause picture noise at high resolution modes (1920x1080 or 1600x1200).

Setting up the TV with your PC

Press the SOURCE button to select PC mode.
1. Press the MENU button to display the menu.

Press the ENTER button, to select "Picture".

1. Select the required option by pressing the or button, then press the ENTER button.
2. When you are satisfied with your setting, press the ENTER button.
3. Press the EXIT button to exit.

Auto Adjustment

Auto adjustment allows the PC screen of set to self-adjust to the incoming PC video signal. The values of fine, coarse and position are adjusted automatically.

Easy Setting

1. Press the TOOLS button on the remote control.
2. Press the or button to select "Auto Adjustment", then press the ENTER button.

Screen:

Coarse/Fine

The purpose of picture quality adjustment is to remove or reduce picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned on the center of screen. Press the or button to select "Coarse" or "Fine", then press the ENTER button.

Press the or button to adjust the screen quality.

Press the ENTER button.

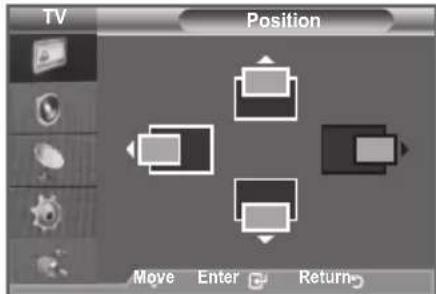

Position

Adjust the PC's screen positioning if it does not fit the TV screen.

Press the or button to adjusting the Vertical-Position.

Press the or button to adjust the Horizontal-Position.

Press the ENTER button.

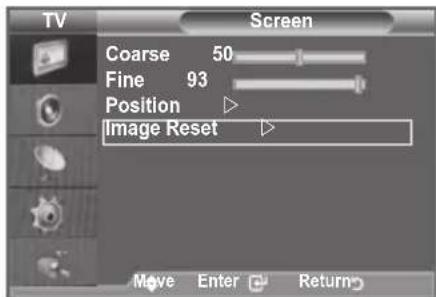

Image Reset

You can replace all image settings with the factory default values.

Using the WISELINK Function

This function enables you to view and listen to photo (JPEG) and audio files (MP3) saved on a USB Mass Storage Class (MSC) device.

Press the POWER button on the remote control or your set. Connect a USB device containing JPEG and/or MP3 files to the WISELINK jack (USB jack) on the side of the TV.

If you enter the WISELINK mode with no USB device connected the message "There is no device connected" will appear. In this case, insert the USB device, exit the screen by pressing the W.LINK button on the remote control and enter the WISELINK screen again.

Only alphanumeric characters must be used as a folder name or filename (photo, music).

The file system only supports FAT16/32 (The NTFS file system is not supported)

Certain types of USB Digital camera and audio devices may not be compatible with this TV.

Wiselink only supports the USB Mass Storage Class device (MSC). MSC is a Mass Storage Class Bulk-Only Transport device. Examples of MSC are Thumb drives and Flash Card Readers (Both USB HDD and HUB are not supported.)

Before connecting your device to the TV, please back up your files to prevent them from damage or loss of data. SAMSUNG is not responsible for any data file damage or data loss.

Please connect directly to the USB port of your TV. If you are using a separate cable connection, there may be a USB Compatibility problem.

Only MP3 and JPEG file formats are supported.

The Wiselink mp3 format only supports music files with a high sampling frequency (32 kHz, 44.1 kHz, or 48 kHz).

We recommend the sequential JPEG format. ProgressiveJPEG uses a lot of memory and decoding may fail.

Do not disconnect the USB device while it is loading.

MTP (Media Transfer Protocol) is not supported.

The playing duration of an mp3 file may be displayed as '00:00:00' if its playing time information is not found at the start of the file.

The higher the resolution of the image, the longer it takes to display on the screen.

The Photo or Music List displays up to 300 folders or files.

Loading may take some time depending on the size of the file.

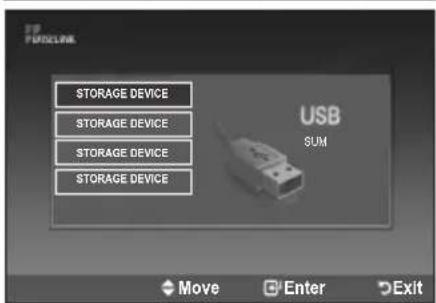

Using the WISELINK Menu

1. Press the MENU button. Press the or button to select "Input", then press the ENTER button.

2. Press the or button to select "WISELINK", then press the ENTER button.

3. Press the or button to select the corresponding USB Memory Device, then press the ENTER button.

The "WISELINK" menu differs depending on the USB Memory Device connected to TV.

Some devices may not be supported due to compatibility problems.

1. Press the or button to move to an icon, then press the ENTER button.

To exit WISELINK mode, press the W.LINK button on the remote control.

Press the W.LINK button on the remote control to display a WISELINK menu.

Using the Remote Control Button in WISELINK Menu

Button Operations
▲/▼/←/→ Move the cursor and select an item.
ENTER	Select the currently selected item.
	Play the Slide Show or MP3 file.
	Pause the Slide Show or MP3 file.
RETURN Return to the previous menu.
INFO Run various functions from the Photo and Music menus.
	Stop the current slide show or MP3 file.
	Page Up or Down (file list item)
EXIT Stop the current function and return to the previous high-level menu.

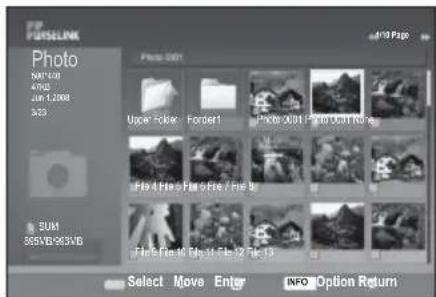

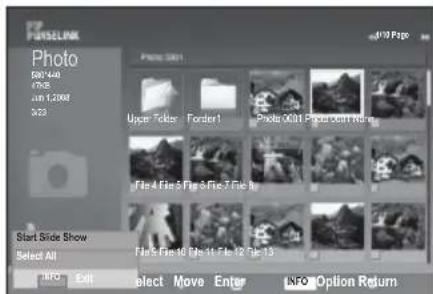

Using the PHOTO (JPEG) List

This menu shows JPEG files and folders saved on an USB memory device.

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 31)

2. Press the or button to move to "Photo", then press the ENTER button. The saved file information is displayed as a folder or file.

3. Press the , , and buttons to select a file.

4. Pressing the ENTER button over a photo icon shows the currently selected photo in full screen.

5. Pressing the ENTER button over a folder icon shows the JPEG files included in the folder.

To exit WISELINK mode, press the W.LINK button on the remote control.

Moving to a photo may take a few seconds to load the file. At this point, the icon will appear at the top left of the screen.
It takes time to show JPEG files as Thumbnail images.
This menu only shows files whose file extension is jpg. Files of other formats such as bmp or tiff will not be displayed.
The files are displayed on a page. 15 thumbnail photos are displayed per page.
The thumbnails are numbered from left to right and from top to bottom, from 1 to 15.
Certain types of USB Digital camera and audio devices may not be compatible with this TV.
Folders are displayed first and they are followed by all JPEG files in the current folder. The folders and JPEG files are sorted in alphabetical order.
If the photo is displayed in full screen, you can zoom in and out or rotate the photo on the screen.
While a full screen is displayed, or button will let you see another photo image in the same folder.
Press the button when a Photo icon is selected to start a Slide Show.
Photos without EXIF information may not be displayed as thumbnail images in the PHOTO LIST depending on the picture quality and resolution.

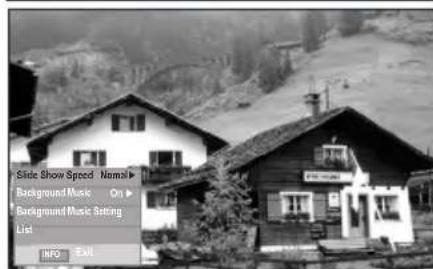

Viewing a Slide Show

1. Press the INFO button to display the option("Start Slide Show", "Select All").
2. Press the or button to select "Start Slide Show" then press the ENTER button.

During the slide show, files are displayed in order from the currently shown file.
MP3 files can be automatically played during the Slide Show if the Default Background Music is set to On. To enable this function, MP3 files and other photo files must be located in the same folder on the USB Memory Device.

1. Press the INFO button during the slide show to set the following options ("Slide Show Speed", "Background Music", "Background Music Setting", "List"). Press the or button to select the option, then press the ENTER button.

2. After setting the option press the ENTER button to make a change.

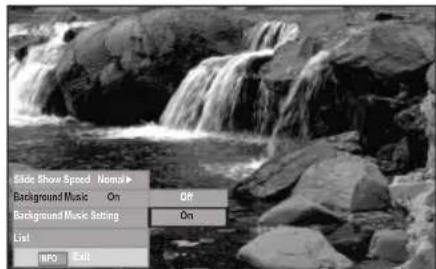

Using the Menu during a Slide Show

Slide Show Speed:

Select to control the slide show speed.

Press the or button to select the required option

("Fast", "Normal", "Slow"), then press the ENTER button.

Background Music:

Select to choose whether you want to play an MP3 file during a slide show.

Press the or button to select the required option("On", "Off"), then press the ENTER button.

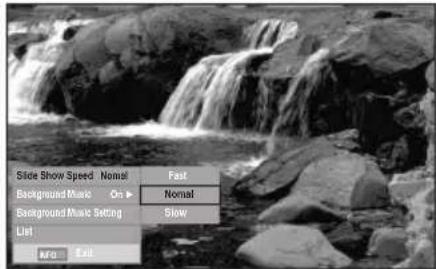

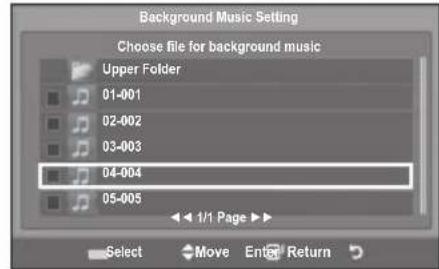

Background Music Setting:

While the slide show is in progress, MP3 files and folders under the same directory are displayed.

Select a folder using the or button and press the ENTER button. The selected folder will be highlighted. Press the RETURN button again to return to the slide show screen. The selected background music is played.

If you turn Off the Background Music, even if the Background Music Settings have been set up, the background music will not be played.

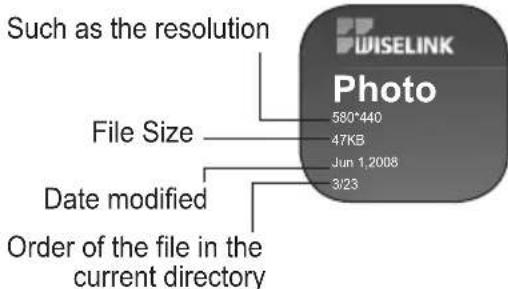

List:

The file information is displayed as a folder or JPEG file.

To exit WISELINK mode, press the W.LINK button on the remote control.

When selecting a photo file, the photo file information is displayed on the left side of the TV screen, such as the resolution, the date modified and the order of the file in the current directory (e.g. 10th out of 15).

:Foldericon

: Photo icon

:Move to the previous folder stage icon

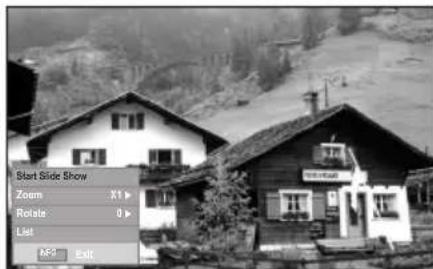

Using the Option Menu

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 31)
2. Press the or button to move to "Photo", then press the ENTER button. The saved file information is displayed as a folder or file.
3. Press the , , and button to select a file, then press the ENTER button. Pressing the button over a photo thumbnail displays the photo in full screen.
4. Press the INFO button to display the option("Start Slide Show", "Zoom", "Rotate", "List")

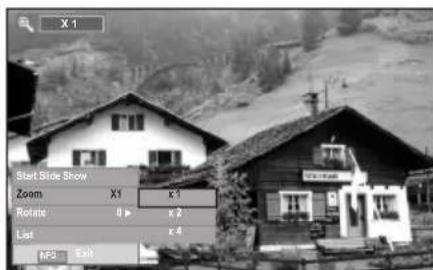

Zoom:

• Press the or button to select "Zoom", then press the ENTER button.
• Select the required option by pressing the or button, then press the ENTER button. (X1, X2, X4)

To pan up/down/left/right in the zoomed-in photo, press the INFO button to exit option menu, then press the , , and buttons.
"Start Slide Show" or "Rotate" is disabled when the "Zoom" option is selected.

"x1": Restore a photo to its original size.

"x2" : Zoom-in to a photo x2.

"x4": Zoom-in to a photo x4.

Move the zoomed-in photo up/down/right/left.

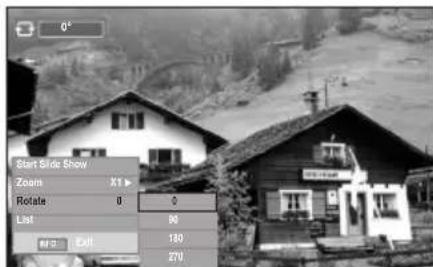

Rotate:

• Press the or button to select "Rotate", then press the ENTER button.
• Select the required option by pressing the or button, then press the ENTER button. (0°, 90°, 180°, 270°)
  The rotated file is not saved.
  "Start Slide Show" or "Zoom" is disabled when the "Rotate" option is selected.
  > "0" : This rotates a photo to its original position

^ 90^ : This rotates a photo by 90 degrees

"180°": This rotates a photo by 180 degrees.

^ 270^ : This rotates a photo by 270 degrees.

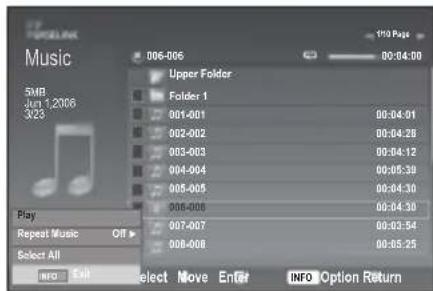

Using the MP3 List

This menu shows MP3 files from among the files saved on a USB memory device.

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 31)

2. Press the or button to move to "Music", then press the ENTER button. The saved file information is displayed as a folder or file.

3. Press the or button to move to an icon, then press the ENTER button.

4. Pressing the ENTER button over a musical note icon immediately plays the music file.

5. Pressing the ENTER button over a folder icon shows the music files included in the folder.

To select a file on the next page, press the button to move to the next page.

1. To select all files or a file, press the INFO button to display the Music menus. Press the ENTER button to select "Play", "Repeat Music" or "Select All".

To exit WISELINK mode, press the W.LINK button on the remote control.

Using the Option Menu

Play:

Select to play MP3 files.

:Foldericon

: Music icon

:Move to the previous folder stage icon

Press the button while playing an MP3 file to pause the file.

Press the button to exit Play mode.
This menu only shows files with the MP3 file extension. Files with other file extensions are not displayed, even if they are saved on the same USB device.
The selected file is displayed on the top with its playing time.
To adjust the music volume, press the VOL ,VOL button on the remote control. To mute the sound, press the MUTE button on the remote control.

Repeat Music:

Select to repeatedly play MP3 files in the current folder. You can select On or Off.

Music function information icon

: When all music files are being played.

: When a music file is being played.

When pressing the button on the remote control while music is playing.

: When pressing the button on the remote control when music is stopped.

Using the Setup Menu

Setup displays the user settings of the WISELINK menu.

1. Complete Steps 1 to 3 of "Using the WISELINK Menu". (Refer to page 31)
2. Press the or button to move to "Setup", then press the ENTER button.
3. Press the or button to select an item you want, then press the ENTER button. ("Slide Show Speed", "Background Music", "Background Music Setting", "Repeat Music", "Screen Saver")
4. Press the or button to select the option, then press the ENTER button. To exit WISELINK mode, press the W.LINK button on the remote control.

Slide Show Speed:

Select to control the slide show speed. You can select "Fast", "Normal" or "Slow".

Background Music :

Select to determine whether to play an MP3 file during a slide show. You can select Music "On" or Music "Off".

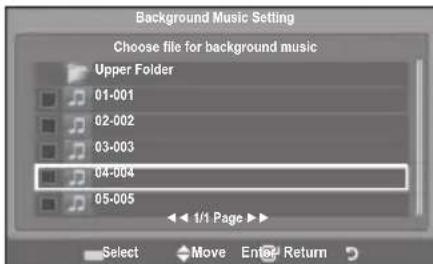

Background Music Setting:

While a slide show is in progress, use the "Background Music Setup" to select a music file to listen to. Select an MP3 file as the background music.

Repeat Music :

Select to determine whether to repeat playing the music when all MP3 files in the current folder have been played.

Screen Saver:

Select to set the waiting time before the screen saver appears. The screenshot will appear when no button is pressed for 1, 5 or 10 minutes.

What is Anynet+?

Anynet+ is an AV network system that enables an easy-to-use AV interface for users by controlling all connected AV devices through the Anynet+ menu when Samsung Electronics AV devices are connected.

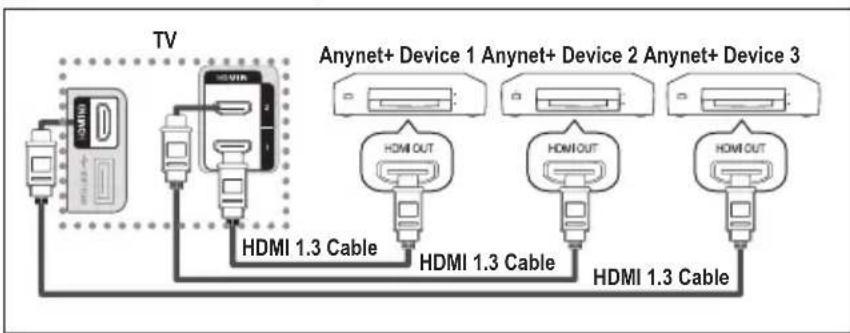

Connecting Anynet+ Devices

The Anynet+ system supports AV devices supporting Anynet+ only. Check if there is an Anynet+ mark on the AV device to be connected to the TV.

To directly connect to TV

Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

To connect to Home Theater

1. Connect the [HDMI 1], [HDMI 2] or [HDMI 3] jack on the TV and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

2. Connect the HDMI IN jack of the home theatre and the HDMI OUT jack of the corresponding Anynet+ device using the HDMI cable.

Connect only one receiver.
You can connect an Anynet+ device using the HDMI 1.3 cable. Some HDMI cables may not support Anynet+ functions.

Anynet+ works when the AV device supporting Anynet+ is in the Standby or On status.
Anynet+ supports up to 8 AV devices in total.

Setting Up Anynet+

The following settings are to use Anynet+ functions.

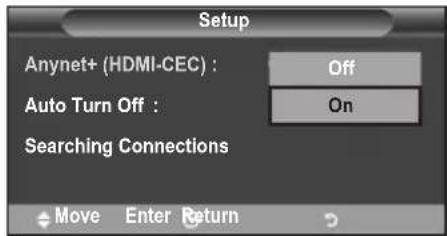

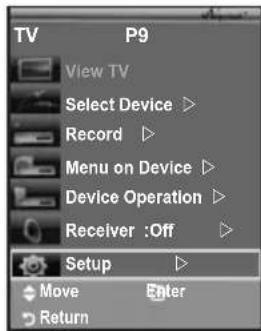

Using the Anynet+ Function

1. Press The TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)".
   Press the or button to select "Setup", then press the ENTER button.
2. Press the ENTER button to select "Anynet+ (HDMI-CEC)", then press the ENTER button.
3. Press the or button to select "On", then press the ENTER button.
   The "Anynet+ (HDMI-CEC)" function is enabled.
   If you select "Off", "Anynet+ (HDMI-CEC)" is disabled.
   When the "Anynet+ (HDMI-CEC)" function is disabled, all the Anynet+ related operations are deactivated.

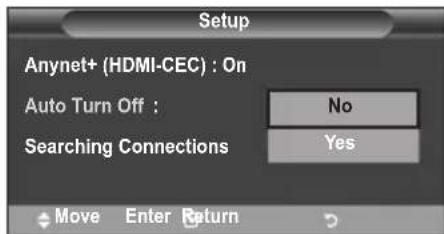

Turning an Anynet+ Device Off Automatically when the TV is Turned Off

1. Press the or button to select "Auto Turn Off", then press the ENTER button.
2. Press the or button to select "Yes", then press the ENTER button.

The Auto turn off function is enabled.
If you select "No", the Auto turn off function is cancelled.

Press the EXIT button to exit.

The Select Device setting of the TV remote control is to be set to TV to use the Anynet+ function.
If you set "Auto Turn Off" to "No", connected external devices are also turned off when the TV is turned off. However, if the device is recording, it may not be turned off.

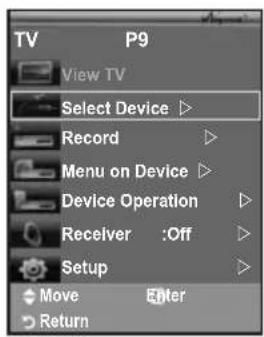

Scanning and Switching between Anynet+ Devices

1. Press the TOOLS button. Then press the ENTER button to select "Anynet+(HDMI-CEC)".

2. Press the or button to select "Select Device", then press the ENTER button.

3. Press the or button to select to a particular device and press the ENTER button. It is switched to the selected device.

4. If you cannot find a device you want, press the or button to select "Setup", then press the ENTER button.

5. Press the or button to select "Searching Connections", then press the ENTER button. The message "Configuring Anynet+ connection..." is displayed. When searching devices completes, the connected devices are listed in the Anynet+ menu.

Switching to the selected devices may take up to 2 minutes. You cannot cancel the operation during the switching operation.

The time required to scan for devices is determined by the number of connected devices.
When the device scan is complete, the number of found devices is not displayed.
Although the TV automatically scans devices when it is turned on using the POWER button, devices connected when the TV is on or under a specific circumstance are not displayed in the device list. Therefore select "Searching Connections" menu to search devices.
If you have selected external input mode by pressing the SOURCE button, you cannot use the Anynet+ function. Make sure to switch to an Anynet+ device by using the TOOLS button.

Anynet+ Menu

The Anynet+ menu changes depending on the type and status of the Anynet+ devices connected to the TV.

Anynet+ Menu Description

View TV Switches from Anynet+ to TV broadcast mode.

Select Device Your TV connects to the corresponding device.

Record Starts a recording. (This menu works only for a device supporting recording.)

Menu on Device Shows the menu of the connected device. Example. When a DVD Recorder is connected, the DVD Recorder's title menu appears.

Device Operation Shows the play control menu of the connected device. Example. When a DVD Recorder is connected, the play control menu of the DVD Recorder appears.

Receiver Sound is output through the receiver.

Setup You can set the environment for using Anynet+.

TV Remote Control Buttons Available in Anynet+ Mode

Device Type Operating	Status Available Buttons
Anynet+ Device	After switching to the device, when the menu of the corresponding device is displayed on the screen.	Numeric buttons▲/▼/▲/▲/Enter按钮Colour buttonsEXIT button
	After switching to the device, while playing a file	Backward search)/Forward search)/(Stop)/(Play)/Pause)
Device with built-in Tuner	After switching to the device, when you are watching a TV programme	P/×/× button
Audio Device When Receiver is activated		VOL ⊙/ ⊙ buttonMUTE button

The Anynet+ function only works when the remote control is set to TV.
The button works only while in the recordable state.
You cannot control Anynet+ devices using the buttons on the TV. You can control Anynet+ devices only using the TV remote control.
The TV remote control may not work under certain conditions. In this case, re-select the Anynet+ device.
The Anynet+ functions don't operate for the products from other manufacturers.

In Anynet+ mode, the colour buttons may not work properly.
The operations may differ depending on the device.

Recording

You can make a recording of a TV programme using a recorder.

Press the button.

Recording begins. (Only when the Anynet+ enabled recording device is connected.)

The current TV programme is recorded in the Watching TV status. If you are watching video from another device, the video from the device is recorded.
You can also record the source streams by selecting Record after pressing the TOOLS button.

Before recording, check whether the antenna jack is properly connected to the recording device. For the antenna connection to the recording device, refer to its user manual.

Listening through a Receiver

You can listen to sound through a receiver instead of the TV speaker.

1. Press the TOOLS button. Then Press the ENTER button to select "Anynet+(HDMI-CEC)".

Press the or button to select "Receiver", then press the ENTER button.

1. Press the or button to select to "On", then press the ENTER button.

Now you can listen to sound through the receiver.

1. Press the EXIT button to exit.

When the receiver is set to On, you can listen to the TV sound through the 2-channel receiver.
If the receiver is exclusively for a home theatre only (supporting audio only), it may not appear in the device list.
In case of a content with copyright problem, listening through the receiver may not properly operate.
If there is a power interruption to the TV when the "Receiver" is set to "On" (by disconnecting the power cord or a power failure), the "TV Speaker" may be set to "Off" when you turn the TV on again. (see page 22)

Check Points before Requesting Service

Symptom Solution
Anynet+ does not work.	Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver. Check if the Anynet+ device power cord is properly connected. Check the Anynet+ device's Video/Audio/HDMI 1.3 cable connections. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Check whether the TV remote control is in TV mode. Check whether it is Anynet+ exclusive remote control. Anynet+ doesn't work at a certain condition. (Searching channels, Operating WISELINK, Plug & Play, etc.) When connecting or removing the HDMI 1.3 cable, please make sure to search devices again or restart your TV. Check if the Anynet+ Function of Anynet+ device is set on.
I want to start Anynet+.	Check if the Anynet+ device is properly connected to the TV and check if the Anynet+ (HDMI-CEC) is set to On in the Anynet+ Setup menu. Press the TV button on the TV remote control to switch to TV. Then press the TOOLS button to show the Anynet+ menu and select a menu you want.
I want to exit Anynet+.	Select View TV in Anynet+ menu. Press the SOURCE button on the TV remote control and select a device other than Anynet+ devices. Press any of P⊗/⊗, CH LIST, PRE-CH, and such to change to the TV mode. (Note that the channel button operates only when a tuner-embedded Anynet+ device is not connected.)
The Connecting to Anynet+ device... message appears on the screen.	You cannot use the remote control when you are configuring Anynet+ or switching to a view mode. Use the remote control when the Anynet+ setting or switching to view mode is complete.
The Anynet+ device does not play.	You cannot use the play function when Plug & Play is in progress.
The connected device is not displayed.	Check whether or not the device supports Anynet+ functions. Check whether or not the HDMI 1.3 cable is properly connected. Check whether Anynet+ (HDMI-CEC) is set to On in the Anynet+ setup menu. Search Anynet+ devices again. You can connect an Anynet+ device using the HDMI 1.3 cable only. Some HDMI cables may not support Anynet+ functions. If it is terminated by an abnormal situation such as disconnecting the HDMI 1.3 cable or power cord or a power failure, please repeat the device scan.
The TV programme cannot be recorded.	Check whether the antenna jack on the recording device is properly connected.

Teletext Feature

Most television stations provide written information services via Teletext. The index page of the teletext service gives you information on how to use the service. In addition, you can select various options to suit your requirements by using the remote control buttons.

For teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

exit)

Exit from the teletext display

2 (index)

Used to display the index (contents) page at any time while you are viewing teletext.

3 store)

Used to store the teletext pages.

4 (size)

Press to display the double-size letters in the upper half of the screen. For lower half of the screen, press it again. To display normal screen, press it once again.

5 37(reveal)

Used to display the hidden text (answers to quiz games, for example). To display normal screen, press it again.

(teletext on/mix)

Press to activate teletext mode after selecting the channel providing the teletext service. Press it twice to overlap the teletext with the current broadcasting screen.

7 (mode)

Press to select the teletext mode (LIST/FLOF). If you press it in the LIST mode, it switches into the List save mode. In the List save mode, you can save teletext page into list using the (store) button.

(3) (sub-page)

Used to display the available sub-page.

9 (page up)

Used to display the next teletext page.

10 (page down)

Used to display the previous teletext page.

13 (hold)

Used to hold the display on a given page if the selected page is linked with several secondary pages which follow on automatically. To resume, press it again.

12 (cancel)

Used to display the broadcast when searching for a page.

Colour buttons (red/green/yellow/blue)

If the FASTEXT system is used by a broadcasting company, the different topics covered on a teletext page are colour-coded and can be selected by pressing the coloured buttons. Press one of them corresponding to the required. The page is displayed with other coloured information that can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

You can change teletext pages by pressing the numeric buttons on the remote control.

The teletext pages are organized according to six categories:

Part Contents
A	Selected page number.
B	Broadcasting channel identity.
C	Current page number or search indications.
D	Date and time.
E	Text.
F	Status information.
	FASTEXT information.

Teletext information is often divided between several pages displayed in sequence, which can be accessed by:

Entering the page number
Selecting a title in a list
Selecting a coloured heading (FASTEXT system)

Press the TV button to exit from the teletext display.

Auto Wall-Mount (Sold separately)

Once the auto wall mount is installed, your TV's position can be easily adjusted.

Entering the menu

1. Press the , , or button on your remote control.

The Auto Wall-Mount screen is displayed.
If the Auto Wall-Mount screen is not displayed when clicking on a direction button while watching your TV, use the menu to display that screen.

• Press the MENU butt on to display the menu.

Press the or button to select "Setup", then press the ENTER button.

• Press the or button to select "Auto Wall-Mount", then press the ENTER button.

Remembering the Position

1. Adjust to the desired position using the , , , buttons.

If you press an arrow button when no OSD is displayed on the TV screen, the Adjustment screen appears.
Press the INFO button to reset. Press the or button to select "Yes", then press the ENTER button.

The position is initialized to the default setting.

1. Press the blue button.

Press the and buttons to select a save mode from either Position 1, Position 2 or Position 3 in order to save the current position.

To not save the current position, press the RETURN button.
When selecting a save mode, you cannot use the Colour buttons.

1. Press the ENTER button to save.

When Position1 is selected, the message "Current position saved as Position1" is displayed.

1. Press the ENTER button.

The saved Position appears on the left side of the OSD.

Moving to the remembered position

1. Complete Step 1 of "Entering the menu".
2. Pressing a Colour (Red, Green, Yellow) button moves the auto wall mount to the saved position.

You can move the wall mount to one of the 3 pre-set positions by pressing the Red (Position 1), Green (Position 2) or Yellow (Position 3) buttons.
If you adjust the position after moving to a pre-set position, the position display will disappear.

For installation, refer to the Installation Manual provided with the wall mount.
For product installation and the installation and moving of the wall mount, make sure to consult a specialized installation company.
This installation manual is to be used when attaching the wall mount to a wall. When attaching to other building materials, please contact your nearest dealer.
The auto wall mount will not work when Anynet+ and WISELINK are operating.
37, 40 and 46 inch models are not compatible with the old electrically powered wall mount model (WMN5090A*).

Using the Anti-Theft Kensington Lock (depending on the model)

The Kensington lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington lock for proper use. The locking device has to be purchased separately.

1. Insert the locking device into the Kensington slot on the LCD TV (Figure 1), and turn it in the locking direction (Figure 2).
2. Connect the Kensington lock cable.
3. Fix the Kensington lock to a desk or a heavy stationary object.
   The place of the Kensington Lock may be different depending on its model.

Troubleshooting: Before Contacting Service Personnel

No sound or picture	◆ Check that the mains lead has been connected to a wall socket. ◆ Check that you have pressed the button on your set. ◆ Check the picture contrast and brightness settings. ◆ Check the volume.
Normal picture but no sound	◆ Check the volume. ◆ Check whether the MUTE button has been pressed on the remote control. ◆ Check if "TV Speaker" is on
Screen is black and power indicator light blinks steadily	◆ On your computer check; Power, Signal Cable. ◆ The TV is using its power management system. ◆ Move the computer's mouse or press any key on the keyboard.
No picture or black and white picture	◆ Adjust the colour settings. ◆ Check that the broadcast system selected is correct.
Sound and picture interference	◆ Try to identify the electrical appliance that is affecting the set and move it further away. ◆ Plug your set into a different mains socket.
Blurred or snowy picture, distorted sound	◆ Check the direction, location and connections of your aerial. This interference is often due to the use of an indoor aerial.
Remote control malfunctions	◆ Replace the remote control batteries. ◆ Clean the upper edge of the remote control (transmission window). ◆ Check the battery terminals.
"Check signal cable." message is displayed	◆ Check that the signal cable is firmly connected to the PC or video sources. ◆ Check that the PC or video sources are turned on.
On PC mode, "Not Supported Mode." message is displayed	◆ Check the maximum resolution and the frequency of the video adaptor. ◆ Compare these values with the data in the Display Modes.
The damaged picture appears in the corner of the screen	If "Just Scan" is selected in some external devices, the damaged picture may appear in the corner of the screen. This symptom is caused by external devices, not TV.
The "Reset all settings to the default values" message appears.	This appears when you press and hold the EXIT button for a while. The product settings are reset to the factory defaults.
The TFT LCD panel uses a panel consisting of sub pixels (6 220 800) which require sophisticated technology to produce. However, there may be few bright or dark pixels on the screen. These pixels will have no impact on the performance of the product.

Technical and Environmental Specifications

Model Name	LE32A550 LE37A550 LE40A550
Screen Size (Diagonal)	32 inch 37 inch 40 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2
Dimensions (WxDxH)
Body	865 x 79 x 500 mm	984 x 87 x 572 mm	1058 x 91 x 608 mm
With stand	865 x 220 x 561 mm	984 x 240 x 637 mm	1058 X 240 X 672 mm
Weight
With stand	14 kg	18 kg	19 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE46A550 LE52A550
Screen Size (Diagonal)	46 inch 52 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2
Dimensions (WxDxH)
Body	1186 x 111 x 686 mm	1330 x 120 x 779 mm
With stand	1186 X 260 X 749 mm	1330 X 291 X 842 mm
Weight
With stand	27 kg	33 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	15 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE32A551 LE37A551 LE40A551
Screen Size (Diagonal)	32 inch 37 inch 40 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2	10 W X 2
Dimensions (WxDxH)
Body	801 X 88 X 526 mm	918 X 92 X 608 mm	997 X 92 X 641 mm
With stand	801 X 252 X 574 mm	918 X 300 X 650 mm	997 X 300 X 686 mm
Weight
With stand	13 kg	18 kg	21 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE46A551 LE52A551
Screen Size (Diagonal)	46 inch 52 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2
Dimensions (WxDxH)
Body	1127 X 100 X 716 mm	1269 X 109 X 806 mm
With stand	1127 X 280 X 767 mm	1269 X 326 X 857 mm
Weight
With stand	28 kg	32 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	10 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE32A552 LE37A552 LE40A552
Screen Size (Diagonal)	32 inch 37 inch 40 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2
Dimensions (WxDxH)
Body	801 X 88 X 514 mm	918 X 92 X 592 mm	997 X 92 X 628 mm
With stand	801 X 252 X 574 mm	918 X 300 X 650 mm	997 X 300 X 686 mm
Weight
With stand	13 kg	18 kg	21 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE46A552 LE52A552
Screen Size (Diagonal)	46 inch 52 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2
Dimensions (WxDxH)
Body	1127 X 100 X 700 mm	1269 X 109 X 791 mm
With stand	1127 X 280 X 767 mm	1269 X 326 X 857 mm
Weight
With stand	28 kg	32 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	15 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE32A553 LE37A553 LE40A553
Screen Size (Diagonal)	32 inch 37 inch 40 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2	10 W X 2
Dimensions (WxDxH)
Body	801 X 88 X 524 mm	918 X 92 X 601 mm	997 X 92 X 638 mm
With stand	801 X 252 X 574 mm	918 X 300 X 650 mm	997 X 300 X 686 mm
Weight
With stand	13 kg	18 kg	21 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	5 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°
Model Name	LE46A553 LE52A553
Screen Size (Diagonal)	46 inch 52 inch
PC Resolution	1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz
Sound Output	10 W X 2 10 W X 2
Dimensions (WxDxH)
Body	1127 X 100 X 710 mm	1269 X 109 X 800 mm
With stand	1127 X 280 X 767 mm	1269 X 326 X 857 mm
Weight
With stand	28 kg	32 kg
Environmental Considerations
Operating Temperature	10 °C to 40 °C (50 °F to 104 °F)
Operating Humidity	10 % to 80 %, non-condensing
Storage Temperature	-20 °C to 45 °C (-4 °F to 113 °F)
Storage Humidity	15 % to 95 %, non-condensing
Stand Swivel (Left / Right)	-20° ~ 20°

Design and specifications are subject to change without prior notice.
This device is a Class B digital apparatus.
For the power supply and Power Consumption, refer to the label attached to the product.

Installation du support mural

xvYCC:Arret/Marche

Volume auto: Arrét/Marche

TV Speaker: Arret/Marche

Divertissement: Arrêt/Sports/Cinéma/Jeu

AUDIO OUT [R-AUDIO-L]

[Anynet+ (HDMF-CEC)]

BildModus : Standard

xvYCC: Aus/Ein

Picture in Picture (PIP)

SRSO SRSTuSurroundXT

Entertainment: Uit/Sport/Film/Spelcomputer

17 Indice Teletext
19 Mantieni Teletext
21 Annulla Teletext

Melodia/Entertainment/Risp. energia

DVI IN (HDMI2) [R-AUDIO-L]

AUDIO OUT [R-AUDIO-L]

Estamericano.
Laughter, the sound of a song or music.
A play, a show, a movie, a drama, a play show, a musical performance.

DVI IN (HDMI 2) [R-AUDIO-L]

• Saías de audio DVI para dispositivos externos.

  Modos suportados para HDMI/DVI e Componente.

	480i 480p 576i 576p	720p 1080i	1080p
HDMI/DVI 50Hz X	X X O O O Φ
HDMI/DVI 60Hz X	O X X O O Φ
Componente O Q	O O O O O Q

4 ANT IN

9 AUDIO OUT [R-AUDIO-L]

DVI IN (HDMI2) [R-AUDIO-L]

INFORMACJE NA TEMAT ANYNET+

9 AUDIO OUT [R-AUDIO-L]

DVI IN (HDMI 2)[R-AUDIO-L]

Vystupy audio DVI pro externi zafrizeni.

PIP: Zapnuto/Vypnuto

6 (zapnout teletext/mix)

DVI IN (HDMI2) [R-AUDIO-L]

9 AUDIO OUT [R-AUDIO-L]

Locking channels

6 (zapn't' teletext/mix)

Stlacte toto tlacidlo ak chcete spustit rezim teletextu potom, co ste preplina program, ktory takuto sluzbu poskytuje. Ak chcete teletext prekryt' zobrazenim aktualneho vysielia, stlacte tlacidlo dvakrat.

7 三 (relim)

Stlačením vyberte režim teletextu (LIST/FLOF). Ak ho stlačite v režime LIST, Prepne sa do režimu uloženia zoznamu. V režime uloženia zoznamu možete uložit' teletextovú stranku do zoznamu s použitim tlacidla (uložit').

(vedl'ajsia strana)

DVI IN (HDMI 2) [R-AUDIO-L]

9 AUDIO OUT [R-AUDIO-L]

• Prikljucite avdio RCA-kabla na AUDIO OUT [R-AUDIO-L] na hrbtni strani televizorja in druga konca na ustrezne spojnike avdio vhoda na ojacevalniku ali DVD-domačem kinu.

0EXT1,EXT2

Colour Space: Auto/Native/Custom

Barvni prostor je barvna matrika, ki je sestavljena iz barv "Red", "Green" in "Blue". Izberite Najljubsi barvni prostor za prikaz najnaravnejsh barv.

Colour: Red/Green/Blue/Yellow/Cyan/Magenta

Prilagodi barvni obseg po zeIji.

"Colour" je na voljo, ko je "Colour Space" nastavljeno na "Custom".

Z gumbom ▲ ali▼ izberite “Red”, “Green”, “Blue”, “Yellow”, “Cyan” ali “Magenta”.

Pritisnite gumb ENTER

xvYCC: Off/On

Colour Tone: Cool2/Cool1/Normal/Warm1/Warm2

Digital NR: Off/Low/Medium/High/Auto

Movie Plus: Off/Low/Medium/High/Demo

Blue Only Mode: Off/On

Mode: Standard/Music/Movie/Speech/Custom

Auto Volume: Off/On

Sound Select: Main/Sub

Melody / Entertainment / Energy Saving

1. Pritisnite gumb MENU, da prikažete meni.
   S pritiskom gumba ali izberite "Setup", nato pa pritisnite gumb ENTER
2. S pritiskom gumba ali izberite zeeleno moznost, nato pa pritisnite gumb ENTER
3. Ko ste zadovolni z nastavitvijo, pritisnite gumb ENTER
4. Pritisnite gumb EXIT za izhod.

Melody: Off/Low/Medium/High

Entertainment: Off/Sports/Cinema/Game

Nacin "Entertainment" vam omogoča, da izberete dodatne prikaze in zvoke za športne oddaje, kino in igre.

Energy Saving: Off/Low/Medium/High/Auto

Auto Adjustment

Samodejna prilagoditev omogoca zaslonu osebnega računalnika, da se samodejno prilagodi vhodnemu video signalu računalnika. Vrednosti za fino, grobo in položaj so samodejno prilagojene.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
