Product Type	Digital clock radio with LCD display and PLL FM radio
Brand	Roadstar
Model	CLR2630RD
Reception Band	FM 87.5 – 108 MHz
Mains Power Supply	230 V AC, 50 Hz
Backup Power (Battery)	2 x 1.5 V type UM4 batteries (not supplied)
Time Display	24-hour format
Alarm Function	By buzzer or radio
Snooze Function	Alarm repeat every 9 minutes
Auto Off (Sleep) Function	Up to 90 minutes, adjustable
Station Search	Auto search (SCAN) and memory
Antenna	Built-in FM antenna (cable at back)
Brightness Adjustment	Integrated Dimmer switch
Care and Cleaning	Clean with a soft cloth dampened with soapy water; do not use solvents
Safety	Do not expose to rain, moisture, heat source, or direct sunlight
WEEE	Do not dispose with household waste; recycle according to regulations
Backup Batteries	Not supplied; replace every 9 to 12 months, preferably alkaline

Frequently Asked Questions - CLR2630RD ROADSTAR

How to set the time on the Roadstar CLR2630RD clock radio?

To set the time, press and hold the SET button for 3 seconds. Then use the SCAN+ or SCAN- buttons to adjust the year, then press SET and use SCAN+/SCAN- to set the month, day, hours, and minutes. The clock operates on a 24-hour format.

How to program the alarm by buzzer or radio?

To program the alarm, first set the correct time. Press the VOL/AL1 or VOL/AL2 button twice. Use SCAN+/SCAN- to set the hours, then press VOL/AL1 or VOL/AL2 and use SCAN+/SCAN- for the minutes. For a buzzer alarm, press and hold VOL/AL1 or VOL/AL2 for 3 seconds until the alarm indicator lights up. For a radio alarm, after selecting a station, press VOL/AL1 or VOL/AL2 twice, then press ON/OFF until the radio symbol appears.

How to use the Snooze function?

When the alarm sounds, press the SNOOZE/LIGHT button to temporarily silence it. The alarm will sound again after approximately 9 minutes. You can repeat this operation.

How to use the Auto Off (Sleep) function?

Press the SLEEP button. The display shows 90 minutes and the radio turns on. To select a shorter duration, press SLEEP again until the desired time is shown. The radio will turn off automatically after that time. To turn it off manually, press ON/OFF.

How to adjust the display brightness?

Press and hold the SNOOZE/LIGHT button for 3 seconds to select the desired brightness level of the LCD display.

How to search and store an FM station?

Turn on the radio with ON/OFF. Press SCAN+ or SCAN- to start automatic search. When the desired station is found, press CH+/MEMO to store it. For better reception, orient the FM antenna cable located at the back of the unit.

What to do in case of a power failure?

The unit is equipped with a battery backup circuit that preserves clock and alarm settings during a temporary power outage. Ensure backup batteries (2 x 1.5 V type UM4) are installed. If power is restored, the clock shows the correct time. If batteries are missing or dead, the clock will flash, indicating the need to reprogram time and alarm.

How to replace the backup battery?

Open the battery compartment located on the underside of the unit. Insert two UM4 (AAA) 1.5 V batteries, observing polarity. Preferably use alkaline batteries for longer life. Replace them every 9 to 12 months to avoid leaks.

What type of mains power supply is required?

The unit operates on 230 V AC, 50 Hz mains. Plug the supplied power cord into a mains socket. Check that the voltage matches that indicated on the rating plate on the back of the unit.

How to maintain the clock radio?

To clean the unit, use a soft, clean cloth slightly dampened with a mild, non-abrasive detergent solution. Never use solvents, benzene, or thinners. Avoid exposing the unit to rain, moisture, extreme temperatures, direct sunlight, or dust. Never insert objects into the ventilation slots.

USER MANUAL CLR2630RD ROADSTAR

English Page 1

Deutsch Seite 9

Français Page 17

Italienano Pagina 25

Español Págrina 33

Portuguese 41

English En

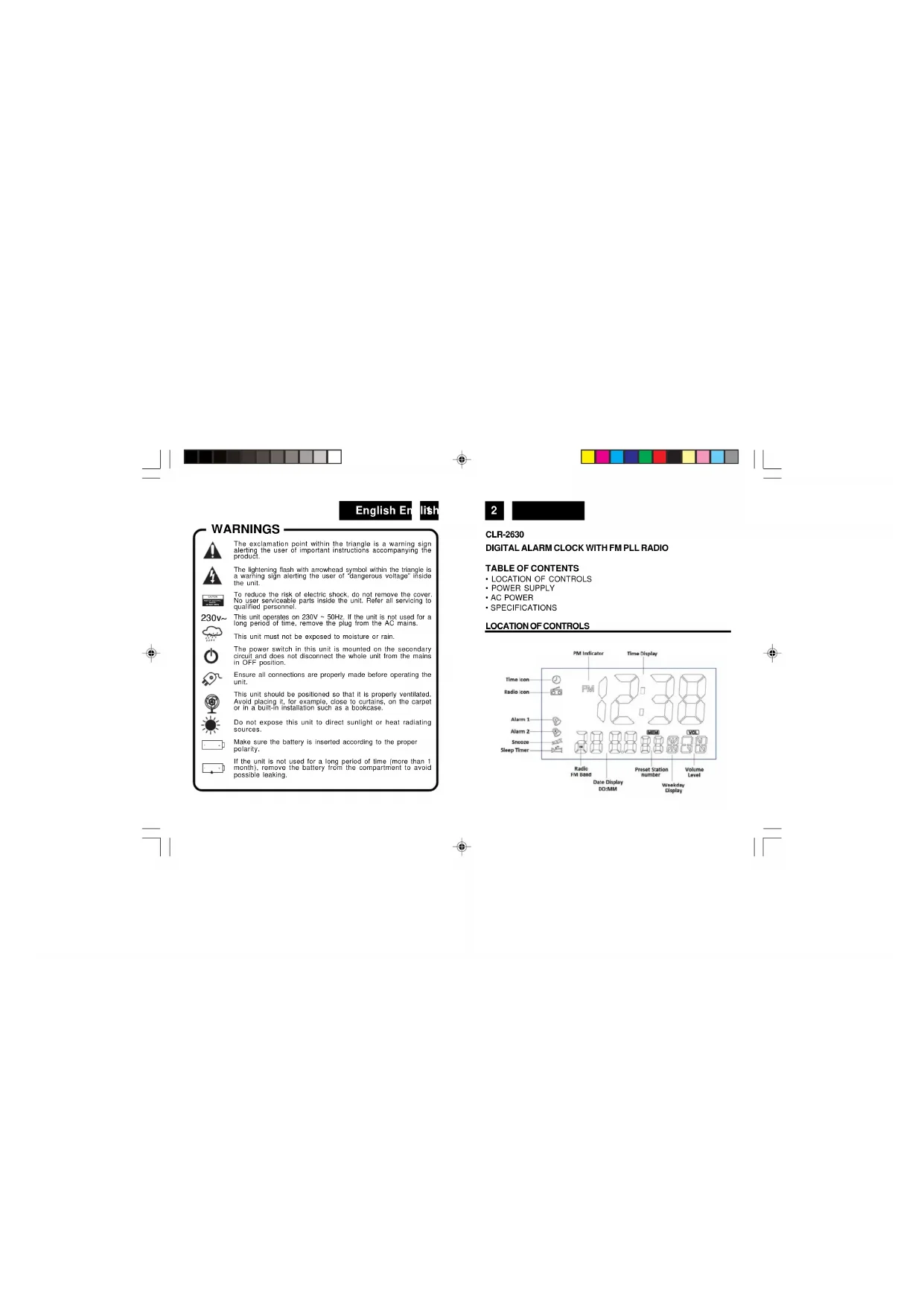

WARNING

The explanation point within the triangle is a warning sign. The user of the important instructions accompanying the product.

The lightning flash with arrowhead symbol within the triangle is a warning sign alerting the user of "dangerous voltage" inside the triangle.

To reduce the risk of electric shock, do not remove the cover. Remove the cover parts inside the unit. Refer all servicing to qualified personnel.

This unit operates on 230V 50Hz .If the unit is not used for a long period of time, remove the plug from the AC mains.

This unit must not be exposed to moisture or rain.

The power switch in this unit is mounted on the secondary circuit and does not disconnect the whole unit from the main.

Ensure all connections are properly made before operating the unit.

This unit should be positioned so that it is properly ventilated. The unit should be positioned in the same blocks, on the carpet or in a built-in installation such as a bookcase.

Do not expose this unit to direct sunlight or heat radiating sources.

Make sure the battery is inserted according to the proper polarity.

If the unit is not used for a long period of time (more than 1 year), the battery from the compartment to avoid possible leaking.

CLR-2630

DIGITAL ALARM CLOCK WITH FM PLL RADIO

TABLE OF CONTENTS

LOCATION OF CONTROLS
- POWER SUPPLY
AC POWER
SPECIFICATIONS

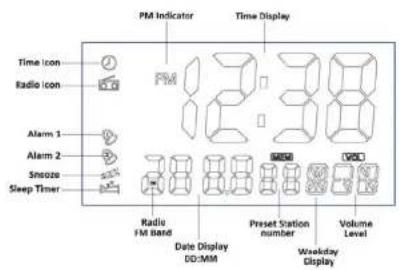

LOCATION OF CONTROLS

English En

li3h

POWERSUPPLY

This unit operates from a main supply of 230V 50Hz .Connect the AC power cord to the AC household main outlet. Ensure that the voltage is as indicated on the rating plate on the rear of the unit.

Battery Back-up Power Failure Protection

This radio has a battery back up circuit that will keep the correct time and alarm settings in the event of a temporary power interruption. Install a 2 x UM4 battery, not included, into the battery compartment located on the bottom of the unit.

Note: We recommend an alkaline battery for longer usable life. Change the battery every 9 to 12 months for best result and avoid possible battery leakage.

If power is temporarily interrupted the display will blink and the radio will not play. However, the battery back-up circuit will continue to maintain the clock and alarm settings. When power is restored the clock will display the correct time and alarm settings, and no adjustment is necessary.

Note: If power is interrupted and there is no battery in the compartment or the battery is exhausted. The time and alarm settings will be lost. When power is restored the clock will begin to flash indicating that the time and alarm settings must be corrected.

4

SETTING THE CORRECT TIME

1. In the normal Display mode, to set the TIME, keep pressed SET Button for 3 seconds and the YEAR digits will flash. Press SCAN+ or SCAN- to adjust the YEAR digits.
2. To set the MONTH, press SET once more and the MONTH digits will flash. Press SCAN+ or SCAN- to adjust the MONTH digits.
3. To set the DAY, press SCAN+ or SCAN- again again and the DAY digits will flash. Press SCAN+ or SCAN- adjust the DAY digit.
4. To set the TIME, press SET again one more time and the TIME TIME digit will flash. Press SCAN+ or SCAN- to adjust the TIME digit.

SETTING THE WAKE UPTIME

1. Set the correct time first.
2. Set the alarm time by following this procedure:
3. Press VOL/AL 1 Button or VOL/AL 2 two times.
4. Press the SCAN+ Button to advance how
5. Press VOL/AL 1 Button then SCAN+ to advance minutes.
6. To check the correct alarm time is set, press the VOL/AL1.

WAKETO BUZZERALARM

1. Set the alarm time as shown above.

English Erlish

1. Press the ALARM 1 or ALARM 3 seconds.
   The ALARM 1 indicator will light up on the left side of the display.
2. To switch off the alarm press the AL OFF Button 3 seconds.

WAKETOTHERADIO

1. Set the alarm time as shown above.
2. Follow the procedure in LISTENING TO THE RADIO to tune the radio to a station.
3. Set the VOLUME Control to a level you feel will wake you.
4. Press VOL/AL 1 Button or VOL/AL 2 two times.
5. Press the ON/OFF button until the Radio symbol is displayed.

1. Press the ON/OFF button, the Radio switch ON.
2. Press the SCAN+ or SCAN- to search the station.
3. Adjust the VOLUME Control to a comfortable listening level.
4. To turn off the radio, press the ON/OFF for three seconds.
5. Press the CH + / MEO button for three seconds to store the Radio.
6. To search the stored channel press the CH+MEMO sequentially.

Note: For FM reception there is a built-in FM antenna wire at the rear of the unit. Move the wire around to obtain the best reception.

6

SNOOZEFUNCTION

When the alarm sounds, pressing the SNOOZE/LIGHT Button will temporary stop about 9 minutes then the alarm sounds again.

SLEEPFUNCTION

1. This function enables you to go to sleep listening to the Radio.
2. Press the SLEEP Button. The clock display will show 90 minutes.
   The Radio turns on and will turn off automatically after 90 minutes.
3. To select a shorter time press the SLEEP Button repeatably until the desired sloop time is displayed.
4. To turn off the Radio at any time during the Sleep period, press the ON / OFF Button.

DIMMER FUNCTION

Select display illumination level with by pressing SNOOZE/LIGHT button for tree seconds.

CARE AND MAINTENANCE

To prevent fire or shock hazard, do not allow this clock radio to be exposed to rain or moisture.
This clock radio should not be exposed to direct sunlight, very high or low temperature, moisture, vibration, or placed in a dusty environment.

English En

lish

Do not use abrasives, benzine, thinners, or other solvents to clean the surfaces of the clock radio. To clean it, wipe with a mild non-abrasive defergent solution on a clean soft cloth.

Never attempt to insert wires, pins, or other objects into the ventilation holes or openings on the clock radio.

Note: When setting the Clock or Alarm times remember that this clock radio has a 24 Hour clock mode.

ACPOWER

For your own safety read following instructions carefully before attempting to connect this clock radio to the mains.

This unit is designed to operate on a 230V-50Hz supply only. Connecting it to other power sources may damage it.

Ensure that supply corresponds to the information on the rating label on the bottom of the unit.

SPECIFICATIONS

FM Band: 87.5 to 108 MHz

Power Supply: 230VAC, 50 Hz

Back-up Battery : 2 x 1,5V Battery UM4 (not included)

8

Design and specifications are subject to change without notice.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
