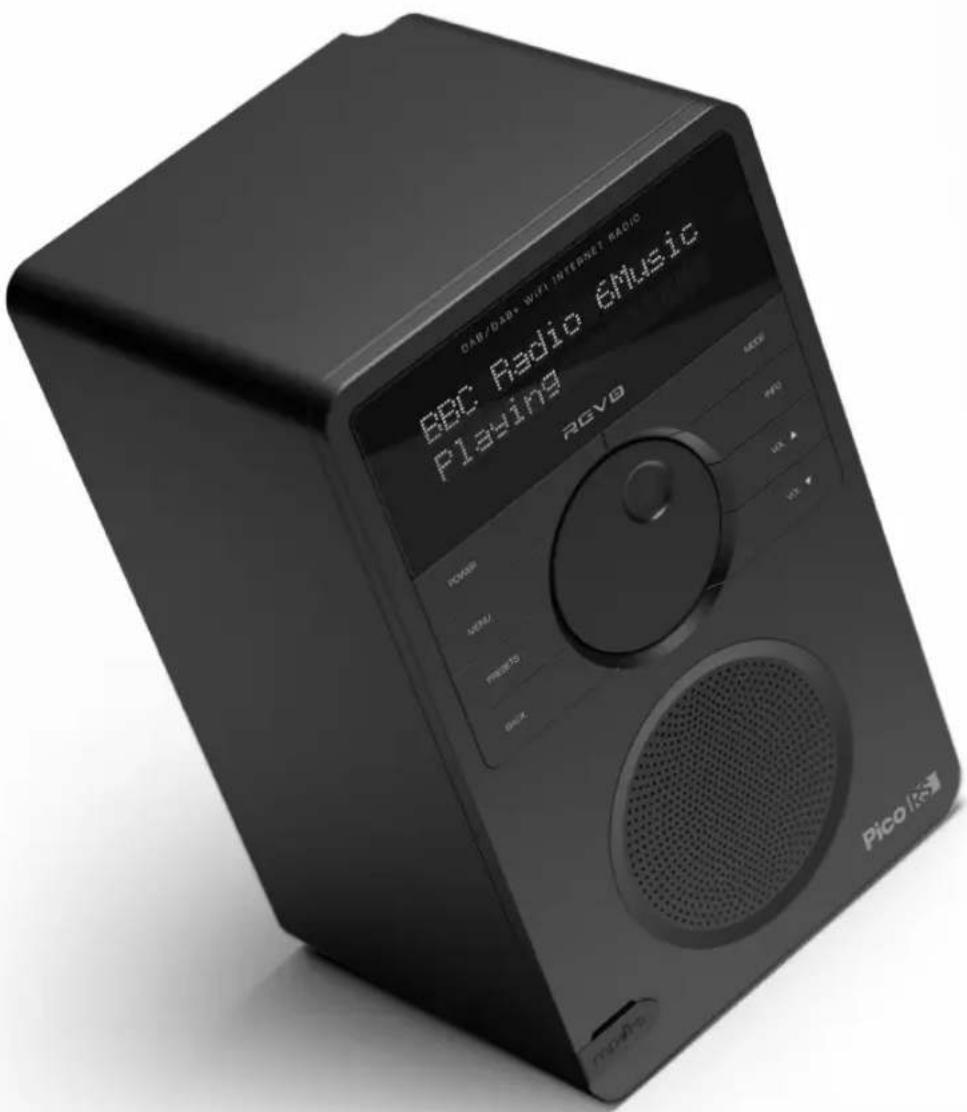

Product Type	DAB+/FM/Internet Wi-Fi Radio with Speaker for iPod/MP3
Brand	REVO
Model	Pico RS
Power Supply	Mains adapter (supplied) or internal rechargeable battery (12 h battery life)
Operating Modes	DAB/DAB+, FM, Internet Radio, Player (PC/Mac), MPort
Connectivity	Wireless Wi-Fi (WEP/WPA/WPA2)
Antenna	Telescopic
Display	LCD
Presets	12 (for DAB and FM)
Ports	3.5 mm headphone jack, stereo RCA, USB (update), M-Port (aux input)
Remote Control	Yes (infrared)
Software Update	Via Wi-Fi
Additional Functions	Dynamic Range Control (DRC), information display (signal, bitrate, time, date)
Warranty	1 year (upon registration)
Dimensions	Approx. 200 × 120 × 80 mm (estimate)
Weight	Approx. 0.5 kg (estimate)
Safety	Do not expose to water, do not open the casing, use the supplied adapter
Maintenance	Clean with a soft, dry cloth
Spare Parts and Repairability	Contact technical support (parts not specified)
Compliance	CE, RoHS

Frequently Asked Questions - Pico RS REVO

How do I connect my Pico RS radio to the Wi-Fi network?

Select Internet Radio Mode by pressing MODE. Choose your network from the list. If the network is secure, enter the password by turning the dial and pressing each character. Once connected, the password is saved.

What should I do if the radio cannot find DAB stations?

Make sure the telescopic antenna is fully extended and vertical. Perform a new scan via the DAB menu. If nothing appears, move the radio or check DAB coverage in your area.

How do I save a station as a preset?

While listening to the station, press the PRESET button. Turn the dial to select an empty slot (Preset 1 to 12), then press to confirm.

What is the battery life?

The internal rechargeable battery provides up to 12 hours of use after a full charge. Charging is done via the supplied mains adapter.

How do I update the radio's software?

From the main menu, go to System Setup then Software Update. The radio automatically checks for updates and installs them if available. Make sure you are connected to Wi-Fi.

Can I use my radio as a speaker for my iPod or MP3 player?

Yes, connect your device to the M-Port on the front using the supplied cable (headphone jack to M-Port). Select MPort Mode with the MODE button. Adjust the volume on both devices.

How do I clean the radio?

Use a soft, dry cloth. Do not use liquid or abrasive products. Avoid letting water or small objects enter the device.

What should I do if the radio displays 'Wireless error' during Wi-Fi connection?

This message indicates a key or configuration error. Check that the Wi-Fi password is correct and respects case sensitivity. If the problem persists, consult your router settings.

How do I get the access code for the Frontier Internet Radio portal?

From Internet Radio Mode, choose Station List then Help, and finally Get Access Code. Note down the code to use it on www.wifiradio-frontier.com during registration.

The radio won't turn on, what should I do?

Check that the mains adapter is properly connected or that the battery is charged. Try resetting the device by disconnecting the power and removing the battery if possible. If the problem persists, contact technical support.

USER MANUAL Pico RS REVO

CAB/DARK WIFI INTERNET RADIO BBC Radio E music Playing Rev0 REV0 4000 400 100 100 100 Pico Radio Rev0

English

Français

Deutsch

Italiano

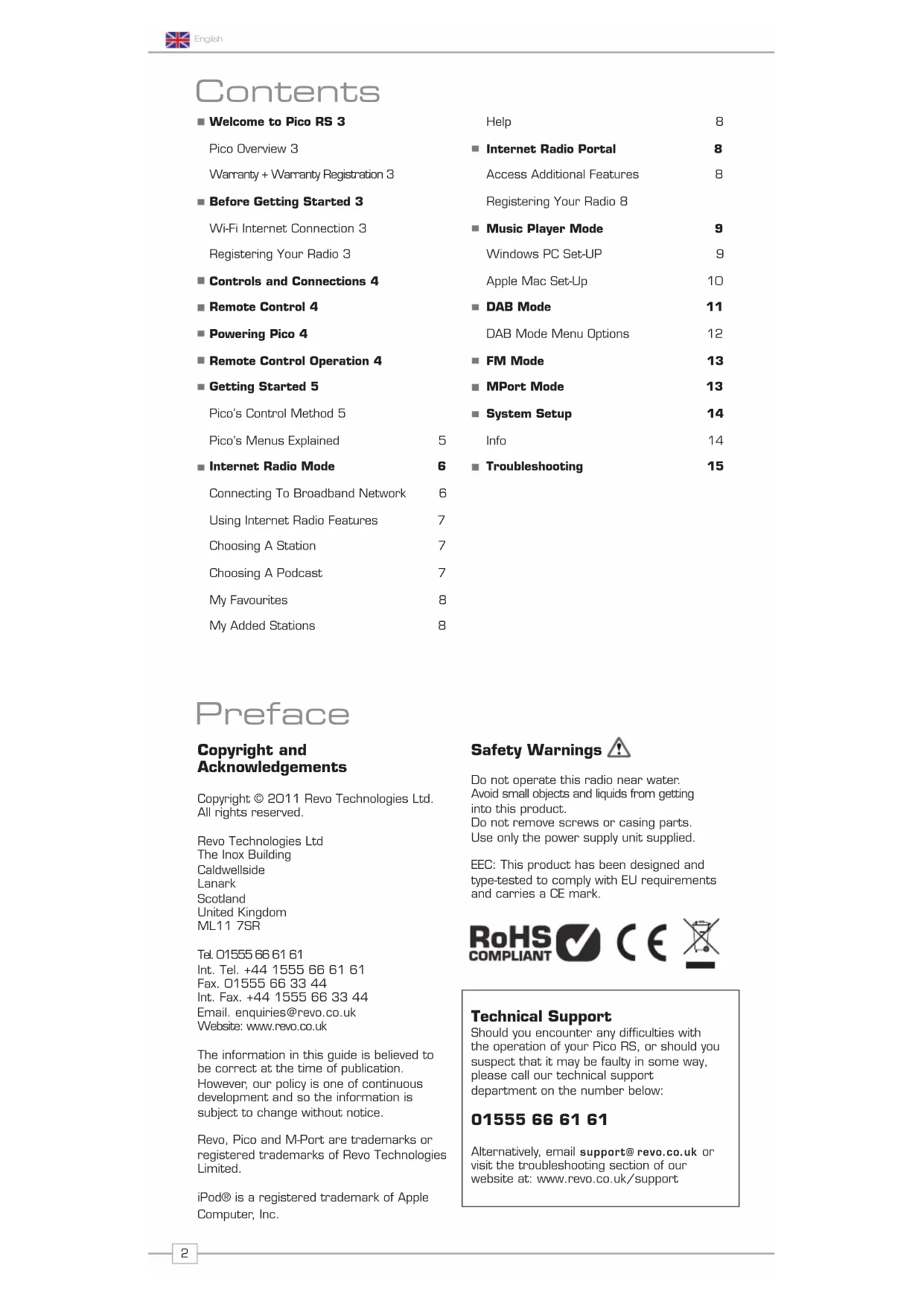

Contents

■ Welcome to Pico RS 3

Pico Overview 3

Warranty + Warranty Registration 3

■ Before Getting Started 3

Wi-Fi Internet Connection 3

Registering Your Radio 3

■ Controls and Connections 4

■ Remote Control 4

■ Powering Pico 4

■ Remote Control Operation 4

■ Getting Started 5

Pico's Control Method 5

Pico's Menus Explained 5

■ Internet Radio Mode 6

Connecting To Broadband Network 6

Using Internet Radio Features 7

Choosing A Station 7

Choosing A Podcast 7

My Favourites 8

My Added Stations 8

Help 8

■ Internet Radio Portal 8

Access Additional Features 8

Registering Your Radio 8

■ Music Player Mode 9

Windows PC Set-UP 9

Apple Mac Set-Up 10

■ DAB Mode 11

DAB Mode Menu Options 12

■ FM Mode 13

■ MPort Mode 13

■ System Setup 14

Info 14

■ Troubleshooting 15

Preface

Copyright and Acknowledgements

Copyright © 2011 Revo Technologies Ltd. All rights reserved.

Revo Technologies Ltd

The Inox Building

Caldwellside

Lanark

Scotland

United Kingdom

ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax. [phone]

Int. Fax. [phone]

Email. [e-mail]

Website: www.revo.co.uk

The information in this guide is believed to be correct at the time of publication. However, our policy is one of continuous development and so the information is subject to change without notice.

Revo, Pico and M-Port are trademarks or registered trademarks of Revo Technologies Limited.

iPod® is a registered trademark of Apple Computer, Inc.

Safety Warnings

Do not operate this radio near water. Avoid small objects and liquids from getting into this product.

Do not remove screws or casing parts. Use only the power supply unit supplied.

EEC: This product has been designed and type-tested to comply with EU requirements and carries a CE mark.

RoHS COMPLIANT

Technical Support

Should you encounter any difficulties with the operation of your Pico RS, or should you suspect that it may be faulty in some way, please call our technical support department on the number below:

01555 66 61 61

Alternatively, email [e-mail] or visit the troubleshooting section of our website at: www.revo.co.uk/support

Welcome to Pico RS

Thank you for buying our Pico RS digital radio, we feel sure that it will provide you with years of enjoyment and reliable service.

This guide has been designed to quickly get you up-and-running and listening to your radio, offer guidance on the more complex features of this product and provide information on safety, warranty and registration.

Pico RadioStation Overview

Pico RS is the ultimate 'one box' portable digital radio, providing an unprecedented choice of over 13,000 stations from around the globe. Whether your preferred station is broadcasting from your own country on DAB or DAB+ digital radio, or on the other side of the world via internet radio.

Pico is capable of receiving new DAB+ digital radio broadcasts without the need for any software upgrades or modification, and all in a splashproof design with the convenience of internal battery power.

Pico also provides coverage of traditional FM radio and the added benefit of doubling as an iPod ^® speaker system.

Throw-in high-quality audio performance and the ability to stream music from your PC or Mac, and Pico RS becomes the ultimate go-anywathere digital radio.

Warranty

Revo Technologies Ltd warrants to the purchaser that this product will be free from parts and manufacturing defects in the course of normal use for a period of one year from the date of purchase.

This warranty does not apply in cases of accidental damage, where the case has been removed, wear and tear, negligence, modification or inappropriate use.

Should you encounter problems with this product, please contact your supplier or alternatively see page 2 of this guide for technical support contact details.

Warranty Registration

It is a warranty condition that you register your purchase by either completing the warranty card enclosed with your radio or alternatively registering online at www.revo.co.uk/register

Before Getting Started

IMPORTANT

To ensure that your Pico RS is running the latest software release (and therefore has access to the latest software

features), we advise you to perform a software update. Please see page 14 of this operating guide for full details.

Network Connection

In order to use the internet radio functions of your Pico RS you will require either a wireless (Wi-Fi) or wired LAN broadband internet connection.

NB. If your wireless network is configured to use Wired Equivalent Privacy (WEP), or Wi-Fi Protected Access (WPA or WPA2) data encryption, you need to know the WEP or WPA code (Web Key) in order to allow Pico to connect to your wireless network.

For setup instructions please see page 6.

Registering Your Radio and Accessing Additional Services

Some of Pico RS's more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal [www.wifiradio-frontier.com].

These features include the ability to create a "Favourites" list and add unlisted radio stations and podcasts. See page 8 for instructions on how to register your radio.

Pico RadioStation and DAB+

At the time of writing, Pico RS is one of the first digital radio products that are capable of receiving broadcasts on the new DAB+ digital radio platform - without the need for modification or additional software.

Meaning that Pico is ready for future developments. This facility is in addition to Pico's reception of standard DAB signals.

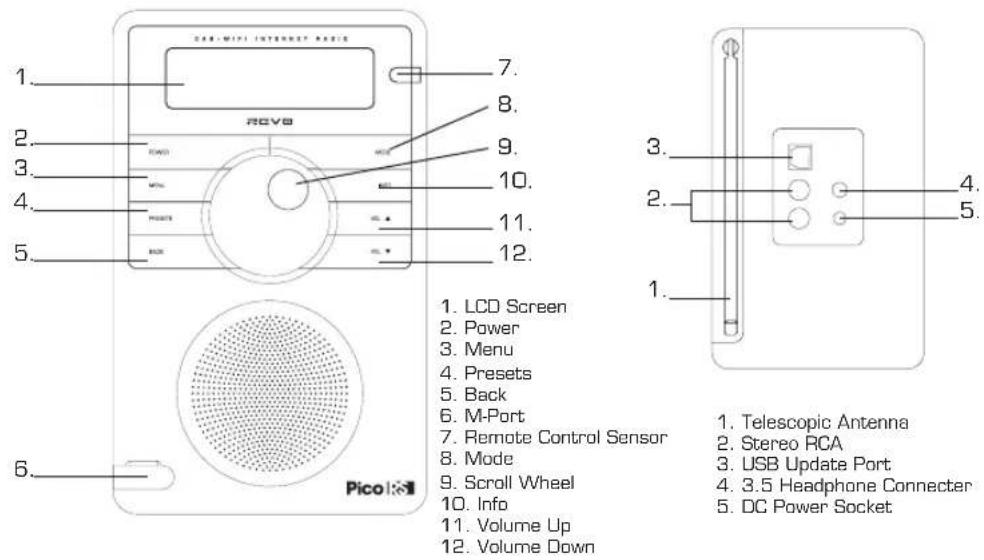

Controls and Connectors

1. LCD Screen
2. Power
3. Menu
4. Presets
5. Back
6. M-Port
7. Remote Control Sensor
8. Mode
9. Scroll Wheel
10. Info
11. Volume Up
12. Volume Down
1. Telescopic Antenna
2. Stereo RCA
3. USB Update Port
4. 3.5 Headphone Connector
5. DC Power Socket

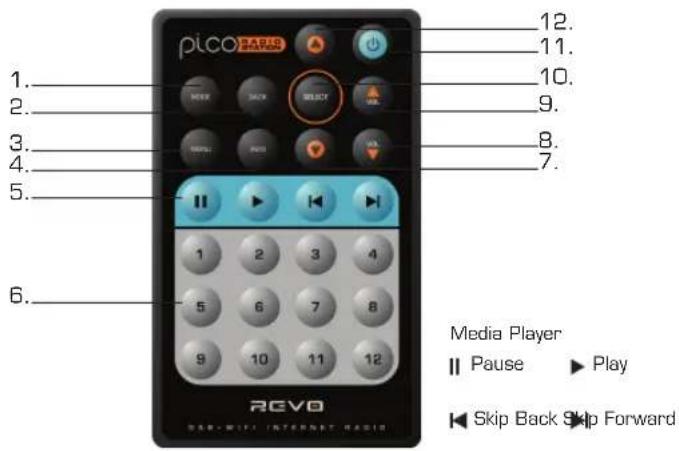

Remote Control

1. Mode

2. Back

3. Menu

4. Info

5. Media Player

6. 12 Presets

7. Down

8. Volume Down

9. Volume Up

10. Select

11. Standby

12. Up

pico REVO 1. 2. 3. 4. 5. 6. 12. 11. 10. 9. 8. 7. Media Player || Pause ▶ Play ◀ Skip Back Skip Forward RBV-WIFI INTERNET MUSIC

Powering Pico RS

Your Pico radio is powered from the mains using the power adaptor supplied, or from its own internal rechargeable battery pack.

To power from the mains, insert the power adaptor plug into the DC power socket on the rear of Pico. When Pico is connected to mains power, its internal battery pack will commence charging. On a full charge, Pico's internal battery pack has a 12 hour life.

Only use the power adaptor supplied. Replacements are available from www.revo.co.uk

Getting Started

Pico RS is a sophisticated digital radio device, with several modes of operation and many advanced features.

In order for you to get the most out of Pico's functions, it is important that you learn how to use the cursor based control system, and also understand how Pico's menus work.

Pico's Control Method

Pico's control method is based around a central scroll wheel (with push to select function).

SCROLL WHEEL:

Rotate clockwise and anti-clockwise to scroll through menu options.

PUSH TO SELECT:

Press the scroll wheel to select the current menu option. In FM mode, pressing the scroll wheel will initiate an FM scan.

BACK:

Press to return to the previously selected menu entry. Repeatedly pressing will return you to the top level of the Mode menu (for the mode you are in).

MENU:

Press to enter (or return to) the Mode menu for the mode of operation you are currently in. Pressing for a second time will return you to the 'playing' screen.

MODE:

Sequentially cycles through each of the modes of operation.

Using these keys, you will be able to perform most functions and navigate through Picos various menus.

Pico's Menus Explained

Pico has three types of menu as follows:

Main Menu

This is Pico's principle (top level) menu, and allows you to enter different operating modes, setup the radio, and view information such as software version and your radio's ID number.

Mode Menus

The Mode menus are so called because they show the functions available within the context of each of the operating modes (DAB mode, FM mode etc.).

Pressing the MENU button at any time will take you to the Mode menu of the operating mode your radio is currently in. Each Mode menu includes a listing for Main Menu – selecting this option will return you to the top level Main Menu (as described above).

Main Menu

The Main menu provides access to the following modes and sub-menus:

DAB

Info System

FM

Setup

To select an option from the menu, simply use the scroll wheel to move through the menu options, then press to select.

Internet Radio Mode

Connecting to your broadband network

In order to access Pico RS's internet radio features, first you must connect Pico to your broadband connection.
- Firstly, select 'Internet Radio' by pressing the MODE key until 'Internet Radio Mode' appears on the display, or alternatively select from Pico's main menu.
- Pico will now ask you to select a 'Wlan region'. To do so, simply rotate the scroll wheel to cycle through the list of available options, then push to make your selection.

- Pico will ask you to choose the network you'd like to use. If there is more than one available, all will be listed.

If the Wi-Fi network you have chosen doesn't require a password, Pico will automatically connect.
If your chosen network has security enabled, you will be asked to input the relevant key or password. Remember, the password will be case-sensitive.
Use the scroll wheel to move through the banks of characters and push the wheel to select your chosen character. When the password has been entered, move the flashing cursor to the symbol at the end of the line and push to enter the code. Pico will now connect to the network.
■ Pico will remember the security key or password, you will not be required to enter it again, even after Pico has been used on another network in a different location.
■ Pico can also remember keys and passwords for multiple Wi-Fi networks.
If at some time you would like to connect to another Wi-Fi network, you can do so by selecting 'Wizard' from the 'Internet Setup' option on the main menu, and entering the required key/password.
■ Advanced users can edit their Wi-Fi settings by accessing the 'System Setup' option from the Main menu.

)Most of Europe USA

[Rescan]

My Home Network

Connected

Key: 0123456789<.cC

Please wait Connecting...

Internet setup Time setup

Using Internet Radio Features

The internet radio mode allows you to choose from a number of services, including listening to live radio or Podcasts. There are five options on the internet radio menu as follows:

My Favourites: Used to navigate to your favourite stations. This list is compiled using your PC/Mac via the internet radio portal. See page 8 for details.

Stations: Find stations by location, genre, most popular, new station or by alphabetical search.

Podcast: Find Podcasts or 'Listen-Again' services by location, genre or search.

My Added Stations: Shows stations which you have personally added to Pico RS's list through the vTuner internet radio portal. See page 8 for details.

Help: Find your Access Code here, see page 8.

Choosing A Station

To select a station select 'Internet Radio' by pressing the MODE key until 'Internet Radio Mode' appears on the display, or alternatively select from Pico's main menu.
■ Using the scroll wheel, scroll to the 'Stations' option and press to select.
■ You now have the option of selecting a station by location (country), genre, alphabetical search, most popular stations or new stations. Using the scroll wheel, scroll through the options and press to choose your search criteria.
- Choosing location will give you an alphabetical list of continents/regions and then a list of countries. Use the scroll wheel to scroll through the list and push to select your chosen country. You will then be given the option of choosing a genre, to further refine your search.
■ After selecting your search criteria, you will be presented with a list of stations that meet your requirements. Simply select a station from the list to begin listening.

Choosing A Podcast

• Podcasts (also referred to as 'Listen Again') are selected in the same way as a regular station.
• Select 'Podcast' from the 'Internet Radio' menu, you can search for a station by location, genre or a combination of both.
  The main difference is that when you have selected a station, you will then be presented with a list of 'shows' or Podcasts available from that station.
  ■ Select your choice using the scroll wheel before pushing to select your choice.

Internet Radio Mode

My Favourites >Stations

Location >Genre

Location >Genre

Finland >France

BBC Radio 1

BBC 1Xtra

BBC Radio 1 Playing

Podcast My Added Stations

Podcast My Added Stations

BBC 6 Music BBC Radio 7

My Favourites

It is possible to compile a list (or lists) of your favourite stations, allowing quick and easy access to a number of varied stations. To do this you must first register your radio and then choose your favourites by visiting the Frontier Internet Radio Portal - see 'Internet Radio Portal' section below for details.
■ When in 'Internet Radio Mode', choose 'Station List' from the options, then select 'My Favourites'.
If you have set up a 'My Favourites' list via the Frontier Portal, your list will appear on Pico's screen.

My Added Stations

If you have added any of your own stations to Pico's already huge station list (via the Frontier Portal - see section below), they will be listed here. The 'My Added Stations' option can be found under 'Station List' in 'Internet Radio Mode'.

Help

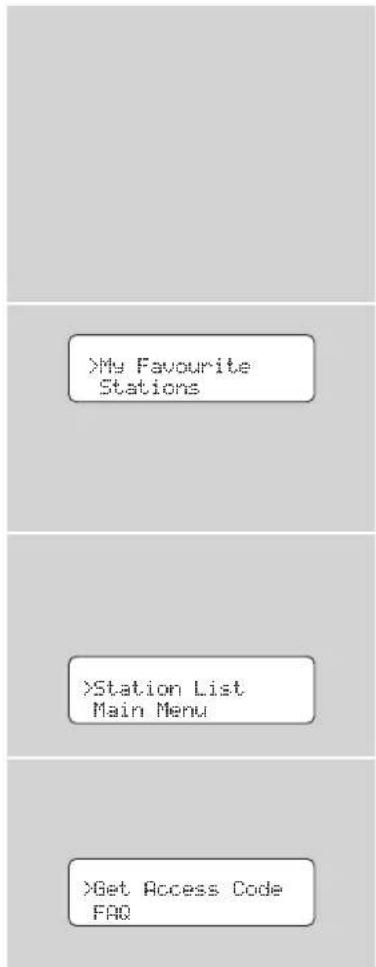

The 'Help' option is where you can find the Access Code that you require to register your radio on the Frontier Portal (see below for full instructions). A helpful FAQ audio track can also be found under this heading.

>My Favourite Stations >Station List Main Menu >Get Access Code FAQ

Internet Radio Portal

Access Additional Features

■ Some of Pico RS's more advanced internet radio features can only be accessed by visiting the Frontier Internet Radio Portal.
In order to access these features you must first register your radio.

Registering Your Radio

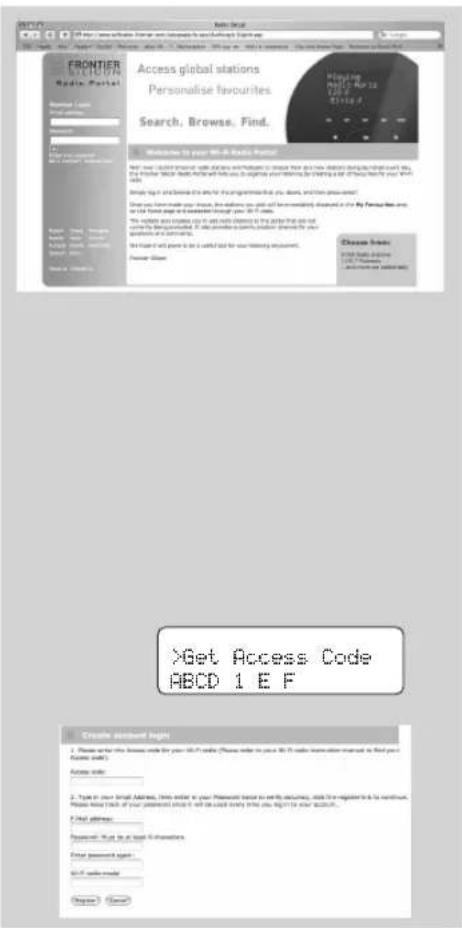

■ Firstly, open your web browser on your PC or Mac and go to the Frontier Portal at http://www.wifiradio-frontier.com
- Click on the Register link, (located on the left hand panel) to begin the registration process.

You will now be asked for an Access Code.

To find your Access Code enter 'Internet Radio Mode', select 'Station List' from the options, then select 'Help'. From the 'Help' menu now select "Get Access Code".

■ Now fill-in the rest of the from to complete the registration process. You will now be able to login and take advantage of the various additional features and services offered by the Frontier Internet Radio Portal.

FRONTIER MENIUM Media Portal Access global stations Personalise favourites. Search, Browse, Find. Welcome to your Web in Media Portal Next year, the following web addresses and prefixes are displayed. You can also access these web pages on your website: the Publisher: Microsoft Media Portal and help us to navigate your following for finding a list of files that you have been used. Please log it and browse the area for the programming that you show, and then you want? Once you have made your website, we always use this web to be completely displayed in the My Personalize app or the other platforms is displayed through your website. This web will create any web page as required to use the website that we can use the website. It will provide a very quick, quick format for your questions or more. We have a web page to be a useful web for your listening app. Browse Search Choose Email: 100000000000 (http://www.menium.com) (https://www.menium.com) >Get Access Code ABCD 1 E F Create account login 1. Please select the website code for your ABCD website. Please select your ABCD website account manual to find your website code? Access code: 2. Type of your Small Address, Times sender in your Personalize code to sell any security, click to a register to be continuous. Please link with your passwords where it will read every time you want to your access... F-Print password: Password: Must be at least 6 characters. Enter password again: ABCD website code: Choose | Save | > Get Access Code ABCD 1 E F

Music Player Mode

Music Player Operation

■ Pico RS's media player functionality allows you to play audio files (AIFF, AU, MP3, RM, WAV and WMA) and playlists (M3U) stored on a networked PC or Apple Mac. The media player functions have been tested and certified to operate with Windows 2000, Windows XP, Windows Vista and Mac OSX 10.2 - 10.4.9.

Windows PC Set-Up

There are two Music Player modes available. Each of them requires different settings, and either one can be used to playback music from a media server.

Shared Folders (CIFS)

In order to set up the device to playback ■ music stored on shared network drives, user name, password and domain settings must be configured to work with the PC share settings. This is only required if the user has set a password on his/her shared folders.

PC: Domain/Workgroup configuration

The Domain configuration item can be found on a Windows XP machine as follows:

1. From the start menu, select Control Panel > System then select the Computer Name tab.

2. The Domain or Workgroup that this Computer is a member of is displayed in this tab.

3. If the PC is not a member of any Domain or Workgroup then one must be joined. To do this click on the change button on the computer name tab and enter the name of the domain (default on Windows XP is MSHOME).

4. A reboot of the PC may be prompted if the Domain or Workgroup has been changed.

PC: Setting up a new user account (Windows XP)

Pico RS may require you to set-up a user account on each PC that you wish to browse. By default most PCs have at least one user account associated with it. The user name and password (optional) needs to be the same on each PC as the Internet Radio only stores one user name and one password. For windows XP this can be set up as follows:

1. From the start menu, select Control Panel -> User accounts

2. From this screen left click the 'Add ...', and enter the new user name and the Domain/Workgroup setting noted above. Select the type of user (limited) and then select 'create account'.

3. Select the user just created, select 'Create Password ...' and enter a password for this user.

4. Note the User Name and Password.

Note for Windows VISTA : Users have to turn on the Guest account via manage user accounts in the control panel in VISTA, then add access to either 'Everyone' or 'Guest' on the shared drive. They could create a new account for the internet radio, with a password, if they are concerned about security. The Guest account has no password by default, so the Wi-Fi radio will connect to it from its factory default settings.

PC: Configuring A Shared Drive

From the Start menu select My Computer and navigate to the directory you wish to share. Right click on the directory and select Sharing and Security. Configure the shared drive as read only, and ensure that the User Name created above has read access to the share.

Wi-Fi Radio: Storing The Username And Password

Before the radio can stream music from a PC, you need to ensure you have shared folder available on the PC, and set up the radio so that it knows the username and password (if one has been set) for the shared folder on the PC. This can be set up using the PC settings menu.

Shared Media (UPnP)

Media sharing uses Windows Media Player (WMP) 11 and above as media server. This mode does not require any setting in the radio, but the PC needs to be configured to allow the radio access to the media. You will only have to do it once, following the next steps.

1. The PC must be connected to network (wired or wireless) that will be used to share media with the radio.

2. Ensure that the radio is powered on and connected to the same network as the PC.

3. In WMP, add to the media library the audio files and folders you want to share with your internet radio (in Library > Add to library).

4. In the WMP main window, click on Library, then Media sharing.

The Internet radio is presented as an "Unknown Device". Make sure that the device has access to the shared media by selecting it and clicking . Then click .

The PC is now ready to stream the music to the radio.

Music Player Mode

Apple Mac Set-Up

Set-Up for OSX 10.2.1 --> 10.4.9

Setup Windows File Sharing on the MAC:

From the 'Dock', click 'System Preferences'. From the 'System Preferences' window (under the 'Internet & Network' section) click 'Sharing'.

From the 'Sharing' window, do the following:

Under the 'Services' section, enable 'Personal File Sharing' and 'Windows Sharing'. Also, click 'Start' for each of these services. Under Windows file sharing you will also need to 'enable' the account you wish to share from (This needs your administrator password).

Under the 'Firewall' section, keep firewall off.

Under the 'Internet' section, keep 'Internet Sharing' off.

Setup an Account:

From the 'System Preferences' window, under the 'System' section, click 'Accounts'. Select an account and remember its 'Short Name' and password. This information will be used by Pico RadioStation when connecting to your Mac.

Directory Setup:

From the 'Dock', click 'Finder'. From the 'Finder' window, click 'Applications > Utilities'. Holding Ctrl click on 'Directory Access' then select 'Get Info' and ensure that read / write enabled. Next double click on 'Directory Access' and enable the following:

AppleTalk LDAPv3

SLP SMB/CIFS

Also, for the 'SMB/CIFS' item, click 'Configure' and select an appropriate workgroup.

To allow your Pico RS you need to add your login details, by following the path Main Menu -> System Setup -> Internet Setup -> PC Settings. You should input your short username and administrator password here. Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect. You should now be able to access the audio files on your Mac by selecting Browse -> Shared Folders on Pico, then selecting the workgroup chosen in the step above. On selecting your Mac scroll through the available folders until you find the one which contains your music files.

Apple Mac Set-Up

Set-Up for OSX Leopard 10.5.1-->

Setup Windows File Sharing on the MAC:

From the 'Dock', click 'System Preferences'. From the 'System Preferences' window (under the 'Internet & Network' section) click 'Sharing'.

From the 'Sharing' window, do the following:

Under the 'Services' section, enable 'File Sharing' click 'Start' for this service. Then under the shared folders click the "+" and select the folder which contains your music files. Then Select the music folder from the shared folders area, in the users area make sure "Everyone" is set to read and write. Finally click on "Options" and make sure "Share files and folders using AFP" is checked and "Share files and folders using SMB" (This will require your admin password to activate) lastly make sure your account is also checked as active.

Ensure that your Mac is successfully connected to the wireless network. Note, you may need to wait for few minutes for the changes to take effect.

You should now be able to access the audio files on your Mac by selecting 'Browse > Shared Folders' on Pico, then selecting your Mac from the list of devices. On selecting your Mac, you should see your folder that you selected above.

DAB Mode

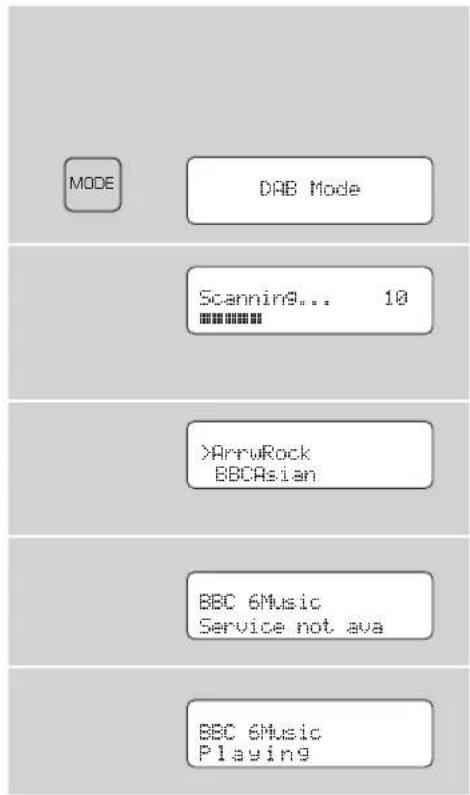

Choosing a Station

■ Extend the telescopic antenna found on the rear of Pico RS.
■ Now select 'DAB Mode' by pressing the MODE key until 'DAB Mode' appears on the display, or alternatively select from Pico's main menu.
If this is the first time Pico RS has been used in DAB Mode, it will scan for DAB stations in your area and store them in memory. Pico will also set its clock at this point.
■ When the station scan has been completed, stations will be displayed in numeric then alphabetic order. The first station in the list will be selected.
If no DAB signal is found, it may be necessary for you to relocate your radio, or to check whether DAB coverage is available in your area.
■ Select your station choice by scrolling through the station list and pushing the scroll wheel to make your selection.

MODE DAB Mode Scanning... 10 >ArruRock BBCAsian BBC 6Music Service not ava BBC 6Music Playing

To Change the Display Mode

■ Pico has nine different display modes.

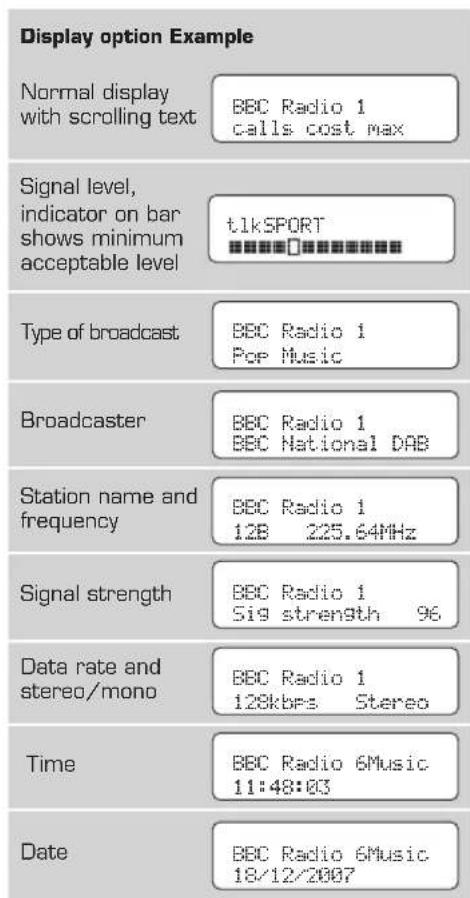

Simply press the INFO button to cycle through each mode. These display modes are explained in the table opposite:

Display option Example Normal display with scrolling text BBC Radio 1 calls cost max Signal level, indicator on bar shows minimum acceptable level tlk5PORT ***************# Type of broadcast BBC Radio 1 Pop Music Broadcaster BBC Radio 1 BBC National DAB Station name and frequency BBC Radio 1 12B 225.64MHz Signal strength BBC Radio 1 Sig strength 96 Data rate and stereo/mono BBC Radio 1 128kbps Stereo Time BBC Radio 6Music 11:48:03 Date BBC Radio 6Music 18/12/2007

DAB Mode Menu Options

Pico RS has a number of additional functions that are accessed through the DAB Mode menu, as follows:

Station Order

■ Press the MENU key in DAB Mode then press select Station order.

To specify the order in which stations are displayed

■ Select the Station order option.
■ Use the scroll wheel to move through the available options, then push the wheel to make your selection.

Manual Tune

• Choose the Manual Tune option from the DAB Mode menu.
  The Manual Tune selection screen allows you to select a particular frequency to tune to. The list of frequencies displayed is dependant on the currently-set frequency band and contains all of the frequencies within that band. It starts with the short name of the frequency, for example 12B, and is followed by the actual frequency in MHz.
  If there is a station corresponding to this station number and frequency, the display will show the name, frequency, and a tuning meter will show the signal strength.

DRC - Dynamic Range Control

■ Pico RS includes a dynamic range control that automatically boosts the volume of quieter sounds for listening in noisy environments.
The DRC control is found in the DAB Mode menu under 'DRC'. There are three pre-defined settings as follows:

DRC Description

DRC Low Dynamic Range Control is set to half

DRC High The recommended setting for noisy environments

DRC Off Dynamic Range Control is switched off

The following table describes the options available under the 'Station Order' menu:

Station order Description

Alphanumeric Lists stations in alphabetical order.

Ensemble Lists stations by multiplex.

Valid Lists only active stations.

Local and Full Scan

As time passes, new stations will become available in your area. To find them and add them to your station list it is necessary to perform either a 'Local' or 'Full' scan. Both operations can be accessed via the DAB Mode menu.
■ A Local Scan performs a shorter scan of only the 'local' ensemble range.
■ A Full Scan will take longer, but will cover the complete DAB ensemble range.

Favourite Station Presets

■ Pico allows you to store 12 favourite station presets, either via the PRESET button on Pico itself, or via the optional Pico remote control.
To save the station you are currently listening to as a preset, simply press the PRESET button then use the scroll wheel to find an unused location. Now press the scroll wheel to store.

To listen to a stored station press the

■ PRESET button then use the scroll wheel to locate your desired preset, then press to select.

FM Mode

FM Operation

■ Extend the telescopic antenna found on the rear of Pico.
■ Enter FM Mode by pressing the MODE key and switching between DAB Mode and FM Mode. Alternatively, FM Mode can be accessed via the Main Menu.
If this is the first time Pico has been in FM mode, it will start at the beginning of the FM frequency range. Otherwise, the last FM station you were listening to will be selected.
■ To scan through the FM frequency range turn the scroll wheel.
■ To 'SEEK' the next active station, press the scroll wheel.

Favourite Station Presets

■ Pico allows you to store 12 favourite station presets, either via the PRESET button on Pico itself, or on the optional Pico remote control.
To save the station you are currently listening to as a preset, simply press the PRESET button then use the scroll wheel to find an unused location. Now press the scroll wheel to store.
■ To listen to a stored station press the PRESET button then use the scroll wheel to locate your desired preset, then press to select.

MODE FM Mode 87.50MHz FM >Preset 1 unset >Preset 2 unset >Preset 1 set >Preset 2 unset

MPort Mode

Using MPort

■ Revo's MPort connector allows for quick and easy connection of an iPod®, similar MP3 player or sound source.
■ Using the connection lead supplied, Pico is transformed into a high quality digital audio speaker system.
■ Connect one end of the supplied audio lead to the headphone (or auxiliary out) socket of your source device, then connect the other end to the MPort on the front of Pico.

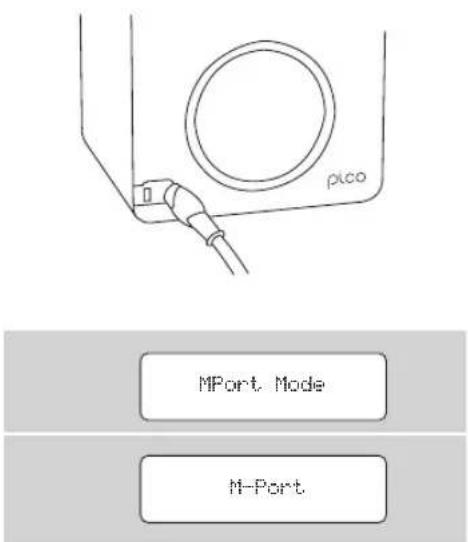

Now press the MODE key and cycle through the options until 'MPort Mode' is displayed.
■ Pico's LCD screen will now display the word 'MPort' on its screen.
■ You should adjust the output volume level on both the source device and on Pico itself to gain optimal volume levels and sound performance.

pico MPort Mode M-Port

System Setup

Internet Setup

■ Advanced users can find and edit their Wi-Fi settings in this section, these include MAC address, DHCP status, PC Settings, SSID, IP Settings etc.

Factory Reset

In the unlikely event that Pico RS should 'crash', 'freeze' or start behaving in a strange way, it is possible to perform a full software reset. This operation will completely reset Pico's memory, clearing all WEP/WPA codes and user settings. This will effectively return Pico to its default factory settings.

Software Update

It is possible to remotely update Pico RS's software via your Wi-Fi internet connection, to ensure that you have all the latest features, or to fix known bugs in the software. To check whether there are any updates available, simply go to the 'System Setup' option on the 'Main Menu' and select 'Software Update'. Pico will search to see if a software update is necessary, then report back. If an update is available and necessary, Pico will start the download process and install its new software automatically.

Info

Software Version and Radio ID

■ You may be asked for one or both of these pieces of information when dealing with a technical support issue.

■ Both can be found under the 'Info' heading, located in the 'Main Menu'.

SW version ir.dabp-nmi.rvo.ve

Radio ID 0013E0A11D25

Troubleshooting

Wi-Fi Internet Radio

If you are experiencing any problems with your Pico RS please read the following 'troubleshooting' guide. Alternatively you can visit the support section of the Revo website (www.revo.co.uk) or call our technical support staff on D1555 666161.

If you have trouble connecting Pico RS to your wireless network, these steps may help to resolve the problem:

1. Confirm that a Wi-Fi connected PC can access the Internet (i.e. can browse the web) using the same network.
2. Check that a DHCP server is available, or that you have configured a static IP address on the radio.
3. Check that your network's firewall is not blocking any outgoing ports.

As a minimum, Pico RS needs access to UDP and TCP ports 80, 554, 1755, 5000 and 7070.

1. Check your access point does not restrict connections to particular MAC addresses. You can view the radio's MAC address under the 'Internet Setup' section, accessed via the 'System Setup' option on Pico's main menu.

2. If you have an encrypted network, check that you have entered the correct key or pass phrase into the radio. Remember that text-format keys are case sensitive. If, when attempting to connect to an encrypted network, your radio displays: 'Wireless error' followed by a 5-digit number, then please ensure that you enter the correct pass phrase for the network. If the problem persists, then you may need to consult your network configuration.

If Pico RS can connect to the network successfully, but is unable to play particular stations, it may be due to one of the following causes:

1. The station is not broadcasting at this time of the day (remember it may be located in a different time zone).
2. The station has reached the maximum allowed number of simultaneous listeners.
3. The station is not broadcasting anymore.
4. The link on the radio is out of date.
5. The Internet connection between the server (often located in a different country) and you is slow.

DAB Digital Radio

Q. I hear a 'burbling' noise on some stations.
A. If the signal strength is too low, a break-up in reception can occur. This sound is the result. Make sure that Pico's antenna is fully extended and in an upright position. If no DAB signal is found, it may be necessary for you to relocate your radio.
Q. I get a 'No stations available' message?
A. Make sure that your antenna is fully extended and vertical and check whether DAB coverage is available in your area.

DAB/DAB+ WIFI INTERNET RADIO BBC Radio & Music Playing 20V8 PICO 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400V 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400W 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M 400M

Table des matières

Revo Technologies Ltd The Inox Building

Caldwellside

Lanark

Scotland

United Kingdom

ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax. [phone]

Int. Fax. [phone]

Email. [e-mail]

Website: www.revo.co.uk

Please wait Connecting...

Internet setup Time setup

Podcast My Added Stations

Podcast My Added Stations

BBC 6 Music BBC Radio 7

Mes préférés

To find your Access Code enter 'Internet Radio Mode', select 'Station List' from the options, then select 'Help'. From the 'Help' menu now select "Get Access Code".

Frontier RETURN Radio Portal Access global stations Personalise favourites Search, Browse, Find. Welcome to your Wi-Fi Radio Portal View the following: www.roadlines.com or more information about the world's radio station. The website is also available in this open account. Try any other online radio stations and addresses to access from and write address by adding each year. It is a smaller area on radio station and helps you to recognize and link us to access a list of users for your own website. Simply log it and browse the site for the programme that you are, and then press posted! Once you have made your phone, but always you will be on randomly installed in the My Personalise room or no risk based page as detailed through your 02.7 website. This website also includes you to add details to the right that we find you can't have been published. It also provides a print, download, or download of your questions and comments. Not listed it will prove to be a useful tool for your browsing app? Prester Global Choose from: 1. Please select all sites (e.g., 1.0.1.1.1) 2. Please select all sites (e.g., 1.0.1.1.1) 3. Please select all sites (e.g., 1.0.1.1.1) 4. Please select all sites (e.g., 1.0.1.1.1) 5. Please select all sites (e.g., 1.0.1.1.1) 6. Please select all sites (e.g., 1.0.1.1.1) 7. Please select all sites (e.g., 1.0.1.1.1) 8. Please select all sites (e.g., 1.0.1.1.1) 9. Please select all sites (e.g., 1.0.1.1.1) 10. Please select all sites (e.g., 1.0.1.1.1) >Get Access Code ABCD 1 E F Create account login Please refer to your website code for your Wi-Fi radio (Please refer to your Wi-Fi radio instruction manual to find your website code). Access code: 2. Type in your Email Address, these entries in your Personalized Email to verify accuracy, click the register to be to continue. Please refer to the email address if it will be used every time you begin to your account... F-Map address: Password: Must be at least 6 characters. Enter password empty: Wi-Fi radio model Beginn Cancel

Mode lecteur

Revo Technologies Ltd

The Inox Building

Caldwellside

Lanark

Scotland

United Kingdom

ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax. [phone]

Int. Fax. [phone]

Email. [e-mail]

Website: www.revo.co.uk

Please wait Connecting...

Internet setup Time setup

Podcast My Added Stations

Podcast My Added Stations

BBC 6 Music BBC Radio 7

Meine Favoriten

FRONTIER SKHUN Radio Portal Access global stations Personalise favourites Search. Browse. Find. Welcome to your Wi-Fi Radio Portal Show how to access traditional radio stations and Probability to choose files and new stations during this week's day, and provide 360% Radio Station for help you to prepare and refining the following a list of radio stations for your Wi-Fi station. Simply log it and beyond the site for the programming that you doles, and then areas used! Do you have made your access, but always you will be on broadcast displayed in the My Personalize area on its own page and elsewhere through your Wi-Fi website. The users are also available to us at radio station to the right that we do not currently available. It will provide a link to location where the radio questions and comments. Not listed it will prove to be a useful tool for your following applications. Powder: IBM Choose from: 8750 Radio station 1201 Ptochou and continue and added data. >Get Access Code ABCD 1 E F Create account login 1. Please refer to the website code for your Wi-Fi radio (Please refer to your Wi-Fi radio instruction manual to find your Telephone). Access code: 2. Type in your Email Address, there order in your Personalized Service to verify accuracy, click the register link to continue. Please link through your passwords about it, will be used every time you want to your accounts... P-Map address: Password: Must be at any 0 characters. Enter password again: Wi-Fi radio model Regener: Cancel

Music Player Modus

Music Player Operation

Revo Technologies Ltd The Inox Building

Caldwellside Lanark

Scotland

United Kingdom ML11 7SR

Tel. [phone]

Int. Tel. [phone]

Fax. [phone]

Int. Fax. [phone]

Email. [e-mail] Sito Web: www.revo.co.uk

Please wait Connecting...

Internet setup Time setup

Podcast My Added Stations

Podcast My Added Stations

BBC 6 Music BBC Radio 7

Preferiti

Frontier 5000 Radio Portal Access global stations Personalise favourites Search, Browse, Find. Viewer to your Wi-Fi Radio Portal View the following: www.5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www. 5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www.5000 radio station and to download from a local network. The information is available in the website: www.5001 radio station and to download from a local network. The information is available in the website: www.5001 radio station and to download from a local network. The information is available in the website: www.5001 radio station and to download from a local network. The information is available in the website: www.5001 radio station and to download from a local network. The information is available in the website: www.5001 radio station and TO BAN >Get Access Code ABCD 1 E F Create account login Please refer to your Email address for your Wi-Fi radio (Please refer to your Wi-Fi radio instruction manual to find your email name). Access code: 2. Type in your Email Address, Use email in your Personalized Email to verify accuracy, click the register to be to continue. Please link back of your password once it will be used every time you begin to your account... F-Map address: Password: Must be at least 6 characters. Enter password again: Wi-Fi radio model Choose Cancel

Radio Wi-Fi: Memorizzare Username e Password

Media Condivisi (UPnP)

Simple line drawing of a device with a circular component labeled 'plco' and a plug inserted (no text or symbols beyond label)

MPort, Mode

M-Port

www.revo.co.uk/support
