USER MANUAL Mini Table Chef 102210 PRINCESS

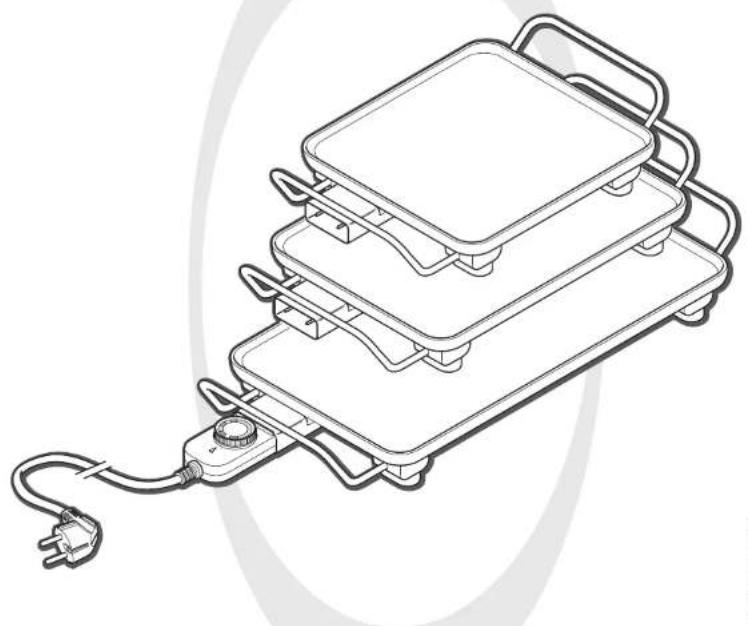

Table Chef Article 102200/102210/102211

• Gebruksaanwijzing · User's instructions · Mode d'emploi
• Bedienungsanleitung · Instruetiones de uso · Istruzione per l'uso
• Bruksanvisning · Brugsanvisning · Bruksanvisning · Kayttoohje
• Instruções de uso · Odnyiec xpnqnsis

Nederlands 1

English 5

Francais 9

Deutsch 13

Espanol 17

Italiano 21

Svenska 25

Dansk 29

Norsk 33

Suomi 37

Portugues 41

EAAynikα 45

49

1

102210

102200

102211

Algemeen

This Table Chef enables you to fry or grill food without using fat.

The Table Chef is equipped with a grill plate with a non-stick coating and a thermostat that maintains the grill plate at the required temperature. The appliance is extremely simple to use; all you need to do is connect the appliance to a 220 - 240 V mains power supply. Once the appliance has heated up you put the food on the grill plate. Consequently the Table Chef is ideal for Teppan yaki cooking, frying, and barbeques – and for use at children's parties.

Note: read the following instructions before you use the appliance!

Tip: give children simple instructions before they use this appliance, and supervise them while they use it.

Operation and controls

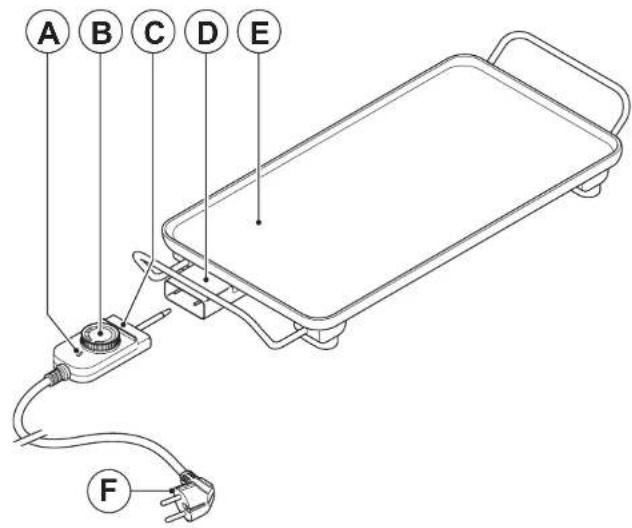

The appliance is equipped with the following features, see Fig. 1:

A. Temperature light
B. Thermostat dial
C. Thermostat
D. Thermostat socket
E. Grill plate
F. Plug/power cord

Before using for the first time

1 Remove the packaging.
2 Clean the appliance, see 'Cleaning and maintenance'.

Use (see Fig. 1)

• Never put the appliance on a hob.
• When the appliance is switched on the light will illuminate and extinguish as the thermostat switches the heating element on and off to maintain the required temperature.
• A little hot fat can splash from the appliance towards users when the thermostat is set to higher than 165 degrees Celsius.
• Never allow metal cutlery to contact the grill plate, since this could damage the non-stick coating.
• Do not touch the hot grill plate. Use oven gloves if you need to touch the appliance during or shortly after use.

1 Prepare the ingredients.
2 Clean the grill plate with a damp cloth.
3 Place the appliance on a sturdy flat surface.
4 Plug the thermostat in the appliance's socket.
5 Put the plug into an earthed wall socket.
6 Adjust the thermostat dial.
7 Wait for about 10 minutes until the temperature light has extinguished. The grill plate has now reached the required temperature.

Tip: small pieces will cook better - and more quickly - than large pieces.

Tip: adjust the thermostat setting to suit the ingredients; experiment with the cooking time and temperature required to achieve the best results.

Maintenance and cleaning

• Never move the appliance whilst it is switched on or is still hot. Switch off the appliance, and wait until it has cooled down before moving it.
• Never immerse the thermostat in water, or in other liquids. If this happens do not use the appliance again; for safety reasons, dispose of the appliance.
• Never use corrosive or scouring cleaning agents.

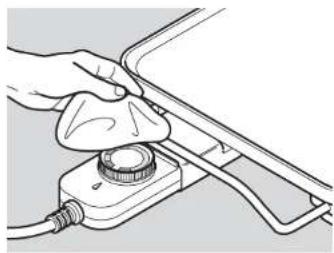

After Use (see Fig. 2)

1 Always remove the plug from the wall socket and allow the appliance to cool down completely before you clean it.
2 Remove any residues with kitchen paper towel.
3 Clean the thermostat with a damp cloth.
4 You can clean the appliance in a dishwasher or hot washing-up water.

Note: never immerse the power cord's thermostat plug in water; always clean it with a damp cloth!

5 Dry the appliance thoroughly after cleaning.

Make sure that the appliance's thermostat socket is completely dry before you use it again!

6 Store the appliance and power cord in the box. Save these user's instructions.
7 Store this Table Chef in a dry place, out of the reach of children.

Never pour cold water onto the grill plate; this will damage the grill plate, and the water will boil and splash.

Safety

General information

• Please read these instructions carefully, and retain them for future reference.
• Use this appliance only as described in these instructions.
• Use this appliance only for domestic purposes.
• The use of this appliance by children or persons with a physical, sensorial, mental or motorial disability or with a lack of the necessary knowledge and experience can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.
• Make sure that children do not play with the appliance.
• Have any repairs carried out solely by a qualified electrician. Never try to repair the appliance yourself.

Always use the power cord and thermostat supplied with this appliance. Never use a power cord and thermostat from another appliance.

Heat and electricity

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.
• Plug the appliance into an earthed wall socket.

• Always remove the plug from the wall socket when the appliance is not in use.

• Always remove the plug from the wall socket by pulling on the plug, not the power cord.

• Do not use the appliance if the power cord or the appliance is damaged. For your safety return the appliance to our service department. A damaged power cord can be replaced solely by our service department, who have the special tools required for the repair.
• Make sure that the appliance, the power cord, thermostat and the plug do not come in contact with sources of heat, such as a hot hob or naked flame.
• Make sure that the thermostat, the power cord and plug do not come in contact with water.
• The appliance needs to be able to allow heat to escape, thereby avoiding the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance may not be covered.

During use

• This appliance is suitable solely for domestic use
• You should use the appliance outdoors solely in dry weather. If so required, use an earthed extension lead of a suitable diameter (at least 3mm^2 ).
  Supervise children when they use the Table Chef.
• Place the appliance on a flat, stable, heat-resistant and splash-proof surface where it cannot fall.

• Do not allow the cable to hang over the edge of the draining board, worktop or table.

• Make sure that your hands are dry before touching the power cord or the plug.

• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance or storing it after use.
• Make sure that there is enough ventilation during the use of the appliance.
• Never leave the appliance unattended when in use.
• Never move the appliance when it is switched on or is still hot. Switch off the appliance, and wait until it has cooled before you move it.
  Take care when using the appliance. The grill plate is very hot, and could cause burns if touched.
• Watch out for steam and splashes when putting food on the hot grill plate.
• Use oven gloves if you need to touch the appliance during or after use.
• Do not pick up the thermostat if it has fallen into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.
• Clean the appliance thoroughly after use (see the 'After use' Section).
• This appliance's grill plate is finished with a non-stick coating based on PTFE. On heating this coating it may release small amounts of gases which are totally harmless for people. However, the nervous systems of birds have been found to be extremely sensitive to these gases, and for this reason this appliance should not be used near birds (for example, tropical birds such as such parrots).

The Environment

Dispose of packaging materials such as plastic and boxes in the appropriate containers.

You should ensure for the reuse of the appliance if you wish to dispose of it whilst it is still in good working order or needs only a minor repair.

When the appliance reaches the end of its useful life it must be disposed of in a responsible manner, thereby ensuring for the reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted refuse, but hand it in at the retailer's or at a recognised collection point. Contact your municipality for information about the reception and collection systems in your area.

Applicable European Directive:

2002/95/EC
