Rugged Rukus - Docking station ETON - Free user manual and instructions

Brand	Eton
Model	Rugged Rukus
Product Type	Docking station / Solar portable Bluetooth audio system
Power supply	Built-in rechargeable Li-ion battery
Charging	Built-in solar panel or USB mains adapter (cable provided)
Charging time (adapter)	2 to 2.5 hours
Charging time (solar)	Approximately 5 hours
Playback time	Approximately 8 hours (depending on volume and usage)
Bluetooth connectivity	Yes, with pairing mode
AUX input	Yes, 3.5mm jack
USB charging port	Yes, for charging USB devices
Battery LED indicator	4 levels: 0-25%, 26-50%, 51-75%, 76-100%
Main functions	Bluetooth playback, AUX input, USB charging, rechargeable battery
Protection	Do not expose to rain or moisture; do not immerse
Operating temperature	0°C to 40°C
Cleaning	Dry cloth only, no detergent
Warranty	Limited warranty, online registration required
Included accessories	USB cable
User manual	Available in PDF for free
Repairs	Contact Etón customer service

Frequently Asked Questions - Rugged Rukus ETON

How to turn the Rugged Rukus on and off?

Press the power switch to turn the device on. A blue LED lights up indicating the device is on. To turn off, press the same switch again.

How to pair the Rugged Rukus via Bluetooth?

Make sure the device is on. Press the Bluetooth button to switch to Bluetooth mode. Press and hold the Bluetooth button for 3 seconds to activate pairing mode. The LED flashes rapidly and the device beeps. On your device, search for Rugged Rukus in Bluetooth settings and connect.

How to recharge the internal battery?

The battery can be charged in two ways: via the mains adapter (USB cable provided) by connecting the Micro USB (Adaptor) port to a wall outlet, or via the built-in solar panel by exposing the device to sunlight. The LED flashes during charging.

What is the battery life for Bluetooth playback?

Battery life is approximately 8 hours of continuous playback, depending on volume setting and other factors.

How to use the AUX input?

Plug a 3.5mm audio cable into the headphone output of your device and into the AUX IN input on the back of the Rugged Rukus. Turn on the device and press the AUX button to select this source. The AUX LED lights up and music plays.

How to charge a USB device with the Rugged Rukus?

Plug the USB cable of your device into the USB port (9) on the device. Press button (6) to start charging. Press again to stop. The USB LED lights up during charging.

How to check the battery charge level?

Press the button on the lithium-ion battery to display the charge level. The LEDs indicate: 0-25% (1 LED), 26-50% (2 LEDs), 51-75% (3 LEDs), 76-100% (4 LEDs).

What to do if the device does not turn on?

Make sure the battery is charged. Plug in the mains adapter and let it charge for a few minutes. If the problem persists, contact Etón customer service.

How to clean the Rugged Rukus?

Use a dry cloth to clean the device. Do not use detergent or chemical solvent, as this may damage the coating.

Where to find the full manual and updates?

The full manual in PDF format is available for free on notice-facile.com. For updates, visit www.etoncorp.com.

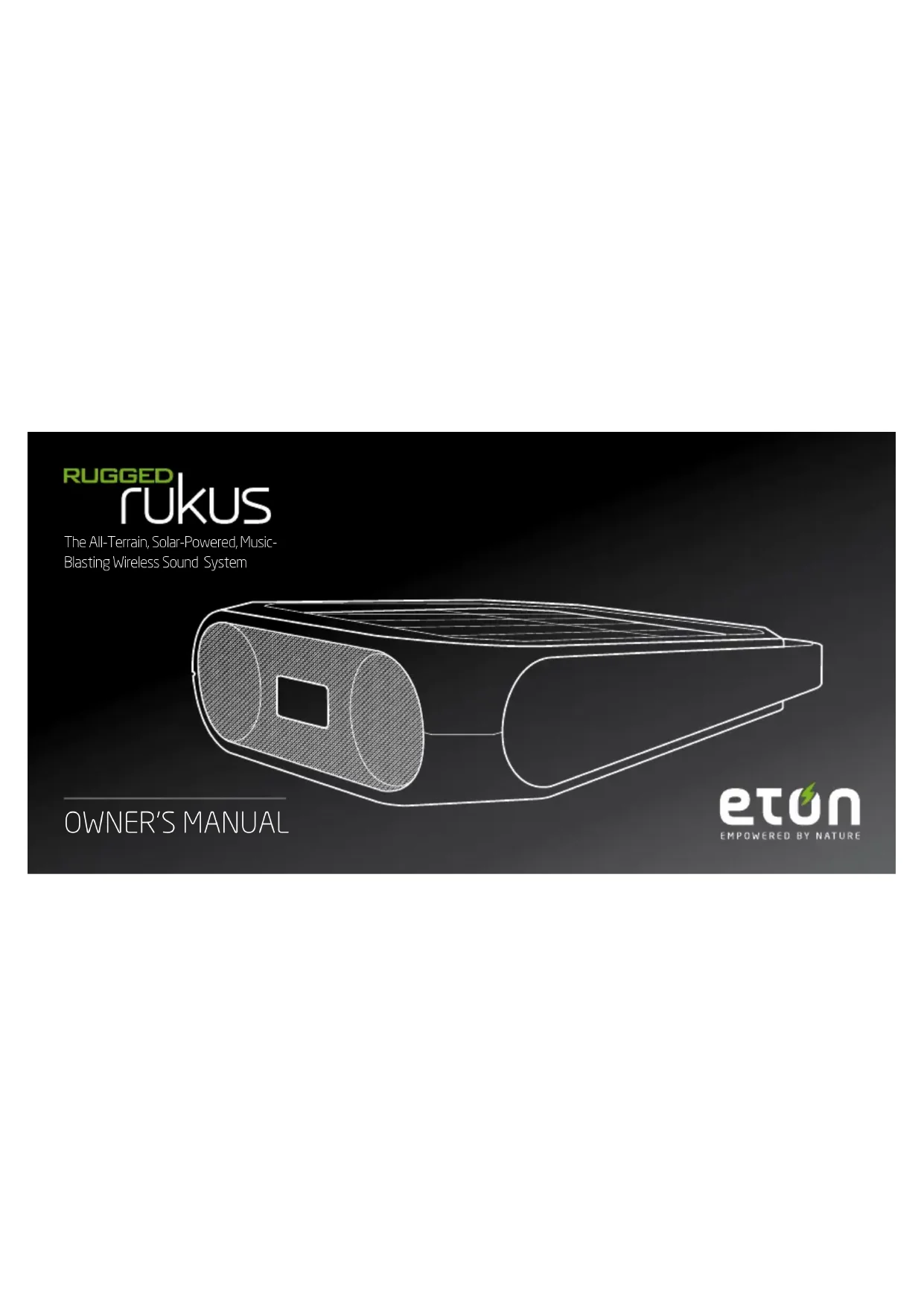

USER MANUAL Rugged Rukus ETON

The All-Terrain, Solar-Powered, Music-Blasting Wireless Sound System

OWNER'S MANUAL

eton

EMPOWERED BY NATURE

Thank you for purchasing the Etón Rugged Rukus, a portable Bluetooth high-quality sound system featuring solar charging. The Rugged Rukus is powered from the rechargeable Li-ion battery charged by the solar panel or the AC adapter (USB cable included). Please read this user manual to get a good understanding of how the Rugged Rukus works and how to fully rock out with it!

Please visit www.etoncorp.com for latest updates on the manual.

NEED HELP? CONTACT US. Do not remove cover [or back].

Etón Corporation, 1015 Corporation Way, Palo Alto, CA 94303, USA, 1-800-872-2228 (U.S.); 1-800-637-1648 (Canada); 650-903-3866 (worldwide); M-F, 8:00AM-4:30PM, Pacific Standard Time; www.etoncorp.com.

WARNING

Do not expose this appliance to rain or moisture.
Do not submerge or expose for extended period to water.
Protect from high humidity and rain.
Only operate within specified temperature range
(0°C to 40°C).
Unplug immediately if liquid has been spilled or any object has fallen into the apparatus.
Clean only with a dry cloth. Do not use detergents or chemical solvents as this might damage the finish.
Unplug and disconnect external antennas during lightning storms.

Refer servicing to qualified service personnel.

ENVIRONMENT

DISPOSAL

According to the European Directive 2002/96/EC all electrical and electronic products must be collected separately by a local collection system.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Please dispose of all types of batteries per your Government, State or Local rules and/ or regulations. If you are unsure, please call the appropriate local authority to find out how to dispose of them safely and help protect the environment.

RUGGED RUKUS FEATURES

FUNCTIONS

1FowcrCNCFFbutter
2 Bluetooth button
3 Battery indicator
4Volume down button
5Volumeupdatior
6 Battery life (E) incl. shor
7 AUX-n
8 Micro USB terminal (AC/DC power)
9 JSE Cuc

CHARGING THE BUILT-IN BATTERY BY THE AC POWER/SOLAR ENERGY

The unit has a built-in Lithium ion battery for portable power when not using the AC/DC power (connected to your smartphone USB AC adaptor - not included, or USB port on your computer). When the adapter is plugged in or the unit is exposed under the sunshine, the unit will start charging. During charging, the Battery Life LED indicator on the display starts blinking.

TO FULLY CHARGE AN EMPTY BATTERY:

AC/DC: 2 to 2.5 hours

Solar 5 hours*

*Usage times may vary depending on software conditions

BATTERY LIFE LED INDICATOR (BUILT IN LITHIUM ION BATTERY)

Press to check battery level

0-25%

26-50%

51-75%

76-100%

USB PORT FOR MOBILE DEVICE CHARGING

The USB jack can be used to charge most devices that allow for USB charging (including many mobile phones, smart phones and wireless headsets).

1. Connect one end of the USB cord to your device and the other end to the USB jack of the unit.

2. Press the button to start charging for your device. Press the button again to stop charging.

NOTE: Use the USB power cord that came with your device to connect to the unit. The USB light turns on indicating charging out to USB device

ADJUSTING THE VOLUME LEVEL

Press the and buttons to adjust the volume levels.

1. Press and hold for 3 seconds ON/OFF button to turn on the unit. A single blue Battery Life LED light will turn on to indicate the unit is on.

2. Press the Bluetooth button to switch the sound source to Bluetooth mode:

3. Hold the button for 3 seconds to place the unit in pairing mode. The indicator starts blinking rapidly. Unit will give off two short beeps.

NOTE: The unit beeps once more after the unit is successfully connected.

1. Open the Bluetooth settings menu on your Bluetooth-enabled mobile device or computer and connect it to the Rugged Rukus.
2. Once Bluetooth is connected, select the music and press the button on your device. The unit will playback music automatically.

NOTE: Playback time on built-in battery is ~8 hours, depending on music level and other factors.

PLAYING BACK VIA AUX

You can enjoy the sound from an external device such as a portable digital music player. Be sure to turn off the power of the external device before making any connections. For details, refer to the instruction manual of the device to be connected.

1. Connect any device with headphone or line out jack with a 3.5mm line in cable to AUX IN jack on the back of the unit.
2. Press the button to turn on the unit.
3. Press the AUX button to switch the sound source to AUX mode, if the unit is not in AUX mode.

NOTE: The AUX LED light turns on.

1. Turn on your external device and press button.
2. The unit will play back the music from the external device automatically.

WARRANTY REGISTRATION

To ensure full warranty coverage or product updates, registration of your product should be completed as soon as possible after purchase or receipt. Please go to http://www.etoncorp.com/ productregistration to register your product.

Please go to http://http://www.etoncorp.com/productregistration to register your product.

LIMITED WARRANTY

Retain the warranty information from your warranty card with your proof of purchase or the Limited Warranty information can also be viewed at www.etoncorp.com.

SERVICE FOR YOUR PRODUCT

To obtain service for your product, we recommend first contacting

an eton service representative at 800-872-2228 US, 800-637-1648 Canada or [phone] for problem determination and trouble-shooting. If further service is required, the technical staff will instruct how to proceed based on whether the radio is still under warranty or needs non-warranty service.

PRODUCT WARRANTY

Visit http://www.etoncorp.com/productregistration to register your product and get warranty information.

WARRANTY

If your product is still in warranty and the eton service representative determines that warranty service is needed, a return authorization will be issued and instructions for shipment to an authorized warranty repair facility. Do not ship your radio back without obtaining the return authorization number.

NON-WARRANTY

If your product is no longer under warranty and requires service our technical staff will refer you to the nearest repair facility that will be able to best handle the repair.

For service outside of north America, please refer to the distributor information included at time of purchase/receipt.

http://www.etoncorp.com/productregistration.

GARANZIA LIMITATA

Corporate Headquarters

1015 Corporation Way

Palo Alto, California 94303 USA

tel[phone]

tel[phone]

fax[phone]

Designe by Ctonor Corporation and assenbled in Cora. Copyright 2013 Ctof Corporation All rights reserved.

Etón Canada

5580 Explorer Drive, Suite 503

Mississauga, ON L4W 4Y1 Canada

tel[phone]

v021513

www.etoncorp.com
