USER MANUAL IS60C1X INDESIT

GB Operating Instructions

Operating Instructions,1

Description of the appliance-Control Panel,3

6.GUIDE RAILS for the sliding racks

Description of the appliance

Description of the appliance

! Before operating your new appliance please read

this instruction booklet carefully. It contains important

information concerning the safe installation and

operation of the appliance.

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept with

the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the appliance has been disconnected

from the electricity supply.

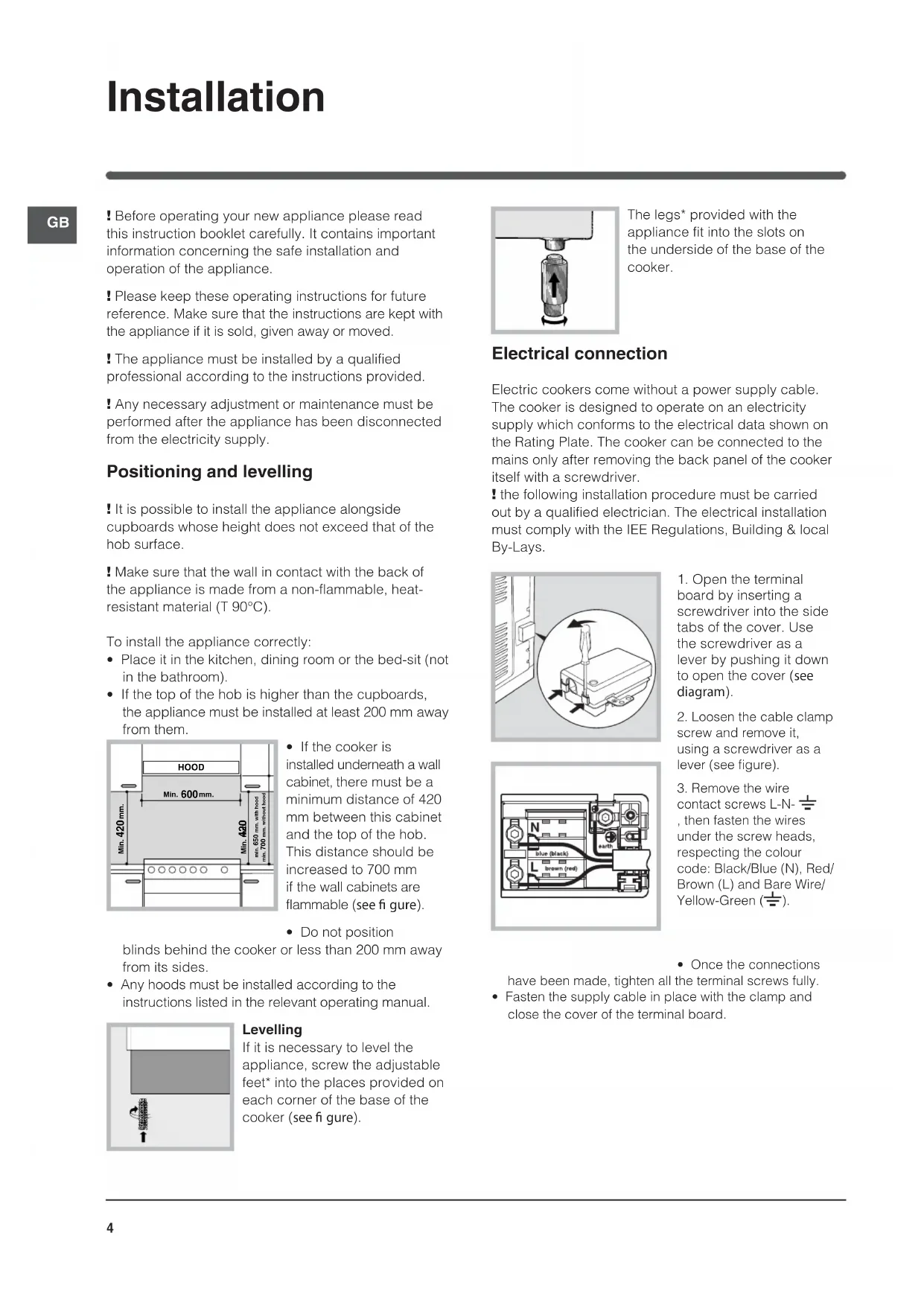

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

! Make sure that the wall in contact with the back of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit (not

• If the top of the hob is higher than the cupboards,

the appliance must be installed at least 200 mm away

installed underneath a wall

cabinet, there must be a

minimum distance of 420

mm between this cabinet

and the top of the hob.

This distance should be

if the wall cabinets are

flammable (see  gure).

blinds behind the cooker or less than 200 mm away

• Any hoods must be installed according to the

instructions listed in the relevant operating manual.

If it is necessary to level the

appliance, screw the adjustable

feet* into the places provided on

each corner of the base of the

cooker (see  gure).

The legs* provided with the

appliance fit into the slots on

the underside of the base of the

Electrical connection

Electric cookers come without a power supply cable.

The cooker is designed to operate on an electricity

supply which conforms to the electrical data shown on

the Rating Plate. The cooker can be connected to the

mains only after removing the back panel of the cooker

itself with a screwdriver.

! the following installation procedure must be carried

out by a qualified electrician. The electrical installation

must comply with the IEE Regulations, Building & local

1. Open the terminal

board by inserting a

screwdriver into the side

tabs of the cover. Use

the screwdriver as a

lever by pushing it down

to open the cover (see

2. Loosen the cable clamp

screw and remove it,

using a screwdriver as a

, then fasten the wires

under the screw heads,

respecting the colour

code: Black/Blue (N), Red/

Brown (L) and Bare Wire/

• Once the connections

have been made, tighten all the terminal screws fully.

• Fasten the supply cable in place with the clamp and

close the cover of the terminal board.

GB Connecting the supply cable to the mains

WARNINGS: THIS APPLIANCE MUST BE EARTHED.

! The cooker must be connected to the mains by a

switched (double pole) cooker outlet correctly fused

with a capacity appropriate to that shown on the

cooker Rating Plate. All electrical wiring from the

consumer unit to the cooker, via the switched double

pole cooker outlet, must be of an acceptable type and

current rating as above.

! the supply cable must be positioned so that it never

reaches at any point a temperature 50°C higher than

the room temperature. The cable must be routed away

from the rear vents.

HOT PARTS TECHNICAL DATA Oven dimensions

relating to the oven

label of electric ovens.

Energy consumption for Natural

convection – heating mode:

Declared energy consumption

for Forced convection Class –

heating mode: Fan assisted

EC Directives: 2006/95/EC

dated 12/12/06 (Low Voltage)

and subsequent amendments -

04/108/EC dated 15/12/04

(Electromagnetic Compatibility)

and subsequent amendments -

93/68/EEC dated 22/07/93 and

subsequent amendments -

! The first time you use your appliance, heat the empty

oven with its door closed at its maximum temperature

for at least half an hour. Ensure that the room is well

ventilated before switching the oven off and opening

the oven door. The appliance may emit a slightly

unpleasant odour caused by protective substances

used during the manufacturing process burning away.

! Before operating the product, remove all plastic film

from the sides of the appliance.

1. Select the desired cooking mode by turning the

2. Select the desired temperature with the VARIABLE GRILL knob. See the Cooking advice table for cooking

modes and the suggested cooking temperatures (see

3. When preheating is finished, the THERMOSTAT

indicator light will stay on: place the food in the oven.

4. You may do the following during cooking:

- change the cooking mode by turning the SELECTOR

- change the temperature by turning the VARIABLE GRILL knob.

- stop cooking by turning the SELECTOR knob to the

! Never put objects directly on the oven bottom to

avoid damaging the enamel coating.

! Always place cookware on the rack(s) provided.

When the SELECTOR knob is turned in a clockwise

direction to the symbol

the fan and oven light

will come on to assist in the defrosting of frozen

food. Rotating further to the complete range of

temperatures shown on the dial you can choose which

is most suitable for the food you are going to cook

(fan assisted mode). The temperature is reached

automatically and controlled by the oven thermostat

(from 60°C to 240°C).

The top heating element will come on. On this setting,

food is cooked by the thermal radiation given off in the

downward direction by the electric heating element.

The very high temperature and direct heat of the grill

make it possible to brown meats on the surface while

locking in the juices to keep them tender.

! Never put objects directly on the bottom of the oven;

this will avoid the enamel coating being damaged.

Only use position 1 in the oven when cooking with the

! Always place cookware on the rack(s) provided.

! Always cook in this mode with the oven door

THERMOSTAT indicator light

When this is illuminated, the oven is generating heat.

It switches off when the inside of the oven reaches

the selected temperature. At this point the light

illuminates and switches off alternately, indicating

that the thermostat is working and is maintaining the

temperature at a constant level.

This is switched on by turning the SELECTOR knob to

any position other than “0”. It remains lit as long as the

oven is operating. By selecting

light is switched on without any of the heating elements

Cooling ventilation*

In order to cool down the external temperature of the

oven, some models are fitted with a cooling fan that

blows out air between the control panel and the oven

! Once the cooking has been completed, the cooling

fan remains on until the oven has cooled down

Using the cooking timer

1. To set the buzzer, turn the COOKING TIMER knob

clockwise almost one complete revolution.

2. Turn the knob anticlockwise to set the desired time:

align the minutes shown on the COOKING TIMER knob

with the indicator on the control panel.

3. When the selected time has elapsed, a buzzer

sounds and the oven turns off.

4. When the oven is off the cooking timer can be used

! To use the oven manually, in other words when you

do not wish to use the end of cooking timer, turn the

COOKING TIMER knob until it reaches the  symbol.7

GB Practical cooking advice

! Do not place racks in position 1 and 5 during fan-

assisted cooking. Excessive direct heat can burn

temperature sensitive foods.

! In the GRILL cooking modes, place the dripping pan

in position 1 to collect cooking residues (fat and/or

• Insert the rack in position 3 or 4. Place the food in

the centre of the rack.

• We recommend that you set the maximum power

level. The top heating element is regulated by a

thermostat and may not always be on.

• Use a light aluminium pizza pan. Place it on the rack

For a crispy crust, do not use the dripping pan

(prevents crust from forming by extending cooking

• If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.

Using the grill pan kit

The grill pan handle is detachable from the pan to

facilitate cleaning and storage. Fix the pan handle

securely before use:

1. Fit the handle to the grill pan so the external ‘hooks’

embrace the that edge of the pan (fig. 1)

2. Make sure that the middle part of the handle fits

exactly the protruding support of the pan (fig .2)

and holds the pan from the bottom.

The food must be placed on the rack in the grill pan.

Position the grill pan on top of the oven rack. The best

results are achieved by placing the oven rack on the

uppermost shelves. Pouring a little water into the grill

pan will make the collection of grease particles more

efficient and prevent the formation of smoke8

GB Food to be cooked Wt.

Oven-baked noodles 2.5 3 210 - 75-80

Trout baked in paper 1.0 3 210-230 - 40-45

Mackerel 1.1 4 5 20-30

Note: cooking times are approximate and may vary according to personal taste.

Oven cooking advice table9

GB Using the glass ceramic hob

! The glue applied on the gaskets leaves traces of

grease on the glass. Before using the appliance, we

recommend you remove these with a special non-

abrasive cleaning product. During the first few hours

of use there may be a smell of rubber which will

disappear very quickly.

Switching the cooking zones on and off

To switch on a cooking zone, turn the corresponding

knob in a clockwise direction.

To switch it off again, turn the knob in an anticlockwise

direction until it is in the „0” position.

If the ACTIVE HOTPLATE ON indicator light is lit, this

shows that at least one hotplate on the hob is switched

The hobs have been provided with radiant electric

heaters. These heaters are incorporated under the

surface of the hob as zones which redden while they

B. The residual heat indicator

light: this indicates that

the temperature of the

corresponding cooking zone is

greater than 60°C, even when the heating element has

been switched off but is still hot.

Cooking zones with heating elements

The radiant heating elements are composed of circular

heating elements. They only become red after being

turned on for 10-20 seconds.

! Do not stare directly at the halogen heating elements.

Turn the corresponding knob in a clockwise direction,

to a position between 1 and 6.

Practical advice on using the hob

• Use pans with a thick, flat base to ensure that they

adhere perfectly to the cooking zone.

• Always use pans with a diameter that is large

enough to cover the hotplate fully, in order to use all

• Always make sure that the base of the pan is

completely clean and dry: this ensures that the pans

adhere perfectly to the cooking zones and that both

the pans and the hob last for a longer period of time.

• Avoid using the same cookware that is used on gas

burners: the heat concentration on gas burners may

have warped the base of the pan, causing it not to

adhere to the surface correctly.

• Never leave a cooking zone switched on without a

pan on top of it, as doing so may cause the zone to

Cooking vegetables, fish

Cooking potatoes (using steam) soups,

Continuing the cooking of large quantities of

For roasting (above average)

For browning and reaching a boil in a short

GB Precautions and tips

! This appliance has been designed and manufactured in

compliance with international safety standards.

The following warnings are provided for safety reasons and must

• These instructions are only valid for the countries whose

symbols appear in the manual and on the serial number

• The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or damp

• The appliance must be used by adults only for the

preparation of food, in accordance with the instructions

provided in this booklet.

• The instruction booklet accompanies a class 1 (insulated)

or class 2 - subclass 1 (recessed between 2 cupboards)

• When the appliance is in use, the heating elements and

some parts of the oven door become extremely hot. Make

sure you don’t touch them and keep children well away.

• Make sure that the power supply cables of other electrical

appliances do not come into contact with the hot parts of the

• The openings used for the ventilation and dispersion of heat

must never be covered.

• Do not place unstable or misshapen pans on the electric

hotplates; this will help to avoid spills. Position them on

the hob with the handles turned towards the centre of the

• Always use oven gloves when placing cookware in the oven

or when removing it.

• Do not use flammable liquids (alcohol, petrol, etc...) near the

appliance while it is in use.

• Do not place flammable material in the lower storage

compartment or in the oven itself. If the appliance is switched

on accidentally, it could catch fire.

• Always make sure the knobs are in the ‘0’ position when the

appliance is not in use.

• When unplugging the appliance, always pull the plug from the

mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without

having disconnected the appliance from the electricity mains.

• If the appliance breaks down, under no circumstances should

you attempt to repair the appliance yourself. Repairs carried

out by inexperienced persons may cause injury or further

malfunctioning of the appliance. Contact Assistance.

• Do not rest heavy objects on the open oven door.

• The internal surfaces of the compartment (where present)

• The glass ceramic hob is resistant to mechanical shocks, but

it may crack (or even break) if hit with a sharp object such

as a tool. If this happens, disconnect the appliance from the

electricity mains immediately and contact a Service Centre.

• If the surface of the hob is cracked, switch off the appliance

to prevent electric shocks from occurring.

• Remember that the temperature of the cooking zones remains

relatively high for at least thirty minutes after they have been

• Keep any object that could melt away from the hob, for

example plastic and aluminium objects, or products with a

high sugar content. Keep plastic or aluminium objects away

from the hob: if you forget them on surfaces that are still hot,

they may cause serious damage to the hob.

• The appliance should not be operated by people (including

children) with reduced physical, sensory or mental

capacities, by inexperienced individuals or by anyone

who is not familiar with the product. These individuals

should, at the very least, be supervised by someone who

assumes responsibility for their safety or receive preliminary

instructions relating to the operation of the appliance.

• If the cooker is placed on a pedestal, take the necessary

precautions to prevent the same from sliding off the

• Do not let children play with the appliance.

• When disposing of packaging material: observe local

legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states that

household appliances should not be disposed of using

the normal solid urban waste cycle. Exhausted appliances

should be collected separately in order to optimise the cost of

re-using and recycling the materials inside the machine, while

preventing potential damage to the atmosphere and to public

health. The crossed-out dustbin is marked on all products

to remind the owner of their obligations regarding separated

Exhausted appliances may be collected by the public waste

collection service, taken to suitable collection areas in the

area or, if permitted by current national legislation, they may

be returned to the dealers as part of an exchange deal for a

new equivalent product.

All major manufacturers of household appliances participate

in the creation and organisation of systems for the collection

and disposal of old and disused appliances.

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply

network companies by using the oven in the hours between

late afternoon and the early hours of the morning.

• Check the door seals regularly and wipe them clean to ensure

they are free of debris so that they adhere properly to the

door, thus avoiding heat dispersion.11

GB Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

! Never use steam cleaners or pressure cleaners on

• Clean the glass part of the oven door using a

sponge and a non-abrasive cleaning product, then

dry thoroughly with a soft cloth. Do not use rough

abrasive material or sharp metal scrapers as these

could scratch the surface and cause the glass to

• The stainless steel or enamel-coated external parts

and the rubber seals may be cleaned using a

sponge that has been soaked in lukewarm water

and neutral soap. Use specialised products for the

removal of stubborn stains. After cleaning, rinse

and dry thoroughly. Do not use abrasive powders or

corrosive substances.

• The inside of the oven should ideally be cleaned

after each use, while it is still lukewarm. Use hot

water and detergent, then rinse well and dry with a

soft cloth. Do not use abrasive products.

• The accessories can be washed like everyday

crockery, and are even dishwasher safe.

• Dirt and grease should be removed from the control

panel using a non-abrasive sponge or a soft cloth.

• Stainless steel can be marked by hard water that

has been left on the surface for a long time, or by

aggressive detergents containing phosphorus.

After cleaning, rinse well and dry thoroughly. Any

remaining drops of water should also be dried.

Inspecting the oven seals

Check the door seals around the oven regularly. If the

seals are damaged, please contact your nearest After-

sales Service Centre. We recommend that the oven is

not used until the seals have been replaced.

Replacing the oven light bulb

1. After disconnecting the

oven from the electricity mains,

remove the glass lid covering

the lamp socket (see  gure).

2. Remove the light bulb and

replace it with a similar one:

voltage 230 V, wattage 25 W,

3. Replace the lid and reconnect the oven to the

Cleaning the glass ceramic hob

! Do not use abrasive or corrosive detergents (for

example, products in spray cans for cleaning barbecues

and ovens), stain removers, anti-rust products, powder

detergents or sponges with abrasive surfaces: these may

scratch the surface beyond repair.

• It is usually sufficient simply to wash the hob using a

damp sponge and dry it with absorbent kitchen roll.

• If the hob is particularly dirty, rub it with a special

glass ceramic cleaning product, then rinse well and

• To remove more stubborn dirt, use a suitable

scraper (this is not supplied with the appliance).

Remove spills as soon as possible, without waiting

for the appliance to cool, to avoid residues forming

crusty deposits. You can obtain excellent results

by using a rustproof steel wire sponge - specifically

designed for glass ceramic surfaces - soaked in

• If plastic or sugary substances have accidentally

been melted on the hob, remove them immediately

with the scraper, while the surface is still hot.

• Once it is clean, the hob may be treated with

a special protective maintenance product: the

invisible film left by this product protects the surface

from drips during cooking. This maintenance should

be carried out while the appliance is warm (not hot)

• Always remember to rinse the appliance well with

clean water and dry it thoroughly: residues can

become encrusted during subsequent cooking

Please have the following information to hand:

• The appliance model (Mod.).

• The serial number (S/N).

This information can be found on the data plate located

on the appliance and/or on the packaging.

Care and maintenance Glass ceramic hob cleaners Available fromWindow scraper Razor bladescrapersDIY StoresReplacement blades DIY Stores,supermarkets,chemistsCOLLO lunetaHOB BRITEHob CleanSWISSCLEANERBoots, Co-op stores,department stores, RegionalElectricity Company shops,supermarkets12

modifications successives-

15/12/0404/108/EC
