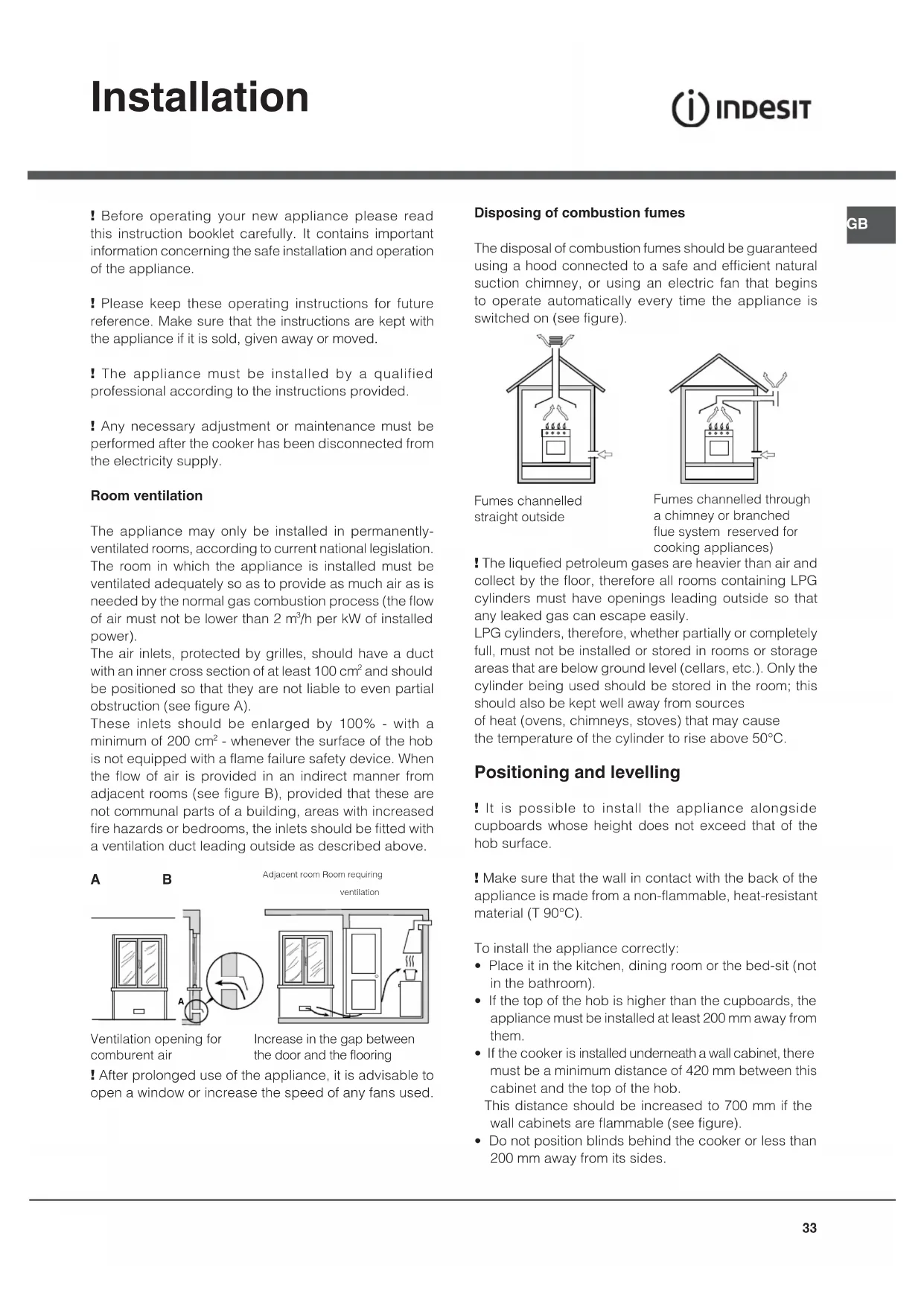

! Before operating your new appliance please read

this instruction booklet carefully. It contains important

information concerning the safe installation and operation

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept with

the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the cooker has been disconnected from

the electricity supply.

The appliance may only be installed in permanently-

ventilated rooms, according to current national legislation.

The room in which the appliance is installed must be

ventilated adequately so as to provide as much air as is

needed by the normal gas combustion process (the flow

of air must not be lower than 2 m

/h per kW of installed

The air inlets, protected by grilles, should have a duct

with an inner cross section of at least 100 cm

be positioned so that they are not liable to even partial

obstruction (see figure A).

These inlets should be enlarged by 100% - with a

- whenever the surface of the hob

is not equipped with a flame failure safety device. When

the flow of air is provided in an indirect manner from

adjacent rooms (see figure B), provided that these are

not communal parts of a building, areas with increased

fire hazards or bedrooms, the inlets should be fitted with

a ventilation duct leading outside as described above.

! After prolonged use of the appliance, it is advisable to

open a window or increase the speed of any fans used.

Disposing of combustion fumes

The disposal of combustion fumes should be guaranteed

using a hood connected to a safe and efficient natural

suction chimney, or using an electric fan that begins

to operate automatically every time the appliance is

switched on (see figure).

! The liquefied petroleum gases are heavier than air and

collect by the floor, therefore all rooms containing LPG

cylinders must have openings leading outside so that

any leaked gas can escape easily.

LPG cylinders, therefore, whether partially or completely

full, must not be installed or stored in rooms or storage

areas that are below ground level (cellars, etc.). Only the

cylinder being used should be stored in the room; this

should also be kept well away from sources

of heat (ovens, chimneys, stoves) that may cause

the temperature of the cylinder to rise above 50°C.

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

! Make sure that the wall in contact with the back of the

appliance is made from a non-flammable, heat-resistant

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit (not

• If the top of the hob is higher than the cupboards, the

appliance must be installed at least 200 mm away from

• If the cooker is installed underneath a wall cabinet, there

must be a minimum distance of 420 mm between this

cabinet and the top of the hob.

This distance should be increased to 700 mm if the

wall cabinets are flammable (see figure).

• Do not position blinds behind the cooker or less than

200 mm away from its sides.

A Fumes channelled through

a chimney or branched

flue system reserved for

Installation Adjacent room Room requiring ventilation Ventilation opening for

Increase in the gap between

the door and the flooring

installed according to

the instructions listed in

the relevant operating

If it is necessary to level the

appliance, screw the adjustable

feet into the places provided on

each corner of the base of the

cooker (see figure).

The legs* fit into the slots on the

underside of the base of the

Electrical connection

Install a standardised plug corresponding to the load

indicated on the appliance data plate (see Technical

The appliance must be directly connected to the mains using

an omnipolar circuit-breaker with a minimum contact opening

of 3 mm installed between the appliance and the mains. The

circuit-breaker must be suitable for the charge indicated and

must comply with NFC 15-100 regulations (the earthing wire

must not be interrupted by the circuit-breaker). The supply

cable must be positioned so that it does not come into contact

with temperatures higher than 50°C at any point.

Before connecting the appliance to the power supply,

• The appliance is earthed and the plug is compliant with

• The socket can withstand the maximum power of the

appliance, which is indicated by the data plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask

an authorised technician to replace it. Do not use

extension cords or multiple sockets.

* Only available in certain models

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by

authorised technicians only.

! The manufacturer declines any liability should these

safety measures not be observed.

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel hose,

in accordance with current national legislation and after

making sure that the appliance is suited to the type of gas

with which it will be supplied (see the rating sticker on

the cover: if this is not the case see below). When using

liquid gas from a cylinder, install a pressure regulator

which complies with current national regulations. To

make connection easier, the gas supply may be turned

sideways*: reverse the position of the hose holder with

that of the cap and replace the gasket that is supplied

! Check that the pressure of the gas supply is consistent

with the values indicated in the Table of burner and

nozzle specifications (see below). This will ensure the

safe operation and durability of your appliance while

maintaining efficient energy consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with current national

legislation. The internal diameter of the hose must

measure: 8 mm for liquid gas supply; 13 mm for methane

Once the connection has been performed, make sure

• Does not come into contact with any parts that reach

temperatures of over 50°C.

• Is not subject to any pulling or twisting forces and that

it is not kinked or bent.

• Does not come into contact with blades, sharp corners

or moving parts and that it is not compressed.

• Is easy to inspect along its whole length so that its

condition may be checked.

• Is shorter than 1500 mm.

• Fits firmly into place at both ends, where it will be fixed

using clamps that comply with current regulations.35

! If one or more of these conditions is not fulfilled or if

the cooker must be installed according to the conditions

listed for class 2 - subclass 1 appliances (installed

between two cupboards), the flexible steel hose must

be used instead (see below).

Connecting a flexible jointless stainless steel pipe to

a threaded attachment

Make sure that the hose and gaskets comply with current

national legislation.

To begin using the hose, remove the hose holder on the

appliance (the gas supply inlet on the appliance is a

cylindrical threaded 1/2 gas male attachment).

! Perform the connection in such a way that the hose

length does not exceed a maximum of 2 metres, making

sure that the hose is not compressed and does not come

into contact with moving parts.

Checking the connection for leaks

When the installation process is complete, check the

hose fittings for leaks using a soapy solution. Never use

Adapting to different types of gas

It is possible to adapt the appliance to a type of gas other

than the default type (this is indicated on the rating label

Replacing the nozzles for the

1. Remove the hob grids and

slide the burners off their seats.

2. Unscrew the nozzles using a 7

mm socket spanner (see figure),

and replace them with nozzles

suited to the new type of gas(see

Burner and nozzle specifications table).

3. Replace all the components by following the above

instructions in reverse.

Adjusting the hob burners’ minimum setting:

1. Turn the tap to the minimum position.

2. Remove the knob and adjust the regulatory screw,

which is positioned inside or next to the tap pin, until the

flame is small but steady.

! If the appliance is connected to a liquid gas supply, the

regulatory screw must be fastened as tightly as possible.

3. While the burner is alight, quickly change the position of the

knob from minimum to maximum and vice versa several times,

checking that the flame is not extinguished.

! The hob burners do not require primary air adjustment.

Adjusting the gas oven burner’s minimum setting:

1. Light the burner (see Start-up and Use).

2. Turn the knob to the minimum position (MIN) after it has

been in the maximum position (MAX) for approximately

4. Tighten or loosen the adjustment screws on the outside

of the thermostat pin (see figure) until the flame is small

! If the appliance is connected to liquid gas, the

adjustment screw must be fastened as tightly as possible.

5. Turn the knob from the MAX position to the MIN position

quickly or open and shut the oven door, making sure that

the burner is not extinguished.36

GB Replacing the Triple ring burner nozzles

1. Remove the pan supports and lift the burners out of

their housing. The burner consists of two separate

parts (see pictures).

2. Unscrew the nozzles using a 7 mm socket spanner.

Replace the nozzles with models that are configured

for use with the new type of gas (see Table 1). The

two nozzles have the same hole diameter.

3. Replace all the components by completing the above

operations in reverse order.

• Adjusting the burners’ primary air :

Does not require adjusting.

• Setting the burners to minimum:

1. Turn the tap to the low flame position.

2. Remove the knob and adjust the adjustment screw, which is

positioned in or next to the tap pin, until the flame is small but

3. Having adjusted the flame to the required low setting, while the

burner is alight, quickly change the position of the knob from

minimum to maximum and vice versa several times, checking

that the flame does not go out.

4. Some appliances have a safety device (thermocouple)

fitted. If the device fails to work when the burners are

set to the low flame setting, increase this low flame

setting using the adjusting screw.

5. Once the adjustment has been made, replace the

seals on the by-passes using sealing wax

! If the appliance is connected to liquid gas, the

regulation screw must be fastened as tightly as possible.

! Once this procedure is finished, replace the old rating

sticker with one indicating the new type of gas used.

Stickers are available from any of our Service Centres.

! Should the gas pressure used be different (or vary

slightly) from the recommended pressure, a suitable

pressure regulator must be fitted to the inlet pipe (in

order to comply with current national regulations).

! In order to prevent accidental tipping of the appliance, for

example by a child climbing onto the oven door, the supplied

safety chain MUST be installed!

The cooker is fitted with a safety chain to be fixed by means

of a screw (not supplied with the cooker) to the wall behind

the appliance, at the same height as the chain is attached

Choose the screw and the screw anchor according to the

type of material of the wall behind the appliance. If the head

of the screw has a diameter smaller than 9mm, a washer

should be used. Concrete wall requires the screw of at least

8mm of diameter, and 60mm of length.

Ensure that the chain is fixed to the rear wall of the cooker

and to the wall, as shown in figure, so that after installation

it is tensioned and parallel to the ground level.37

GB Table of burner and nozzle specifications

*At 15°C et 1013 mbar-gas sec

1 (for Netherlands) Gaz naturel

Nominal Reduced (mm) G25

Useful measur ement s relating to the o ven compartm ent

of gas shown on the data plate, which

is located inside the flap or,

oven compartment has been opened,

on the left-hand wall inside the oven.

ENERGY LABEL Directive 2002/40/EC on the label of electric ovens. Standard EN 50304

Energy consumption for Natural convection – heating mode: Static ;

Energy consumption for Forced convection – heating mode: Fan

EC Directives: 06/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments – 04/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments – 93/68/EEC dated 22/07/93 and subsequent amendments – 2002/96/EC. 1275/2008 Stand-by/ Off mode

* Only available in certain models. Using the oven ! The first time you use your appliance, heat the empty oven with its door closed at its maximum temperature for at least half an hour. Ensure that the room is well ventilated before switching the oven off and opening the oven door. The appliance may emit a slightly unpleasant odour caused by protective substances used during the manufacturing process burning away.! Never put objects directly on the bottom of the oven; this

will avoid the enamel coating being damaged.! Should the appliance be equipped with an electronic programmer, to use the electric oven, just press buttons and at the same time (the symbol will appear on the display) before selecting the desired cooking function.! Before operating the product, remove all plastic film from the sides of the appliance.1. Select the desired cooking mode by turning the SELECTOR knob.2. Select the recommended temperature for the

cooking mode or the desired temperature by turning the THERMOSTAT knob. A list detailing cooking modes and suggested cooking temperatures can be found in the relevant table (see Oven cooking advice table).During cooking it is always possible to:• Change the cooking mode by turning the SELECTOR knob.• Change the temperature by turning the THERMOSTAT knob.• Stop cooking by turning the SELECTOR knob to the “0” position.! Always place cookware on the rack(s) provided.THERMOSTAT indicator lightWhen this is illuminated, the oven is generating heat. It switches off when the inside of the oven reaches the selected temperature. At this point the light illuminates and switches off alternately, indicating that the thermostat is working and is maintaining the temperature at a constant level.OPERATION indicator lightWhen this is illuminated, the oven is generating heat.Oven lightThis is switched on by turning the SELECTOR knob to any position other than “0”. It remains lit as long as the oven is operating. By selecting  with the knob, the light is switched on without any of the heating elements being activated. Using the hob Lighting the burnersFor each BURNER knob there is a complete ring showing

the strength of the flame for the relevant burner. To light one of the burners on the hob:1. Bring a flame or gas lighter close to the burner.2. Press the BURNER knob and turn it in an anticlockwise direction so that it is pointing to the maximum flame setting .3. Adjust the intensity of the flame to the desired level by turning the BURNER knob in an anticlockwise direction. This may be the minimum setting , the maximum setting  or any position in between the two.If the appliance is fitted with an electronic lighting device* (X), press the ignition button, marked with the symbol  , then hold the BURNER knob down and

turn it in an anticlockwise direction, towards the maximum flame setting, until the burner is lit.The burner may be extinguished when the knob is released. If this occurs, repeat the operation, holding the knob down for a longer period of time.! If the flame is accidentally extinguished, switch off the burner and wait for at least 1 minute before attempting to relight it.If the appliance is equipped with a flame failure safety device*(C), press and hold the BURNER knob for

approximately 2-3 seconds to keep the flame alight and to activate the device.To switch the burner off, turn the knob until it reaches the stop position •.Practical advice on using the burnersFor the burners to work in the most efficient way possible and to save on the amount of gas consumed, it is recommended that only pans that have a lid and a flat base are used. They should also be suited to the size of the burner:Burner Cookware Diameter (cm)Semi Fast (S) 16 - 20Auxiliary (A) 10 - 14Triple Crown (TC) 24 - 26To identify the type of burner, please refer to the diagrams contained in the “Burner and nozzle specifications”.! For models equipped with a reducer grid, the latter must be used only for the auxiliary burner, when pans with a diameter of less than 12 cm are used.

! A temperature value can be set for all cooking modes

between 50°C and Max, except for the following modes

• GRILL and DOUBLE GRILL (recommended: set only

to MAX power level).

• FAN-ASSISTED DOUBLE GRILL (recommended: do

The rear heating element and the fan come on,

guaranteeing the distribution of heat delicately and

uniformly throughout the oven. This mode is ideal for

baking and cooking temperature sensitive foods such

as cakes that need to rise and to prepare certain tartlets

on 3 shelves simultaneously..

Both the top and bottom heating elements will be

activated. When using this traditional cooking mode, it

is best to use only one rack at a time, otherwise the heat

will not be distributed evenly.

The top and bottom heating elements will switch on and

the fan will begin to operate. Since the heat remains

constant throughout the oven, the air cooks and browns

food in a uniform manner. A maximum of two racks may

be used at the same time.

The central part of the top heating element is switched

on. The high and direct temperature of the grill is

recommended for food that requires a high surface

temperature (veal and beef steaks, fillet steak and

entrecôte). This cooking mode uses a limited amount of

energy and is ideal for grilling small dishes. Place the food

in the centre of the rack, as it will not be cooked properly

if it is placed in the corners.

The circular heating elements and the elements at

the bottom of the oven are switched on and the fan is

activated. This combination heats the oven rapidly by

producing a considerable amount of heat, particularly

from the element at the bottom. If you use more than one

rack at a time, switch the position of the dishes halfway

through the cooking process.

The top heating element and the rotisserie spit will be

This provides a larger grill than the normal grill setting

and has an innovative design that improves cooking

efficiency by 50% and eliminates the cooler corner areas.

Use this grilling mode to achieve a uniform browning on

FAN ASSISTED DOUBLE GRILL mode

The top heating element and the turnspit are activated and

the fan begins to operate. This combination of features

increases the effectiveness of the unidirectional thermal

radiation of the heating elements through forced circulation

of the air throughout the oven. This prevents the food from

burning on top by enabling heat to penetrate into the food

more effectively; it is therefore an ideal way of cooking food

quickly under the grill or for grilling large pieces of meat

without having to use the turnspit.

! The GRILL, DOUBLE GRILL and FAN-ASSISTED DOUBLE GRILL cooking modes must be performed with

! When using the GRILL and DOUBLE GRILL cooking

modes, place the rack in position 5 and the dripping

pan in position 1 to collect cooking residues (fat and/or

grease). When using the FAN-ASSISTED DOUBLE GRILL

cooking mode, place the rack in position 2 or 3 and the

dripping pan in position 1 to collect cooking residues.

The fan located on the bottom of the oven makes the air

circulate at room temperature around the food. This is

recommended for the defrosting of all types of food, but in

particular for delicate types of food which do not require

heat, such as for example: ice cream cakes, cream or

custard desserts, fruit cakes. By using the fan, the

defrosting time is approximately halved. In the case of

meat, fish and bread, it is possible to accelerate the

process using the “multi-cooking” mode and setting the

temperature to 80° - 100°C.40

GB BOTTOM VENTILATED mode

The bottom heating element and the fan is activated,

which allows for the heat distribution within the whole

cavity of the oven. This combination is useful for light

cooking of vegetables and fish.

The lower heating element is activated. This position

is recommended for perfecting the cooking of dishes

(in baking trays) which are already cooked on the

surface but require further cooking in the centre, or

for desserts with a covering of fruit or jam, which only

require moderate colouring on the surface. It should

be noted that this function does not allow the maximum

temperature to be reached inside the oven (250°C)

and it is therefore not recommended that foods are

cooked using only this setting, unless you are baking

cakes (which should be baked at a temperature of

1. To set the buzzer, turn the COOKING TIMER knob

clockwise almost one complete revolution.

2. Turn the knob anticlockwise to set the desired time:

align the minutes shown on the COOKING TIMER knob

with the indicator on the control panel.

3. When the selected time has elapsed, a buzzer sounds

and the oven turns off.

4. When the oven is off the cooking timer can be used

! To use the oven manually, in other words when you

do not wish to use the end of cooking timer, turn the

COOKING TIMER knob until it reaches the  symbol.

Practical cooking advice

! Do not place racks in position 1 and 5 during fan-

assisted cooking. Excessive direct heat can burn

temperature sensitive foods.

! In the BARBECUE and GRATIN cooking modes, place

the dripping pan in position 1 to collect cooking residues

(fat and/or grease).

• Use position 2 and 4, placing the food that requires

Place the dripping pan on the bottom and the rack on

* Only available in certain models.

Insert the rack in position 3 or 4. Place the food in the

• We recommend that you set the maximum power level.

The top heating element is regulated by a thermostat

and may not always be on.

• Use a light aluminium pizza pan. Place it on the rack

For a crispy crust, do not use the dripping pan

(prevents crust from forming by extending cooking

• If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.

to extract the racks

As shown in the drawing, to extract them completely,

simply lift the racks, holding them on the front part, and

WARNING! The glass lid can

break in if it is heated up. Turn off

all the burners and the electric

plates before closing the lid.

1. To set the buzzer, turn the COOKING TIMER knob

clockwise almost one complete revolution.

2. Turn the knob anticlockwise to set the desired time:

align the minutes shown on the COOKING TIMER knob

with the indicator on the control panel.

3. When the selected time has elapsed, a buzzer sounds

and the oven turns off.

4. When the oven is off the cooking timer can be used

! To use the oven manually, in other words when you

do not wish to use the end of cooking timer, turn the

COOKING TIMER knob until it reaches the  symbol.41

GB Planning cooking with the electronic

After the appliance has been connected to the power

supply, or after a blackout, the display will automatically

reset to 0:00 and begin to blink. To set the time:

1. Press the COOKING TIME button

 and the COOKING END TIME

2. Within 4 seconds of having pressed these buttons,

set the exact time by pressing the

 button advances the hours and the button

decreases the hours.

Once the time has been set, the programmer automatically

switches to manual mode.

The timer enables a countdown to be set, when the time

has elapsed a buzzer sounds.

To set the timer proceed as follows:

1. press the TIMER button

. The display shows:

2. Press the  and  buttons to set the desired time.

3. When the buttons are released the timer begins

counting down and the current time appears on the

4. After the time has elapsed a buzzer will sound, and

this can be switched off by pressing any button (except

 and  buttons). The symbol will switch off.

! The timer does not switch the oven on or off.

Adjusting the volume of the buzzer

After selecting and confirming the clock settings, use

 button to adjust the volume of the alarm buzzer.

Setting the cooking time with a delayed start

First decide which cooking mode you wish to use and

set a suitable temperature using the SELECTOR and

THERMOSTAT knobs on the oven.

At this point it is possible to set the cooking time:

1. Press the COOKING TIME button

2. Within 4 seconds of having pressed this button, set

the desired amount of time by pressing the

buttons. If, for example, you wish to set a cooking time

of 30 minutes, the display will show:

3. 4 seconds after the buttons are released, the current

time (for example 10.00) reappears on the display with the

and the letter A (AUTO).

Next the desired cooking end time must be set:

4. Press the END COOKING TIME button

5. Within 4 seconds of having pressed this button, adjust

the cooking end time by pressing the

If, for example, you want cooking to end at 13.00, the

6. 4 seconds after the buttons are released, the current

time (for example 10.00) reappears on the display with

the letter A (AUTO).

At this point, the oven is programmed to switch on

automatically at 12:30 and switch off after 30 minutes,

Setting the cooking time with an immediate start

Follow the above procedure for setting the cooking time

! When the letter A appears, this indicates that both

the cooking time and the end cooking time have been

programmed in AUTO mode. To restore the oven to

manual operation, after each AUTO cooking mode press

 and END COOKING TIME 

buttons simultaneously.

will remain lit, along with the oven, for

the entire duration of the cooking programme.

The set cooking duration can be displayed at any time

by pressing the COOKING TIME button

cooking end time may be displayed by pressing the END COOKING TIME button

. When the cooking time has

elapsed a buzzer sounds. To stop it, press any button

Cancelling a previously set cooking programme

Press the COOKING TIME button

 and the COOKING END TIME

Correcting or cancelling previously set data

The data entered can be changed at any time by pressing

the corresponding button (TIMER, COOKING TIME or

COOKING END TIME) and the

When the cooking time data is cancelled, the cooking end

time data is also cancelled automatically, and vice versa.

If the oven has already been programmed, it will not

accept cooking end times which are before the start of

the programmed cooking process.42

GB Oven cooking advice table

Biscuits (shortcrust pastry)

Roast chicken + potatoes

Sponge cake made with yoghurt

Cream puffs (on 2 racks)

Biscuits (on 2 racks)

Sponge cake (on 1 rack)

Sponge cake (on 2 racks)

Stuffed pancakes (on 2 racks)

Small cakes (on 2 racks)

Cheese puffs (on 2 racks)

Biscuits (on 3 racks)

Meringues (on 3 racks)

Well-done vegetables

For perfectioning cooking43

GB Precautions and tips

! This appliance has been designed and manufactured

in compliance with international safety standards.

The following warnings are provided for safety reasons

and must be read carefully.

• The glass ceramic hob is resistant to temperature

fluctuations and shocks. It is, however, wise to

remember that blades or cooking utensils may ruin the

surface of the hob. If this happens, remove the plug

of the cooker from the electricity socket and contact

an authorised Technical Assistance Centre in order to

request original spare parts. Failure to comply with the

above may compromise the safety of the appliance.

• If the surface of the hob is cracked, switch off the

appliance to prevent electric shocks from occurring.

• The appliance was designed for domestic use inside

the home and is not intended for commercial or

• The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet

or damp hands and feet.

• The appliance must be used by adults only for

the preparation of food, in accordance with the

instructions outlined in this booklet. Any other

use of the appliance (e.g. for heating the room)

constitutes improper use and is dangerous.

The manufacturer may not be held liable for any

damage resulting from improper, incorrect and

unreasonable use of the appliance.

• The instruction booklet accompanies a class 1

(insulated) or class 2 - subclass 1 (recessed between

2 cupboards) appliance.

• When the appliance is in use, the heating elements

and some parts of the oven door become extremely

hot. Make sure you don’t touch them and keep

• Make sure that the power supply cables of other

electrical appliances do not come into contact with

the hot parts of the oven.

• The openings used for the ventilation and dispersion

of heat must never be covered.

• Always use oven gloves when placing cookware in the

oven or when removing it.

• Do not use flammable liquids (alcohol, petrol, etc...)

near the appliance while it is in use.

• Do not place flammable material in the lower storage

compartment or in the oven itself. If the appliance is

switched on accidentally, it could catch fire.

• Always make sure the knobs are in the

the appliance is not in use.

• When unplugging the appliance, always pull the plug

from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work

without having disconnected the appliance from the

• If the appliance breaks down, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may

cause injury or further malfunctioning of the appliance.

• Do not rest heavy objects on the open oven door.

If the cooker is placed on a pedestal, take the

necessary precautions to prevent the cooker from

sliding off the pedestal itself.

• When disposing of packaging material: observe local

legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states

that household appliances should not be disposed of

using the normal solid urban waste cycle. Exhausted

appliances should be collected separately in order to

optimise the cost of re-using and recycling the materials

inside the machine, while preventing potential damage

to the atmosphere and to public health. The crossed-

out dustbin is marked on all products to remind the

owner of their obligations regarding separated waste

Exhausted appliances may be collected by the public

waste collection service, taken to suitable collection

areas in the area or, if permitted by current national

legislation, they may be returned to the dealers as part

of an exchange deal for a new equivalent product.

All major manufacturers of household appliances

participate in the creation and organisation of systems

for the collection and disposal of old and disused

Respecting and conserving the

• You can help to reduce the peak load of the electricity

supply network companies by using the oven in the

hours between late afternoon and the early hours of

• Always keep the oven door closed when using the

GRILL, DOUBLE GRILL and FAN-ASSISTED DOUBLE GRILL modes: This will achieve better results while

saving energy (approximately 10%).

• Check the door seals regularly and wipe them clean

to ensure they are free of debris so that they adhere

properly to the door, thus avoiding heat dispersion.44

GB Care and maintenance

Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as

stain removers, anti-rust products, powder detergents or

sponges with abrasive surfaces: these may scratch the

surface beyond repair.

! Never use steam cleaners or pressure cleaners on the

• It is usually sufficient simply to wash the hob using a

damp sponge and dry it with absorbent kitchen roll.

• The stainless steel or enamel-coated external parts and

the rubber seals may be cleaned using a sponge that

has been soaked in lukewarm water and neutral soap.

Use specialised products for the removal of stubborn

stains. After cleaning, rinse well and dry thoroughly.

Do not use abrasive powders or corrosive substances.

• The hob grids, burner caps, flame spreader rings

and the hob burners can be removed

to make cleaning easier; wash them in hot water and

non-abrasive detergent, making sure all burnt-on

residue is removed before drying them thoroughly.

• For hobs with electronic ignition, the terminal part of

the electronic lighting devices should be cleaned

frequently and the gas outlet holes should be checked

• The inside of the oven should ideally be cleaned after

each use, while it is still lukewarm. Use hot water and

detergent, then rinse well and dry with a soft cloth. Do

not use abrasive products.

Clean the glass part of the oven door using a sponge

and a non-abrasive cleaning product, then dry

thoroughly with a soft cloth. Do not use rough abrasive

material or sharp metal scrapers as these could

scratch the surface and cause the glass to crack.

The accessories can be washed like everyday

crockery, and are even dishwasher safe.

Stainless steel can be marked by hard water that

has been left on the surface for a long time, or by

aggressive detergents containing phosphorus. After

cleaning, rinse well and dry thoroughly. Any remaining

drops of water should also be dried.

If the cooker is fitted with

a glass cover, this cover

should be cleaned using

lukewarm water. Do not use

It is possible to remove

the cover in order to make

cleaning the area behind

the hob easier. Open

the cover fully and pull it

upwards (see figure).

! Do not close the cover

when the burners are alight or when they are still hot.

Inspecting the oven seals

Check the door seals around the oven periodically. If

the seals are damaged, please contact your nearest

Authorised After-sales Service Centre. We recommend

that the oven is not used until the seals have been

Over time, the taps may become jammed or difficult to

turn. If this occurs, the tap must be replaced.

! This procedure must be performed by a qualified

technician who has been authorised by the

Replacing the oven light bulb

1. After disconnecting the oven

from the electricity mains, remove

the glass lid covering the lamp

socket (see figure).

2. Remove the light bulb and

replace it with a similar one:

voltage 230 V, wattage 25 W,

3. Replace the lid and reconnect the oven to the electricity

! Do not use the oven lamp as/for ambient lighting.GB

Removing and fitting the oven door:

2.Make the hinge clamps of the oven door rotate

backwards completely (see photo)

3.Close the door until the clamps stop (the door will

remain open for 40° approx.) (see photo)

4.Press the two buttons on the upper profile and

extract the profile (see photo)

5.Remove the glass sheet and do the cleaning as

indicated in chapter: "Care and maintenance".

6.Replace the glass.

WARNING! Oven must not be operated with inner

WARNING! When reassembling the inner door

glass insert the glass panel correctly so that the

text written on the panel is not reversed and

can be easily legible.

7.Replace the profile, a click will indicate that the

part is positioned correctly.

8.Open the door completely.

9.Close the supports (see photo).

10.Now the door can be completely closed and the

oven can be started for normal use.

Steam-Assisted Oven Cleaning

This method of cleaning is recommended especially after

cooking very fatty (roasted)meats.

This cleaning process allows to facilitate the removal of

dirt of the walls of the oven by the generation of steam

that is created inside the oven cavity for easier cleaning.

! Important! Before you start steam -cleaning:

-Remove any food residue and grease from the bottom

- Remove any oven accessories (grids and drip pans).

Perform the above operations according to the following

1. pour 300ml of water into the baking tray in the oven,

placing it in the bottom shelf. In the models where the

drip pan is not present, use a baking sheet and place it

on the grill at the bottom shelf;46

GB Steam-Assisted Oven Cleaning

This method of cleaning is recommended especially after

cooking very fatty (roasted)meats.

This cleaning process allows to facilitate the removal of

dirt of the walls of the oven by the generation of steam

that is created inside the oven cavity for easier cleaning.

! Important! Before you start steam -cleaning:

-Remove any food residue and grease from the bottom

- Remove any oven accessories (grids and drip pans).

Perform the above operations according to the following

1. pour 300ml of water into the baking tray in the oven,

placing it in the bottom shelf. In the models where the

drip pan is not present, use a baking sheet and place it

on the grill at the bottom shelf;

2. select the function of the oven: BOTTOM

set the temperature to 100 ° C;

3. keep it in the oven for 15min;

4. turn off the oven;

5. Once cooled the oven, you can open the door to

complete the cleaning with water and a damp cloth;

6. eliminate any residual water from the cavity after

When the steam –cleaning is done, after cooking

especially fatty foods, or when grease is difficult to

remove, you may need to complete the cleaning with the

traditional method, described in the previous paragraph.

! Perform cleaning only in the cold oven!

Please have the following information handy:

• The appliance model (Mod.).

• The serial number (S/N).

This information can be found on the data plate located

on the appliance and/or on the packaging.47
