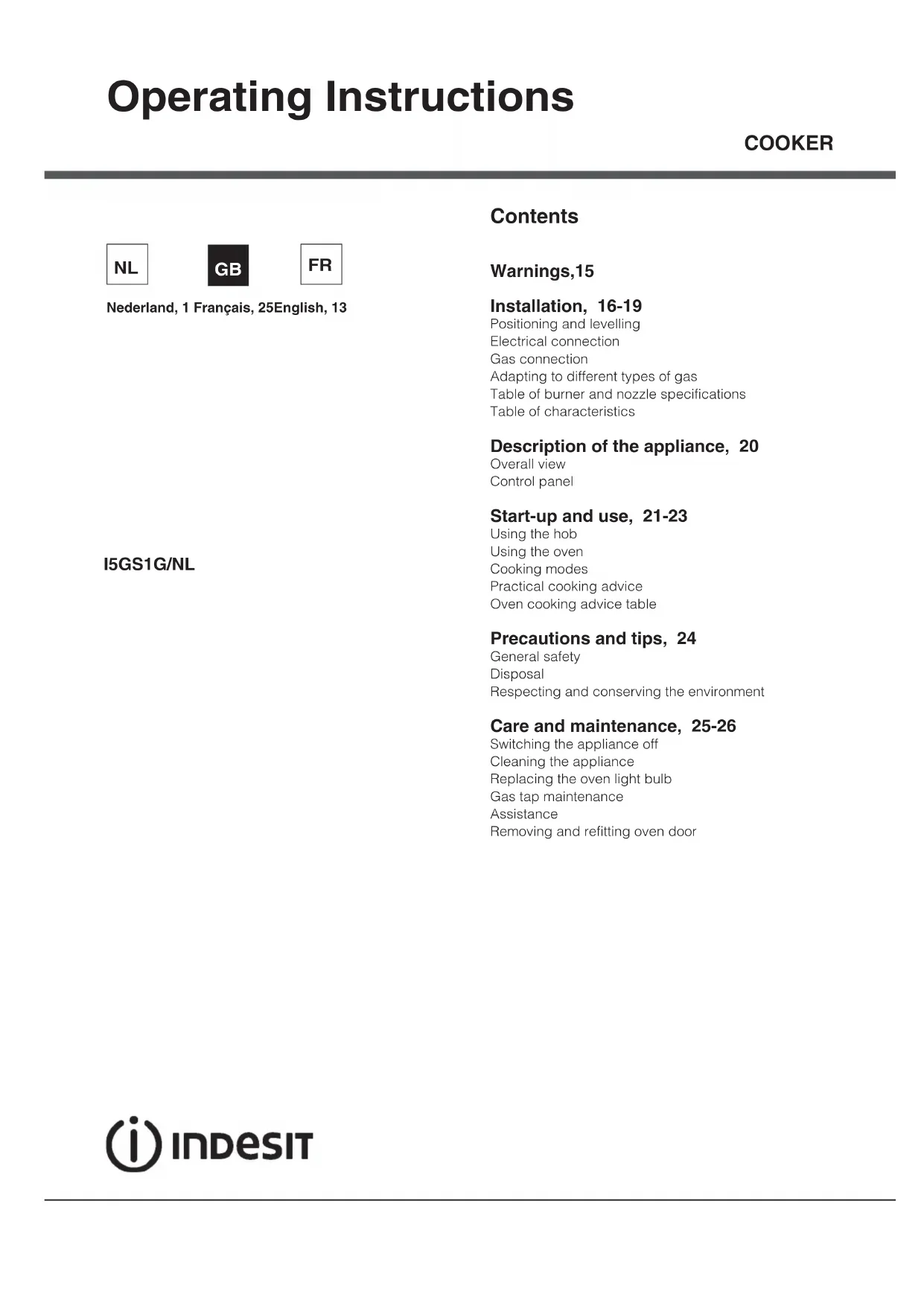

USER MANUAL I5GS1G(W)NL INDESIT

Positioning and levelling

Electrical connection

Adapting to different types of gas

Table of burner and nozzle specifications

Table of characteristics

Description of the appliance, 20

Start-up and use, 21-23

Practical cooking advice

Oven cooking advice table

Precautions and tips, 24

Respecting and conserving the environment

Care and maintenance, 25-26

Switching the appliance off

Cleaning the appliance

Replacing the oven light bulb

Removing and refitting oven door

Nederland, 1 Français, 25English, 13

GB WARNING: The appliance and its

accessible parts become hot during

Care should be taken to avoid touching

Children less than 8 years

of age shall be kept away unless

continuously supervised.

This appliance can be used by

children aged from 8 years and above

and persons with reduced physical,

sensory or mental capabilities or lack of

experience and knowledge if they have

been given supervision or instruction

concerning use of the appliance in a

safe way and understand the hazards

involved. Children shall not play with

the appliance. Cleaning and user

maintenance shall not be made by

children without supervision.

WARNING: Unattended cooking on a

hob with fat or oil can be dangerous and

NEVER try to extinguish a fire with

water, but switch off the appliance and

then cover flame e.g. with a lid or a fire

Do not use harsh abrasive cleaners or

sharp metal scrapers to clean the oven

door glass since they can scratch the

surface, which may result in shattering

The internal surfaces of the compartment

(where present) may become hot.

Never use steam cleaners or pressure

cleaners on the appliance.

Remove any liquid from the lid before

Do not close the glass cover (if present)

when the gas burners or electric hotplates

WARNING: Ensure that the appliance is

switched off before replacing the lamp

to avoid the possibility of electric shock.

CAUTION: the use of inappropriate hob

guards can cause accidents.

! When you place the rack inside, make

sure that the stop is directed upwards

and in the back of the cavity .

! In order to prevent accidental tipping of the appliance,

for example by a child climbing onto the oven door, the

supplied safety chain MUST be installed!

The cooker is fitted with a safety chain to be fixed by means

of a screw (not supplied with the cooker) to the wall behind

the appliance, at the same height as the chain is attached

Choose the screw and the screw anchor according to the

type of material of the wall behind the appliance. If the head

of the screw has a diameter smaller than 9mm, a washer

should be used. Concrete wall requires the screw of at least

8mm of diameter, and 60mm of length.

Ensure that the chain is fi xed to the rear wall of the

cooker and to the wall, as shown in fi gure, so that after

installation it is tensioned and parallel to the ground

! Before operating your new appliance please read

this instruction booklet carefully. It contains important

information concerning the safe installation and operation

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept with

the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the cooker has been disconnected from

the electricity supply.

The appliance may only be installed in permanently-

ventilated rooms, according to current national legislation.

The room in which the appliance is installed must be

ventilated adequately so as to provide as much air as is

needed by the normal gas combustion process (the flow

of air must not be lower than 2 m

/h per kW of installed

The air inlets, protected by grilles, should have a duct

with an inner cross section of at least 100 cm

be positioned so that they are not liable to even partial

obstruction (see figure A).

These inlets should be enlarged by 100% - with a

- whenever the surface of the hob

is not equipped with a flame failure safety device. When

the flow of air is provided in an indirect manner from

adjacent rooms (see figure B), provided that these are

not communal parts of a building, areas with increased

fire hazards or bedrooms, the inlets should be fitted with

a ventilation duct leading outside as described above.

! After prolonged use of the appliance, it is advisable to

open a window or increase the speed of any fans used.

Disposing of combustion fumes

The disposal of combustion fumes should be guaranteed

using a hood connected to a safe and efficient natural

suction chimney, or using an electric fan that begins

to operate automatically every time the appliance is

switched on (see figure).

! The liquefied petroleum gases are heavier than air and

collect by the floor, therefore all rooms containing LPG

cylinders must have openings leading outside so that

any leaked gas can escape easily.

LPG cylinders, therefore, whether partially or completely

full, must not be installed or stored in rooms or storage

areas that are below ground level (cellars, etc.). Only the

cylinder being used should be stored in the room; this

should also be kept well away from sources

of heat (ovens, chimneys, stoves) that may cause

the temperature of the cylinder to rise above 50°C.

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

! Make sure that the wall in contact with the back of the

appliance is made from a non-flammable, heat-resistant

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit (not

• If the top of the hob is higher than the cupboards, the

appliance must be installed at least 200 mm away from

• If the cooker is installed underneath a wall cabinet, there

must be a minimum distance of 420 mm between this

cabinet and the top of the hob.

This distance should be increased to 700 mm if the

wall cabinets are flammable (see figure).

• Do not position blinds behind the cooker or less than

200 mm away from its sides.

A Fumes channelled through

a chimney or branched

flue system reserved for

Installation Adjacent roomRoom requiring ventilation Ventilation opening for

Increase in the gap between

the door and the flooring

installed according to

the instructions listed in

the relevant operating

If it is necessary to level the

appliance, screw the adjustable

feet into the places provided on

each corner of the base of the

cooker (see figure).

The legs* fit into the slots on the

underside of the base of the

Electrical connection

Install a standardised plug corresponding to the load

indicated on the appliance data plate (see Technical

The appliance must be directly connected to the mains using

an omnipolar circuit-breaker with a minimum contact opening

of 3 mm installed between the appliance and the mains. The

circuit-breaker must be suitable for the charge indicated and

must comply with NFC 15-100 regulations (the earthing wire

must not be interrupted by the circuit-breaker). The supply

cable must be positioned so that it does not come into contact

with temperatures higher than 50°C at any point.

Before connecting the appliance to the power supply,

• The appliance is earthed and the plug is compliant with

• The socket can withstand the maximum power of the

appliance, which is indicated by the data plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the appliance.

If the socket is incompatible with the plug, ask

an authorised technician to replace it. Do not use

extension cords or multiple sockets.

* Only available in certain models

! Once the appliance has been installed, the power

supply cable and the electrical socket must be easily

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced by

authorised technicians only.

! The manufacturer declines any liability should these

safety measures not be observed.

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel hose,

in accordance with current national legislation and after

making sure that the appliance is suited to the type of gas

with which it will be supplied (see the rating sticker on

the cover: if this is not the case see below). When using

liquid gas from a cylinder, install a pressure regulator

which complies with current national regulations. To

make connection easier, the gas supply may be turned

sideways*: reverse the position of the hose holder with

that of the cap and replace the gasket that is supplied

! Check that the pressure of the gas supply is consistent

with the values indicated in the Table of burner and

nozzle specifications (see below). This will ensure the

safe operation and durability of your appliance while

maintaining efficient energy consumption.

Gas connection using a flexible rubber hose

Make sure that the hose complies with current national

legislation. The internal diameter of the hose must

measure: 8 mm for liquid gas supply; 13 mm for methane

Once the connection has been performed, make sure

• Does not come into contact with any parts that reach

temperatures of over 50°C.

• Is not subject to any pulling or twisting forces and that

it is not kinked or bent.

• Does not come into contact with blades, sharp corners

or moving parts and that it is not compressed.

• Is easy to inspect along its whole length so that its

condition may be checked.

• Is shorter than 1500 mm.

• Fits firmly into place at both ends, where it will be fixed

using clamps that comply with current regulations.18

! If one or more of these conditions is not fulfilled or if

the cooker must be installed according to the conditions

listed for class 2 - subclass 1 appliances (installed

between two cupboards), the flexible steel hose must

be used instead (see below).

Connecting a flexible jointless stainless steel pipe to

a threaded attachment

Make sure that the hose and gaskets comply with current

national legislation.

To begin using the hose, remove the hose holder on the

appliance (the gas supply inlet on the appliance is a

cylindrical threaded 1/2 gas male attachment).

! Perform the connection in such a way that the hose

length does not exceed a maximum of 2 metres, making

sure that the hose is not compressed and does not come

into contact with moving parts.

Checking the connection for leaks

When the installation process is complete, check the

hose fittings for leaks using a soapy solution. Never use

Adapting to different types of gas

It is possible to adapt the appliance to a type of gas other

than the default type (this is indicated on the rating label

1. Remove the hob grids and

slide the burners off their seats.

2. Unscrew the nozzles using a 7

mm socket spanner (see figure),

and replace them with nozzles

suited to the new type of gas(see Burner and nozzle

specifications table).

3. Replace all the components by following the above

instructions in reverse.

Adjusting the hob burners’ minimum setting:

1. Turn the tap to the minimum position.

2. Remove the knob and adjust the regulatory screw,

which is positioned inside or next to the tap pin, until the

flame is small but steady.

! If the appliance is connected to a liquid gas supply, the

regulatory screw must be fastened as tightly as possible.

3. While the burner is alight, quickly change the position of the

knob from minimum to maximum and vice versa several times,

checking that the flame is not extinguished.

! The hob burners do not require primary air adjustment.

Adjusting the gas oven burner’s minimum setting:

1. Light the burner (see Start-up and Use).

2. Turn the knob to the minimum position (MIN) after it has

been in the maximum position (MAX) for approximately

4. Tighten or loosen the adjustment screws on the outside

of the thermostat pin (see figure) until the flame is small

! If the appliance is connected to liquid gas, the

adjustment screw must be fastened as tightly as possible.

5. Turn the knob from the MAX position to the MIN position

quickly or open and shut the oven door, making sure that

the burner is not extinguished.

WARNING! The glass lid can

break in if it is heated up. Turn off

all the burners and the electric

plates before closing the lid.19

GB Table of burner and nozzle specifications

* At 15°C and 1013 mbar - dry gas

Useful measur ement s relating to the o ven compartm ent

width 42 cm depth 44 cm height 18 cm

Burners may be adapted for use with

any type of gas shown on the

data plate, which is located

inside the flap or, after the oven

compartment has been opened,

on the left-hand wall inside the

Voltage and frequenc y

ENERGY LABEL Directive 2002/40/EC on the label of electric ovens. Regulation EN 50304

Declared energy consumption for Natural convection Class – heating mode Static

EC Directives: 2006/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 2009/142/EC dated 30/11/09 (Gas) 1275/2008 (Stand-by/ Off mode)

Practical advice on using the burners

For the burners to work in the most efficient way possible

and to save on the amount of gas consumed, it is

recommended that only pans that have a lid and a flat

base are used. They should also be suited to the size of

the burner: Burner Cookware diameter (cm)Rapid (R) 24 - 26Semi-Rapid (S) 16 - 20Auxilliary (A) 10 - 14 To identify the type of burner, please refer to the diagrams

contained in the “Burner and nozzle specifications”.

Lighting the burners

For each BURNER knob there is a complete ring showing

the strength of the flame for the relevant burner.

To light one of the burners on the hob:

1. Bring a flame or gas lighter close to the burner.

2. Press the BURNER knob and turn it in an anticlockwise

direction so that it is pointing to the maximum flame

3. Adjust the intensity of the flame to the desired level by

turning the BURNER knob in an anticlockwise direction. This

may be the minimum setting , the maximum setting  or

any position in between the two.

If the appliance is fitted with

an electronic lighting device*

(X), press the ignition button,

marked with the symbol

, then hold the BURNER

knob down and turn it in an

anticlockwise direction, towards

the maximum flame setting, until

the burner is lit.The burner may be extinguished when

the knob is released. If this occurs, repeat the operation,

holding the knob down for a longer period of time.

! If the flame is accidentally extinguished, switch off the

burner and wait for at least 1 minute before attempting

If the appliance is equipped with a flame failure safety

device*(C), press and hold the BURNER knob for

approximately 2-3 seconds to keep the flame alight and

to activate the device.

To switch the burner off, turn the knob until it reaches

the stop position •.

! For models equipped with a reducer grid, the latter must

be used only for the auxiliary burner, when pans with a

diameter of less than 12 cm are used.

! The first time you use your appliance, heat the empty

oven with its door closed at its maximum temperature

for at least half an hour. Ensure that the room is well

ventilated before switching the oven off and opening the

oven door. The appliance may emit a slightly unpleasant

odour caused by protective substances used during the

manufacturing process burning away.

! Before operating the product, remove all plastic film

from the sides of the appliance.

! Never put objects directly on the bottom of the oven; this

will avoid the enamel coating being damaged.

1. Select the desired cooking mode by turning the

2. Select the recommended temperature for the

cooking mode or the desired temperature by turning the

A list detailing cooking modes and suggested cooking

temperatures can be found in the relevant table (see

Oven cooking advice table).

During cooking it is always possible to:

• Change the cooking mode by turning the SELECTOR

• Change the temperature by turning the THERMOSTAT

• Stop cooking by turning the SELECTOR knob to the

! Always place cookware on the rack(s) provided.

THERMOSTAT indicator light

When this is illuminated, the oven is generating heat.

It switches off when the inside of the oven reaches the

selected temperature. At this point the light illuminates

and switches off alternately, indicating that the thermostat

is working and is maintaining the temperature at a

This is switched on by turning the SELECTOR knob to

any position other than “0”. It remains lit as long as the

oven is operating. By selecting

light is switched on without any of the heating elements

! A temperature value can be set for all cooking

modes between 50°C and MAX, except for the GRILL

programme, for which only the MAX power level is

Both the top and bottom heating elements will come on.

When using this traditional cooking mode, it is best to use

one cooking rack only. If more than one rack is used, the

heat will be distributed in an uneven manner.

The lower heating element is activated. This position is

recommended for perfecting the cooking of dishes (in

baking trays) which are already cooked on the surface

but require further cooking in the centre, or for desserts

with a covering of fruit or jam, which only require moderate

colouring on the surface. It should be noted that this

function does not allow the maximum temperature to

be reached inside the oven (250°C) and it is therefore

not recommended that foods are cooked using only this

setting, unless you are baking cakes (which should be

baked at a temperature of 180°C or lower).

The top heating element is activated. The extremely high

and direct temperature of the grill makes it possible to

brown the surface of meats and roasts while locking in

the juices to keep them tender.

The top heating element and the rotisserie spit will be

activated. The grill is also highly recommended for dishes

that require a high surface temperature: beef steaks, veal,

rib steak, fillets, hamburgers etc...

! The GRILL and OVEN TOP cooking modes must be

performed with the oven door shut

There is a compartment underneath the oven that may

be used to store oven accessories or deep dishes

! The internal surfaces of the compartment (where

present) may become hot.

! Do not place flammable materials in the lower oven

Practical cooking advice

! In the GRILL cooking mode, place the dripping pan in

position 1 to collect cooking residues (fat and/or grease).

• Insert the rack in position 3 or 4. Place the food in the

• We recommend that the power level is set to maximum.

The top heating element is regulated by a thermostat

and may not always operate constantly.

• Use a light aluminium pizza pan. Place it on the rack

For a crispy crust, do not use the dripping pan as it

prevents the crust from forming by extending the total

• If the pizza has a lot of toppings, we recommend

adding the mozzarella cheese on top of the pizza

halfway through the cooking process.

To operate the rotisserie (see

diagram) proceed as follows:

1. Place the dripping pan in

2. Place the rotisserie support

in position 4 and insert the spit

in the hole provided on the

back panel of the oven.

3. Activate the rotisserie by

WARNING! The oven is provided

with a stop system to extract the

racks and prevent them from coming

As shown in the drawing, to extract

them completely, simply lift the

racks, holding them on the front part,

Food to be cooked We-

Biscuits (short pastry)

Soles and cuttlefish

NB: cooking times are approximate and may vary according to personal taste. When cooking using the grill, the

dripping pan must always be placed on the 1st oven rack from the bottom.24

GB Precautions and tips

! This appliance has been designed and manufactured in

compliance with international safety standards.

The following warnings are provided for safety reasons and

must be read carefully.

• These instructions are only valid for the countries whose

symbols appear in the manual and on the serial number

• The appliance was designed for domestic use inside the

home and is not intended for commercial or industrial use.

• The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or damp

• The appliance must be used by adults only for the

preparation of food, in accordance with the instructions

outlined in this booklet. Any other use of the appliance

(e.g. for heating the room) constitutes improper use and

is dangerous. The manufacturer may not be held liable

for any damage resulting from improper, incorrect and

unreasonable use of the appliance.

• The instruction booklet accompanies a class 1 (insulated)

or class 2 - subclass 1 (recessed between 2 cupboards)

• Keep children away from the oven.

• Make sure that the power supply cables of other electrical

appliances do not come into contact with the hot parts of

• The openings used for the ventilation and dispersion of heat

must never be covered.

• Do not close the glass hob cover (selected models only)

when the burners are alight or when they are still hot.

• Always use oven gloves when placing cookware in the oven

or when removing it.

• Do not use flammable liquids (alcohol, petrol, etc...) near the

appliance while it is in use.

• Do not place flammable material in the lower storage

compartment or in the oven itself. If the appliance is switched

on accidentally, it could catch fire.

• Always make sure the knobs are in the • position and that

the gas tap is closed when the appliance is not in use.

• When unplugging the appliance, always pull the plug from

the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work without

having disconnected the appliance from the electricity

• If the appliance breaks down, under no circumstances

should you attempt to repair the appliance yourself. Repairs

carried out by inexperienced persons may cause injury or

further malfunctioning of the appliance. Contact Assistance.

• Do not rest heavy objects on the open oven door.

• Do not let children play with the appliance.

• The appliance should not be operated by people (including

children) with reduced physical, sensory or mental

capacities, by inexperienced individuals or by anyone

who is not familiar with the product. These individuals

should, at the very least, be supervised by someone who

assumes responsibility for their safety or receive preliminary

instructions relating to the operation of the appliance.

If the cooker is placed on a pedestal, take the necessary

precautions to prevent the cooker from sliding off the

• When disposing of packaging material: observe local

legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states that

household appliances should not be disposed of using

the normal solid urban waste cycle. Exhausted appliances

should be collected separately in order to optimise the cost

of re-using and recycling the materials inside the machine,

while preventing potential damage to the atmosphere and

to public health. The crossed-out dustbin is marked on all

products to remind the owner of their obligations regarding

separated waste collection.

Exhausted appliances may be collected by the public waste

collection service, taken to suitable collection areas in the

area or, if permitted by current national legislation, they may

be returned to the dealers as part of an exchange deal for a

new equivalent product.

All major manufacturers of household appliances

participate in the creation and organisation of systems

for the collection and disposal of old and disused

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity supply

network companies by using the oven in the hours between

late afternoon and the early hours of the morning.

• Check the door seals regularly and wipe them clean to ensure

they are free of debris so that they adhere properly to the

GB Care and maintenance

Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as

stain removers, anti-rust products, powder detergents or

sponges with abrasive surfaces: these may scratch the

surface beyond repair.

! Never use steam cleaners or pressure cleaners on the

• It is usually sufficient simply to wash the hob using a

damp sponge and dry it with absorbent kitchen roll.

• The stainless steel or enamel-coated external parts and

the rubber seals may be cleaned using a sponge that

has been soaked in lukewarm water and neutral soap.

Use specialised products for the removal of stubborn

stains. After cleaning, rinse well and dry thoroughly.

Do not use abrasive powders or corrosive substances.

• The hob grids, burner caps, flame spreader rings

and the hob burners can be removed

to make cleaning easier; wash them in hot water and

non-abrasive detergent, making sure all burnt-on

residue is removed before drying them thoroughly.

• For hobs with electronic ignition, the terminal part of

the electronic lighting devices should be cleaned

frequently and the gas outlet holes should be checked

• The inside of the oven should ideally be cleaned after

each use, while it is still lukewarm. Use hot water and

detergent, then rinse well and dry with a soft cloth. Do

not use abrasive products.

Clean the glass part of the oven door using a sponge

and a non-abrasive cleaning product, then dry

thoroughly with a soft cloth. Do not use rough abrasive

material or sharp metal scrapers as these could

scratch the surface and cause the glass to crack.

• The accessories can be washed like everyday

crockery, and are even dishwasher safe.

• Stainless steel can be marked by hard water that

has been left on the surface for a long time, or by

aggressive detergents containing phosphorus. After

cleaning, rinse well and dry thoroughly. Any remaining

drops of water should also be dried.

If the cooker is fitted with

a glass cover, this cover

should be cleaned using

lukewarm water. Do not use

It is possible to remove

the cover in order to make

cleaning the area behind

the hob easier. Open

the cover fully and pull it

upwards (see figure).

! Do not close the cover

when the burners are alight or when they are still hot.

Inspecting the oven seals

Check the door seals around the oven periodically. If

the seals are damaged, please contact your nearest

Authorised After-sales Service Centre. We recommend

that the oven is not used until the seals have been

Over time, the taps may become jammed or difficult to

turn. If this occurs, the tap must be replaced.

! This procedure must be performed by a qualified

technician who has been authorised by the

Replacing the oven light bulb

1. After disconnecting the oven

from the electricity mains, remove

the glass lid covering the lamp

socket (see figure).

2. Remove the light bulb and

replace it with a similar one:

voltage 230 V, wattage 25 W,

3. Replace the lid and reconnect the oven to the electricity

! Do not use the oven lamp as/for ambient lighting.

Please have the following information handy:

• The appliance model (Mod.).

• The serial number (S/N).

This information can be found on the data plate located

on the appliance and/or on the packaging.26

GB Removing and fitting the oven door:

2.Make the hinge clamps of the oven door rotate

backwards completely (see photo)

3.Close the door until the clamps stop (the door will

remain open for 40° approx.) (see photo)

4.Press the two buttons on the upper profile and extract

the profile (see photo)

5.Remove the glass sheet and do the cleaning as

indicated in chapter: "Care and maintenance".

6.Replace the glass.

WARNING! Oven must not be operated with inner

WARNING! When reassembling the inner door glass

insert the glass panel correctly so that the text written

on the panel is not reversed and can be easily legible.

7.Replace the profile, a click will indicate that the part is

positioned correctly.

8.Open the door completely.

9.Close the supports (see photo).

10.Now the door can be completely closed and the oven

can be started for normal use.CUISINIERE Mode d’emploi
