USER MANUAL I5GGG(W)NL INDESIT

Local adjacent Local à ventiler

Positioning and levelling

Electrical connections

Adapting to different types of gas

Table of burner and nozzle specifications

Description of the appliance, 19

Start-up and use, 20-22

Oven cooking advice table

Precautions and tips, 23

Respecting and conserving the environment

Maintenance and care, 24

Switching the appliance off

Cleaning the appliance

Replacing the oven light bulb

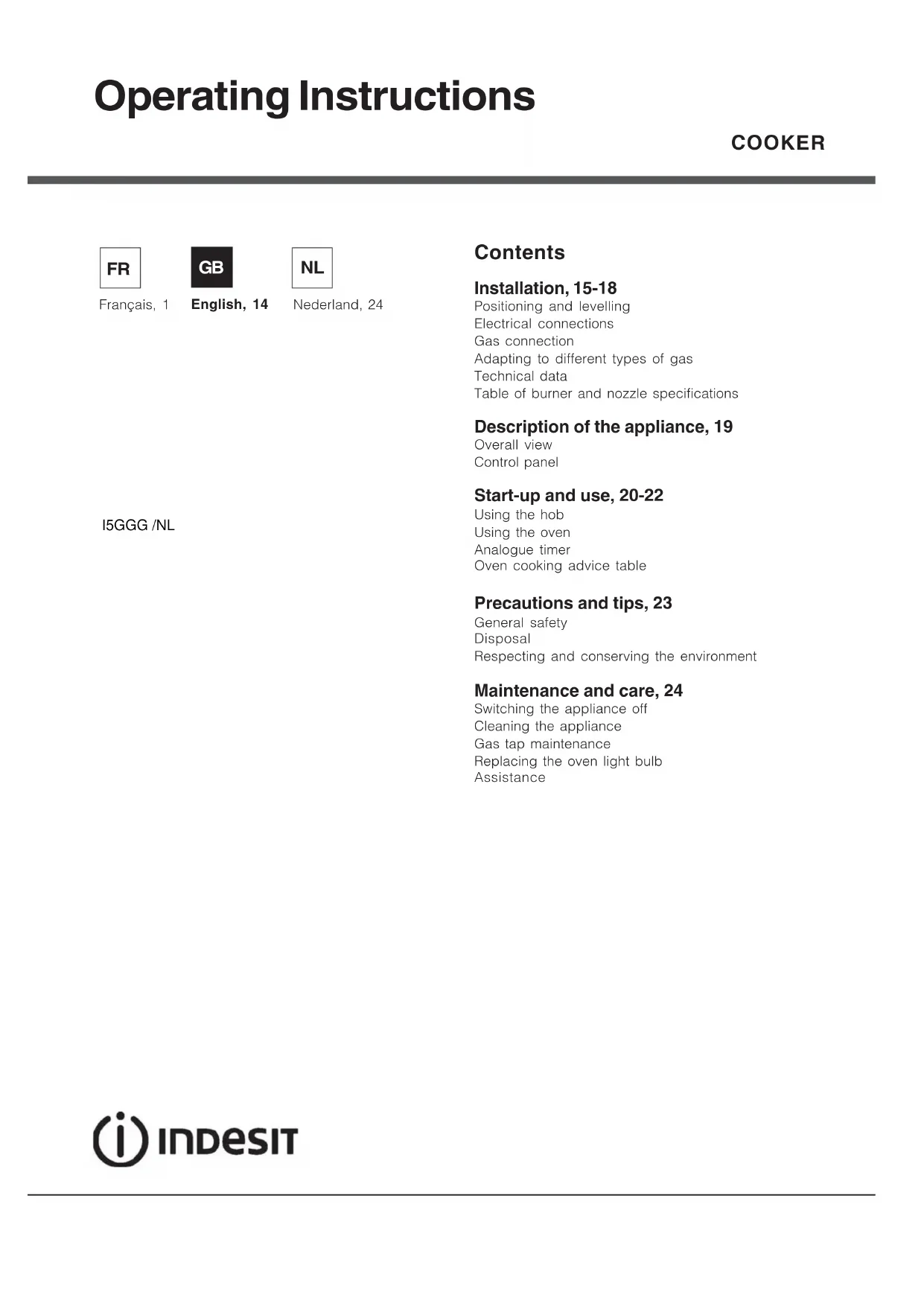

Operating Instructions

! Before operating your new appliance please read

this instruction booklet carefully. It contains

important information concerning the safe installation

and operation of the appliance.

! Please keep these operating instructions for future

reference. Make sure that the instructions are kept

with the appliance if it is sold, given away or moved.

! The appliance must be installed by a qualified

professional according to the instructions provided.

! Any necessary adjustment or maintenance must be

performed after the cooker has been disconnected

from the electricity supply.

The appliance may only be installed in permanently-

ventilated rooms, according to current national

legislation. The room in which the appliance is

installed must be ventilated adequately so as to

provide as much air as is needed by the normal gas

combustion process (the flow of air must not be

/h per kW of installed power).

The air inlets, protected by grilles, should have a

duct with an inner cross section of at least 100 cm

and should be positioned so that they are not liable

to even partial obstruction (

These inlets should be enlarged by 100% - with a

- whenever the surface of the

hob is not equipped with a flame failure safety

device. When the flow of air is provided in an

indirect manner from adjacent rooms (

provided that these are not communal parts of a

building, areas with increased fire hazards or

bedrooms, the inlets should be fitted with a

ventilation duct leading outside as described above.

! After prolonged use of the appliance, it is

advisable to open a window or increase the speed of

Disposing of combustion fumes

The disposal of combustion fumes should be

guaranteed using a hood connected to a safe and

efficient natural suction chimney, or using an electric

fan that begins to operate automatically every time

the appliance is switched on (

! The liquefied petroleum gases are heavier than air

and collect by the floor, therefore all rooms

containing LPG cylinders must have openings

leading outside so that any leaked gas can escape

LPG cylinders, therefore, whether partially or

completely full, must not be installed or stored in

rooms or storage areas that are below ground level

(cellars, etc.). Only the

cylinder being used should be stored in the room;

this should also be kept well away from sources

of heat (ovens, chimneys, stoves) that may cause

the temperature of the cylinder to rise above 50°C.

Positioning and levelling

! It is possible to install the appliance alongside

cupboards whose height does not exceed that of the

! Make sure that the wall in contact with the back of

the appliance is made from a non-flammable, heat-

resistant material (T 90°C).

To install the appliance correctly:

• Place it in the kitchen, dining room or the bed-sit

(not in the bathroom).

• If the top of the hob is higher than the cupboards,

the appliance must be installed at least 200 mm

• If the cooker is installed underneath a wall cabinet,

there must be a minimum distance of 420 mm

between this cabinet and the top of the hob.

This distance should be increased to 700 mm if

the wall cabinets are flammable (

A Fumes channelled througha chimney or branchedflue system reserved forcooking appliances) Installation Adjacent room Room requiringventilationVentilation opening forcomburent airIncrease in the gap betweenthe door and the flooringFumes channelledstraight outside16

cooker or less than 200

installed according to

the instructions listed in

the relevant operating

If it is necessary to level the

appliance, screw the

adjustable feet into the places

provided on each corner of the

base of the cooker (

The legs* fit into the slots on

the underside of the base of

Electrical connection

Install a standardised plug corresponding to the

load indicated on the appliance data plate (

Technical data table

The appliance must be directly connected to the mains

using an omnipolar circuit-breaker with a minimum

contact opening of 3 mm installed between the

appliance and the mains. The circuit-breaker must be

suitable for the charge indicated and must comply with

NFC 15-100 regulations (the earthing wire must not be

interrupted by the circuit-breaker). The supply cable

must be positioned so that it does not come into

contact with temperatures higher than 50°C at any point.

Before connecting the appliance to the power

supply, make sure that:

• The appliance is earthed and the plug is compliant

• The socket can withstand the maximum power of

the appliance, which is indicated by the data plate.

• The voltage is in the range between the values

indicated on the data plate.

• The socket is compatible with the plug of the

appliance. If the socket is incompatible with the

plug, ask an authorised technician to replace it.

Do not use extension cords or multiple sockets.

420 Min. mm. * Only available in certain models

! Once the appliance has been installed, the power

supply cable and the electrical socket must be

! The cable must not be bent or compressed.

! The cable must be checked regularly and replaced

by authorised technicians only.

! The manufacturer declines any liability should

these safety measures not be observed.

Connection to the gas network or to the gas cylinder

may be carried out using a flexible rubber or steel

hose, in accordance with current national legislation

and after making sure that the appliance is suited to

the type of gas with which it will be supplied (see the

rating sticker on the cover: if this is not the case

). When using liquid gas from a cylinder, install a

pressure regulator which complies with current national

regulations. To make connection easier, the gas

supply may be turned sideways*: reverse the position

of the hose holder with that of the cap and replace the

gasket that is supplied with the appliance.

! Check that the pressure of the gas supply is

consistent with the values indicated in the Table of

burner and nozzle specifications (

will ensure the safe operation and durability of your

appliance while maintaining efficient energy

Gas connection using a flexible rubber hose

Make sure that the hose complies with current

national legislation. The internal diameter of the hose

must measure: 8 mm for liquid gas supply; 13 mm

for methane gas supply.

Once the connection has been performed, make

• Does not come into contact with any parts that

reach temperatures of over 50°C.

• Is not subject to any pulling or twisting forces and

that it is not kinked or bent.

• Does not come into contact with blades, sharp

corners or moving parts and that it is not

• Is easy to inspect along its whole length so that

its condition may be checked.

• Is shorter than 1500 mm.

• Fits firmly into place at both ends, where it will be

fixed using clamps that comply with current

! If one or more of these conditions is not fulfilled or

if the cooker must be installed according to the

conditions listed for class 2 - subclass 1 appliances

(installed between two cupboards), the flexible steel

hose must be used instead (

Connecting a flexible jointless stainless steel pipe

to a threaded attachment

Make sure that the hose and gaskets comply with

current national legislation.

To begin using the hose, remove the hose holder on the

appliance (the gas supply inlet on the appliance is a

cylindrical threaded 1/2 gas male attachment).

! Perform the connection in such a way that the hose

length does not exceed a maximum of 2 metres,

making sure that the hose is not compressed and

does not come into contact with moving parts.

Checking the connection for leaks

When the installation process is complete, check

the hose fittings for leaks using a soapy solution.

Adapting to different types of gas

It is possible to adapt the appliance to a type of gas

other than the default type (this is indicated on the

rating label on the cover).

Replacing the nozzles for the hob burners:

1. Remove the hob grids and slide the burners off

), and replace them with

nozzles suited to the new type

see Burner and nozzle

3. Replace all the components

by following the above

instructions in reverse.

Adjusting the hob burners’ minimum setting:

1. Turn the tap to the minimum position.

2. Remove the knob and adjust the regulatory

screw, which is positioned inside or next to the tap

pin, until the flame is small but steady.

! If the appliance is connected to a liquid gas

supply, the regulatory screw must be fastened as

tightly as possible.

3. While the burner is alight, quickly change the position

of the knob from minimum to maximum and vice versa

several times, checking that the flame is not

! The hob burners do not require primary air adjustment.

Replacing the oven burner nozzle:

1. Remove the oven compartment.

3. Remove the oven burner

after unscrewing the screws V

The whole operation will be

made easier if the oven door

socket spanner, and replace it

with a new nozzle that is

suited to the new type of gas

see Burner and nozzle

specifications table

GB 5. Turn the knob from the MAX position to the MINposition quickly or open and shut the oven door,making sure that the burner is not extinguished.

Useful measurements relating to the oven compartment

width 42 cm depth 44 cm height 18 cm

Power supply voltage and frequency

may be adapted for use with any type of gas shown on the data plate, which is located inside the flap or, after the oven compartment has been opened, on the left-hand wall inside the oven.

EC Directives: 2006/95/EC dated 12/12/06 (Low Voltage) and subsequent amendments - 2004/108/EC dated 15/12/04 (Electromagnetic Compatibility) and subsequent amendments - 2009/142/EC dated 30/11/09 (Gas) and subsequent amendments - 93/68/EEC dated 22/07/93 and subsequent amendments - 2002/96/EC. 1275/2008 (Stand-by/ Off mode)

Nominal Reduced (mm) G25

Table of burner and nozzle specifications WARNING! The glass lid canWARNING! The glass lid canWARNING! The glass lid canWARNING! The glass lid canWARNING! The glass lid canbreak in if it is heated up. Turnbreak in if it is heated up. Turnbreak in if it is heated up. Turnbreak in if it is heated up. Turnbreak in if it is heated up. Turnoff all the burners and theoff all the burners and theoff all the burners and theoff all the burners and theoff all the burners and theelectric plates before closingelectric plates before closingelectric plates before closingelectric plates before closingelectric plates before closingthe lid. *Applies to the modelsthe lid. *Applies to the modelsthe lid. *Applies to the modelsthe lid. *Applies to the modelsthe lid. *Applies to the modelswith glass cover only.with glass cover only.with glass cover only.with glass cover only.with glass cover only. * A 15°C et 1013 mbar-gas sec

Natural G25 P.C.S. = 32,49 MJ/m

3 Adjusting the gas oven burner’s minimum setting:1. Light the burner ( see Start-up and Use

). 2. Turn the knob to the minimum position (MIN) afterit has been in the maximum position (MAX) forapproximately 10 minutes.3. Remove the knob.4. Tighten or loosen the adjustment screws on theoutside of the thermostat pin ( see figure ) until theflame is small but steady.! If the appliance is connected to liquid gas, theadjustment screw must be fastened as tightly aspossible. I5GGG /NL19

GB Description of the

* Only available in certain models. Control panel

Overall view Hob BURNERcontrol knobs OVEN control knob20

GB Using the hob Lighting the burnersFor each BURNER knob there is a complete ringshowing the strength of the flame for the relevantburner.To light one of the burners on the hob:1. Bring a flame or gas lighter close to the burner.2. Press the BURNER knob and turn it in ananticlockwise direction so that it is pointing to themaximum flame setting . 3. Adjust the intensity of the flame to the desiredlevel by turning the BURNER knob in ananticlockwise direction. This may be the minimumsetting , the maximum setting or any position inbetween the two.If the appliance is fitted withan electronic lightingdevice* ( C ), simply pressthe BURNER knob and turnit in an anticlockwisedirection so that it ispointing to the maximumflame setting, until theburner is lit. The burner may be extinguished whenthe knob is released. If this occurs, repeat theoperation, holding the knob down for a longer periodof time.! If the flame is accidentally extinguished, switch offthe burner and wait for at least 1 minute beforeattempting to relight it.If the appliance is equipped with a flame failuresafety device* (X), press and hold the BURNERknob for approximately 2-3 seconds to keep theflame alight and to activate the device.To switch the burner off, turn the knob until itreaches the stop position •.Practical advice on using the burnersFor the burners to work in the most efficient waypossible and to save on the amount of gasconsumed, it is recommended that only pans thathave a lid and a flat base are used. They should alsobe suited to the size of the burner. Start-up and use Burner ø Cookware diameter (cm)   To identify the type of burner, please refer to thediagrams contained in the “Burner and nozzlespecifications”. Using the oven ! The first time you use your appliance, heat theempty oven with its door closed at its maximumtemperature for at least half an hour. Ensure that theroom is well ventilated before switching the oven offand opening the oven door. The appliance may emita slightly unpleasant odour caused by protectivesubstances used during the manufacturing processburning away.! Before operating the product, remove all plasticfilm from the sides of the appliance.! Never put objects directly on the bottom of theoven; this will avoid the enamel coating beingdamaged. Only use position 1 in the oven whencooking with the rotisserie spit.Lighting the ovenTo light the oven burner, bringa flame or gas lighter close toopening F ( see figure ) andpress the OVEN control knobwhile turning it in ananticlockwise direction until itreaches the MAX position.If, after 15 seconds, the burner is still not alight,release the knob, open the oven door and wait for atleast 1 minute before trying to light it again.! The oven is fitted with a safety device and it istherefore necessary to hold the OVEN control knobdown for approximately 6 seconds.! If the flame is accidentally extinguished, switch offthe burner and wait for at least 1 minute beforeattempting to relight the oven. F

* Only available in certain models.

GB A S Adjusting the temperature

To set the desired cooking temperature, turn the

OVEN control knob in an anticlockwise direction.

Temperatures are displayed on the control panel and

may vary between MIN (140°C) and MAX (250°C).

Once the set temperature has been reached, the

oven will keep it constant by using its thermostat.

This is switched on by turning the OVEN knob to any

position other than “0”. It remains lit as long as the

There is a compartment

store oven accessories

or deep dishes. To open

of the compartment (where present) may become

! Do not place flammable materials in the lower oven

In gas cooker models, there is

a sliding protection layer A

that shields the lower

compartment from the heat

generated by the burner (

). To replace it, lock

it in place with the screw S.

! Before using the oven make sure that the sliding

protection is fixed correctly.22

GB Oven cooking advice table

Preheating time (min)

GB Precautions and tips

! This appliance has been designed and manufactured in

compliance with international safety standards.

The following warnings are provided for safety reasons

and must be read carefully.

• These instructions are only valid for the countries

whose symbols appear in the manual and on the

serial number plate.

• The appliance was designed for domestic use inside

the home and is not intended for commercial or

• The appliance must not be installed outdoors, even in

covered areas. It is extremely dangerous to leave the

appliance exposed to rain and storms.

• Do not touch the appliance with bare feet or with wet or

damp hands and feet.

• The appliance must be used by adults only for the

preparation of food, in accordance with the

instructions outlined in this booklet. Any other use

of the appliance (e.g. for heating the room)

constitutes improper use and is dangerous. The

manufacturer may not be held liable for any

damage resulting from improper, incorrect and

unreasonable use of the appliance.

• The instruction booklet accompanies a class 1

(insulated) or class 2 - subclass 1 (recessed between 2

cupboards) appliance.

• Keep children away from the oven.

• Make sure that the power supply cables of other

electrical appliances do not come into contact with the

hot parts of the oven.

• The openings used for the ventilation and dispersion of

heat must never be covered.

• Do not close the glass hob cover (selected models

only) when the burners are alight or when they are still

• Always use oven gloves when placing cookware in the

oven or when removing it.

• Do not use flammable liquids (alcohol, petrol, etc...)

near the appliance while it is in use.

• Do not place flammable material in the lower storage

compartment or in the oven itself. If the appliance is

switched on accidentally, it could catch fire.

• Always make sure the knobs are in the • position and

that the gas tap is closed when the appliance is not in

• When unplugging the appliance, always pull the plug

from the mains socket; do not pull on the cable.

• Never perform any cleaning or maintenance work

without having disconnected the appliance from the

• If the appliance breaks down, under no circumstances

should you attempt to repair the appliance yourself.

Repairs carried out by inexperienced persons may

cause injury or further malfunctioning of the appliance.

• Do not rest heavy objects on the open oven door.

• If the cooker is placed on a pedestal, take the

necessary precautions to prevent the same from

sliding off the pedestal itself.

• The appliance should not be operated by people

(including children) with reduced physical, sensory or

mental capacities, by inexperienced individuals or by

anyone who is not familiar with the product. These

individuals should, at the very least, be supervised by

someone who assumes responsibility for their safety or

receive preliminary instructions relating to the operation

• Do not let children play with the appliance.

• When disposing of packaging material: observe local

legislation so that the packaging may be reused.

• The European Directive 2002/96/EC relating to Waste

Electrical and Electronic Equipment (WEEE) states that

household appliances should not be disposed of using

the normal solid urban waste cycle. Exhausted

appliances should be collected separately in order to

optimise the cost of re-using and recycling the

materials inside the machine, while preventing potential

damage to the atmosphere and to public health. The

crossed-out dustbin is marked on all products to

remind the owner of their obligations regarding

separated waste collection.

Exhausted appliances may be collected by the public

waste collection service, taken to suitable collection

areas in the area or, if permitted by current national

legislation, they may be returned to the dealers as part

of an exchange deal for a new equivalent product.

All major manufacturers of household appliances

participate in the creation and organisation of systems

for the collection and disposal of old and disused

Respecting and conserving the environment

• You can help to reduce the peak load of the electricity

supply network companies by using the oven in the

hours between late afternoon and the early hours of the

GB Care and maintenance

Switching the appliance off

Disconnect your appliance from the electricity supply

before carrying out any work on it.

Cleaning the appliance

! Do not use abrasive or corrosive detergents such as

stain removers, anti-rust products, powder detergents or

sponges with abrasive surfaces: these may scratch the

surface beyond repair.

! Never use steam cleaners or pressure cleaners on the

• It is usually sufficient simply to wash the hob using a

damp sponge and dry it with absorbent kitchen roll.

• The stainless steel or enamel-coated external parts and

the rubber seals may be cleaned using a sponge that

has been soaked in lukewarm water and neutral soap.

Use specialised products for the removal of stubborn

stains. After cleaning, rinse well and dry thoroughly. Do

not use abrasive powders or corrosive substances.

• The hob grids, burner caps, flame spreader rings

and the hob burners can be removed

to make cleaning easier; wash them in hot water and

non-abrasive detergent, making sure all burnt-on

residue is removed before drying them thoroughly.

• For hobs with electronic ignition, the terminal part of the

electronic lighting devices should be cleaned

frequently and the gas outlet holes should be checked

• The inside of the oven should ideally be cleaned after

each use, while it is still lukewarm. Use hot water and

detergent, then rinse well and dry with a soft cloth. Do

not use abrasive products.

Clean the glass part of the oven door using a sponge

and a non-abrasive cleaning product, then dry

thoroughly with a soft cloth. Do not use rough abrasive

material or sharp metal scrapers as these could

scratch the surface and cause the glass to crack.

• The accessories can be washed like everyday

crockery, and are even dishwasher safe.

• Stainless steel can be marked by hard water that has

been left on the surface for a long time, or by

aggressive detergents containing phosphorus. After

cleaning, rinse well and dry thoroughly. Any remaining

drops of water should also be dried.

If the cooker is fitted with a

glass cover, this cover

should be cleaned using

lukewarm water. Do not use

It is possible to remove the

cover in order to make

cleaning the area behind

the hob easier. Open the

cover fully and pull it

! Do not close the cover when the burners are alight or

when they are still hot.

Inspecting the oven seals

Check the door seals around the oven periodically. If the

seals are damaged, please contact your nearest

Authorised After-sales Service Centre. We recommend

that the oven is not used until the seals have been

Over time, the taps may become jammed or difficult to

turn. If this occurs, the tap must be replaced.

This procedure must be performed by a qualifiedThis procedure must be performed by a qualified

This procedure must be performed by a qualifiedThis procedure must be performed by a qualified

This procedure must be performed by a qualified

technician who has been authorised by thetechnician who has been authorised by the

technician who has been authorised by thetechnician who has been authorised by the

technician who has been authorised by the

manufacturer.manufacturer.

manufacturer.manufacturer.

Replacing the oven light bulb

1. After disconnecting the oven

from the electricity mains, remove

the glass lid covering the lamp

2. Remove the light bulb and

replace it with a similar one:

voltage 230 V, wattage 25 W, cap

3. Replace the lid and reconnect the oven to the electricity

Please have the following information handy:

• The appliance model (Mod.).

• The serial number (S/N).

This information can be found on the data plate located on

the appliance and/or on the packaging.25

GB Removing and fitting the oven door:

2.Make the hinge clamps of the oven door rotate

backwards completely (see photo)

3.Close the door until the clamps stop (the door will

remain open for 40° approx.) (see photo)

4.Press the two buttons on the upper profile and extract

the profile (see photo)

5.Remove the glass sheet and do the cleaning as

indicated in chapter: "Care and maintenance".

6.Replace the glass.

WARNING! Oven must not be operated with inner

WARNING! When reassembling the inner door glass

insert the glass panel correctly so that the text written

on the panel is not reversed and can be easily legible.

7.Replace the profile, a click will indicate that the part is

positioned correctly.

8.Open the door completely.

9.Close the supports (see photo).

10.Now the door can be completely closed and the oven

can be started for normal use.FORNUIS EN OVEN Inhoud

? @ &' ' &$ &:&
