USER MANUAL PFT 8H4X HOTPOINT ARISTON

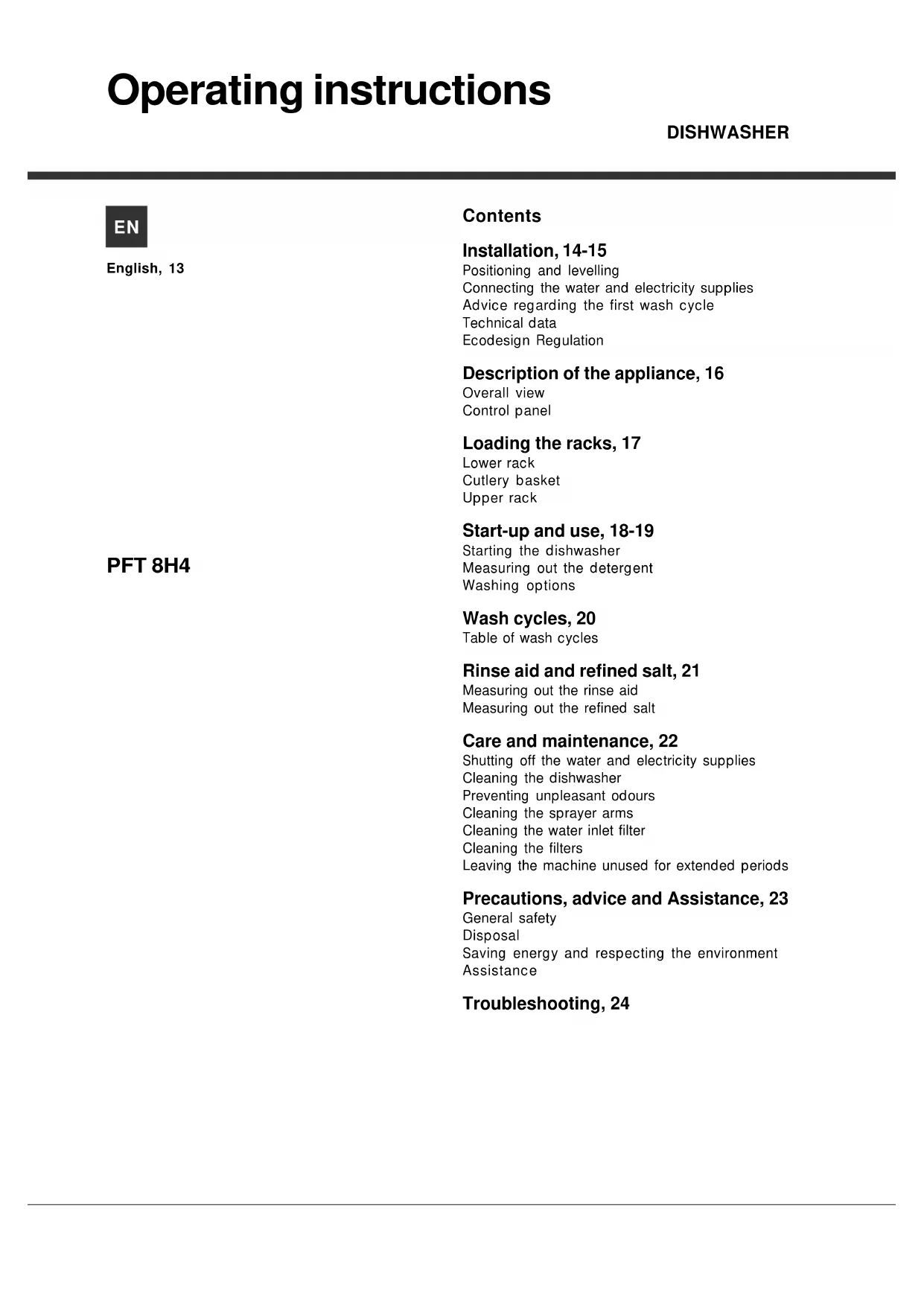

• Presente solo su alcuni modelli.DISHWASHER Contents Installation, 14-15 Positioning and levelling Connecting the water and electricity supplies Advice regarding the first wash cycle Technical data Ecodesign Regulation Description of the appliance, 16 Overall view Control panel Loading the racks, 17 Lower rack Cutlery basket Upper rack Start-up and use, 18-19 Starting the dishwasher Measuring out the detergent Washing options Wash cycles, 20 Table of wash cycles Rinse aid and refined salt, 21 Measuring out the rinse aid Measuring out the refined salt Care and maintenance, 22 Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods Precautions, advice and Assistance, 23 General safety Disposal Saving energy and respecting the environment Assistance Troubleshooting, 24 English, 13

PFT 8H4 Operating instructions14

Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved,please ensure the manual is kept with the machine, so that thenew owner may benefit from the advice contained within it. Please read this instruction manual carefully: it contains important information regarding the safe installation, use andmaintenance of the appliance. If the appliance must be moved at any time, keep it in anupright position; if absolutely necessary, it may be tilted ontoits back. This appliance is designed for domestic use or similarapplications, for example:- staff kitchen areas in shops, offices and other workenvironments;- farmhouses;- use by guests in hotels, motels and other residential settings;- bed and breakfasts. Positioning and levelling 1. Remove the appliance from all packaging and check that ithas not been damaged during transportation.If it has been damaged, contact the retailer and do notproceed any further with the installation process.2. Check the dishwasher by placing it so that its sides or backpanel are in contact with the adjacent cabinets or even with thewall. This appliance can also be recessed under a singleworktop (see the Assembly instruction sheet).3. Position the dishwasher on a level and sturdy floor. If thefloor is uneven, the front feet of the appliance may be adjusteduntil it reaches a horizontal position. If the appliance is levelledcorrectly, it will be more stable and much less likely to move orcause vibrations and noise while it is operating.

*. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasherusing a hexagonal spanner with an opening of 8 mm. Turn thespanner in a clockwise direction to increase the height and inan anticlockwise direction to decrease it. (see Building-ininstruction sheet attached to the documentation) Connecting the water and electricity supplies Connection to the water and electricity supplies should only be performed by a qualified technician. The dishwasher should not stand on top of the water hoses or the electricity supply cable. The appliance must be connected to the water supply network using new piping.Do not use old piping.The water inlet and outlet hoses and the electricity supplycable may be positioned towards the right or the left in orderto achieve the best possible installation. Connecting the water inlet hose

• To a suitable cold water connection point: before attachingthe hose, run the water until it is perfectly clear so that anyimpurities that may be present in the water do not clog theappliance; after performing this operation, screw the inlet hosetightly onto a tap with a ¾ gas threaded connection.• To a suitable hot water connection point: your dishwashermay be supplied with hot water from the mains supply (if youhave a central heating system with radiators) provided that itdoes not exceed a temperature of 60°C.Screw the hose to the tap as described for connection to acold water supply. If the inlet hose is not long enough, contact a specialiststore or an authorised technician (see Assistance The water pressure must be within the values indicated inthe Technical data table (see adjacent information The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain ductwith a minimum diameter of 4 cm.The outlet hose must be at a height ranging from 40 to 80 cmfrom the floor / surface where the dishwasher rests (A).Before connecting the water outlet hose to the sink drain,remove the plastic plug (B). Anti-flooding protection To ensure floods do not occur, the dishwasher:- is fitted with a special system which blocks the water supplyin the event of malfunctions or leaks from inside the appliance.Some models are also equipped with the supplementary New Acqua Stop
• safety device, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut asit contains live electrical parts.

• Only available in selected models. InstallationEN

Electrical connection Before inserting the plug into the electrical socket, make surethat:• The socket is earthed and complies with currentregulations.• The socket can withstand the maximum load of theappliance, which is indicated on the data plate located onthe inside of the door (see chapter entitled Description ofthe appliance

• The power supply voltage falls within the values indicatedon the data plate on the inside of the door.• The socket is compatible with the plug of the appliance. Ifthis is not the case, ask an authorised technician to replacethe plug (see Assistance); do not use extension cables ormultiple sockets. Once the appliance has been installed, the power supplycable and the electrical socket should be easily accessible. The cable should not be bent or compressed. If the power supply cable is damaged, it must bereplaced by the manufacturer or its Technical AssistanceService in order to prevent all potential hazards. (See“Assistance”) The Company shall not be held responsible for anyincidents that occur if these regulations are not observed. Anti-condensation strip* After installing the dishwasher, open the door and stick theadhesive transparent strip under the wooden shelf in order toprotect it from any condensation which may form. Advice regarding the first wash cycle After the appliance has been installed, immediately beforerunning the first wash cycle, completely fill the salt dispenserwith water and add only then approximately 1 kg of salt ( see chapter entitled Rinse aid and refined salt). The water mayoverflow: this is normal and is not a cause for concern. Selectthe water hardness value (see chapter entitled Rinse aid andrefined salt). After the salt has been poured into the machine,the LOW SALT indicator light
• switches off. If the salt container is not filled, the water softener and theheating element may be damaged as a result.
• Only available in selected models. Technical data Dimensions Width 59.5 cm Height 82 cm Depth 57 cm Capacity 14 standard place-settings Water supply pressure

0.05 - 1 MPa (0.5 - 10 bar) 7.25 – 145 psi

Power supply voltage See appliance data plate Total absorbed power See appliance data plate Fuse See appliance data plate

This dishwasher conforms to the following European Community Directives: - 2006/95/EC (Low Voltage) - 2004/108/EC (Electromagnetic compatibility) - 2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign) - 97/17/CE (Labelling) - 2002/96/CE (Disposal)

ECODESIGN REGULATION ECO wash cycle is the standard cycle to which the energy label data refers; this cycle can be used to wash crockery with a normal soil level and is the most efficient in terms of energy and water consumption for this type of crockery. To reduce consumption even further, only run the dishwasher when it is full.Standby consumption: Left-on mode consumption: 4,5 W – Off mode consumption: 1,3 WConsumption data table for the main cycles

• Cycle data refers to the values recorded in a laboratory, in accordance with European standard EN 50242. ** Data is obtained by recording values when the appliance is operational and loaded with user crockery. Standard conditions User conditions

Energy consumption (kWh/cycle) Water consumption (l/cycle) Duration (min/cycle) Energy consumption (kWh/cycle) Water consumption (l/cycle) Duration (min/cycle) INTENSIVE 1,50 15 150 1,30 14 135 NORMAL 1,20 15 120 1,05 14 11016

3. Tip-up compartments

6. Lower sprayer arm

*** Only in completely built-in models.

• Only available in selected models. The number and position may vary. Loading the racks Before loading the racks, remove all food residue fromcrockery and empty liquids from glasses and cups.After loading the appliance, make sure that the sprayerarms can rotate freely. Lower rack and cutlery basket The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc.Large plates and lids should ideally be placed at the sides of the rack.Several dishwasher models are fitted with tip-up sections which can be used in a vertical position when arranging platesor in a horizontal position when arranging saucepans, saladbowls and frying pans.The type of cutlery basket may vary (modular or non-modular)according to the dishwasher model. The non-modular basket must only

be positioned at the front of the lower rack.Both are fitted withgrilles over the top, forimproved cutleryarrangement. Knives and other utensils with sharp edges must be placedin the cutlery basket with the points facing downwards, orthey must be positioned horizontally in the tip-upcompartments on the upper rack. Upper rack Load this rack with delicate and lightweight crockery: glasses,cups, saucers and shallow salad bowls. Adjustable position tip-up compartments The tip-up compartmentscan be positioned at differentheights, to optimise thearrangement of crockerythroughout the rack. Wineglasses can be placedsafely in the tip-upcompartments, by insertingthe stem of each glass intothe corresponding slots.Some dishwasher models are fittedwith a sliding tray

• which can be used to hold serving utensils or small cups.For optimum washing performance,avoid positioning bulky crockerydirectly below the tray. Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rackmay be moved to a higher or lower level. The height of the upper rack should ideally be adjustedWHEN THE RACK IS EMPTY.NEVER raise or lower the rack on one side only.Open the left and right guide rail stopsand pull out the rack; position it higher orlower as required, slide it along the guiderails until the front wheels are in place andclose the stops (see figure If the rack is fitted with Dual Spacehandles see figure), pull out the upperrack until it reaches its stop point, grip thehandles at the sides of the rack and moveit upwards or downwards, then slowly letit fall back into place. Items that should not be washed in the dishwasher
• Wooden items, objects with wooden or horn handles or glued-on parts.• Items made from aluminium, copper, brass, pewter or tin.• Items made from plastic material which is not heat-resistant.• Antique or hand-painted porcelain.• Antique silver. Silver that is not antique may, however, bewashed in the dishwasher using a delicate wash cycle,provided that it does not come into contact with other metals. We recommend the use of crockery which is dishwashersafe.18

• Only available in selected models.

The control panel features a “Touch Control” system;press the symbols lightly with your fingertips to activatethe command.

The symbols in the key to wash cycles (to the left ofthe control panel) DO NOT light up.Wash cycles are selected by pressing the P symbol.The machine has a buzzer/set of tones

to inform the user that a command hasbeen implemented: power on, cycle end, etc.The symbols/indicator lights on the control panel/displaymay vary in colour (depending on the dishwasher model)

Starting the dishwasher

1. Turn the water tap on.

2. Press the ON/OFF symbol: the display lights up for a few

seconds, and the text ON

appears.3. Open the door and pour in a suitable amount of detergent see Measuring out the detergent

4. Load the racks (see Loading the racks) and shut the door.5. Press the

P symbol to select the wash cycle in accordancewith the type of crockery and its soil level (see

Table of washcycles).6. Select the wash options* (see options 7. Press the Start/Pause symbol; the Start symbol on the displaylights up. The wash cycle number, the symbols correspondingto washing, any selected options and the time remaining until theend of the cycle appear on the display.8. Once the wash cycle has ended, its corresponding number appears on the display, along with the text END. Switch off the appliance using the ON/OFF symbol; the text OFF will appear on the display. Shut off the water tap and unplug the appliancefrom the electricity socket.9. Wait for a few minutes before removing the crockery, inorder to avoid burns. Unload the racks, beginning with thelower level.

- The machine will temporarily switch off automaticallyduring certain extended periods of inactivity, in order tominimise electricity consumption.

AUTO WASH CYCLES*: This model of dishwasher is equipped with a special sensor which can be used to assessthe level of soiling and automatically select the most efficientand economic wash cycle accordingly.The duration of the auto wash cycles may vary due to theoperation of the sensor.

If the crockery is only lightly soiled or if it has beenrinsed with water before being placed in the dishwasher,reduce the amount of detergent used accordingly. Modifying a wash cycle in progress If a mistake was made during the wash cycle selection processit is possible to change the cycle, provided that it has only justbegun. To change the wash cycle, switch off the machine by pressing and holding the ON/OFF/Reset symbol; the text 3-2-1 OFF

will appear on the display. Switch the machine back onusing the same symbol and select the wash cycle and anydesired options again. Measuring out the detergent A good wash result also depends on the correct amountof detergent being used; exceeding the stated amountdoes not result in a more effective wash and increasesenvironmental pollution.

Only use detergent which has been specificallydesigned for dishwashers.

DO NOT USE washing up liquid.

Using excessive detergent may result in foam residueremaining in the machine after the cycle has ended.

The use of tablets is only recommended for modelswhich offer the MULTI-FUNCTIONAL TABLETS option.

To achieve the best results from each washing anddrying cycle, powder detergent, rinse aid liquid and saltshould be used.compartment A: Washing detergentcompartment B: Pre-wash detergent1. Open cover C by pressingbutton D.2. Pour in the detergent afterconsulting the Table of wash cycles

• For powder detergent: usecompartments A and B.• For detergent in tablet form:when the cycle requires 1 tablet,place it in compartment A and closethe cover; when it requires 2, placethe second tablet at the bottom of the appliance.3. Remove detergent residues from the edges of thecompartment and close the cover until it clicks. Adding extra crockery Press the Start/Pause symbol; the Pause symbol will light up.Open the door, taking care to avoid the escaping steam, andplace the crockery inside the appliance. Press the Start/Pausesymbol again: the Start symbol lights up and the cycle isresumed. Press the Start/Pause symbol to pause the machine; thewash cycle is stopped temporarily.At this stage it is not possible to change the wash cycle. Accidental interruptions If the door is opened during the wash cycle, or if there is apower cut, the cycle stops. It starts again from the point atwhich it was interrupted once the door has been shut or theelectricity supply is restored. Start-up and useEN

• Only available in selected models. Wash options* The OPTIONS may only be set, modified or reset after thewash cycle has been selected and before the START/PAUSE symbol has been pressed.Only the options which are compatible with the type of washcycle set may be selected. If an option is not compatible withthe selected wash cycle (see Table of wash cycles) , thecorresponding symbol flashes rapidly 3 times.If an option is selected which is incompatible with another(previously selected) option, it will flash 3 times and will bedeselected, while the option selected first will remain active.To deselect an option which has been set by mistake,press the corresponding symbol again. Delayed start* It is possible to delay the start of the cycle for a period of timebetween 1 and 24 hours.1. After selecting the desired wash cycle and any otheroptions, press the DELAYED START symbol: the symbol on thedisplay will light up. Press the DELAYED START symbol toselect the time at which you wish the wash cycle to begin (aftera period of 1 to 24 hours).2. Confirm your selection using the Start/Pause symbol; thecountdown will begin. The selected delay period is displayedand the Start symbol stops flashing.3. Once this time has elapsed, the DELAYED START symbolswitches off and the wash cycle begins.To deselect it, press and hold the DELAYED START symboluntil the text OFF appears. The DELAYED START function cannot be set once awash cycle has been started. Short Time option* This option can be used to reduce the duration of the mainwash cycles while maintaining the same washing and dryingperformance levels.After selecting the wash cycle, press the Short Time optionsymbol; the illumination of the corresponding symbol on thedisplay indicates its selection.To deselect the option, press the same symbol again.

The Short Time and Good Night options are notcompatible with each other.

The Short Time and Good Night options are notcompatible with the HALF LOAD option. Half load using the upper/lower racks With the Half Load option, it is possible to select whether toperform the wash on the upper or lower rack,saving water, energy and detergent. Select the wash cycleand press the HALF LOAD symbol; the half load symbol (onthe display) and the upper rack indicator will light up; ifpressed again the half load symbol and lower rack indicatorwill be displayed. The wash cycle only takes place on theselected rack.

Remember to load the selected rack only, and toreduce the amount of detergent accordingly.

It is better to use powder detergent in this case.

This option is incompatible with the following washcycle: Rapid and Baby. Good Night option* This option reduces the amount of noise made by the machineand lengthens the wash cycles. It is a useful option because itenables users to benefit from the night-time energy rate.After selecting the wash cycle, press the Good Night optionsymbol; the corresponding symbol lights up on the display toindicate its selection.To deselect the option, press the same symbol again.

The Good Night option is not compatible with theHALF LOAD option. Multi-functional tablets* (Tabs) This option optimises washing and drying results. When using multi-functional tablets, press the MULTI- FUNCTIONAL TABLETS symbol: the corresponding symbol will light up on the display. The “Multi-functional tablets” option results in the lengthening of the wash cycle.

The MULTI-FUNCTIONAL TABLETS option remainsset for subsequent wash cycles if it is not deselected.

The use of tablets is only recommended when theMULTI-FUNCTIONAL TABLETS option is available.

This option is not recommended for use with washcycles which do not specify the use of multi-functionaltablets (see Table of options).

Table of options Delayed Start

Half Load Multi-functional Tablets

Notes: optimum performance levels when using the “Daily wash” and “Rapid wash” cycles can be achieved by observing the maximumamounts of crockery specified.

• The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is less harmful to the environment. Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.comTo make it easier to measure out the detergent, it is worth remembering that:1 tablespoon = 15 g of powder = approximately 15 ml of liquid 1 teaspoon = 5 g of powder = approximately 5 ml of liquid For available OPTIONS please refer to the Table of options on the Start-up and use page. The number and type of wash cycles and options may vary depending on the dishwasher model. Wash cycles Detergent (A) = compartment A (B) = compartment B Wash cycle selection instructions Wash cycle

powder liquid tablets Wash cycles which include drying Options Wash cycle duration (tolerance ±10%) Hrs. Mins. Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes.

2:55’ Normally soiled pans and dishes. Standard daily wash cycle.

1:50’ Limited quantity of daily soiling (4 place settings + 1 saucepan +1 frying pan).

1:00’ Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal.

Heavily soiled dishes and pans (not to be used for delicate items).

2:25’ Economic and fast wash to be used for lightly soiled dishes, run immediately after use (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan).

0:25’ Economic and fast wash for delicate items which are sensitive to high temperatures, run immediately after use (glassware in the upper rack + fragile plates in the lower rack).

1:30’ Disinfecting wash cycle suitable for washing bottles, rings and teats together with plates, cups, glasses and cutlery. The crockery should only be loaded on the upper rack.

Only use products which have been specificallydesigned for dishwashers.Do not use table salt or industrial salt, or washing upliquid.Follow the instructions given on the packaging. If using a multi-functional product it is not necessary toadd rinse aid; however, we recommend that you add salt,especially if you live in an area where the water is hard orvery hard. Follow the instructions given on the packaging.

If you do not add salt or rinse aid, the LOW SALT*and LOW RINSE AID* indicator lights/symbols will remain lit. Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as waterruns off surfaces more readily and therefore does not leavestreaks or marks.The rinse aid dispenser should be filled:• When the LOW RINSE AID

• indicator light on the control panel/display is illuminated;1. Open the dispenser by turning thelid (G) in an anticlockwise direction.2. Pour in the rinse aid, making sure itdoes not overflow from the dispenser.If this happens, clean the spillimmediately with a dry cloth.3. Screw the lid back on.NEVER pour the rinse aid directly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results, youmay adjust the quantity of rinse aid used. Use a screwdriverto turn the dosage adjuster (F) to one of the 6 pre-setpositions (the default position is set to 4):• If there are streaks on the crockery, set the adjustmentdevice to a lower number (1-3).• If drops of water remain on the crockery or if there arelimescale marks present after the cycle has finished, setthe adjuster to a higher number (4-6). Setting the water hardness Every dishwasher is fitted with a water softener which, byusing refined salt designed especially for this type ofappliance, supplies water without limescale which is then usedto wash the crockery.This dishwasher offers a setting which helps to reducepollution and optimises washing performance in accordancewith the water hardness level in your area. This information canbe obtained from your local water supplier. - Switch on the appliance by pressing the ON/OFF symbol. - Press and hold the P symbol for approximately 5 seconds; the set hardness number will flash on the display (the watersoftening system is set by default to number 3) and h2o will appear. - Press the P symbol repeatedly until the desired hardness level has been reached (1-2-3-4-5 see Water hardness table - To exit the function, wait a few seconds or press one of theoption symbols *, or switch off the machine using the ON/OFF symbol.Even if using multi-functional tablets, the salt dispenser shouldstill be filled.(°dH = hardness measured in German degrees - °f = hardnessmeasured in French degrees – mmol/l = millimoles per litre) Loading the refined salt In order to achieve the best possible results using a washcycle, make sure that the dispenser is never empty. Refinedsalt removes limescale from the water, thus avoiding theformation of deposits on crockery.The salt dispenser is located in the lower part of thedishwasher (see Description) and should be filled:
• When the green float* cannot be seen by simply looking at the cap of the salt dispenser.• When the LOW RINSE AID* indicator light/symbol on thecontrol panel/display is illuminated.1. Remove the lower rack and unscrewthe container cap (anticlockwise).2. The first time you do this: fill the watertank right up to its edge.3. Position the funnel
• correctly ( see figure) and fill the salt dispenser up to theedges (approximately 1 kg); it is normal for a little water to leak out. 4. Remove the funnel* and wipe any salt residue away from theopening; rinse the cap under running water and then screw iton, the head facing downwards so as to let the water flow out ofthe four cracks which are arranged in a star shape on the lowerpart of the cap. (cap with green float*)It is advisable to perform this procedure every time youadd salt to the container.Make sure the cap is screwed on tightly, so that no detergentcan get into the container during the wash cycle (this coulddamage the water softener beyond repair). When necessary, measure out the salt before a washcycle so that any saline solution which has leaked out of thesalt dispenser is removed.
• Only available in selected models.

Rinse aid and refined salt Water Hardness Table Average salt container capacity duration

6,1 - 9 2/3 weeks For values between 0°f and 10°f, we do not recommend the use of salt.

this setting may cause a slight increase in the duration of the cycles.

for 1 wash cycle per day.22

Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoid leaks.• Always unplug the appliance when cleaning it and whenperforming maintenance work. Cleaning the dishwasher
• The external surfaces of the machine and the control panelmay be cleaned using a non-abrasive cloth which has beendampened with water. Do not use solvents or abrasiveproducts.• Any marks on the inside of the appliance may be removedusing a cloth dampened with water and a little vinegar. Preventing unpleasant odours
• Always keep the door of the appliance ajar in order to avoidmoisture from forming and being trapped inside themachine.• Clean the seals around the door and detergent dispensersregularly using a damp sponge. This will avoid foodbecoming trapped in the seals, which is the main causebehind the formation of unpleasant odours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayer armsand block the holes used to spray the water. It is thereforerecommended that the arms are checked from time to timeand cleaned with a small non-metallic brush.The two sprayer arms may both be removed.To remove the upper sprayer arm,turn the plastic locking ring in ananti-clockwise direction. The uppersprayer arm should be replaced sothat the side with the greaternumber of holes is facing upwards.The lower sprayer arm can beremoved by pressing on the sidetabs and pulling it upwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for anextended period of time, let the water run to make sure it isclear and free of impurities before performing the necessaryconnections. If this precaution is not taken, the water inletcould become blocked and damage the dishwasher. Clean the water inlet filter at the tap outlet regularly.- Turn off the water tap.- Unscrew the end of the water inlet hose, remove the filter and cleanit carefully under running water.- Replace the filter and screw the water hose back into position. Cleaning the filters The filter assembly consists of three filters which remove foodresidues from the washing water and then recirculate the water. Theyshould be cleaned if you wish to achieve the best results in everywash. Clean the filters regularly. The dishwasher should not be used without filters, or if the filter isloose.• After several washes, check the filter assembly and if necessaryclean it thoroughly under running water, using a non-metallic brushand following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and pull itout (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on the sideflaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

4. Inspect the trap and remove any food residue. NEVER REMOVEthe wash cycle pump (black detail) (fig. 4).

After cleaning the filters, replace the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher. Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply and shut offthe water tap.• Leave the door of the appliance ajar.• When you return, run a wash cycle when the dishwasher is empty.
• Only available in selected models.

Care and maintenance 2EN

The appliance was designed and manufactured incompliance with current international safety standards. Thefollowing information has been provided for safety reasons andshould therefore be read carefully. General safety

• The appliance should not be operated by people (includingchildren) with reduced physical, sensory or mental capacities,or by inexperienced people who are not familiar with theproduct, unless supervision is provided by someone whoassumes responsibility for their safety.• An adult must supervise children at all times, to preventchildren from playing with the appliance.• The appliance was designed for domestic use inside the homeand is not intended for commercial or industrial use.• The appliance must be used by adults only, to wash domesticcrockery in accordance with the instructions in this manual.• The appliance must not be installed outdoors, even in coveredareas. It is extremely dangerous to leave the machineexposed to rain and storms.• Do not touch the appliance when barefoot.• When unplugging the appliance always pull the plug from themains socket, do not pull on the cable.• The water supply tap must be shut off and the plug should beremoved from the electrical socket before cleaning theappliance or carrying out any maintenance work.• If the appliance breaks down, do not under anycircumstances touch the internal parts in an attempt toperform the repair work yourself.• Never touch the heating element.• Do not lean or sit on the open door of the appliance: this maycause the appliance to overturn.• The door should not be left open as it may create a dangerousobstacle.• Keep detergent and rinse aid out of reach of children.• The packaging material should not be used as a toy: it canbecome a choking or suffocation hazard. Disposal
• Disposal of packaging materials: observe local legislation sothat the packaging may be reused.• The European Directive 2002/96/EC relating to Waste Electricaland Electronic Equipment (WEEE) states that householdappliances should not be disposed of using the normal solidurban waste cycle. Exhausted appliances should be collectedseparately in order to optimise the cost of re-using andrecycling the materials inside the machine, while preventingpotential damage to the atmosphere and to public health. Thecrossed-out dustbin is marked on all products to remind theowner of their obligations regarding separated wastecollection.For further information relating to the correct disposal ofhousehold appliances, owners may contact the relevant publicauthority or the local appliance dealer. Saving energy and respecting the environment Saving water and energy
• Only begin a wash cycle when the dishwasher is full. Whilewaiting for the dishwasher to be filled, prevent unpleasantodours with the Soak cycle (see Wash Cycles

• Select a wash cycle which is suited to the type of crockeryand to the soil level of the crockery using the Table of washcycles - For dishes with a normal soil level, use the Eco wash cycle,which guarantees low energy and water consumption levels.- If the load is smaller than usual activate the Half load option (see Start-up and use

• If your electricity supply contract gives details of electricitysaving time bands, run wash cycles during the periodswhen a lower tariff is applied. The Delayed start
• option ( see Start-up and use) helps you organise the wash cyclesaccordingly. Detergents free from phosphates and chlorine and containing enzymes
• We strongly recommend that you use detergents that do notcontain phosphates or chlorine, as these products areharmful to the environment.• Enzymes provide a particularly effective action attemperatures around 50°C, and as a result detergentscontaining enzymes can be used in conjunction with low-temperature wash cycles in order to achieve the sameresults as a normal 65°C wash cycle.• To avoid wasting detergent, use the product in appropriatequantities based on the manufacturer’s recommendations,the hardness of the water and the soil level and quantity ofcrockery to be washed. Even if they are biodegradable,detergents contain substances which may alter the balanceof nature. Assistance Before contacting Assistance:
• Check whether the problem can be resolved using theTroubleshooting guide (see Troubleshooting

• Restart the wash cycle to check whether the problem hasceased to exist.• If the problem persists, contact the Authorised TechnicalAssistance Service. Never use the services of unauthorised technicians. Please have the following information to hand:
• The type of malfunction.• The appliance model (Mod.).• The serial number (S/N).This information can be found on the appliance data plate ( see Description of the appliance

Precautions, advice and Assistance

• Only available in selected models.24

Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Troubleshooting Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled.

• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly. • The dishwasher door has not been shut properly. The door won’t close. • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.

• The dishwasher cycle has not yet finished. • The water inlet hose is bent (see Installation). • The drain duct is blocked. • The filter is clogged up with food residues. The dishwasher makes excessive noise.

• The dishes are rattling against each other or against the sprayer arms. • An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white film or limescale deposits.

• The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt). • The lid on the salt dispenser is not closed properly. • The rinse aid has been used up or the dosage is too low. The dishes and glasses are streaked or have a bluish tinge.

• The rinse aid dosage is too high. The crockery has not been dried properly.

• A wash cycle without a drying program has been selected.
• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).
• The rinse aid dispenser setting is not suitable. • The crockery is made from non-stick material or plastic. The dishes are not clean.

• The racks are overloaded (see Loading the racks). • The crockery has not been arranged well. • The sprayer arms cannot move freely. • The wash cycle is too gentle (see Wash cycles). • An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).

• The lid on the rinse aid compartment has not been shut correctly.
• The filter is dirty or blocked (see Care and maintenance).

• The refined salt level is low (see Rinse aid and salt). The dishwasher does not take any water in - Tap shut-off alarm (several short beeps are emitted)

(the ON/OFF indicator light flashes and A 6 appears on the display).

• There is no water in the mains supply. • The water inlet hose is bent (see Installation). • Turn on the tap and the appliance will start after a few minutes. • The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the appliance using the ON/OFF button, turn on the tap and switch the appliance back on after 20 seconds by pressing the same button. Re-program the appliance and restart the wash cycle. Water inlet hose alarm / Water inlet filter blocked (the ON/OFF indicator light flashes and A 7 appears on the display).

• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket. Make sure the water inlet filter has not become blocked by impurities (see “Care and maintenance” chapter).
