USER MANUAL LST 328 AHA HOTPOINT ARISTON

1 (A) 1 (fondo vasca

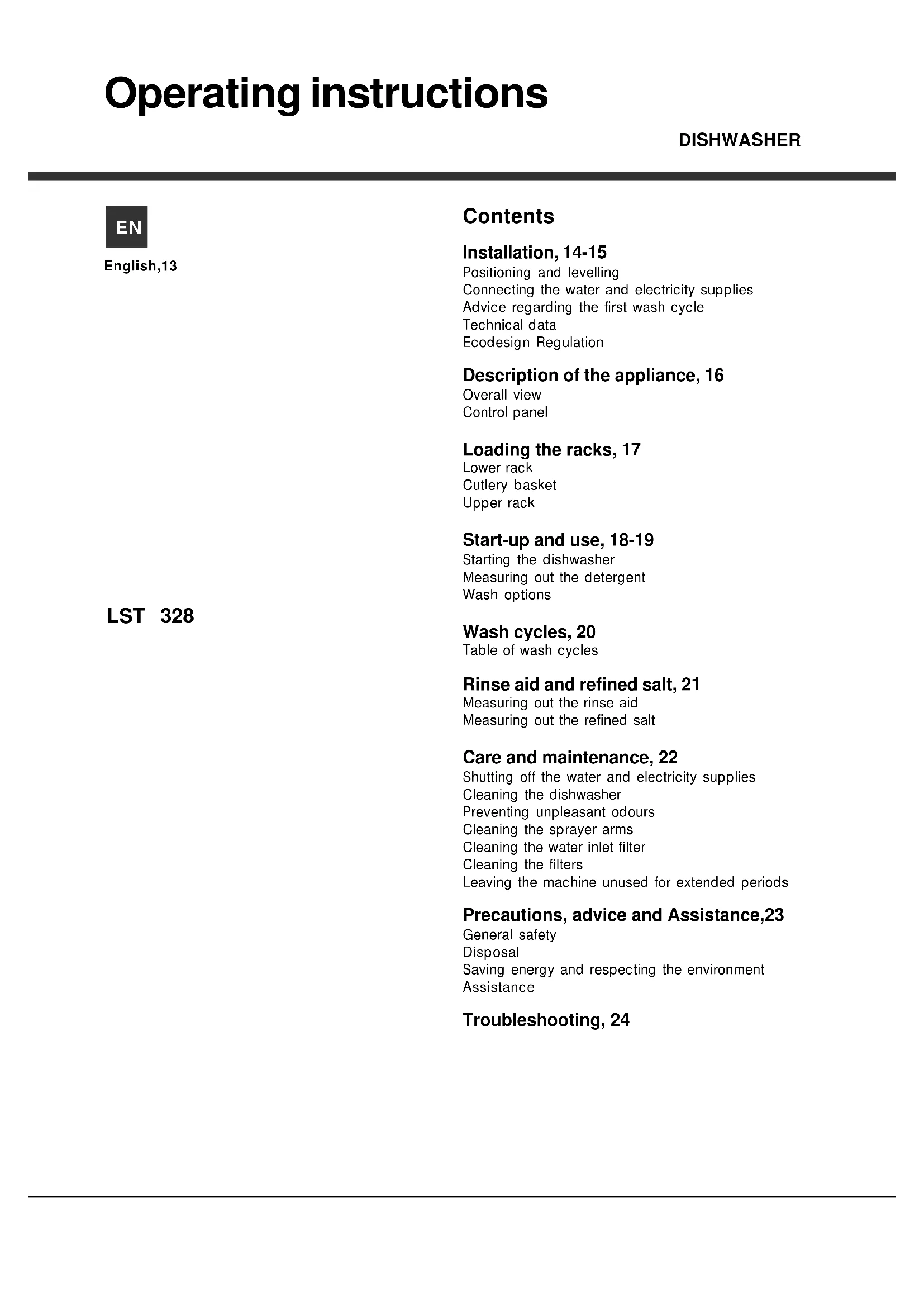

LST 328 DISHWASHEREN

Installation Keep this instruction manual in a safe place for futurereference. If the appliance is sold, given away or moved,please ensure the manual is kept with the machine, so thatthe new owner may benefit from the advice contained within it. Please read this instruction manual carefully: it containsimportant information regarding the safe installation, useand maintenance of the appliance.If the appliance must be moved at any time, keep it inan upright position; if absolutely necessary, it may be tiltedonto its back.This appliance is intended to be used in household and similarapplications such as:- staff kitchen areas in shops, offices and other workingenvironments;- farm houses;- by clients in hotels, motels and other residential typeenvironments;- bed and breakfast type environments. Positioning and levelling 1. Remove the appliance from all packaging and checkthat it has not been damaged during transportation.If it has been damaged, contact the retailer and do notproceed any further with the installation process.2. Check the dishwasher by placing it so that its sides orback panel are in contact with the adjacent cabinets oreven with the wall. This appliance can also be recessedunder a single worktop

see the Assembly instruction sheet

3. Position the dishwasher on a level and sturdy floor. If thefloor is uneven, the front feet of the appliance may beadjusted until it reaches a horizontal position. If theappliance is levelled correctly, it will be more stable andmuch less likely to move or cause vibrations and noisewhile it is operating.4. Adjust the height of the rear foot from the front of the appliance*on the central lower part of the dishwasher, turning a hexagonalspanner (red color) with an opening of 8 mm in a clockwisedirection to increase the height or in an anticlockwise direction todecrease the height. Connecting the water and electricity supplies Connection to the water and electricity supplies shouldonly be performed by a qualified technician.The dishwasher should not stand on top of the waterhoses or the electricity supply cable.The appliance must be connected to the water supplynetwork using new hoses.Do not use old hoses.The water inlet and outlet hoses and the electricity supplycable may be positioned towards the right or the left inorder to achieve the best possible installation. Connecting the water inlet hose

• To a suitable cold water connection point: beforeattaching the hose, run the water until it is perfectly clearso that any impurities that may be present in the waterdo not clog the appliance; after performing thisoperation, screw the inlet hose tightly onto a tap with a¾ gas threaded connection.• To a suitable hot water connection point: yourdishwasher may be supplied with hot water from themains supply (if you have a central heating system withradiators) provided that it does not exceed a temperatureof 60°C.Screw the hose to the tap as described for connectionto a cold water supply.If the inlet hose is not long enough, contact a specialiststore or an authorised technician ( see Assistance

The water pressure must be within the values indicatedin the Technical data table ( see adjacent information

The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain ductwith a minimum diameter of 4 cm.The outlet hose must be at a height ranging from 40 to 80cm from the floor / surface where the dishwasher rests (A).Before connecting the water outlet hose to the sink drain,remove the plastic plug (B). Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the watersupply in the event of anomalies or leaks from inside theappliance.Some models are also equipped with the supplementarysafety device New Acqua Stop *, which guarantees anti- flooding protection even in the event of a supply hoserupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstance should the water inlet hose be cutas it contains live electrical parts.

• Only available in selected models.EN

Electrical connection Before inserting the plug into the electrical socket, makesure that:• The socket is earthed and complies with currentregulations.• The socket can withstand the maximum load of theappliance, which is indicated on the data plate locatedon the inside of the door (see chapter entitledDescription of the appliance

• The power supply voltage falls within the valuesindicated on the data plate on the inside of the door.• The socket is compatible with the plug of the appliance.If this is not the case, ask an authorised technician toreplace the plug (see Assistance); do not use extensioncables or multiple sockets.Once the appliance has been installed, the powersupply cable and the electrical socket should be easilyaccessible.The cable should not be bent or compressed. If the power supply cable is damaged, it must be re-placed by the manufacturer or its Technical AssistanceService in order to prevent all potential hazards. (See As-sistance)The Company shall not be held responsible for anyincidents that occur if these regulations are not observed. Anti-condensation strip* After installing the dishwasher, open the door and stick theadhesive transparent strip under the wooden shelf in orderto protect it from any condensation which may form. Advice regarding the first wash cycle After the appliance has been installed, immediately beforerunning the first wash cycle, completely fill the saltdispenser with water and add only then approximately 1 kgof salt (see chapter entitled Rinse aid and refined salt). Thewater may overflow: this is normal and is not a cause forconcern. Select the water hardness value (see chapterentitled Rinse aid and refined salt). - After the salt has beenpoured into the machine, the LOW SALT indicator light*switches off. If the salt container is not filled, the water softener andthe heating element may be damaged as a result. ECODESIGN REGULATION ECO wash cycle is the standard cycle to which the energy label data refers; this cycle can be used to wash crockery with a normal soil level and is the most efficient in terms of energy and water consumption for this type of crockery. To reduce consumption even further, only run the dishwasher when it is full.Standby consumption: Left-on mode consumption: 3 W – Off mode consumption: 1,3 WConsumption data table for the main cycles
• Cycle data refers to the values recorded in a laboratory, in accordance with European standard EN 50242. ** Data is obtained by recording values when the appliance is operational and loaded with user crockery. Standard conditions User conditions

Energy consumption (kWh/cycle) Water consumption (l/cycle) Duration (min/cycle) Energy consumption (kWh/cycle) Water consumption (l/cycle) Duration (min/cycle) INTENSIVE 1,25 13 150 1,05 13 140 NORMAL 1,00 13 115 0,90 13 110 Technical data Dimensions width 44.5 cm height 82 cm depth 57 cm Capacity 10 standard place-settings Water supply pressure 0,05 ÷ 1MPa (0.5 ÷ 10 bar) 7,25 – 145 psi Power supply voltage See appliance data plate Total absorbed power See appliance data plate Fuse See appliance data plate This dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage -2004/108/EC (Electromagnetic Compatibility) -2005/32/EC (Comm. Reg. 1275/2008) (Ecodesign) --97/17/EC (Labelling) -2002/96/ EC (Waste Electrical and Electronic Equipment WEEE)EN

Overall view Description of the appliance

3. Tip-up compartments

6. Lower sprayer arm

***Only in completely built-in models.

• Only available in selected models. The number and type of wash cycles and options may vary depending on the dishwasher model. Control panel Half load button*Delayed start button*ON/OFF/ResetbuttonON/OFFindicator lightLow saltindicator light*Select washcycle buttonLow rinse aidindicator light*Multi-functional tabletsbutton*Multi-functional tabletsindicator light*Half load upper rackindicator light*Half load lower rackindicator light*Delayed startindicator lights*Wash cycle numberlight-up indicatorEN

Loading the racks Before loading the racks, remove all food residues fromthe crockery and empty liquids from glasses and cups.Arrange the crockery so that it is held in place firmly anddoes not tip over. After loading the appliance, check thatthe sprayer arms can rotate freely. Lower rack The lower rack can hold pans, lids, plates, salad bowls, cutlery,etc. as seen in the Loading examples.Plates and large covers should be placed at the sides of therack, ensuring that they do not block the rotation of the uppersprayer arm.Some dishwasher models are fitted withtip-up sections *, which can be used in a vertical position when arranging platesor in a horizontal position whenarranging pans and salad bowls. Cutlery basket The type of cutlery basket may vary according to the dishwashermodel: The cutlery basket should be positioned at the front of thelower rack, by sliding it between the fixed inserts, or on theupper rack when the half load option has been selected (in modelsfeaturing this option).- It has a collapsible slidingsystem which means thecutlery can be arrangedin the best possible way. Knives and other utensils with sharp edges must be placedin the cutlery basket with the points facing downwards, or theymust be positioned horizontally in the tip-up compartments onthe upper rack. Cutlery basket positioning examples Upper rack Load this rack with delicate and lightweight crockery: glasses,tea and coffee cups, saucers, small salad bowls, saucepansand small saucepans which are not too soiled, using the Loadingexamples as a guide.• Mugs and cups, long sharp knives and serving utensils: placethese on the tip-up compartments

Tip-up compartments with adjustable tilt* - The tilt feature can be used to increase the space in the upperrack, to position wine glasses with different stem lengths safelyand to improve drying performance.-Lift the tip-up compartment, slide it gently and position it in thedesired tilt angle. Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rackmay be moved to a higher or lower level.The height of the upper rack should ideally be adjustedWHEN THE RACK IS EMPTY.Never lift or lower the rack on one side only.Open the left and right guide rail stopsand pull out the rack; position it higher orlower as required, slide it along the guiderails until the front wheels are in place andclose the stops (see figure If the rack is fitted with “Dual Space”handles* (see figure), pull out the upperrack until it reaches its stop point, grip thehandles at the sides of the rack and moveit upwards or downwards, then slowly letit fall back into place. Loading examples for the upper rack Loading examples for the upper rack Items which should not be washed in the dishwasher

• Wooden items, objects with wooden or horn handles or glued-on parts.• Items made from aluminium, copper, brass, pewter or tin.• Items made from plastic material which is not heat-resistant.• Antique or hand-painted porcelain.• Antique silver. Silver which is not antique may, however, bewashed in the dishwasher using a delicate wash cycle,provided that it does not come into contact with other metals.We recommend the use of crockery which is dishwashersafe.
• Only available in selected models. ** The number and position may vary. Tilt A Tilt B Tilt CEN

Start-up and use Starting the dishwasher 1. Turn the water tap on.2. Open the door and press the ON/OFF button: you will hear ashort beep and the display and option indicator lights switch on.3. Measure out the detergent (see below

4. Load the racks (see Loading the racks

5. Select the wash cycle in accordance with the type of crockeryand its soil level (see Table of wash cycles), by pressing the Pbutton.6. Select the wash options (see adjacent information 7. Start the wash cycle by shutting the door: a long beep signalsthe start of the wash cycle.8. Two short beeps and one long one indicate the end of thewash cycle and the wash cycle number flashes on the display.Open the door, switch off the appliance by pressing the ON/OFFbutton, shut off the water tap and unplug the appliance from theelectricity socket.9. Wait for a few minutes before removing the crockery, in orderto avoid burns. Unload the racks, beginning with the lower level. - The machine will switch off automatically during certain periods of inactivity, in order to minimise electricity consumption. AUTO WASH CYCLES*: this model of dishwasher isequipped with a special sensor which can be used to assess thelevel of soiling and automatically select the most efficient andeconomic wash cycle accordingly.The duration of the auto wash cycles may vary due to theoperation of the sensor.If the crockery is only lightly soiled or if it has been rinsedwith water before being placed in the dishwasher, reduce theamount of detergent used accordingly. Modifying a wash cycle in progress If a mistake was made during the wash cycle selection processit is possible to change the cycle, provided that it has only justbegun: open the door, avoiding the escaping steam, and pressand hold the ON/OFF button; the machine will switch off with along beep. Switch the machine back on using the ON/OFF buttonand select the new wash cycle and any options desired; start thecycle by closing the door. Adding extra crockery Without switching off the machine, open the door, taking care toavoid the escaping steam, and place the crockery inside thedishwasher. Close the door: the cycle starts from the point atwhich it was interrupted. Accidental interruptions If the door is opened during the wash cycle, or if there is a powercut, the cycle stops. It starts again from the point at which it wasinterrupted once the door has been shut or once the electricitysupply is restored. Measuring out the detergent A good wash result also depends on the correct amount ofdetergent being used; exceeding the stated amount does notresult in a more effective wash and increases environmentalpollution. Only use detergent which has been specifically designed for dishwashers.

DO NOT USE washing up liquid. Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended. The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option. To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used. Compartment A: Washing detergentCompartment B: Pre-wash detergent1. Open cover C by pressing button 2. Pour in the detergent after consultingthe Table of wash cycles:• For powder detergent usecompartments A and B.• For detergent in tablet form: whenthe cycle requires 1 tablet, place it incompartment A and close the cover;when it requires 2, place the second tablet at the bottom of theappliance.3. Remove detergent residues from the edges of the compartmentand close the cover until it clicks.

• Only available in selected models.EN

Multi-functional tablets* This option optimises washing and drying results.When using multi-functional tablets, press the MULTI-FUNCTIONAL TABLETS button. The corresponding indicator lightwill illuminate. The “Multi-functional tablets” option results in thelengthening of the wash cycle.The MULTI-FUNCTIONAL TABLETS option remains setfor subsequent wash cycles if it is not deselected.The use of tablets is only recommended for modelswhich offer the MULTI-FUNCTIONAL TABLETS option.This option is not recommended for use with wash cycleswhich do not specify the use of multi-functional tablets ( see Table of options

• Only available in selected models. Wash options If an option is not compatible with the selected was cycle

see Table of wash cycles ), the corresponding LED flashesrapidly 3 times and 2 short beeps will sound. Delayed start It is possible to delay the start time of the cycle by 3, 6 or 9 hours. 1. Press the DELAYED START button: every time it is pressed abuzzer sounds and the selected period of time is displayed.2. Select the wash cycle and shut the door: after the beep sounds,the timer begins counting down.3. Once this time has elapsed, the indicator light switches off andthe wash cycle begins.To adjust the delay time and select a smaller period of time,press the DELAYED START button. To cancel it, press the buttonrepeatedly until the selected delayed start indicator light switchesoff. The wash cycle will start automatically as soon as the door isshut. Half load using the upper or lower rack* If there are not many dishes to be washed, a half load cycle maybe used in order to save water, electricity and detergent. Selectthe wash cycle and press the HALF LOAD button repeatedly: thetriangle corresponding to the selected load will illuminate and thewash cycle will take place only using the upper or the lower rack. The Half load option is not compatible with the Quick,and Good Night cycles. Remember to load the upper or lower rack only, and toreduce the amount of detergent accordingly. A B C Table of options Delayed Start Half Load Tabs

Wash cycles For available OPTIONS please refer to the Table of options on the Start-up and use page.The number and type of wash cycles and options may vary depending on the dishwasher model.Notes: Optimum performance levels when using the ""Quick wash" cycle can be achieved by observing the maximum amounts of crockery specified.To make it easier to measure out the detergent, it is worth remembering that: 1 tablespoon = 15 gr. of powder = approximately 15 ml of liquid - 1 teaspoon = 5 gr. of powder = approximately 5 ml of liquid

• The Eco wash cycle adheres to the regulation EN-50242. Although it has a longer duration than other wash cycles it uses less energy and is les harmful to the environment. Note for Test Laboratories: for information relating to comparative EN testing conditions, please send an email to the following address: ASSISTENZA_EN_LVS@indesitcompany.comDetergent (A) = compartment A (B) = compartment B Wash cycle selection instructions Wash cycle Powder Liquid Tablets Wash cycles which include drying Options Wash cycle duration (tolerance ±10%) Hrs. Min. Environmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes. 1. Eco

1 (A) Yes A–B-C 2:50’ Normally soiled pans and dishes. Standard daily wash cycle. 2. Auto Normal Wash 21 g (A) 4 g (B) 21 ml (A) 4 ml (B) 1 (A)

Yes A–B–C 1:50’ Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal. 3. Soak

A – B 0:08’ Heavily soiled dishes and pans (not to be used for delicate items). 4. Intensive

Yes A–B–C 2:25’ Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan). 5. Quick 21 g (A) 21 ml (A) 1 (A)

A - C 0:25’ Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (glasses upper rack + delicate plates lower rack). 6. Crystal 25 g (A) 25 ml (A) 1 (A)

Yes A– B–C 1:30’ Heavily soiled saucepans or pans with residual dried-on food. 7. Ultra Intensive 25 g (A) 4 g (B) 25 ml (A) 4 ml (B) 1 (A) 1 (bottom of the appliance)

Yes A–B-C 2:35' This guarantees optimal performance, reduced consumption levels and silent operation. It is ideal for night-time operation of the appliance. 8. Good Night 21 g (A) 4 g (B) 21 ml (A) 4 ml (B)

Rinse aid and refined salt Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. Follow the instructions given on the packaging. If using a multi-functional product it is not necessary to addrinse aid; however, we recommend that you add salt, especiallyif you live in an area where the water is hard or very hard.Follow the instructions given on the packaging. If you do not add salt or rinse aid, the LOW SALT

• and LOW RINSE AID* indicator lights remain lit. Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as water runsoff surfaces more readily and therefore does not leave streaks ormarks.The rinse aid dispenser should be filled:• When the LOW RINSE AID
• indicator light on the control panel is illuminated;1. Open the dispenser by turningthe lid (G) in an anticlockwisedirection.2. Pour in the rinse aid, making sureit does not overflow from thedispenser. If this happens, cleanthe spill immediately with a drycloth.3. Screw the lid back on.NEVER pour the rinse aid directly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results, youmay adjust the quantity of rinse aid used. Use a screwdriver toturn the dosage adjuster (F) to one of the 6 pre-set positions (thedefault position is set to 4):• If there are streaks on the crockery, set the adjustment deviceto a lower number (1-3).• If drops of water remain on the crockery or if there are limescalemarks present after the cycle has finished, set the adjuster to ahigher number (4-6). Setting the water hardness Every dishwasher is equipped with a water softener which, byusing refined salt designed especially for this type of appliance,supplies water without limescale which is then used to wash thecrockery.This dishwasher offers a setting which helps to reduce pollutionand optimises washing performance in accordance with the waterhardness level in your area. This information can be obtainedfrom the organisation which supplies your household with water. - Open the door and switch on the machine by pressing the ON/ OFF button. - Press the P button and hold for approximately 5 seconds; two short beeps will sound and the set hardness number will flashslowly on the display (the water softening system is set to number3). - Press the P button repeatedly until the desired hardness level has been reached (1-2-3-4-5 see Water hardness table - To exit the function, wait a few seconds or press one of theoption buttons *, or switch off the machine using the ON/OFF button.Even if using multi-functional tablets, the salt dispenser shouldstill be filled.(°dH = hardness measured in German degrees - °f = hardnessmeasured in French degrees - mmol/l = millimoles per litre) Measuring out the refined salt In order to achieve the best possible results using a wash cycle,make sure that the dispenser is never empty. Refined salt removeslimescale from the water, thus avoiding the formation of depositson crockery.The salt dispenser is located in the lower part of the dishwasher see Description) and should be filled:• When the green float
• cannot be seen by simply looking at the cap of the salt dispenser.• When the LOW SALT
• indicator light on the control panel is illuminated;1. Remove the lower rack and unscrew thecontainer cap (anticlockwise).2. The first time you do this: fill the watertank right up to its edge.3. Position the funnel see figure) and fillthe salt container right up to its edge (thisshould hold approximately 1 kg); it is not unusual for a little waterto leak out.4. Remove the funnel
• and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on,the head facing downwards so as to let the water flow out of thefour cracks which are arranged in a star shape on the lower partof the cap. (Salt cap with green float It is advisable to perform this procedure every time you addsalt to the container.Make sure the cap is screwed on tightly, so that no detergentcan get into the container during the wash cycle (this coulddamage the water softener beyond repair).When necessary, measure out the salt before a wash cycleso that any saline solution which has leaked out of the saltdispenser is removed.
• Only available in selected models.

6,1 - 9 2/3 weeks For values between 0°f and 10°f, we do not recommend the use of salt this setting may cause a slight increase in the duration of the cycles. for 1 wash cycle per day.EN

Care and maintenance Shutting off the water and electricity supplies

• Turn off the water tap after every wash cycle to avoidleaks.• Always unplug the appliance when cleaning it and whenperforming maintenance work. Cleaning the dishwasher
• The external surfaces of the machine and the controlpanel may be cleaned using a non-abrasive cloth whichhas been dampened with water. Do not use solvents orabrasive products.• Any marks on the inside of the appliance may beremoved using a cloth dampened with water and a littlevinegar. Preventing unpleasant odours
• Always keep the door of the appliance ajar in order toavoid moisture from forming and being trapped insidethe machine.• Clean the seals around the door and detergentdispensers regularly using a damp sponge. This willavoid food becoming trapped in the seals, which is themain cause behind the formation of unpleasant odours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayer armsand block the holes used to spray the water. It is thereforerecommended that the arms are checked from time to timeand cleaned with a small non-metallic brush.The two sprayer arms may both be removed.To remove the upper sprayerarm, rotate the locking ring inan anti-clockwise direction.The upper sprayer arm shouldbe replaced with the holesfacing upwards.The lower sprayer arm may beremoved by pulling it upwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for anextended period of time, let the water run to make sure it isclear and free of impurities before performing the necessaryconnections. If this precaution is not taken, the water inletcould become blocked and damage the dishwasher.
• Only available in selected models.

Clean the water inlet filter at the tap outlet regularly.- Turn off the water tap.- Unscrew the end of the water inlet hose, remove the filterand clean it carefully under running water.- Replace the filter and screw the water hose back intoposition. Cleaning the filters The filter assembly consists of three filters which removefood residues from the washing water and then recirculatethe water. They should be cleaned if you wish to achievethe best results in every wash.Clean the filters regularly.The dishwasher should not be used without filters, or ifthe filter is loose.• After several washes, check the filter assembly and ifnecessary clean it thoroughly under running water, usinga non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise directionand pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure onthe side flaps (fig. 2).

3. Slide out the stainless steel plate filter A (fig. 3).

Inspect the trap and remove any food residue.NEVER REMOVE the wash cycle pump (blackdetail) (fig. 4)

After cleaning the filters, replace the filter assembly and fixit in position correctly; this is essential for maintaining theefficient operation of the dishwasher. Leaving the machine unused for extended periods

• Disconnect the appliance from the electricity supply andshut off the water tap.• Leave the door of the appliance ajar.• When you return, run a wash cycle when the dishwasheris empty.

Precautions, advice and Assistance This appliance was designed and manufactured incompliance with current international safety standards. Thefollowing information has been provided for safety reasons andshould therefore be read carefully. General safety

• This appliance is not intended for use by persons (includingchildren) with reduced physical, sensory or mental capabilities,or lack of experience and knowledge, unless they have beengiven supervision or instruction concerning use of the applianceby a person responsible for their safety.• Children should be supervised to ensure that they do not playwith the appliance.• The appliance was designed for domestic use inside the homeand is not intended for commercial or industrial use.• The appliance must be used by adults only, to wash domesticcrockery in accordance with the instructions in this manual.• The appliance must not be installed outdoors, even in coveredareas. It is extremely dangerous to leave the machine exposedto rain and storms.• Do not touch the appliance when barefoot.• When unplugging the appliance always pull the plug from themains socket, do not pull on the cable.• The water supply tap must be shut off and the plug should beremoved from the electrical socket before cleaning theappliance or carrying out any maintenance work.• If the appliance breaks down, do not under any circumstancestouch the internal parts in an attempt to perform the repairwork yourself.• Never touch the heating element.• Do not lean or sit on the open door of the appliance: this maycause the appliance to overturn.• The door should not be left open as it may create a dangerousobstacle.• Keep detergent and rinse aid out of reach of children.• The packaging material should not be used as a toy. Disposal
• Disposal of packaging materials: observe local legislation sothat the packaging may be reused.• The European Directive 2002/96/EC relating to Waste Electricaland Electronic Equipment (WEEE) states that householdappliances should not be disposed of using the normal solidurban waste cycle. Exhausted appliances should be collectedseparately in order to optimise the cost of re-using andrecycling the materials inside the machine, while preventingpotential damage to the atmosphere and to public health. Thecrossed-out dustbin is marked on all products to remind theowner of their obligations regarding separated wastecollection.For further information relating to the correct disposal ofhousehold appliances, owners may contact the relevant publicauthority or the local appliance dealer. Saving energy and respecting the environment Saving water and energy
• Only begin a wash cycle when the dishwasher is full. Whilewaiting for the dishwasher to be filled, prevent unpleasantodours using the Soak cycle (see Wash cycles

• Select a wash cycle which is suited to the type of crockeryand to the soil level of the crockery using the Table of washcycles - For dishes with a normal soil level, use the Eco wash cycle,which guarantees low energy and water consumption levels.- If the load is smaller than usual activate the Half load option

see Start-up and use

• If your electricity supply contract gives details of electricitysaving time bands, run wash cycles during the periods whena lower tariff is applied. The Delayed start* button (see Start-up and use) helps you organise the wash cycles accordingly. Phosphate-free and chlorine-free detergents containing enzymes
• We strongly recommend that you use detergents that do notcontain phosphates or chlorine, as these products are harmfulto the environment.• Enzymes provide a particularly effective action at temperaturesaround 50°C, and as a result detergents containing enzymescan be used in conjunction with low-temperature wash cyclesin order to achieve the same results as a normal 65°C washcycle.• To avoid wasting detergent, use the product in appropriatequantities based on the manufacturer’s recommendations, thehardness of the water and the soil level and quantity of crockeryto be washed. Even if they are biodegradable, detergentscontain substances which may alter the balance of nature. Assistance Before contacting Assistance:
• Check whether the problem can be resolved using theTroubleshooting guide (see Troubleshooting

• Restart the programme to check whether the problem hasceased to exist.• If the problem persists, contact the Authorised TechnicalAssistance Service.Never use the services of unauthorised technicians. Please have the following information to hand:
• The type of malfunction.• The appliance model (Mod.).• The serial number (S/N).This information can be found on the appliance data plate ( see Description of the appliance

• Only available in selected models.EN

Troubleshooting Whenever the appliance fails to work, check for a solution from the following list before calling for Assistance. Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled

• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program.

• The appliance has not been plugged in properly.

• The dishwasher door has not been shut properly. The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.

• The dishwasher cycle has not yet finished.

• The water inlet hose is bent (see Installation).

• The drain duct is blocked.

• The filter is clogged up with food residues. The dishwasher makes excessive noise.

• The dishes are rattling against each other or against the sprayer arms.

• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white film or limescale deposits.

• The level of the refined salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).

• The lid on the salt dispenser is not closed properly.

• The rinse aid has been used up or the dosage is too low. The dishes and glasses are streaked or have a bluish tinge.

• The rinse aid dosage is too high. The crockery has not been dried properly.

• A wash cycle without a drying program has been selected.

• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).

• The rinse aid dispenser setting is not suitable.

• The crockery is made from non-stick material or plastic. The dishes are not clean. • The racks are overloaded (see Loading the racks).

• The crockery has not been arranged well.

• The sprayer arms cannot move freely.

• The wash cycle is too gentle (see Wash cycles).

• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use).

• The lid on the rinse aid compartment has not been shut correctly.

• The filter is dirty or blocked (see Care and maintenance).

• The refined salt level is low (see Rinse aid and salt). The dishwasher does not take any water in - Tap shut-off alarm (several short beeps are emitted) (the ON/OFF indicator light flashes and the number 6 appears on the display).

• There is no water in the mains supply.

• The water inlet hose is bent (see Installation).

• Turn on the tap and the appliance will start after a few minutes.

• The appliance lock has been activated because no action was taken when the beeps sounded. Switch off the appliance using the ON/OFF button, turn on the tap and switch the appliance back on after 20 seconds by pressing the same button. Re- program the appliance and restart the wash cycle. Water inlet hose alarm / Water inlet filter blocked (the ON/OFF indicator light flashes and the number 7 appears on the display).

• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of flooding and remove the plug from the electrical socket. Make sure the water inlet filter has not become blocked by impurities (see “Care and maintenance” chapter).FR
