USER MANUAL LSFA+ 825 XHA HOTPOINT ARISTON

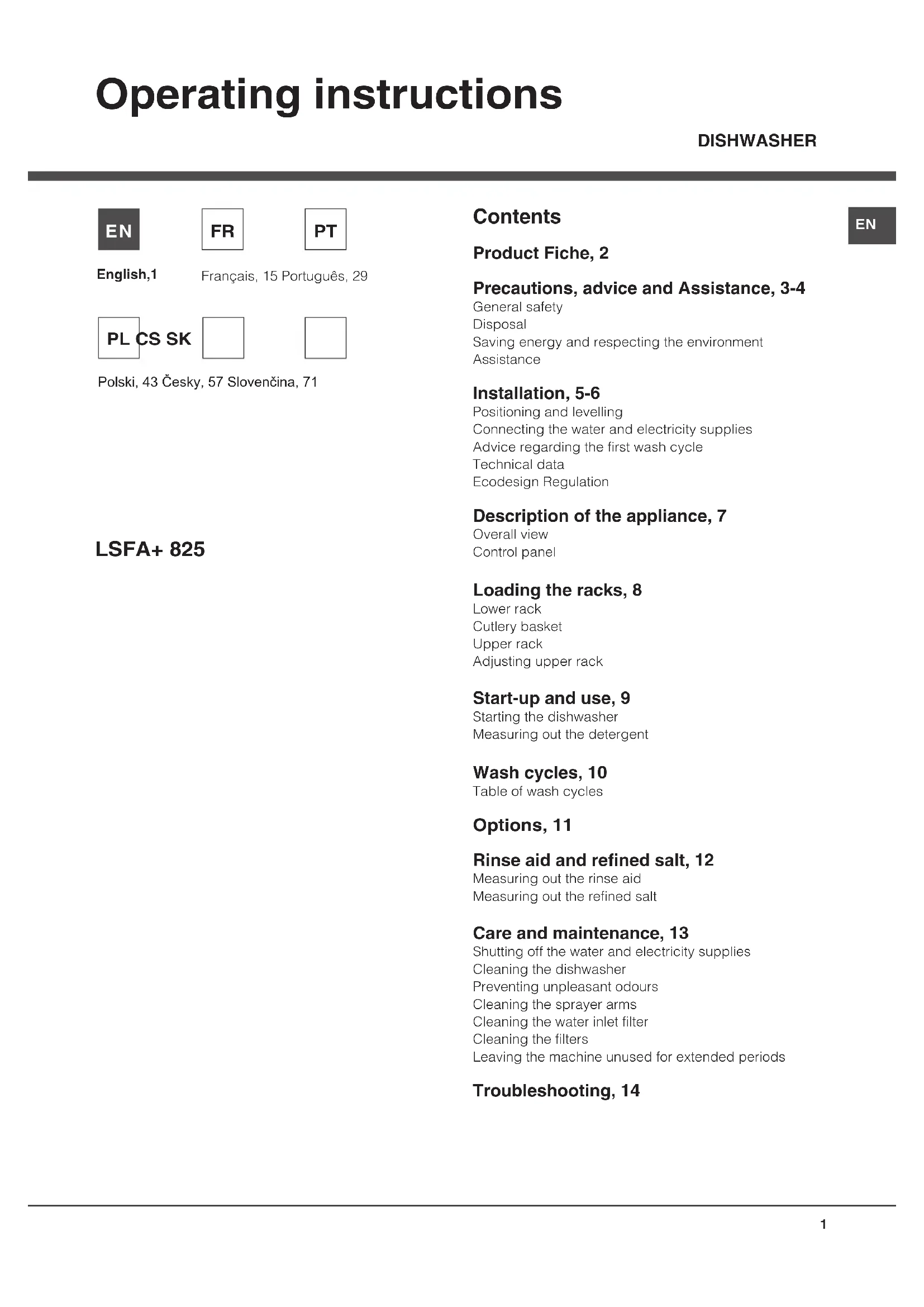

Operating instructions Contents Product Fiche, 2 Precautions, advice and Assistance, 3-4 General safety Disposal Saving energy and respecting the environment Assistance Installation, 5-6 Positioning and levelling Connecting the water and electricity supplies Advice regarding the first wash cycle Technical data Ecodesign Regulation Description of the appliance, 7 Overall view Control panel Loading the racks, 8 Lower rack Cutlery basket Upper rack Adjusting upper rack Start-up and use, 9 Starting the dishwasher Measuring out the detergent Wash cycles, 10 Table of wash cycles Options, 11 Rinse aid and refined salt, 12 Measuring out the rinse aid Measuring out the refined salt Care and maintenance, 13 Shutting off the water and electricity supplies Cleaning the dishwasher Preventing unpleasant odours Cleaning the sprayer arms Cleaning the water inlet filter Cleaning the filters Leaving the machine unused for extended periods Troubleshooting, 14 English,1

LSFA+ 825 DISHWASHER

Energy efciency class on a scale from A+++ (low consumption) to D (high consumption)

Energy consumption per year in kWh (2)

Energy consumption of the standard cleaning cycle in kWh

Power consumption of the off-mode in W

Power consumption of the left-on mode in W

Water consumption per year in litres (3)

Drying efcacy class on a scale from G (low efcacy) to A (high efcacy)

Programme time for standard cleaning cycle in minutes

The duration of the left-on mode in minutes

NOTES 1) The information on the label and che relates to the standard cleaning cycle, this programme is suitable to clean normally soiled tableware and it is the most efcient programme in terms of combined energy and water consumption. The standard cleaning cycle corresponds to the Eco cycle.

2) Based on 280 standard cleaning cycles using cold water ll and the consumption of the low power modes. Actual energy

consumption depends on how the appliance is used.

3) Based on 280 standard cleaning cycles. Actual water consumption depends on how the appliance is used.EN

• Only available in selected models. Precautions, advice and Assistance This appliance was designed and manufactured in compliance with international safety standards The following information has been provided for safety reasons and should therefore be read carefully. Keep this instruction manual in a safe place for future reference. If the appliance is sold, given away or moved, please ensure the manual is kept with the machine. Please read these instructions carefully: they contain important information on installation, use and safety. This appliance is designed for domestic use or similar applications, for example: - staff kitchen areas in shops, offices and other work environments; - farmhouses; - use by guests in hotels, motels and other residential settings; - bed & breakfasts. General safety

• Theapplianceshouldnotbeoperatedby people (including children) with reduced physical, sensory or mental capacities, or by inexperienced people who are not familiar with the product, unless supervision or instructions on how to use it are provided by someone who assumes responsibility for their safety.

• Anadultmustsupervisechildrenatalltimesto prevent them from playing with the appliance.

• The appliance was designed for domestic use inside the home and is not intended for commercial or industrial use.

• Theappliancemustbeusedbyadultsonlyto wash domestic crockery in accordance with the instructions in this manual.

• Theappliancemustnotbeinstalledoutdoors, even in covered areas. It is extremely dangerous to leave the machine exposed to rain and storms.

• Donottouchtheappliancewhenbarefoot.

• Whenunpluggingtheappliancealwayspullthe plug from the mains socket. Do not pull on the cable.

• Thewatersupplytapmustbeshutoffandthe plug should be removed from the electrical socket before cleaning or maintaining the appliance.

• Iftheappliancebreaksdown,donotunderany circumstances touch the internal parts in an attempt to perform the repair work yourself.

• Donotleanorsitontheopendoor of the appliance: this may cause the appliance to overturn.

• Thedoorshouldnotbeleftopenasitmaycreate a dangerous obstacle.

• Disposalofpackagingmaterial:observelocal legislation so that the packaging may be reused.

• The European Directive 2012/19/EU relating toWasteElectricalandElectronicEquipment (WEEE) states that household appliances should not be disposed of using the normal solid urban waste cycle. Exhausted appliances should be collected separately in order to optimise the re-using and recycling rate of the materials inside the machine, while preventing potential damage to the environment and public health. The crossed-out dustbin symbol is marked on all products to remind the owners of their obligations regarding separated waste collection. For further information relating to the correct disposal of household appliances, owners may contact the relevant public authority or the local appliance dealer. Saving energy and respecting the environment Saving water and energy

• Selectawashcyclethatissuitedtothetype of crockery and to the soil level of the crockery using the Table of wash cycles: - for dishes with a normal soil level use the Eco washcycle,whichensureslowenergy/water consumption levels. - If the load is smaller than usual activate the Half Load option* (see Start-up and use).

• Ifyourelectricitysupplycontractgivesdetailsof electricity-saving time bands, run wash cycles when electricity prices are lower. The Delayed Start button * (see Start-up and use) helps you organise the wash cycles accordingly.EN

Phosphate-free and chlorine-free detergents containing enzymes

• Westronglyrecommendthatyouusedetergents that do not contain phosphates or chlorine, as these products are harmful to the environment.

• Enzymesprovideaparticularlyeffectiveaction attemperaturesaround50°C.Asaresult detergentscontainingenzymescanbeusedin conjunction with low-temperature wash cycles in order to achieve the same results as a normal 65°Cwashcycle.

• Toavoidwastingdetergent,use theproduct in appropriate quantities based on the manufacturer’s recommendations, the hardness ofthe water, thesoil level andthe quantity of crockery to be washed. Even if they are biodegradable, detergents contain substances which may alter the balance of nature. Assistance Before contacting Assistance:• CheckwhethertheproblemcanberesolvedusingtheTroubleshooting guide (see Troubleshooting).
• Restarttheprogrammetocheckwhethertheproblemhas ceased to exist.• Ifthe problem persists, contact the AuthorisedTechnical Assistance Service.Never use the services of unauthorised technicians.Please have the following information to hand:• Thetypeofmalfunction.• Theappliancemodel(Mod.).• Theserialnumber(S/N).This information can be found on the appliance data plate (see Description of the appliance) .EN

• Only available in selected models. If the appliance must be moved at any time, keep it in an upright position; if absolutely necessary, it may be tilted onto its back. Positioning and levelling 1. Remove the appliance from all packaging and check that it has not been damaged during transportation. If it has been damaged, contact the retailer and do not proceed any further with the installation process.2. Arrange the dishwasher so that its sides or back panel are in contact with the adjacent cabinets or the wall. This appliance can also be recessed under a single worktop* (see the Assembly Instruction sheet.) 3. Position the dishwasher on a level sturdy floor. If the floor is uneven, the front feet of the appliance should be adjusted untilitreachesahorizontalposition.Iftheapplianceislevelledcorrectly, it will be more stable and much less likely to move or cause vibrations and noise while it is operating.4*. To adjust the height of the rear foot, turn the red hexagonal bushing on the lower central part at the front of the dishwasher using a hexagonal spanner with an opening of 8 mm. Turn the spanner in a clockwise direction to increase the height and in an anticlockwise direction to decrease it (see Building-in Instruction sheet attached to the documentation.) Connecting the water and electricity supplies Connection to the water and electricity supplies should only beperformedbyaqualifiedtechnician.The dishwasher should not stand on the water hoses or electricity supply cable.The appliance must be connected to the water supply network using new hoses.Do not use old piping.The water inlet and outlet hoses and the electricity supply cable may be positioned towards the right or the left in order to achieve the best possible installation. Connecting the water inlet hose
• Toasuitablecoldwaterconnectionpoint:beforeattachingthe hose, run the water until it is perfectly clear so that any impurities that may be present in the water do not clog the appliance; after performing this operation, screw the inlet hose tightly onto a tap with a ¾ gas threaded connection.• Toasuitablehotwaterconnectionpoint:yourdishwashermay be supplied with hot water from the mains supply (if you have a central heating system with radiators) provided that it doesnotexceedatemperatureof60°C.Screw the hose to the tap as described for connection to a cold water supply.If the inlet hose is not long enough, contact a specialist store or an authorised technician (see Assistance.) The water pressure must be within the values indicated in the Technical Data table (see adjacent information.) The hose should not be bent or compressed. Connecting the water outlet hose Connect the outlet hose (without bending it) to a drain duct with a minimum diameter of 4 cm. Theoutlethosemustbeataheightrangingfrom40to80cmfromthefloor/surfacewherethedishwasherrests(A).Before connecting the water outlet hose to the sink drain, remove the plastic plug (B). Anti-flooding protection To ensure floods do not occur, the dishwasher:- is provided with a special system which blocks the water supply in the event of anomalies or leaks from inside the appliance.Somemodelsarealsoequippedwiththesupplementarysafety device New Acqua Stop*, which guarantees anti-flooding protection even in the event of a supply hose rupture.

WARNING: HAZARDOUS VOLTAGE!

Under no circumstances should the water inlet hose be cut, as it contains live electrical parts. Electrical connection Before inserting the plug into the electrical socket, make sure that:• Thesocketisearthedandcomplieswithcurrentregulations.• thesocketcanwithstandthemaximumloadoftheappliance,which is indicated on the data plate located on the inside of the door (see Description of the appliance);

• Thepowersupplyvoltagefallswithinthevaluesindicatedonthe data plate on the inside of the door.• Thesocketiscompatiblewiththeplugoftheappliance.Ifthis is not the case, ask an authorised technician to replace the plug ( see Assistance ); do not use extension cables or multiple sockets.Once the appliance has been installed, the power supply cable and the electrical socket should be easily accessible.The cable should not be bent or compressed.If the power supply cable is damaged, it must be replaced by the manufacturer or its Technical Assistance Service in order topreventallpotentialhazards (see Assistance.)EN

Anti-condensation strip* After installing the dishwasher, open the door and stick the adhesive transparent strip under the wooden shelf in order to protect it from any condensation which may form. Advice regarding the first wash cycle After the installation, remove the stoppers from the racks and the retaining elastic elements from the upper rack, if any.Immediately before the fist washing, completely fill the salt dispenser with water and add only then approximately 1 kg of salt (see chapter entitled Rinse aid and refined salt)

The water may overflow: this is normal and is not a cause for concern. Select the water hardness value (see chapter entitled Rinse aid and refined salt). - After the salt has been pouredintothemachine,theLOWSALTindicatorlight* switches off.If the salt container is not filled, the water softener and the heating element may be damaged as a result. Technical data Dimensionswidth 45 cmheight 85 cmdepth 60 cmCapacity 10 standard place-settingsWater supply pressure0,05 ÷ 1MPa (0.5 ÷ 10 bar)7,25 – 145 psiPower supply voltage See appliance data plateTotal absorbed power See appliance data plateFuse See appliance data plateThis dishwasher conforms to the following European Community Directives: -2006/95/EC (Low Voltage)-2004/108/EC (Electromagnetic Compatibility) -2009/125/EC (Comm. Reg. 1016/2010) (Ecodesign)-97/17/EC (Labelling)-2012/19/EU Waste Electrical and Electronic Equipment (WEEE)The machine has a buzzer/set of tones (depending on the dishwasher model) to inform the user that a command has been implemented: power on, cycle end etc. The symbols/indicator lights/LEDs on the control panel/display may vary in colour and may have a flashing or fixed light (depending on the dishwasher model) The display*

Only available in selected models).provides useful information concerning the type of wash cycle, drying/wash-cycle phase, remaining time, temperature etc etc. ECODESIGN REGULATION ECO wash cycle is the standard cycle to which the energy label data refers; this cycle can be used to wash crockery with a nor- mal soil level and is the most efficient in terms of energy and water consumption for this type of crockery. To reduce consumption even further, only run the dishwasher when it is full.Standbyconsumption:Left-onmodeconsumption:3W–Offmodeconsumption:1,3WConsumption data table for the main cycles

• Cycledatareferstothevaluesrecordedinalaboratory,inaccordancewithEuropeanstandardEN50242. ** Data is obtained by recording values when the appliance is operational and loaded with user crockery. Standard conditions* User conditions**Energy consumption (kWh/cycle)Water consumption (l/cycle)Duration (min/cycle)Energy consumption (kWh/cycle)Water consumption (l/cycle)Duration (min/cycle)INTENSIVE 1,30 14 150 1,15 14 140 NORMAL 1,05 14 115 0,95 13 110EN

Overall view Description of the appliance ***Only in completely built-in models.

• Only available in selected models. Control panel The number and type of wash cycles and options may vary depending on the dishwasher model. Display Start/Pause button and indicator lightHalf load buttonDisplayDelayed start buttonON/OFF/RESET buttonSelect wash cycle buttonMulti-functional Tablets button

3. Tip-up compartments

6. Lower sprayer arm

Loading the racks *Only available in selected models with different numbers and positions.Before loading the racks, remove all food residues from the crockery and empty liquids from glasses and cups.Arrange the crockery so that it is held in place firmly and does not tip over.After loading the appliance, check that the sprayer arms can rotate freely. Lower rack The lower rack can hold pans, lids, plates, salad bowls, cutlery, etc. as seen in the Loading examples.Plates and large covers should be placed at the sides of the rack, ensuring that they do not block the rotation of the upper sprayer arm.Some dishwasher models are fitted with tip-up sections*, which can be used in a vertical position when arranging platesorinahorizontalpositionwhenarranging pans and salad bowls. Cutlery basket The type of cutlery basket may vary according to the dishwasher model: The cutlery basket should be positioned at the front of the lower rack, by sliding it between the fixed inserts, or on the upper rack when the half load option has been selected (in models featuring this option).- It has a collapsible sliding system which means the cutlery can be arranged in the best possible way.Knives and other utensils with sharp edges must be placed in the cutlery basket with the points facing downwards, or they mustbepositionedhorizontallyinthetip-upcompartmentsonthe upper rack. Cutlery basket positioning examples Upper rack Load this rack with delicate and lightweight crockery: glasses, tea and coffee cups, saucers, small salad bowls, saucepans and small saucepans which are not too soiled, using the Loading examples as a guide.•Mugsandcups,longsharpknivesandservingutensils:placethese on the tip-up compartments**. Tip-up compartments with adjustable tilt* - The tilt feature can be used to increase the space in the upper rack, to position wine glasses with different stem lengths safely and to improve drying performance. -Lift the tip-up compartment, slide it gently and position it in the desired tilt angle. Adjusting the height of the upper rack In order to make it easier to arrange the crockery, the upper rack may be moved to a higher or lower level.The height of the upper rack should ideally be adjusted WHEN THE RACK IS EMPTY.Never lift or lower the rack on one side only.Open the left and right guide rail stops and pull out the rack; position it higher orlowerasrequired,slideitalongtheguide rails until the front wheels are in place and close the stops (see figure).If the rack is fitted with “Dual Space” handles* (see figure), pull out the upper rack until it reaches its stop point, grip the handles at the sides of the rack and move it upwards or downwards, then slowly let it fall back into place. Loading examples for the upper rack Loading examples for the lower rack Items which should not be washed in the dishwasher

• Woodenitems,objectswithwoodenorhornhandlesorglued-on parts.• Itemsmadefromaluminium,copper,brass,pewterortin.• Itemsmadefromplasticmaterialwhichisnotheat-resistant.• Antiqueorhand-paintedporcelain.• Antiquesilver. Silverwhich isnotantique may,however,be washed in the dishwasher using a delicate wash cycle, provided that it does not come into contact with other metals.Werecommendtheuseofcrockerywhichisdishwashersafe. Tilt A Tilt B Tilt CEN

Start-up and use Measuring out the detergent A good wash result also depends on the correct amount of detergent being used; exceeding the stated amount does not result in a more effective wash and increases environmental pollution. Only use detergent which has been specifically designed for dishwashers. DO NOT USE washing up liquid. Using excessive detergent may result in foam residue remaining in the machine after the cycle has ended. The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option. To achieve the best results from each washing and drying cycle, powder detergent, rinse aid liquid and salt should be used.Compartment A:WashingdetergentCompartment B: Pre-wash detergent1. Open cover C by pressing button D.2. Pour in the detergent after consulting the Table of wash cycles:

• Forpowderdetergentusecompartments A and B.•Fordetergentintabletform:whenthecyclerequires1tablet,place it in compartment A and close the cover; when it requires 2, place the second tablet at the bottom of theappliance.3. Remove detergent residues from the edges of the compartment and close the cover until it clicks.

• Only available in selected models. Starting the dishwasher 1. Turn the water tap on. 2.PresstheON/OFFbutton:alltheindicatorlightsonthecontrol panel will light up for a few seconds.3. Open the door and pour in a suitable amount of detergent (see below)

(see Loading the racks) and shut the door.5. Select the wash cycle in accordance with the type of crockery and its soil level (see Table of wash cycles)

pressing the P button.6. Select the wash options* (see adjacent information). 7.StartthecyclebypressingtheStart/Pausebutton(fixedlight). A long beep signals the start of the wash cycle; the wash cycle indicator light is illuminated and the time remaining until the end of the cycle is displayed.8. Two short beeps and one long one indicate the end of thewashcycle;theStart/Pausebuttonswitchesoffandtheword END appears on the display. Switch off the appliance bypressingtheON/OFFbutton,shutoffthewatervalveandunplug the appliance from the electricity socket.9.Waitforafewminutesbeforeremovingthecrockery,inorder to avoid burns. Unload the racks, beginning with the lower level. - The machine will switch off automatically during certain periods of inactivity, in order to minimise electricity consumption. Modifying a wash cycle in progress If a mistake was made during the wash cycle selection process it is possible to change the cycle, provided that it has only just begun: once the wash cycle has started, switch offthemachinebypressingandholdingtheON/OFF/Resetbutton. Switch it back on using the same button and select the desired wash cycle and options. Adding extra crockery PresstheStart/Pausebutton(thecorrespondingindicatorlight will flash). Open the door, taking care to avoid the escaping steam, and place the crockery inside the appliance.PresstheStart/Pausebutton(fixedlight):thecyclestarts from the point at which it was interrupted.IftheStart/Pausebuttonispressedsoastopausethemachine, the wash cycle or the Delayed Start* function(if selected) is interrupted.At this stage it is not possible to change the wash cycle. Accidental interruptions If the door is opened during the wash cycle, or if there is a power cut, the cycle stops. It starts again from the point at which it was interrupted once the door has been shut or once the electricity supply is restored.EN

Wash cycles The number and type of wash cycles and options may vary depending on the dishwasher model. Wash-cycledataismeasuredunderlaboratoryconditionsaccordingtoEuropeanStandardEN50242. Based on the different conditions of use, the wash-cycle duration and data can change. Wash cycle selection instructionsWash cycleDetergent(A) = compartment A(B) = compartment BWash cycles which include dryingOptionsWash cycle duration (tolerance ±10%)Hrs. Min.Powder Liquid TabletsEnvironmentally-friendly wash cycle with low energy consumption levels, suitable for pans and dishes. 1. Eco*21 g (A)4 g (B)21 ml (A)4 ml (B))1 (A) YesDelayed start - Half load - Tabs3:00’Normally soiled pans and dishes. Standard daily wash cycle.2. Normal21 g (A)4 g (B)21 ml (A)4 ml (B)1 (A) YesDelayed start - Half load - Tabs1:50’Limited quantity of daily soiling. (4 place settings + 1 saucepan +1 frying pan).3. Daily25 g (A) 25 ml (A) 1 (A) NoDelayed start - Half load - Tabs1:00’Pre-wash for dishes while awaiting completion of the load with the dishes from the next meal.4. SoakNo No No NoDelayed start - Half load0:08’Heavily soiled dishes and pans (not to be used for delicate items).5.Intensive25 g (A) 25 ml (A) 1 (A) YesDelayed start - Half load - Tabs2:25’Economic and fast wash to be used for lightly soiled dishes. (Run cycle immediately after use) (2 plates + 2 glasses + 4 pieces of cutlery + 1 saucepan + 1 small frying pan).6. Speed 25’ 21 g (A) 21 ml (A) 1 (A) NoDelayed start - Tabs0:25’ Economic and fast wash for delicate items which are sensitive to high temperatures. (Run cycle immediately after use) (glasses upper rack+ delicate plates, lower rack).7. Crystal25 g (A) 25 g (A) 1 (A) YesDelayed start - Half load - Tabs1:35’Notes:To make it easier to measure out the detergent, it is worth remembering that: 1tablespoon=15gr.ofpowder=approximately15mlofliquid-1teaspoon=5gr.ofpowder=approximately5mlofliquid *TheEcowashcycleadherestotheregulationEN-50242.Althoughithasalongerdurationthanotherwashcyclesitusesless energy and is les harmful to the environment.EN

Options Notes: Optimum performance levels when using the “Daily and "Speed” cycles can be achieved by respecting the specified number of place settings. To reduce consumption, only run the dishwasher when it is full. Note for Test Laboratories: forinformationoncomparativeENtesting conditions, please send an email to the following address: assistenza_en_lvs@indesitcompany.com Wash options The OPTIONS may only be set, modified or reset after the wash cycle has been selected and before the Start/Pause button has been pressed.Only the options which are compatible with the type of wash cycle set may be selected. If an option is not compatible with the selected was cycle (see Table of wash cycles) , the corresponding LED flashes rapidly 3 times.If an option is selected which is incompatible with another option or wash cycle selected previously, the incompatible option light will flash 3 times and switches off, while the most recently selected setting remains lit.To deselect an option which has been set by mistake, press the corresponding button again. Delayed start The start of the wash cycle may be delayed for a period of time between 1 and 24 hours.1. After selecting the desired wash cycle and any other options, press the DELAYED START button: the corresponding indicator light will illuminate. Use the same button to select the time at which you wish the wash cycle to begin (after a period of 1 to 24 hours).2.ConfirmyourselectionusingtheStart/Pausebutton;thecountdown will begin. The selected delay period indicator lightisdisplayedandtheStart/Pausebuttonstopsflashing(the light becomes fixed instead).3.Whenthesettimehaselapsed,alongbeepsounds,theDELAYED START indicator light switches off and the wash cycle begins.To deselect the DLEAYED START option, press the DELAYED START button repeatedly until the text OFF appears.The Delayed Start function cannot be set once the wash has been started. Half load If there are not many dishes to be washed, a half load cycle may be used in order to save water, electricity and detergent. Select the wash cycle and press the HALF LOAD button: the indicator light will illuminate. Remember to halve the amount of detergent.It is better to use powder detergent in this case. Multi-functional tablets (Tabs) This option optimises washing and drying results.Whenusingmulti-functionaltablets,presstheMULTI-FUNCTIONALTABLETSbutton.Thecorrespondingindicatorlight will illuminate. The “Multi-functional tablets” option results in the lengthening of the wash cycle.The MULTI-FUNCTIONAL TABLETS option remains set for subsequent wash cycles if it is not deselected.The use of tablets is only recommended for models which offer the MULTI-FUNCTIONAL TABLETS option.This option is not recommended for use with wash cycles which do not specify the use of multi-functional tablets.

• Only available in selected models.EN

Rinse aid and refined salt Water Hardness TableAverage salt dispenser capacity duration**level °dH °fH mmol/l months1 0 - 6 0 - 10 0 - 1 7 months2 6 - 11 11 - 20 1,1 - 2 5 months3 12 - 17 21 - 30 2,1 - 3 3 months4 17 - 34 31 - 60 3,1 - 6 2 months5*34 - 50 61 - 90 6,1 - 9 2/3 weeksFor values between 0°f and 10°f, we do not recommend the use of salt.

• a setting of 5 may increase cycle duration. ** 1 wash cycle per day. Only use products which have been specifically designed for dishwashers. Do not use table salt or industrial salt, or washing up liquid. Follow the instructions given on the packaging. If using a multi-functional product it is not necessary to add rinse aid; however, we recommend that you add salt, especially if you live in an area where the water is hard or very hard. Follow the instructions given on the packaging. If you do not add salt or rinse aid, the LOW SALT* and LOW RINSE AID* indicator lights remain lit. Measuring out the rinse aid Rinse aid makes it easier for the crockery to dry, as water runs off surfaces more readily and therefore does not leave streaks or marks.The rinse aid dispenser should be filled:•WhentheLOWRINSEAID* indicator light on the controlpanel/dislayisilluminated;1. Open the dispenser by turning the lid (G) in an anticlockwise direction.2. Pour in the rinse aid, making sure it does not overflow from the dispenser. If this happens, clean the spill immediately with a dry cloth.3. Screw the lid back on.NEVER pour the rinse aid directly into the appliance tub. Adjusting the amount of rinse aid If you are not completely satisfied with the drying results, you mayadjustthequantityofrinseaidused.Useascrewdrivertoturn the dosage adjuster (F) to one of the 6 pre-set positions (the default position is set to 4):•Iftherearestreaksonthecrockery,settheadjustmentdeviceto a lower number (1-3).•Ifdropsofwaterremainonthecrockeryoriftherearelimescalemarks present after the cycle has finished, set the adjuster to a higher number (4-6). Setting the water hardness Everydishwasherisequippedwithawatersoftenerwhich,byusing refined salt designed especially for this type of appliance, supplies water without limescale which is then used to wash the crockery. This dishwasher offers a setting which helps to reduce pollution and optimises washing performance in accordance with the water hardness level in your area. This information can be obtained from your local water supplier. - Switch on the appliance by pressing the ON/OFF button.- Press the P button and hold for approximately 5 seconds; two short beeps will sound, the text H2O will appear on the display and the set hardness number will flash (the water softening system is set by default to number 3). Press the P button repeatedly until the desired hardness level has been reached (1-2-3-4-5*seeWaterhardnesstable),uptoamaximumof five levels.- To exit the function, wait a few seconds or press one of the op- tion buttons*, or switch off the machine using the ON/OFF button. Even if using multi-functional tablets, the salt dispenser should still be filled.(°dH=hardnessmeasuredinGermandegrees-°f=hardnessmeasuredinFrenchdegrees-mmol/l=millimolesperlitre) Measuring out the refined salt In order to achieve the best possible results using a wash cycle, make sure that the dispenser is never empty. Refined salt removes limescale from the water, thus avoiding the formation of deposits on crockery. The salt dispenser is located in the lower part of the dishwasher (see Description) and should be filled:
• Whenthegreenfloat* cannot be seen by simply looking at the cap of the salt dispenser.
• When the LOW SALT*indicatorlight on thecontrolpanel/ display is illuminated;1. Remove the lower rack and unscrew the container cap (anticlockwise).2. The first time you do this: fill the water tank right up to its edge.3. Position the funnel* (see figure) and fill the salt container right up to its edge (this should hold approximately 1 kg); it is not unusual for a little water to leak out.4. Remove the funnel* and wipe any salt residue away from the opening; rinse the cap under running water and then screw it on, the head facing downwards so as to let the water flow out of the four cracks which are arranged in a star shape on the lower part of the cap. (Salt cap with green float*)It is advisable to perform this procedure every time you add salt to the container. Make sure the cap is screwed on tightly, so that no detergent can get into the container during the wash cycle (this could damage the water softener beyond repair).Whennecessary,measureoutthesaltbeforeawashcycleso that any saline solution which has leaked out of the salt dispenser is removed.
• Only available in selected models.

Care and maintenance Shutting off the water and electricity supplies

• Turnoffthewatertapaftereverywashcycletoavoidleaks.• Alwaysunplug the appliance when cleaning it and whenperforming maintenance work. Cleaning the dishwasher
• Theexternalsurfacesofthemachineandthecontrolpanelcan be cleaned using a non-abrasive cloth which has been dampened with water. Do not use solvents or abrasive products.• Anymarksontheinsideoftheappliancemayberemovedusing a cloth dampened with water and a little vinegar. Preventing unpleasant odours
• Alwayskeepthedooroftheapplianceajarinordertoavoidmoisture from forming and being trapped inside the machine.• Cleanthesealsaroundthedooranddetergentdispensersregularly using a damp sponge. This will avoid food becoming trapped in the seals, which is the main cause behind the formation of unpleasant odours. Cleaning the sprayer arms Food residue may become encrusted onto the sprayer arms and block the holes used to spray the water. It is therefore recommended that you check the arms from time to time and clean them with a small non-metallic brush.The two sprayer arms may both be removed.To remove the upper sprayer arm, turn the plastic locking ring in an anti-clockwise direction. The upper sprayer arm should be replaced so that the side with the greater number of holes is facing upwards.The lower sprayer arm can be removed by pressing on the side tabs and pulling it upwards. Cleaning the water inlet filter* If the water hoses are new or have not been used for an extended period of time, let the water run to make sure it is clear and free of impurities before performing the necessary connections. If this precaution is not taken, the water inlet could become blocked and damage the dishwasher.Clean the water inlet filter at the tap outlet regularly. - Turn off the water tap.- Unscrew the end of the water inlet hose, remove the filter and clean it carefully under running water.- Re-place the filter and screw the water hose back into position. Cleaning the filters The filter assembly consists of three filters which remove food residues from the washing water and then recirculate the water. They should be cleaned if you wish to achieve the best results in every wash.Clean the filters regularly.The dishwasher should not be used without filters or if the filter is loose.•Afterseveralwashes,checkthefilterassemblyandifnecessaryclean it thoroughly under running water, using a non-metallic brush and following the instructions below:

1. Turn the cylindrical filter C in an anti-clockwise direction and

pull it out (fig. 1).

2. Remove the cup filter B by exerting a slight pressure on the

side flaps (fig. 2);

3. Slide out the stainless-steel plate filter A.

4. Inspect the trap and remove any food residues. NEVER REMOVE the wash-cycle pump protection

(black detail) (fig.4). After cleaning the filters, re-place the filter assembly and fix it in position correctly; this is essential for maintaining the efficient operation of the dishwasher. Leaving the machine unused for extended periods

• Disconnecttheappliancefromtheelectricitysupplyandshutoff the water tap.• Leavethedooroftheapplianceajar.• Whenyoureturn,runawashcyclewhenthedishwasherisempty.
• Only available in selected models.

Troubleshooting Whenevertheappliancefailstowork,checkforasolutionfromthefollowinglistbeforecallingforAssistance.

• Only available in selected models. Problem: Possible causes / Solutions: The dishwasher does not start or cannot be controlled• Switch off the appliance by pressing the ON/OFF button, switch it back on after approximately one minute and reset the program. • The appliance has not been plugged in properly.• The dishwasher door has not been shut properly. The door won’t close • The lock was released. Strongly push the door until a “clacking” noise is heard. No water drains out from the dishwasher.• The dishwasher cycle has not yet nished.• The water inlet hose is bent (see Installation).• The drain duct is blocked.• The lter is clogged up with food residues.The dishwasher makes excessive noise.• The dishes are rattling against each other or against the sprayer arms.• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). The dishes and glasses are covered in a white lm or limescale deposits.• The level of the rened salt is low or the dosage setting is not suited to the hardness of the water (see Rinse aid and salt).• The lid on the salt dispenser is not closed properly.• The rinse aid has been used up or the dosage is too low.The dishes and glasses are streaked or have a bluish tinge.• The rinse aid dosage is too high.The crockery has not been dried properly.• A wash cycle without a drying program has been selected.• The rinse aid has been used up or the dosage is too low (see Rinse aid and salt).• The rinse aid dispenser setting is not suitable. • The crockery is made from non-stick material or plastic.The dishes are not clean. • The racks are overloaded (see Loading the racks).• The crockery has not been arranged well.• The sprayer arms cannot move freely.• The wash cycle is too gentle (see Wash cycles).• An excessive amount of foam has been produced: the detergent has not been measured out correctly or it is not suitable for use in dishwashers (see Start-up and use). • The lid on the rinse aid compartment has not been shut correctly. • The lter is dirty or blocked (see Care and maintenance).• The rened salt level is low (see Rinse aid and salt).The dishwasher does not take any water in - Tap shut-off alarm(the display shows A 6).• There is no water in the mains supply.• The water inlet hose is bent (see Installation).• Turn on the tap and the appliance will start after a few minutes.
• The appliance lock has been activated because no action was taken when the beeps* sounded. Switch off the appliance using the ON/OFF button, turn on the tap and switch the appliance back on after 20 seconds by pressing the same button. Re-program the appliance and restart the wash cycle.Water inlet hose alarm / Water inlet lter blocked(the display shows A 7).• Switch off the appliance by pressing the ON/OFF button. Shut off the water tap to eliminate the risk of ooding and remove the plug from the electrical socket. Make sure the water inlet lter has not become blocked by impurities (see “Care and maintenance” chapter).FR
