USER MANUAL RCE24VGBFSS GE

Lado a Lado Models 21,22,23,24,25,27,28,29 and 30Write the model and serial numbers here:Model # __________________________Serial # __________________________Find these numbers on a label inside the refrigerator compartment at the top on the right. Owner’s Manual and Installation

Use this appliance only for its intended purpose as described in this Owner’s Manual.

SAFETY PRECAUTIONS When using electrical appliances, basic safety precautions should be followed, including the following:

 This refrigerator must be properly installed

and located in accordance with the Installation

Instructions before it is used. Also see the

How to Connect Electricity section.

 Do not allow children to climb, stand or hang on

the shelves in the refrigerator. They could damage

the refrigerator and seriously injure themselves.

 Do not touch the cold surfaces in the freezer

compartment when hands are damp or wet.

Skin may stick to these extremely cold surfaces.

 Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any

 In refrigerators with automatic icemakers, avoid

contact with the moving parts of the ejector

mechanism, or with the heating element located

on the bottom of the icemaker. Do not place fingers

or hands on the automatic icemaking mechanism

while the refrigerator is plugged in.

 Installation of the icemaker must be done by

a qualified service technician.

 This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by a

person responsible for their safety.

 Children should be supervised to ensure that they do

not play with the appliance.

 Keep fingers out of the “pinch point” areas;

clearances between the doors and between the

doors and cabinet are necessarily small. Be careful

closing doors when children are in the area.

 Unplug the refrigerator before cleaning and making

NOTE: We strongly recommend that any servicing

be performed by a qualified individual.

 Before replacing a burned-out light bulb, the

refrigerator should be unplugged in order to avoid

contact with a live wire filament. (A burned-out light

bulb may break when being replaced.)

NOTE: Setting either or both controls to 0 (off) does

not remove power to the light circuit.

 Do not refreeze frozen foods which have

DANGER! RISK OF CHILD ENTRAPMENT PROPER DISPOSAL OF THE REFRIGERATOR Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are

still dangerous…even if they will sit for “just a few

days.” If you are getting rid of your old refrigerator,

please follow the instructions below to help prevent

Before You Throw Away Your Old

Refrigerator or Freezer:

 Take off the doors and discard separately.

 Leave the shelves in place so that children may

not easily climb inside.

All refrigeration products contain refrigerants,

which under federal law must be removed prior

to product disposal. If you are getting rid of an

old refrigeration product, check with the company

handling the disposal about what to do.3

HOW TO CONNECT ELECTRICITY The power cord of this appliance is equipped with

an earthing plug which mates with a standard

earthed wall outlet to minimize the possibility

of electric shock hazard from this appliance.

Have the wall outlet and circuit checked by a qualified

electrician to make sure the outlet is properly earthed.

Where an unearthed wall outlet is encountered,

it is your personal responsibility and obligation to have

it replaced with a properly earthed wall outlet.

The refrigerator should

always be plugged into

wiring circuits which could cause a fire hazard from

overheated wires. Please refer to the rating plate on

the refrigerator for the correct voltage, wattage and

frequency. If the product plug does not fit your outlet,

the product should be fitted with a new plug.

IMPORTANT: The refitting of electric plugs and cables

should be done by a qualified technician or service

agent. In some countries the refitting of electric plugs

and cables is only permitted when the work is

completed by a qualified technician.

If the power supply cord becomes damaged, it must

be replaced by a qualified service agent in order to

avoid a safety hazard.

Never unplug your refrigerator by pulling on the

power cord. Always grip plug firmly and pull straight

out from the outlet.

Repair or replace immediately all power cords that

have become frayed or otherwise damaged. Do not

use a cord that shows cracks or abrasion damage

along its length or at either end.

When moving the refrigerator away from the wall,

be careful not to roll over or damage the power cord.

Mains lead replacement

If the mains lead on your refrigerator needs replacing

at any time, it must be replaced by a special lead

which is obtainable from your local dealer. A charge

will be made for the replacement of the mains lead

if you have damaged the lead.

The refrigerator must be positioned so that the plug

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.

SAVE THESE INSTRUCTIONS Insure proper earthingexists before using.Earthing plug

NOTES ON THE CONTAINMENT OF FLUORINATED GREENHOUSE GASES Contains fluorinated greenhouse gases covered by the Kyoto Protocol.

Gas: R134a (HFC-134a), GWP (Global Warming Potential) = 1300

Hermetically sealed.

The amount of R134a gas in this product is:

About the temperature controls – Profile Models.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not

removed during installation, remove it now.

The temperature controls are preset in the factory at 37°F (3°C)

for the refrigerator compartment and 0°F (-18°C) for the freezer

compartment. Allow 24 hours for the temperature to stabilize

to the preset recommended settings.

Refrigerator temperatures can be adjusted between 34°F and 46°F

(1°C to 8°C), and the freezer temperatures can be adjusted between

–6°F and +8°F (–21°C to –13°C).

To change the Refrigerator temperature:

Access By: Home > Refrigerator

Activate By: Using the arrows to select the desired

temperature. You must press ENTER to set the new

To change the Freezer temperature:

Access By: Home > Freezer

Activate By: Using the arrows to select the desired

temperature. You must press ENTER to set the new

Once the desired temperature has been set, the display will

return to the HOME screen and show the set temperatures

underneath the actual temperature display for several

seconds. Several adjustments may be required. Each time you

adjust the controls, allow 24 hours for the refrigerator to reach

the temperature you have set.

To change the temperature, press and release the FREEZER TEMP/FRIDGE TEMP pad. The SET light will come on and

the display will show the set temperature. To change the

temperature, tap either the or pad until the desired

temperature is displayed.

Once the desired temperature has been set, the temperature

display will return to the actual refrigerator and freezer

temperatures after 5 seconds. Several adjustments may be

required. Each time you adjust the controls, allow 24 hours for

the refrigerator to reach the temperature you have set.

The temperature controls can display both the SET temperature

as well as the actual temperature in the refrigerator and freezer.

The actual temperature may vary slightly from the SET temperature

based on usage and operating environment.

Turning the cooling system off:

LCD models: Turning the cooling system OFF stops cooling in both

the freezer and refrigerator compartments, but does not shut off

electrical power to the refrigerator.

Access By: Home > Options > Information and Settings >

To turn the cooling system back on, press the touch screen

Activate By: Pressing ENTER.

Press and release the FREEZER TEMP/FRIDGE TEMP pad.

Press to set freezer temperature to 5. The display will

show OFF. To turn the unit back on, press the FREEZER TEMP/FRIDGE TEMP pad. Press to set the freezer and

refrigerator temperatures to the preset points of 0°F (-18°C)

for the freezer and 37°F (3°C) for the refrigerator.

When the unit is turned back on, it will take up to 24 hours

The LCD models are shipped from the factory with default

settings of English units.

To change to Metric units, select:

Home>Options>Information and Settings>Settings>Units

Metric/English>Metric.

To change back to English units repeat the above steps and

select English at the final step.

NOTE: The help screen has default setting for US and Canada

customers. If you need replacement parts, contact your local

LCD modelsNon-LCD models Non-LCD models

Not all features are on all models. Your controls will look like one of the following:

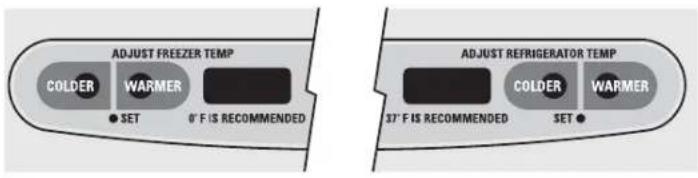

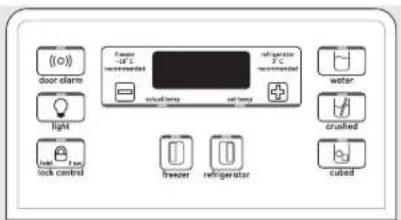

About the temperature controls – GE, Monogram Models.

The temperature controls are preset in the factory at 5 for both the refrigerator and freezer compartments for the

Set Point Controls or to 3/-18ºC for Actual Temp Controls.

To adjust the Set Point temperature, press the WARMER or COLDER button on either the Freezer or Refrigerator side.

The set point light will come on. Press WARMER or COLDER until the desired setting is reached.

To adjust the Actual Temp temperature, first press the Freezer or Refrigerator button. Then press the or

buttons (or the or ) to increase or decrease temperature to the desired setting. Repeat for the other compartment.

Several adjustments may be required. Each time you adjust controls, allow 24 hours after each adjustment for the

refrigerator to reach the setting you have selected.

Setting either or both controls to 0 stops cooling in both the freezer and refrigerator compartments, but does not shut

off electrical power to the refrigerator.

Control settings will vary based on personal preferences, usage and operating conditions and may require more

than one adjustment.

NOTE: The refrigerator is shipped with protective film covering the temperature controls. If this film was not removed

during installation, remove it now.

This refrigerator is designed to operate in ambient temperatures specified by its Temperature Class, which is marked on

Temperature Symbol Ambient Temperature

Class Maximum Minimum

Temperate SN 32°C 10°C Temperate N 32°C 16°C Subtropical ST 38°C 16°C Tropical T 43°C 16°C NOTE: Internal temperature may be affected by such factors as the location of the refrigerator, ambient temperature

and frequency of door openings. Adjust temperature controls as required to compensate for these

The unit will have one of the temperature controls shown below:

Internal Temperature

Ambient temperature limits

rapidly cools the refrigerator

compartment in order to more quickly

cool foods. Use TurboCool when adding

a large amount of food to the refrigerator

compartment, putting away foods after they

have been sitting out at room temperature or

when putting away warm leftovers. It can also

be used if the refrigerator has been without

power for an extended period.

Once activated, the compressor will turn

on immediately and the fans will cycle on

and off at high speed as needed for eight

hours. The compressor will continue to run

until the refrigerator compartment cools

to approximately 34°F (1°C), then it will cycle

on and off to maintain this setting. After

8 hours, or if TurboCool is pressed again,

the refrigerator compartment will return

to the original setting.

Deactivate By: Pressing OFF.

Press SET FEATURES. The refrigerator

temperature display will show TurboCool

and/or TC. Press ON/OFF.

Internal Control Models:

Press TurboCool. The TurboCool indicator

light will come on. After TurboCool is complete,

the TurboCool indicator light will go out.

After TurboCool is complete, the refrigerator

compartment will return to the original setting.

The refrigerator temperature cannot be changed

The freezer temperature is not affected during

When opening the refrigerator door during

TurboCool, the fans will continue to run if they

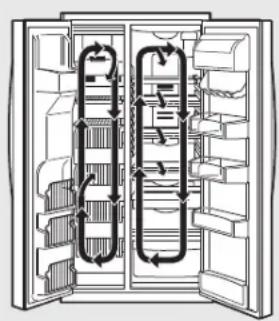

About ClimateKeeper2.

most advanced refrigeration system,

delivering optimum temperature and

humidity performance to keep food garden

fresh longer and reduce freezer burn, while

maintaining efficiency.

The ClimateKeeper2 system features two

evaporators—one for the refrigerator and

one for the freezer.

This provides two separate cooling systems,

and separates the airflow between the fresh

food and freezer compartments during normal

cooling operations.*

This ensures that the humidity levels in

the fresh food compartment are significantly

higher than in a conventional system,** allowing

fresh produce and other unsealed foods to retain

their moisture content and freshness longer.

Moisture sensitive foods such as fresh fruit,

salads, rice, etc., can now be stored on open

shelves without excessive moisture loss. Due to

the higher humidity in the refrigerator, you may

on occasion experience fog or small amounts of

moisture in the refrigerator compartment. This is

normal and may come and go as different food

loads and environmental conditions change.

Wipe dry with a paper towel if desired.

The separate airflow system minimizes the mixing

of air between the two compartments, which

reduces fresh food odor transfer to improve

The ClimateKeeper2 system also reduces

the number of defrosting cycles in the freezer

evaporator, thereby reducing freezer burn.

*Freezer air is used in the CustomCool feature.

**Testing shows a higher level of humidity in

the Fresh Food section in ClimateKeeper2

refrigerators versus conventional units.

This pad is used to select the following

features: TurboCool, Quick Ice, Door Alarm

Pressing SET FEATURES repeatedly will cycle

through all of the available features and then

exit the mode. If no key is pressed, the mode

will exit and return to displaying features

Empty the pan. Place the Chill/Thaw tray

in the pan. Place the items on the tray

and close the pan completely.

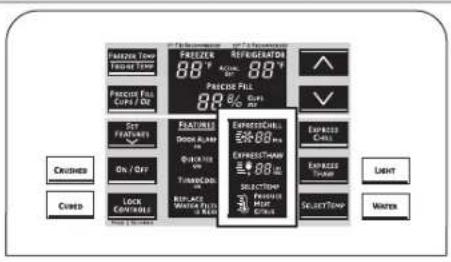

Access by: Home > Options > Refrigerator

pad. The display and SET light

will come on. Tap the pad until the light

appears next to the desired setting.

Use the following chart to determine the best

 ExpressChill can be set to 15, 30 or 45

minutes. The default is 15 minutes.

 To stop a feature before it is finished:

Go into that feature’s menu and press

Tap that feature’s pad until no options

are selected and the display is off.

essThaw and ExpressChill,

the display on the controls will count down

the time in the cycle (on some models).

 After the ExpressThaw cycle is complete,

the pan will reset to the MEAT setting

(32°F [0°C]) to help preserve thawed

items until they are used.

 The displayed actual temperature of

the CustomCool pan may vary slightly

from the SET temperature based on

usage and operating environment.

NOTE: For food safety reasons, it is recommended

that foods be wrapped in plastic wrap when using

ExpressThaw. This will help contain meat juices

and improve thawing performance.

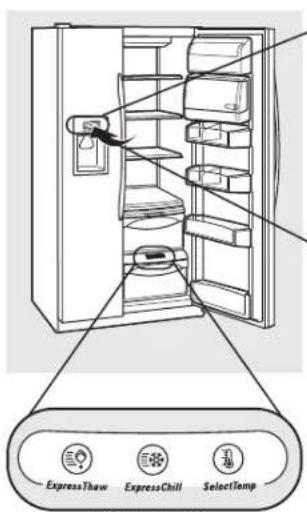

feature is used to quickly chill

items, thaw items or hold the pan at a specific

temperature. This feature is a system of dampers,

a fan, a temperature thermistor and a heater.

The pan is tightly sealed to prevent

temperature fluctuations in the rest of

the refrigerator. The controls for this pan

are located on the dispenser with the

temperature controls.

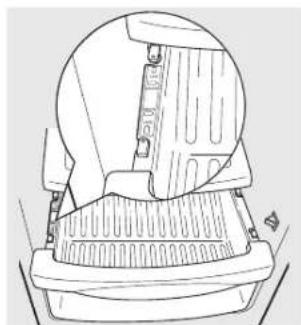

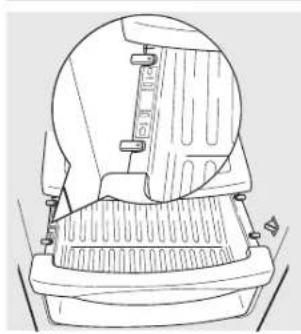

Pull the drawer out to the stop position.

Rotate all four swing locks to the unlock

Lift the front of the drawer up and out.

Make sure all four swing locks are

in the unlock position.

Place the sides of the drawer into

the drawer supports, making sure

the swing locks fit on the drawer slots.

Lock all four swing locks by rotating them

to the lock position.

How to Remove and Replace the Drawer

™ LCD Models OnlyNon-LCD Models Only How it Works

NOTE: Results may vary depending on packaging, starting temperature and other food traits.

 Hamburgers (0.25 kg)

 Individually Wrapped

Filet Mignon (0.25 kg)

 Chicken Breasts (0.5 kg)

 Minced Beef (0.5 kg)

 Minced Beef (1.0 kg)

 Chicken Breasts (1.50 kg)

 Minced Beef (1.50 kg)

 1 Beverage Can (355 ml)

 2 to 6 Beverage Cans (355 ml each)

 2 Plastic 590 ml Bottles of Beverage

 4 to 6 Small Juice Boxes

 3 Foil Juice Packets

 Wine (750 ml bottle)

 2 Liter of Beverage

 Oranges, Lemons, Limes, Pineapple,

 Beans, Cucumbers, Tomatoes, Peppers,

Produce Setting (1°C)

 Strawberries, Raspberries, Kiwifruit,

Pears, Cherries, Blackberries, Grapes,

Plums, Nectarines, Apples

 Asparagus, Broccoli, Corn, Mushrooms,

Spinach, Cauliflower, Kale, Green Onion,

 Raw Meat, Fish and Poultry

Some CustomCool models feature a beverage

center. It is designed to store beverages at colder

temperatures. Select this feature if you like to

keep extra-chilled refreshments on hand.

Access by: Home > Options > Refrigerator

Options > Beverage Center

Activate by: Pressing ON.

Deactivate by: Pressing OFF.

How to Use the Beverage Center (LCD models only)

Remove dairy bin first. Holding

the bottom of the dairy bin, lift the front

straight up, then lift up and out.

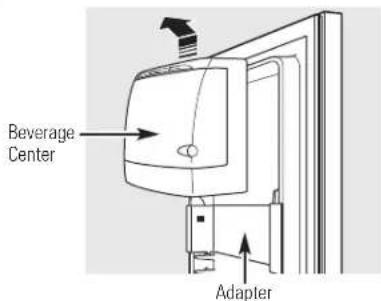

Holding left and right side of beverage

center, lift straight up and out.

Leave adapter in place.

Engage backside of beverage center in

molded supports on adapter. Then push

down on the sides of the beverage center.

The beverage center will lock into place.

How to Remove and Replace the Beverage Center (LCD models only) Dairy BinAdapterBeverageCenter9

About the water filter.

Place the top of the cartridge up

inside the cartridge holder and

slowly turn it to the right.

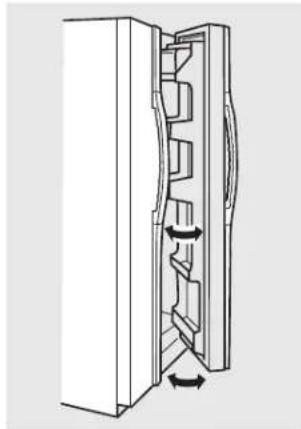

About the refrigerator doors.

The refrigerator doors may feel different than

the ones you are used to. The special door

opening/closing feature makes sure the doors

close all the way and are securely sealed.

When opening and closing the door you will

notice a stop position. If the door is opened

past this stop point, the door will remain open

to allow you to load and unload food more easily.

When the door is only partially open, it will

automatically close.

The resistance you feel at the stop position will

be reduced as the door is loaded with food.

When the door is only partially

open it will automatically close.

Beyond this stop the door will

Water Filter Cartridge

The water filter cartridge is located in the back upper

right corner of the refrigerator compartment.

When to Replace the Filter

A pop-up screen will appear on the LCD screen

to remind you to replace the water filter. You can

check the status of the water filter manually.

Access By: Home > Options > Dispenser Options >

Non-LCD Models/External Controls:

There is a replacement indicator light for the water

filter cartridge on the dispenser. This light will turn

orange to tell you that you need to replace

The filter cartridge should be replaced when the

replacement indicator light turns red or if the flow

of water to the dispenser or icemaker decreases.

Removing the Filter Cartridge

If you are replacing the cartridge, first remove the old

one by slowly turning it to the left. Do not pull down on

the cartridge. A small amount of water may drip down.

Installing the Filter Cartridge

There is an adapter attached to the top

of the new filter cartridge.

The adapter must be removed before installing

the cartridge. To remove the adapter, turn it to

the left about 1/4 turn.

Fill the replacement cartridge with water

from the tap to allow for better flow from

the dispenser immediately after installation.

Line up the arrow on the cartridge and

the cartridge holder. Place the top of the new

cartridge up inside the holder. Do not push

it up into the holder.

Slowly turn it to the right until the filter cartridge

stops. DO NOT OVERTIGHTEN. As you turn

the cartridge, it will automatically raise itself into

position. The cartridge will rotate about 1/2 turn.

Run water from the dispenser for 5 minutes

to clear the system and prevent sputtering.

Press FILTER REPLACED button to confirm

Press the SET FEATURES pad until REPLACE WATER FILTER is lit. Press and hold the ON/OFF

pad for 3 seconds. WATER FILTER IS RESET will

NOTE: A newly installed water filter cartridge may

cause water to spurt from the dispenser.

You must use the filter bypass plug when a

replacement filter cartridge is not available.

The dispenser and the icemaker will not operate

without the filter or filter bypass plug.

Replacement Filters:

To order additional filter cartridges, contact your

local distributor.10

About the shelves and bins.

Refrigerator Door Bins and Freezer Door Tilt-Out Bins

The larger refrigerator door bins and freezer

tilt-out door bins are adjustable.

To remove: Lift the front of the bin straight up,

then lift up and out.

To replace or relocate: Engage the back side

of the bin in the molded supports of the door.

Then push down on the front of the bin.

Bin will lock in place.

To remove: Lift the front of the bin straight up

To replace: Position the bin above the

rectangular molded supports on the door.

Then slide the bin down onto the support

to lock it in place.

The snugger helps prevent tipping, spilling or

sliding of small items stored on the door shelf.

Place a finger on either side of the snugger

near the rear and move it back and forth

Not all features are on all models.

The bottle retainers are adjustable and keep tall

items from tipping over.

To remove: Lift the front of the retainer straight

up, then lift it up.

To replace or relocate: Engage the back

of the bottle retainer in the molded supports

on the door. Then push down on the front

of the bottle retainer.

retainerDoor Beverage Rack (on some models)

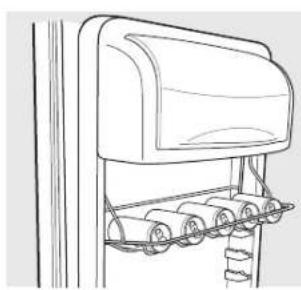

This rack holds up to 5 cans.

The rack hangs from the sides of the

Empty the wine/beverage rack.

Holding the bottom of the dairy bin,

lift the front straight up, then lift up

To detach the rack from the dairy bin,

pull the rack’s side wires out of the holes

on each side of the dairy bin.

Reattach the rack to the sides of the bin.

Engage the back side of the bin in the

molded supports on the door. Then push

down on the front of the bin. The bin will

This shelf splits in half and slides under itself

for storage of tall items on the shelf below.

This shelf can be removed and replaced or

relocated just like Slide-Out Spillproof Shelves.

On some models, this shelf can not be used

in the lowest position.

Slide-Out Spillproof Shelf

The slide-out spillproof shelf allows you to reach

items stored behind others. The special edges

are designed to help prevent spills from dripping

Slide the shelf out until it reaches the stop,

To replace or relocate:

Line the shelf up with the supports and slide it

into place. The shelf can be repositioned when

the door is at 90° or more. To reposition the shelf,

slide the shelf past the stops and angle

downward. Slide shelf down to the desired

position, line up with the supports and slide

Make sure you push the shelves all the way

back in before you close the door.

Press tab and pull shelf

Removable Beverage Rack

The beverage rack is designed to hold

a bottle on its side. It can be attached

to any slide-out shelf.

Line up the large part of the slots on

the top of the rack with the tabs under

Then slide the rack back to lock it

2About the shelves and bins.

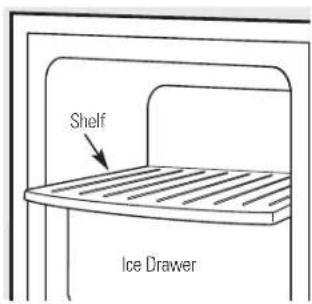

Slide-Out Freezer Shelves

To remove, slide out to the stop position, lift the

front past the stop position and slide out.

Make sure you push the shelves all the way

back in before you close the door.

Deep Freezer Baskets

To remove, push the basket all the way to the

back of the freezer. Lift up until the back pins are

disengaged. Lift the entire basket up and pull out.

The divider can be used to organize food

packages. For large packages, simply fold

Make sure you push the baskets all the way

back in before you close the door.

WARNING: Poor performance may occur

if freezer baskets are not used. Storage of

items in the freezer without using baskets

may result in poor temperature performance

due to restrictions of air flow within the

freezer compartment.

Not all features are on all models.

To remove, slide out to the stop position, lift the

front past the stop position and slide out.

Make sure you push the baskets all the way

back in before you close the door.

WARNING: Poor performance may occur

if freezer baskets are not used. Storage of

items in the freezer without using baskets

may result in poor temperature performance

due to restrictions of air flow within the

freezer compartment.

Fixed Freezer Shelves

There are two types of fixed freezer shelves.

To remove this type of shelf:

Lift the shelf up at the left side.

Bring the shelf out.

To remove this type of shelf:

Lift up the left side of the shelf and slide it

left into the center of the shelf supports.

Rotate the right side of the shelf up and

out of the shelf supports.13

Loading the Freezer Compartment

Load so that at least 15 mm of space remains

clear between stacks of packages and 15 mm

to 25 mm of space between the top of any

stack and any shelf or basket above it.

Packages may hang over the front of shelves

but must remain 15 mm from doors.

 Food to be frozen must not be placed

in direct contact with food in storage.

If food is to be frozen every day, it may

be necessary to reduce the quantity to

 If a quantity of food needs to be frozen,

set the freezer control to its coldest setting.

After the food is frozen, reset the freezer

control to its initial position.

 Food is most quickly frozen on the middle

three shelves of the freezer compartment

and most slowly in the freezer door shelves.

 Do not store commercially quick-frozen

food longer than the time recommended

by the food manufacturers.

 If the power to the appliance is shut off

for an extended time or if the r

system fails, do not open the doors unless

absolutely necessary. When it is necessary,

close them as quickly as possible so the

frozen food will stay frozen as long as

 The freezer door storage shelves marked

o-star label are only appropriate

for the storage of previously frozen food.

Effervescent drinks should not be stored

in the freezer compartment.

This Refrigerator/Freezer has an overall “Four Star” rating.

Freezer performance is classified by star ratings defined by ISO 15502 STANDARD AND SUMMARY BELOW:

About the freezer compartment.14

About crisper removal.

Not all features are on all models.

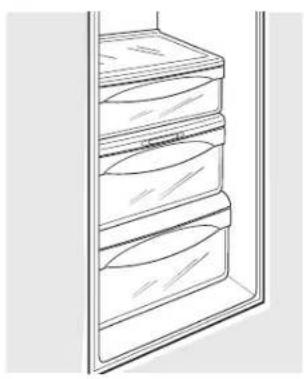

About the crispers and pans.

Not all features are on all models.

Fruit and Vegetable Crispers

Excess water that may accumulate in the bottom

of the drawers should be wiped dry.

On some models the bottom drawer has

a cover that slides back as the drawer is opened.

This allows full access to the drawer. As the

drawer is closed, the cover will slide forward

into its original position.

Adjustable Humidity Crispers

Slide the control all the way to the

(high) setting to provide high humidity

recommended for most vegetables.

Slide the control all the way to the (low)

setting to provide lower humidity levels

recommended for most fruits.

Convertible Meat Pan

The convertible meat pan has its own cold air

duct to allow a stream of cold air from the freezer

compartment to flow to the pan.

The variable temperature control regulates

the air flow from the Climate Keeper.

Set the control to the (coldest) setting

to store fresh meats.

Set the control to (cold) to convert

the pan to normal refrigerator temperature

and provide extra vegetable storage space.

The cold air duct is turned off. Variable settings

between these extremes can be selected.

The top crispers can easily be removed by pulling

the drawer straight out and lifting the drawer

up and over the stop location.

If the door prevents you from taking out the

drawers, first try to remove the door bins.

If this does not offer enough clearance, the

refrigerator will need to be rolled forward until

the door opens enough to slide the drawers out.

In some cases, when you roll the refrigerator out,

you will need to move the refrigerator to the left

or right as you roll it out.

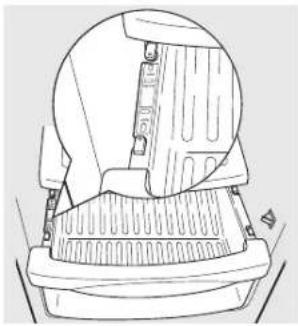

To remove the bottom crisper:

Pull the drawer out to the stop position.

Rotate all four swing locks to the unlock

Lift the front of the drawer up and out.

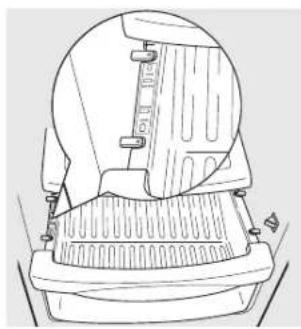

To replace the bottom crisper:

Make sure all four swing locks are

in the unlock position.

Place the sides of the drawer into the drawer

supports, making sure the swing locks fit

on the drawer slots.

Lock all four swing locks by rotating them

to the lock position.A newly-installed refrigerator may take 12 to 24 hours to begin making ice.

The icemaker will produce seven cubes

per cycle–approximately 100–130 cubes

in a 24-hour period, depending on freezer

compartment temperature, room temperature,

number of door openings and other use

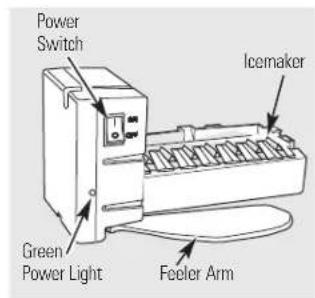

To access the icemaker: Pull the shelf above

the ice drawer straight out. Always be sure

to replace the shelf.

If the refrigerator is operated before the water

connection is made to the icemaker, set the

power switch in the O position.

When the refrigerator has been connected

to the water supply, set the power switch

You will hear a buzzing sound each time

the icemaker fills with water.

The icemaker will fill with water when it cools

to – 10°C. A newly-installed refrigerator may take

12 to 24 hours to begin making ice cubes.

Throw away the first few batches of ice to allow

the water line to clear.

Be sure nothing interferes with the sweep

When the bin fills to the level of the feeler arm,

the icemaker will stop producing ice. It is normal

for several cubes to be joined together. If ice is

not used frequently, old ice cubes will become

cloudy, taste stale and shrink.

If ice cubes get stuck in the icemaker, the green

power light will blink. To correct this, set the

power switch to O and remove the cubes.

Set the power switch to I to restart the icemaker.

After the icemaker has been turned on again,

there will be a delay of about 45 minutes before

the icemaker resumes operation.

NOTE: In homes with lower-than-average water

pressure, you may hear the icemaker cycle

multiple times when making one batch of ice.

WARNING:Connect to potable

water supply only. Installation of the icemaker

must be done by a qualified service technician.

Special note about ClimateKeeper2

 Dispenser models have a tilt-out ice bin.

The bin can be tilted out as shown in

the illustrations, and it will hold itself up while

you take ice out or turn the icemaker power

switch on and off. Be sure to put the bin back

in place before closing the door.

 To restore your ice level from an empty bucket

stage, the following steps ar

12 hours after the first batch of ice has fallen

into the bin, dispense 3 to 4 cubes.

After an additional 6 hours, dispense 3 to 4

These steps will restore your ice level

in the shortest amount of time.

Pull the upper freezer shelf straight

out to access the icemaker. Always

be sure to replace the shelf. The

shelf can be used for storage.

NOTE: In 25BIS Models, the ice bin

is suitable for the storage of ice

Lift the bin, then pull it forward until the bin stops.

Lower the bin to access ice or reach the power

NOTE: In order to take full advantage of the tilt-out ice bin,

only store items on the shelf below the ice bin that are no

taller than the lowest point on the bin.

On dispenser models with a tilt-out ice bin, to

access ice or reach the power switch:

To access ice, pull the drawer forward.

Set the icemaker power switch to the O (off)

position. Pull the drawer straight out and

then lift past the stop position.

When replacing the drawer, be sure to press

it firmly into place. If it does not go all the way

back, remove it and rotate the drive mechanism

1/4 turn. Then push the drawer back again.

About the automatic icemaker.

About the ice and water dispenser. (on some models)

To Use the Dispenser

Select CUBED, CRUSHED or WATER.

Press the glass gently against the top

of the dispenser cradle.

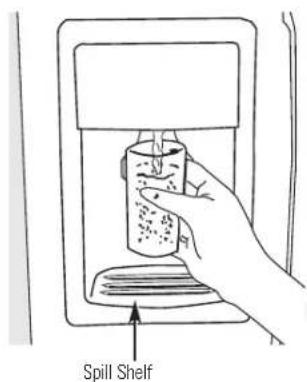

The spill shelf is not self-draining. To reduce water

spotting, the shelf and its grille should be cleaned

If no water is dispensed when the refrigerator is first

installed, there may be air in the water line system.

Press the dispenser arm for at least two minutes to

remove trapped air from the water line and to fill the

water system. To flush out impurities in the water line,

throw away the first six glassfuls of water.

CAUTION: Never put fingers or any other objects into

the ice crusher discharge opening.

Locking the Dispenser

seconds to lock the dispenser

and control panel. To unlock,

press and hold the pad again for

The LIGHT pad turns the night light in the dispenser

on and off. The light also comes

on when the dispenser cradle is

pressed. On some models, if this

light burns out, it should be

replaced with a 6 watt 12V

Use Door Alarm to sound if

either door is open for more

than 3 minutes. The alarm will

stop once the door is closed.

For LCD models, a popup screen

will appear. The alarm can be

silenced by touching the LCD

Access By: Home > Options > Information and Settings

> Settings > Door Alarm

Access By: Pressing ON.

Deactivate By: Pressing OFF.

Press the SET FEATURES pad once and DOOR ALARM

will blink. Press ON/OFF and the door alarm will be set

and the icon will turn solid. Press ON/OFF again to turn

When you need to speed up ice

production, use the Quick Ice

feature. While this feature is

turned on, the freezer fan runs

continuously for 48 hours, or until

the feature is turned OFF. During

this period, ice production will

increase up to 40%. Models with

the integrated ice feature system require at FIRST USE

at least half an 8 oz. glass of ice to be dispensed every

6 to 12 hours. This will help the icemaker fill the bucket

properly so that dispensing is better.

Access by: Home > Options > Freezer Options >

Activate by: Pressing ON.

Deactivate by: Pressing OFF.

Press the SET FEATURES pad twice and QUICK ICE will

blink. Press ON/OFF to turn the feature on, then again

For LED models contact

factory service.Precise Fill (on some models)

This water dispenser is equipped with a feature called

“precise fill.” This feature allows you to choose a precise

amount of water (cups or ounces) that you would like

dispensed. Pints and Liters are also available for LCD

Precise Fill > Set Amount

Activate By: Using the arrow buttons to select

the desired amount. Press MORE UNITS to select

between CUPS, OUNCES, PINTS or LITERS.

Press the PRECISE FILL CUPS/OZ pad. The WATER

pad will light and the CRUSHED and CUBED ice

pads will turn off. The last unit used will be

Press the PRECISE FILL pad again to toggle

between cups and ounces.

If you selected OUNCES, press the or pad to

select the number of ounces you would like to have

dispensed between 2–99 ounces. The default is

If you selected CUPS, press the or pad to select

the amount you would like to have dispensed. They are

displayed as 0.25, 0.33, 0.5, 0.66 and 0.75, with the

highest amount being 9.75 cups. The default is 1 cup.

For liters, the amounts are displayed as 0.05 to 2.25

in increments of 0.05.

Press the cup against the cradle and water will

begin dispensing. It will automatically stop when

the amount set has been dispensed. The display

will show the amount of water dispensed, beep,

then reset after 5 seconds.

NOTE: Do not leave the dispenser unattended when

water is being dispensed.

If you would like to stop dispensing water

before the specified amount has been dispensed,

just remove the cup from the cradle. The display

will show the amount that has been dispensed

for 5 seconds. If the cup switch is pressed again

within that time, the dispenser will continue up

to the set amount. If not, the display will return

Cleaning the Outside

The dispenser drip area, beneath the grille, should be

wiped dry. Water left in this area may leave deposits.

Remove the deposits by adding undiluted vinegar to

the well. Soak until the deposits disappear or become

loose enough to rinse away.

The dispenser cradle. Before cleaning, lock the

dispenser by pressing and holding the LOCK or LOCK CONTROLS pad for 3 seconds. Clean with warm water

and baking soda solution—about a tablespoon (15 ml)

of baking soda to a quart (1 liter) of water. Rinse

thoroughly and wipe dry.

The door handles and trim. Clean with a cloth

dampened with soapy water. Dry with a soft cloth.

The stainless steel panels and door handles

(on some models) can be cleaned with a commercially

available stainless steel cleaner. A spray-on stainless

steel cleaner works best.

Do not use appliance wax or polish on the stainless

Keep the outside clean. Wipe with a clean cloth lightly

dampened with kitchen appliance wax or mild liquid

dish detergent. Dry and polish with a clean, soft cloth.

Do not wipe the refrigerator with a soiled dish

cloth or wet towel. These may leave a residue

that can erode the paint. Do not use scouring pads,

powdered cleaners, bleach or cleaners containing

bleach because these products can scratch and

weaken the paint finish.

Dispenser drip area.

Care and cleaning of the refrigerator.

Important Facts About Your Dispenser

 Do not add ice from trays or bags to the storage

drawer. It may not crush or dispense well.

 Avoid overfilling glass with ice and use of narrow

glasses. Backed-up ice can jam the chute or

cause the door in the chute to freeze shut.

If ice is blocking the chute, poke it through

with a wooden spoon.

 Beverages and foods should not be quick-chilled

in the ice storage drawer. Cans, bottles or food

packages in the storage drawer may cause

the icemaker or auger to jam.

 To keep dispensed ice from missing the glass,

put the glass close to, but not touching,

the dispenser opening.

 Some crushed ice may be dispensed even

though you selected CUBED. This happens

occasionally when a few cubes accidentally

get directed to the crusher.

 After crushed ice is dispensed, some water may

drip from the chute.

 Sometimes a small mound of snow will form on

the door in the ice chute. This condition is normal

and usually occurs when you have dispensed

crushed ice repeatedly. The snow will eventually

For long vacations or absences, remove food and unplug the

refrigerator. Clean the interior with a baking soda solution of 15 ml

of baking soda to 1 liter of water. Leave the doors open.

Set the icemaker power switch to the O position and shut off the

water supply to the refrigerator.

If the temperature can drop below freezing, have a qualified

servicer drain the water supply system to prevent serious property

damage due to flooding.

Care and cleaning of the refrigerator.

Behind the Refrigerator

Be careful when moving the refrigerator away from the wall. All

types of floor coverings can be damaged, particularly cushioned

coverings and those with embossed surfaces.

Pull the refrigerator straight out and return it to position by

pushing it straight in. Moving the refrigerator in a side direction

may result in damage to the floor covering or refrigerator.

When pushing the refrigerator back, make sure you don’t roll

over the power cord or icemaker supply line.

Preparing for Vacation

Secure all loose items such as shelves and drawers by taping them

securely in place to prevent damage.

When using a hand truck to move the refrigerator, do not rest the

front or back of the refrigerator against the hand truck.

This could damage the refrigerator. Handle only from the sides of

Be sure the refrigerator stays in an upright position during

To help prevent odors, leave an open box

of baking soda in the fresh food and freezer compartments.

Unplug the refrigerator before cleaning.

If this is not practical, wring excess moisture out of sponge or

cloth when cleaning around switches, lights or controls.

Use warm water and baking soda solution— about a tablespoon

(15 ml) of baking soda to a quart (1 liter) of water. This both cleans

and neutralizes odors. Rinse and wipe dry.

Use of any cleaning solution other than that which is

recommended, especially those that contain petroleum

distillates, can crack or damage the interior of the refrigerator.

Avoid cleaning cold glass shelves with hot water because the

extreme temperature difference may cause them to break.

Handle glass shelves carefully. Bumping tempered glass can

cause it to shatter.

Do not wash any plastic refrigerator parts in the dishwasher.

The chill/thaw tray is dishwasher safe.

Replacing the light bulbs.

Setting the controls to 0 (off) does not remove power to the light circuit.

Refrigerator Compartment—Upper Light

Unplug the refrigerator.

The bulbs are located at the top of

the compartment, inside the light shield.

On some models, a screw at the front of

the light shield will have to be removed.

On other models, the screw is located in the

pocket located at the back of the light shield.

To remove the light shield, on some models,

press in on the tabs on the sides of the shield

and slide forward and out. On other models,

just slide the shield forward and out.

After replacing the bulb with an appliance

bulb of the same or lower wattage, replace

the light shield and screws (on some models).

When replacing the light shield, make sure

that the tabs at the back of the shield fit

into the slots at the back of the light shield

Plug the refrigerator back in.

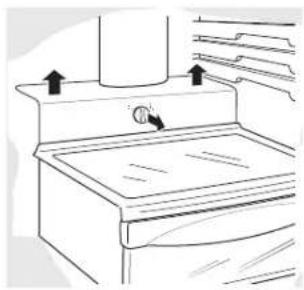

OR Your light shield will look like

one of the following:Replacing the light bulbs. (cont)

Refrigerator Compartment—Lower Light

This light is located above the top drawer.

Unplug the refrigerator.

Remove the convertible meat drawer control

knob by pulling straight out.

Lift the light shield up and pull it out.

After replacing the bulb with an appliance

bulb of the same or lower wattage, replace

the shield and the knob.

Plug the refrigerator back in.

Unplug the refrigerator.

Remove the shelf just above the light shield.

(The shelf will be easier to remove if it is

emptied first.) On some models, a screw

at the top of the light shield will need to

To remove the light shield, press in

on the sides, and lift up and out.

Replace the bulb with an appliance bulb

of the same or lower wattage, and reinstall

the light shield. When reinstalling the light

shield, make sure the top tabs snap

securely into place. Replace the screw

Reinstall the shelf and plug the refrigerator

C O L D C O L D E S T Dispenser

Unplug the refrigerator.

The bulb is located on the dispenser under

the control panel. Remove the light bulb

by turning it counterclockwise.

Replace the bulb with a bulb of the same

Plug the refrigerator back in.

Replacing the lights on models with LED lighting.

Setting the controls to OFF does not remove power to the light circuit.

Not all features are on all models.

Refrigerator Compartment (on some models)

There is an LED lighting display in the top and sides of the fresh food compartment and

in the rear and side of the freezer compartment on some models.

If this assembly needs to be replaced, call GE Service at 1.800.432.2737

in the United States or 1.800.561.3344

Trim kits and decorator panels.

Read these instructions completely and carefully.

Some models are equipped with trim kits that allow you to install door panels.

Panels less than 6 mm thick

When installing wood panels less than 6 mm thick, you need to create a filler panel, such as 3 mm cardboard, that

will fit between the face of the door and the wood panel. If you are installing the pre-cut decorator panels, pre-cut

filler panels are included in the kit. The combined thickness of the decorator or wood panel and the filler panel should

For Built-In Style models

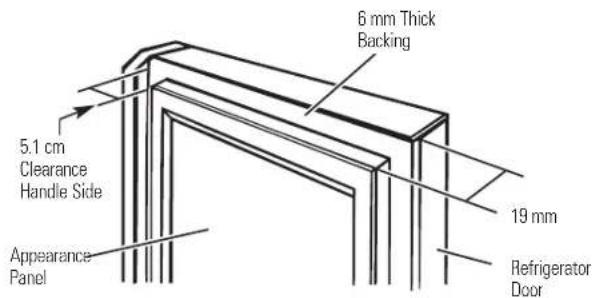

19 mm or Raised Panel

A raised panel design screwed or glued to a 6 mm thick backing, or a 19 mm routed board can be used.

The raised portion of the panel must be fabricated to permit clearances of at least 5.1 cm from the handle

side for fingertip clearance.

Panels thicker than 6mm, up to 19 mm max, will require that the outer 8 mm of panel perimeter be no thicker

Weight limitations for custom panels:

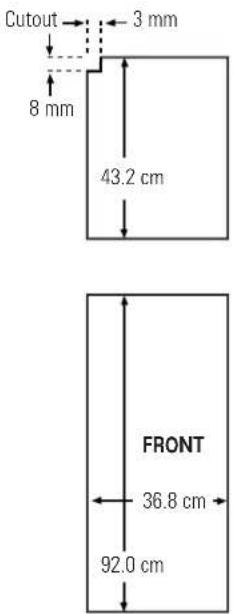

Dimensions for Custom Wood Panels

FRONT The areas at the top of the panels need to be cut out of the panels.

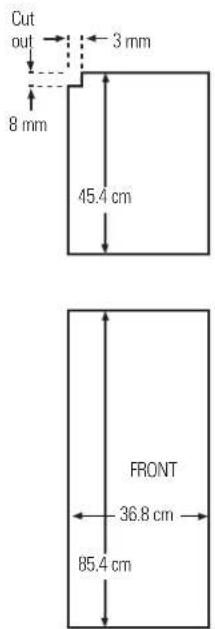

Dimensions for Custom Wood Panels

With Dispenser Fresh Food Panel

Inserting the door panels.

Read these instructions completely and carefully.

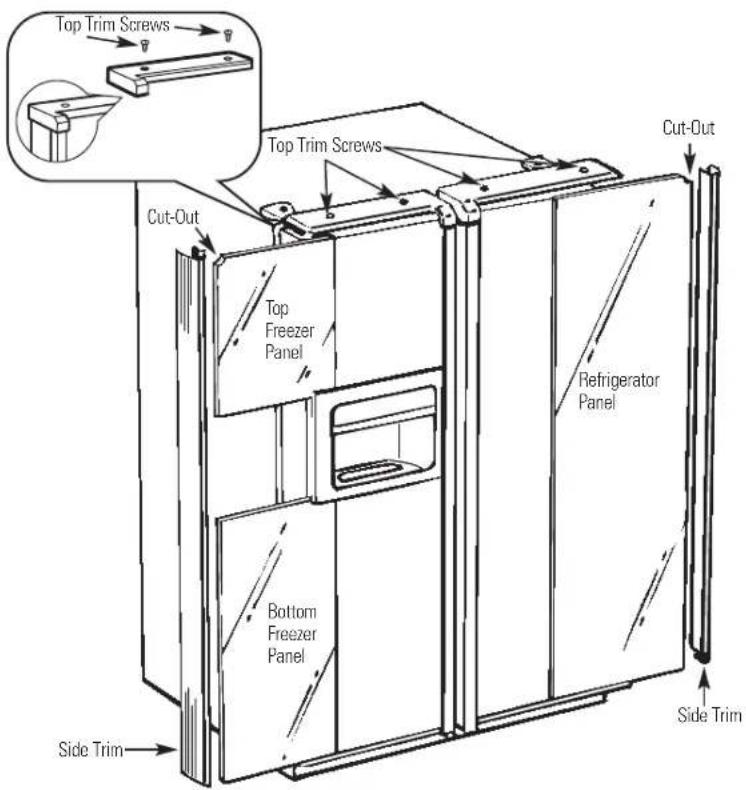

Attach the Top Trim on the Freezer and Refrigerator Doors.

The Top Trim can be found inside the refrigerator

With a T-20 Torxdriver, attach the Top Trim, using

two screws on each Top Trim piece, to the top

of each door. Hand tighten only. Make sure that the top of

each panel fits snugly behind the lip of the Top Trim.

Insert the Freezer Panel and Refrigerator Panel.

Carefully push the freezer panel in until it slides into the

slot behind the door handle. Push the filler panel (required

with some door panels) in behind the decorator panel.

Repeat for refrigerator panel.

If your model has a dispenser, this step only applies

to the refrigerator panel and top freezer panel.

Insert the Bottom Freezer Panel (on dispenser models).

Carefully push the panel in until it slides into the slot

behind the door handle. Push the filler panel (required

with some door panels) in behind the decorator panel.

These pieces are tucked inside the refrigerator

Do not remove the protective film on the outside

of the Side Trim until the Side Trim is installed.

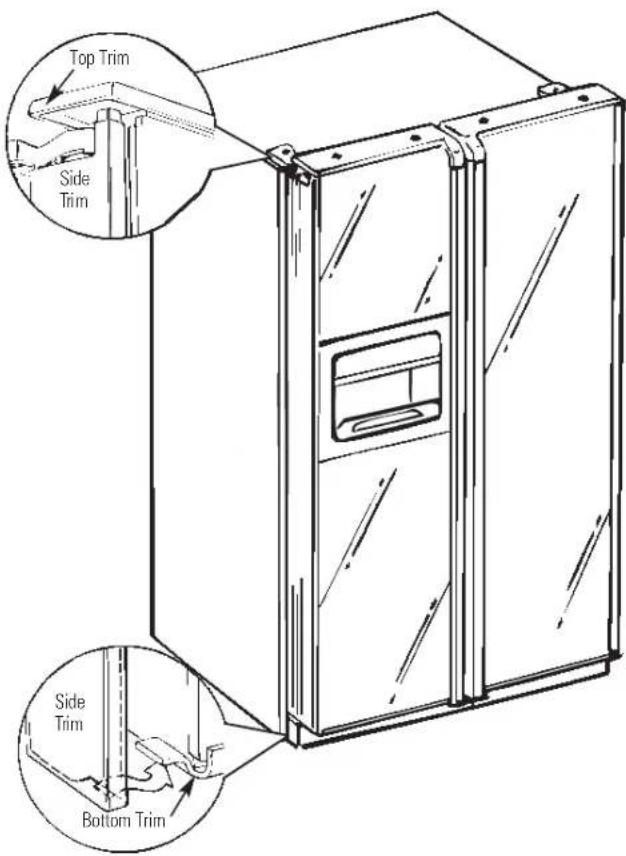

Fit the bottom of the Side Trim under the Bottom Trim

Hold the Side Trim against the front face of the decorator

panels and fit the Side Trim under the Top Trim. Make

sure the Side Trim is fitted correctly and that you

are satisfied with the appearance of all the parts.

Top TrimRemoving and replacing the doors.

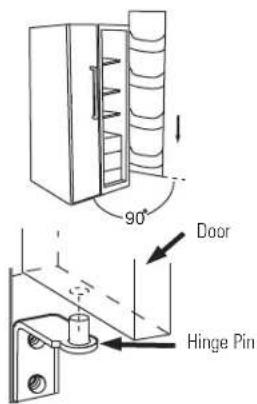

When installing or moving the refrigerator, the doors may need to be removed in order to fit the refrigerator through

Make sure the doors are closed and the refrigerator

Disconnect water line and wiring harness.

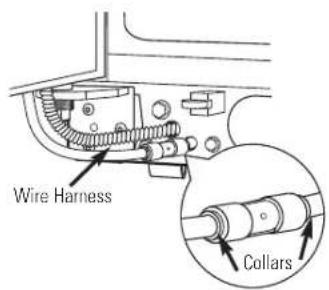

Near the lower hinge on the freezer side, push in on

the collars at each end of the coupling, and pull the water

line tubing from the coupling. Also, disconnect wiring

harness. Pull the water line and the harness through

Remove the hinge covers and the hinges.

In order to access the hinges, the hinge covers need to

be removed. Remove the cover by grasping it on the sides,

near the back of the cover. Push back on the cover and

lift up at the back, then the front.

NOTE: DO NOT use a screwdriver to remove the cover. BE CAREFUL not to break the rear retaining tab on the hinge

cover. Remove the hinges using a Torx T-20.

Carefully rotate the door to 90°. Guiding the disconnected

water line and wiring harness, lift the door straight up.

NOTE: Not lifting the door straight up may damage

the bottom hinge. Place doors on a protected surface.

NOTE: Be careful not to pinch the water tubing and the wire

harness at the bottom of the door.

NOTE: Do not allow the connector to contact the floor.

Hard contact can damage the connector. See “Replacing

Place doors on bottom hinges.

With the door at 90°, lower the door straight down onto

the bottom hinge. Carefully close the door.

NOTE: Not lowering the door straight down onto the bottom

hinge may damage the hinge.

NOTE: Do not allow the connector to contact the floor.

Hard contact can damage the connector.

Replace top hinges and hinge covers.

Reinstall the top hinges using a Torx T-20. Replace the hinge

covers. If the doors are not level, adjust the bottom right

hinge with a 7/16″ open ended wrench.

Reconnect water line and wiring harness.

Insert water tubing back into coupling, making sure the

tubing is pushed far enough into the coupling so that you

no longer see the mark on the tubing. Reconnect the wiring

Turn on the water supply and plug the refrigerator back in.

24BEFORE YOU BEGIN Read these instructions completely and carefully. •

IMPORTANT – Save these instructions for local inspector’s use. •

IMPORTANT – Observe all governing codes and ordinances. • Note to Installer – Be sure to leave these instructions with the Consumer. • Note to Consumer – Keep these instructions for future reference. • Skill level – Installation of this appliance requires basic mechanical skills. • Completion time – Refrigerator Installation 15 minutes. • Proper installation is the responsibility of the installer.

• Product failure due to improper installation is not covered under the Warranty.• Do not install the refrigerator where the temperature will go below 16°C because it will not run often enough to maintain proper temperatures.• Do not install the refrigerator where the temperature will go above 37°C because it will not perform properly.• Install it on a floor strong enough to support it fullyloaded.

REFRIGERATOR LOCATION Installation

Models 21, 23, 25, 27 & 29 Allow the following clearances for ease of installation,proper air circulation and plumbing and electrical connections: CLEARANCES If the refrigerator has an icemaker, it will have to be connected to a cold water line. An approved water supply kit is available at extra cost from your local distributor.Maximum permissible inlet water pressure–8.2 bars.Minimum permissible inlet water pressure–2.8 bars.Installation of the icemaker must be done by a qualifiedservice technician. WATER SUPPLY TO THE ICEMAKER (ON SOME MODELS) 21’ and 23’ and

*Height to top of hinge

DIMENSIONS A B C D E H F G B A26

Installation Instructions

The rollers have 3 purposes:

Rollers adjust so the door closes easily when opened

about halfway. [Raise the front about 5/8″ (16 mm)

Rollers adjust so the refrigerator is firmly positioned

on the floor and does not wobble.

Rollers allow you to move the refrigerator away from

the wall for cleaning.

Final leveling adjustments should be made after

the refrigerator has been installed.

To adjust the rollers on 25’, 27’ and 29’ models:

lower it. Use a 3/8″

hex socket or wrench,

To adjust the rollers on 21’ and 23’ models:

Remove the base grille by opening the doors, removing

the screws at each end, and pulling it straight out.

Turn the front roller

lower it. Use a 3/8″

hex socket or wrench,

These models also have rear adjustable rollers so you

can align the refrigerator with your kitchen cabinets.

Use a long-handled 5/16″ socket wrench to turn the

screws for the rear rollers–clockwise to raise the

refrigerator, counterclockwise to lower it.

Replace the base grille.

ROLLERS Roller adjusting screwRoller adjusting screws After leveling, make sure that the refrigerator door is 1/16″

higher than the freezer door.

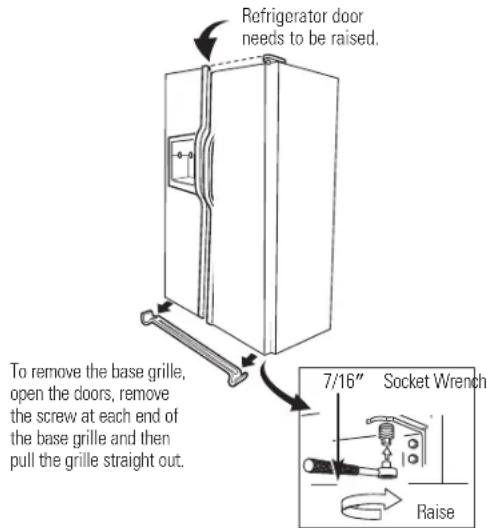

To align the doors, adjust the refrigerator door.

Using a 7/16″ socket wrench, turn the door adjusting

screw to the right to raise the door, to the left to lower

it. (A nylon plug, imbedded in the threads of the pin,

prevents the pin from turning unless a wrench is used.)

After one or two turns of the wrench, open and close

the refrigerator door and check the alignment at

the top of the doors. To remove the base grille,open the doors, removethe screw at each end ofthe base grille and thenpull the grille straight out. 7/16″ Socket WrenchRaise DOOR ALIGNMENT Refrigerator door needs to be raised.Installation Instructions

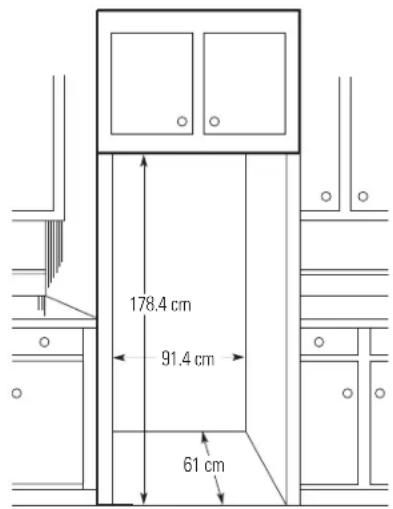

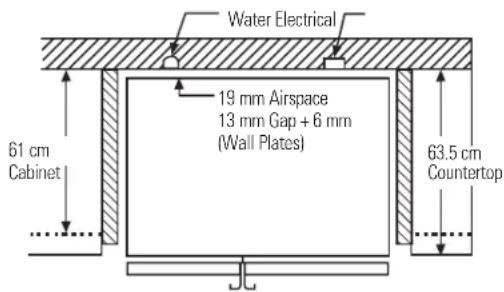

DIMENSIONS AND SPECIFICATIONS

(for Built-In Style models)

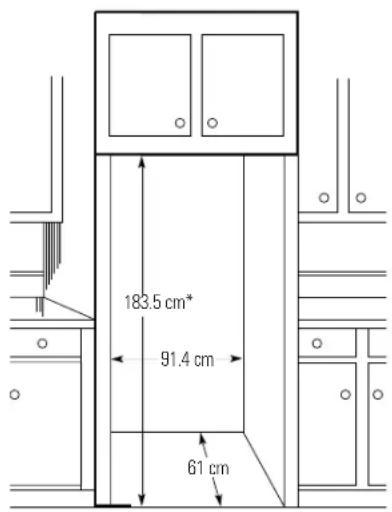

DIMENSIONS AND SPECIFICATIONS (for 25‘

Built-In Style models)

*183.5 cm required for full adjustment of

mobility wheels. If cabinets installed above

refrigerator have doors that are flush to the

top of the opening for the refrigerator, then

an additional 3.2 mm may be required to

provide clearance for cabinet doors to open

183.5 cm*Installation Instructions

The water line installation is not warranted by the

refrigerator or icemaker manufacturer. Follow these

recommendations carefully to minimize the risk of

expensive water damage.

Water hammer (water banging in the pipes) in house

plumbing can cause damage to refrigerator parts and

lead to water leakage or flooding. Call a qualified

plumber to correct water hammer before installing

the water supply line to the refrigerator.

To prevent burns and product damage, do not hook

up the water line to the hot water line.

If you use your refrigerator before connecting

the water line, make sure the icemaker power

switch is in the O (off) position.

Do not install the icemaker tubing in areas where

temperatures fall below freezing.

When using any electrical device (such as a power drill)

during installation, be sure the device is insulated or

wired in a manner to prevent the hazard of electric

All installations must be in accordance with local

plumbing code requirements.

Installation of the icemaker must be done by

a qualified service technician.

WARNING! Connect to potable water

BEFORE YOU BEGIN INSTALLING THE WATER LINE Place the compression nut and ferrule (sleeve) onto

the end of the tubing as shown.

Insert the end of the tubing into the water valve

connection as far as possible. While holding the tubing,

tighten the fitting.

Fasten the tubing into the clamp provided to hold it in

a vertical position. You may need to pry open the clamp.

refrigeration connection

at the water valve, remove

the plastic flexible cap.

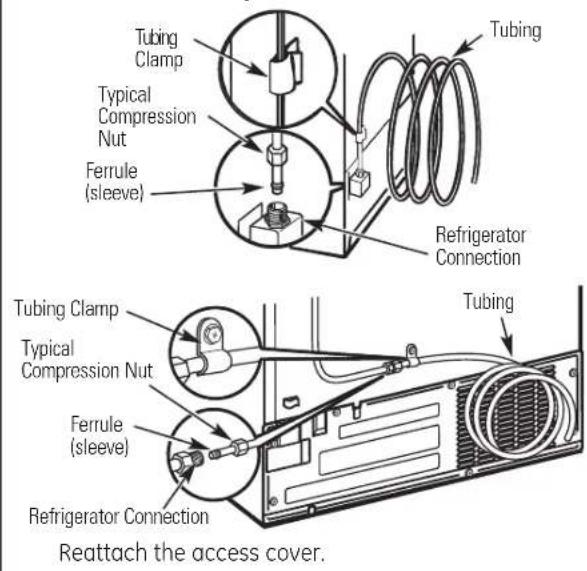

CONNECT THE TUBING TO THE REFRIGERATOR

Some models have the refrigerator connection at the end

of tubing located outside the compressor compartment

access cover. On other models, the compressor

compartment access cover must be removed in order

to access the refrigerator connection at the water valve.

Reattach the access cover.

• Before making the connection to the refrigerator,

be sure the refrigerator power cord is not plugged

into the wall outlet.

• We recommend installing a water filter if your

water supply has sand or particles that could clog

the screen of the refrigerator’s water valve. Install

it in the water line near the refrigerator.

CONNECT THE TUBING TO THE REFRIGERATOR

Refrigerator Connection

One of the illustrations below will look like

the connection on your icemaker.Installation Instructions

Set the icemaker power switch to the l position. The

icemaker will not begin to operate until it reaches its

operating temperature of –9°C or below. It will then

begin operation automatically if the icemaker power

switch is in the l position.

NOTE: In lower water pressure conditions, the water

valve may turn on up to 3 times to deliver enough

water to the icemaker.

Arrange the coil of tubing so that it does not vibrate

against the back of the refrigerator or against the

wall. Push the refrigerator back to the wall.

TURN THE WATER ON AND PLUG IN THE REFRIGERATOR

2Normal operating sounds.

Newer refrigerators sound different from older refrigerators.

Modern refrigerators have more features and use newer

 The new high efficiency compressor may run fasterand longer than your old refrigerator and you mayhear a high-pitched hum or pulsating sound while it is operating.  Sometimes the refrigerator runs for an extended period,especially when the doors are opened frequently. Thismeans that the Frost Guard ™ feature is working to prevent freezer burn and improve food preservation.  You may hear a whooshing sound when the doors close.This is due to pressure equalizing within the refrigerator.  You may hear the fans spinning at high speeds. This happens when the refrigerator is first plugged in, when the doors are opened frequently or when a large amount of food is added to the refrigerator or freezer compartments. The fans are helping tomaintain the correct temperatures.  If either door is open for over 3 minutes, you may hearthe fans come on in order to cool the light bulbs.  The fans change speeds in order to provide optimalcooling and energy savings.  You may hear the fan running after selecting one of the CustomCool ™ settings. CLICKS, POPS,

 You may hear cracking or popping sounds when the refrigerator is first plugged in. This happens as the refrigerator cools to the correct temperature.  Electronic dampers click open and closed to provideoptimal cooling and energy savings.  The compressor may cause a clicking or chirpingsound when attempting to restart (this could take up to 5 minutes).  The electronic control board may cause a clickingsound when relays activate to control refrigeratorcomponents.  Expansion and contraction of cooling coils during andafter defrost can cause a cracking or popping sound.  On models with an icemaker, after an icemaking cycle, you may hear the ice cubes dropping into the ice bucket. WATER SOUNDS

 The flow of refrigerant through the freezer cooling coilsmay make a gurgling noise like boiling water.  Water dropping on the defrost heater can cause a sizzling, popping or buzzing sound during the defrost cycle.  A water dripping noise may occur during the defrostcycle as ice melts from the evaporator and flows intothe drain pan.  Closing the door may cause a gurgling sound due topressure equalization. Do you hear what I hear? These sounds are normal. For additional information on normal icemaker and dispenser operating sounds, see the About the automatic icemaker and About the ice and water dispenser sections. 30Before you call for service…

Troubleshooting Tips

Save time and money! Review the charts on the following

pages first and you may not need to call for service.

Problem Possible Causes What To Do

Refrigerator does not Refrigerator in defrost cycle. •Wait about 30 minutes for defrost cycle to end.

Either or both controls set •Set the controls to a temperature setting.

Refrigerator is unplugged. •Push the plug completely into the outlet.

The fuse is blown/circuit •Replace fuse or reset the breaker.

The refrigerator is in •Unplug the refrigerator and plug it back in.

Vibration or rattling Rollers need adjusting. •See Rollers.

Normal when refrigerator •Wait 24 hours for the refrigerator to completely

is first plugged in. cool down.

Often occurs when large •This is normal.

placed in refrigerator.

Door left open. •Check to see if package is holding door open.

Hot weather or frequent •This is normal.

Temperature controls set •See About the controls.

at the coldest setting.

Refrigerator or freezer Temperature control not set •See About the controls.

compartment too warm cold enough.

Warm weather or frequent •Set the temperature control one step colder.

door openings. See About the controls.

Door left open. •Check to see if package is holding door open.

Frost or ice crystals Door left open. •Check to see if package is holding door open.

Too frequent or too long

(frost within package

Divider between Automatic energy saver •This helps prevent condensation on the outside.

refrigerator and freezer system circulates warm

compartments liquid around front edge

feels warm of freezer compartment.

Automatic icemaker Icemaker power switch •Set the power switch to the on position.

does not work is in the off position.

Water supply turned off or •See Installing the water line.

Freezer compartment too warm. •Wait 24 hours for the refrigerator to completely cool down.

Piled up cubes in the storage •Level cubes by hand.

bin cause the icemaker

Ice cubes stuck in icemaker. •Turn off the icemaker, remove cubes and turn the

(Green power light on icemaker back on.

Motor operates for long

periods or cycles on

(Modern refrigerators

freezer require more

operating time. They

Before you call for service…

Problem Possible Causes What To Do

Frequent “buzzing” Icemaker power switch is in the •Set the power switch to the off position. Keeping it in the on

sound on position, but the water supply position will damage the water valve.

to the refrigerator has not been

Ice cubes have Ice storage bin needs cleaning. •Empty and wash bin. Discard old cubes.

Food transmitting odor/taste •Wrap foods well.

Interior of refrigerator •See Care and cleaning.

Small or hollow cubes Water filter clogged. •Replace filter cartridge with new cartridge or with plug.

Slow ice cube freezing Door left open. •Check to see if package is holding door open.

Temperature control not set •See About the controls.

Cube dispenser does Icemaker turned off or •Turn on icemaker or water supply.

not work water supply turned off.

Ice cubes are frozen to • Remove cubes.

icemaker feeler arm.

Irregular ice clumps in •Break up with fingertip pressure and discard

storage container. remaining clumps.

•Freezer may be too warm. Adjust the freezer control to a colder

setting, one position at a time, until clumps do not form.

Dispenser is LOCKED. •Press and hold the LOCK CONTROL pad for 3 seconds.

Water has poor Water dispenser has not been •Dispense water until all water in system is replenished.

taste/odor used for a long time.

Water in first glass Normal when refrigerator •Wait 24 hours for the refrigerator to completely

is warm is first installed. cool down.

Water dispenser has not been •Dispense water until all water in system is replenished.

used for a long time.

Water system has been drained. •Allow several hours for replenished supply to chill.

Water dispenser does Water supply line turned •See Installing the water line.

not work off or not connected.

Water filter clogged. •Replace filter cartridge or remove filter and install plug.

Air may be trapped in •Press the dispenser arm for at least two minutes.

Dispenser is LOCKED. •Press and hold the LOCK CONTROL pad for 3 seconds.

Water spurting from Newly-installed filter cartridge. •Run water from the dispenser for 3 minutes (about

Water is not dispensed Water in reservoir is •Call for service.

but icemaker is working frozen.

Refrigerator control setting •Set to a warmer setting.

No water or ice cube Supply line or shutoff •Call a plumber.

production valve is clogged.

Water filter clogged. •Replace filter cartridge or remove filter and install plug.

Dispenser is LOCKED. •Press and hold the LOCK CONTROL pad for 3 seconds.33

Problem Possible Causes What To Do

CUBED ICE was selected Last setting was •A few cubes were left in the crusher from the previous

but CRUSHED ICE CRUSHED ICE. setting. This is normal.

Orange glow in Defrost heater is on. •This is normal.

Refrigerator has odor Foods transmitting •Foods with strong odors should be tightly wrapped.

odor to refrigerator.

•Keep an open box of baking soda in the refrigerator;

replace every three months.

Interior needs cleaning. •See Care and cleaning.

Door not closing properly Door gasket on hinge side •Apply paraffin wax to the face of the gasket.

sticking or folding over.

A door bin is hitting a shelf •Move the door bin up one position.

inside the refrigerator.

Moisture forms on Not unusual during •Wipe surface dry.

outside of refrigerator periods of high humidity.

Moisture collects inside Too frequent or too

(in humid weather, air long door openings.

carries moisture into

refrigerator when doors

Interior light does No power at outlet. •Replace fuse or reset the breaker.

Light bulb burned out. •See Replacing the light bulbs.

For LED Light. •Call Service

Water on kitchen floor or Cubes jammed in chute. •Poke ice through with a wooden spoon.

on bottom of freezer

Hot air from bottom Normal air flow cooling motor.

of refrigerator In the refrigeration process, it is

normal that heat be expelled in the

area under the refrigerator. Some

floor coverings are sensitive and will

discolor at these normal and safe

Refrigerator never Adaptive defrost keeps •This is normal. The refrigerator will cycle off after the

shuts off but the compressor running during door remains closed for 2 hours.

temperatures are OK door openings.

Refrigerator beeping Door open. •Close door.

Food isn’t thawing/chilling Packaging. •Increase time or re-package in plastic.

Wrong weight selected. •Select a larger weight.

Item with high fat content. •Select a larger weight.

Not using Chill/Thaw tray. •Place items on tray and allow space in between items for

Actual temperature not Unit just plugged in. •Allow 24 hours for system to stabilize.

equal to Set temperature

Door open for too long. •Allow 24 hours for system to stabilize.

Warm food added to refrigerator. •Allow 24 hours for system to stabilize.

Defrost cycle is in process. •Allow 24 hours for system to stabilize.

Select Temp feature is Refrigerator compartment •This is normal. In order to minimize energy usage, the

not working temperature control is set Select Temp feature is disabled when the refrigerator

at warmest setting. temperature control is set at the warmest setting.34

Special Safety Instructions for Australia and New Zealand.

(in addition to other information in Owner’s Manual)

IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of personal injury or damage to property, follow basic safety precautions when using this

refrigerator, including the following:

When using any Electrical Product, basic precautions should always be followed, including the following:

READ THESE INSTRUCTIONS CAREFULLY BEFORE USING THE REFRIGERATOR. KEEP THE INSTRUCTIONS HANDY FOR FUTURE REFERENCE.

 IMPORTANT: Always operate the refrigerator

from a power source of the same Voltage,

Frequency and Rating as indicated on the

refrigerator identification plate. Operate the

refrigerator from an Earthed (Grounded) 3 pin power

outlet fully accessible when the refrigerator is

located in its normal operating position.

 Close supervision is necessary when any electrical

product is used by or operated near children or

infirm persons; young children should be supervised

to ensure that they do not play with the refrigerator.

 IMPORTANT: Do not operate the refrigerator with

a damaged Supply cord or Plug. If it is damaged it

must be replaced by the manufacturer, distributor or

its service agent or a similarly qualified person in

order to avoid a hazard. Special tools are required to

replace the Supply flexible cord.

 WARNING:Avoid the use of extension

cords. If it is necessary to use an extension cord,

prior to its use, make sure the extension cord is safe

to use, capable of handling the electrical load of the

product (refer to Product identification plate) and

has been checked and tested by your electricity

supplier or a qualified technician.

To avoid becoming entangled in the cord, never

lay it through or along a walkway or thoroughfare.

 Do not allow the cord to hang over the edge of

a bench top where it may be grabbed by children

or become entangled with the user.35

Installing the Water Line

For Australian and New Zealand installation, read these instructions completely and carefully.

 IMPORTANT: Government legislation and Codes

in most States and Territories of Australia

require installation by a licensed plumber.

The installation must conform to Australian

Standard AS 3500.1 Water supply.

 Water hammer (water banging in the pipes)

in house plumbing can cause damage to the

refrigerator parts and lead to water leakage

or flooding. Call a qualified plumber to correct

water hammer before installing the water supply

line to the refrigerator.

 To prevent burns and refrigerator damage, do not

hook up the water line to the hot water line.

 If you use your refrigerator before connecting the

water line, make sure the icemaker power switch

is set to the O position.

 Do not install the icemaker tubing in areas where

the temperatures fall below freezing.

For models fitted with an icemaker, a water supply

kit (containing flexible tubing and fittings) is supplied

with the refrigerator.

The water pressure must be between 138 and

827 kPa on models without a water filter fitted

and between 275 and 827 kPa on models with

a water filter fitted.

Turn Off the water and open a low tap to drain

the water from the pipe.

Complying with the plumbing codes, install a suitable

branch fitting (not supplied) to the cold water supply.

Extend the branch to a suitable location adjacent

to the refrigerator when it is located in its operating

position. Terminate the branch with a shutoff valve

IMPORTANT: The shut-off valve should be accessible

(such as in an adjacent cupboard, as close to the wall

as possible) when the refrigerator is in its normal

If your water supply pressure is higher than 690 kPa

during the day (if so, it may reach higher levels

at night), install a suitable Pressure limiting valve

(not supplied), after the shut-off valve, making sure

the “flow arrows” on the body of the device face

the same direction as the water flow.

If necessary, assemble a suitable fitting (not supplied)

to the up-stream end of the shutoff valve (or pressure

limiting valve) for attachment of the fitting supplied

with the water supply kit.

NOTE: PTFE tape should be used for a water tight seal

when assembling all the above fittings.

Do not turn the water supply On at this time.

Shut Off the Main Water SupplySpecial Installation Instructions for Australia and New Zealand.

Attach the fitting with the male thread supplied with

the water supply kit to the shutoff valve (or pressure

limiting valve, if fitted), and tighten.

NOTE: PTFE tape should be used for a water tight

seal when assembling all the above fittings.

Route the tubing through a hole drilled in the side

of the cupboard as close to the wall as possible.

Make sure there is sufficient length of tubing

[approximately 240 cm coiled into 3 turns of

approximately 25 cm] to allow the refrigerator

to move out from the wall after installation.

Insert and push the end of the tubing into the fitting

With the free end of the tubing located in a suitable

container, turn the main water supply

On and flush out the tubing until the water is clear.

Turn Off the shutoff valve after approximately 1 litre

of water has been flushed through the tubing.

Connecting the Tubing to the Shutoff Valve

Before making the connection to the refrigerator, be

sure the power is turned OFF and the power cord is

disconnected from the Power Outlet.

If your refrigerator does not include a water filter,

we recommend installing one in the water line

near the refrigerator if your water supply has sand

or particles that could clog the screen of the

refrigerator’s water valve.

Remove the refrigerator access cover.

Remove the plastic flexible cap from the water valve

(refrigerator connection).

Attach the fitting with the female thread supplied

with the water supply kit to the water valve and

Insert and push the end of the tubing into the fitting

Fasten the tubing into the clamp provided to hold

it in position. You may need to pry open the clamp.

Connecting the Tubing to the Refrigerator

Installing the Water Line (cont.)37

Turn the water On at the shutoff valve.

Tighten any connection that leaks.

Replace the access cover and tighten all screws

Plug in the refrigerator to the Power Outlet

IMPORTANT: Always operate the Refrigerator from

a power source of the same Voltage, Frequency and

Rating as indicated on the Refrigerator Identification

Plate. Operate the Refrigerator from an Earthed

(Grounded) 3 Pin Power Outlet fully accessible when

the refrigerator is located in its normal operating

Arrange the coil of tubing so that it does not

vibrate against the back of the refrigerator or

Push the refrigerator back to the wall, making sure

the power cord and the water line tubing are not

trapped, entangled or squashed by the refrigerator

(including the wheels) or wall.

Plug In the Refrigerator

Set the icemaker power switch to the I position.

The icemaker will not begin to operate until it reaches

its operating temperature of –9°C or below. It will

then begin operation automatically if the icemaker

power switch is in the I position.

NOTE: In lower water pressure conditions, the water

valve may turn on up to 3 times to make sure enough

water reaches the icemaker.

(Registration, Evaluation, Authorization, and Restriction of Chemicals) REGULATION (EC) No 1907/2006 OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 18 December 2006

The vast majority of GE Consumer and Industrial’s products including accessories and packaging are

considered “articles” under REACH. An initial candidate list pursuant to Article 59 of REACH has been

published by ECHA at http://echa.europa.eu/chem_data_en.asp.

Based on an initial review, GE Consumer and Industrial has been informed that the following Candidate

List Substance is contained in the article supplied above a concentration of 0.1% weight by weight of

HBCDD (Hexabromocyclododecane)

This Candidate list substance noted above is contained only in the foam packaging used in the following

Refrigerator models.

GHE25 PFSE5 PSE27/29 GSE28/30

For information on safe use of the article, please see the following chemical safety information provided

by our suppliers of this article.

www.geappliances-europe.com/eu_reach_directive.zip

The foam packaging should be discarded upon installation of the refrigerator.

For more information, please contact our REACH desk located in Budapest, Hungary at +36 1 231 5633

who will be able to answer any questions that you may have about this issue.

Effective April 201139

Mesures de sécurité . . . . . . . . . . . . . . . . .40, 41

(175–240 ml chacune)

(175–240 ml chacune)

TINTINNII, SCOPPIETTII,

protector, certifique-se de que as

Over ClimateKeeper2.

OUNCES, PINTS of LITERS.
