USER MANUAL PS 14 OLYMPIA

Operating Instructions 13

Shredder

FR

Mode d'emploi 21

Safety Symbols 15
Risks through moving parts 16
Electrical safety guidelines 16
Disposal instructions 16

Exemption from liability 16

Scope of delivery 17

Starting Up 17

Operating elements 17
Overheating protection 18
Emptying the waste bin 18

Troubleshooting 18

Motor overloading 18
Paper jam 19

Maintenance and Service. 19

Technical Data 20

Konformitätserklung / Declaration of Conformity 69

FRANÇAIS

Utilisation conforme aux prescriptions 21

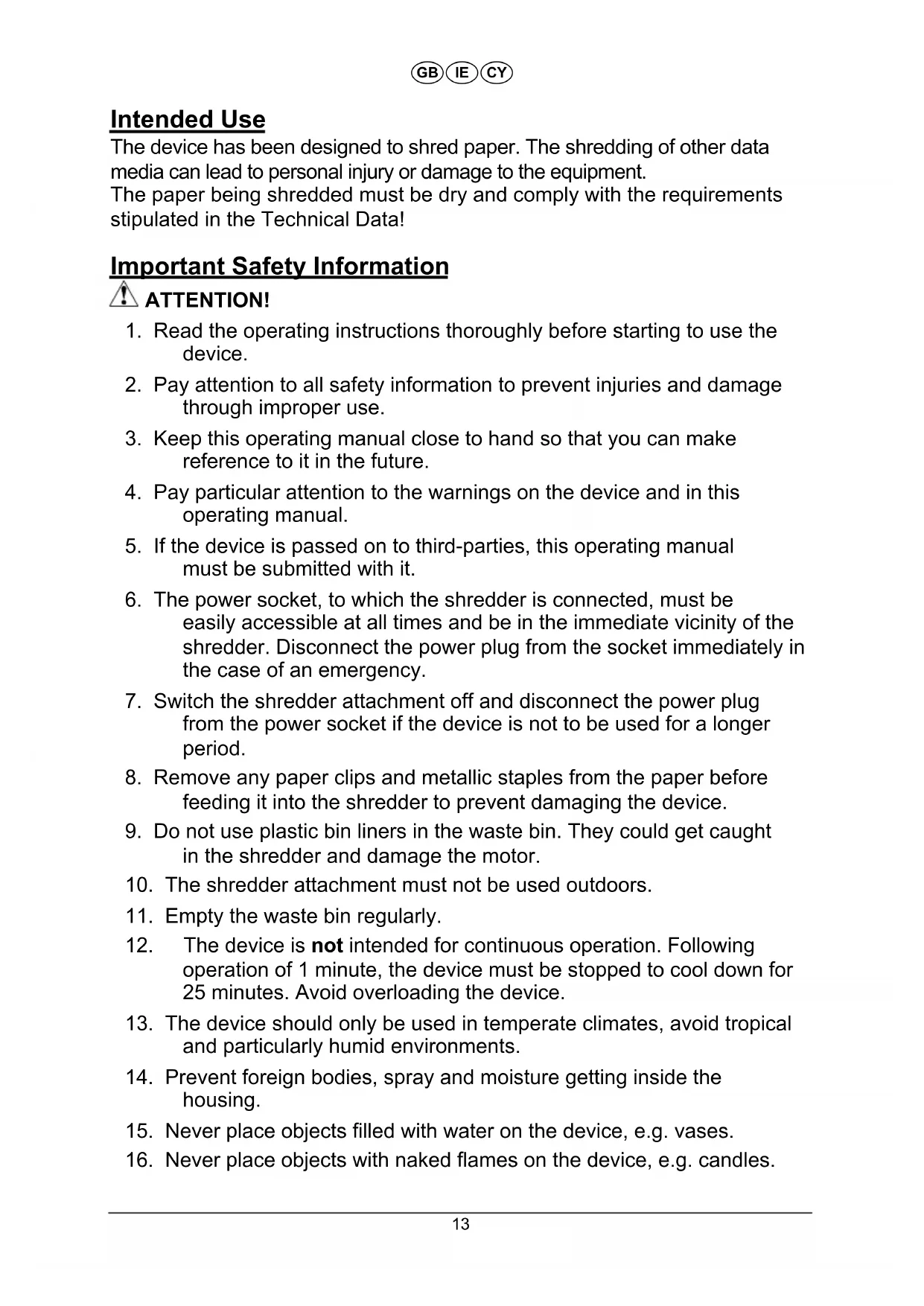

The device has been designed to shred paper. The shredding of other data media can lead to personal injury or damage to the equipment.

The paper being shredded must be dry and comply with the requirements stipulated in the Technical Data!

Important Safety Information

ATTENTION!

1. Read the operating instructions thoroughly before starting to use the device.
2. Pay attention to all safety information to prevent injuries and damage through improper use.
3. Keep this operating manual close to hand so that you can make reference to it in the future.
4. Pay particular attention to the warnings on the device and in this operating manual.
5. If the device is passed on to third-parties, this operating manual must be submitted with it.
6. The power socket, to which the shredder is connected, must be easily accessible at all times and be in the immediate vicinity of the shredder. Disconnect the power plug from the socket immediately in the case of an emergency.
7. Switch the shredder attachment off and disconnect the power plug from the power socket if the device is not to be used for a longer period.
8. Remove any paper clips and metallic staples from the paper before feeding it into the shredder to prevent damaging the device.
9. Do not use plastic bin liners in the waste bin. They could get caught in the shredder and damage the motor.
10. The shredder attachment must not be used outdoors.
11. Empty the waste bin regularly.
12. The device is not intended for continuous operation. Following operation of 1 minute, the device must be stopped to cool down for 25 minutes. Avoid overloading the device.
13. The device should only be used in temperate climates, avoid tropical and particularly humid environments.
14. Prevent foreign bodies, spray and moisture getting inside the housing.
15. Never place objects filled with water on the device, e.g. vases.

16. Never place objects with naked flames on the device, e.g. candles.

17. Do not position the device near a heater, fireplace, oven or another source of heat.

18. Protect the device from all forms of wet, i.e. including spray and moisture.
19. Do not cover the device while it is in operation.

RISK OF INJURY!

1. Ensure that clothing, ties, hair, jewellery or other small objects do not get near the paper infeed in order to prevent them being drawn in and causing any injuries or damage.
2. Do not reach into the paper infeed with your fingers or hands.
3. Before cleaning or relocating the shredder, or emptying the waste bin, switch the device off and disconnect the power plug to prevent it being switched on again unintentionally.
4. Do not start the machine up without having installed it on a waste bin beforehand.
5. This device must not be used by persons (including children) with restricted physical, sensory or mental capabilities or those with no experience and/or knowledge of the product except in cases where they are supervised by someone who assumes responsible for their safety or who provides them with proper instruction regarding how to operate the device. Children must be supervised to ensure they do not play with the device.
6. If the device's power cable is damaged, it must be replaced by the manufacturer, their service center or similarly trained personnel to rule out any risks.
7. Do not use the device in the direct vicinity of water, e.g. near a bathtub, wash basin or sink, in a damp cellar or close to a swimming pool.
8. The connection cable/unit must be checked regularly for signs of damage.
9. Always disconnect the power cable by pulling the plug and not the cable itself.

Safety Symbols

The ISO and IEC symbols listed below are attached to the product and have the following significance:

Caution, risk of injury! Failure to observe the safety information and instructions could lead to receiving an electric shock and/or serious injuries.

Caution, risk of injury! Pay attention to ties, loose pieces of clothing and other objects. These could be drawn in by the shredder.

Caution, risk of injury! Never reach into the shredder's paper infeed. Attention: When lifting the paper shredder from the waste bin (e.g. to clean or empty the waste bin), sharp and pointed parts of the cutting mechanism become accessible.

Caution, risk of injury! Pay attention to long hair. It could be drawn in by the shredder.

Caution, risk of injury! Remove all paper clips and staples from the paper before shredding! Otherwise there is a risk of injury through the splintering of hard material. Caution, risks through cutting mechanism! Remove all paper clips and staples from the paper before shredding! Otherwise the cutting mechanism will be damaged.

Caution, risk of injury! Keep aerosol smog, gas and small items away from shredder.

Caution, risk of injury! This machine is not a toy. Keep children and pet away from this shredder as serious injury result.

Risks through moving parts

WARNING!

KEEP FINGERS AND OTHER LIMBS AWAY FROM THE PAPER INFEEDI!

1. Parts conducting electricity.
2. Do not open the device.
3. No parts in the device may be serviced or repaired by the end user.
4. Please contact qualified service personnel for all maintenance requirements.

Electrical safety guidelines

1. Disconnect the power plug before emptying the waste paper bin, before cleaning the device and prior to a longer period out of service.
2. Do not put the device into operation in the case of damage to the power cable, the power plug or the device itself (risk of injury)!
3. Do not exceed the recommended power consumption (0.6 A) of the power socket!
4. Do not complete any modifications to the power cable because it is designed for the power supply specified.

Disposal instructions

The implementation of European law in domestic legislation and national regulations requires a suitable disposal of durable goods. The aim is to protect people and the environment. The symbol on the side indicates that old electrical and electronic devices should not be disposed of in domestic waste.

After devices and equipment have reached the end of their service life, they must be brought to a collection point provided by an authorised waste disposal enterprise.

Packing material must be disposed of according to local regulations.

Exemption from liability

We cannot guarantee that the information which relates to the technical properties of the product or to the product itself contained in this document is correct. The product and, where applicable, its accessories, described in this document are subject to constant improvement and further development. For this reason, we reserve the right to modify components, accessories, technical specifications and related documentation of the product at any time without notification.

Scope of delivery

One PS14 paper shredder attachment with power cable

• One operating instruction manual

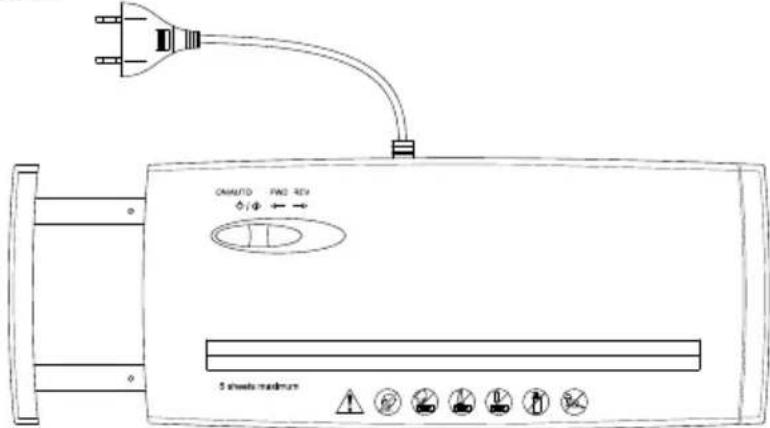

Starting Up

Remove the device carefully from the packaging and set it down on a suitable waste bin. The arm on the left-hand side can be pulled out approx. 6 cm to help here.

Operating elements

The device can shred a maximum of 5 sheets (70g / m^2) with a width of 21.7~cm (DIN A4) at a time. When you shred material such as envelopes or credit card vouchers, please be sure to insert them in the center of the paper infeed. Do not insert CDs or other data media which is not made of paper in the paper infeed!

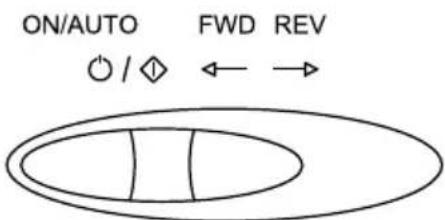

Switch positions

Switch position ON/AUTO (automatic):

The device is ready to operate (standby). The paper is drawn in as soon as it is inserted in the paper infeed. The shredder switches off immediately when there is no more paper in the cutting mechanism. If you want to shred small size paper, ensure to insert it in the center of the paper infeed. The device does not consume any power when in standby.

Switch position FWD (forward):

This switch position serves to shred small size paper. The cutting mechanism is switched on permanently.

Switch position REV (reverse):

This switch position serves to clear up paper jams, should they occur. The cutting mechanism runs backwards and the paper is fed back out of the paper infeed.

Overheating protection

The device is not designed for continuous operation (max. operating time of 1 minute followed by a pause of 25 minutes). In the event of the motor overheating, a motor circuit breaker automatically switches the motor off.

Examples of shutting down:

1. You use the shredder uninterrupted for over 1 minute and at the maximum capacity of 5 sheets.
2. You exceed the shredder's load limit by inserting more than 5 sheets at a time or not feeding the paper straight and flat.

After the overheating protection has been triggered, let the shredder cool down for at least 25 minutes. Disconnect the power plug in this case.

Emptying the waste bin

Empty the waste bin regularly to prevent the cuttings overflowing and possibly causing damage to the device.

1. Switch the device off and disconnect the power plug from the power socket.
2. Remove the shredder from the waste bin and empty the waste bin.

Troubleshooting

Motor overloading

The following can lead to the device being shutdown:

1. Motor overheating. If the device is used continuously for longer than 1 minute, a motor circuit breaker switches the device off automatically.
2. Exceeding the capacity, e.g. by inserting more than 5 sheet of 70g paper at a time.
3. Jammed paper when it is not gripped properly at the paper infeed, i.e. it is drawn in crooked.

Paper jam

Always feed the paper straight into the paper infeed.

ATTENTION!

Never leave the shredder switched on when a paper jam occurs in order to prevent injuries and damage.

1. Disconnect the power plug from the power socket.
2. Cut or tear off the remaining paper above the shredder.
3. Connect the power plug to a power socket.
4. Set the ON/AUTO, FWD, REV switch to ON/AUTO.
5. If necessary, toggle the switch alternately between FWD and REV to loosen the jammed paper.
6. The residual paper is then ejected.
7. The shredder can now be operated normally again.

Note:

Frequent paper jams which cause the device to be shutdown by the overheating protection facility can reduce the service life of the shredder.

Maintenance and Service

Disconnect the power plug prior to cleaning to prevent the risk of injuries.

Clean the housing with a slightly moist cloth.

Do not use any aggressive cleaning agents.

Never use any chemicals (e.g. cleaning solvent, alcohol) to clean the housing.

Technical Data

Model

PS14

Input Voltage: 220-240 VAC, 50Hz, 0,6 A

Max. shredding capacity 5 sheets of paper (70g/m

Shred type Strip-cut

Material for cutting Paper

Paper infeed size 220 mm (A4)

Shred width 6.8 mm

Shredding speed 3.8 m/min.

Dimensions (WxDxH) 300 - 360 x 130 x 60 mm

Suitable for bin diameters 288 - 370 mm

Weight 1.13

2) at a time

kg

Hotline International: 00800 10022100

Utilisation conforme aux prescriptions

Urečaj不同程度 has been used to describe the characteristics of a motor. The most commonly used are:

Primjeri:

1. Unistavač dokumenata koristite neprekidno duže od 1 minute i pri maksimalnom kapacitetu od 5 listova.
2. Prekoračite razinu opterećenja ureža takо što umetnete više od 5 listova papira, ili papiricates ravno i pravilno umetnut.

Nakon uključivanja zašite od pregrijavanja ostavite urežaj 25 minuta da se ohladi. U tu je svrhu potrebno izvuč utikač iz uticnice.

Conformity of the equipment to the EU directives is confirmed by the CE symbol.

FR

Hattingen, September 2008

Heinz Prygoda, Managing Director

Ort, Datum
