USER MANUAL Go!S 1.2 Govecs

Dear User of scooter GOVECS,

We are excited that you have made the decision to purchase a GOVECS scooter and it is our pleasure to welcome you among the great number of GOVECS' scooter drivers.

This manual includes instructions concerning proper use, maintenance, and care of your GOVECS scooter. For your own safety and optimal comfort of usage we advice you to carefully read this manual before the first use.

Proper maintenance of the vehicle, observing all usage instructions included in this manual and visiting GOVECS service stations for regular inspections will ensure faultless operation of your scooter as well as continuation of warranty period.

Have a comfortable and accident free journey!

Table of contents

1. Safe riding instructions

1.1 Pre-ride activities
1.2 Clothing
1.3 Riding technique
1.4 Carrying cargo and passengers
1.5 After riding

2. Vehicle equipment

2.1 Left side of the vehicle
2.2 Right side of the vehicle
2.3 Operational elements
2.4 Ignition switch
2.5 Speedometer
2.6 Left side controllers
2.7 Right side controllers
2.8 Throttle
2.9 Trunk
2.10 Charging of the battery
2.11 Handle
2.12 Position the vehicle on the center stand

2.13 Hook for bags
2.14 Lighting
2.15 Tires
2.16 Brakes
2.17 Controll of braking liquid level
2.18 Control of belt tension
2.19 Motor Controller Communication Codes
2.20 Technical specification
2.21 How to check the VIN number of a vehicle

3. Taking care of the vehicle

4. Transfer of the vehicle

4.1 Inspection before transfer of the vehicle
4.2 Acceptance of the vehicle
4.3 Warranty terms
4.4 Technical inspection

5. Helpful Tips

1.1 Pre-ride activities

Before riding scooter make sure that:

• The charging plug is out of the socket
• The battery is sufficiently charged
• The lighting, turn signals, and horn function properly
• The mirrors are adjusted for proper use
• There is the correct air pressure and proper tread depth in tires
• The brakes work properly (braking test while pushing the scooter)
• There is the correct level of braking fluid and that the brake pads are not worn out.
• It is easy to turn the handlebars without resistance, fully left and right
• There is proper belt tension

1.2 Clothing

• Always ride in proper clothes and proper helmet.
• Wear tight fitting and comfortable clothing
• Wear proper boots (don't ride in high heels, flip-flops, or similar open footgear)

Inadequate clothing may become a threat to safe riding!

1.3 Riding technique

• Vehicle should be ridden carefully and sensibly
• Always hold the handlebars with two hands
• While turning the rider and passenger should tilt along with the scooter
• Particular wariness is recommended while riding on poorly hardened or wet road surfaces
• Pay attention to atypical sounds or behavior of the scooter while riding

1.4 Carrying cargos and passengers

• In order to carry objects or bags one should explicitly use top case, under seat trunk or a hook for bags. The maximum weight allowance for top case is 5kg .
• Maximum scooter weight allowance must not be exceeded (150kg including passengers' weight)
• The scooter is allowed to carry maximum 2 persons

1.5 After riding

• Check if the battery needs charging.

Riding with low level of battery signifi cantly decreases its life.

Battery life can be extended by recharging it each time with use of originally installed GOVECS charger. There is no risk of overcharging, because after reaching maximum charging level the charger disconnects automatically (even though the fen is still working).

elektrischecooterwinkel,

EN

2. Vehicle equipment

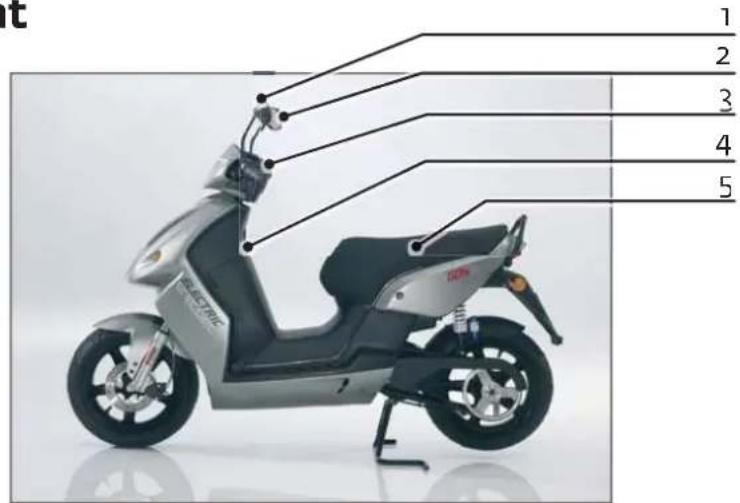

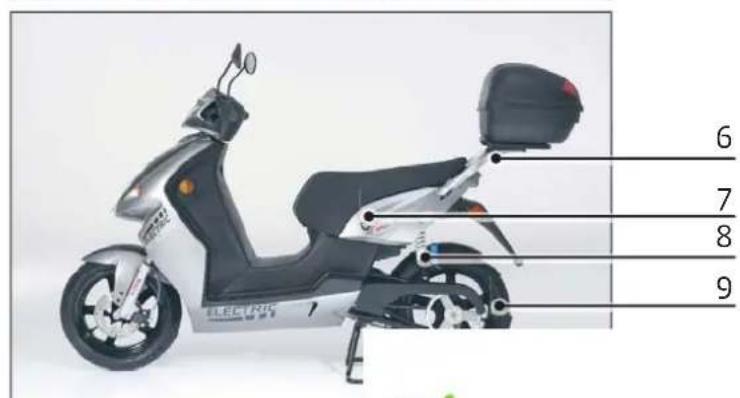

2.1 Left side of the vehicle

1.Left mirror
2. Right mirror
3. Speedometer
4. Ignition switch
5. Single piece seat
6. Handle
7. Seat lock
8. Rear shock absorber
9. Rear wheel
10. Center stand

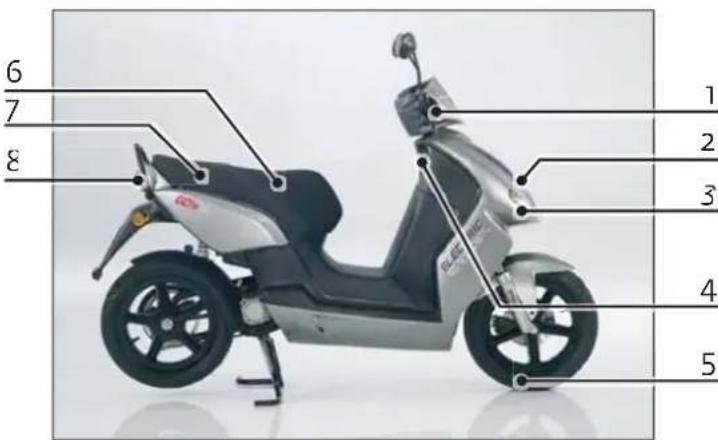

2.2 Right side of the vehicle

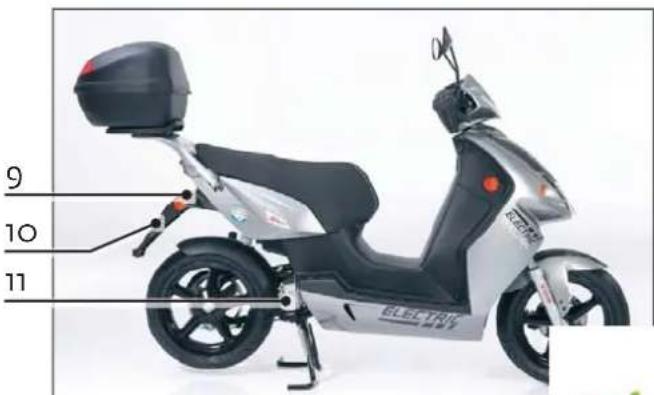

10. Registration Plate Light (only ,+"" version)

1. Brake lever
2. Head-light
3. Front turn signal
4. Hook for bags
5. Front Wheel
6. Storage compartment under the seat
7. Cable for charging under the seat
8. Parking and braking light
9. Rear turn signal
10. Engine

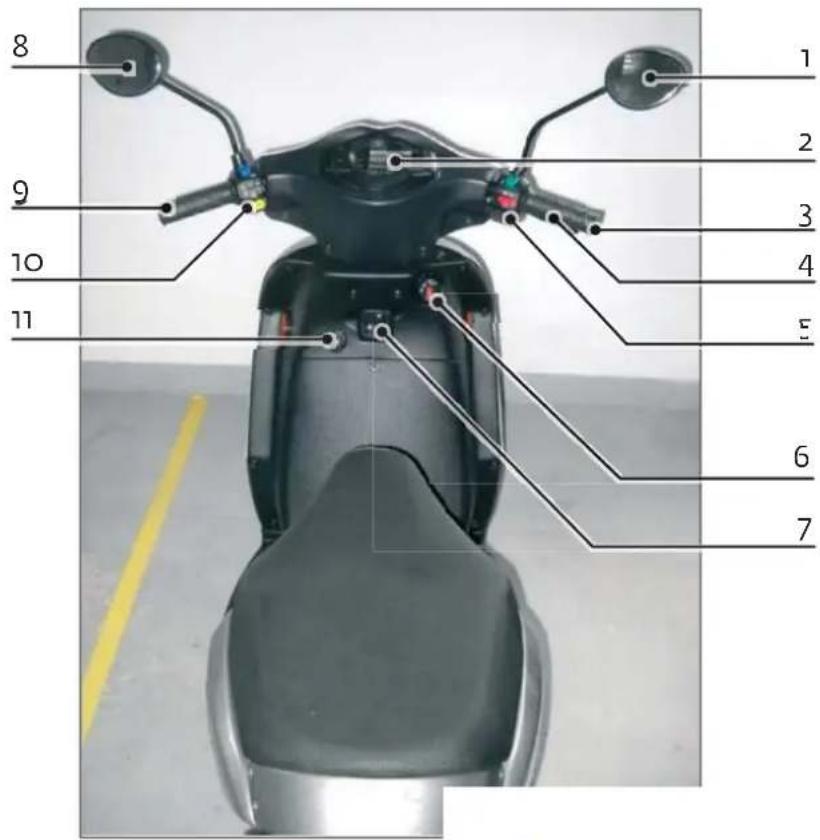

1. Right mirror
2. Speedometer
3. Handlebar throttle
4. Front wheel brake lever
5. Right side switches
6. Ignition switch
7. Hook for bags
   8.Left mirror
8. Rare wheel brake lever
9. Left side switches
10. Power socket 12V

• All the functions turned off
• Handlebar is not locked
• Scooter can be rolled
• Scooter can be safely handled

Riding position (vehicle turned on)

• All the functions active
• Scooter is ready for riding
• Taking out the key in this position is not possible
• The key should be turned to riding position only after the rider is seated on the vehicle, directly before riding.

Note:

The sound of the engine is not heard although the handlebar throttle is active.

Ignition off

Riding position

EN

Ignition switch position „Handlebar locked"

• All the functions turned off
  The handlebar locked
• Scooter can be safely handled

Locking handlebar

1. Turn the handlebar left all the way to the end
2. Push in the key turning it left at the same time to the padlock position
3. Pull out the key

Handlebar locked

elektrischeccooterwinkel,

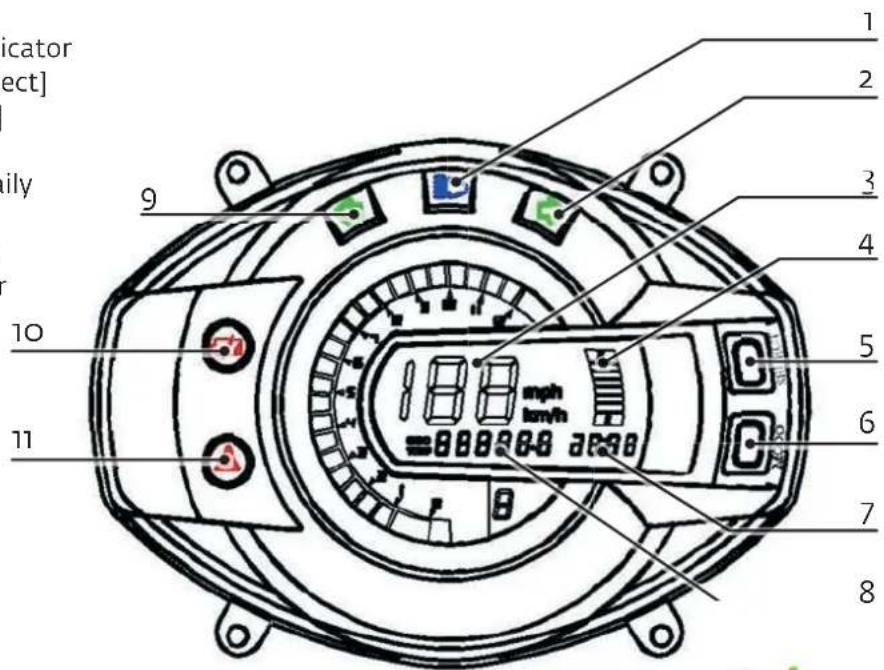

2.5 Speedometer

Speedometer is equipped with the following functions and indicators

1. Head light
2. Right turn signal
3. Riding speed
4. Charging battery indicator
5. Selection button [Select]
   6.Mode button [Mode]
6. Clock
7. Kilometres: total / daily
8. Left turn signal
9. Battery signal light
10. Charging indicator

elektrischecooterwinkel.

EN

Controllers handling

Switching between total kilometers (ODO) and daily kilometres (trip)

Holding pressed mode button [mode] (6) for one second switches from total kilometers count (ODO) to the dialy kilometers one (trip).

Pressing the selection button for 3 seconds [select] (5) results in resetting the trip meter.

Pressing the mode [Mode] (6) and selection [Select] (5) buttons for 3 seconds switches speed unit from km/h to mph (miles per hour) or vice-versa.

Setting the clock

In order to set up the clock keep pressing the mode [Mode] (6) button until the minutes value begins to pulsate.

Then set up the minutes by pushing in the selection [Select] (5) button.

After pushing in mode button [Mode] (6) again the hour value begins to pulsate and the hour can be set. In order to confirm the setting, the mode button [Mode] (6) should be pushed in again.

elektrischecooterwinkel,

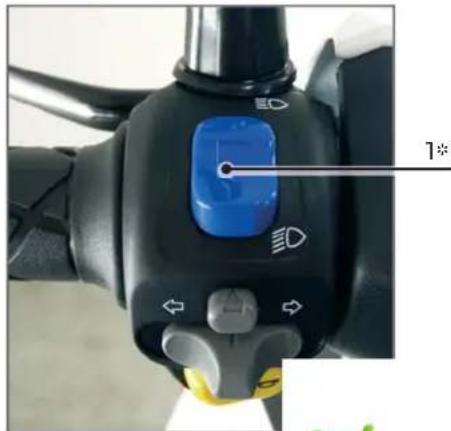

2.6 Left side controllers

Turn light is on by moving to the left or to the right the turn light switch (3) according to intended riding direction.

In order to turn it off, press the "turn off" button (2).

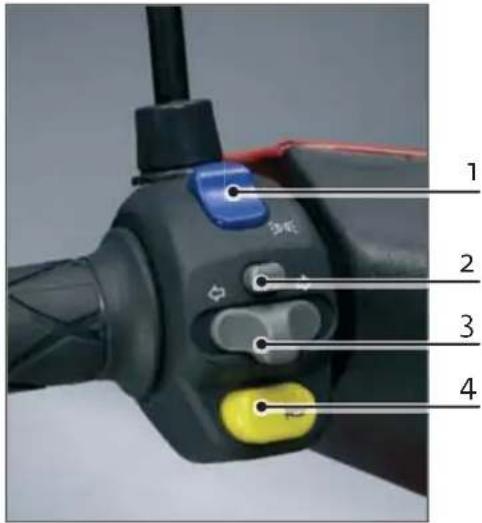

1. Running light / head light switch
2. Running light / high beam switch for " ^+ "version
3. Turn signal button (for canceling)
4. Turn signal switch
5. Horn button

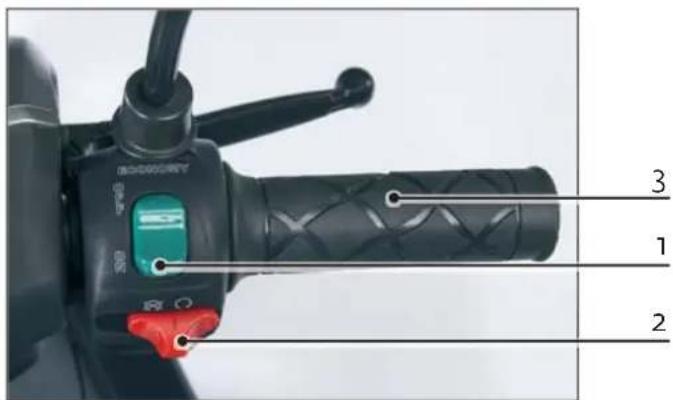

1. On/Off economy function switch

Economy function allows the increase of vehicle distance range.
- Setting the switch to "on" position slightly reduces the acceleration of the scooter, at the same time lowers the use of energy, thus increasing the range of the scooter.

1. Safety kill switch

2. This kill switch MUST be moved to the left hand side position when the ignition key is being turned on! After ignition is turned on, move the kill switch to the right hand side position. Scooter is activated. Failure to do so will display the error code F-o884 on the speedometer.

Economy function does not affect maximum speed!

2.8 Throttle

By turning of handlebar throttle (3) the speed can be controlled

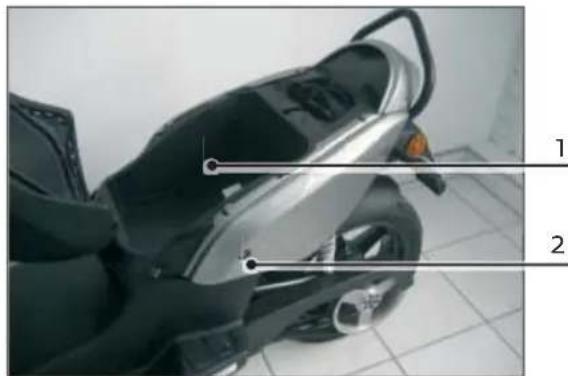

2.9 Trunk

Trunk
2. Seat lock

• In order to unlock the seat the key should be inserted and turned left, then the seat will raise up.
• In order to close the seat push the seat in the middle until you hear the lock click
  Maximum load of the trunk is 5kg

Note!

Never place the key in the trunk before locking the seat

Please take care of the charging cable when closing

Trunk*

a Depending on the model of the scooter it's appearance may be different

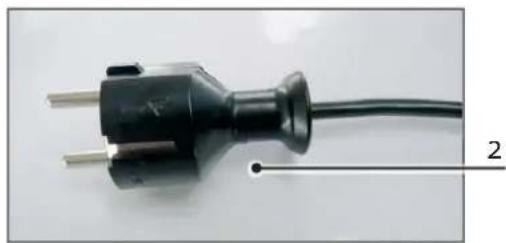

2.10 Charging of the battery

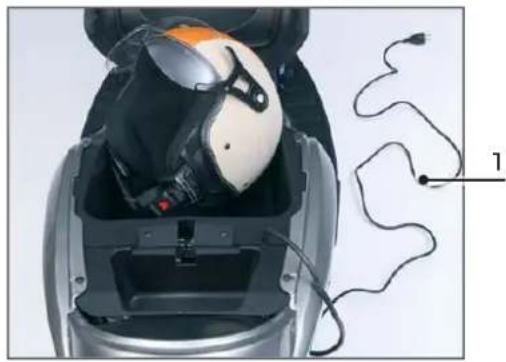

1. Charging cable (in trunk under the seat)
2. Plug CEE7-VII at the end of charging cable

	GO! S1.2 GO! S2.4
Blinking o-80% charged -
Solid light 80-99% charged 80-90% charged
No light 100% charged 100% charged

Charging cable can be used for all sockets type E/F or CEE 7/4 with specification 16A/250V.

Charging time of empty battery is about 4-5 hours.

Battery should be charged each time it is possible since it extends its lifetime.

Charging phase is visible on Battery signal light on speedometer.

Avoid riding with not fully charged battery since it decreases its lifetime. There is no possibility to overcharge the battery.

Important note: battery requires to be charged at least once a month, even if you do not use your scooter.

Do not load the battery at temperature lower than -10 degrees.

2.11 Handle

Handle (1) allows passenger to hold during riding. Moreover, the handle is helpful while positioning the vehicle on center stand. GO!S2.4 is equipped with handle that is also a top case holder (2).

Handle GO! S1.2

Handle GO! S2.4

2.12 Position the vehicle on the center stand

1. In order to support the vehicle on stand, press down the catch of the center stand from the left side of the scooter (arrow 1)
2. Both legs of center stand must stand on the surface (arrow 2)
3. Press down the catch of the center stand at the same time pull the handle backwards and upwards until the scooter is safely supported on the center stand.

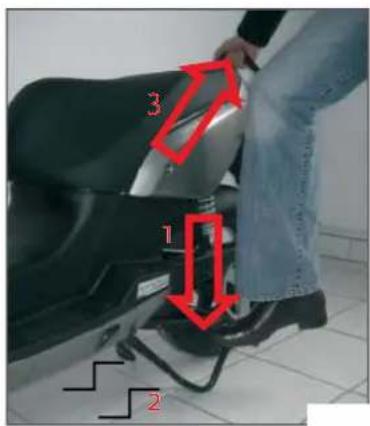

Do not sit on the scooter while it is supported on the stand since it may damage the vehicle!

Depending on the model of the scooter it's appearance may be different

Position on centerstan

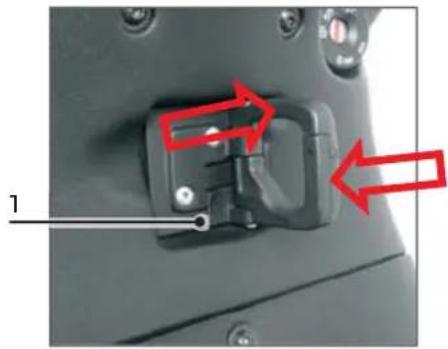

Hook for bags (1) can be used to hang bags.

Hook has protection, which prevents from unfastening and loosing the bag.

In order to hang a bag the operator should expand the hooks in directions showed with arrows.

Remember that while turning the vehicle the swinging bags may affect riding.

Do not hang weights exceeding 3kg on the hook.

Hook for bags

2.14 Lighting

Each time, before riding the lighting installation should be checked in respect of its functionality, damages, and settings.

• Head-light (n + n high beam) and parking light
• Front and rear turn signals
  Tail light
• Brake light for front and rear brake
  Number-plate light

Due to the fact that the LED energy-saving bulbs were used in GOVECS scooters, in case of abnormal functioning or damage of lighting installation, at GOVECS service station.

2.15 Tires

It is necessary to check tires before riding for possible damages or lack of air.

Too low air pressure or worn out tires have negative impact on the scooter's performance during riding and reducing the scooters' range.

Tires can be replaced only at the GOVECS service station.

Air pressure in tires can be checked and adjusted at every petrol station. Pressure in tires should be checked once a week and after longer periods of downtime.

Airpressure Without load With load (2 persons)

Braking system is the safety system of the vehicle. For personal safety one should particularly consider condition of braking system.

The following elements of braking system should be checked before riding:

1. Braking fluid level (see point 2.17).
2. Seal of the braking system.
3. Performance control.

In order to check performance of the brakes the operator should push the scooter several meters. While pushing squeeze the front brake and then the rear brake, one at a time. During braking test the scooter should be firmly held, which will prevent it from falling over.

Note! Maintenance works and repair of the braking system are only allowed at GOVECS service stations.

elektrischecooterwinkel,

2.17 Control of braking liquid level

Braking liquid level should be checked each time before riding.

• Position the vehicle on the center stand
• Turn the handlebar to the left
• Check the level on the sight-glass from the right side of the vehicle - It must fit between upper and lower edge of the sight-glass.

Absence of visible liquid in the sight-glass means damage of braking system.

Scooter should not be used until the braking system is repaired at the GOVECS service station.

2.18 Control of belt tention

The belt tension should be 80-85 Hz which can be measured with a standard Trummeter for measuring belt tensions. Please contact your service station for measurment and tention adjustment.

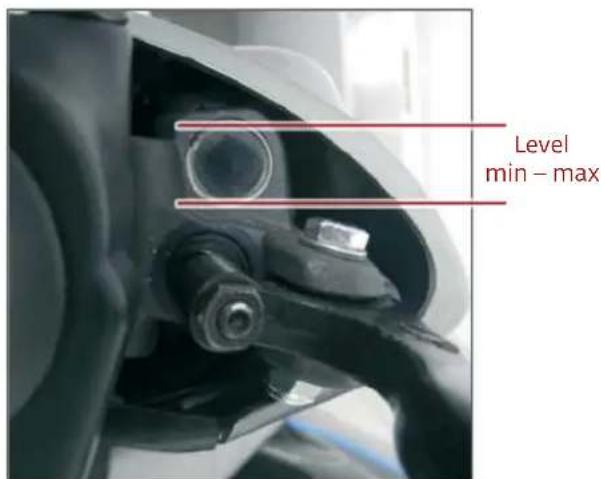

Sight-glass of the braking liquid level

2.19 Technical specifi cation

GO! S1.2 GO! S2.4 Comments

Length 1800mm without grabhandle

Width 685 mm without mirrors

Height 1120 mm without mirrors

Seat Height 790 mm

Weight ~ 140 kg ~ 115 kg

Loading capacities max 150 kg including the passenger

Under seat trunk capacity max 5 kg

Topcase (optional) loading capacity 3 kg

Tire pressure front 2,5 bar 2,6 bar (2 persons) rear 2,5 bar 2,8 bar (2 persons)

Tire sizes 130/60-R13 Heidenau K61

Tire type Duro DM1017 Duro HF916 Maxxis M6029

Light bulbs Front - H4 35W 12V Rear: LED 12V position light power o,9W brake light power 2,7W Indicators - LED 12V1,0W Ngt Licence Pate Light: LED 12V

Fuses 6oA, 2oA
Transmission ratio 5.69
Motor Brushless , 3 KW Brushless, 3 KW		For "+" versions motor power is 4,03 KW
Battery type	8x Greensaver SP20-12 12V 20Ah Lead/Silicone	72V, 40Ah Lithium Ion
Battery capacity and voltage	max 126V max 84V min 88,2V min 64V
Charger details	not detachable, power 8A/116V max 930W	220-110V; 6A/220 V
Battery charging cycles 500 1000
Range 40-60 km 60-100 km		depending on driving profi le, tires pressure, weather conditions etc.
Charging time	4-5 hours (95%)	2.5h (80%) and 3.5-4h (100%)
Brakes type	Front - hydraulic brake, rear - drum brake/disc brake*
Brake fluid	DOT4

Depending on production batch

2.20 How to check the VIN number

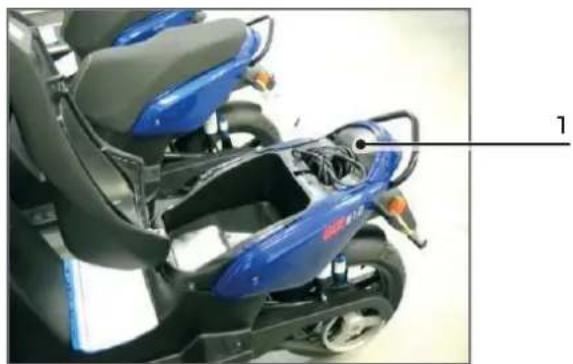

You can find the VIN number in two different places on the scooter: under the seat and under the charger box cover.

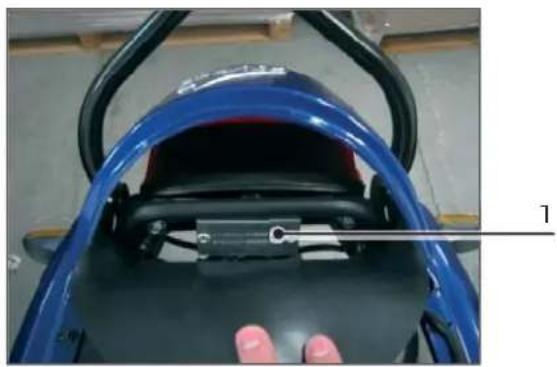

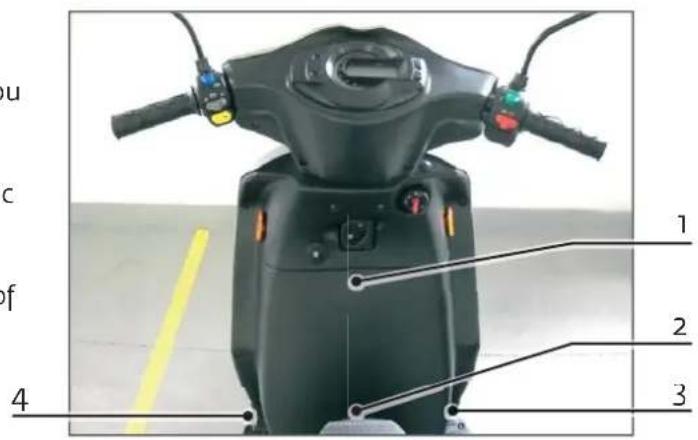

1. In order to find the VIN number under the seat, open it and bend back the rubber lamp cover.
2. On the rectangle shaped metal plate you will see the VIN number of the vehicle.

Depending on the model of the scooter its appearance may be different

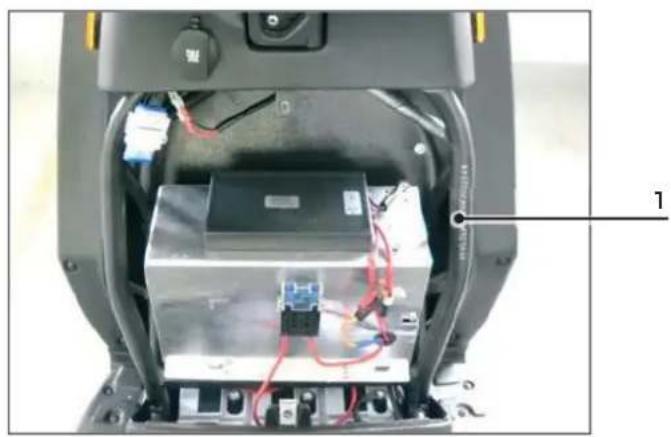

In order to find the VIN number under the plastic charger cover you need to unscrew it in four places (please refer to the pictures).
- Once unscrewed, remove the plastic cover.
- You will find the VIN number engraved on the right hand side of the frame.

elektrischeccooterwinkel,

2.21 Motor Controller Communication Codes

Code Message Limit Action

F-o884 Sequence code			Please shut off scooter and restart the ignition with the kill switch in the "Off" position.
F-o5C1	Battery Discharge Indicator - Warning	SOC<3% - GO! S1.2/GO! S1.2+; SOC<10% - GO! S2.4/GO! S2.4+	The operator should charge the battey. When the battery is full charge the operator can resume riding.
F-o5C2	Battery Discharge Cut-out - Warning	SOC<1%	The operator should charge the battey. When the battery is full charge the operator can resume riding.
F-o5C3	Low Battery Voltage - Warning	8oV - GO! S1.2/GO! S1.2+; 56V - GO! S2.4/GO! S2.4+	The operator should charge the battey. When the battery is full charge the operator can resume riding.
F-o5C4	High Battery Voltage - Warning	114V - GO! S1.2/GO! S1.2+; 112V - GO! S2.4/GO! S2.4+	The operator should leave scooter in idle state (ignition ON) for 2-3 minutes, battery balancing in process.
F-o5C5	Hight Capacitor Voltage - Warning	114V - GO! S1.2/GO! S1.2+; 112V - GO! S2.4/GO! S2.4+	The operator should leave scooter in idle state (ignition ON) for 2-3 minutes, battery balancing in process.
F-o5C6	Low Battery Voltage - Warning	39.1V	The operator should charge the battery. When the battery is fully charge the operator can resume ridi

elektrischecooterwinkel,

Code Message Limit Action

F-05C7	High Battery Voltage - Warning	116V	The operator should leave scooter in idle statge (ignition ON) for 2-3 minutes, battery balancing in process
F-05C8	High Capacitor Voltage Warning	150V	The operator should leave scooter in idle statge (ignition ON) for 2-3 minutes, battery balancing in process
F-05C9	Motor in low voltage cutback	84V - GO! S1.2/GO! S1.2+; 60V - GO! S2.4/GO! S2.4+
F-0601	Low Scooter Temperature - Warning	-30 °C	The operator should allow the scooter to warm to room temperature before resuming to ride the scooter.
F-0602	High Scooter Temperature - Warning	80 °C	The operator should allow the scooter to cool to room temperature before resuming to ride the scooter.
F-0603	High Motor Temperature - Warning	130 °C	The operator should allow the motor to cool to room temperature before resuming to ride the scooter.
F-0604	Low Motor Temperature - Warning	-30 °C	The operator should allow the motor to warm to room temperature before resuming to ride the scooter.
High Curr	High current due to battery regeneration	n/a No action necessary, not a fault

3. Taking care of the vehicle

In order to maintain the vehicle properly certain instructions must be observed.

• Clean the vehicle with sponge and clean water on regular basis.
• Do not use hard sponges or scratching materials for insects removal.
• Varnished covered elements should be cleaned with use of varnish preparations.
• Plastic parts should only be cleaned with agents dedicated to plastic elements.
• Make sure that the anticorrosive aerosol sprays are not used on braking system elements, varnished parts and plastic elements.
• The vehicle parked outdoor should be protected with a breathing cover. Standard covers made of artificial material cause water condensation under the cover and consequently make the scooter corroded.

Under no circumstances can the high-pressure washer be used for the scooter cleaning.

4. Transfer of the vehicle

4.1 Inspection before transfer of the vehicle

Before transfer of the vehicle at the sales center of GOVECS the following inspections should be performed:

• Checking the vehicle in respect of transport damages
• Battery charging
  Control and possible adjustment of air pressure in tires
  Control of lighting installation in respect of positioning and proper performance
  Control of performance of all operational elements
  Test riding

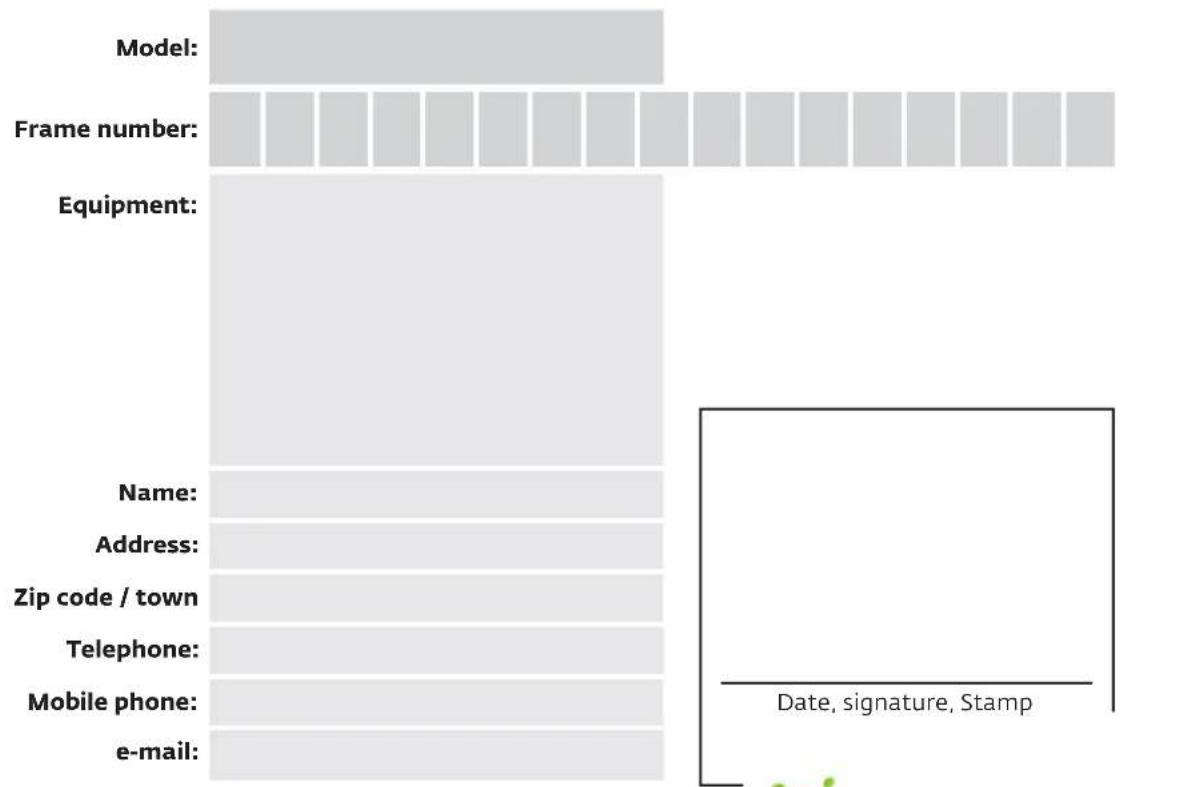

4.2 Acceptance of the vehicle

Hereby this document is the basis for recognition of warranty claim. If the warranty sheet is not filled in or is partially filled in, the warranty claims will not be recognized.

EN

elektrischecooterwinkel,

4.3 Warranty terms

1. Warranty liabilities are determined by statutory regulations (two years) counted from the date of acceptance of the vehicle by the end user.
2. Batteries are subject to warranty under the below conditions:

a) silicone - 80% state of health after 450 cycles or two years, whatever comes earlier;
b) lithium - 70% state of health after 700 cycles or two years whatever comes earlier;

1. The failures that are not reported within specified period of time at authorized sales center GOVECS shall not be the subject to warranty repairs.
2. Usable parts (e.g. Lighting, bulbs, tires, brake pads or brake discs) are not covered by warranty.
3. It depends on GOVECS GmbH company – hereinafter refer to as GOVECS – whether the defective parts shall be replaced or repaired.
4. Warranty legal rights shall not apply to any of the following situations:

a) Fault is a result of operation inconsistent with regulations, in particular by overloading the vehicle by the end user.
b) The end user shall make inspection or repair, recommended in servicing book, in the workshop other than authorized by GOVECS.
c) The vehicle shall undergo any modification, reconstruction or shall be equipped with parts that do not have firm approval of GOVECS as the equipment of the vehicle.
d) The vehicle was used in motor-sport events.
e) The instructions concerning operation, care and maintenance described in hereby manual were not observed.

1. Agreements other than the above warranty terms require written consent of GOVECS to be effective.

The warranty does not apply to the following parts:

Bulbs
- Brake pads and brake discs
Tires
- Accessories that are not part of the serial equipment

I hereby accept the warranty terms specified herein. I confirm personal acceptance of the vehicle in faultless condition. The sales assistant explained me the warranty terms.

Customer signature

4.4 Technical inspection

The vehicle must undergo technical inspection plus or minus 100 km of the recommended term and minimum once per year.

EN

Inspection 500 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 5000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 10000 km km: Date, signature, stamp of sales assistant GOVECS
Inspection 15000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 20000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 25000 km km: Date, signature, st assistant GO

Inspection 30000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 35000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 40000 km km: Date, signature, stamp of sales assistant GOVECS
Inspection 45000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 50000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 55000 km km: Date, signature, stamp of sales assistant GOVECS
Inspection 60000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 65000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 70000 km km: Date, signature, stamp of sales assistant GOVECS

Inspection 75000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 80000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 85000 km km: Date, signature, stamp of sales assistant GOVECS
Inspection 90000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 95000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 100000 km km: Date, signature, stamp of sales assistant GOVECS
Inspection 105000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 115000 km km: Date, signature, stamp of sales assistant GOVECS	Inspection 125000 km km: Date, signature, st assistant GO

The task of GOVECS' representative at service station is comprehensive counseling and professional inspection of the vehicle.

Hereunder are presented some helpful tips for carrying out an efficient inspection and repair.

1. Inspections and repairs should be ordered at exclusively authorized GOVECS service stations.
2. Dates should be consulted with workshop manager.
3. If there is something diffi cult to understand it should be discussed with workshop manager.
4. Only clear orders should be made.
5. Expected costs should be inquired in advance.
6. Telephone number should be given to the service technician in case of questions.
7. In case of any additional works appearing, it is necessary to establish the upper cost limit.
8. In case of lack of clarity, questions should be asked openly.
9. The dates of regular technical inspections of the vehicle should be observed.

GOVECS GO! S1.2 (+)

GO! S2.4 (+)

4.4 Révision technique

Govecs Poland Sp. z.o.o.

ul. Wodzistawska 6a

52-017 Wroctaw

Poland

www.govecs.com

elektrischescooterwinkel.nl
