USER MANUAL Compact Power Mixx BEEM

• Nettogewicht ca. 0,96 kg Betriebs- spannung 220-240V~ Netzfrequenz 50 Hz Leistung 250 W Schutzklasse II Schutzart IP2014 Compact Power-MiXX DE BEEM - Elements of Lifestyle Störungsbehebung Die nachfolgende Tabelle hilft bei der Lokalisierung und Behebung kleinerer Störungen: fehler Mögliche Ursache Behebung Das Gerät funktioniert nach dem Betätigen des -Tasters nicht. Stecker nicht eingesteckt. Stecker einstecken. Sicherungsautomat in der Elektroverteilung abgeschal- tet. Sicherungsautomat einschalten. Der interne Sicherheitsschal- ter hat wegen Überhitzung das Gerät abgeschaltet. Gerät abkühlen lassen. Der Arbeitsbehälter, der De- ckel oder der Auswurfaufsatz ist nicht richtig aufgesetzt. Arbeitsbehälter, Aus- wurfaufsatz bzw. Deckel richtig aufsetzen und verriegeln. Der Sicherungsautomat in der Elektroverteilung springt heraus. Zu viele Geräte am selben Stromkreis angeschlossen. Anzahl der Geräte im Stromkreis reduzieren. Kein Fehler feststellbar. Kundendienst benach- richtigen. Motor dreht auffallend langsam oder bleibt ste- cken. Arbeitsbehälter überfüllt. Einen Teil der Zutaten entfernen. HINWEIS Wenn Sie mit den vorstehend genannten Schritten das Problem nicht lösen kön- ► nen, wenden Sie sich bitte an den Kundendienst.15 EN Compact Power-MiXX BEEM - Elements of Lifestyle Dear Customer, before using the appliance, please read the instructions contained in this user manual on startup, safety, intended use as well as cleaning and care. Open the fold-out page at the beginning and end of the user manual in order to view the illustrations during reading. Keep this user manual in a safe place and pass it on to any future owners together with the appliance. General instructions Copyright This document is copyrighted. Any dupli- cation or reprinting, in whole or in part, and the reproduction of the illustrations, even in modied form, is only permitted with the written approval of the manufac- turer. Notes on environmental protection The packaging materials used can be recycled. When no longer re- quired, dispose of the packaging materials according to local environmental regula- tions. This product may not be disposed of in the domestic refuse within the Eu- ropean Union. Dispose of the appli- ance via communal collection points. Warranty/Guarantee In addition to the statutory warranty obliga- tion, BEEM also grants an extended man- ufacturer’s guarantee for some products. Provided this is granted, the correspond- ing details for each product can be found either on the product-specic packaging, advertising material or on the BEEM web- site. Please visit our website to obtain more information on comprehensive guarantee conditions, available accessories and spare parts as well as user manuals in various languages. General instructions p. 15

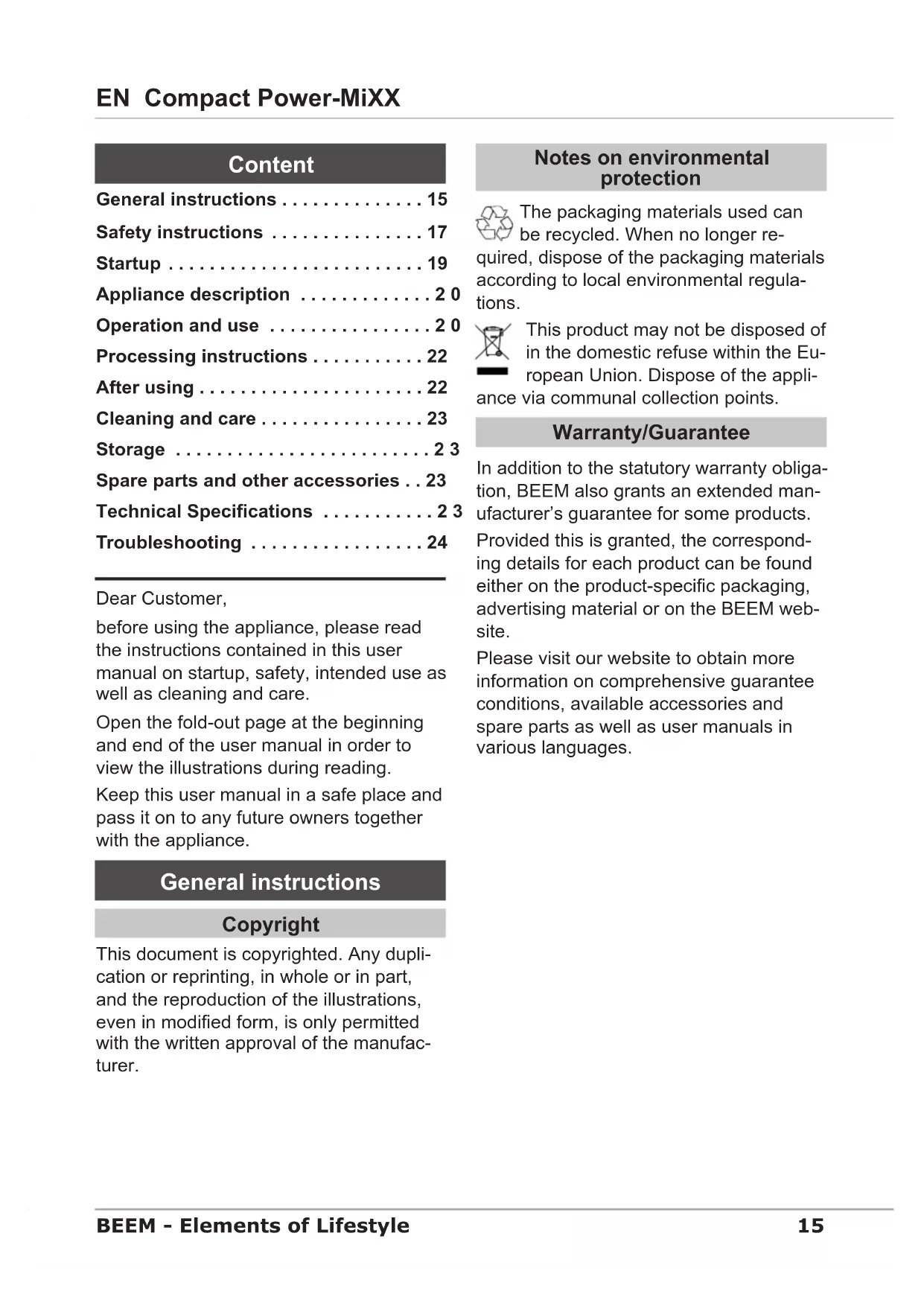

• Safety instructions p. 17
• Startup p. 19
• Appliance description p. 20
• Operation and use p. 20
• Processing instructions p. 22
• After using p. 22
• Cleaning and care p. 23
• Storage p. 23
• Spare parts and other accessories p. 23
• Technical Specications p. 23
• Troubleshooting Content16 Compact Power-MiXX EN BEEM - Elements of Lifestyle WARNING If not used for its intended purpose and/ or used in any other way, the appliance may be or become a source of danger. Use the appliance only for its in- ► tended purpose. Observe the procedures described in ► this user manual. No claims of any kind will be accepted for damage resulting from use of the appli- ance for other than its intended purpose. The risk must be borne solely by the user. Limitation of liability We assume no reliability for damage or follow-up damage in the case of: failure to observe the instructions in ■ the user manual, use for other than the intended pur- ■ pose, improper or unsuitable handling, ■ incorrectly performed repairs, ■ unauthorised modications, ■ use of non-approved parts or spare ■ parts, use of unsuitable supplementary or ac- ■ cessory parts. Declaration of Conformity BEEM hereby declares that this appliance complies with the fundamental require- ments and other relevant provisions of 2006/95/EC, 2009/125/EG and 2004/108/ EC directives. The full declaration of con- formity can be found under www.beem.de. Symbols used DANGER This indicates an imminent hazardous situation, which could lead to severe physical injury or death. Follow these instructions to avoid ► danger. WARNING This indicates a possible hazardous situation, which could lead to severe physical injury or death. Follow these instructions to avoid ► danger. ATTENTION This indicates a potentially hazardous situation, which could lead to minor injuries or material damage. Follow these instructions to avoid ► danger. NOTE A note contains additional informa- ► tion to simplify the use of the appli- ance. Intended use This appliance is intended primarily for non-commercial use in closed rooms for chopping food in normal household quanti- ties. Use in any other way is not consid- ered as intended use.17 EN Compact Power-MiXX BEEM - Elements of Lifestyle Safety instructions Inspect the appliance for visible signs ■ of damage before use. Do not use a damaged appliance. This appliance is not intended for use ■ by persons (including children) with re- stricted physical, sensory or mental ca- pabilities or with insufcient experience and/or knowledge unless they are supervised by a person responsible for their safety or have received instruc- tions on the use of the appliance from such a person. Children must be supervised to ensure ■ that they do not play with the appli- ance. Store the appliance and accessory ■ parts out of the reach of children. Do not leave the appliance unattended ■ during operation. Only allow repairs to the appliance ■ to be carried out by an authorised specialist or by the works customer service; this particularly applies to re- placing a damaged connecting cable. Unqualied repairs can lead to consid- erable danger for the user. They will also invalidate the warranty/guarantee. Repairs to the appliance during the ■ guarantee period may only be car- ried out by service centres authorised by the manufacturer as the warranty/ guarantee will otherwise be invalidated in the event of damage or subsequent damage. Defective parts may only be replaced ■ with original spare parts. Only original spare parts guarantee that the safety requirements are met. Only use spare parts from the manu- ■ facturer or spare parts that are spe- cically recommended by the manu- facturer. The warranty/guarantee will otherwise be invalidated. Do not use this appliance together with ■ an external timer or a separate remote control system. DANGER Danger from electric current! Do not use the appliance if the mains ► cable or mains plug is damaged. Do not open the housing of the ap- ► pliance. Danger from electric current if live connections are touched and/ or the electrical and mechanical conguration is changed. Never immerse the appliance or the ► mains plug in water or other liquids. Pull the plug out of the mains socket, ► when changing the attachments, – if you are not using the appliance, – if a malfunction occurs during op- – eration, before you clean the appliance. – Risk of suffocation! Never play with packaging material. ► Risk of suffocation.18 Compact Power-MiXX EN BEEM - Elements of Lifestyle WARNING Do not chop hard ingredients such ► as ice cubes, coffee beans or nut- megs. Do not process hot liquids. ► Do not operate the appliance without ► the corresponding lid. Danger from sharp blades! Remove the protective cover of the ► chopper knives carefully. Do not touch the blades. Always hold ► the chopping blade by the plastic shaft. Remove the blades before you ► empty the mixing bowl. Always push food in with the pusher. ► Never use your ngers. Danger from moving parts! Always disconnect the mains plug ► before assembling, disassembling, cleaning or storing the appliance. Never insert your ngers or objects ► into the lling shaft. ATTENTION Always switch off the appliance be- ► fore removing the upper parts. Only operate the appliance when the ► upper part is locked and the lid or pusher is in place. Do not pull the connecting cable ► to remove the plug from the mains socket. Remove any stones from the fruit ► before extracting the juice. ATTENTION Do not operate the appliance when ► the mixing bowl is empty. Always use the stopper for insert- ► ing ingredients into the lling shaft, never use any other objects. Do not use sharp objects or abra- ► sive cleaning agents to clean the surfaces. When using for prolonged periods ► of time, allow the appliance to cool down occasionally to avoid overheat- ing. The mixing bowl is not suitable for ► use in ovens or microwave ovens. Never lift or move the appliance with ► the mains cable. Requirements for the place of use For safe and trouble-free operation of the appliance, the place of operation must sat- isfy the following requirements: Place the appliance on a rm, dry, at, ■ waterproof and heat-resistant surface. Do not install the appliance in a hot, ■ wet or very humid environment. The mains socket must be easily ac- ■ cessible and allow fast disconnection in the event of an emergency. The surface nishes on furniture may ■ contain substances that can be detri- mental to the feet of the appliance. If necessary, place a mat under the feet of the appliance.19 EN Compact Power-MiXX BEEM - Elements of Lifestyle Electrical connection For safe and trouble-free operation of the appliance, the following instructions must be observed for the electrical connection: Before connecting the appliance, ■ compare the connection data (voltage and frequency) on the rating plate with those of your mains power supply. The data must correspond in order to avoid damage to the appliance. If in doubt, ask your electrical appliance retailer. The mains socket must be protected ■ by at least a 10 A automatic circuit breaker. Ensure that the mains lead is undam- ■ aged and is not laid over sharp edges. The mains cable must not be pulled ■ tightly, bent or come into contact with hot surfaces. Route the cable to prevent risk of trip- ■ ping. The electrical safety of the appliance ■ is only assured when it is connected to a properly installed protective earth (PE) conductor system. Connection to a mains socket without PE conductor is forbidden. If in doubt, the electrical system must be checked by a qualied electrician. The manufacturer assumes no liability for injury or damage caused by a missing or interrupted protective earth conductor. Startup Unpacking Remove the appliance, all accessory parts and the user manual from the box. Remove all packaging materials and protective foils from the product and the accessories before using it for the rst time. NOTE Do not remove the rating plate or ► any warning signs on the appliance. If possible, keep the original packag- ► ing during the guarantee period in or- der to be able to pack the appliance properly in the event of a guarantee claim. Transport damage will invali- date the warranty/guarantee. Check the delivery contents Check for visible signs of damage or missing items. Report incomplete or damaged con- tents to your supplier immediately. Before using for the rst time Clean the appliance and the acces- sories, as described in the section Cleaning and care (page 23).20 Compact Power-MiXX EN BEEM - Elements of Lifestyle Appliance description (See illustration on the left fold-out page) Motor unit1 2 pushbuttonDrive shaft3 Mixing bowl4 Chopper blade5 Mixing bowl lid6 Pusher7 Output attachment8 Cutting/rasping disc9 Disc spindle10 Collecting container lid11 Collecting container12 User manual (not illustrated)13 Safety switches The appliance is equipped with a safety switch and can only be operated when the mixing bowl and its lid or the output attachment are seated properly on the mixing bowl. WARNING Before using each time, check the ► function of the safety switch. Switch on the appliance only with attached mixing bowl for this purpose. If the motor turns, the safety switch is defective and the appliance may not be used. Operation and use General instructions You can achieve the best results if ■ you always chop smaller quantities at once. Cut food into small pieces. In the case ■ of larger quantities or large pieces, it is possible that the ingredients are not chopped uniformly. In order to chop food evenly, switch off ■ the appliance occasionally and scrape the ingredients off the sides with a plastic scraper. When processing heavy ingredients, ■ do not allow the motor to run for longer that 20 seconds at a time. Switching the appliance on and off The appliance is turned on and off via the pushbutton (2). Press the pushbutton (2) down. The appliance runs at maximum speed as long as the pushbutton is pressed. Pushing and releasing the push- button allows intermittent running of the motor.21 EN Compact Power-MiXX BEEM - Elements of Lifestyle Shredding Put the mixing bowl (4) onto the mo- tor unit (1) and turn it clockwise until it stops (image A1). Insert the chopper blade (5) on the drive shaft (3) (image A2). WARNING Danger from sharp blades! Do not touch the blades. Always hold ► the chopping blade by the plastic shaft. Fill the food to be chopped into the mixing bowl (4). NOTE The mixing bowl (4) may not be ► overlled. When chopping food with a high liquid content such as oranges, tomatoes or cucumbers, only ll the mixing bowl up to a half (approx. 200 ml). Put the lid (6) onto the mixing bowl (4), the triangle on the lid is pointing towards the symbol. Lock the lid by turning it clockwise towards the symbol (image A3, A4). NOTE Make sure that the mixing bowl and ► lid are seated properly, otherwise the appliance cannot be operated (safety switch). Insert the plug into the mains socket and press the pushbutton (2). ATTENTION Observe the maximum operating ► time of 2 minutes. Allow the appliance to cool down for ► 1 minute. NOTE Before emptying the mixing bowl, remove the chopping blade (5).22 Compact Power-MiXX EN BEEM - Elements of Lifestyle Cutting/rasping Put the mixing bowl (4) onto the mo- tor unit (1) and turn it clockwise until it stops (image A1). Insert the disc spindle (10) onto the drive shaft (3) (image B1). Put the cutting/rasping disc (9) onto the disc spindle (image B2). The de- sired side (cutting or rasping) points upwards. Put the output attachment (8) with the outlet pointing right onto the mixing bowl, the triangle of the output attach- ment points towards the symbol. Lock the attachment by turning it clock- wise towards the symbol (image B3). NOTE Make sure that the mixing bowl and ► output attachment are seated prop- erly, otherwise the appliance cannot be operated (safety switch). Fill the food to be rasped or cut into the feed shaft of the output attach- ment (8). Put the collecting container (12) under the output (image B4). Insert the plug into the mains socket and press the pushbutton (2). Push the food with the pusher (7) downwards until the feed shaft is empty. ATTENTION Observe the maximum operating ► time of 2 minutes. Allow the appliance to cool down for ► 1 minute. Relling: Switch off the appliance. Take out the pusher (7) and ll further food into the feed shaft of the output attachment (8). Processing instructions Do not overll the mixing bowl during ■ chopping. Before chopping meat, remove ined- ■ ible parts such as the skin, tendons and bones. Cut the food into pieces with a size of ■ roughly 1.5 cm before chopping. Peel the fruit, remove or wash the skin, ■ remove pip(s) and if necessary, cut into small pieces before chopping. In order to cut or rasp food, it may be ■ necessary to cut into smaller pieces so that they t into the feed shaft. After using Switch off the appliance and pull the plug out of the mains socket. Rinse the mixing bowl and the acces- sories used with water. Clean the appliance and the accesso- ries used as described in the Clean- ing and care section (page 23).23 EN Compact Power-MiXX BEEM - Elements of Lifestyle Cleaning and care Before beginning work, pay attention to the safety instructions in the Safety sec- tion (page 17)! Cleaning the appliance Wipe the motor unit (1) with a slightly damp cloth. All other parts can be cleaned in a warm washing-up liquid solution or in the dish washer. Dry all parts of the appliance thor- oughly after cleaning. NOTE Dried and caked food residues can ► be removed more easily if you allow them to soak in warm washing-up liquid solution for 10 minutes before cleaning. Immediately after processing very ► salty ingredients, rinse the chopping blades. After processing strongly coloured ► ingredients, the plastic parts of the appliance can become discoloured. Rub these parts with cooking oil before cleaning them. Storage If you do not intend to use the appliance for a longer period of time, clean it as de- scribed in the section Cleaning and care (page 23). Store the appliance and all accessory parts at a dry, clean and frost-free loca- tion, which is protected against direct sunlight. Spare parts and other accessories Item* Article No. Designation 5, 9, 10 900765001 Set 1: chopping blades, cutting/ rasping disc, disc spindle 4, 6, 7, 8 900765002 Set 2: mixing bowl, lid mixing bowl, pusher, output attach- ment 11, 12 900765006 Collecting con- tainer lid, collecting con- tainer p. 24

• numbering according to the description of the appliance Technical Specications Model Compact Power-MiXX mini food processor Type number M28.001 Dimensions (W x H x D)
