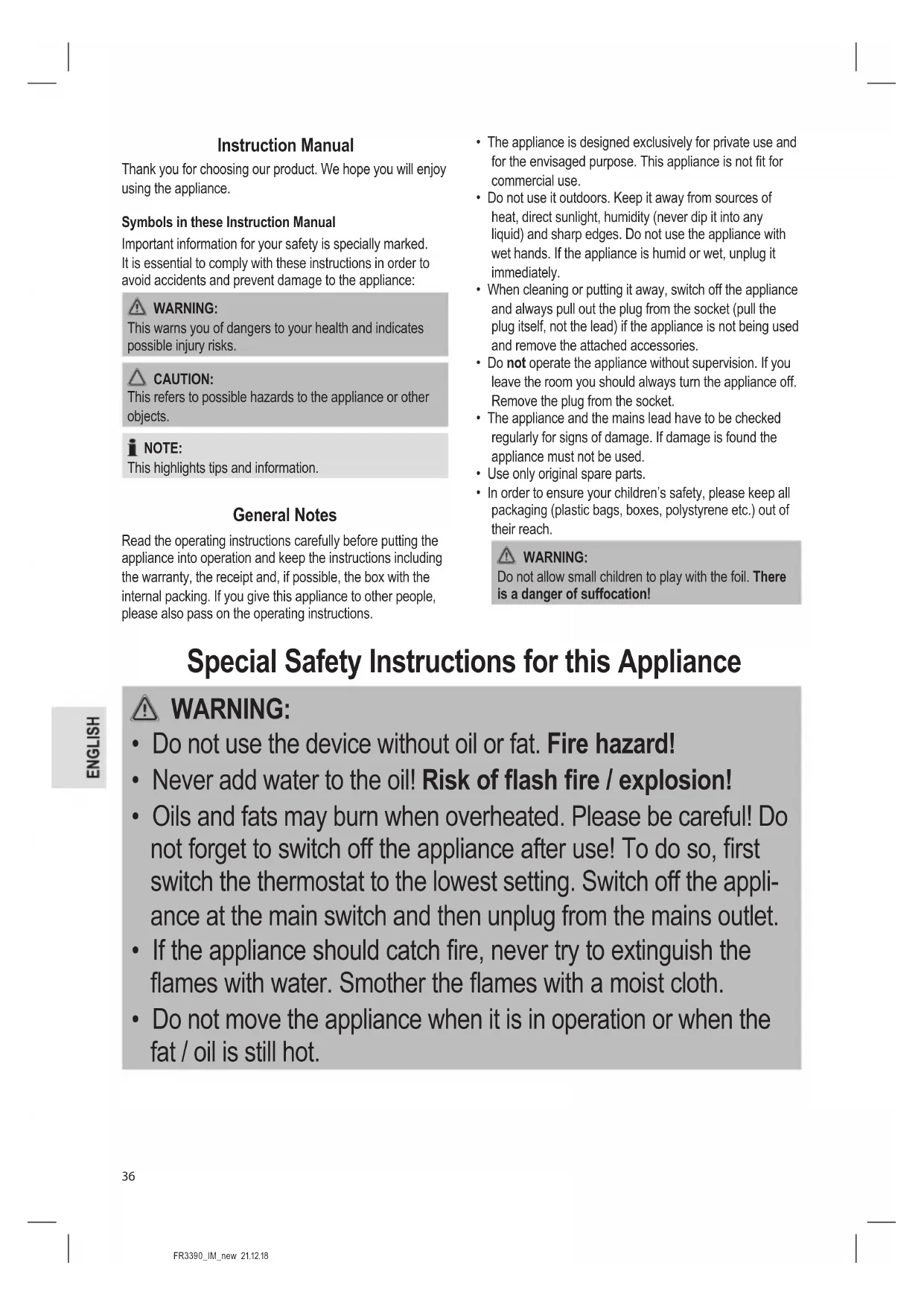

Thank you for choosing our product. We hope you will enjoy

using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked.

It is essential to comply with these instructions in order to

avoid accidents and prevent damage to the appliance:

This warns you of dangers to your health and indicates

possible injury risks.

This refers to possible hazards to the appliance or other

This highlights tips and information.

Read the operating instructions carefully before putting the

appliance into operation and keep the instructions including

the warranty, the receipt and, if possible, the box with the

internal packing. If you give this appliance to other people,

please also pass on the operating instructions.

• The appliance is designed exclusively for private use and

for the envisaged purpose. This appliance is not t for

• Do not use it outdoors. Keep it away from sources of

heat, direct sunlight, humidity (never dip it into any

liquid) and sharp edges. Do not use the appliance with

wet hands. If the appliance is humid or wet, unplug it

• When cleaning or putting it away, switch off the appliance

and always pull out the plug from the socket (pull the

plug itself, not the lead) if the appliance is not being used

and remove the attached accessories.

• Do not operate the appliance without supervision. If you

leave the room you should always turn the appliance off.

Remove the plug from the socket.

• The appliance and the mains lead have to be checked

regularly for signs of damage. If damage is found the

appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of

Do not allow small children to play with the foil. There

is a danger of suffocation!

Special Safety Instructions for this Appliance

• Do not use the device without oil or fat. Fire hazard!

• Never add water to the oil! Risk of ash re / explosion!

• Oils and fats may burn when overheated. Please be careful! Do

not forget to switch off the appliance after use! To do so, rst

switch the thermostat to the lowest setting. Switch off the appli-

ance at the main switch and then unplug from the mains outlet.

• If the appliance should catch re, never try to extinguish the

ames with water. Smother the ames with a moist cloth.

• Do not move the appliance when it is in operation or when the

fat / oil is still hot.FR3390_IM_new 21.12.18

• This appliance is not intended to be immersed in water during

• Different surfaces will get into contact with food and oil. Observe

our instructions in this regard in the chapter “Cleaning”.

• Do not repair the appliance by yourself. Always contact an au-

thorized technician. If the supply cord is damaged, it must be re-

placed by the manufacturer, its service agent or similarly qualied

persons in order to avoid a hazard.

• This appliance shall not be used by children aged between 0 and

• This appliance can be used by children aged from 8 years and

above if they are constantly supervised.

• This appliance can be used by persons with reduced physical,

sensory or mental capabilities or lack of experience and knowl-

edge if they have been given supervision or instruction concern-

ing use of the appliance in a safe way and if they understand the

• Keep the appliance and its cord out of reach of children less than

• Cleaning and user maintenance shall not be made by children.

• Children shall not play with the appliance.

• Cooking pots should be set down in a stable position using the

handles (if available) in order to prevent spilling of hot liquids.

• Do not operate the appliance on a separate timer or a separate

remote control system.

• This appliance is intended to be used in a household and in simi-

lar applications such as

- in staff kitchens of stores, ofces, and other industrial areas.FR3390_IM_new 21.12.18

It is not intended for use

- by guests in hotels, motels, and other living arrangements;

- in agricultural estates;

- in bed and breakfasts.

Unpacking the Appliance

1. Remove the appliance from its packaging.

2. Remove all packaging material such as plastic lms,

ller material, cable ties and cardboard packaging.

3. Check the content for any missing parts.

4. In the event that the packaging content should be

incomplete or if damages are noticeable, do not operate

the appliance. Return it to the dealer immediately.

There may be dust and production residue on the

appliance. We recommend cleaning the appliance as

described under “Cleaning”.

Overview of the Components /

4 Tray for condensation

8 Temperature regulator

10 HEATING – Temperature control lamp

11 POWER – Power on lamp

12 Button for lowering the deep frying basket

14 Deep frying basket

Useful Hints for Use

• Oil and fat must be heatable to very high temperatures.

Use high quality frying oil or frying grease. Do not use

margarine, olive oil or butter: they are not t for frying,

because they start to smoke already at low tempera-

• We recommend the use of liquid frying oil.

... if you would like to use fat!

• If you use fat, please divide it up into small pieces.

Place it onto the bottom of the frying oil pot.

• Never put the fat into the frying basket!

... if you would like to use fat!

• Set the temperature regulator to a low temperature and

slowly add the pieces.

• Once the fat has melted and the required oil level has

been reached, you can set the desired temperature

on the temperature control. Do not exceed the MAX

Heavy build up of foam!

• Never mix oils and fats. The liquid may overow.

• Rub wet food dry with a cloth. Damp food causes a

heavy build up of foam which is serious cases may

cause the oil / fat to overow.

Contaminated oil / fat can be highly inammable!

• Always remove any food which may remain in the oil /

• Replace the oil / fat regularly.

• Avoid splattering. Fill the basket outside the deep fryer.

• Only fry inside the frying basket.

• Choose the right frying temperature and check the con-

ditions of the food to be fried. A rule of thumb is that pre-

fried foods require a higher temperature than raw foods.

• When frying dough-like foods scrape off the excess

dough and put the pieces carefully into the oil.

• The deep fat frying basket must not be more than ²⁄

Do not overll the frying basket.

• Keep the lid closed during use.

• The frying times on the front of the deep fryer are

guidelines. Use the times on the food packaging or in

Tips for Reducing Acrylic Amide Concentration

• Acrylic amide is a chemical compound. It comes from the

bronzing process (deep-frying, baking, frying, roasting

and grilling) in foodstuffs high in carbohydrates (starch

and sugar) like, for example, potato and cereal products.

• It is suspected that acrylic amide damages genetic

make-up and causes cancer. The actual risk to humans

is not currently known.

• We recommend that you do not exceed 170 °C when

deep-frying.FR3390_IM_new 21.12.18

• Furthermore we recommend that you keep the frying

time as short as possible and fry food to a maximum gold

• Thicker chips or pieces of potato are less affected as the

acrylic amide is mainly in the outer layer.

• If you make chips from fresh potatoes, you can soak

the peeled and chopped pieces of potato for an hour

beforehand. This removes some of the sugars (primary

substance for acrylic amide) from the outer layers.

Electrical Connection

• Make sure that the iron voltage (see name plate) and the

• The mains plug should only be inserted into a correctly

installed socket with earthing contact.

The total power consumption of this device can be up to

1800 W. With this connected load a separate supply line

protected by a 16 A household circuit breaker is recom-

• If you use extension leads, these should have a cable

cross-section of at least 1.5 mm².

• Do not use any multiple sockets, as this device is too

1. Make sure that the appliance is unplugged and switched

off (The control lamps are off.).

2. Open the deep fryer by pressing the button (7).

3. In order to remove the deep fryer, place your hands in

the tub and pull the handle (13) upwards until it locks

4. Fill oil or fat into the frying fat container. (maximum 2

litres). The lling level must be located between the

minimum and the maximum level.

5. Insert the plug in a duly installed protective contact

6. Switch on the appliance at the main switch ( I ). The

POWER on lamp lights up.

7. Set the desired temperature on the temperature regula-

tor (8). The HEATING control lamp lights up. Then close

the lid during the heating-up phase.

Once the set temperature has been reached, the

HEATING control lamp goes off. The power on lamp

remains on and shows that the device is working.

8. Now ll the deep-fry basket. Please ensure that the

basket is not lled above the hot fat. Open the lid and

insert the basket with the items to be fried carefully into

9. Now close the lid. Release the handle (by pushing the

button (12) on the handle). The deep-fry basket is now

• During the deep-frying process the HEATING con-

trol lamp switches on and off several times. This is

normal and it indicates that the temperature is con-

trolled by the thermostat and is being maintained.

• The frying times are to be found on the packaging

of the food or in the recipe.

10. After the frying time has expired, you can allow the oil

to drain off the deep-fried food. To do so, reach into the

recess and pull the handle (13) up, until it latches. This

will lift the basket.

As it is possible that hot steam will be released.

Open the lid carefully.

12. Now remove the deep-frying basket.

1. Set the temperature regulator to the minimum setting

2. Switch the appliance off at the main switch ( O ).

3. Remove the mains plug from the socket.

4. Allow the frying oil a considerable time to cool down. Be-

fore continuing to use the full frying pot, please ensure

that it is no longer at a dangerous temperature.

• Always pull out the plug from the mains socket before cleaning

and wait until the unit has cooled down.FR3390_IM_new 21.12.18

• Under no circumstances should you immerse the device in

water for cleaning purposes. Otherwise this might result in an

electric shock or re.

• Do not use a wire brush or any abrasive items.

• The lid of the deep fryer can be removed. This makes it

• Pull out the condensation tray on the back of the appli-

ance to empty it. Replace it afterwards.

• Pour out any used oil from the side.

• Clean the fat container, the lid and the housing with a

damp cloth and if necessary domestic washing-up liquid.

• Deep frying basket can be cleaned in the normal way in

• Ensure that the parts are completely dry before re-using

the appliance and before storage.

Changing the Odour and Fat Vapour Filter

The lter in the lid can be replaced.

1. Remove lter cover (3).

2. Replace the lter.

3. Then reassemble the cover.

When these lters have been used up it is possible to cut

universal lters to size, e. g. from cooker hoods.

• Clean the appliance as described and let it dry com-

• We recommend that you store the appliance in the origi-

nal packaging, should you not want to use it for a longer

• Always store the appliance out of the reach of children in

a well ventilated and dry location.

Power consumption: 1800 W Protection class:

Filling quantity: max. 2 litres

Net weight: approx. 2.45 kg

The right to make technical and design modications in

the course of continuous product development remains

This appliance has been tested according to all relevant

current CE guidelines, such as electromagnetic compatibil-

ity and low voltage directives, and has been constructed in

accordance with the latest safety regulations.

Meaning of the Symbol “Dustbin”

Protect our environment; electrical appliances

do not belong in household waste.

Use the collection points for the disposal of

electrical equipment and submit your electrical

and electronic equipment to these points that

you will no longer use.

You help reduce the potential impact of incorrect disposal

on the environment and human health.

You contribute to recycling, and other forms of recycling of

electrical and electronic equipment.

Information concerning the disposal of appliances can be

obtained from your local or municipal authorities.FR3390_IM_new 21.12.18
