USER MANUAL DKP 3406 CLATRONIC

luoghi di raccolta, nelle amministrazioni dei comuni.21

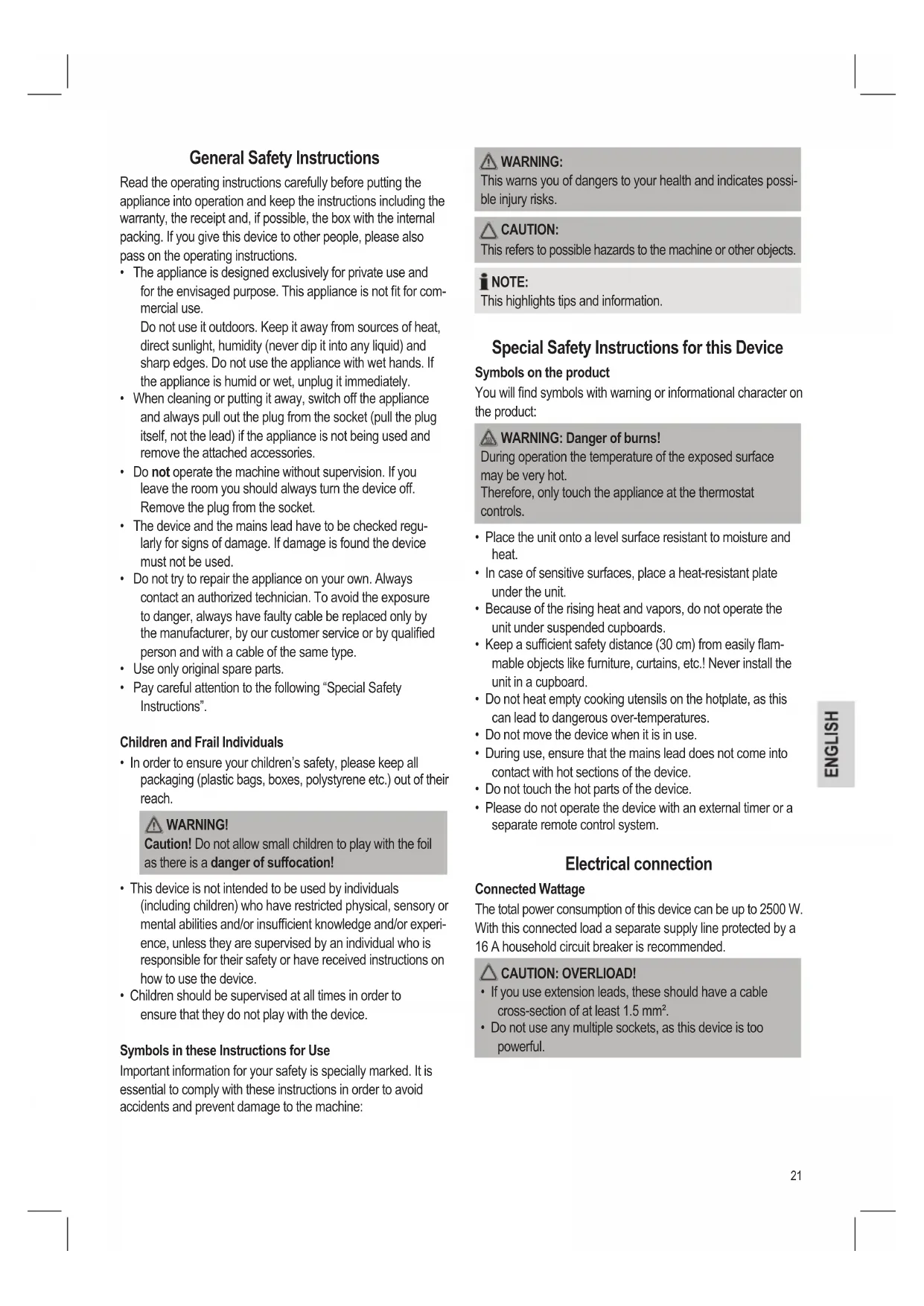

General Safety Instructions

Read the operating instructions carefully before putting the

appliance into operation and keep the instructions including the

warranty, the receipt and, if possible, the box with the internal

packing. If you give this device to other people, please also

pass on the operating instructions.

• The appliance is designed exclusively for private use and

for the envisaged purpose. This appliance is not t for com-

Do not use it outdoors. Keep it away from sources of heat,

direct sunlight, humidity (never dip it into any liquid) and

sharp edges. Do not use the appliance with wet hands. If

the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance

and always pull out the plug from the socket (pull the plug

itself, not the lead) if the appliance is not being used and

remove the attached accessories.

• Do not operate the machine without supervision. If you

leave the room you should always turn the device off.

Remove the plug from the socket.

• The device and the mains lead have to be checked regu-

larly for signs of damage. If damage is found the device

• Do not try to repair the appliance on your own. Always

contact an authorized technician. To avoid the exposure

to danger, always have faulty cable be replaced only by

the manufacturer, by our customer service or by qualied

person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety

Children and Frail Individuals

• In order to ensure your children’s safety, please keep all

packaging (plastic bags, boxes, polystyrene etc.) out of their

Caution! Do not allow small children to play with the foil

as there is a danger of suffocation!

• This device is not intended to be used by individuals

(including children) who have restricted physical, sensory or

mental abilities and/or insufcient knowledge and/or experi-

ence, unless they are supervised by an individual who is

responsible for their safety or have received instructions on

how to use the device.

• Children should be supervised at all times in order to

ensure that they do not play with the device.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is

essential to comply with these instructions in order to avoid

accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possi-

This refers to possible hazards to the machine or other objects.

This highlights tips and information.

Special Safety Instructions for this Device

Symbols on the product

You will nd symbols with warning or informational character on

WARNING: Danger of burns!

During operation the temperature of the exposed surface

Therefore, only touch the appliance at the thermostat

• Place the unit onto a level surface resistant to moisture and

• In case of sensitive surfaces, place a heat-resistant plate

• Because of the rising heat and vapors, do not operate the

unit under suspended cupboards.

• Keep a sufcient safety distance (30 cm) from easily am-

mable objects like furniture, curtains, etc.! Never install the

• Do not heat empty cooking utensils on the hotplate, as this

can lead to dangerous over-temperatures.

• Do not move the device when it is in use.

• During use, ensure that the mains lead does not come into

contact with hot sections of the device.

• Do not touch the hot parts of the device.

• Please do not operate the device with an external timer or a

separate remote control system.

Electrical connection

The total power consumption of this device can be up to 2500 W.

With this connected load a separate supply line protected by a

16 A household circuit breaker is recommended.

• If you use extension leads, these should have a cable

cross-section of at least 1.5 mm².

• Do not use any multiple sockets, as this device is too

• Make sure that the unit is switched off. Both thermostat

controls must be set to MIN.

• Make sure that the device voltage (see name plate) and the

• The mains plug should only be inserted into a correctly

installed 230 V ~ 50 Hz socket with earthing contact.

Apply the following description to both hot plates:

Initial Operation of the Unit

Before rst use, operate the unit for 5 minutes to remove the

protective coating of the hotplate. Set the thermostatic control-

Occurrence of light smoke and odours is normal with this

procedure. Take care of suitable ventilation.

The unit is switched on with the thermostatic controller.

The unit is switched off when the thermostatic controller is set

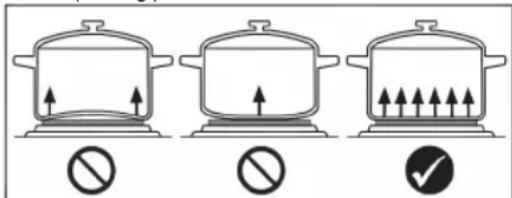

Notes for cooking utensils

• For optimum use of energy, use only pots/pans with a at

• The cooking utensil never should be smaller than the hot-

plate. This wastes energy. In extreme cases, the hotplate

can become distorted.

Use the thermostatic controller to select the temperature of the

hotplate according to the purpose:

Notch MAX: Browning, quick heating

The pilot lamp indicates the heating up of the hotplate. It is

switched on and off during operation. This is normal and

indicates that the temperature is controlled and maintained

by the thermostatic controller.

• Set the thermostatic controller to MIN.

• Remove the mains plug from the socket.

• Let the unit cool down before storing it.

WARNING: DANGER OF BURNS!

After the cooking process, the radiated heat can cause

dangerous temperatures at the hotplate.

• Always pull out the plug from the mains socket before

cleaning and wait until the unit has cooled down.

• Under no circumstances should you immerse the device

in water for cleaning purposes. Otherwise this might result

in an electric shock or re.

• Remove food residues with a moist cloth or a paper towel

• Clean the hotplate with a soft sponge and a small amount

of water, and dry it thoroughly with a soft cloth.

• Clean the enclosure after use with a lightly moistened cloth.

• Take care that no liquid enters into openings in the enclo-

sure. This could damage the unit or could lead to electric

Power supply: 230 V, 50 Hz

Power consumption: 2500 W Protection class: I Net weight: 3.40 kg

Subject to technical changes without prior notice!23

This device has been tested according to all relevant current

CE guidelines, such as electromagnetic compatibility and low

voltage directives, and has been constructed in accordance

with the latest safety regulations.

Meaning of the “Dustbin” Symbol

Protect our environment: do not dispose of electrical equipment

in the domestic waste.

Please return any electrical equipment that you will no longer

use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on

the environment and human health.

This will contribute to the recycling and other forms of reutilisa-

tion of electrical and electronic equipment.

Information concerning where the equipment can be disposed

of can be obtained from your local authority.24


