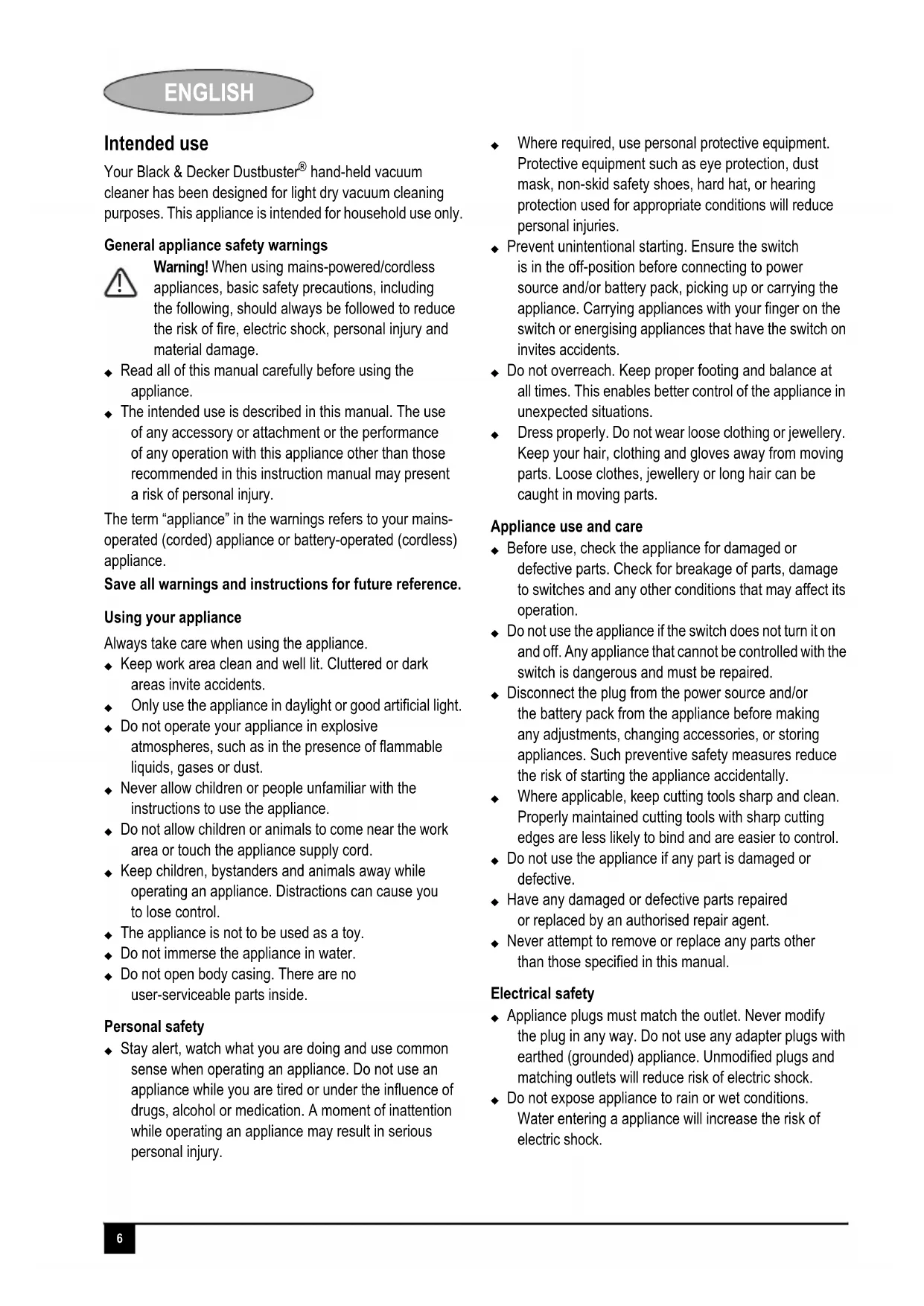

ENGLISH English Intended use

cleaner has been designed for light dry vacuum cleaning

purposes. This appliance is intended for household use only.

General appliance safety warnings

Warning! When using mains-powered/cordless

appliances, basic safety precautions, including

the following, should always be followed to reduce

the risk of fire, electric shock, personal injury and

material damage. X Read all of this manual carefully before using the appliance. X The intended use is described in this manual. The use of any accessory or attachment or the performance

of any operation with this appliance other than those

recommended in this instruction manual may present

a risk of personal injury.

The term “appliance” in the warnings refers to your mains-

operated (corded) appliance or battery-operated (cordless)

Save all warnings and instructions for future reference.

Using your appliance

Always take care when using the appliance. X Keep work area clean and well lit. Cluttered or dark areas invite accidents.

X Only use the appliance in daylight or good artificial light. X Do not operate your appliance in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. X Never allow children or people unfamiliar with the instructions to use the appliance. X Do not allow children or animals to come near the work area or touch the appliance supply cord. X Keep children, bystanders and animals away while operating an appliance. Distractions can cause you

to lose control. X The appliance is not to be used as a toy.X Do not immerse the appliance in water.X Do not open body casing. There are no user-serviceable parts inside.

Personal safety X Stay alert, watch what you are doing and use common sense when operating an appliance. Do not use an

appliance while you are tired or under the influence of

drugs, alcohol or medication. A moment of inattention

while operating an appliance may result in serious

X Where required, use personal protective equipment.

Protective equipment such as eye protection, dust

mask, non-skid safety shoes, hard hat, or hearing

protection used for appropriate conditions will reduce

personal injuries. X Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power

source and/or battery pack, picking up or carrying the

appliance. Carrying appliances with your finger on the

switch or energising appliances that have the switch on

invites accidents. X Do not overreach. Keep proper footing and balance at all times. This enables better control of the appliance in

unexpected situations.

X Dress properly. Do not wear loose clothing or jewellery.

Keep your hair, clothing and gloves away from moving

parts. Loose clothes, jewellery or long hair can be

caught in moving parts.

Appliance use and care X Before use, check the appliance for damaged or defective parts. Check for breakage of parts, damage

to switches and any other conditions that may affect its

operation. X Do not use the appliance if the switch does not turn it on and off. Any appliance that cannot be controlled with the

switch is dangerous and must be repaired. X Disconnect the plug from the power source and/or the battery pack from the appliance before making

any adjustments, changing accessories, or storing

appliances. Such preventive safety measures reduce

the risk of starting the appliance accidentally.

X Where applicable, keep cutting tools sharp and clean.

Properly maintained cutting tools with sharp cutting

edges are less likely to bind and are easier to control. X Do not use the appliance if any part is damaged or defective. X Have any damaged or defective parts repaired or replaced by an authorised repair agent. X Never attempt to remove or replace any parts other than those specified in this manual.

Electrical safety X Appliance plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with

earthed (grounded) appliance. Unmodified plugs and

matching outlets will reduce risk of electric shock. X Do not expose appliance to rain or wet conditions. Water entering a appliance will increase the risk of

ENGLISH X Do not abuse the cord. Never use the cord for carrying,

pulling or unplugging the appliance. Keep cord away

from heat, oil, sharp edges or moving parts. Damaged

or entangled cords increase the risk of electric shock.

X When operating an appliance outdoors, use an

extension cord suitable for outdoor use. Use of

a cord suitable for outdoor use reduces the risk

X If operating an appliance in a damp location is

unavoidable, use a Residual Current Device (RCD)

protected supply. Use of an RCD reduces the risk of

Battery tool use and care (cordless appliance only)

X Recharge only with the charger specified by the

manufacturer. A charger that is suitable for one type

of battery pack may create a risk of fire when used with

another battery pack.

X Use appliances only with specifically designated battery

packs. Use of any other battery packs may create a risk

X When battery pack is not in use, keep it away from other

metal objects, like paper clips, coins, keys, nails, screws

or other small metal objects that can make a connection

from one terminal to another. Shorting the battery

terminals together may cause burns or a fire.

X Under abusive conditions, liquid may be ejected from

the battery; avoid contact. If contact accidentally occurs,

flush with water. If liquid contacts eyes, additionally

seek medical help. Liquid ejected from the battery

may cause irritation or burns.

X When not in use, the appliance should be stored in

a dry, well ventilated place out of the reach of children.

X Children should not have access to stored appliances.

X When the appliance is stored or transported in a vehicle

it should be placed in the boot or restrained to prevent

movement following sudden changes in speed or

X Have your appliance serviced by a qualified repair

person using only identical replacement parts. This will

ensure that the safety of the appliance is maintained.

Additional safety instructions - batteries and chargers

X Never attempt to open for any reason.

X Do not expose the battery to water.

X Do not expose the battery to heat.

X Do not store in locations where the temperature may

X Charge only at ambient temperatures between 10°C

X Charge only using the charger provided with the

appliance/tool. Using the wrong charger could result

in an electric shock or overheating of the battery.

X When disposing of batteries, follow the instructions

given in the section “Protecting the environment”.

X Do not damage/deform the battery pack either by

puncture or impact, as this may create a risk of

X Do not charge damaged batteries.

X Under extreme conditions, battery leakage may occur.

When you notice liquid on the batteries carefully wipe

the liquid off using a cloth. Avoid skin contact.

X In case of skin or eye contact, follow the

Warning! The battery fluid may cause personal injury or

damage to property. In case of skin contact, immediately

rinse with water. If redness, pain or irritation occurs seek

medical attention. In case of eye contact, rinse immediately

with clean water and seek medical attention.

Your charger has been designed for a specific voltage.

Always check that the mains voltage corresponds to the

voltage on the rating plate.

Warning! Never attempt to replace the charger unit with

a regular mains plug.

X Use your Black & Decker charger only to charge the

battery in the appliance/tool with which it was supplied.

Other batteries could burst, causing personal injury

X Never attempt to charge non-rechargeable batteries.

X If the supply cord is damaged, it must be replaced by the

manufacturer or an authorised Black & Decker Service

Centre in order to avoid a hazard.

X Do not expose the charger to water.

X Do not open the charger.

X Do not probe the charger.

X The appliance/tool/battery must be placed in a well

ventilated area when charging.

Your charger is double insulated; therefore

no earth wire is required. Always check that the

mains voltage corresponds to the voltage on the

ENGLISH If the supply cord is damaged, it must be replaced by the

manufacturer or an authorised Black & Decker Service

Centre in order to avoid a hazard.

Warning! Never attempt to replace the charger unit with

a regular mains plug.

Safety of others X This appliance is not intended for use by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning the use of the appliance by

a person responsible for their safety. X Children should be supervised to ensure that they do not play with the appliance.

Symbols on the charging base

1. Release latch for container door

3. Collector lock button

4. Two-speed on/off switch

5. Filter cleaning wheel

6. Charging indicator

11. Brush tool (stored in underside of appliance)

Fitting the charging base to the wall (fig. A)

The charging base can be placed on a work top or fitted to

the wall to provide a convenient storage and charging point

When fixing to a wall, make sure that the fixing method is

suitable for the wall type and is appropriate to the weight

Adjusting the dust collector (fig. B & C) X The dust collector (9) is stored under the appliance. To adjust for use, lift the appliance from the charging base. X Press the collector lock button (3) and rotate the dust collector to the required position. X Release the collector lock button to lock the dust collector in position. X The dust collector can be extended by pulling the dust collector extension (8) until it locks into position. X The extension can be retracted by pressing the button (13) and pushing the extension back into the

dust collector. X The dust collector should be returned to the storage position under the appliance after use and while

charging the appliance.

Fitting the accessories (fig. D)

These models are supplied with some or all of the following

accessories: X A crevice tool (10) for confined spaces.X A brush tool (11) for furniture and stairs. To fit an accessory, proceed as follows: X Take the accessories from the appliance. X Insert the appropriate accessory into the front of the appliance.

Use X Before first use, the battery must be charged for at least 16 hours. X Place the appliance on the charging base whenever it is not in use.

Charging the battery (fig. E) X Make sure that the appliance is switched off. The battery will not be charged with the on/off switch in the

on position. X Place the appliance on the charging base (7) as shown.X Plug in the charger. Switch on at the mains. The charging indicator (6) will be lit. X Leave the appliance to charge for at least 16 hours. Your charging base is double insulated; therefore

no earth wire is required.

Fail-safe isolating transformer. The mains supply is

electrically separated from the transformer output.

The charger automatically shuts off if the ambient

temperature becomes too high. As a consequence

the charger will be inoperable. The charging base

must be disconnected from the mains supply and

taken to an authorised service centre for repair.

The charging base is intended for indoor use only.

Surfaces may become hot during use and during

the cool down period.

ENGLISH While charging, the charger may become warm. This is

normal and does not indicate a problem. The appliance can

be left connected to the charger indefinitely. The charging

indicator (6) will be lit as long as the appliance is connected

to the plugged-in charger.

Warning! Do not charge the battery at ambient

temperatures below 4 °C or above 40 °C.

Switching on and off (fig. F)

X To switch the appliance on, slide the on/off switch (4)

forward to position 1.

X For full power, slide the on/off switch (4) forward to

X To switch the appliance off, slide the on/off switch (4)

Optimising the suction force (fig. G - I)

In order to keep the suction force optimised, the filters must

be cleared regularly during use.

X Rotate the wheel (5) a few turns to shake out dust

clogging the filters (14 & 15).

Cleaning and maintenance

Warning! Regularly clean the filters (14 & 15).

Cleaning the dust container and filters (fig. H - J)

The filters are re-usable and should be cleaned regularly.

X Press the release latch (1) and open the container

X Empty the dust container.

X Remove the filters (14 & 15) by twisting them counter-

X Brush any loose dust off the filters.

X Wash the filters in warm, soapy water (fig. J).

X Make sure that the filters are dry.

X Refit the filters (14 & 15) on to the appliance,

twisting them clockwise until they lock into place.

X Close the container door (2). Make sure that the release

latch (1) clicks into place.

Warning! Never use the appliance without the filters.

Optimum dust collection will only be achieved with

Replacing the filters

The filters should be replaced every 6 to 9 months and

whenever worn or damaged. Replacement filters are

available from your Black & Decker dealer (cat. no. VF50):

X Remove the old filters as described above.

X Fit the new filters as described above.

Your Black & Decker corded/cordless appliance/tool has

been designed to operate over a long period of time

with a minimum of maintenance. Continuous satisfactory

operation depends upon proper tool care and regular

Warning! Before performing any maintenance on corded/

cordless power tools:

X Switch off and unplug the appliance/tool.

X Or switch off and remove the battery from the appliance/

tool if the appliance/tool has a separate battery pack .

X Or run the battery down completely if it is integral and

X Unplug the charger before cleaning it. Your charger

does not require any maintenance apart from regular

Regularly clean the ventilation slots in you appliance/tool/

charger using a soft brush or dry cloth.

Regularly clean the motor housing using a damp cloth.

Do not use any abrasive or solvent-based cleaner.

Regularly open the chuck and tap it to remove any dust from

the interior (when fitted).

Protecting the environment

Should you find one day that your Black & Decker product

needs replacement, or if it is of no further use to you, do not

dispose of it with household waste. Make this product

available for separate collection.

Separate collection of used products and packaging

allows materials to be recycled and used again.

Re-use of recycled materials helps prevent

environmental pollution and reduces the demand

Local regulations may provide for separate collection of

electrical products from the household, at municipal waste

sites or by the retailer when you purchase a new product.

Black & Decker provides a facility for the collection and

recycling of Black & Decker products once they have

reached the end of their working life. To take advantage

of this service please return your product to any authorised

repair agent who will collect them on our behalf.

Separate collection. This product must not be

disposed of with normal household waste.10

ENGLISH You can check the location of your nearest authorised repair

agent by contacting your local Black & Decker office at the

address indicated in this manual. Alternatively, a list of

authorised Black & Decker repair agents and full details

of our after-sales service and contacts are available on the

Internet at: www.2helpU.com.

Design and Patent information

European Patent Application Number EP 05255024.1

European Community Design Registration Numbers:

423322-0001, 423322-0002 and 423322-0003

Black & Decker is confident of the quality of its products and

offers an outstanding guarantee. This guarantee statement

is in addition to and in no way prejudices your statutory

rights. The guarantee is valid within the territories of the

Member States of the European Union and the European

If a Black & Decker product becomes defective due to

faulty materials, workmanship or lack of conformity, within

24 months from the date of purchase, Black & Decker

guarantees to replace defective parts, repair products

subjected to fair wear and tear or replace such products

to make sure of the minimum inconvenience to the

X The product has been used for trade, professional

X The product has been subjected to misuse or neglect.

X The product has sustained damage through foreign

objects, substances or accidents.

X Repairs have been attempted by persons other

than authorised repair agents or Black & Decker

To claim on the guarantee, you will need to submit proof of

purchase to the seller or an authorised repair agent. You can

check the location of your nearest authorised repair agent by

contacting your local Black & Decker office at the address

indicated in this manual. Alternatively, a list of authorised

Black & Decker repair agents and full details of our after-

sales service and contacts are available on the Internet at:

Please visit our website www.blackanddecker.co.uk to

register your new Black & Decker product and to be kept

up to date on new products and special offers. Further

information on the Black & Decker brand and our range

of products is available at www.blackanddecker.co.uk.

Approx. charging time h 16

Spenning V DC 14,4 18,0

PV9605(N) - PV1205(B)(N)

0XLVWDWKDQUHNLVWHU|LGlWXRWWHHVL

 (GL¿FLR0XQWDGDVF%HUJDGi2I$
