USER MANUAL DVB315JP BLACK & DECKER

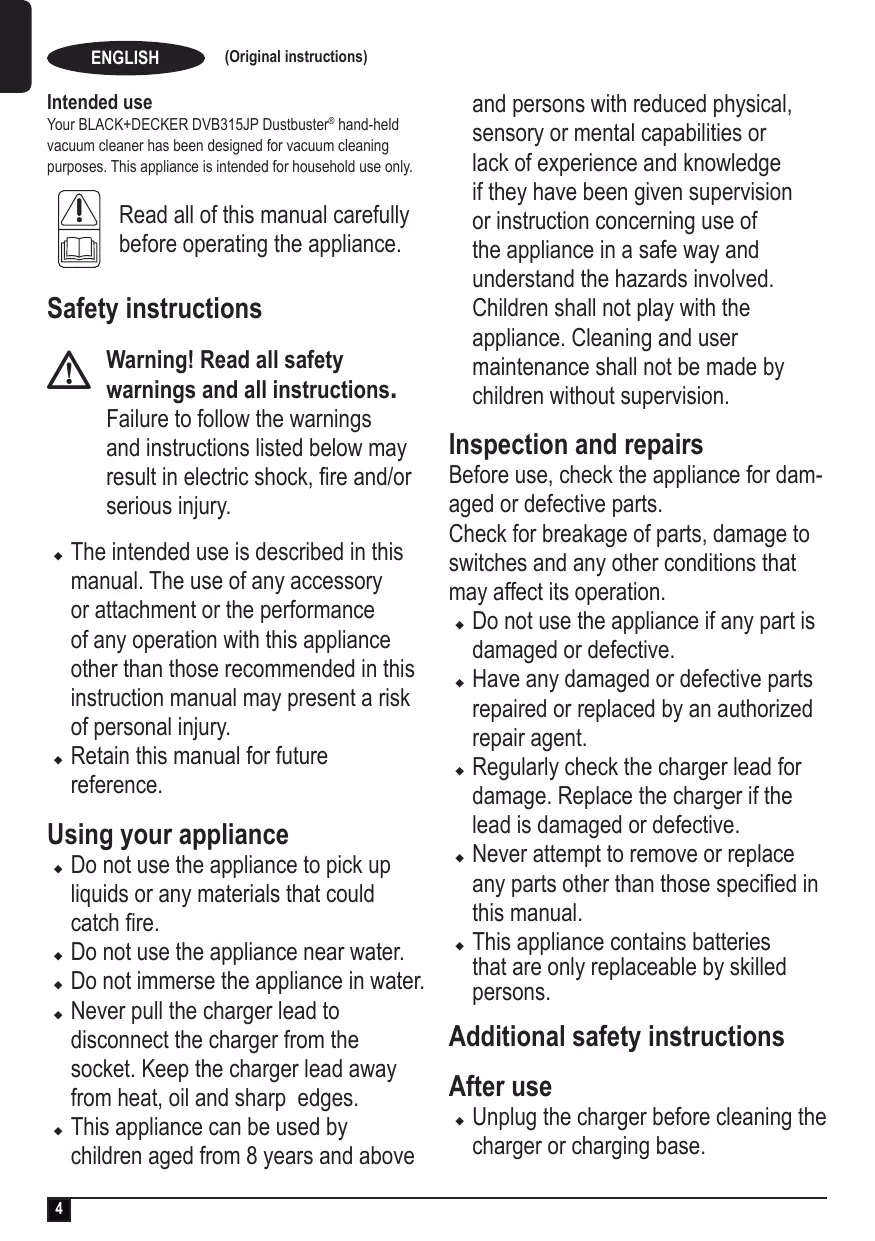

Your BLACK+DECKER DVB315JP Dustbuster® hand-held vacuum cleaner has been designed for vacuum cleaning purposes. This appliance is intended for household use only.
Read all of this manual carefully before operating the appliance.
Safety instructions
Warning! Read all safety warnings and all instructions.
Failure to follow the warnings and instructions listed below may result in electric shock, fire and/or serious injury.
- The intended use is described in this manual. The use of any accessory or attachment or the performance of any operation with this appliance other than those recommended in this instruction manual may present a risk of personal injury.
- Retain this manual for future reference.
Using your appliance
- Do not use the appliance to pick up liquids or any materials that could catch fire.
Do not use the appliance near water.
Do not immerse the appliance in water.
- Never pull the charger lead to disconnect the charger from the socket. Keep the charger lead away from heat, oil and sharp edges.
- This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Inspection and repairs
Before use, check the appliance for damaged or defective parts.
Check for breakage of parts, damage to switches and any other conditions that may affect its operation.
- Do not use the appliance if any part is damaged or defective.
- Have any damaged or defective parts repaired or replaced by an authorized repair agent.
- Regularly check the charger lead for damage. Replace the charger if the lead is damaged or defective.
- Never attempt to remove or replace any parts other than those specified in this manual.
- This appliance contains batteries that are only replaceable by skilled persons.
Additional safety instructions
After use
Unplug the charger before cleaning the charger or charging base.
- When not in use, the appliance should be stored in a dry place.
Children should not have access to stored appliances.
Residual risks
Additional residual risks may arise when using the tool which may not be included in the enclosed safety warnings. These risks can arise from misuse, prolonged use etc.
Even with the application of the relevant safety regulations and the implementation of safety devices, certain residual risks can not be avoided. These include:
Injuries caused by touching any rotating/moving parts.
- Injuries caused when changing any parts, blades or accessories.
- Injuries caused by prolonged use of a tool. When using any tool for prolonged periods ensure you take regular breaks.
Impairment of hearing.
- Health hazards caused by breathing dust developed when using your tool (example:- working with wood, especially oak, beech and MDF.)
Chargers
Your charger has been designed for a specific voltage. Always check that the mains voltage corresponds to the voltage on the rating plate.
Warning! Never attempt to replace the charger unit with a regular mains plug.
- Use your BLACK+DECKER charger only to charge the battery in the appliance with which it was supplied. Other batteries could burst, causing personal injury and damage.
- Never attempt to charge nonrechargeable batteries.
- If the supply cord is damaged, it must be replaced by the manufacturer or an authorised BLACK+DECKER Service Centre in order to avoid a hazard.
Do not expose the charger to water.
Do not open the charger.
Do not probe the charger.
- The appliance/battery must be placed in a well ventilated area when charging.
Electrical safety
Symbols on the charger
Read all of this manual carefully before using the appliance.
This tool is double insulated; therefore no earth wire is required. Always check that the power supply corresponds to the voltage on the rating plate.
The charger is intended for indoor use only.
Labels on appliance
The following symbols appear on this appliance along with the date code.
Read all of this manual carefully before using the appliance
Features
This tool includes some or all of the following features.
- On/off power switch
- Dust chamber release button
- Dust chamber
- Pet head attachment
- Charger
- Wall attachment
Use
Fitting the wall bracket (Fig. A)
Fit the wall bracket (6) to a suitable wall (preferably near a power outlet) using the screws provided.
- The unit can then be stored, when not in use, or during the charging procedure, utilising the hanging attachment (6a).
Charging (Fig. B, C)
Place the charger (5) into the charging port (5a) on the handle of the unit as shown in figure B.
Place the charging plug into a power outlet and switch on as shown in figure C.
Attaching the pet head (Fig. D)
Warning! The unit needs to be switched off when the pet head is attached or detached.
Warning! Do not use directly on pets.
Slide the dust bowl opening (3) into the opening of the motorized pet head (4), ensuring that the connectors (4b) engage with the recesses (3b). An audible click will be heard.
Removing the pet head (Fig. D)
Pull the motorized pet head release tabs (4a) outward to release them from the recesses (3a).
Pull the main unit from the pet head.
Warning! The unit needs to be switched off when the pet head is attached or detached.
Switching on and off (Fig. E)
Push the On/off power switch (1) to turn on the unit.
Push the On/off power (1) switch to turn the unit off.
Cleaning the filters (Fig. F, G, H, I, J)
Press the dust chamber release button (2) as shown in figure F.
Separate the dust chamber (3) from the motor unit as shown in figure F.
Lift the filter (8) out of the dust chamber (3) using the tab provided as shown in figure G.
Empty the dust bowl (3) by lightly shaking over a suitable container as shown in figure H.
- The Filter and pre-filter can be separated to allow better cleaning.
Twist the filter (8) in an anti-clockwise direction and lift from the pre-filter (7) as shown in figure I.
Rinse out the dust-bowl with warm soapy water as shown in figure J.
Wash the filters with warm soapy water as shown in figure J.
Allow the filters to dry naturally, using heat may cause the filters to distort.
- Refit the filter (8) into the pre-filter (7) and then reinsert into the dust chamber (3). Never place the filters into the dust chamber backwards.
Replace the dust chamber onto the motor unit. Make sure the release button (2) clicks into place.
Warning! Before performing any maintenance or cleaning on the appliance, unplug the appliance.
From time to time wipe the appliance with a damp cloth. Do not use any abrasive or solvent-based cleaner. Do not immerse the appliance in water.
Maintenance
Your BLACK+DECKER cordless appliance has been designed to operate over a long period of time with a minimum of maintenance. Continuous satisfactory operation depends upon proper tool care and regular cleaning.
Warning! Before performing any maintenance on cordless appliances:
Run the battery down completely if it is integral and then switch off.
Unplug the charger before cleaning it. Your charger does not require any maintenance apart from regular cleaning.
Regularly clean the ventilation slots in your appliance/ charger using a soft brush or dry cloth.
- Regularly clean the motor housing using a damp cloth. Do not use any abrasive or solvent-based cleaner.
Replacing the filters
The filters should be replaced every 6 to 9 months and whenever worn or damaged. Replacement filters are available to purchase form your local BLACK+DECKER service team.
Remove the old filters as described above.
Fit the new filters as described above.
Protecting the environment
Products and batteries contain materials that can be recovered or recycled reducing the demand for raw materials. Please recycle electrical products and batteries according to local provisions. Further information is available at www.2helpU.com
Technical Data
| DVB315JP |
| Voltage | 12V |
| Amp hours | 1.5Ah |
| Watt hours | 18Wh |
| Weight | 1.1kg |
Guarantee
Black & Decker is confident of the quality of its products and offers consumers a 24 month guarantee from the date of purchase. This guarantee is in addition to and in no way prejudices your statutory rights.
The guarantee is valid within the territories of the Member States of the European Union and the European Free Trade Area.
To claim on the guarantee, the claim must be in accordance with Black & Decker Terms and Conditions and you will need to submit proof of purchase to the seller or an authorised repair agent. Terms and conditions of the Black & Decker 2 year guarantee and the location of your nearest authorised repair agent can be obtained on the Internet at www.2helpU.com, or by contacting your local Black & Decker office at the address indicated in this manual.
Please visit our website www.blackanddecker.co.uk to register your new Black & Decker product and receive updates on new products and special offers.
