USER MANUAL Digiframe 7050 SLT BRAUN

1. Installing & Replacing the Battery 11
2. Getting Started 12
3. Operating Instruction 12

4.1 Card and USB 12
4.2 Picture Mode 12
4.3 Music Mode. 13
4.4 Video Mode 14

1. File 14
2. Calendar 15
3. Setup 15
4. Stand Instruction 16
5. Technical Specifications.. 16
   10.Troubleshooting Guide. 16

Features:

1. Support picture format: JPEG
2. Support audio format: Mp3
3. Support video format: MPEG1,2,4,AVI
4. Support memory card: SD/SDHC/MMC/MS
5. USB connection: Mini USB
6. Built-in calendar, clock and alarm clock
7. Support scheduling auto on/off.
8. Support touch menu for easy navigation and setting
9. Adjustable brightness, contrast, saturation
10. Support slideshow with pictures in 1/3/4 windows with back ground music
11. Built in stereo speakers (2x1W)

Packaging Check List:

Digital photo frame, 7050SLT or 8050SLT, User manual, AC/DC adapter, Remote control, Short USB cable (used to connect with USB device)

Introduction:

Thank you for your purchase of the Digital Photo Frame. It is designed to allow quick and easy view of photos taken from your digital camera, mobile phone, or from a memory storage card. Please read this User Manual carefully to learn the correct way to use the Digital Photo Frame.

Cautions

Precautions and maintenance

• For indoor use only
• To avoid risk of fire or electric shock, do not expose the unit to moisture or condensation.
• To avoid overheating, do not block the ventilation holes on the back of the Digital Photo Frame.
• Keep the Digital Photo Frame out of direct sunlight.
• Please power off the unit before inserting or removing a card or USB device. Failure to do so may cause damage to the card/USB and the unit.
• Do not dismantle the Digital Photo Frame. There is a risk of electric shock and there are no user-serviceable parts inside. Dismantling the Digital Photo Frame will void your warranty.

Cleaning the LCD Screen

• Treat the screen carefully. Because the screen of the Digital Photo Frame is made of glass and it would easily be broken or scratched.
• If fingerprints or dust accumulate on the LCD screen, we recommend using a soft, non-abrasive cloth such as a camera lens cloth to clean the LCD screen.
• Moisten the cleaning cloth with the cleaning solution and apply the cloth to the screen.

1 Product Diagram

1.1 Remote Control 8050 SLT

1. POWER Switch On/Off
2. BGM _ Press BGM button to play the background music.
3. MUTE _ Press Mute button to silence the voice temporarily.
4. MENU Enter copy & delete interface.
5. Functional selection button - top cursor.
6. RETURN Return to upper page.
7. Functional selection button - left cursor
8. Functional selection button - right cursor
9. Functional selection button - bottom cursor.
10. SETUP Go directly to Setup mode.
11. II Play/pause: In the playing mode, press this button, it will pause; repress this button, it will play again.
12. OK _ Press to confirm. Play/pause: In the playing mode, press this button, it will pause; repress this button, it will play again.
13. ZOOM _ In the pause status of single picture, magnify picture display size.
    14/15. VOL +/- Turn up/down the volume.
14. ROTATE In the pause status of single picture, press ROTATE to revolve the picture 90^ in counterclockwise each time.
15. Move back to previous music or video file.
16. Move forward to next music or video file.

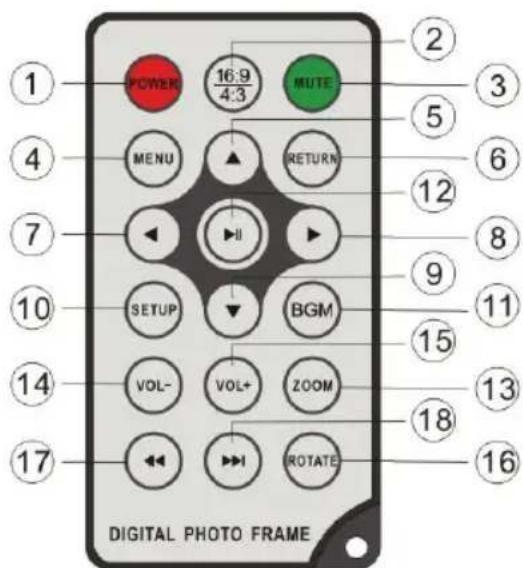

1.1 Remote Control 7050 SLT

1. POWER Switch On/Off
2. 16:9/4:3 _Change the picture display size in 16:9 and 4:
3. MUTE _ Press Mute button to silence the voice temporarily.
4. MENU Enter copy&delete interface
   5.▲Functional selection button - top cursor.
5. RETURN Return to upper page.
6. Functional selection button - left cursor
7. Functional selection button - right cursor.
8. Functional selection button - bottom cursor.
9. SETUP Enter copy & delete interface.
10. BGM _ Press BGM button to play the background music.
11. Press to confirm. Play/pause: In the playing mode, press this button, it will pause; repress this button, it will play again.
12. Zoom_In the pause status of single picture, magnify picture display size.
    14./15. VOL +/- Turn up/down the volume.
13. ROTATE _ In the pause status of single picture, press ROTATE to revolve the picture 90^ in counterclockwise each time.
14. Move back to previous picture, music or video file.
15. Move forward to next picture, music or video file.

1.2 Touch Buttons

1. Power
2. Menu
   3.Up
3. Down
4. Play / Pause/OK
   6.Left
5. Right
6. Return

2. Installing & Replacing the Battery

Place the upside of the remote control down, press down on the ridged area of the battery cover and pull towards you to remove the tray. Place one CR2025 lithium button-cell battery on the tray with the positive "+"side facing you. Reinsert the tray.

1.3 Right Side of Frame

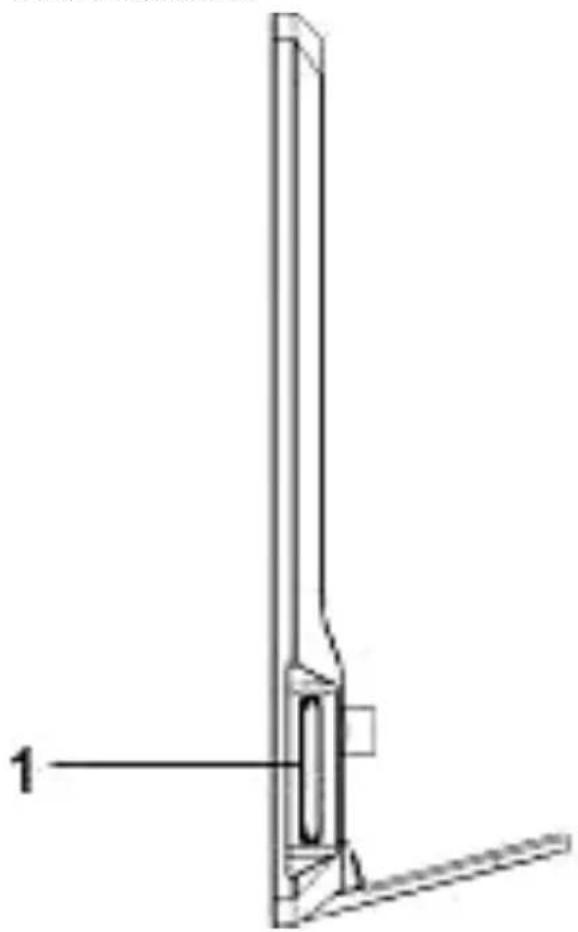

1. SD/SDHC/MS/MMC

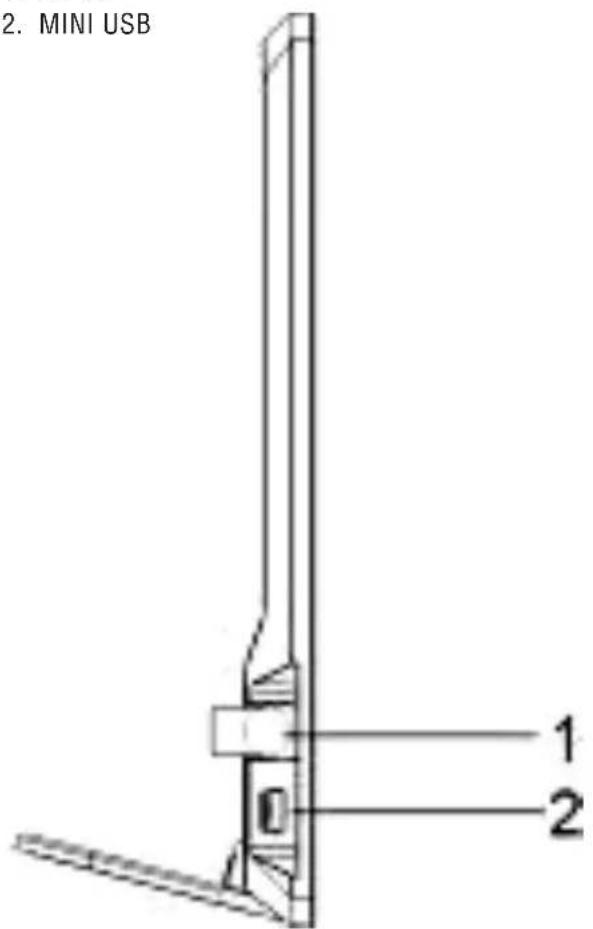

1.4 Left Side of Frame

1. DC 5V
2. MINI USB

3. Getting Started

3.1 Extend the digital photo frame bracket on the back of the frame to the widest position for greatest stability, and then plug one end of the included AC adapter into a standard 110-240V AC electrical outlet and the other end into the right side the frame.

Note: There are different positions for the digital photo frame stand. Please refer to "Stand Instruction".

3.2. Remove the protective film covering the LCD.

3.3. Remove the plastic battery insulator from the battery compartment and make sure the remote control has a battery inside. Please refer to "Installing & Replacing Battery" if you need a new battery.

3.4. Power on the unit by pressing the Power button on the remote control or at the front of the unit.

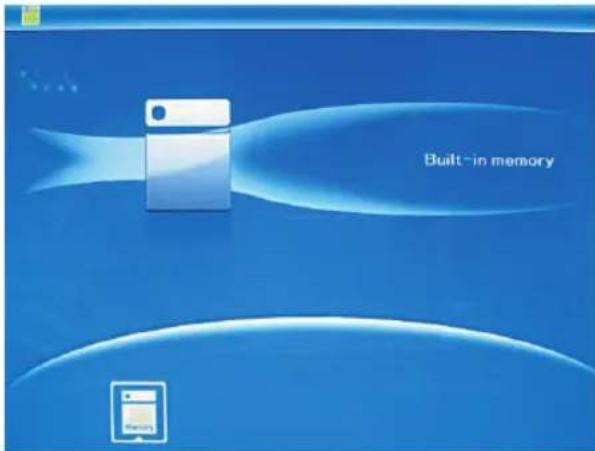

4. Operating Instruction

After turning on the unit, it will show the startup picture, press RETURN to get to the card select interface.

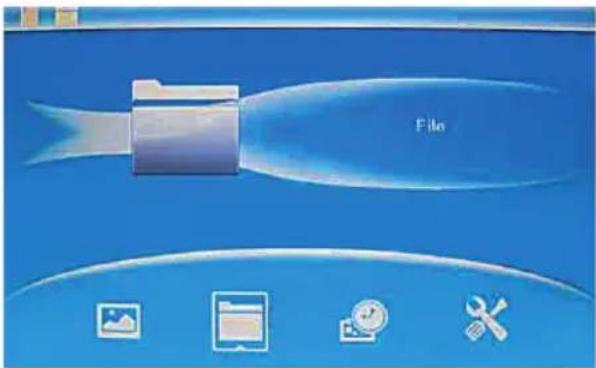

4.1 Card and USB

It supports SD/SDHC/MMC/MS and USB 2.0. After inserting a card or USB device, slideshow will play automatically, then press RETURN twice to access to photo, file, calendar and setup. Press OK (▶II) to confirm.

Note:

1. Make sure there are supported picture files, music an video files in the Card or USB device.
2. If there are supported picture and music files in the Card or USB Device, slideshow will play automatically with background music.

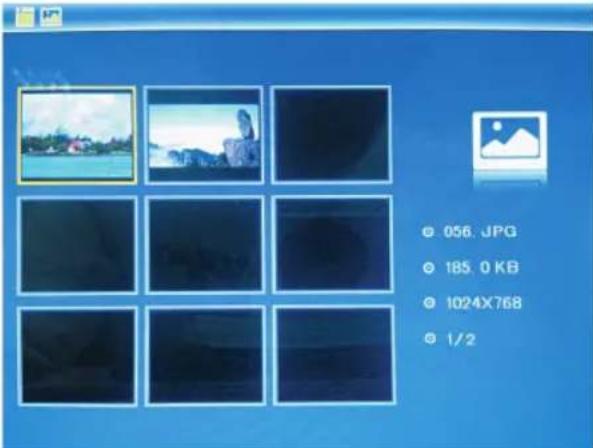

4.2 Picture Mode

Press RETURN to choose "MEMORY CARD" in the main menu. Highlight Photo, press OK (▶II) to access to the nine-picture mode, use ▲▼▲▶ to choose the picture, press OK (▶II) to play the picture in single window.

Press OK to start slideshow pictures in the selected slide mode.

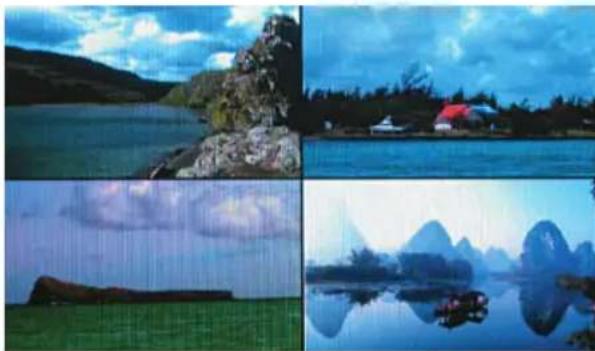

Change slide mode as follows: press SETUP to choose SLIDE MODE (single /triple/ four windows), select with , press OK () to confirm.

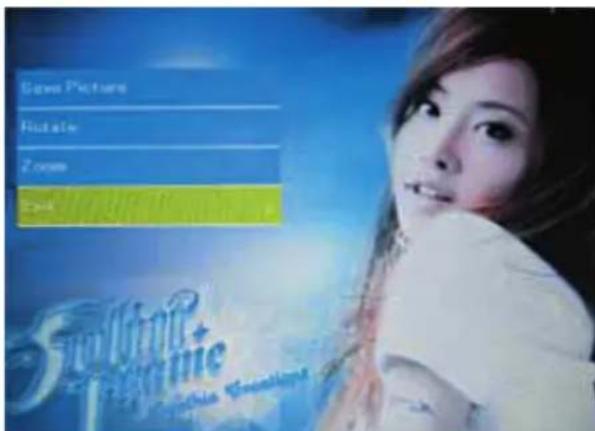

Copy & Delete function

In 9-picture mode (8050SLT)/6-picture mode (7050SLT), use to select the picture you want to copy to the built-in memory, press OK ( ) to enter the single-picture mode, then press SETUP to enter copy interface, press OK ( ) to confirm.

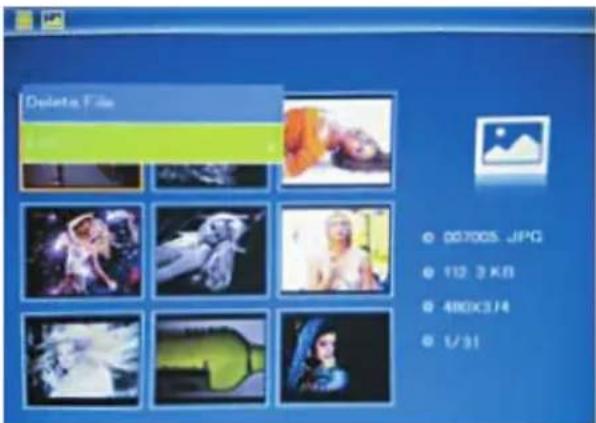

In 9-picture mode(8050SLT)/6-picture mode (7050SLT), use to select the picture you want to delete, then press SETUP to enter delete interface, press OK (▶II) to confirm.

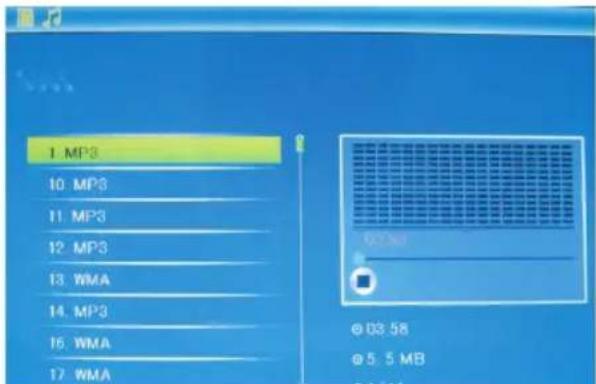

4.3. Music Mode

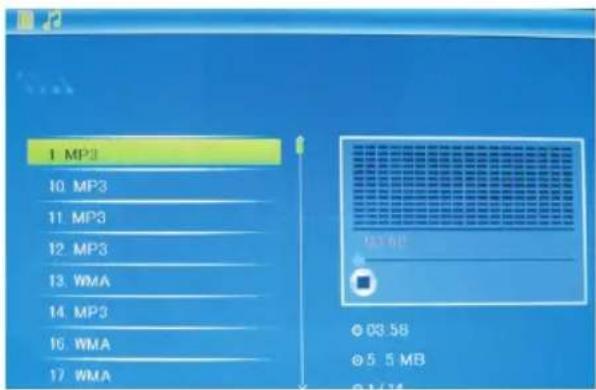

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Music, press OK (▶II) to enter the music interface, press ▲▼ to select the music from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

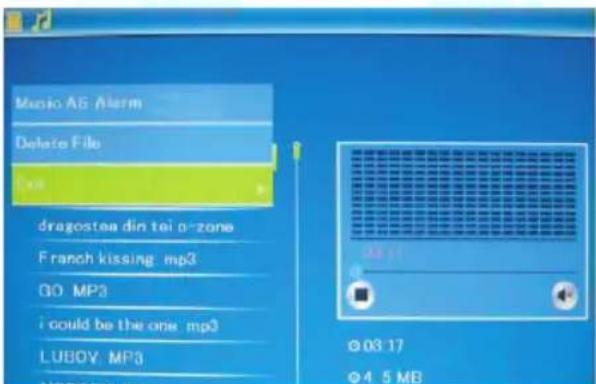

Delete function

Use to select the music you want to delete, then press MENU to enter delete interface, press OK (▶II) to confirm.

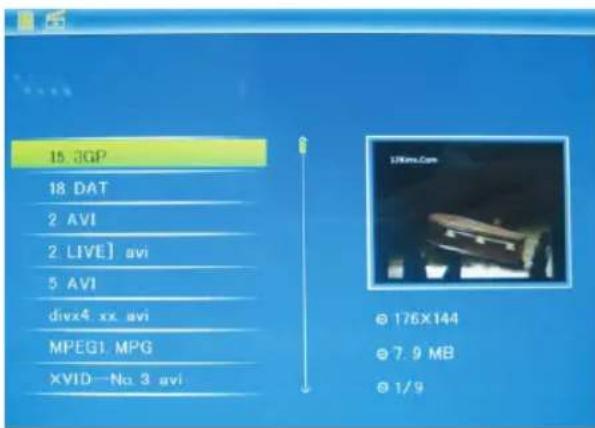

4.4 Video Mode

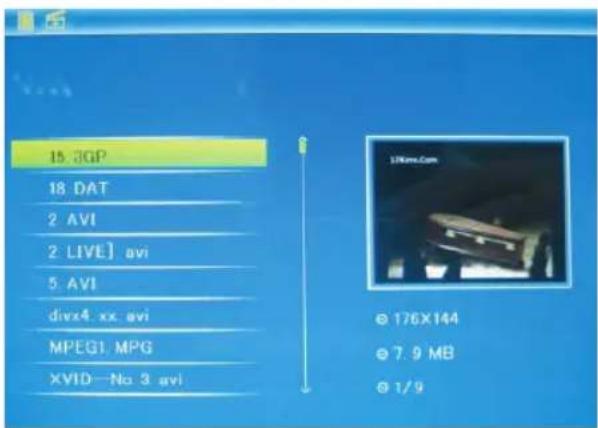

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Video, press OK (▶II) to enter the video interface, press ▲▼ to select the video from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

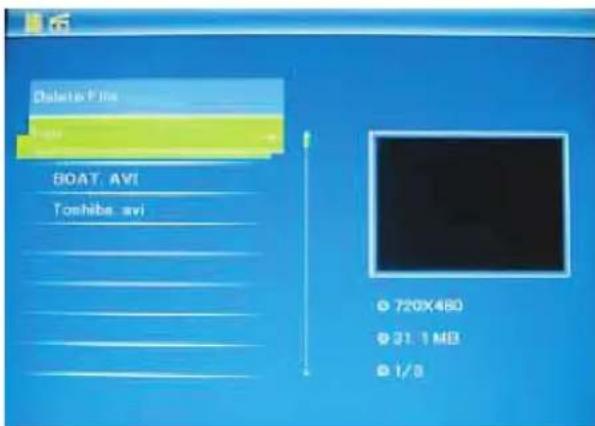

Delete function

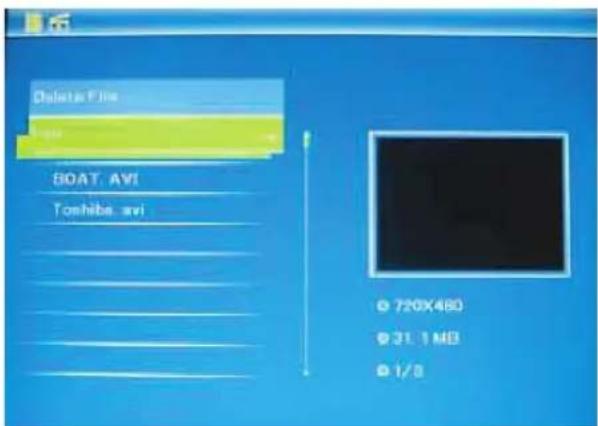

Use to select the video you want to delete, then press MENU to enter delete interface, press OK(II) to confirm.

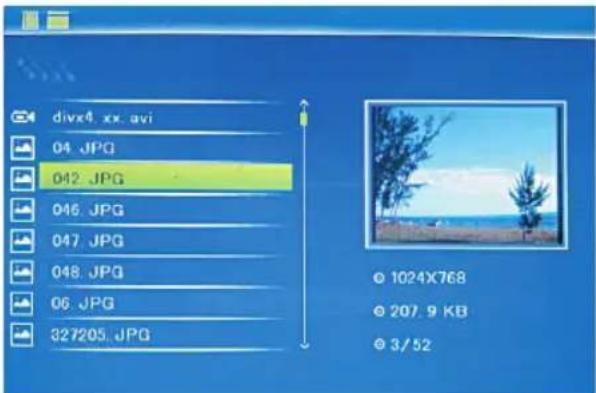

5. File

Press RETURN to choose "MEMORY CARD" in the main menu. Press File, then press OK (▶II) to access to file interface. You can browse all the files in the memory card in this mode, and delete files in built-in memory or external device.

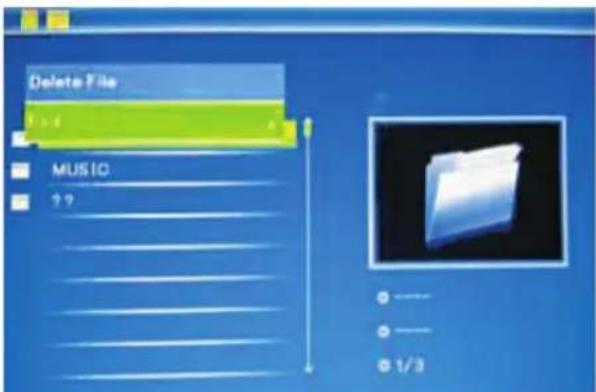

Delete function

Use to select the file you want to delete, then press SETUP to enter delete interface, press OK (▶II) to confirm.

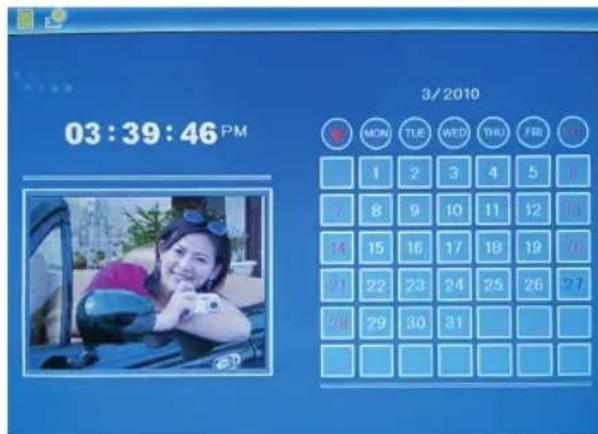

6. Calendar

Select Calendar from the main menu, press OK (▶II) to enter. The time is displayed on the top of left side. under the time, the pictures in the memory card slide show automatically.

7. Setup

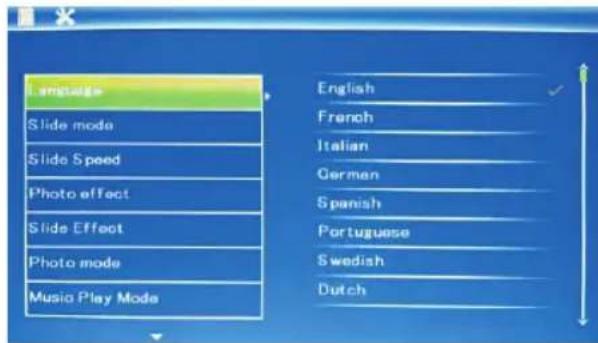

Select Setup from the main menu, and then press OK (▶II) to access to Setup interface. Use ▲▼ to select the item you want to set up. Press OK (▶II) to show the sub menu, select with ▲▼, then press OK (▶II) to confirm.

7.1 Language: English, French Italian, German, Spanish, Dutch, Portuguese, Swedish, Greek

7.2 Slide mode: Single window, Four windows, triple windows

7.8 Slide speed: 3/5/15/30seconds, 1/5/15/30minutes and 1hour

7.4 Photo effect: color, mono, sepia

7.5 Slide effect: random, Split Horizontal in/out, Jalousie, Split Vertical in/out, Radiation, Surround,

7.6 Photo mode: Auto fit, Optional, Full

7.7 Music Play Mode: Single Repeat, Circular, No Repeat, Single

7.8 Video Mode: Original, Screen

7.9 Display

Contrast: Use to select between 00 (lowest) and 40 (highest).
Brightness: Use to select between 00 (lowest) and 40 (highest).
Saturation: Use to select a point between 00(lowest) and 40(highest).
Tint: Use to select between 00(most color) to 40(least color).
7.10 Set time/date: Press OK (▶II), choose setup items with ▲▼ as follows: Year, Month, Date, Hour, Minute, Second, press OK (▶II), use ▲▶ to set, Press Save Time to confirm.
7.11 Set time format: 12/24, Press OK, select with , press OK (▶II), then use to set, press OK (▶II) to confirm.
7.12 Alarm: Press OK (▶II), choose setup items with ▲▼ as follows: Status, Number, Hour, Minute, Mode, press OK (▶II), use ▲▶ to set, Press OK (▶II) to confirm.
7.13 Auto Power On/Off: Press OK (▶II), choose setup items with ▲▼ as follows: Hour, Minute, Status, press OK (▶II), use ▲▶ to set, Press OK (▶II) to confirm.
7.14 Format built-in memory: Press OK (▶II), choose No/Yes with ▲▼, Press OK (▶II) to confirm.
7.15 Reset setting: Press OK (▶II) enter, use __ to select or unselect to reset all settings to default values, press OK (▶II) to confirm.
7.16 Exit: Press to exit setup interface.

8. Stand Instruction

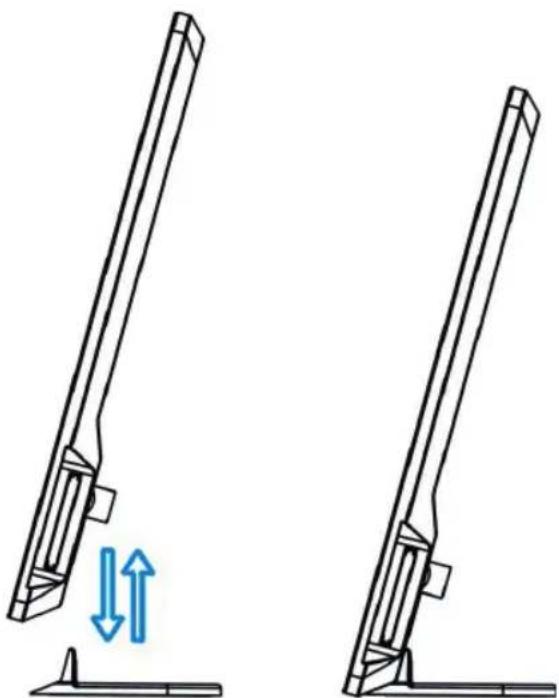

Insert the bracket into the slots of the digital photo frame. Please check and make sure the bracket is locked in place before standing the photo frame up. Please refer to the illustration shown below

9. Technical Specifications

Adapter

Input: AC 100-240V 50/60HZ

Output: DC 5V/1A

Picture Formats:

JPEG

Audio Formats:

MP3

Video Formats:

MPEG1,2,4,AVI

Memory Cards:

SD/SDHC/MMC/MS

USB:

USB Host( high speed 2.0 connected with the short USB Cable)

Screen Parameter:

DigiFrame 8050 SLT:

Screen Size: 20~cm (8 inch) TFT

Aspect Ratio: 4:3

Resolution:800X600 Pixel

DigiFrame 7050 SLT:

Screen Size: 17cm (7inch) TFT

Aspect Ratio: 16:10

Resolution: 768x480 Pixel

10. Troubleshooting Guide

If you are having problems with your player, please consult both this guide and manual. If you need further assistance, please contact Technical Support.

• No power:

Please check whether the plug is inserted correctly.

• No sound:

Please check whether the volume is correct and the player is not in Mute mode.

• Remote control no function:

Please check whether the battery has power (the battery can be used for half a year in normal conditions). Replace with new battery if necessary.

• Can not read the CARD or USB:

Please confirm whether there is storage in the card or USB device.

Empty devices cannot be read.

• Can not play the file:

Please confirm if the file format is compatible with the player.

• Display too bright or too dark:

Please adjust the brightness or contrast in the setup menu.

The color is light or no color:

Please adjust the color and contrast setup.

Table des matieres

9. Specifications techniques

Adaptateur

Entrée: AC 100-240V 50/60HZ

Sortie:DC5V/1A

Format d'image :

JPEG

Formats audio :

MP3

Formats video :

MPEG1.2.4.AVI

Cartes mémoire :

SD/SDHC/MMC/MS

USB：

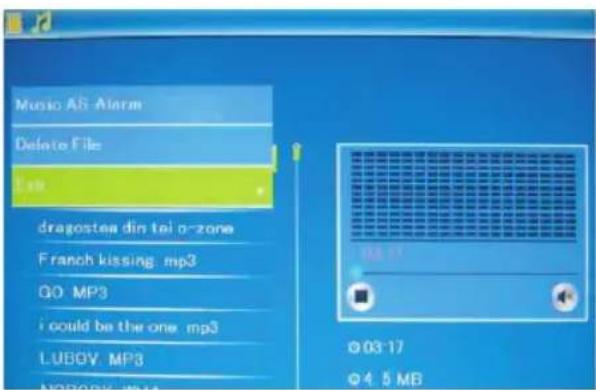

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Music, press OK (▶II) to enter the music interface, press ▲▼ to select the music from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

Funcao de apagar

Use to select the music you want to delete, then press MENU to enter delete interface, press OK (▶II) to confirm.

4.4 Modo de video

Press RETURN to choose "MEMORY CARD" in the main menu. Choose Video, press OK (▶II) to enter the video interface, press ▲▼ to select the video from the playlist, then press OK (▶II) to confirm. Press VOL+/- to turn up/ down the volume.

Funcao de apagar

Use to select the video you want to delete, then press MENU to enter delete interface, press OK (▶II) to confirm.

5. Ficheiro
