BSD9000 - Radio BLAUPUNKT - Free user manual and instructions

Product Type	AM/FM/SW/LW Digital Clock Radio
Brand	Blaupunkt
Model	BSD9000
Mains Power Supply	230 V AC ~ 50 Hz
Battery Power Supply	4 x 1.5 V type R20/UM1/D batteries (not included)
Frequency Bands	FM 87.5-108 MHz / MW 530-1600 kHz / LW 150-280 kHz / SW 5.80-10.0 MHz
Number of Presets	10 per band
RDS Function	Yes (station name display, program type, radiotext)
Alarm	Buzzer or radio, repeat (snooze 9 min)
Sleep Function	Timer 120-90-60-45-30-15-00 minutes
Sound Ambiences	Voice, Music, Normal
Auxiliary Input	LINE IN socket (3.5 mm jack)
Headphone Output	3.5 mm jack socket
Antenna	Telescopic for FM/SW
Display	LCD screen
Dimensions (approx.)	30 x 20 x 15 cm (estimate)
Weight (approx.)	1.5 kg (estimate)
Maintenance and Cleaning	Clean with a soft dry cloth. Do not use solvents.
Safety	Do not expose to water, do not open the casing, minimum ventilation 5 cm
Spare Parts and Repairability	No user-serviceable parts. Contact a professional.
General Information	Manual available in several languages at notice-facile.com

Frequently Asked Questions - BSD9000 BLAUPUNKT

How to set the time on the Blaupunkt BSD9000?

Press MEMO once to enter setting mode. Choose 24h or 12h format with ◀/▶, confirm with MEMO, then set hours and minutes in the same way.

How to store a radio station?

Select the desired station, press MEMO until 'M' and a number flash, choose a number with ◀/▶ and press MEMO again to confirm.

How to set the alarm?

In standby, press and hold ALARM until the time flashes. Set hours and minutes with ◀/▶ and confirm with ALARM. Choose the alarm mode (buzzer or radio) by pressing ALARM several times.

What to do if the radio does not turn on?

Check that the device is plugged into the mains or that the batteries are installed correctly. Make sure the power cord is connected properly. If the problem persists, try resetting the device by turning it off and on again.

How to use the RDS function?

Press RDS repeatedly to display the station name (PS), program type (PTY), radiotext (RT) or frequency. This function is only available on RDS-compatible FM stations.

Can I connect an MP3 player to this radio?

Yes, use a 3.5 mm audio jack cable (not included) to connect your device to the LINE IN socket on the back. The radio will then play the sound from your device.

How to adjust the volume and sound quality?

Use the VOLUME +/ buttons to adjust the volume. Press AUDIO to choose between the sound ambiences VOICE, MUSIC, or NORMAL.

FM reception is poor, what to do?

Fully extend the telescopic antenna. For MW/LW, orient the device horizontally. Avoid metal obstacles or thick walls. If the problem persists, try tuning manually with the TUNING buttons.

How to use the sleep function?

In radio on mode, press SLEEP to choose the duration before automatic shutoff (120, 90, 60, 45, 30, 15, or 00 minutes). Select 00 to disable.

Which batteries to use and how to replace them?

Use 4 x 1.5 V type R20/UM1/D batteries. Open the battery compartment cover by sliding it, insert the batteries respecting polarity (+/-). Replace them if the battery icon appears or if the sound becomes weak/distorted.

USER MANUAL BSD9000 BLAUPUNKT

USER MANUALS
Models: BSD-9000 / BSD-9001

Page 2	German
Page 7	English
Page 11	French
Page 16	Italian
Page 20	Spanish
Page 25	Portuguese
Page 29	Dutch
Page 34	Swedish
Page 38	Danish
Page 42	Finnish
Page 46	Norwegian
Page 50	Russian
Page 55	Greek
Page 59	Turkish
Page 63	Polish
Page 68	Bulgarian
Page 73	Romanian
Page 77	Czech
Page 81	Hungarian
Page 86	Japanese
Page 90	Chinese
Page 94	Arabic

Technical diagram of a device with numbered parts, likely an electronic device or enclosure with labeled parts 1 through 20.

Please read the instrucon carefully before operang the unit.

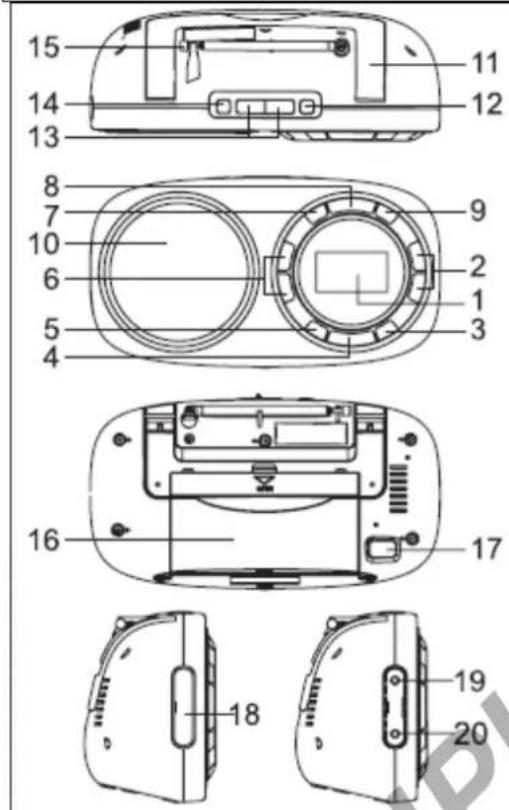

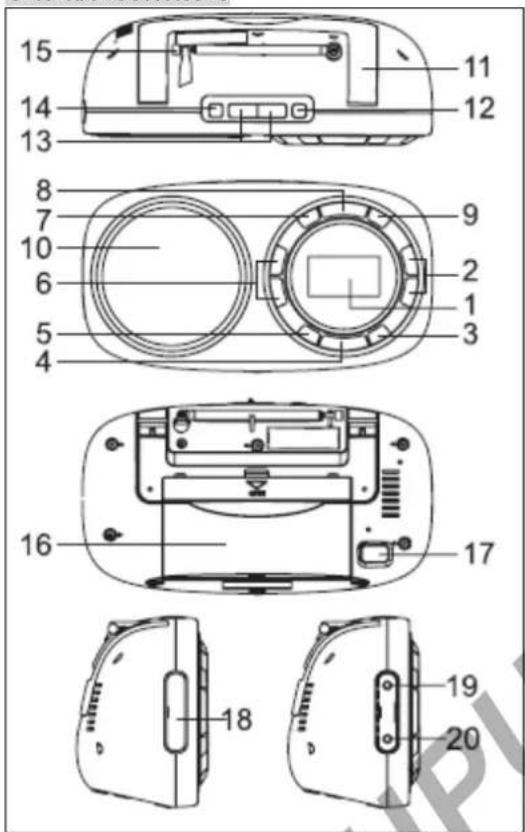

GENERAL CONTROLS

Technical diagram of a device with numbered parts, likely an electronic device or scanner assembly.

1. LCD display
2. Preset buon
3. ALARM buon
4. SNOOZE buon
5. SLEEP buon
6. TUNING
7. MEMO buon
8. BAND buon
9. RDS buon
10. Speaker
11. Carrying handle
12. ON/OFF buon
13. VOLUME+/- buons
14. AUDIO buon
15. FM telescopic antenna
16. Baery compartment
17. AC socket (\~ AC IN)
18. Rubber cover
19. LINE IN jack
20. Earphone jack

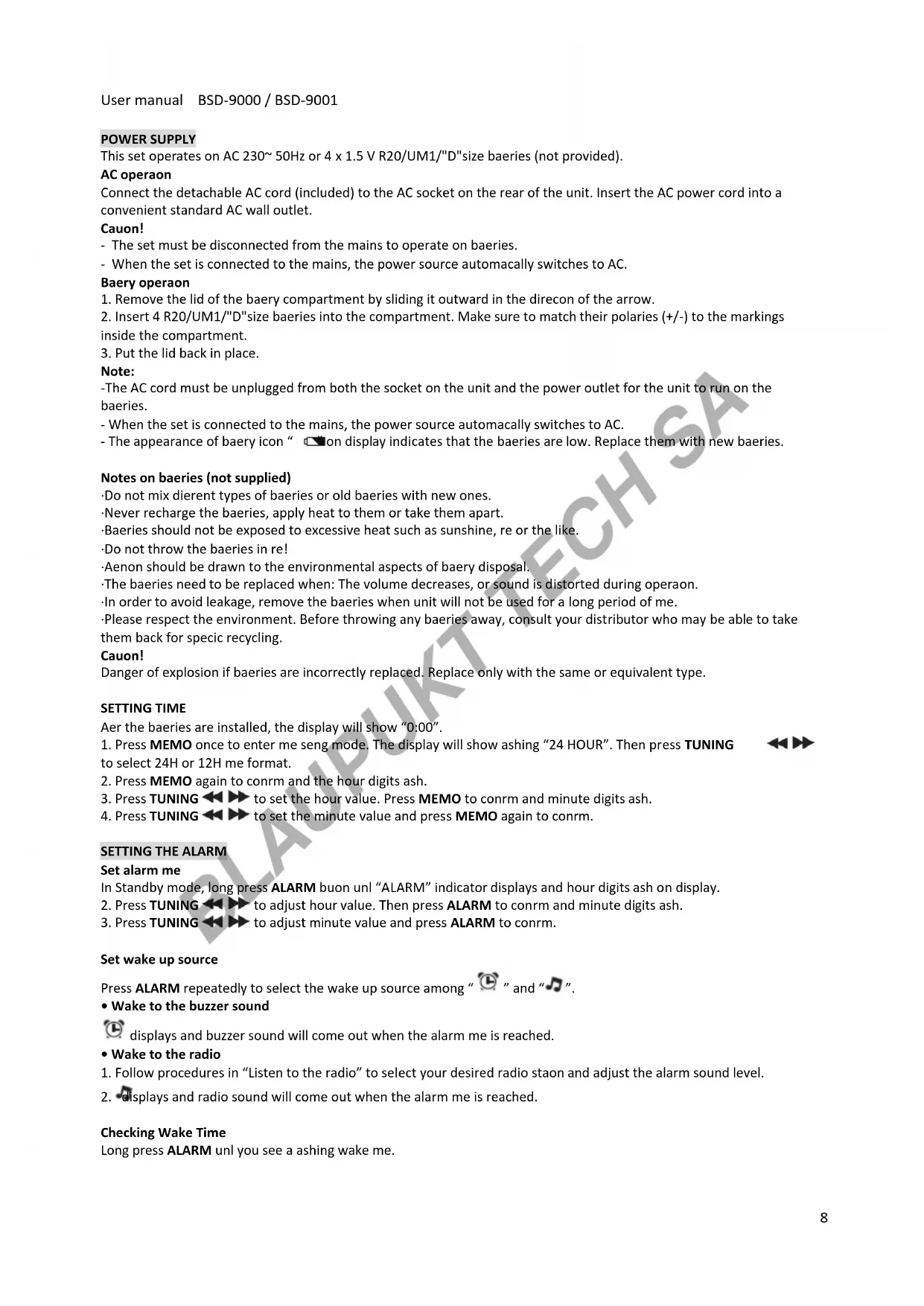

POWER SUPPLY

This set operates on AC 230\~50Hz or 4 x 1.5 V R20/UM1/"D" size baeries (not provided).

AC operaon

Connect the detachable AC cord (included) to the AC socket on the rear of the unit. Insert the AC power cord into a convenient standard AC wall outlet.

Cauon!

- The set must be disconnected from the mains to operate on baeries.

- When the set is connected to the mains, the power source automacally switches to AC.

Baery operaon

1. Remove the lid of the baery compartment by sliding it outward in the direcon of the arrow.
2. Insert 4 R20/UM1/"D" size baeries into the compartment. Make sure to match their polaries (+/-) to the markings inside the compartment.
3. Put the lid back in place.

Note:

-The AC cord must be unplugged from both the socket on the unit and the power outlet for the unit to run on the baeries.

• When the set is connected to the mains, the power source automacally switches to AC.
• The appearance of baery icon “ □ on display indicates that the baeries are low. Replace them with new baeries.

Notes on baeries (not supplied)

- Do not mix dierent types of baeries or old baeries with new ones.

- Never recharge the baeries, apply heat to them or take them apart.

- Baeries should not be exposed to excessive heat such as sunshine, re or the like.

- Do not throw the baeries in re!

·Aenon should be drawn to the environmental aspects of baery disposal.

The baeries need to be replaced when: The volume decreases, or sound is distorted during operaon.

·In order to avoid leakage, remove the baeries when unit will not be used for a long period of me.

- Please respect the environment. Before throwing any baeries away, consult your distributor who may be able to take them back for specific recycling.

Cauon!

Danger of explosion if baeries are incorrectly replaced. Replace only with the same or equivalent type.

SETTING TIME

Aer the baeries are installed, the display will show "0:00".

1. Press MEMO once to enter me seng mode. The display will show ashing "24 HOUR". Then press TUNING to select 24H or 12H me format.
2. Press MEMO again to conrm and the hour digits ash.
3. Press TUNING ◀◀▶ to set the hour value. Press MEMO to conrm and minute digits ash.
4. Press TUNING ◀◀▶ to set the minute value and press MEMO again to conrm.

SETTING THE ALARM

Set alarm me

In Standby mode, long press ALARM buon unl "ALARM" indicator displays and hour digits ash on display.

1. Press TUNING ◀◀▶ to adjust hour value. Then press ALARM to conrm and minute digits ash.

2. Press TUNING ◀◀▶ to adjust minute value and press ALARM to conrm.

Set wake up source

Press ALARM repeatedly to select the wake up source among “ ℜ ” and “ ℑ ”.

- Wake to the buzzer sound

displays and buzzer sound will come out when the alarm me is reached.

- Wake to the radio

1. Follow procedures in "Listen to the radio" to select your desired radio staon and adjust the alarm sound level.
2. displays and radio sound will come out when the alarm me is reached.

Checking Wake Time

Long press ALARM unl you see a ashing wake me.

Silence the alarm momentarily

Press SNOOZE to turn the alarm o temporarily. The alarm will sound again when the snooze period is over.

Note: snooze me is 9 minutes.

Stop the alarm

Press ON/OFF: The alarm will stop, and will sound again 24 hours later.

Cancel Wake Seng

Press ALARM repeatedly unl all alarm indicators disappear from the display.

SLEEP TO THE RADIO

In sleep mode, the radio will turn o automacally aer a specied me.

In radio ON mode, press SLEEP to select the desired me before turn o among 120-90-60-45-30-15-00.

* Select "00" then the sleep funcon is OFF, SLEEP indicator disappear from display.

When in SLEEP mode, press SLEEP buon to read the remaining sleep me.

SOUND PRESETS

When listening to the radio, press AUDIO buon repeatedly to select desired sound preset: VOICE, MUSIC or NORMAL.

USING THE RADIO

Listen to the radio

• Press ON/OFF.
• Select the frequency band FM/MW/SW/LW by pressing BAND.
• Select the required radio staon with the buons and
• Adjust the volume with the buons VOLUME +/-
• To switch the radio o, press ON/OFF.

To enhance radio recepon ability:

FM/ SW: Extend the telescopic antenna.

MW/LW: Rotate the unit horizontally for opmum recepon.

Saving Preset Staons

1. Tune to a staon to be saved as a preset staon (see "Listen to the radio").
2. Press MEMO once and you will see "M" and ashing "01" on the display.
3. Press Preset / to select a preset number.
4. Press MEMO to save staon as selected preset number.
5. Repeat above steps to preset a maximum of 10 staons for each band respectively.

Selecng Preset Staons

Press Preset / to select a preset number.

RDS FUNCTION

When FM staon with RDS is received, the staon name (PS) is displayed. Press RDS buon repeatedly to display the program type (PTY), the radio text (RT), the frequency and the staon name (PS).

AUXILIARY FUNCTION

• Connect an audio device to the LINE IN jack, using an audio cable (not supplied).
• Switch the appliance on.
• Use the device's controls directly.

PRODUCT INFORMATION

Power consumpon: 5W

Frequency Range:

FM 87.5-108.0 MHz

MW 530-1600 KHz

LW 150-280 kHz

SW 5.80-10.0 MHz

LISTENING WITH EARPHONES

Connect earphones (not included) to the earphone jack on unit.

Connuous use of earphones at high volume can damage the user's hearing.

SAFETY INSTRUCTION

CAUTION: To reduce the risk of electric shock, do not remove the cover (or back). There are no

user serviceable parts inside the unit. Refer all servicing to qualify personnel.

The lightening ash with arrowhead symbol within the triangle is a warning sign alerng the user of “dangerous age” inside the unit.

The exclamaon point within the triangle is a warning sign alerng the user of important instrucons accompanying product.

IMPORTANT!

• The venlaon should not be impeded by covering the venlaon openings with items such as newspapers, tablecloths, curtains, etc.
• No naked ame sources, such as lighted candles, should be placed on the apparatus.
• The use of apparatus in moderate climates.
• The apparatus should not be exposed to dripping or splashing.
• Ensure a minimum distance of 5cm around the apparatus for sucient venlaon.
• Do not place objects lled with liquids, such as vases, on the apparatus.
• The rang plate is located at back of unit.
  -Excessive sound pressure from earphones and headphones can cause hearing loss.
• Mains plug is used as the disconnect device and it shall remain readily operable. To be completely disconnected the power input, the mains plug of the apparatus shall be disconnected from the mains completely. The mains plug should not be obstructed or should be easily accessed during intended use.
• Under the inuence of electrical fast transient or/and electrostac phenomenon, the product may malfuncon and require user to power reset.

If at any me in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. (Waste Electrical and Electronic Equipment Directive)

Note: Design and specicaon are subject to change without noce.

© 2011 All rights reserved by Blaupunkt. This material may be reproduced, copied or distributed for personal use only.
