MUM4880 - Food Processor BOSCH - Free user manual and instructions

Motor power	600 W
Mixing technology	3D Planetary
Stainless steel bowl capacity	3.9 L
Plastic blender capacity	1 L
Max cake dough load	2 kg
Max yeast dough load	1.5 kg
Number of speeds	4
Color	White
Weight	6.57 kg
Width	265 mm
Depth	305 mm
Height	265 mm
Motor overload protection	Yes
Non-slip suction feet	Yes
Included accessories	Kneading hook, whisk, beater, continuous slicer with 3 discs, 1 L blender, meat grinder, citrus press

Frequently Asked Questions - MUM4880 BOSCH

What is the power of the BOSCH MUM4880 robot?

The BOSCH MUM4880 is equipped with a 600 W motor, sufficient for kneading heavy doughs, whipping cream, and performing all common family preparations. Overload protection ensures the longevity of the motor.

What is the capacity of the MUM4880 bowl?

The robot comes with a 3.9-liter stainless steel bowl. It can handle up to 2 kg of cake dough or 1.5 kg of yeast dough at a time. A 1-liter plastic blender bowl is also included.

What accessories are included with the BOSCH MUM4880?

The MUM4880 comes with a complete set of accessories:

• Dough hook with dough deflector
• Whisk and beater
• Continuous slicer with 3 discs (slicing, coarse grating, fine grating)
• 1 L plastic blender with lid
• Meat grinder
• Citrus press

How many speeds does the MUM4880 offer?

The MUM4880 has 4 speed levels. This gradation allows you to adjust the pace for each preparation, from the slow kneading of thick doughs to the rapid whipping of egg whites.

How does the 3D planetary mixing of the MUM4880 work?

The 3D planetary system combines a rotation movement of the accessory on itself with an orbital movement around the bowl. This ensures that the entire surface of the bowl is reached, with no unworked area, for a perfectly homogeneous result.

Is the MUM4880 suitable for kneading bread dough?

Yes, the dough hook with dough deflector is designed for yeast doughs. The robot can handle up to 1.5 kg of bread dough in one batch. The 3D planetary movement ensures even kneading.

What should I do if the MUM4880 suddenly stops during use?

The robot features automatic overload protection. In case of overly thick preparation or overheating, the motor stops to protect itself. Turn off the appliance, let it cool for 10 to 15 minutes, then restart with a reduced quantity.

Is the MUM4880 stable on the countertop?

Yes, it is equipped with rubber suction feet that keep the robot firmly positioned even during the kneading of heavy preparations. This system prevents any unintentional movement on the countertop.

Can additional accessories be purchased for the MUM4880?

Yes, the MUM4880 is compatible with the Bosch MUM4 accessory range. You can find replacement parts and additional accessories on the official Bosch website or from specialists like SOS-Accessoire.

What are the dimensions and weight of the BOSCH MUM4880?

The MUM4880 measures 265 mm in width, 305 mm in depth, and 265 mm in height, with a weight of 6.57 kg. Its compact size allows for storage in most kitchen cupboards.

USER MANUAL MUM4880 BOSCH

Illustration of a vacuum cleaner and a blender with cleaning tools (no text or symbols)

MUM44..

MUM46..

MUM48..

BOSCH

Illustration of an open book with a curved arrow indicating rotation (no text or symbols)

ü

ü

Inhalt

1 Päckchen Backpulver

^1/_8 I Milch

Cleaning and servicing 15

Troubleshooting 16

Application examples 16

Standard/optional accessories ..... 17

Disposal 18

Warranty conditions 18

For your safety

Before use, read these instructions carefully in order to become familiar with important safety and operating instructions for this appliance.

If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded. This appliance is designed for processing normal household quantities in the home or similar quantities in non-industrial applications.

Non-industrial applications include e.g. use in employee kitchens in shops, offices, agricultural and other commercial businesses, as well as use by guests in boarding houses, small hotels and similar dwellings.

Use the appliance for processing normal quantities of food for domestic use. Do not exceed permitted maximum quantities (see “Application examples”).

This appliance is suitable for mixing, kneading and beating food. It must not be used for processing other objects or substances. Other applications are possible if the accessories approved by the manufacturer are used.

Use the appliance with original accessories only. When using the accessories, follow the enclosed operating instructions.

Please keep the operating instructions in a safe place. If passing on the appliance to a third party, always include the operating instructions.

General safety instructions

Electric shock risk

The appliance must not be used by children.

The appliance and its power cord must be kept away from children.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Children shall not play with the appliance.

en

Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged.

Always disconnect the appliance from the supply if it is left unattended and before assembling, disassembling or cleaning.

Do not place the power cord over sharp edges or hot surfaces.

To prevent injury, a damaged power cord must be replaced by the manufacturer or his customer service or a similarly qualified person.

Only our customer service may repair the appliance.

Safety instructions for this appliance

Risk of injury

Risk of electric shock!

Do not insert mains plug until all preparations for working with the appliance are complete. Never immerse the base unit in liquid or hold under running water. Do not use a steam cleaner.

Do not adjust the swivel arm while the appliance is switched on.

Wait until the drive has come to a standstill.

Do not change tool/accessory until the drive is at a standstill – when the appliance is switched off, the drive continues running briefly.

Use only the rotary switch to switch the appliance on or off.

When the appliance is not in use, pull out the mains plug.

Before eliminating a fault, pull out the mains plug.

The appliance restarts following a power interruption.

Risk of injury from the rotating tools!

Keep hands clear of rotating parts. While the appliance is operating, keep fingers clear of the mixing bowl.

Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly.

The appliance may only be operated when the unused drives have been safeguarded with the drive covers (4, 7).

Risk of injury from sharp blades/rotating drive!

Never place fingers in the attached blender!

Never assemble blender on the base unit. Do not remove/attach the blender until the drive is at a standstill!

Operate the assembled blender only and with the lid attached.

Do not touch blender blades with bare hands.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid.

Add a max. 0.5 litres of hot or frothing liquid.

Important!

Use only one tool or accessory at any one time.

The operating instructions describe several models, see also overview of models (Fig. Ⅱ). The appliance requires no maintenance.

Overview

Please fold out the illustrated pages.

Fig.

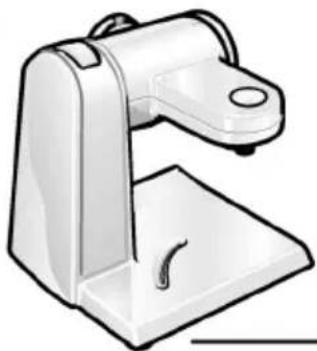

Base unit

1 Release button
2 Swivel arm (see "Operating positions")
3 Rotary switch

$$ 0 / \text { off } = \text { Stop } $$

$$ ⓟ / \mathbf {P} = \text { Parking circuit } $$

Hold rotary switch until the drive stops; tool is in the swivel position. If the drive does not move, the swivel position has already been reached.

$$ \text { Settings } 1 - 4 = \text { Operating speed } $$

$$ \text { Setting } 1 = \text { Minimum speed } - \text { slow } $$

$$ \text { Setting } 4 = \text { Maximum speed - fast } $$

If the power is interrupted, the appliance remains switched on and restarts when the power is restored.

4 Drive cover

To remove the drive cover, rotate until the locking feature has been released.

5 Drive for

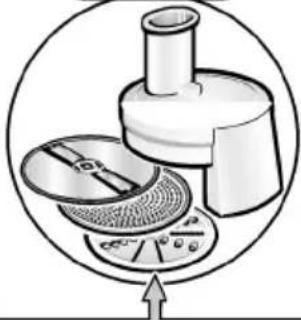

• continuous-feed shredder *
• citrus press *
• grain mill *

When not in use, attach the drive cover.

6 Drive for

• tools (stirrer, whisk, kneading hook)
• stirring tool of the ice-cream maker *

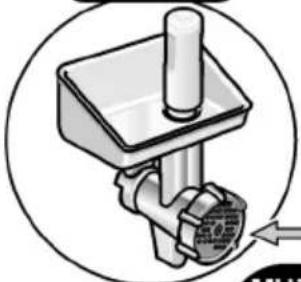

  – folded down or up for mincer *

7 Blender drive cover

8 Drive for

• blender
• multi-blender

When not in use, attach the blender drive cover.

9 Cord store (Fig. B)

MUM 44..: Stow the cord

MUM 46../48..: Stow the cord in the cord store

Bowl with accessories

10 Mixing bowl
11 Lid

Tools

12 Stirrer
13 Whisk
14 Kneading hook with dough deflector

Blender

15 Base
A
16 Blade insert
17 Sealing ring
18 Blender jug
19 Lid
20 Funnel

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions

Setting the operating position Fig. C

• Press the Release button and move the swivel arm.
• Move the swivel arm until it engages in the required position.

Posi-tion
1
2
3
4		[5040]
5	[WDD8]
6	[W08C]	Insert/remove whisk, stirrer or kneading hook
7		Add large quantities of ingredients

Operation

- Before operating the appliance and accessories for the first time, clean thoroughly; see “Cleaning and servicing”.

Preparation

• Place the base unit on a smooth, clean surface.
• Unwind/pull out the cord (Fig. B).
• Insert the mains plug.

Stirrer, whisk and kneading hook Fig. D

Stirrer (a)

for stirring dough, e.g. cake mixture

Whisk (b)

for whisking egg whites, cream and light dough, e.g. sponge mixture

for kneading heavy dough and mixing-in ingredients that ought not be cut (e.g. raisins and chocolate chips)

- Set rotary switch to P and hold in place until the drive stops.

Note:

If the drive does not move, the swivel position has already been reached.

• Press the Release button and move the swivel arm to position 6.
• Insert the bowl. The base of the mixing bowl must be inserted into the recess of the base unit.
• Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position. If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position.
• Put the ingredients to be processed into the bowl.
• Press the Release button and move the swivel arm to position 1.
• Attach the cover.
• Set the rotary switch to the desired setting.

Adding more ingredients

• Switch off the appliance with the rotary switch.
• Set rotary switch to P and hold in place until the drive stops.
• Remove lid.
• Press the Release button and move the swivel arm to position 7.
• Add ingredients

or

- add more ingredients through the feed tube in the cover.

After using the appliance

• Switch off the appliance with the rotary switch.
• Set rotary switch to P and hold in place until the drive stops.
• Remove mains plug.
• Remove lid.
• Press the Release button and move the swivel arm to position 6.
  ● Take the tool out of the drive.
• Remove the bowl.
• Clean all parts, see “Cleaning and servicing”.

Blender

Fig.

After using the applfence

• Switch off the appliance with the rotary switch.
• Remove mains plug.
• Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

Cleaning the base unit

• Remove mains plug.
  ● Wipe the base unit with a damp cloth.
• If required, use a little detergent.

- Then dry the base unit.

• Press the Release the swivel arm to position 3.
• Remove the blender drive cover.
• Attach the blender jug (mark on the base of the blender jug on the mark on the base unit) and rotate as far as possible in an anti-clockwise direction (Fig. 1-4/5).
• Add ingredients. Maximum capacity of liquid for plastic blender = 1 litre, for glass blender = 0.75 litres, frothing or hot liquid maximum 0.5 litres Optimal processing capacity – solids = 50–100 g.
• Attach lid and press firmly. While working, always hold the lid firmly with one hand. However, do not place hand over the refill opening!
• Set the rotary switch to the desired setting.

Adding more ingredients Fig. 1-6

• Switch off the appliance with the rotary switch.
• Remove the cover and add ingredients

or

- remove the funnel and gradually add solid ingredients through the feed tube

or

- pour liquid through the funnel.

Cleaning the bowl and accessories

All parts are dishwasher-safe. Do not wedge plastic parts in the dishwasher as they could warp.

Cleaning the blender

Tip: After processing liquids, it is often sufficient to clean the blender without disassembling it. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (if the appliance features quick-action operation, select setting M). Pour out the water and rinse out the blender with clear water.

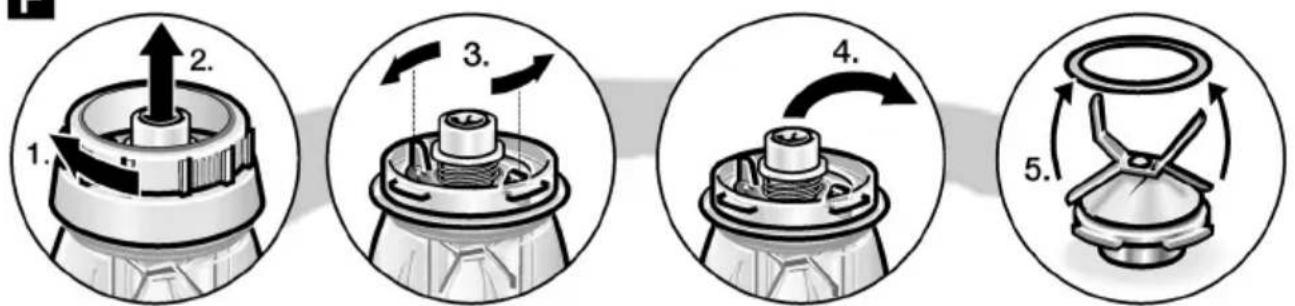

Taking the blender apart Fig. F

• Rotate the base of the blender jug in a clockwise direction and remove.
• Upon the flanks, rotate the blade insert in an anti-clockwise direction. The blade insert is released.
• Take blade insert out and remove sealing ring.

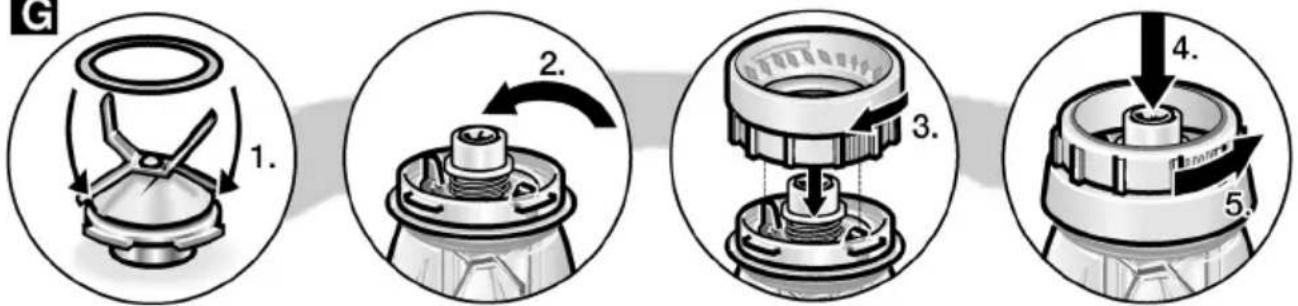

Putting the blender together Fig. G

• Apply sealing ring on blade insert.
• Insert blade insert from below into blender jug.
  ● Tighten the blade insert with the aid of the blender jug base.
  ● Tighten the base of the blender jug in an anti-clockwise direction.

Troubleshooting

If the appliance malfunctions, please consult our customer service.

Application examples

Whipped cream

100 g–600 g

- Whip cream with the whisk for 1½ to 4 minutes at setting 4 (depending on the quantity and properties of the cream).

Egg white

1 to 8 egg whites

- Beat egg white with the whisk for 4 to 6 minutes at setting 4.

Sponge mixture

2 eggs
2–3 tbs. hot water
100 g sugar
1 packet of vanilla sugar
70 g flour
70 g cornflour baking powder (if required)

- Beat the ingredients (except flour and cornflour) with the whisk for approx. 4–6 minutes at setting 4 until frothy.

- Rotate switch to setting 2 and spoon in the sifted flour and cornflour within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

3–4 eggs

200–250 g sugar

1 pinch of salt

1 packet of vanilla sugar or peel from 12 lemon

200–250 g butter (room temperature)

500 g flour

1 packet of baking powder

^1/_8 I milk

- Mix all ingredients with the stirrer for approx. 12 minute at setting 1, then for approx. 3–4 minutes at setting 3.

Maximum quantity: 1.5–2 x basic recipe

Short pastry

125 g butter (room temperature)

100–125 g sugar

1 egg

1 pinch of salt

A little lemon peel or vanilla sugar

250 g flour

Baking powder if required

- Process all ingredients for approx. 12 minute at setting 1, then for approx. 2–3 minutes with the stirrer (setting 3) or kneading hook (setting 2).

Maximum quantity: 2 x basic recipe

Yeast dough

500 g flour

1 egg

80 g fat (room temperature)

80 g sugar

200–250 ml lukewarm milk

25 g fresh yeast or 1 packet of dried yeast

Peel of 12 lemon

1 pinch of salt

- Mix all ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3–6 minutes at setting 2.

Maximum quantity: 1.5 x basic recipe

Mayonnaise

2 eggs

2 tsp. mustard

14 | oil

2 tbs. lemon juice or vinegar

1 pinch of salt

1 pinch of sugar

Ingredients must be at the same temperature.

• Process the ingredients (except the oil) in the blender for several seconds at setting 2.
• Switch the blender to setting 4 and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies.

Standard/optional accessories

Other accessories enclosed with the packaging (see enclosed overview of models, Fig. Ⅱ) are described in the separate operating instructions. Enclosed accessories/optional accessories can also be purchased separately. The accessories for the MUM 45.. appliance are also suitable for the MUM 44../46../48.. appliances.

Fig. H

Plastic mixing bowl (MUZ4KR3)

Up to 1 kg of flour plus ingredients can be processed in the bowl.

Stainless steel stirring bowl (MUZ4ER2)

Up to 1 kg of flour plus ingredients can be processed in the bowl.

Plastic blender attachment (MUZ4MX2)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Glass blender attachment (MUZ4MX3)

For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.

Mini processor (MUZ4MM3)

For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

Continuous-feed shredder (MUZ4DS3)

For slicing cucumbers, cabbage, kohlrabi, radish; for shredding carrots, apples and celery, red cabbage, cheese and nuts; for grating hard cheese, chocolate and nuts.

Chipper disc (MUZ45PS1)

For the continuous-feed shredder MUZ4DS3. For slicing raw potatoes for chips.

Asiatic vegetables disc (MUZ45AG1)

For the continuous-feed shredder MUZ4DS3. Slices fruit and vegetables into fine strips for Asian vegetable dishes.

Grating disc coarse (MUZ45RS1)

For the continuous-feed shredder MUZ4DS3. For grating raw potatoes, e.g. for potato pancakes or dumplings.

Potato fritter disc (MUZ45KP1)

For the continuous-feed shredder MUZ4DS3. For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.

Citrus press (MUZ4ZP1)

For squeezing oranges, lemons and grapefruits.

Mincer (MUZ4FW3)

For cutting fresh meat for steak tartare or meat loaf.

Perforated disc set (MUZ45LS1)

For the mincer MUZ4FW3. Fine disc (3 mm) for pasties and spreads, coarse disc (6 mm) for sausages and bacon.

Viennese whirl attachment (MUZ45SV1)

For the mincer MUZ4FW3. With metal template for 4 different pastry moulds.

Grater attachment (MUZ45RV1)

For the mincer MUZ4FW3. For grating nuts, almonds, chocolate and dried bread rolls.

Juicer attachment (MUZ45FV1)

For the mincer MUZ4FW3. For pressing soft fruit, (except raspberries), tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.

Accessories holder (MUZ4ZT1)

For the storage of accessories such as kneading hook, whisk, stirrer, slicing, shredding and grating disc.

Mill with conical grinder made of steel (MUZ4GM3)

For all grain types except maize, also oil seeds, dried mushrooms and herbs.

Ice-cream maker (MUZ4EB1)

For the preparation of up to 550 g of ice cream per cycle and container.

Disposal

This appliance has been identified in accordance with the European directive 2012/19/EG on Waste Electrical and Electronic Equipment – WEEE.

The Directive paves the way for effective EU-wide withdrawal and utilization of waste appliances.

Please ask your dealer or inquire at your local authority about current means of disposal.

Warranty conditions

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased.

The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Sommaire

Tarcza do frytek (MUZ45PS1)

(waste electrical and electronic

equipment - WEEE).

90431 Nürnberg mail to: bshau-as@bshg.c

bsng.com mail to: del icnanda@hot m

mail to: [e-mail] 115K Tsarigradsko Chaus

www.bosch-home.com/ae European Trade Center

Al. Republika o Shajnarjica 5th floor

AL Repubrika e Shqipelli 1784, Sofia Al bani a Tel : 02 8

AERTECH SH. P. K.

Rr. Sami Frasher i

Pallati i Aviacionit te vietar

Shkalla 1, Hyrja 2

Tirana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

AT Österreich,

BSH Hausgeräte

Gesellschaft mbH

Werkskundendienst

für Hausgeräte

Quellenstrasse 2

1100 Wien

Tel.: [phone]*

Fax: [phone]

GB Great Britain BSH Home Appliances Lt Grand Union House Old Wolverton Road Wolverton Milton Keynes MK12 5PT To arrange an engineer order spare parts and or for product advice www.bosch-home.co.uk or call Tel.: [phone]* * Calls from a BT landline wi up to 3 pence per minute. A of up to 6 pence may apply.

IE Republic of Ireland BSH Home Appliances Ltd Unit F4, Ballymount Dr Ballymount Industrial Walkinstown Dublin 12 Service Requests, Spares and Accessories Visit '01:450 2655 Accessories Fax '01:450 2520 please visit www.bosch-home.co.uk

IL Isra#ny C/S/B Home Appliance L Ul ibel ch Bujeddiang 2all Hameluachea St. Industrial Park North 71293 Lod Tel.: [phone] Fax: [phone] mail to: csb-serv@zahav. www.bosch-home.co.il

IN India, 34hārat, BSH Customer Service Fr Shop No.4, Everest Grand Opp. Shanti Nagar Bus S Mahakali Caves Road, An Mumbai 400093 mited IS Iceland Smith & Norland hf. Noatuni 4 105 Reykjavik Tel.: [phone] Fax: [phone] www.sminor.is

bshg-Italia, Italy BSH Elettrodomestici S Via. M. Nizzoli 1 20147 Milano (MI) Numero verde 800 829 1 mailto: mil-assistenza@ www.bosch-home.com/it

KZ Kazakhstan, Қазақстан IP '' Bat kayev I l dus A. ' ' B. Momysh- u ly Str. 7 Chymkent 160018 Tel. / Fax: [phone] mail to: [e-mail] vis - hr @ LB Lebanon, نانب / Teheni, Hana & Co. Boulevard Dora 4043 Beyro a.r.yO. Box 90449 kldeideh 1202 2040 Tel.: [phone] smae r l vioze n f o @Teheni - Hana.c

LT Lietuva, Lithuania Senuku prekybos centras U Jonavos g. 62 44192 Kaunas Tel.: [phone] Fax: [phone] www.senukai.lt

LU Luxembourg BSH électroménagers S. A. 13-15 ZI Breedeweues 1259 Senningerberg del.: 26349 300 Fax: [phone] imafito: lux-service.electrom Esth@com www.bosch-home.lu

LV Latvija, Latvia General Serviss Limited Bullu street 70c 1067 Riga Tel.: [phone] mailto:[e-mail]

El kor Serviss Brivibas gative 201 1039 Riga Tel.: [phone]; -36 Fax: [phone] mailto:domoservice@elkor. www.servisacentrs.l

MD . Moldova S. R. L. "Rial to - Studio" ул. Шусева 98 2012. Кишнев ont Of I ce тел. / факс: [phone] email to: [e-mail] top, ME Crna Gora, Montenegro Elektronika komerc UI. Slobode 17 84000 Bijelo Polje Tel. / Fax: [phone] Mobil: 069 324 812 mail to: ekobosch.servis@ t-com.me

MK Macedonia, Македонија GORENEC Jane Sandanski 69 lok.3 1000 Skopje Tel.: [phone] Mobil: 070 697 463 mail to: [e-mail] bshg.com

MT MaltaOxford House Ltd.Notabile RoadMriehel BKR 14Tel.: [phone]Fax: [phone]www. oxfordhouse.com. mt	PT PortugalBSHP ElectrodomésticosRua Alto do Montijo, n2790-012 CarnaxideTel.: 707 500 545Fax: [phone]mail to:bosch.electrodomestilctos: pp@[e-mail]	SK Slovensko, SlovakiaBSH domáci spotřebiče s.r.Orçanizačná zložka BratisGalvaniho 17/C821 04 BratislavaTel.: 02 44 45 20 41mail to:bosch.electrodomestilctos: pp@[e-mail]/sk
MV Raajjeyge JumhooriMaledivesLintel InvestmentsMa. Maadheli, MajeedheMaléTel.: 0331 0742mailto:mohamed.zuhureeIntel.com.mv	www.bosch-home.ptRO România, RomaniaBSH Electrocasnice srl.ve Ticaret A.S.Sos. Bucuresti-Ploiestnr. 19-21, sect.1@3682 BucurestiTel.: 021 203 9748Fax: [phone]mailto:[e-mail]@bsBSH HuishoudapparatenTaurusavenue 362132 LS HoofddorpStoringsmelding:Tel.: [phone]Fax: [phone]mailto:[e-mail]:Tel.: [phone]Fax: [phone]mailto:bosch-onderdelen@bshg home. nlwww.bosch-home.nlNO Norge, NorwayBSH HusholdningsapparatterGrensesvingen 90661 OsloTel.: 22 66 06 00Fax: [phone]mailto:[e-mail] New ZealandBSH Home Appliances LtdUnit F 2, 4 Orbit DriveMairangi BayAuckland 0632Tel.: [phone]Fax: [phone]mailto:[e-mail] Polska, PolandBSH Sprzęt GospodarstwaDomowego sp. z o.o.Al. Jerozolimskie 18302-222 WarszawaCentrala SerwisuTel.: 801 191 534Fax: [phone]mailto:[e-mail]	TR Türkiye, TurkeyBSH Ev Aletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev Eletleri SanayiBSH Ev [e-mail] Russia, РоссияOOO "БСХ Бытовая техника"Сервис от производителяМалая Калужская 19/11,19071 МоскваTel.: 495 737 2961mailto:[e-mail] Saudi Arabia, Saudi Arabia(Salaysia)@bshgHome AppliancesSaudi Arabia L.L.C.Bin Hamran Commercial6th Floor 603BJeddah S 21481Tel.: [phone]mailto:[e-mail]/saSG Sverige, SwedenBSH HushållsapparaterLandsvägen 32169 29 SolnaTel.: 0771 11 22 77mailto:[e-mail] Singapo新加坡BSH Home Appliances [e-mail] Industrial BuildingBlock A, #01-03577177 SingaporeTel.: 6751 5000Fax: [phone]mailto:[e-mail] Slovenija, SlovenijaBSH Hišni aparati d.o.bshg.com1000 LjubljanaTel.: 01 583 07 01Fax: [phone]mailto:[e-mail]/siUA Ukraine, УкраїнаТоВ "БСХ Побутова Техника"тел.: [phone]www.bosch-home.com.uaCentr.XK KosovoNTP GAMARruga Mag Prishtine-Feriz70000 FerizajTel.: 0290 321 434Tel.: [phone]mailto:[e-mail] Srbija, SerbiaBSH Kućni aparati d.o.o.Mi lutina Milankovića 11a11070 Novi BeogradTel.: 011 205 23 97Fax: [phone]mailto:[e-mail] AfricaBSH Home Appliances (Pty)15th Road RandjesparkPrivate Bag X36, Randjesp1685 Midrand - JohannesbuTel.: 086 002 6724Fax: [phone]mailto:applianceservicezawww.bosch-home.com/za

[e-mail]

F

1. 2. 3. 4. 5.

G

G 1. 2. 3. 4. 5.

H

Illustration of a handheld electronic device with a base and handle (no text or symbols)

MUZ4ZT1

Simple line drawing of a three-tiered rectangular object inside a circle (no text or symbols)

MUZ4KR3

Illustration of a mechanical component with a circular frame (no text or symbols)

MUZ4ER2

Illustration of a stainless steel kitchen appliance inside a circular frame (no text or symbols on the appliance itself)

MUZ4EB1

Illustration of a rice cooker with a spoon inside, enclosed in a circular frame (no text or symbols)

MUZ4ZP1

Technical line drawing of a mechanical component with concentric rings and central hub (no text or symbols)

MUZ4DS3

Illustration of a kitchen appliance with a side panel and fan, enclosed in a circular frame (no text or symbols)

MUZ4GM3

Pure diagram of a pipe fitting with no text or symbols

MUZ45RS1

MUZ45PS1

MUZ45AG1

MUZ45KP1

MUZ4MX2

Line drawing of a blender with visible blades and handle, enclosed in a circular frame (no text or symbols)

MUZ4MX3

Illustration of a blender with a handle and lid, enclosed in a circle (no text or symbols)

MUZ4MM3

Cross-sectional illustration of a mechanical device with cylindrical and rectangular components, enclosed in a circular frame (no text or symbols)

MUZ4FW3

Mechanical component diagram showing a mounted device with a cylindrical shaft and base, enclosed in a circular frame (no text or symbols)

MUZ45SV1

MUZ45FV1

MUZ45RV1

MUZ45LS1

MUM4405	√	√		√	√	√	√
MUM4406	√	√		√	√	√	√
MUM4407	√	√		√	√	√		√
MUM4409	√	√		√	√	√		√
MUM4426	√	√		√	√	√	√
MUM4427	√	√		√	√	√	√
MUM4428	√	√		√	√	√	√
MUM44R1	√	√		√	√	√		√
MUM4600	√		√	√	√	√	√
MUM4655EU	√		√	√	√	√	√
MUM4657	√		√	√	√	√		√
MUM46A1GB	√		√	√	√	√	√	√
MUM4825	√		√	√	√	√	√
MUM4830	√		√	√	√	√	√
MUM4832	√		√	√	√	√	√
MUM4835	√		√	√	√	√	√	√
MUM4855	√		√	√	√	√	√
MUM4856EU	√		√	√	√	√		√
MUM4875EU	√		√	√	√	√		√
MUM4880	√		√	√	√	√		√
MUM48A1	√		√	√	√	√		√
MUM48R1	√		√	√	√	√		√
MUM48W1	√		√	√	√	√		√
MUM48CR1	√		√	√	√	√		√
MUM48CR2	√		√	√	√	√		√
I-2
MUM4405
MUM4406
MUM4407
MUM4409
MUM4426
MUM4427
MUM4428
MUM44R1
MUM4600
MUM4655EU			√
MUM4657	√		√				√
MUM46A1GB	√		√					√
MUM4825			√
MUM4830	√		√
MUM4832			√					√
MUM4835			√
MUM4855	√		√				√
MUM4856EU		√	√			[2HB3]	√	√
MUM4875EU	√		√				√	√
MUM4880	√		√
MUM48A1			√
MUM48R1			√
MUM48W1			√			[XXWK]
MUM48CR1	√		√	√
MUM48CR2	√		√
