Product type	Hammer drill
Brand	Bosch
Model	GSB 212 RCT Professional
Rated power input	1300 W
Power output	695 W
No-load speed (1st/2nd gear)	0 – 900 rpm / 0 – 3000 rpm
Rated speed (1st/2nd gear)	900 rpm / 3000 rpm
Impact rate at no load	51 000 min⁻¹
Rated torque (1st/2nd gear)	7.8 Nm / 2.6 Nm
Max. drilling diameter – Concrete	22 mm (1st) / 13 mm (2nd)
Max. drilling diameter – Steel	16 mm (1st) / 10 mm (2nd)
Max. drilling diameter – Wood	40 mm (1st) / 25 mm (2nd)
Chuck clamping range	1.5 – 13 mm
Weight (according to EPTA 01:2014)	2.9 kg
Protection class	☐ / II (double insulation)
Chuck	Automatic chuck with spindle lock (Auto-Lock)
Number of speeds	2 mechanical speeds
Electronic speed control	Yes, continuous via wheel
Electronic torque limitation (Torque Control)	Yes, adjustable from I (low) to III (high)
Special functions	Safety clutch, KickBack Control, speed preselection, electronic constant speed
Power supply	Mains 230 V (power cable with earth plug)
Maintenance and cleaning	Disconnect before any intervention. Clean ventilation slots. Use a dry cloth.
Safety	Wear protective gear (eyes, ears, mask). Use the auxiliary handle. Hold by insulated surfaces.
Spare parts and repairability	Authorized Bosch service center. Spare parts available at bosch‑pt.com. Do not open the battery.

Frequently Asked Questions - GSB 212 RCT Professional BOSCH

How to change the drill bit in the automatic chuck?

Ensure the tool is unplugged. Turn the automatic chuck sleeve (1) in direction ① to open, insert the drill bit, then turn firmly in direction ② until it clicks. The chuck locks automatically. To remove, turn in the opposite direction.

How to adjust the drilling depth?

Press the depth stop adjustment button (10), insert the stop (12) into the auxiliary handle and adjust the distance between the drill bit tip and the stop to the desired depth. The groove should be oriented upward.

How to reverse the rotation direction?

The tool must be at a standstill. For clockwise rotation (drilling, screwdriving), push the rotation direction selector (5) left down and right up. For counterclockwise rotation (unscrewing), left up and right down.

When to use the hammer mode?

Use hammer mode (hammer symbol) for drilling in concrete, brick, natural stone. The selector (2) clicks into place. For wood, metal or screwdriving, remain in normal drilling mode.

What are the essential safety precautions?

Always wear ear protectors and safety glasses. Use the auxiliary handle (11). Hold the tool by insulated gripping surfaces. Unplug before any adjustment. Check for hidden cables or pipes.

What to do in case of drill bit jamming?

The safety clutch and KickBack Control (on this model) stop the tool in case of jamming. Turn off the tool, unplug it and free the drill bit. If jamming is frequent, reduce pressure or use a suitable drill bit.

How to maintain the drill?

Unplug the tool. Regularly clean the ventilation slots with a brush. Do not use solvents. Have the cable checked by Bosch service if damaged. Store the tool in a dry place.

Where to find spare parts or get repairs?

Visit www.bosch-pt.com for exploded views and parts ordering. For repairs, contact Bosch After-Sales Service at 09 70 82 12 26 or drop off the tool at an authorized center.

How to use the electronic torque control (Torque Control)?

Set the selector (4) to the screwdriving symbol. Turn the wheel (3) to adjust the torque from I (low) to III (high). During screwdriving, the tool stops automatically when the torque is reached. For drilling without limitation, turn the wheel fully to the right.

Which accessories are compatible?

Use HSS drill bits for metal, carbide drill bits for concrete, screwdriver bits with universal bit holder (17). The chuck accepts shanks from 1.5 to 13 mm. Bosch accessories are recommended. See the accessory range at bosch-pt.com.

USER MANUAL GSB 212 RCT Professional BOSCH

Illustration of two Bosch electric drillers with visible shafts and housing (no text or symbols)

English ...... Page 14

Français......Page 22

Mechanical assembly diagram showing a robotic arm interacting with a mechanical component (no text or symbols present)

Technical illustration of a mechanical component with a cylindrical shaft and threaded end, showing a change from left to right (no text or symbols)

B Bosch (11)

Mechanical assembly diagram showing a gear shift and disassembly of a component (no text or symbols)

4

GSB 21-2 RCT (1) (2) (3) (4) (5) (6) (7) (8) (9) (10) (11) (12) (13)

D x (12) (10) (11) ② ①

E (1) ① ②

1 609 92A 7YU | (01.06.2022) Bosch Power Tools

(14) ② ① (15)

G (16) (17) ① ②

H Ø 4 mm ① (18) (1) (18)(1)

Technical illustration of a mechanical assembly with a tool and component, no visible text or symbols

J (5)

K (5)

Deutsch

Sicherheitshinweise

www.bosch-pt.com/serviceaddresses

Entsorgung

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifica-

tions provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

▶ Keep work area clean and well lit. Cluttered or dark areas invite accidents.
▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
▶ Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power tool use and care

▶ Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
  ▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
  ▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
  ▶ Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

▶ Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
▶ Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
▶ Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
▶ Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
▶ Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ C may cause explosion.
▶ Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

16 | English

▶ Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Warnings for Drills

Safety instructions for all operations

▶ Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
▶ Use the auxiliary handle(s). Loss of control can cause personal injury.
▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Hold the power tool by insulated gripping surfaces, when performing an operation where the cutting accessory or fasteners may contact hidden wiring or its own cord. Cutting accessory or fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.

Safety instructions when using long drill bits

▶ Never operate at higher speed than the maximum speed rating of the drill bit. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
▶ Always start drilling at low speed and with the bit tip in contact with the workpiece. At higher speeds, the bit is likely to bend if allowed to rotate freely without contacting the workpiece, resulting in personal injury.
▶ Apply pressure only in direct line with the bit and do not apply excessive pressure. Bits can bend causing breakage or loss of control, resulting in personal injury.

Additional safety warnings

▶ Switch the power tool off immediately if the application tool becomes blocked. Be prepared for high torque reactions which cause kickback. The application tool becomes blocked when it becomes jammed in the workpiece or when the power tool becomes overloaded.
▶ Hold the power tool securely. When tightening and loosening screws be prepared for temporarily high torque reactions.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Use suitable detectors to determine if there are hidden supply lines or contact the local utility company for assistance. Contact with electric cables can cause fire and electric shock. Damaging gas lines can lead to explosion. Breaking water pipes causes property damage.
▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead

to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.

▶ Always wait until the power tool has come to a complete stop before placing it down. The application tool can jam and cause you to lose control of the power tool.
In case of damage and improper use of the battery, vapours may be emitted. The battery can set alight or explode. Ensure the area is well ventilated and seek medical attention should you experience any adverse effects. The vapours may irritate the respiratory system.
▶ Do not open the battery. There is a risk of short-circuiting.
The battery can be damaged by pointed objects such as nails or screwdrivers or by force applied externally. An internal short circuit may occur, causing the battery to burn, smoke, explode or overheat.
▶ Only use the battery with products from the manufacturer. This is the only way in which you can protect the battery against dangerous overload.

Protect the power tool against heat, e.g. against continuous intense sunlight, fire, water, and moisture. There is a risk of explo-

sion.

Protect the battery against heat, e.g. against continuous intense sunlight, fire, dirt, water and moisture. There is a risk of explosion and short-circuiting.

▶ Connect the power tool to a mains supply that is properly connected to earth. The socket and extension cable must have a fully functioning protective conductor.

Products sold in GB only:

Your product is fitted with an BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362). If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug. The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all the safety and general instructions. Failure to observe the safety and general instructions may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Read all the safety and general instructions. Failure to observe the safety and general instructions

may result in electric shock, fire and/or serious injury.

Please observe the illustrations at the beginning of this operating manual.

Intended Use

The power tool is intended for impact drilling in brick, concrete and stone, as well as for drilling in wood, metal, ceramic and plastic. Tools with electronic control and right/left rotation are also suitable for screwdriving and thread cutting.

Product Features

The numbering of the product features refers to the diagram of the power tool on the graphics page.

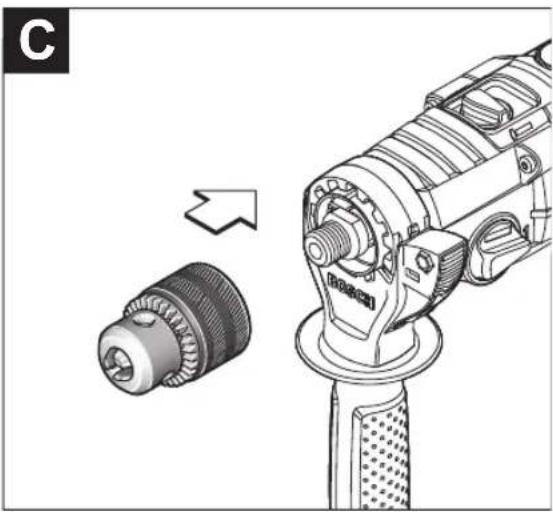

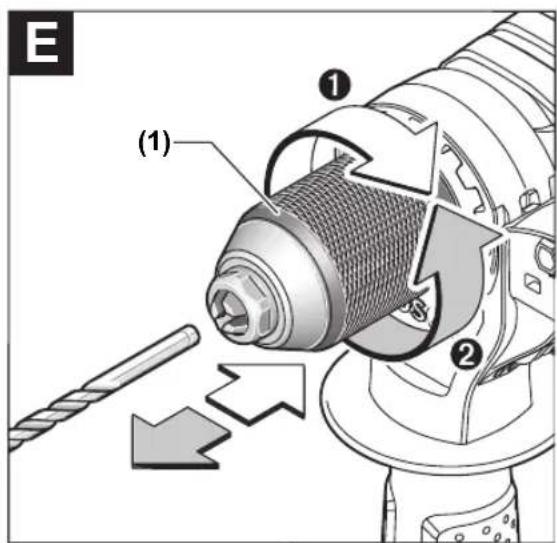

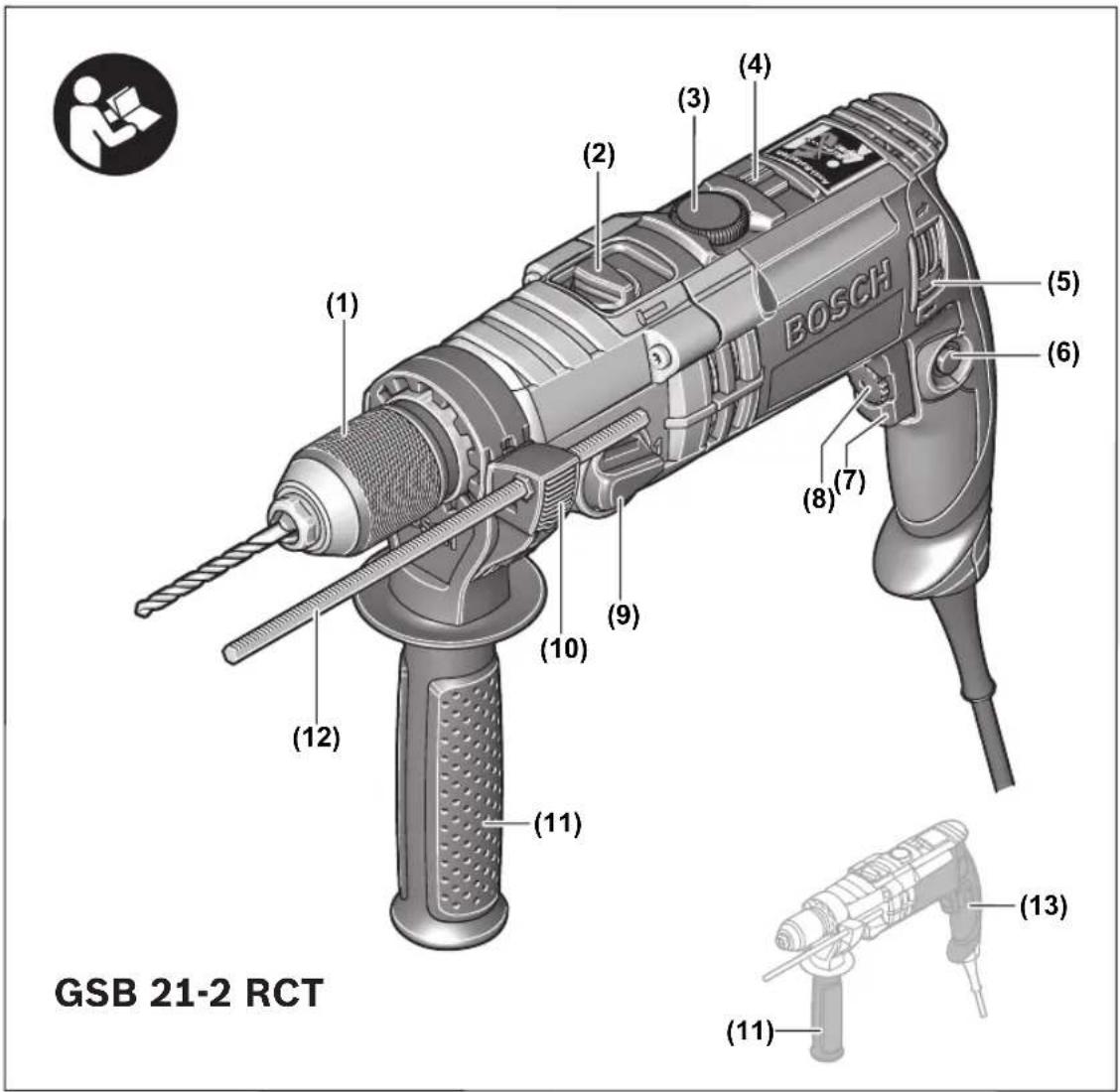

(1) Keyless chuck
(2) "Drilling/impact drilling" selector switch
(3) Speed electronic preselection thumbwheel (GSB 21-2 RCT)
(4) Selector switch "drilling/screwdriving" (GSB 21-2 RCT)

(5) Rotational direction switch
(6) Lock-on button for on/off switch
(7) On/off switch
(8) Speed preselection thumbwheel
(9) Gear selector switch

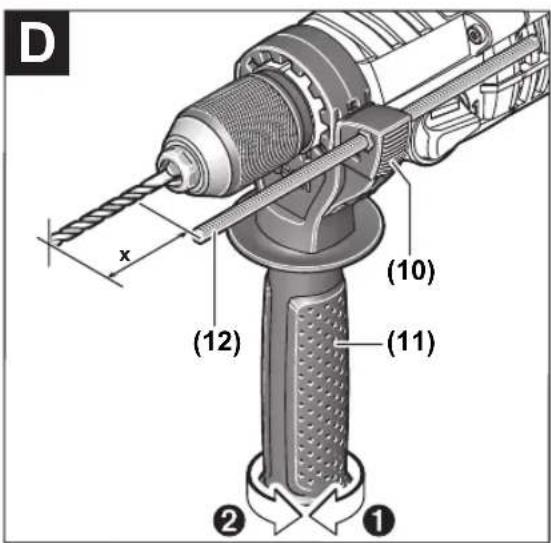

(10) Button for depth stop setting ^a)

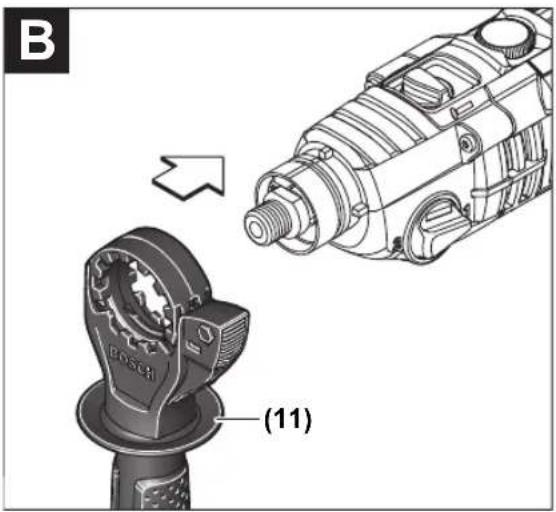

(11) Auxiliary handle (insulated gripping surface) ^a)
(12) Depth stop ^a)
(13) Handle (insulated gripping surface)

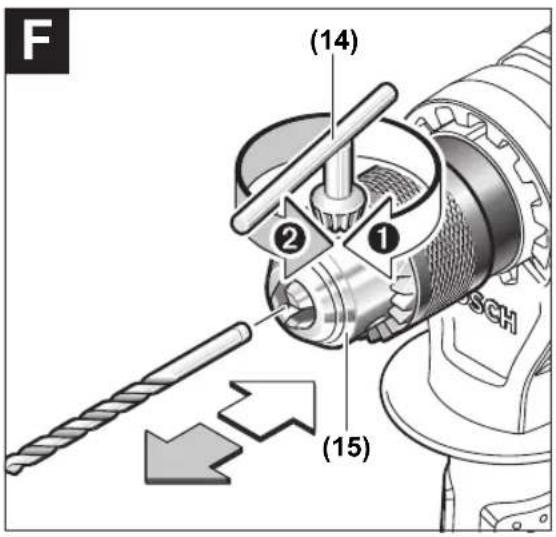

(14) Drill chuck key ^a)
(15) Keyed chuck ^a)

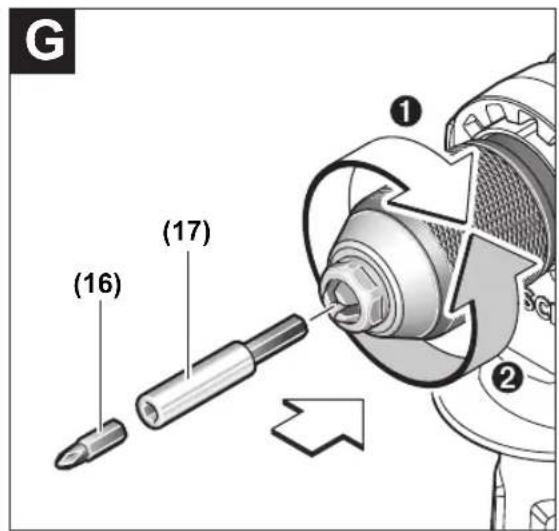

(16) Screwdriver bit ^4
(17) Universal bit holder ^a)

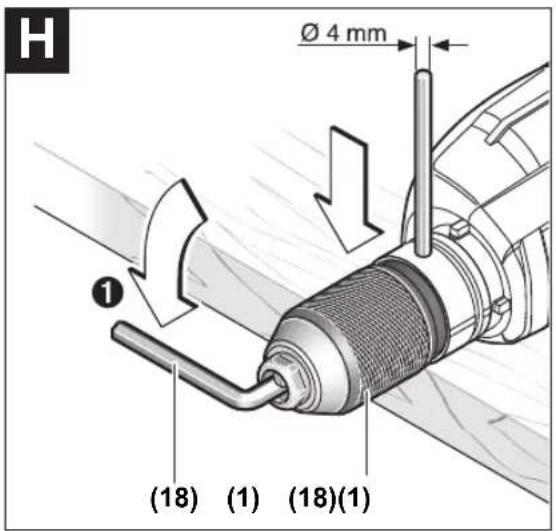

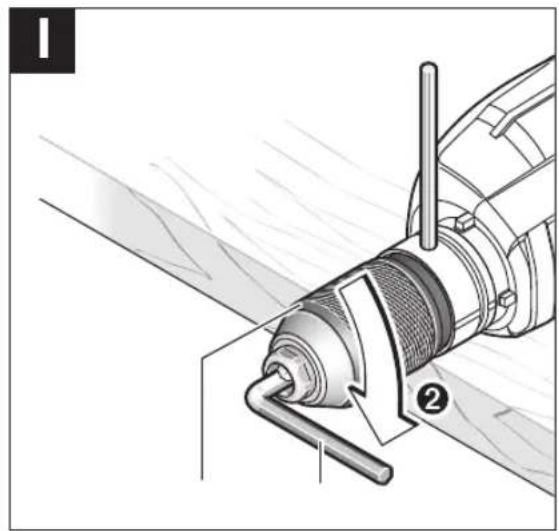

(18) Hex key ^b)
a) Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.
b) Commercially available (not included in the scope of delivery)

Technical Data

Impact drill GSB ... 21-2 21-2 RE 21-2 RE 21-2 RCT 24-2 24-2
Article number	3 601 ... A9C 0.. A9C 5.. A9C 6.. A9C 7.. A9C 8.. A9C 9..
Rated power input W 1100 1100 1100 1300 1100 1100
Power output W 630 630 630 695 630 630
No-load speed
- 1st gear min	-1	900 0-900 0-900 0-900 0-900 0-900
- 2nd gear min	-1	3000 0-3000 0-3000 0-3000 0-3000 0-3000
Rated speed
- 1st gear min	-1	580 580 580 900 580 580
- 2nd gear min	-1	1900 1900 1900 3000 1900 1900
Impact rate at no-load speed	min^-1	51,000 51,000 51,000 51,000 51,000 51,000
Rated torque (1st/2nd gear)	Nm 9.6/3.2 9.6/3.2 9.6/3.2 7.8/2.6 9.6/3.2 9.6/3.2
Electronic torque control		-	-	-	●	-
Speed preselection		-	●	●	●	●
Constant electronic con-trol		-	-	-	●	-
Clockwise/anticlockwise rotation		-	●	●	●	●
Keyed chuck		●	-	●	-	-
Keyless chuck		-	●	-	●	●
Fully automatic spindle lock (Auto-Lock)		-	●	-	●	●
Overload clutch		●	●	●	●	●
KickBack Control		-	-	-	-	●
Spindle collar diameter	mm	43	43	43	43	43

18 | English

Impact drill GSB ... 21-2 21-2 RE 21-2 RE 21-2 RCT 24-2 24-2

Max. drilling diameter (1st/2nd gear)
- Concrete mm 22/13 22/13 22/13 22/13 22/13 22/13
- Masonry mm 24/16 24/16 24/16 24/16 24/16 24/16
- Steel mm 16/8 16/8 16/8 16/10 16/8 16/8
- Wood mm 40/25 40/25 40/25 40/25 40/25 40/25
Chuck capacity mm 3-16 1.5-13 1.5-13 1.5-13 1.5-13 1.5-13
Weight according to EPTA-Procedure 01:2014	kg 2.9 2.9 2.9 2.9 2.9 2.9
Protection class	☐ / II / II / II ☑ / II / II ☐			☐	☐	☐

The specifications apply to a rated voltage [U] of 230 V. These specifications may vary at different voltages and in country-specific models.

Noise/vibration information

Noise emission values determined according to EN 62841-2-1.

Typically, the A-weighted noise level of the power tool is:

Sound pressure level 95 dB(A); sound power level

106 dB(A). Uncertainty K = 5 dB.

Wear hearing protection!

3 601 ...	A9C 0..	A9C 5..	A9C 7..
		A9C 6..
		A9C 8..
		A9C 9..

Vibration total values a_h (triax vector sum) and uncertainty K determined according to EN 62841-2-1:

Drilling into metal:

a_h	m/s2	5.65	5.65	5.44
K	m/s2	1.5	1.5	1.5
Impact drilling into concrete:
a_h	m/s2	14.57	14.57	15.73
K	m/s2	1.8	1.8	1.8
Screwdriving:
a_h	m/s2	-	<2.5	<2.5
K	m/s2	-	1.5	1.5
Tapping:
a_h	m/s2	-	<2.5	<2.5
K	m/s2	-	1.5	1.5

The vibration level and noise emission value given in these instructions have been measured in accordance with a standardised measuring procedure and may be used to compare power tools. They may also be used for a preliminary estimation of vibration and noise emissions.

The stated vibration level and noise emission value represent the main applications of the power tool. However, if the power tool is used for other applications, with different application tools or is poorly maintained, the vibration level and noise emission value may differ. This may significantly increase the vibration and noise emissions over the total working period.

To estimate vibration and noise emissions accurately, the times when the tool is switched off or when it is running but not actually being used should also be taken into account.

This may significantly reduce vibration and noise emissions over the total working period.

Implement additional safety measures to protect the operator from the effects of vibration, such as servicing the power tool and application tools, keeping their hands warm, and organising workflows correctly.

Assembly

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ Before any work on the power tool (e.g. maintenance, tool change, etc.) as well as during transport and storage, set the rotational direction switch to the middle

position. There is risk of injury from unintentionally pressing the on/off switch.

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

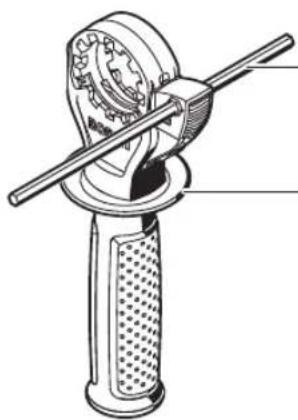

Auxiliary Handle

▶ Do not operate your power tool without the auxiliary handle (11).

Only for GSB 21-2 power tools with keyed chuck: Mount the auxiliary handle (11) in accordance with figures A to C. You can adjust the auxiliary handle (11) to any of 12 positions in order to achieve a safe work posture that minimises fatigue.

Turn the lower gripping end of the auxiliary handle (11) in rotational direction ① and push the auxiliary handle (11) forwards until you can swivel it into the required position. Then pull the auxiliary handle (11) back again and turn the lower gripping end in rotational direction ② to tighten it (see figure D).

Setting the Drilling Depth (see figure D)

You can use the depth stop to set the required drilling depth X.

Press the button for depth stop adjustment (10) and insert the depth stop into the auxiliary handle.

Pull the depth stop far enough out that the distance between the drill bit tip and the edge of the depth stop corresponds to the required drilling depth X.

The fluting on the depth stop (12) must face upwards.

Changing the tool

▶ Wear protective gloves when changing tools. The drill chuck may heat up significantly when it is used for long periods.

Keyless chuck (see figure E)

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.

The drill spindle is locked when the on/off switch (7) is not pressed. This makes it possible to change the application tool in the drill chuck quickly, conveniently and easily.

Open the keyless chuck (1) by turning it in the direction of rotation ① until the tool can be inserted. Insert the tool.

Firmly tighten the sleeve of the keyless chuck (1) by turning it by hand in the rotational direction ② until it stops clicking. This will automatically lock the drill chuck.

The lock will disengage again if you turn the sleeve in the opposite direction to remove the tool.

Keyed chuck (see figure F)

Open the keyed chuck (15) by turning it until the tool can be inserted. Insert the tool.

Insert the chuck key (14) into the corresponding holes of the keyed chuck (15) and clamp the tool evenly.

Screwdriving tools (see figure G)

You should always use a universal bit holder (17) when using screwdriver bits (16). Only use screwdriver bits that fit the screw head.

For screwdriving, make sure the "drilling/impact drilling" selector switch (2) is always set to the "drilling" symbol.

Changing the drill chuck

If your power tool does not have a drill spindle locking mechanism, you must have the drill chuck changed by an authorised after-sales service centre for Bosch power tools.

▶ Pull the plug out of the socket before carrying out any work on the power tool.

Removing the drill chuck (see figure H)

Remove the auxiliary handle (11) and set the gear selector switch (9) to the middle position between first and second gear.

Insert a steel pin with a diameter of 4 mm and a length of approx. 50 mm into the hole on the spindle collar to lock the drill spindle in place. Clamp a hex key (18) in the keyless chuck (1), leading with the short shaft.

Place the power tool on a firm surface, e.g. a work bench. Hold the power tool in place and loosen the keyless chuck (1) by turning the hex key (18) in the rotational direction ①.

A tightly seated keyless chuck is loosened with a light blow on the long shaft of the hex key (18). Remove the hex key from the keyless chuck and completely unscrew the keyless chuck from the power tool.

Fitting the drill chuck (see figure I)

To fit the keyless chuck/keyed chuck, perform the same steps in reverse order.

▶ After successfully fitting the drill chuck, remove the steel pin from the hole again.

The drill chuck must be tightened using a tightening torque of approx. 67–74 Nm.

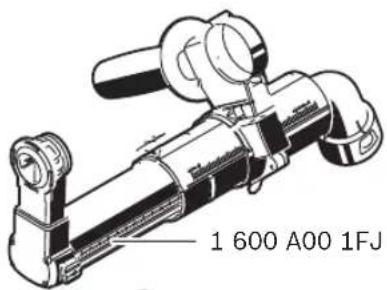

Dust/Chip Extraction

Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.

Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.

- Provide for good ventilation of the working place.

- It is recommended to wear a P2 filter-class respirator.

20 | English

Observe the relevant regulations in your country for the materials to be worked.

- Avoid dust accumulation at the workplace. Dust can easily ignite.

Operation

Starting Operation

▶ Pay attention to the mains voltage. The voltage of the power source must match the voltage specified on the rating plate of the power tool. Power tools marked with 230 V can also be operated with 220 V.
▶ Products that are only sold in AUS and NZ: Use a residual current device (RCD) with a nominal residual current of 30 mA or less.

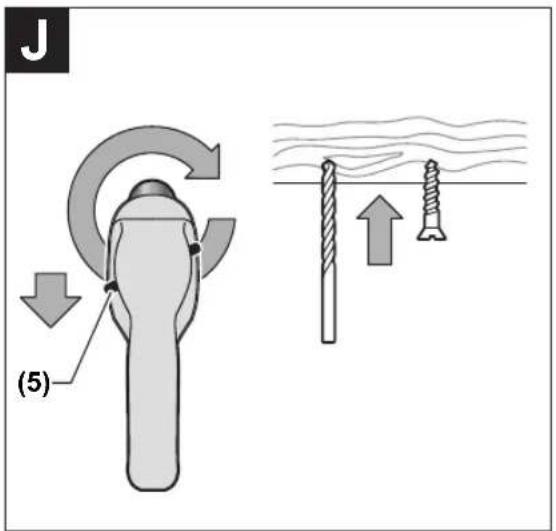

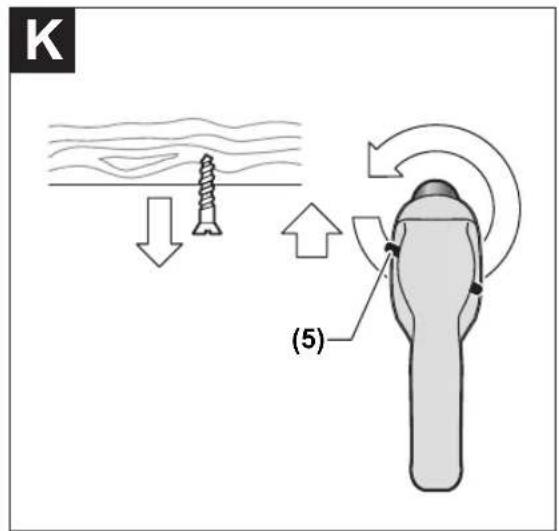

Setting the Rotational Direction (see figures J-K)

▶ Only push the rotational direction switch (5) when the power tool is not in use.

The rotational direction switch (5) is used to change the rotational direction of the power tool. However, this is not possible while the on/off switch (7) is being pressed.

Clockwise rotation: To drill and drive in screws, slide the rotational direction switch (5) downwards on the left-hand side and upwards on the right-hand side at the same time.

Anti-clockwise rotation: To loosen and unscrew screws and nuts, slide the rotational direction switch (5) upwards on the left-hand side and downwards on the right-hand side at the same time.

Setting the Operating Mode

Drilling and screwdriving

Set the selector switch (2) to the "drilling" symbol.

Impact drilling

Set the selector switch (2) to the "impact drilling" symbol.

The selector switch (2) clicks into place and

can also be actuated when the motor is running.

Mechanical Gear Selection

▶ You can press the gear selector switch (9) with the power tool running at a low speed. You should not do this at full load or maximum torque, or when the tool is not in use, however.

You can preselect two speed ranges with the gear selector (9).

First gear:

Low speed range; for working with a large drilling diameter or for screwdriving.

Second gear:

High speed range; for working with a small drilling diameter.

If the gear selector (9) cannot be swivelled all the way to the stop, turn the drive spindle slightly with the drill.

Switching on/off

To start the power tool, press and hold the on/off switch (7).

Press the lock-on button (6) to lock the on/off switch (7) in this position.

To switch off the power tool, release the on/off switch (7); or, if the switch is locked with the lock-on button (6), briefly press the on/off switch (7) and then release it.

Overload clutch

The power tool is equipped with an overload clutch (anti-rotation) to limit high torque reactions.

If the application tool jams or snags, the power transmission to the drill spindle will be interrupted. Always hold the power tool firmly with both hands to withstand the forces this may create and adopt a position with stable footing.
▶ Switch the power tool off immediately and remove the application tool if the power tool becomes blocked. Switching on when the drilling tool is blocked may cause high torque reactions.

Rapid switch-off (Kickback Control)

(GSB 24-2)

The rapid shut-off function (KickBack Control) gives the user greater control over the power tool and offers them better protection than power tools that do not have Kick-

Back Control. The power tool will switch off if it suddenly and unforeseeably rotates around the drilling axis.

To switch the tool back on, release the on/off switch and then press it again twice.

It will no longer be possible to switch the power tool on if the KickBack Control function is faulty. Have the power tool serviced by a qualified repair person using only original replacement parts.

Adjusting the Speed/Impact Rate

You can adjust the speed/impact rate of the power tool when it is on by pressing in the on/off switch (7) to varying extents.

Applying light pressure to the on/off switch (7) results in a low rotational speed/impact rate. Applying increasing pressure to the switch increases the speed/impact rate.

Preselecting the speed/impact rate

You can preselect the required speed/impact rate using the speed preselection thumbwheel (8), even during operation. The required speed/impact rate is dependent on the material and the work conditions and can be determined by practical trials.

Speed Electronic Preselection (GSB 21-2 RCT)

With the thumbwheel for electronic speed preselection (3), the required speed/impact frequency can be selected even if the machine is running.

The required speed/impact rate depends on the material and the working conditions; it can be ascertained through practical tests.

Constant Electronic Control (GSB 21-2 RCT)

The constant electronic control keeps the preselected speed and impact rate nearly constant between no-load and load conditions.

Electronic Torque Control/Speed Preselection (GSB 21-2 RCT)

To drill with speed preselection, set the selector switch (4) to the "drilling" symbol. The required speed can be selected with the thumbwheel (3); it can also be adjusted during operation.

To drive in screws with torque control, set the selector switch (4) to the "screwdriving" symbol. The effective torque at the drill spindle can be variably adjusted with the thumbwheel (3) even during operation:

I = low torque, III = high torque.

The maximum speed is automatically adapted to the adjusted torque.

If the preselected torque is reached during screwdriving, the machine switches off; the application tool no longer rotates. If the load on the machine is then removed with the on/off switch (7) still pressed, the application tool continues to run only at very low speed for safety reasons.

After briefly releasing the on/off switch (7), the next screw can be driven in with the same torque.

For screwdriving without torque limitation, turn the thumbwheel (3) all the way to the right. This setting is required when the torque in position III is not sufficient.

Practical Advice

▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ Only apply the power tool to the screw/nut when the tool is switched off. Rotating tool inserts can slip off.

After working at a low speed for an extended period, you should operate the power tool at the maximum speed for approximately three minutes without load to cool it down.

To drill into tiles, set the selector switch (2) to the "drilling" symbol. After drilling through the tile, set the selector switch to the "impact drilling" symbol and drill with impact.

Use carbide drill bits when working with concrete, stone and masonry.

When drilling into metal, only use sharpened HSS drills (HSS = high-speed steel) which are in perfect condition. The

Bosch accessory range guarantees appropriate quality.

Using the drill bit sharpener (accessory), you can effortlessly sharpen twist drill bits with a diameter of 2.5–10 mm.

Maintenance and Service

Maintenance and Cleaning

Remove the battery from the power tool before carrying out work on the power tool (e.g. maintenance, changing tool, etc.). The battery should also be removed for transport and storage. There is risk of injury from unintentionally pressing the on/off switch.
▶ Pull the plug out of the socket before carrying out any work on the power tool.
▶ To ensure safe and efficient operation, always keep the power tool and the ventilation slots clean.

If the battery is no longer working, please contact an authorised after-sales service agent for Bosch power tools.

In order to avoid safety hazards, if the power supply cord needs to be replaced, this must be done by Bosch or by an after-sales service centre that is authorised to repair Bosch power tools.

After-Sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. You can find explosion drawings and information on spare parts at: www.bosch-pt.com

The Bosch product use advice team will be happy to help you with any questions about our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

India

Bosch Service Center

69, Habibullah Road, (Next to PSBB School), T. Nagar

Chennai - 600077

Phone: [phone]

Bosch Service Center

18, Community Center

Phase 1, Mayapuri

New Delhi - 110064

Phone: [phone]

Bosch Service Center

Shop no 7&8, Aspen garden

Walbhat road, Goregaon (E)

Near to Ram Mandir Railway Station

Mumbai - 400063

Mobile: [phone]

Malaysia

Robert Bosch Sdn. Bhd.(220975-V) PT/SMY

No. 8A, Jalan 13/6

46200 Petaling Jaya

Selangor

Tel.: [phone]

Toll-Free: 1800 880188

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.my

22 | Français

Great Britain

Robert Bosch Ltd. (B.S.C.)

P.O. Box 98

Broadwater Park

North Orbital Road

Denham Uxbridge

UB 9 5HJ

At www.bosch-pt.co.uk you can order spare parts or arrange the collection of a product in need of servicing or repair.

Tel. Service: [phone]

E-Mail: [e-mail]

Israel

Ledico Ltd.

31 Lazrov Street

P.O. Box 6018 Rishon Le Ziyon

[e-mail]

Korea

You can find further service addresses at:

www.bosch-pt.com/serviceaddresses

Disposal

The power tool, accessories and packaging should be recycled in an environmentally friendly manner.

Do not dispose of power tools along with household waste.

Only for EU countries:

According to the European Directive 2012/19/EU on Waste Electrical and Electronic Equipment and its implementation into national law, power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

If disposed incorrectly, waste electrical and electronic equipment may have harmful effects on the environment and human health, due to the potential presence of hazardous substances.

Only for United Kingdom:

According to Waste Electrical and Electronic Equipment Regulations 2013 (2013/3113), power tools that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Français

Robert Bosch Morocco SARL

53, Rue Lieutenant Mahroud Mohamed

20300 Casablanca

Tel.: [phone]

E-Mail : [e-mail]

France

Robert Bosch (France) S.A.S.

www.bosch-pt.com/serviceaddresses

Calle Robert Bosch No. 405

www.bosch-pt.com/serviceaddresses

Eliminación

www.bosch-pt.com/serviceaddresses

48 | Italiano

Eliminação

Constant Electronic (GSB 21-2 RCT)

www.bosch-pt.com/serviceaddresses

Smaltimento

Constant Electronic (GSB 21-2 RCT)

www.bosch-pt.com/serviceaddresses

Afvalverwijdering

Sikkerhedsadvarsler for boremaskiner

Bosch Service Center

Telegrafvej 3

2750 Ballerup

På www.bosch-pt.dk kan der online bestilles reservedele eller oprettes en reparations ordre.

Tlf. Service Center: 44898855

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com/serviceaddresses

Bortskaffelse

Bosch Service Center

Telegrafvej 3

2750 Ballerup

Danmark

Tel.: [phone] (inom Sverige)

Fax: [phone]

www.bosch-pt.com/serviceaddresses

Avfallshantering

www.bosch-pt.com/serviceaddresses

Deponering

www.bosch-pt.com/serviceaddresses

Hävitys

www.bosch-pt.com/serviceaddresses

Απόσυρση

www.bosch-pt.com/serviceaddresses

Tasfiye

System Constant Electronic (GSB 21-2 RCT)

Robert Bosch Sp. z o.o.

www.bosch-pt.com/serviceaddresses

Utylizacja odpadów

Bosch Service Center PT

K Vápence 1621/16

692 01 Mikulov

www.bosch-pt.com/serviceaddresses

Likvidace

www.bosch-pt.com/serviceaddresses

Likvidácia

www.bosch-pt.com/serviceaddresses

Eltávolítás

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Sistem electronic constant (GSB 21-2 RCT)

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti

www.bosch-pt.com/serviceaddresses

Eliminare

Service scule electrice

Strada Horia Măcelariu Nr. 30–34, sector 1

013937 Bucureşti, România

www.bosch-pt.com/bg/bg/

www.bosch-pt.com/serviceaddresses

Бракуване

www.bosch-pt.com/serviceaddresses

Отстранување

www.bosch-pt.com/serviceaddresses

Uklanjanje dubreta

www.bosch-pt.com/serviceaddresses

Odlaganje

Električno orodje, pribor in embalažo je treba dostaviti v okolju prijazno ponovno predelavo.

www.bosch-pt.com/serviceaddresses

Zbrinjavanje

www.bosch-pt.com/serviceaddresses

I = mazs griezes moments, III = liels griezes

moments.

www.bosch-pt.com/serviceaddresses

www.bosch-pt.com/serviceaddresses

Šalinimas

www.bosch-pt.com/serviceaddresses

처리

GSB...21-221-2 RE240RE21-2UK0724

الوزن حسب 2,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,

Procedure 01:2014

Robert Bosch Morocco SARL

www.bosch-pt.com/serviceaddresses

	GSB...21-221-GSBI-4/02 2021-2024
					mm24/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/1624/15
					mm16/816/816/816/1016/816/8
					mm40/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2540/2
					mm3-161,5-13
					kg2,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,92,9
					EPTA-Procedure
					01:2014
					کلاس ايمني

مCADIR BRAI WTAJNAIMI [U] 230 wt meiashnd. BRAI WTAJHAIE MCHTIF OTOLIDAT MCHUS KSHORHA, MMKN ASST AIN MCADIR, MCTFAOT BAISHD.

◀jā meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā) meaning (ā).

Cross-sectional illustration of a cylindrical electronic component with internal structure (no text or symbols)

2 608 572 150

Technical illustration of a mechanical gear assembly (no text or symbols)

2 608 571 068

2 607 990 050

(S 41)

1 600 A00 1FJ

Technical line drawing of a mechanical device with gears and a handle (no text or symbols)

1 613 001 010

2 602 025 193

Isometric line drawing of a Bosch electrical connector (no text or symbols)

2 605 438 524

272

CE

1

de	EU-Konformitätserklärung		Wir erklären in alleiniger Verantwortung, dass die genannten Produkte allen einschlägigen Bestimmungen der nachfolgend aufgeführten Richtlinien und Verordnungen entsprechen und mit folgenden Normen übereinstimmen. Technische Unterlagen bei: *
	Schlagbohrmasch	Sachnummer
	ine
en	EU Declaration of Conformity		We declare under our sole responsibility that the stated products comply with all applicable provisions of the directives and regulations listed below and are in conformity with the following standards.Technical file at: *
	Impact drill	Article number
fr	Déclaration de conformité UE		Nous déclarons sous notre propre responsabilité que les produits décrits sont en conformité avec les directives, règlements normatifs et normes énumérés ci-dessous.Dossier technique auprès de : *
	Perceuse à percussion	N° d'article
es	Declaración de conformidad UE		Declaramos bajo nuestra exclusiva responsabilidad, que los productos nombrados cumplen con todas las disposiciones correspondientes de las Directivas y los Reglamentos mencionados a continuación y están en conformidad con las siguientes normas.Documentos técnicos de: *
	Taladradora de percusión	N° de artículo
pt	Declaração de Conformidade UE		Declaramos sob nossa exclusiva responsabilidade que os produtos mencionados cumprem todas as disposições e os regulamentos indicados e estão em conformidade com as seguintes normas.Documentação técnica pertencente à: *
	Berbequim de percussão	N.° do produto
it	Dichiarazione di conformità UE		Dichiariamo sotto la nostra piena responsabilità che i prodotti indicati sono conformi a tutte le disposizioni pertinenti delle Direttive e dei Regolamenti elencati di seguito, nonché alle seguenti Normative.Documentazione Tecnica presso: *
	Trapano battente	Codice prodotto
nl	EU-conformiteitsverklaring		Wij verklaren op eigen verantwoordelijkheid dat de genoemde producten voldoen aan alle desbetreffende bepalingen van de hierna genoemde richtlijnen en verordeningen en overeenstemmen met de volgende normen.Technisch dossier bij: *
	Klopboormachine	Productnummer
da	EU-overensstemmelseserklæring		Vi erklærer som eneansvarlige, at det beskrevne produkt er i overensstemmelse med alle gældende bestemmelser i følgende direktiver og forordninger og opfylder følgende standarder.Tekniske bilag ved: *
	Slagboremaskine	Typenummer
sv	EU-konformitetsförklaring		Vi förklarar under eget ansvar att de nämnda produkterna uppfyller kraven i alla gällande bestämmelser i de nedan angivna direktiven och förordningarnas och att de stämmer överens med följande normer.Teknisk dokumentation: *
	Slagborrmaskin	Produktnummer
no	EU-samsvarserklæring		Vi erklærer under eneansvar at de nevnte produktene er i overensstemmelse med alle relevante bestemmelser i direktivene og forordningene nedenfor og med følgende standarder.Teknisk dokumentasjon hos: *
	Slagbormaskin	Produktnummer
fi	EU-vaatimustenmukaisuusvakuutus		Vakuutamme täten, että mainitut tuotteet vastaavat kaikkia seuraavien direktiivien ja asetusten asiaankuuluvia vaatimuksia ja ovat seuraavien standardien vaatimusten mukaisia.Tekniset asiakirjat saatavana: *
	Iskuporakone	Tuotenumero
el	Δήλωση πιστότητας EE		Δηλώνουμε με αποκλειστική μας ευθύνη, ότι τα αναφερόμενα προϊόντα αντιστοιχούν σε όλες τις σχετικές διατάξεις των πιο κάτω αναφερόμενων οδηγιών και κανονισμών και ταυτίζονται με τα ακόλουθα πρότυπα.Tεχνικά έγγραφα στη: *
	Κρουστικό δράπανο	Αριθμός ευρετηρίου
tr	AB Uygunluk beyani		Tek sorumlu olarak, tanimlanan ürünün aşağıdaki yönetmelik ve direktiflerin geçerli bütün hükümlerine ve aşağıdaki standartlara uygun olduğunu beyan ederiz.Teknik belgelerin bulunduğu yer: *
	Darbeli matkap	Ürün kodu

||

CE

pl	Deklaracja zgodności UE		Oświadczamy z pełną odpowiedzialnością, że niniejsze produkty odpowiadają wszystkim wymaganiom poniżej wyszczególnionych dyrektyw i rozporządzeń, oraz że są zgodne z następującymi normami.Dokumentacja techniczna:*
	Wiertarka udarowa	Numer katalogowy
cs	EU prohlásení oshodě		Prohlašujeme na výhradní zodpovědnost, že uvedený výrobek splňuje všechna příslušná ustanovení niže uvedených směrnic anařízení aje vsouladu snásledujícími normami:Technické podklady u:*
	Příklepová vrtačka	Objednací číslo
sk	EÚ vyhlásenie ozhode		Vyhlasujeme na výhradní zodpovednosť, že uvedený výrobok splňa všetky príslušné ustanovenia nižšie uvedených smerníc anariadení aje vsúlade snasledujúcími normami:Technické podklady má spoločnosť:*
	Príklepová vrtačka	Vecné číslo
hu	EU konformitási nyilatkozat		Egyedüli felelőséggel kijelentjük, hogy a megnevezett termékek megfelelnek az alábbiakban felsorolásra kerülő irányelvek és rendeletek valamennyi idevágó előírásainak és megfelelnek a következő szabványoknak.Műszaki dokumentumok megőrzési pontja:*
	Ütvefúrógép	Cikkszám
ru	Заявление о соответствии EC		Мы заявляем под нашу единоличную ответственность, что названные продукты соответствуют всем действующим предписаниям нижеуказанных директив и распоряжений, а также нижеуказанных норм.Техническая документация хранится y:*
	Ударная дрель	Товарный No
uk	Заява про відповідність ЄС		Мизаявляємо під нашу одноособову відповідальність, що названі вироби відповідають усім чинним положенням нищеозначених директив і розпоряджень, а також нижчеозначеним нормам.Технічна документація зберігається y:*
	Ударний дриль	Товарний номер
kk	EO сәйкестік маглумдамасы		Өз жауапкершілікпен біз аталған өнімдер төменде жзылған директикалар мен жарлыктардың тиісті қағидаларына сәйкестігін және төменdegі нормаларға сай екенін білдіреміз.Техникалық кужаттар:*
	Перфораторлық бұрғылау құралы	Өнім нөмірі
ro	Declaratie de conformitate UE		Declarăm pe proprie răspundere că produsele mentionate corespund tuturor dispozițiilor relevante ale directivelor și reglementărilor enumerate în cele ce urmează și sunt în conformitate cu următoarele standarde.Documentаție tehnică la:*
	Maşină de găurit cu percuție	Număr de identificare
bg	EC декларация за съответствие		С пълна отговорност ние декларираме, че посочените продукти отговарят на всички валидни изисквания на директивите и разпоредбите по-долу и съответства на следните стандарти.Техническа документация при:*
	Ударна бормашина	Каталожен номер
mk	EU-Изjava за сообразност		Со целосна одговорност изјавуваме, дека опишаните производи се во согласност со сите релевантни одредби на следните регулативи и прописи и се во согласност со следните норми.Техничка документација кaj:*
	Вибрациони дупчалки	Број на дел/артик
sr	EU-izjava o usaglašenosti		Na sopstvenu odgovornost izjavljujemo, da navedeni proizvodi odgovaraju svim dotičnim odredbama naknadno navedenih smernica u uredaba i da su u skladu sa sledećim standardima.Tehnička dokumentacija kod:*
	Udarna bušilica	Broj predmeta
sl	Izjava o skladnosti EU		Izjavljamo pod izključno odgovornostjo, da je omenjen izdelek v skladu z vsemi relevantnimi določili direktiv in uredb ter ustreza naslednjim standardom.Tehnična dokumentacija pri:*
	Udarni vrtalnik	Številka artikla
hr	EU izjava o sukladnosti		Pod punom odgovornošću izjavljujemo da navedeni proizvodi odgovaraju svim relevantnim odredbama direktiva i propisima navedenima u nastavku i da su sukladni sa sljedećim normama.Tehnička dokumentacija se može dobiti kod:*
	Udarna bušilica	Kataloški br.

CE
III

et	EL-vastavusdeklaratsioon		Kinnitame ainuvastutajatena, et nimetatud tooted vastavad järgnevalt loetletud direktiivide ja määruste köikidele asjaomastele nõuetele ja on kooskõlas järgmiste normidega.Tehnilised dokumendid saadaval: *
	Löökpuurmasin	Tootenumber
Iv	Deklaräcija par atbilstībuES standartiem		Mës ar pilnu atbildibu paziņojam, ka šeit aplūkotie izstrādājumi atbilst visiem tālāk minētajās direktīvās un rīkojumos ietvertajām saistošajām nostādnēm,kā arī sekojošiem standartiem.Tehniskā dokumentācija no: *
	Triecienurbjmašīna	Izstrādājuma numurs
It	ES atitikties deklaracija		Atsakingai pareiškiame, kad išvardyti gaminiai atitinka visus privalomusžemiau nurodytų direktyvų ir reglamentų reikalavimus ir šiuos standartus.Techninė dokumentacija saugoma: *
	Smūginis gręžtuvas	Gaminio numeris
	GSB 21-2	3 601 A9C 0..	2006/42/EC	EN 62841-1:2015
	GSB 21-2 RE	3 601 A9C 5..	2014/30/EU	EN 62841-2-1:2018+A11:2019
	GSB 21-2 RE	3 601 A9C 6..	2011/65/EU	EN 55014-1:2017+A11:2020
	GSB 21-2 RCT	3 601 A9C 7..		EN IEC 61000-3-2:2019
	GSB 24-2	3 601 A9C 8..		EN 61000-3-3:2013+A1:2019
	GSB 24-2	3 601 A9C 9..		EN IEC 63000:2018
			BOSCH	* Robert Bosch Power Tools GmbH(PT/ECS)70538 StuttgartGERMANY
			Henk BeckerChairman ofExecutive Management	Helmut HeinzelmannHead of Product Certification
			Robert Bosch Power Tools GmbH, 70538 Stuttgart, GERMANYStuttgart, 22.03.2021

IV

CE

i

Declaration of Conformity
Impact drill Article number

GSB 21-2 RE	3 601 A9C 561
	3 601 A9C 571
GSB 21-2 RCT	3 601 A9C 771

We declare under our sole responsibility that the stated products comply with all applicable provisions of the regulations listed below and are in conformity with the following standards.

Technical file at: Robert Bosch Ltd. (PT/SOP-GB), Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

Supply of Machinery (Safety) Regulations 2008

Electromagnetic Compatibility Regulations 2016

The Restriction of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment Regulations 2012

EN 62841-1:2015

EN 62841-2-1:2018+A11:2019

EN 55014-1:2017+A11:2020

EN 55014-2:2015

EN IEC 61000-3-2:2019

EN 61000-3-3:2013+A1:2019

EN IEC 63000:2018

BOSCH

Vonjy Rajakoba

Managing Director - Bosch UK

Damm Zürkun

Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany represented (in terms of the above regulations) by

Robert Bosch Limited, Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom

Martin Sibley

Head of Sales Operations and Aftersales

lunla dly

Robert Bosch Ltd. Broadwater Park, North Orbital Road, Uxbridge UB9 5HJ, United Kingdom, as authorised representative acting on behalf of Robert Bosch Power Tools GmbH, 70538 Stuttgart, Germany Uxbridge, 26/04/2021
