Product Type	Flat screen wall mount
Brand	Chief
Model	ICMPTM2T03
Maximum load capacity	56.7 kg (125 lb)
Tilt	Yes (iCMPTM2 model)
Material	Steel
VESA compatibility	Universal (with mounting kit provided)
Minimum distance between wall brackets	304.8 mm
Supported wall types	Wood stud, concrete wall
Maximum drywall thickness	16 mm
Main features	Height-adjustable wall mount, tilt, secure attachment
Installation	Requires drilling, hardware included
Care and cleaning	Wipe with a soft dry cloth
Safety	Respect load capacities, use on appropriate structure
Spare parts	Screws, anchors, washers, Velcro® straps included
Repairability	Parts not user-repairable, replace entire unit if damaged
General information	Designed for indoor use, manufacturer's warranty

Frequently Asked Questions - ICMPTM2T03 Chief

What is the maximum weight supported by the ICMPTM2T03 mount?

The mount can support up to 56.7 kg (125 lb), including the weight of the TV and any attached equipment.

Does this mount allow tilting the TV?

Yes, the ICMPTM2T03 model is equipped with mounting brackets allowing tilting of the TV. The ICMPFM2 model is fixed.

What types of walls are compatible with this mount?

The mount is designed to be mounted on a wood stud or a concrete wall. The drywall thickness must not exceed 16 mm.

What is the minimum distance between the wall mounting brackets?

The minimum horizontal distance between the wall mounting brackets is 304.8 mm.

What tools are needed for installation?

You will need a level, a drill, drill bits (5.5 mm for wood, 10 mm for concrete), a hammer (for concrete anchors), and wrenches for the bolts.

Is the hardware included?

Yes, the kit includes lag bolts, flat washers, concrete anchors, screen screws, and spacer rings if needed.

Can I install the mount on a plasterboard wall without reinforcement?

No, the mount must be fixed to a solid structure (wood stud or concrete). A plasterboard wall alone cannot support the weight.

How to clean the mount?

Use a soft dry cloth to remove dust. Avoid harsh chemicals that could damage the finish.

Is the mount compatible with all TVs?

The mount is universal, but you must check that the TV meets the load capacity (56.7 kg max) and that the mounting holes match the provided hardware kit.

What to do if a part is missing or damaged?

Contact Chief customer service to get replacement parts. Do not use an incomplete or damaged mount.

USER MANUAL ICMPTM2T03 Chief

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

IMPORTANT WARNINGS AND CAUTIONS!

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this component can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this component is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the component. The wall to which the mount is being attached may have a maximum drywall thickness of 5/8 (1.6cm).

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components attached to the iCMPFM2/iCMPTM2 does not exceed 125 lbs (56.7 kg).

AVISOS Y PRECAUCIONES IMPORANTES!

1

INSTALLATION The iCMPFM2 and iCMPTM2 have been designed to be mounted directly onto either a wood stud or concrete wall. The iCMPFM2 has static brackets which keep the TV in an upright position. The iCMPTM2 has brackets which allow the TV to be tilted. WARNING: IMPROPER INSTALLATION CAN LEAD TO MOUNT FALLING CAUSING SEVERE PERSONAL INJURY OR DAMAGE TO EQUIPMENT! It is the installers responsibility to make certain the structure to which the mount is being attached is capable of supporting five times the weight of the iCMPFM2 or iCMPTM2 and all attached equipment not to exceed 125 lbs (56.7 kg). Assembling the Wall Mount 1. Place both wall uprights (F) on the floor. 2. Slide rails (A) into wall uprights. 3. Thread endcaps (G) into the end of each rail. NOTE: Proceed to either the Installing to a Wood Stud Wall (2a) section or the Installing to a Concrete Wall (2b) section.

2a

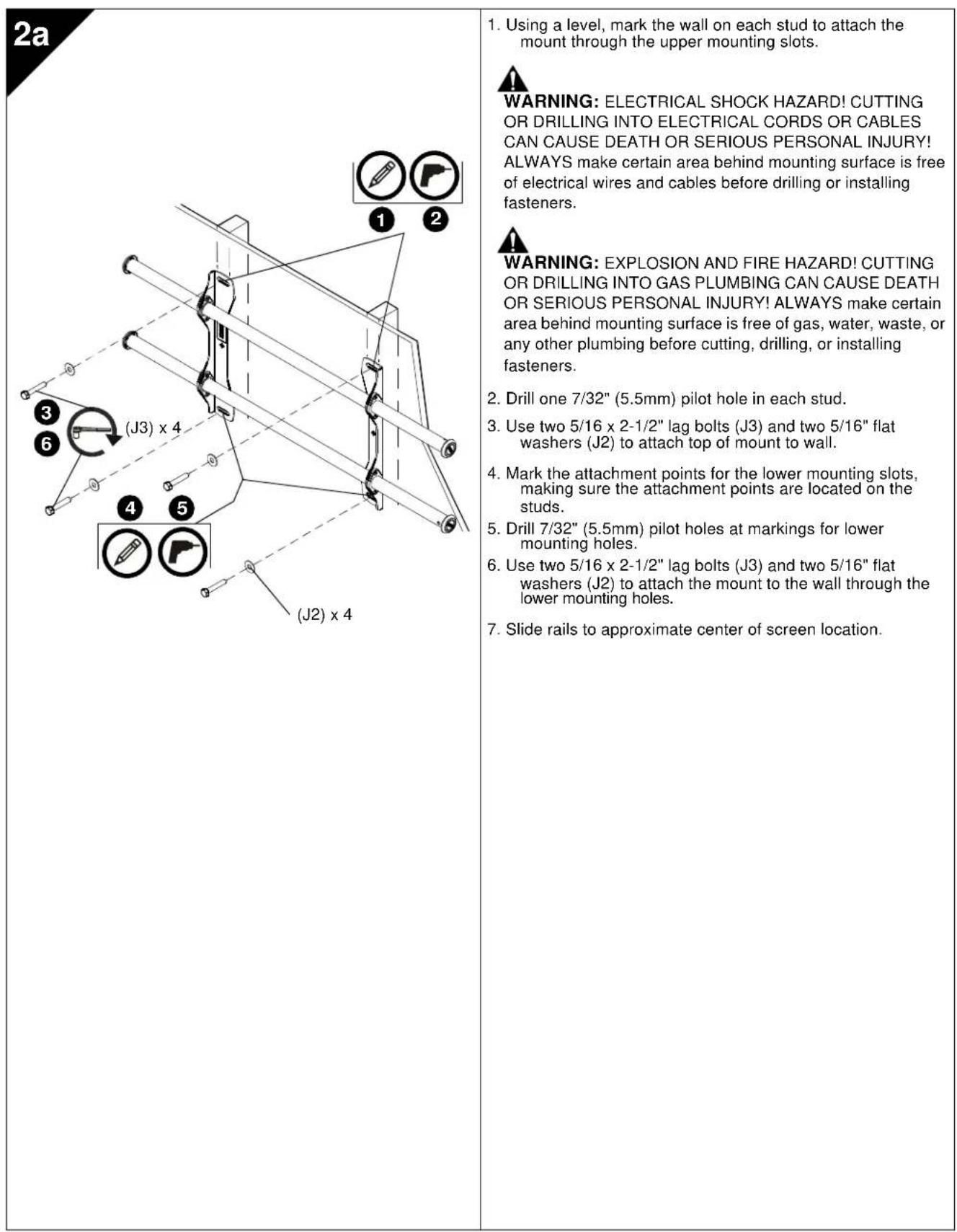

Installing to a Wood Stud Wall 4. Determine the center of the TV screen, and where it should be located on the wall. 5. Locate the closest stud to the left and right of the selected location. NOTE: If the screen area lies over a stud, use that stud and the stud to either the left or right of it. 6. Line up the diamond on mount with center of screen marking to determine vertical center. 7. Measure up 6" from the center point to mark location of the upper mounting slots.

2b

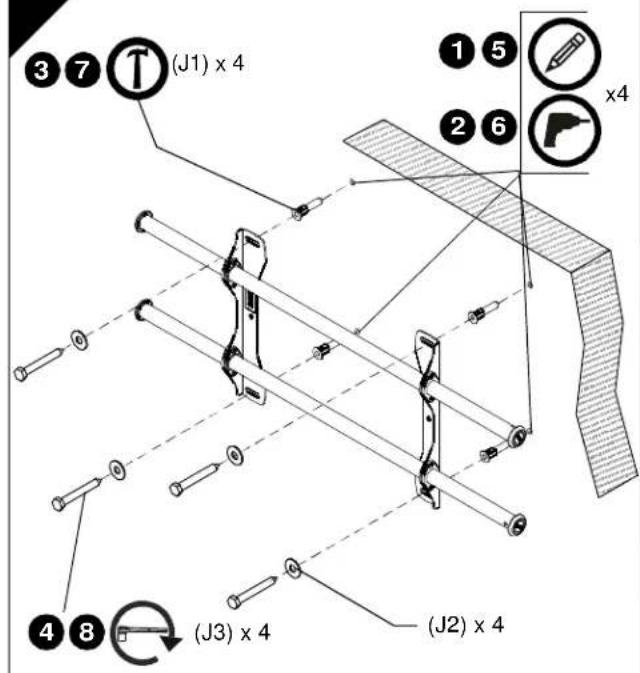

Installing to a Concrete Wall

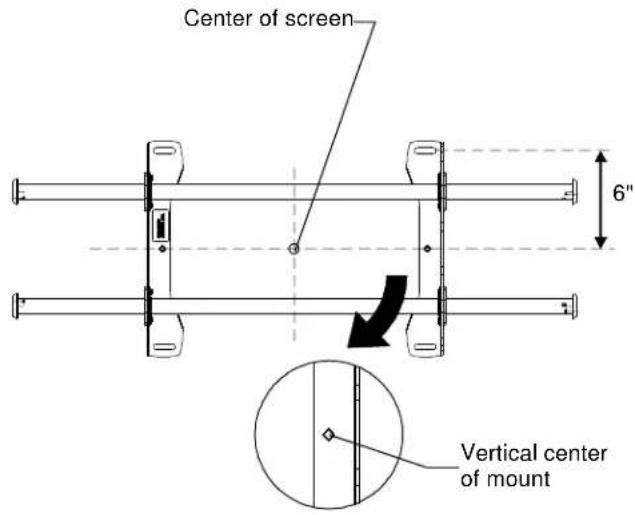

1. Determine the center of the TV screen, and where it should be located on the wall.
2. Line up the diamonds on mount with center of screen marking to determine vertical center.
3. Measure up 6" from the center point to mark location of the upper mounting slots.

CAUTION: MINIMUM HORIZONTAL DISTANCE BETWEEN WALL BRACKETS IS 12". Do not place mounting brackets closer together than 12".

WARNING: ELECTRICAL SHOCK HAZARD! CUTTING OR DRILLING INTO ELECTRICAL CORDS OR CABLES CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of electrical wires and cables before drilling or installing fasteners.

WARNING: EXPLOSION AND FIRE HAZARD! CUTTING OR DRILLING INTO GAS PLUMBING CAN CAUSE DEATH OR SERIOUS PERSONAL INJURY! ALWAYS make certain area behind mounting surface is free of gas, water, waste, or any other plumbing before cutting, drilling, or installing fasteners.

2b

1. Using a level, mark the wall through both upper mounting slots.
2. Drill one 25 / 64'' (10mm) pilot hole at each marking.
3. Install an anchor (J1) into each pilot hole using a hammer.
4. Use two 5 / 16 × 2 - 1 / 2 lag bolts (J3) and two 5 / 16 flat washers (J2) to attach top of mount to anchors in wall.
5. Mark the attachment points for the lower mounting slots.
6. Drill one 25/64" (10mm) pilot hole at each marking for lower mounting holes.
7. Install an anchor (J1) into each pilot hole using a hammer.
8. Use two 5 / 16 × 2 - 1 / 2 lag bolts (J3) and two 5 / 16 flat washers (J2) to attach the mount to the wall through the lower mounting holes.
9. Slide rails to approximate center of screen location.

3

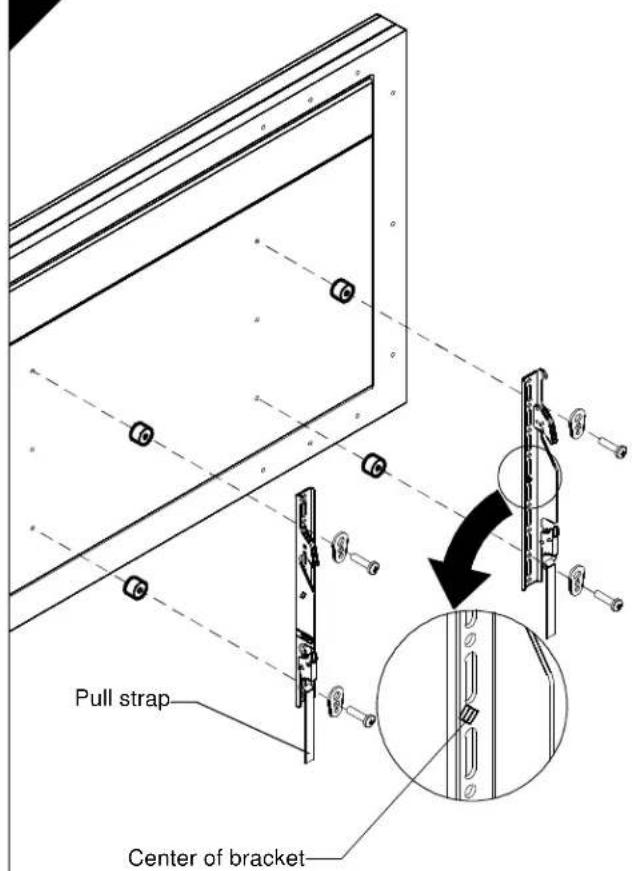

Attaching Interface Brackets to TV

1. Align the center of the bracket with center of screen.

NOTE: The diamond-shape hole in the bracket corresponds to the center of the mount.

WARNING: IMPROPER INSTALLATION CAN LEAD TO DISPLAY FALLING CAUSING SERIOUS PERSONAL INJURY OR DAMAGE TO EQUIPMENT! Using screws of improper size may damage your display. Properly sized screws will easily and completely thread into display mounting holes. If spacers are required, be sure to use longer screws of the same diameter.

1. Select correct screws, spacers (if necessary) and universal washers from the hardware bag (H) and attach brackets to back of screen.

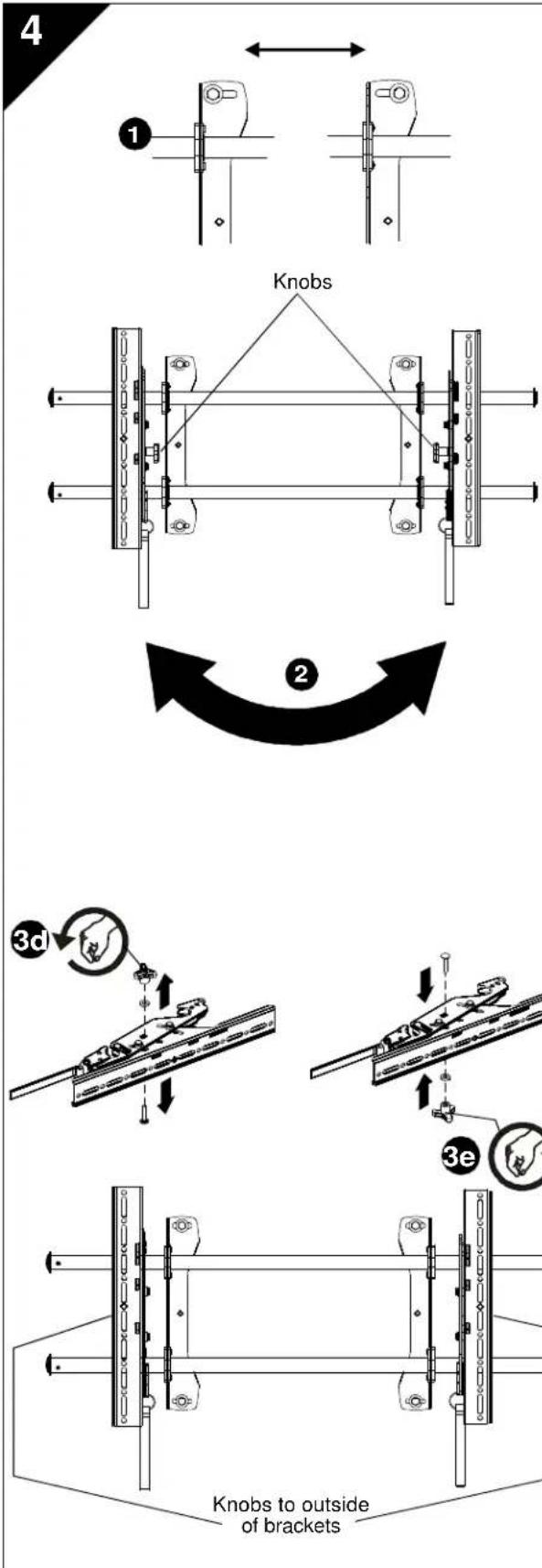

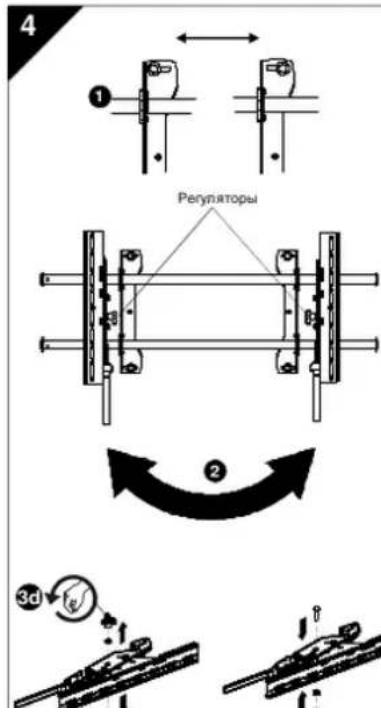

Switching Interface Brackets (Optional)

If an installation situation makes adjusting the location of interface brackets necessary, there are several options.

1. The wall brackets may be adjusted side to side at the point of attachment.
2. The location of the left and right interface brackets may be switched, with the knobs on the iCMPTM2 interface brackets facing the inside of the mount.
3. If necessary, the tilt interface bracket knobs may be switched to allow the interface brackets to be reversed.

a. Remove display from mount.
b. Remove interface brackets from display.
c. Hold the right interface bracket horizontally, tightly gripping it so that spacers do not move.
d. Remove the knob, washer and screw.
e. Replace the knob, washer and screw in the opposite order, with the knob on the inside of the bracket.
f. Switch the right interface bracket to the left side of the wall mount.
g. Repeat Steps 3c through 3f with the left interface bracket.

Tilting the Interface Brackets (ICMPTM2 only)

The brackets may be tilted by loosening the knob on the brackets, tilting to desired location, and tightening knob on the brackets.

5

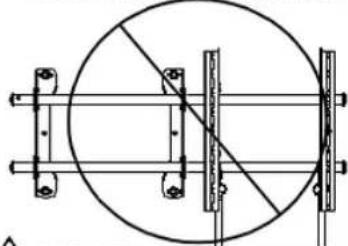

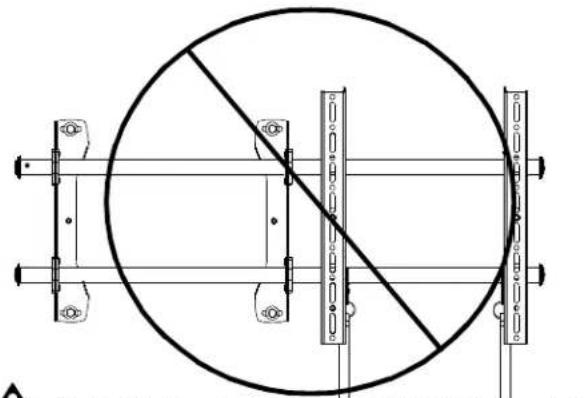

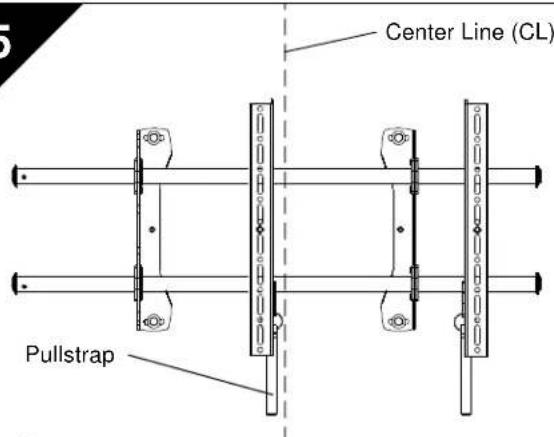

NEVER place both interface brackets to one side of the wall mount center line (CL)!

Both interface brackets must NEVER be located to one side of the wall brackets!

(Screen not shown for clarity)

Attaching Screen to Wall Mount

1. Adjust Velcro® pull strap (if necessary) so it does not extend beyond bottom of screen.

NOTE: Do NOT allow both interface brackets to be located on same side of wall bracket.

NOTE: NEVER place both interface brackets to one side of the wall mount center line!

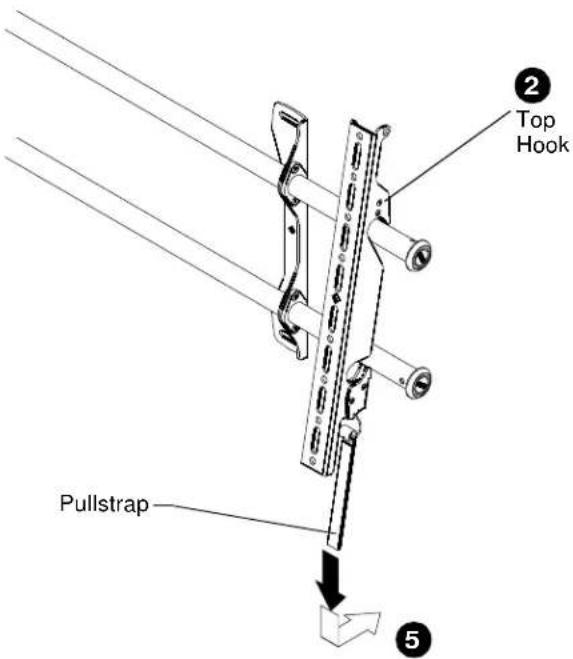

1. Hang top hook of interface brackets onto the top bar of the mount.

NOTE: The screen initially installs into the "kickstand mode" to allow easy cable access.

1. Slide screen and bars to desired viewing position.

2. Route cables between wall and bars.

CAUTION: PINCH POINTS! Keep fingers, hands and cables out of pinch point areas.

1. Pull downward on the pullstraps and swing inward toward wall, latching interface brackets to lower bar and locking bottom of screen to the mount.

C O M E C T H T E C H T P O C D E N H I T E B H O F K O P H U L E T H A C O C P E D H E N H H H E N T E P O T M X K H D A.

PIMMEAHHE.POMBOAHOHOOHTABCTHEa COEDHATBHLMOHOTHTHE COOTBTCTBYETUHTPYKOHHTEA

PepeTahOHBA COeADNHHTBbHbIX KPOHHTeHOB (DONOHHTBbHB RAOMOXHOCTb)

EINB XOe yCTAHOH B03NKAET HeoKoAMOCb V3MENHTb nONXeHHe CoEHNTHbXpCHWtHOB,3TO MOHO C2eIATb HEoKoAMn CHoCobAM.

1. KpOHTuBHeMoXHO BcMbHryrRop3oHTaHbA To ty HnpyrTO CTOPOHY OTHOCiTeHNTOHxKpnEnHnEe
2. 此值在n所对应的KoHHTBHe HkoHHTBHeMoHOKMOHHTBHeMCTAMs，VCN013yperHNTPOCpAONOKHeHc BHTNHETCOTBOeHHTBHeHXKOHHTBHeOModmICMPTM2
   3.EHNOHOOMNMOEHTMeCTAMMEOHNHTBHeKPOKHTeHn. HmHHeNTnoNKeHempeyHnTPOA HAKTOHa HOePcHETbHxKPOHtHxH.

a. CHIMITE MOHTOPC CWCCTEMBKPENNEH
b. CHAMNTE COeMHNTENbHbI KPOHHTHbI C MOHTOPA
C. KpxnO ydpKmHaeTepaam CoepdHertelbHm HpOeHTeB aRopO3HgAHHOM 0100kexn, YTO5bU BTVNQCTAB3MnHO HeoBDyKmHm
d. CHAMMTE peryrnapu wauby nOTBHTNTE BHT.
e.YCTAHOBITEpeyTATOP，BHTNuaBcyoBopaTHOM noPbIXeCpYIOCTOPOHxPOHcTeHaTAK，TOb6y peyTATOTOKaON3C5BvYTOEHHKCTOPOOH。
I. yTahOHOte npabB cooDmHHTbBbKPOOHTeRc C 16080 CTOPHb HACTHEONCCTMBe KpENHNH
g. IIOTOPIE DEIANTA, ONGAHNHE BENKHX 3C-3T, INRA NEBOO COQHINHTENHOO KXPOKHTENHA.

Haknoh CoedHHHTbeBbHx KPOHHTeHOB (ToHko B Moden (ICMPTM2)

KpOHTeHbMoHO HAcHOHTb. Dn stOro ocna6bepeyrTATOpb KpOHTeHOB.HaNOHtHe KpOHTeHbB HkyHOeNPOKHEHm3aHHNTBe peryTATOpbHa KpOHTeHAXdoynopa

5

Cpehnnn (CL)

YcTaHOBbKa 3KpaHa B HAcTeHHy OChTeMy KpenneHn

1. Otperympyte pny kpenexno nenty Velco (pnp Hoo6doMOCT) TAK,HTo6OHa HE BucTypana 3A HNOH Kpaik kpaik
   PINPMEYAHNE.3ANPEUHPOpaMaHbO6a 00eDHNHTBbHxKoHNHTHaNo Ody CTOPOHyOT HACTEHORMOHTAHHOR KOHNHTHa.
   PIMMEYAHNE.3APPEHPOpaMeaBbO6a OeHNHTbAeXKoHHTHeNaOgHy CTOPHOOTcpeHnNnHtAcTeHHO AOCTEMkKPENHEH
   2.Пав�сье ворхину димы саддимпгштбнвь Вархину рожу саддимы креллеси.
   PIMMEYAHNEIpeoHaHbHOxHApYCTaHbAaBaTaetor HA HekToPOM pAcTOBHRNnO TcTHei (KaK npwncnO3aONnO 0000000000000000000000000000000000000000000000000000
   3.YcHaoBvte 4xepnpeipoeipnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepnepn
2. Ilponokite kabei Mexdy cte Hoi pekann

A

3ANPUEHEO paMaeeBt o6a coeDHHTeBbHxKoHnHeHaNo oDyctO npOY oTcpeDnHnnn (CL) HACTeNKnCCTeMkXpEnneH

A

3ANPEUEHO paaeuaa 06a coedHHTenbHxk KPOHHTHa NO OND cy TOPOH O T HACTEHbXk JOTAKTHK XPOHETHO!

Bacryma oxo

USA·8401 Eagle Creek Parkway, Suite 700·Savage, Minnesota 55378·800.572.1373

EMEA·[phone]

www.icmounts.com

©2009 Milestone AV Technologies. The iC Logo and StowAway are trademarks of Chief Manufacturing, a products division of Milestone AV Technologies, a Duchossois Group Company. All rights reserved Patents and patents pending. Milestone AV Technologies, Savage, MN 55378, USA

8805-000268 Rev 01

05/09
