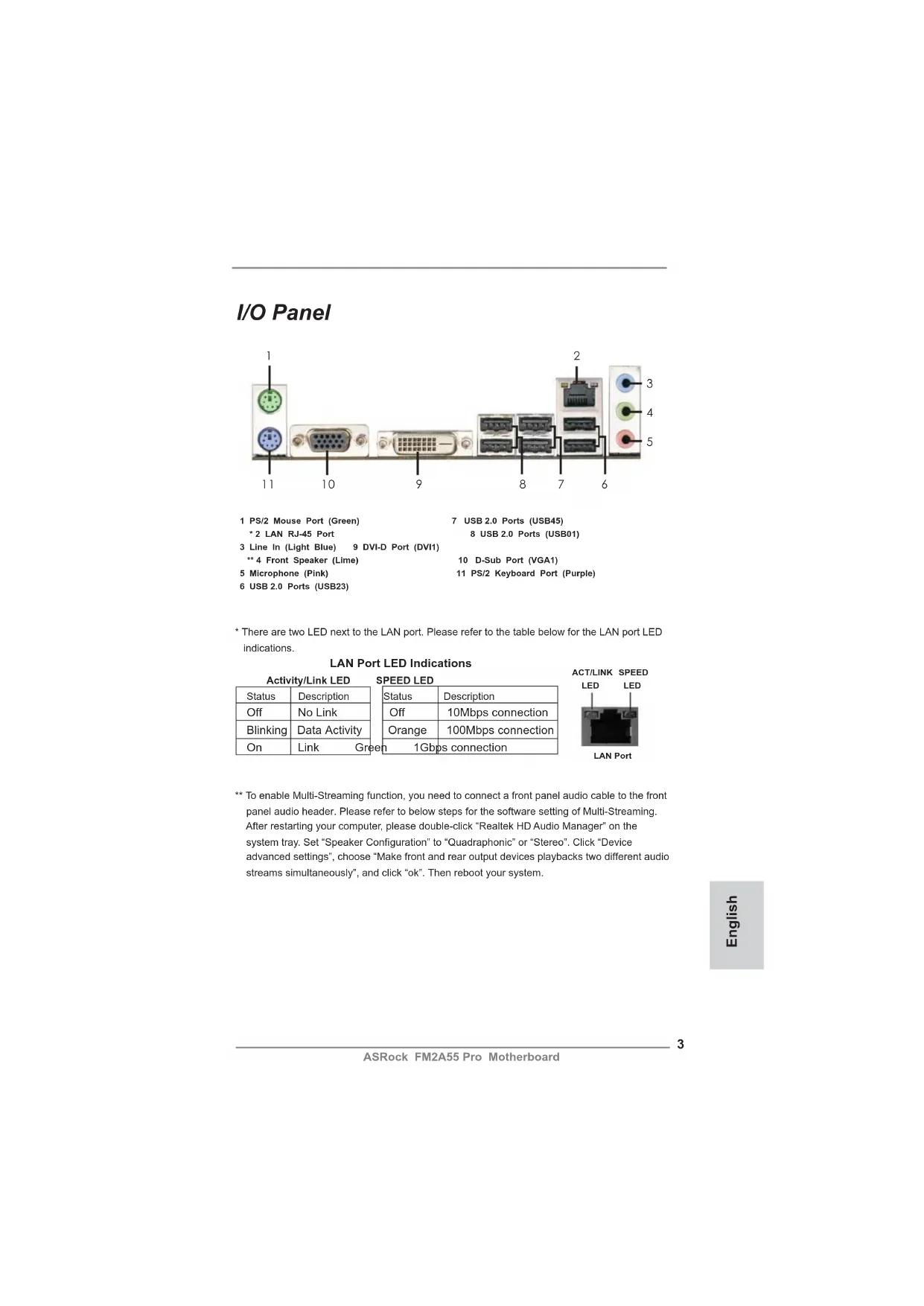

I/O Panel * There are two LED next to the LAN port. Please refer to the table below for the LAN port LED indications. LAN Port LED Indications Activity/Link LED SPEED LEDStatus Description Status Description Off No Link Off 10Mbps connection

** To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. Please refer to below steps for the software setting of Multi-Streaming. After restarting your computer, please double-click “Realtek HD Audio Manager” on the

system tray. Set “Speaker Confi guration” to “Quadraphonic” or “Stereo”. Click “Device advanced settings”, choose “Make front and rear output devices playbacks two different audio streams simultaneously”, and click “ok”. Then reboot your system.4

ASRock FM2A55 Pro Motherboard

Thank you for purchasing ASRock FM2A55 Pro motherboard, a reliable mother-

board produced under ASRock’s consistently stringent quality control. It delivers

excellent performance with robust design conforming to ASRock’s commitment to

quality and endurance.

This Quick Installation Guide contains introduction of the motherboard and step-by-

step installation guide. More detailed information of the motherboard can be found

in the user manual presented in the Support CD.

Because the motherboard specifi cations and the BIOS software might be

updated, the content of this manual will be subject to change without no-

tice. In case any modifi cations of this manual occur, the updated version

will be available on ASRock website without further notice. You may fi nd

the latest VGA cards and CPU support lists on ASRock website as well.

ASRock website http://www.asrock.com

If you require technical support related to this motherboard, please visit

our website for specifi c information about the model you are using.

www.asrock.com/support/index.asp

1 x I/O Panel Shield

ASRock Reminds You...

To get better performance in Windows

64-bit, it is recommended to set the BIOS option in Storage Con-

fi guration to AHCI mode. For the BIOS setup, please refer to the “User

Manual” in our support CD for details.

Platform - ATX Form Factor

- All Solid Capacitor design

CPU - Support for Socket FM2 100W processors

- 2 x DDR3 DIMM slots

- Support DDR3 1866/1600/1333/1066 non-ECC, un-buffered

memory (see CAUTION 1)

- Max. capacity of system memory: 32GB (see CAUTION 2)

- Supports AMD Memory Profi le (AMP)

Graphics (see CAUTION 3)

Graphics - AMD Radeon HD 7000 graphics

- DirectX 11, Pixel Shader 5.0

- Max. shared memory 2GB

- Dual VGA Output: support DVI and D-Sub ports by

independent display controllers

- Supports Dual-link DVI with max. resolution up to

- Supports D-Sub with max. resolution up to 1920x1600 @

capability for automatic jutter reduction on home/online

- Supports HDCP function with DVI port

- Supports Wake-On-LAN6

ASRock FM2A55 Pro Motherboard

- Supports LAN Cable Detection

- Supports Energy Effi cient Ethernet 802.3az

- Supports PXE Rear Panel I/O I/O Panel

- 1 x PS/2 Mouse Port

- 6 x Ready-to-Use USB 2.0 Ports

- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

- HD Audio Jack: Line in / Front Speaker / Microphone

Connector - 6 x SATA2 3.0 Gb/s connectors, support RAID (RAID 0,

RAID 1 and RAID 10), NCQ, AHCI and “Hot Plug” functions

- 1 x Power LED header

- 1 x CPU Fan connector (4-pin)

- 2 x Chassis Fan connectors (2 x 4-pin)

- 24 pin ATX power connector

- 8 pin 12V power connector

- Front panel audio connector

- 2 x USB 2.0 headers (support 4 USB 2.0 ports)

BIOS Feature - 64Mb AMI UEFI Legal BIOS with GUI support

- Supports “Plug and Play”

- ACPI 1.1 Compliance Wake Up Events

- Supports jumperfree

- SMBIOS 2.3.1 Support

- DRAM, VDDP, VDDR Voltage Multi-adjustment

Support CD - Drivers, Utilities, AntiVirus Software (Trial Version),

CyberLink MediaEspresso 6.5 Trial, Google Chrome

- Chassis Fan Tachometer

- CPU/Chassis Quiet Fan

- CPU/Chassis Fan Multi-Speed Control

- Voltage Monitoring: +12V, +5V, +3.3V, Vcore7

Certifi cations - FCC, CE, WHQL

- ErP/EuP Ready (ErP/EuP ready power supply is required)

* For detailed product information, please visit our website: http://www.asrock.com

WARNING Please realize that there is a certain risk involved with overclocking,

including adjusting the setting in the BIOS, applying Untied Overclocking

Technology, or using third-party overclocking tools. Overclocking may

affect your system’s stability, or even cause damage to the components

and devices of your system. It should be done at your own risk and

expense. We are not responsible for possible damage caused by

1. Whether 1866/1600MHz memory speed is supported depends

on the CPU you adopt. If you want to adopt DDR3 1866/1600

memory module on this motherboard, please refer to the mem-

ory support list on our website for the compatible memory mod-

ASRock website http://www.asrock.com

2. Due to the operating system limitation, the actual memory size

may be less than 4GB for the reservation for system usage un-

bit CPU, there is no such limitation. You can use ASRock XFast

RAM to utilize the memory that Windows

3. For the discrete GPUs which support Dual Graphics technology,

please refer to http://www.amd.com/us/products/technologies/

dual-graphics/Pages/dual-graphics.aspx#3 for details.8

ASRock FM2A55 Pro Motherboard

ASRock Extreme Tuning Utility (AXTU)

ASRock Extreme Tuning Utility (AXTU) is an all-in-one tool to

ne-tune different system functions in a user-friendly interface,

which includes Hardware Monitor, Fan Control, Overclocking,

OC DNA, IES and XFast RAM. In Hardware Monitor, it shows

the major readings of your system. In Fan Control, it shows the

fan speed and temperature for you to adjust. In Overclocking,

you are allowed to overclock CPU frequency for optimal system

performance. In OC DNA, you can save your OC settings as

a profi le and share it with your friends. Your friends then can

load the OC profi le to their own system to get the same OC set-

tings. In IES (Intelligent Energy Saver), the voltage regulator

can reduce the number of output phases to improve effi ciency

when the CPU cores are idle without sacrifi cing computing per-

XFast RAM, it fully utilizes the memory space that

cannot be used under Windows

ASRock Instant Boot allows you to turn on your PC in just a few

seconds, provides a much more effi cient way to save energy,

time, money, and improves system running speed for your sys-

tem. It leverages the S3 and S4 ACPI features which normally

enable the Sleep/Standby and Hibernation modes in Windows

to shorten boot up time. By calling S3 and S4 at specifi c timing

during the shutdown and startup process, Instant Boot allows

you to enter your Windows

desktop in a few seconds.

ASRock Instant Flash

ASRock Instant Flash is a BIOS fl ash utility embedded in Flash

ROM. This convenient BIOS update tool allows you to update

system BIOS without entering operating systems fi rst like MS-

. With this utility, you can press the <F6> key

during the POST or the <F2> key to enter into the BIOS setup

menu to access ASRock Instant Flash. Just launch this tool and

save the new BIOS fi le to your USB fl ash drive, fl oppy disk or

hard drive, then you can update your BIOS only in a few clicks

without preparing an additional fl oppy diskette or other compli-

cated fl ash utility. Please be noted that the USB fl ash drive or

hard drive must use FAT32/16/12 fi le system.9

If you desire a faster, less restricted way of charging your

Apple devices, such as iPhone/iPad/iPod Touch, ASRock has

prepared a wonderful solution for you - ASRock APP Charger.

Simply install the APP Charger driver, it makes your iPhone

charge much quickly from your computer and up to 40% faster

than before. ASRock APP Charger allows you to quickly charge

many Apple devices simultaneously and even supports continu-

ous charging when your PC enters into Standby mode (S1),

Suspend to RAM (S3), hibernation mode (S4) or power off (S5).

With APP Charger driver installed, you can easily enjoy the mar-

velous charging experience.

ASRock XFast USB ASRock XFast USB can boost USB storage device perfor-

mance. The performance may depend on the properties of the

ASRock XFast LAN ASRock XFast LAN provides a faster internet access, which

includes the benefits listed below. LAN Application Prioritiza-

tion: You can confi gure your application’s priority ideally and/or

add new programs. Lower Latency in Game: After setting online

game’s priority higher, it can lower the latency in games. Traffi c

Shaping: You can watch Youtube HD videos and download si-

multaneously. Real-Time Analysis of Your Data: With the status

window, you can easily recognize which data streams you are

transferring currently.

ASRock XFast RAM ASRock XFast RAM is a new function that is included into AS-

Rock Extreme Tuning Utility (AXTU). It fully utilizes the memory

space that cannot be used under Windows

ASRock XFast RAM shortens the loading time of previously

visited websites, making web surfing faster than ever. And it

also boosts the speed of Adobe Photoshop 5 times faster. An-

other advantage of ASRock XFast RAM is that it reduces the

frequency of accessing your SSDs or HDDs in order to extend

without fear of failing. If power loss occurs during the BIOS up-

date process, ASRock Crashless BIOS will automatically fi nish

the BIOS update procedure after regaining power. Please note

that BIOS fi les need to be placed in the root directory of your

USB disk. Only USB2.0 ports support this feature.

ASRock OMG (Online Management Guard)

Administrators are able to establish an internet curfew or restrict

internet access at specifi ed times via OMG. You may schedule

the starting and ending hours of internet access granted to other

users. In order to prevent users from bypassing OMG, guest

accounts without permission to modify the system time are re-

ASRock Internet Flash

ASRock Internet Flash searches for available UEFI firmware

updates from our servers. In other words, the system can auto-

detect the latest UEFI from our servers and fl ash them without

OS. Please note that you must be running

on a DHCP confi gured computer in order to enable this function.

ASRock UEFI System Browser

ASRock UEFI system browser is a useful tool included in

graphical UEFI. It can detect the devices and configurations

that users are currently using in their PC. With the UEFI system

browser, you can easily examine the current system confi gura-

ASRock Dehumidifi er Function

Users may prevent motherboard damages due to dampness by

enabling “Dehumidifi er Function”. When enabling Dehumidifi er

Function, the computer will power on automatically to dehumidi-

fy the system after entering S4/S5 state.

ASRock Easy RAID Installer

ASRock Easy RAID Installer can help you to copy the RAID

driver from a support CD to your USB storage device. After

copying the RAID driver to your USB storage device, please

change “SATA Mode” to “RAID”, then you can start installing the

edented UEFI provides a more attractive interface and brings a

With ASRock’s exclusive Fast Boot technology, it takes less

than 1.5 seconds to logon to Windows

8 from a cold boot. No

more waiting! The speedy boot will completely change your user

experience and behavior.

Brilliantly designed for combo overclocking, ASRock X-Boost

Technology is able to unleash the hidden power of your CPUs.

Simply press “X” when turning on the PC, X-Boost will automati-

cally overclock the relative components to get up to 15.77%

performance boost! With the smart X-Boost, overclocking CPU

can become a near one-button process.

ASRock Restart to UEFI Windows

8 brings the ultimate boot up experience. The light-

ning boot up speed makes it hard to access the UEFI setup. AS-

Rock Restart to UEFI technology is designed for those requiring

frequent UEFI access. It is included in ASRock’s exclusive all-

in-one AXTU tuning program that allows users to easily enter

the UEFI automatically when turning on the PC next time. Just

simply enable this function; the PC will be assured to access the

UEFI directly in the very beginning.12

ASRock FM2A55 Pro Motherboard

This is an ATX form factor motherboard. Before you install the motherboard, study

the confi guration of your chassis to ensure that the motherboard fi ts into it.

Pre-installation Precautions

Take note of the following precautions before you install motherboard

components or change any motherboard settings.

Before you install or remove any component, ensure that the

power is switched off or the power cord is detached from the

power supply. Failure to do so may cause severe damage to the

motherboard, peripherals, and/or components.

1. Unplug the power cord from the wall socket before touching any

2. To avoid damaging the motherboard components due to static elec-

tricity, NEVER place your motherboard directly on the carpet or the

like. Also remember to use a grounded wrist strap or touch a safety

grounded object before you handle components.

3. Hold components by the edges and do not touch the ICs.

4. Whenever you uninstall any component, place it on a grounded anti-

static pad or in the bag that comes with the component.

5. When placing screws into the screw holes to secure the mother-

board to the chassis, please do not over-tighten the screws! Doing

so may damage the motherboard.

ASRock FM2A55 Pro Motherboard

2.1 CPU Installation

Step 1. Unlock the socket by lifting the lever up to a 90

Step 2. Position the CPU directly above the socket such that the CPU corner with

the golden triangle matches the socket corner with a small triangle.

Step 3. Carefully insert the CPU into the socket until it fi ts in place.

The CPU fi ts only in one correct orientation. DO NOT force the CPU

into the socket to avoid bending of the pins.

Step 4. When the CPU is in place, press it fi rmly on the socket while you push

down the socket lever to secure the CPU. The lever clicks on the side tab

to indicate that it is locked.

2.2 Installation of CPU Fan and Heatsink

After you install the CPU into this motherboard, it is necessary to install a

larger heatsink and cooling fan to dissipate heat. You also need to spray

thermal grease between the CPU and the heatsink to improve heat dis-

sipation. Make sure that the CPU and the heatsink are securely fastened

and in good contact with each other. Then connect the CPU fan to the

CPU FAN connector (CPU_FAN1, see Page 2, No. 4). For proper instal-

lation, please kindly refer to the instruction manuals of the CPU fan and

Match The CPU Golden Triangle

2.3 Installation of Memory Modules (DIMM)

This motherboard provides two 240-pin DDR3 (Double Data Rate 3) DIMM slots,

and supports Dual Channel Memory Technology. For dual channel configuration,

you always need to install two identical (the same brand, speed, size and chip-

type) memory modules in the DDR3 DIMM slots to activate Dual Channel Memory

Technology. Otherwise, it will operate at single channel mode.

1. It is not allowed to install a DDR or DDR2 memory module into

DDR3 slot;otherwise, this motherboard and DIMM may be

2. If you install only one memory module or two non-identical

memory modules, it is unable to activate the Dual Channel

Installing a DIMM Please make sure to disconnect power supply before adding or

removing DIMMs or the system components.

Step 1. Unlock a DIMM slot by pressing the retaining clips outward.

Step 2. Align a DIMM on the slot such that the notch on the DIMM matches the

The DIMM only fi ts in one correct orientation. It will cause permanent

damage to the motherboard and the DIMM if you force the DIMM into

the slot at incorrect orientation.

Step 3. Firmly insert the DIMM into the slot until the retaining clips at both ends

fully snap back in place and the DIMM is properly seated. notchbreak notch

ASRock FM2A55 Pro Motherboard

2.4 Expansion Slots (PCI and PCI Express Slots)

There are 2 PCI slots and 5 PCI Express slots on this motherboard.

PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI

PCIE1 / PCIE3 / PCIE4 (PCIE x1 slot) is used for PCI Express cards

with x1 lane width cards, such as Gigabit LAN card and SATA2 card.

PCIE2 (PCIE x16 slot) is used for PCI Express x16 lane width graphics

cards, or used to install PCI Express graphics cards to support CrossFi-

PCIE5 (PCIE x16 slot) is used for PCI Express x4 lane width cards,

or used to install PCI Express graphics cards to support CrossFireX TM

1. In single VGA card mode, it is recommended to install a PCI Ex-

press x16 graphics card on PCIE2 slot.

mode, please install PCI Express x16 graphics

cards on PCIE2 and PCIE5 slots.

Installing an expansion card

Step 1. Before installing the expansion card, please make sure that the power

supply is switched off or the power cord is unplugged. Please read the

documentation of the expansion card and make necessary hardware

settings for the card before you start the installation.

Step 2. Remove the system unit cover (if your motherboard is already installed

Step 3. Remove the bracket facing the slot that you intend to use. Keep the

screws for later use.

Step 4. Align the card connector with the slot and press fi rmly until the card is

completely seated on the slot.

Step 5. Fasten the card to the chassis with screws.

Step 6. Replace the system cover.16

This motherboard supports CrossFireX TM

technology offers the most advantageous means available of

combining multiple high performance Graphics Processing Units (GPU) in a single

PC. Combining a range of different operating modes with intelligent software design

and an innovative interconnect mechanism, CrossFireX TM

possible level of performance and image quality in any 3D application. Please check

cards may require different methods to enable CrossFi-

feature. For other CrossFireX TM

cards that AMD has released or will release

in the future, please refer to AMD graphics card manuals for detailed installation

Step 1. Insert one Radeon graphics card into PCIE2 slot and the other Radeon

graphics card to PCIE5 slot. Make sure that the cards are properly seated

1. If a customer incorrectly configures their system they will not see the

CrossFireX TM Ready graphics card, a CrossFireX TM Ready motherboard and a

CrossFireX TM Edition co-processor graphics card, must be installed correctly

to benefi t from the CrossFireX TM

2. If you pair a 12-pipe CrossFireX TM Edition card with a 16-pipe card, both cards

will operate as 12-pipe cards while in CrossFireX TM

ASRock FM2A55 Pro Motherboard

Step 2. Connect two Radeon graphics cards by installing CrossFire Bridge on

CrossFire Bridge Interconnects on the top of Radeon graphics cards.

(CrossFire Bridge is provided with the graphics card you purchase, not

bundled with this motherboard. Please refer to your graphics card vendor

Step 3. Connect the DVI monitor cable to the DVI connector on the Radeon graph-

ics card on PCIE2 slot. (You may use the DVI to D-Sub adapter to convert

the DVI connector to D-Sub interface, and then connect the D-Sub monitor

cable to the DVI to D-Sub adapter.)18

ASRock FM2A55 Pro Motherboard

The Catalyst Uninstaller is an optional download. We recommend using this

utility to uninstall any previously installed Catalyst drivers prior to installation.

Please check AMD website for AMD driver updates.

Step 3. Install the required drivers to your system.

Install the CATALYST Control Center. Please check AMD website for de-

Step 4. Restart your computer.

Step 5. Install the VGA card drivers to your system, and restart your computer.

Then you will fi nd “ATI Catalyst Control Center” on your Windows

ATI Catalyst Control Center

2.5.2 Driver Installation and Setup

Step 1. Power on your computer and boot into OS.

Step 2. Remove the AMD driver if you have any VGA driver installed in your sys-

Step 6. Double-click “ATI Catalyst Control Center”. Click “View”, select “CrossFi-

”, and then check the item “Enable CrossFireX TM

and click “Apply” (if you install two Radeon graphics cards).19

ASRock FM2A55 Pro Motherboard

Although you have selected the option “Enable CrossFire

function may not work actually. Your computer will automatically

” in “ATI Catalyst Control Center” is selected or not;

if not, please select it again, and then you are able to enjoy the benefi t of

appearing here is a registered trademark of AMD Technologies Inc., and is

used only for identifi cation or explanation and to the owners’ benefi t, without intent to infringe.

* For further information of AMD CrossFireX TM

technology, please check AMD website for

updates and details.20

ASRock FM2A55 Pro Motherboard

2.6 Pin Header Easy Installation Guide

ASRock motherboard is equipped with pin headers with obvious colors which indi-

cate you to recognize the crucial headers more easily. Please refer to below illustra-

tions for the pin defi nition of onboard headers. If you want to have more information

about the usage of these headers, please refer to “Jumpers Setup“ and “Onboard

Headers and Connectors“ for details.

The illustration shows how jumpers are

setup. When the jumper cap is placed on

pins, the jumper is “Short”. If no jumper cap

is placed on pins, the jumper is “Open”. The

illustration shows a 3-pin jumper whose

pin1 and pin2 are “Short” when jumper cap

is placed on these 2 pins.

Jumper Setting Description

Note: CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the

system parameters to default setup, please turn off the computer and unplug

the power cord from the power supply. After waiting for 15 seconds, use a

jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However,

please do not clear the CMOS right after you update the BIOS. If you need

to clear the CMOS when you just fi nish updating the BIOS, you must boot

up the system fi rst, and then shut it down before you do the clear-CMOS ac-

tion. Please be noted that the password, date, time, user default profi le, 1394

GUID and MAC address will be cleared only if the CMOS battery is removed.

ASRock FM2A55 Pro Motherboard

2.8 Onboard Headers and Connectors

Onboard headers and connectors are NOT jumpers. Do NOT place

jumper caps over these headers and connectors. Placing jumper caps

over the headers and connectors will cause permanent damage of the

USB 2.0 Headers Besides six default USB 2.0

ports on the I/O panel, there

are two USB 2.0 headers on

this motherboard. Each USB 2.0

header can support two USB

Data Cable cable can be connected to the

SATA2 hard disk or the SATA2

connector on this motherboard.

Serial ATA2 Connectors These six Serial ATA2

(SATA_1: see p.2, No. 9)

(SATA2) connectors support

(SATA_2: see p.2, No. 8)

SATA data cables for internal

(SATA_3: see p.2, No. 20)

storage devices. The current

(SATA_4: see p.2, No. 17)

SATA2 interface allows up to

(SATA_5: see p.2, No. 19)

3.0 Gb/s data transfer rate.

(SATA_6: see p.2, No. 18)

and receiving infrared module.

Front Panel Audio Header This is an interface for the front

panel audio cable that allows

convenient connection and

control of audio devices.

Consumer Infrared Module Header This header can be used to

several system front panel

1. High Defi nition Audio supports Jack Sensing, but the panel wire on

the chassis must support HDA to function correctly. Please follow the

instruction in our manual and chassis manual to install your system.

2. If you use AC’97 audio panel, please install it to the front panel audio

A. Connect Mic_IN (MIC) to MIC2_L.

B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.

C. Connect Ground (GND) to Ground (GND).

D. MIC_RET and OUT_RET are for HD audio panel only. You don’t

need to connect them for AC’97 audio panel.

E. To activate the front mic.

Go to the “FrontMic” Tab in the Realtek Control panel. Adjust

Connect the power switch, reset switch and system status indicator

on the chassis to this header according to the pin assignments below.

Note the positive and negative pins before connecting the cables.

PWRBTN (Power Switch):

Connect to the power switch on the chassis front panel. You may con-

fi gure the way to turn off your system using the power switch.

RESET (Reset Switch):

Connect to the reset switch on the chassis front panel. Press the reset

switch to restart the computer if the computer freezes and fails to per-

form a normal restart.24

ASRock FM2A55 Pro Motherboard

Power LED Header Please connect the chassis

power LED to this header to

indicate system power status.

The LED is on when the system

is operating. The LED keeps

blinking in S1 state. The LED is

off in S3/S4 state or S5 state

Chassis Speaker Header Please connect the chassis

speaker to this header.

1 PLED+PLED+PLED- PLED (System Power LED):

Connect to the power status indicator on the chassis front panel. The

LED is on when the system is operating. The LED keeps blinking

when the sys-tem is in S1 sleep state. The LED is off when the system

is in S3/S4 sleep state or powered off (S5).

HDLED (Hard Drive Activity LED):

Connect to the hard drive activity LED on the chassis front panel. The

LED is on when the hard drive is reading or writing data.

The front panel design may differ by chassis. A front panel module

mainly consists of power switch, reset switch, power LED, hard drive

activity LED, speaker and etc. When connecting your chassis front

panel module to this header, make sure the wire assignments and the

pin assign-ments are matched correctly.

Chassis Fan Connectors Please connect the fan cable

to the fan connector and

match the black wire to the

Though this motherboard provides 4-Pin CPU fan (Quiet Fan) support, the 3-Pin

CPU fan still can work successfully even without the fan speed control function.

If you plan to connect the 3-Pin CPU fan to the CPU fan connector on this

motherboard, please connect it to Pin 1-3.

ATX Power Connector Please connect an ATX power

supply to this connector.

Though this motherboard provides 24-pin ATX power connector,

it can still work if you adopt a traditional 20-pin ATX power supply.

To use the 20-pin ATX power supply, please plug your power

supply along with Pin 1 and Pin 13.

20-Pin ATX Power Supply Installation

3-Pin Fan Installation

ATX 12V Power Connector Please connect an ATX 12V

power supply to this connector.

Though this motherboard provides 8-pin ATX 12V power connector, it can still work

if you adopt a traditional 4-pin ATX 12V power supply. To use the

4-pin ATX power supply, please plug your power supply along with

4-Pin ATX 12V Power Supply Installation 5 18 45 18 4 CPU Fan Connector Please connect the CPU fan

cable to the connector and

match the black wire to the

VGA card, allows the system to

connect HDMI Digital TV/

projector/LCD devices. Please

connect the HDMI_SPDIF

connector of HDMI VGA card to

2.9 Driver Installation Guide

To install the drivers to your system, please insert the support CD to your optical

drive fi rst. Then, the drivers compatible to your system can be auto-detected and

listed on the support CD driver page. Please follow the order from up to bottom side

to install those required drivers. Therefore, the drivers you install can work properly.

2.10 Installing Windows

64-bit With RAID Functions

If you want to install Windows

RAID disk composed of 2 or more SATA2 HDDs with RAID functions, please follow

B. Set the “SATA Mode” option to [RAID].

STEP 2: Use “RAID Installation Guide” to set RAID confi guration.

Before you start to confi gure RAID function, you need to check the RAID installation

guide in the Support CD for proper confi guration. Please refer to the BIOS RAID

installation guide part of the document in the following path in the Support CD:

.. \ RAID Installation Guide27

OS optical disk into the optical drive to

boot your system, and follow the instruction to install OS on your system. When you

see “Where do you want to install Windows?” page, please insert your USB fl ash

disk to your system, and click the “Load Driver” button to load the RAID drivers.

After that, you can continue the OS installation.

STEP 1: Set up UEFI.

Using SATA2 HDDs without NCQ and Hot Plug functions (IDE mode)

64-bit Without RAID Functions

If you want to install Windows

your SATA2 HDDs without RAID functions, please follow below steps.

Using SATA2 HDDs with NCQ and Hot Plug functions (AHCI mode)

STEP 1: Set up UEFI.

A. Enter UEFI SETUP UTILITY Advanced screen Storage

B. Set the “SATA Mode” option to [AHCI].

The Flash Memory on the motherboard stores BIOS Setup Utility. When you start up

the computer, please press <F2> or <Del> during the Power-On-Self-Test (POST)

to enter BIOS Setup utility; otherwise, POST continues with its test routines. If you

wish to enter BIOS Setup after POST, please restart the system by pressing <Ctl>

+ <Alt> + <Delete>, or pressing the reset button on the system chassis. The BIOS Setup program is designed to be user-friendly. It is a menu-driven program, which

allows you to scroll through its various sub-menus and to select among the prede-

termined choices. For the detailed information about BIOS Setup, please refer to the

User Manual (PDF fi le) contained in the Support CD.

4. Software Support CD information

This motherboard supports various Microsoft

operating systems: 8 /

64-bit. The Support CD that came with the

motherboard contains necessary drivers and useful utilities that will enhance moth-

erboard features. To begin using the Support CD, insert the CD into your CD-ROM

drive. It will display the Main Menu automatically if “AUTORUN” is enabled in your

computer. If the Main Menu does not appear automatically, locate and double-click

on the fi le “ASSETUP.EXE” from the BIN folder in the Support CD to display the

(CLRCMOS1, 3-Pin jumper)

- Supporter DDR3 1866/ 1600/1333/1066 non-ECC, sans

- Gestion jumperless

Certifi cations - FCC, CE, WHQL

- Supporto DDR3 1866/1600/1333/1066/800 non-ECC,

- Supporta PXE Pannello I/O Panel

- Supporta “Plug and Play”

- Compatibile con ACPI 1.1 wake up events

- Supporta jumperfree

- ACPI 1.1 compliance wake up events

- DRAM, VDDP, VDDR Voltage Multi-adjustment

Sertifi kalar - FCC, CE, WHQL

SATA2 arayüzü 3,0 Gb/sn veri

- DDR3 1866/1600/1333/1066 non-ECC, un-buffered メ

- ACPI 1.1 Compliance Wake Up Events

Installing OS on a HDD Larger Than 2TB This motherboard is adopting UEFI BIOS that allows Windows

on a large size HDD (>2TB). Please follow below procedure to install the operating

1. Please make sure to use Windows

64-bit (with SP1 or above),

2. Press <F2> or <Delete> at system POST. Set AHCI Mode in UEFI Setup Utility >

Advanced > Storage Confi guration > SATA Mode.

3. Choose the item “UEFI:xxx“ to boot in UEFI Setup Utility > Boot > Boot Option #1.

(“xxx” is the device which contains your Windows

installation fi les. Normally it is

an optical drive.) You can also press <F11> to launch boot menu at system POST

and choose the item “UEFI:xxx“ to boot.

This motherboard is adopting UEFI BIOS that allows Windows

on a large size HDD (>2TB). Please follow below procedure to install the operating

1. Please make sure to use Windows

64-bit (with SP1 or above),

2. Press <F2> or <Delete> at system POST. Set RAID Mode in UEFI Setup Utility >

Advanced > Storage Confi guration > SATA Mode.

3. Choose onboard RAID 3TB+ unlocker > UEFI Mode For GPT partition. Press

<F10> to save the change and exit.

4. Press <F11> to enter Boot Manual. Choose UEFI : Built - in EFI Shell.

5. Key in drvcfg, for example you will see below:

7. And then key in drvcfg –s [Drv number] [Ctrl number] to enter Raid Utility.

For example: key in drvcfg –s 4E B5.

8. Choose Logical Drive Main Menu to set up Raid Drive.

11. Press Space on keyboard to toggle checkbox.

12. Choose Ld Size setting, and key in the Raid size.

13. After set up Raid size, please click Start to Create.

14. Press <F10> to exit Utility.

15. During reboot, please press <F11> to enter Boot Manual. Choose UEFI: SCSI CD/DVD Drive.

* This option only shows on Windows

8 64-bit, 7 64-bit and Vista

64-bit in a large hard

disk (ex. Disk volume > 2TB), it may take more time to boot into Windows

or install driver/utilities. If you encounter this problem, you will need to

following instructions to fi x this problem.

does not provide hotfix for this problem. Below steps are

b. De-select Local Disks for System Restore. Then Click “Turn System

Restore Off” to confi rm. Then Press “Ok”.153

ASRock FM2A55 Pro Motherboard

B. Disable “Volume Shadow Copy” service.

a. Type “computer management” in the Start Menu, then press “Enter”.

b. Go to “Services and Applications>Services”; Then double click “Volume

c. Set “Startup type” to “Disable” then Click “OK”.154

C. Reboot your system.

D. After reboot, please start to install motherboard drivers and utilities.

A. Please request the hotfi x KB2505454 thru this link:

B. After installing Windows

8 64-bit / 7 64-bit, install the hotfi x kb2505454.

(This may take long time; >30 mins.)

C. Reboot your system. (It may take about 5 mins to boot.)

will install this hotfi x then reboot by itself.

E. Please start to install motherboard drivers and utilities.
