USER MANUAL Voxtel D575 AEG

Thank you for purchasing this product. This product has been designed and assembled with utmost care for you and the environment. This is why we supply this product with a quick installation guide to reduce the number of paper (pages) and therefor save trees to be cut for making this paper.

A full and detailed user guide with all the features described can be found on our website www.aegtelephones.eu . Please download the full user guide in case you want to make use of all the advanced features of your product. To save the environment we ask you not to print this full user guide. Thank you for supporting us to protect our environment.

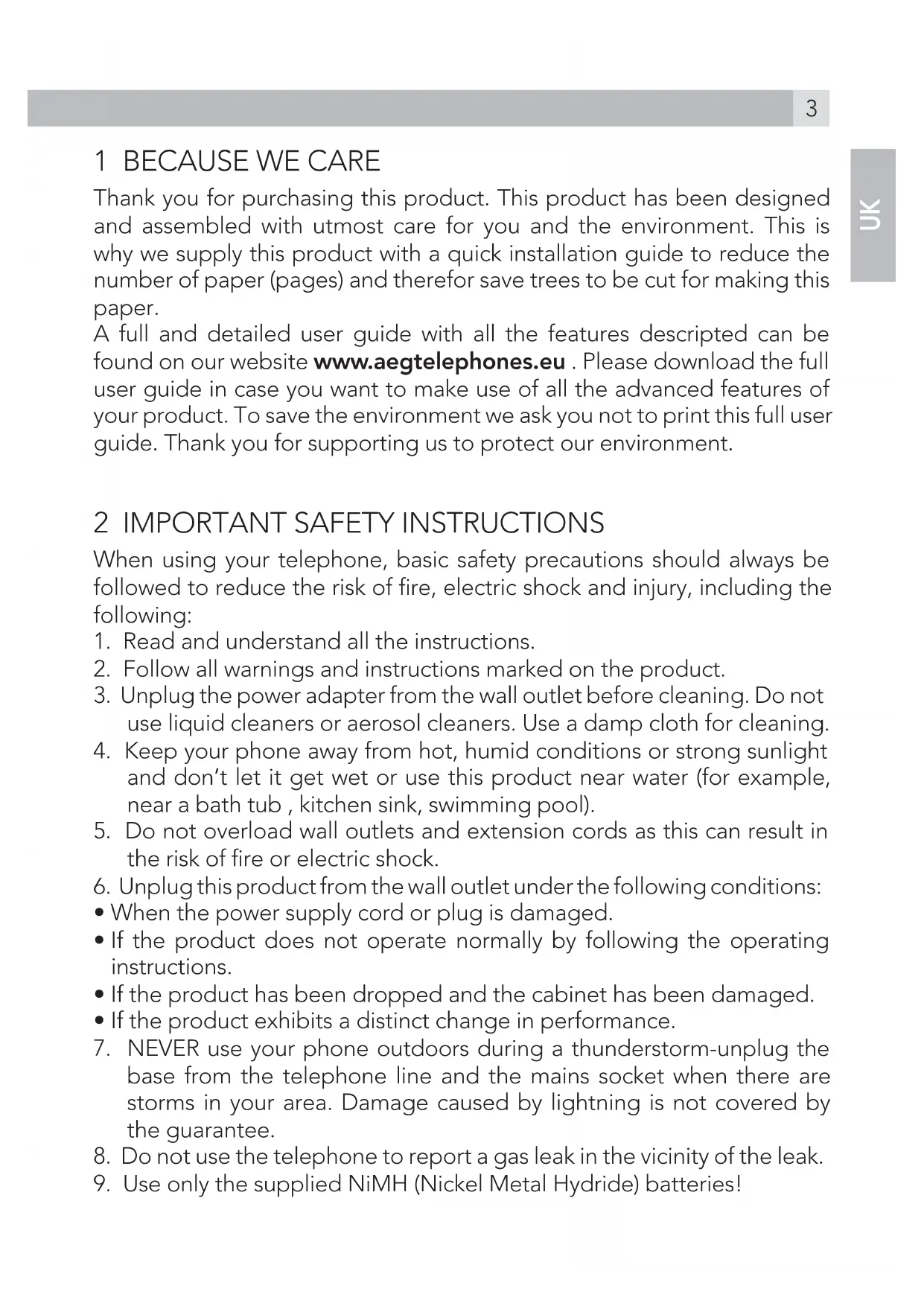

2 IMPORTANT SAFETY INSTRUCTIONS

When using your telephone, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:

1. Read and understand all the instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug the power adapter from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Keep your phone away from hot, humid conditions or strong sunlight and don't let it get wet or use this product near water (for example, near a bath tub, kitchen sink, swimming pool).
5. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock.
6. Unplug this product from the wall outlet under the following conditions:
7. When the power supply cord or plug is damaged.
8. If the product does not operate normally by following the operating instructions.
9. If the product has been dropped and the cabinet has been damaged.
10. If the product exhibits a distinct change in performance.
11. NEVER use your phone outdoors during a thunderstorm-unplug the base from the telephone line and the mains socket when there are storms in your area. Damage caused by lightning is not covered by the guarantee.
12. Do not use the telephone to report a gas leak in the vicinity of the leak.

13. Use only the supplied NiMH (Nickel Metal Hydride) batteries!

14. The use of other battery types or non-rechargeable batteries/primary cells can be dangerous. These may cause interference and/or damage to the unit or surroundings. The manufacturer will not be held liable for damage arising from such non-compliance.

15. Do not use third party charging bays. Damage may be caused to the batteries.
16. Please ensure the batteries are inserted in the correct polarity.
17. Dispose of batteries safely. Do not immerse them in water, burn them, or put them where they could get punctured.

3 INTENDED USE

This telephone is intended to be connected to a public analogue telephone network or to an analogue extension of an approved compatible PBX system.

4 UNPACKING YOUR PHONE

In the box you will find:

• 1 Handset
  1 Base station
• 1 Mains power adapter
• 1 Telephone line cord
• 2 AAA rechargeable batteries
• 1 User manual

Keep the packing materials in a safe place in case you later need to transport the device.

4.1 Handset-base connection

• When purchased, all handset are already registered to the base unit, when they are all powered up and turned on.

• To use your handset and base together, they must establish a radio link between them. The signal range may decrease if there is any large metal object between the handset and the base, such as a refrigerator, a mirror, a filing cabinet, metallic doors or reinforced concrete. The signal strength may also be reduced by other solid structures like walls or by other radio or electrical interference.

• Do not place the handset or base close to another telephone, a TV or audio equipment - they may cause interference.

• Out of range warning - if you hear a warning tone during a call, and/or the sound in the earpiece becomes faint or distorted, you may be going out of range of the base unit, so move nearer to the base within 20 seconds, otherwise the call may be cut off.

5 GETTING TO KNOW YOUR PHONE

5.1 Handset overview (see P1)

# Meaning
1	Up/redial key • In idle mode: press to access the radial list • In menu mode: press to scroll up the menu items • In phonebook / radial / call list: press to scroll up the list • During a call: press to increase the volume • During ringing: press to increase the ringer volume
2	Left key • In editing mode: move the cursor one character to the left. • During a call: press to mute / unmute the microphone
3	Left soft key (clear/back/mute/intercom) • In main menu mode: press to go back to idle screen • In sub-menu mode: press to go back to idle level • In editing / predialling mode: press to clear a character/ digit • In editing / predialling mode: press to delete characters / digits • In idle mode: press for internal call to another handset
4	On/Talk key • In idle / predialling mode: press to make a call • In radial / call / phonebook list: press to make a call to the displayed entry • During ringing: Press to answer a call

5		Speakerphone key / handsfree • During a call: press to turn on / off the speakerphone. • Call list / phonebook entry: press to make a call with speakerphone • During ringing: press to answer a call with speakerphone
6		Phonebook key • In idle mode: press to access the phonebook.
7		Right key • In editing mode: move the cursor one character to the right.
8		Right soft key (menu/ok) • In idle mode: press to access the main menu • In sub-menu mode: press to confirm the selection • During a call: press to access thephonebook/ radial/ call list
9		Off / Hang up key • During a call: press to end a call and go back to idle screen • In menu / editing mode: press to go back to idle screen • In idle mode: press and hold to power off the handset • When the handset is powered off: press and hold to power on the handset
10		Down key (call list/down) • In idle mode: press to access the call list • In menu mode: press to scroll down the menu items • In phonebook / radial / call list: press to scroll down the list • During a call: press to decrease the volume • During ringing: press to decrease the ringer volume
11	R	Flash key • During a call: press to generate flash signal
12		Microphone

5.2 Display icons and symbols

The LCD display gives you information on the current status of the telephone.

	Meaning
	Indicate when the battery is fully charged.
	Indicate when the battery is 1/2 charged.
	Flash when low battery is detected and indicated that is needs charging.
	On when Wideband sound is set to ON.
	On the line has been seized. Flashes when there is an incoming call.
	On when speaker/handsfree is activated.
	On when answering machine is turned on.
	Indicate a missed call.
	Indicate a new message on answering machine. Flashes when the answering machine memory is full.
	On when a call is muted.
	On when the keypad lock is activated (long press!).
	On when the ringer is turned off.
	The handset is within the range of base, the signal is weak.
	The handset is within the range of base, the signal is excellent.
	The handset is almost out of range of base.

5.3 Base station (see P3)

# Meaning
13	+	Vol - / Vol + Press to decrease or increase the speaker volume during voice message playback.
	-
14	→	Skip forward Press to skip to a message during playback.
15	←	Skip backward Press once to repeat playing the current message from the beginning. Press twice to skip backward to play the previous message.
16	×	Delete Press once to delete the voice message during playback. Press and hold to delete all old messages in idle. mode
17	●	Page Press to page all the registered handsets.
18	○	On/off Press to turn on the answering machine ON/OFF.
19	▷/■	Play/Stop Press to play the messages. During message playback, press to stop the playback.

5.4 Text and Digit Entry

In editing mode, a cursor is displayed to indicate the current text entry position. It is positioned at the right of the last character entered.

Writing Tips:

• Once a character is selected, the cursor will move to the next position after a short pause.

• You can move the cursor within the text with the / keys to amend the text entry.

• Press "CLEAR" to delete the last character.
• Press and hold "CLEAR" to delete the entire text string.

6 INSTALLATION

6.1 Connecting the base station (see p4)

• Plug the power supply and line cord into the base station.
• Plug the power adapter into a 110-230 Vac, 50/60Hz mains socket and the line cord into your telephone line socket.
• Route the power adaptor and telephone line cords through the corresponding slots on the back of the telephone base.
• Always use the cables provided in the box.

Warning:

Use only the provided adaptor, using other power supplies may cause a hazard or damage the phone.
Install the base unit in a position where the mains adapter plug will reach an easily accessible mains socket to unplug in case needed. Never try to lengthen the mains power cable.

Note:

The base unit needs mains power for normal operation, not just for charging the handset batteries.

6.2 Installing and charging the batteries (see P2)

• Place the 2 supplied batteries into the battery compartment with the polarity markings as shown. Use only the NiMH rechargeable battery type provided with the telephone.
• Position the battery compartment cover over the batteries and slide up to click into place.
• Put the handset on the base and charge for 24 hours before using the handset for the first time.

The handset will give a beep when it is properly placed on the base or charger.

7.1.1 Preparatory dialling

• Enter the phone number and press C or to connect to the line and dial the number.

When entering the number, if you make a mistake, press "CLEAR" to delete digits.

7.1.2 Direct dialling

• Press (or) to connect to the line and then enter the phone number.

7.1.3 Call from the phonebook

• Press to access the phonebook and press to select the desired phonebook entry.
• Press (or dial out the selected phonebook entry.

Note:

You can also access the phonebook by pressing "MENU", OK.

Note:

The alphanumeric keys provide a short-cut to find entries beginning with the corresponding letters.

7.1.4 Call from the call list (only available with caller display)

• Press to access the call list and press to select the desired call list entry.
• Press or dial out the selected call list entry.

7.1.5 Call from the radial list

• Press to access the radial list and press to select the desired radial number.
• Press (or dial out the selected radial number.

7.1.6 Call timer

Your handset automatically times the duration of every call.

The call timer is displayed as soon as you answer a call or 15 seconds after dialling and remains on the screen for 5 seconds after the end of the call. It is shown in hours, minutes and seconds format (HH:MM:SS).

7.2 Answer a call

• When the phone rings, press or no answer a call.

Note:

If "AUTO ANSWER" is set to "ON" then lifting the handset off the base or charger will answer the call automatically and no keys need to be pressed.

7.3 End a call

• During a call press ① to end the call.

OR

• Put the handset on the base station or charger to end the call.

7.4 Adjust volume

There are 5 levels to choose from for each of the earpiece and speaker volumes.

During a call:

• Press / to select volume 1-5. The current setting is shown.

  When you end the call, the setting will remain at the last selected level.

7.5 Mute

You can talk to someone nearby without letting the caller hear you during a call.

During a call:

• Press to mute the microphone and "MUTED" will display on the LCD.

Your caller cannot hear you. Press again to unmute the microphone.

7.6 Turn off the handset ringer

• In idle, press and hold * to turn off the handset ringer. The icon is displayed on the LCD.

Note:

The display will still flash the call icon and show "CALL" or the caller display number, when there is an incoming call, even if the ringer is turned off.

To turn the ringer back on, press and hold * again.

7.7 Turn on the keypad lock

• In idle, press and hold # to turn on. The icon is displayed on the LCD and the screen wil show "KEYPAD LOCKED".

Note:

You can still use or to answer a call when the handset is ringing. To turn the keypad lock off, press and hold # again.

7.8 Redial

You can redial any of the 20 last numbers called. If you have stored a name in phonebook to go with the number, the name will be displayed instead. The most recent last number will display at the top of the radial list.

7.8.1 Redial a number from the radial list

• In idle mode, press to access the radial list.
• Press / to browse the radial list.
• Press or dial to the selected radial number.

Note:

If there are no numbers in the radial list, the display shows "LIST EMPTY".

7.9 Find the handset

You can locate the handset by pressing on the base station. All the handsets registered to the base will produce the paging tone and show "PAGING" on the display.

You can stop the paging by pressing, or on any handset.

Note:

If there is an incoming call during paging, the phone will ring with the incoming call instead of paging.

7.10 Make an Internal Call

This feature is only applicable when there are at least two registered handsets. It allows you to make internal calls, transfer external calls from one handset to another handset and make conference calls.

Note:

If only one handset is registered to the base station, when the soft key is pressed, it will display "HANDSET NOT AVAILABLE".

7.10.1 Call another handset

• In idle mode, press "INTERN" and all the other registered handset numbers will display.
• Press / or to select the handset that you want to call.
• Press OK, the called handset will ring.
• Press or on the called handset to establish the intercom call.

Note:

If only two handsets are registered to the base station, pressing "INTERN" will call the other handset immediately.

If the called handset is not answered within 60 seconds, the called handset will stop ringing and the calling handset will return to standby mode.

8 PRIVATE PHONEBOOK

Each handset can store up to 200 private phonebook entries with names and numbers. Each phonebook entry can have a maximum of 24 digits for the phone number and 14 characters for the name. You can also select different ringtones for your phonebook entries. (Note: the different ringtones only play when you subscribe to caller ID and the incoming number matches the stored number.) Phonebook entries are stored alphabetically by name.

8.1 Add a new phonebook entry

In idle:

• Press to access the phonebook.
• Press / or / to select "NEW ENTRY".
• Press OK to enter the name.
• Press OK to enter the number.
• Press OK and to select browse the ringtone list.
• Press OK to confirm and the entry will be stored.

8.2 Search for a phonebook entry

In idle:

• Press to access the phonebook.
• Enter the first letter of the name using the alphanumeric keys (e.g. if it begins with C, press the 2 key three times) and then / to scroll to the entry you want.

8.3 View a Phonebook Entry

In idle:

• Press to access the phonebook.
• Press to select the desired phonebook entry.
• Press "OPTION" and / to select "VIEW ENTRY".
• Press OK and / to review the details of the selected phonebook entry.

8.4 Edit a phonebook entry

In idle:

• Press to access the phonebook.
• Press to select the desired phonebook entry.
• Press "OPTION" and / to select "EDIT ENTRY".
• Press OK to edit the name.
• Press OK to edit the number.
• Press OK and / to select the ringtone.
• Press OK to confirm.

8.5 Delete a phonebook entry

In idle:

• Press to access the phonebook.
• Press to select the desired phonebook entry.
• Press "OPTION" and / to select "DELETE ENTRY".
• Press OK and the screen will display "DELETE?"
• Press "YES" to confirm. The entry will be deleted

9 CALLER ID DISPLAY (NETWORK DEPENDENT)

This feature is available if you have subscribed to the calling Line Identification service with your network service provider. Your phone can store up to 50 received calls with date/time information in the call list. The number will be shown on the handset display when the phone is ringing. If the number matches with one of the entries in your phonebook, the caller's name stored in the phonebook will be displayed alternately with the number and the handset will ring with the ringtone associated with that phonebook entry.

If the call is from someone who withheld their number, "WITHHIELD" will display.

If the call is from someone whose number is unavailable, e.g. an international call or from a private exchange, "OUT OF AREA" will display.

If you've got new caller display records, the handset will display "X NEW CALLS" in standby mode. The New calls indication will remain until all the new call records have been viewed on that handset.

9.1 View the call list

All received calls are saved in the call list with the latest call at the top of the list. When the call list is full, the oldest call will be replaced by a new call. Any unanswered calls which have not been viewed are marked with a

icon at the centre of the bottom line of the display.

• Press to access the call list.
• Press to select the desired entry.
• Press "OPTION" and then / to scroll to "DETAILS".
• Press OK to view the date and time of the call.

9.2 Store a call list number into the phonebook

• Follow in Section 9.1.
• Press "OPTION" and to scroll to "STORE NUMBER".
• Press OK to enter the name.
• Press OK to edit the number if necessary.
• Press OK to select the ringtone.
• Press OK to store the phonebook entry and return to the calls list.

9.3 Delete an entry in the call list

• Press "OPTION" and to scroll to "DELETE ENTRY".
• Press OK and the screen will display "DELETE?".
• Press "YES" to confirm

9.4 Delete all call list entries

• Press "OPTION" and to scroll to "DELETE ALL".
• Press OK and the screen will display "DELETE ALL?".
• Press "YES" to confirm. All entries will be deleted.

10 PHONE SETTINGS

10.1 Handset Settings

10.1.1 Set the handset language

• Press "MENU" and / / to select " SETTINGS".
• Press OK and / to scroll to "HANDSET".
• Press OK and to scroll to "LANGUAGE".
• Press OK and select the display language.
• Press OK to confirm.

10.1.2 Date and Time Settings

If you subscribe to Caller Display the time and date settings will be automatically updated by the network when you receive an incoming call. The Caller Display service only sends the month and date, not the year, so you may need to set the year.

• Press "MENU" and / or / to select " SETTINGS".
• Press OK and / to select "DATE & TIME".
• Press OK and to select "SET TIME/DATE".
• Press OK to enter the time.
• Press OK to enter the date.
• Press OK to confirm.

10.1.3 Set the Auto Answer

If you turn on the Auto Answer, you can answer a call automatically by just lifting the handset off the base or charger, without having to press any key.

• Press "MENU" and / or / to select " SETTINGS".
• Press OK and / to scroll to "HANDSET".
• Press OK and / to select "AUTO ANSWER".
• Press OK to select "ON" or "OFF".
• Press OK to confirm.

10.1.4 Register a Handset

• Press "MENU" and / or / to select " SETTINGS".
• Press OK and / to scroll to "HANDSET".
• Press OK and / to select "REGISTER HS".
• Press OK to choose the base to register (1-4).

• Press OK and enter the 4-digit base PIN code.

• Press OK to confirm and the screen will display "PRESS AND HOLD PAGE BUTTON!".

• Press and hold the page button on the base. The screen will display "PLEASE WAIT..." for a few seconds. There is a confirmation tone when the handset is successfully registered.

10.1.5 Reset the handset

• Press "MENU" and / or / to select " SETTINGS".
• Press OK and / to scroll to "HANDSET".
• Press OK and to select "RESET HANDSET".
• Press OK to enter the 4-digit PIN code.
• Enter the 4-digit PIN code
• Press OK to confirm and the screen will display "RESET HANDSET TO DEFAULT?"
• Press "YES" to confirm. The screen will display "PLEASE WAIT..." for a few seconds and the handset will be reset.

Note: The default PIN code is "0000"

10.2 Base Settings

10.2.1 Set the ringer melody

• Press "MENU" and / / to select " SETTINGS".
• Press OK and / to scroll to "BASE".
• Press OK and / to scroll to "RINGER".
• Press OK and / to scroll to "MELODY".
• Press OK and / to scroll to the desired melody.
• Press OK to confirm.

Note:

The respective melody will play as you scroll through the selections.

10.2.2 Set the ringer volume

• Press "MENU" and / or / to select " SETTINGS".
• Press OK and / to scroll to "BASE".
• Press OK and / to scroll to "RINGER".
• Press OK and / to scroll to "VOLUM".
• Press OK and / to scroll to the desired volume (a total of 6 ringer volume levels including "OFF", for selection).
• Press OK to confirm.

Note:

The respective ringer volume will be played during your selection.

10.2.3 Reset the Base

• Press "MENU" and / / to select " SETTINGS".
• Press OK and / to scroll to "BASE".
• Press OK and / to scroll to "RESET BASE".
• Press OK to enter the 4-digit system PIN code.
• Enter the 4-digit system PIN code
• Press OK to confirm and the screen will display "RESET BASE TO DEFAULT?"
• Press "YES" to confirm. The screen will display "PLEASE WAIT..." for a few seconds and the handset will be reset.

10.3 Display Settings

10.3.1 Set the Colour Scheme

• Press "MENU" and / or / to select "DISPLAY".
• Press OK and / to scroll to "COLOUR SCHEME".
• Press OK and then / to scroll to your desired colour scheme.
• Press OK to confirm.
• Press OK to select the desired screenshot.

10.3.2 Set the Brightness

• Press "MENU" and / or / to select "DISPLAY".
• Press OK and / to scroll to "BRIGHTNESS".
• Press OK and then / to increase or decrease the brightness level
• Press OK to confirm.

10.3.3 Set the LCD Backlight

• Press "MENU" and / or / to select "DISPLAY".
• Press OK and / to scroll to "LCD BACKLIGHT".
• Press OK and then / to scroll to "ON", "DIM" or "OFF".
• Press OK to confirm.

Note :

The LCD backlight function is only used when handset is placed in base for charging. When set to "OFF" the handset display will not light up when handset is charging on base and also info on new calls will not be visual as the display is "OFF"

10.4 Audio Settings

10.4.1 External ringing melody

• Press "MENU" and then / or / to select "AUDIO".
• Press OK and then / to scroll to "RINGER SETTINGS".
• Press OK and then / to scroll to "EXTERNAL CALLS".
• Press OK and then / to scroll to the desired melody
• Press OK to confirm.

10.4.2 Internal ringing melody

• Press "MENU" and then / or / to select "AUDIO".
• Press OK and then / scroll to "RINGER SETTINGS".
• Press OK and then / to scroll to "INTERNAL CALLS".
• Press OK and then / to scroll to the desired melody
• Press OK to confirm.

10.4.3 Ringer Volume

• Press "MENU" and then / or / to select "AUDIO".
• Press OK and then / scroll to "RINGER SETTINGS".
• Press OK and then / to scroll to "VOLUME".
• Press OK and then to scroll to the desired volume
• Press OK to confirm.

11 ANSWERING MACHINE

Your phone includes a telephone answering machine that records unanswered calls when it is on. The answering machine can store up to 59 messages within the maximum recording time of 30 minutes. As well as recording incoming messages, you can record memos for other users of your phone.

If the answering machine memory is full, the Handset will display "TAM FULL" alternately with the handsets name or time, depending on the handset standby display mode set. You will have to delete some messages before any new ones can be recorded.

11.1 Turn on/off the answering machine

When the answering machine is set to "ON", calls will be answered after the set answer delay and the caller can then leave you a message.

When the answering machine is set to "OFF", calls will be answered after 14 rings and the answer only message will be played to your callers. They will not be able to leave you a message.

Using the base:

• Press ① on the telephone base to turn the answering machine on or off.

Using the handset:

• Press "MENU" and / r / to select "ANS. MACH".
• Press OK and / to select "ANSWER ON/OFF".
• Press OK and / to select "ON" or "OFF".
• Press OK to confirm.

If answering machine is set to "ON", displays on the handset LCD.

11.2 Listen to the messages

After a new message is played it will be saved as an old message automatically unless it is deleted.

Old messages will be played after all new messages are all played.

• Press "MENU" and / r / to select "ANS. MACH".
• Press OK and to select "PLAY MESSAGES".
• Press OK to start message playback through the earpiece, the screen displays the date and time information of the message received.

Note:

A is placed at at the top of the h the handset display to indicate that there is a new message.

When a message has been played, the ★ will disappear to indicate the message has been listened

During message playback, press or to increase or decrease the message playback volume respectively.

• Press "STOP" and "DELETE" to perform the following functions during message playback.

Stop: Stop the current message playback and return to the "ANS. MACH" menu.
Delete: Delete the current message and the next message will be played.

Note:

Alternatively, you can use the keys on the base to control different operations during message playback.

• Press to stop message playback.

• Press Once to repeat playing the current message from the beginning. Press twice to skip backward to play the previous message.

• Press to skip to play next message.
• Press x to delete the current message playback.

11.3 Delete all messages in the answering machine

• Press "MENU" and / / to select "ANS. MACH".
• Press OK and / to select "DEL OLD MSGS".
• Press OK to display "DELETE OLD-messages?".
• Press OK to confirm.

Note:

If there are no more messages in the answering machine, "NO OLD MESSAGES" will display and return back to "ANS. MACH" menu.

11.4 Answering machine settings

You can use the "TAM SETTINGS" menu through the handset to change the settings of your answering machine.

11.4.1 Set the answer mode

By default, the answer machine is set in "ANS & RECORD" mode which allows callers to leave a message. This mode can be changed to "ANSWER ONLY" which does not allow callers to leave a message.

• Press "MENU" and / r / to select "ANS. MACH".
• Press OK and / to select " SETTINGS".
• Press OK and to select "ANSWER MODE".
• Press OK and / to select "ANS & RECORD" or "ANSWER ONLY".
• Press OK to confirm.

When your answering machine memory is full and is in "ANS & RECORD", the answer mode will change to "ANSWER ONLY" automatically. It will return to "ANS & RECORD" mode automatically after some messages have been deleted.

11.4.2 Record Your Outgoing Message (OGM)

You can record your own OGM for "ANS & RECORD" mode or "ANSWER ONLY" mode. When you record your own OGM, it will be used when the answering machine answers the call. If your personalised OGM is deleted, the pre-set OGM will be restored automatically.

• Press "MENU" and / r / to select "ANS. MACH".

• Press OK and / to select "OUTGOING Mess."

• Press OK and / to select "RECORD OGM".

• Press OK and / to select "ANS & RECORD" or "ANSWER ONLY".
• Press OK and to select "RECORD PRESS".
• Press OK to start recording your personalised OGM
• Press "SAVE" to stop and save your personalised OGM. >Your newly saved OGM will playback automatically.
• Alternatively, press "BACK" to return to previous screen without saving the personalised OGM

11.4.3 Set the Answer Delay

You can set the number of rings before the answering machine answers the incoming call. You can set the answering machine to answer after two to eight rings or TIME Saver. If Time Saver is set the answering machine will answer after 4 rings if there are no new messages, or after 2 rings if there is a new message, so if you call in and you don't get an answer after 2 or 3 rings, you can hang up and know there is no new message.

• Press "MENU" and / r / to select "ANS. MACH".
• Press OK and / to select " SETTINGS".
• Press OK and / to select "ANSWER DELAY" (Available options: "2 RINGS", "4 RINGS", "6 RINGS", "8 RINGS" or "TIME Saver").
• Press OK and / to select your desired answer delay.
• Press OK to confirm.

11.4.4 Call screening via Base

When the answering machine is on and takes a call, you can listen to the caller leaving a message via the base speaker. You can then identify the caller and decide whether to answer the call in person. You can switch the base speaker on or off during message recording

• Press "MENU" and / r / to select "ANS. MACH".
• Press OK and / to select " SETTINGS".
• Press OK and / to select "CALL SCREENING".
• Press OK and / to select "OFF" or "ON".
• Press OK to confirm the setting

At any time if you want to pick up the call, you can press C and the message recording will be stopped automatically. If the answering machine is in the process of recording, the message already stored will be saved.

11.4.5 Call screening via Handset

If the answering machine is set to "ON" and there is an incoming message, the handset will display "SCREENING?".

Press "YES" and you can hear the message via the handset.

At any time if you want to pick up the call, you can press C and the message recording will be stopped automatically.

11.4.6 Activate Remote Access

You can check your messages, or operate your answering machine, by calling the answering machine when you are away from home and then dialling a 4-digit remote access PIN from a tone-dialling phone.

The 4-digit remote access PIN code is used to prevent other people from unauthorised access of your answering machine.

• Press "MENU" and / r / to select "ANS. MACH".
• Press OK and / to select " SETTINGS".
• Press OK and / to select "REMOTE ACCESS".
• Press OK and / to select "ON" or "OFF" to turn the remote access on or off respectively.
• Press OK and enter the Old PIN. (Default Remote Access PIN is 0000).
• Press OK and enter the New PIN.
• Press OK and enter the New PIN again.
• Press OK to confirm.

11.4.6.1 Access Your Answering Machine Remotely

You can ring your phone from another tone-dialling phone to switch the answering machine on or off and/or listen to your messages remotely.

• Call your own number.
• When the answering machine answers the call and starts playing the OGM, press the key. The OGM will stop playing
• Enter the 4-digit Remote Access PIN (default PIN is 0000). You will hear a single beep if the 4 digits are accepted and then will need to press 5 to start playing the messages.
• Press the following keys to carry out your desired function.

Keys Functions
	While message is not playing While message is playing
2 Delete the current message	While message is playing
4 Repeat playing the current	While message from the beginning. Press twice to skip backward to play the previous message
5 Play the message Stop the current	While message playback
6 Skip to play the next message
7 Turn the answering machine ON
8 Stop the current message	palyback
9 Turn the answering machine OFF

Note:

If your answering machine is switched off, the phone will enter into the remote access mode after 14 rings.

You can then enter the key and the 4-digit remote access PIN (Default

Remote Access PIN is 0000) to activate the remote access feature.

12 GUARANTEE AND SERVICE

The phone is guaranteed for 24 months from the date of purchase shown on your sales receipt. This guarantee does not cover any faults or defects caused by accidents, misuse, fair wear and tear, neglect, faults on the telephone line, lightning, tampering with the equipment, or any attempt at adjustment or repair other than through approved agents.

Please keep your sales (till) receipt this is your proof of guarantee.

12.1 While the unit is under Guarantee

• Disconnect the base unit from the telephone line and the mains electricity supply.
• Pack up all parts of your phone system.
• Return the unit to the shop where you bought it, making sure you take your sales receipt.
• Remember to include the mains adapter.

12.2 After the Guarantee has expired

If the unit is no longer under Guarantee, contact us via www. aegtelephones.eu

This product works with rechargeable batteries only. If you put nonrechargeable batteries in the handset and place it on the base, the handset will be damaged and this in NOT covered under the warranty conditions.

13 TECHNICAL DETAILS

Standard DECT

Frequency range 1.88 to 1.9 GHz (bandwidth = 20 MHz)

Channel bandwidth 1.728 MHz

Operating range Up to 300m outdoors; Up to 50m indoors

Operating time Standby: 200 hours, Talking: 17 hours Battery charge time: 24 hours

Temperature range Operating 0^ to 40^ , Storage -20^ to 60^

Electrical power Base :

• VT04EEU06045 / VT04EUK06045 input 100-240VAC 50/60Hz 150mA output 6VDC 450mA
• S003IB0600045/S003IV0600045

input 100-240VAC 50/60Hz 150mA, output 6VDC 450mA

Battery Information

Type Ni-MH (Rechargeable battery)

Voltage Rating 930 mAh, 2 X 1.2V AAA Size

Port specification

The port (connected to the mains power supply) is a SELV port with respect to EN41003.

The port (connected to the telephone line) is a TNV port with respect to EN41003.

14 CE DECLARATION

This product is in compliance with the essential requirements and other relevant provisions of the R&TTE directive 1999/5/EC.

The Declaration of conformity can be found on: www.aegtelephones.eu

15 DISPOSAL OF THE DEVICE (ENVIRONMENT)

At the end of the product lifecycle, you should not throw this product into the normal household garbage but bring the product to a collection point for the recycling of electrical and electronic equipments. The symbol on the product, user guide and/or box indicate this. Some of the product materials can be re-used if you bring them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment. Please contact your local authorities in case you need more information on the collection points in your area.

Batteries must be removed before disposing of the device. Dispose of the batteries in an environmental manner according to your country regulations.

Opmerking: De standardpincode is "0000"

10.2 Basisinstallingen

10.2.1 De beltoon instellen

© 2013 Binatone Electronics International Limited

All rights reserved
Subject to availability. Rights of modification reserved.
AEG is a registered trademark used under license from AB Electrolux (publ)

www.aegtelephones.eu
