KB 15340 W - Fridge AMICA - Free user manual and instructions

Brand	Amica
Model	KB 15340 W
Product type	Refrigerator
Energy class	A+
Annual consumption	109 kWh
Useful capacity (refrigerator)	47 L
Dimensions (H x W x D)	525 x 475 x 445 mm
Weight	16 kg
Power supply	230 V, 50 Hz
Climate class	N-ST
Noise level	41 dB(A)
Refrigerant	R600a (isobutane)
Defrost	Manual
Temperature setting	Rotary thermostat (positions 0-6)
Door reversal	Possible (left/right)
Interior cleaning	Warm water and mild detergent
Door gasket cleaning	Warm water, wipe dry
Recommended defrosting	When frost exceeds 10 mm
Safety instructions	Unplug before cleaning, do not repair yourself
Spare parts	Available through after-sales service

Frequently Asked Questions - KB 15340 W AMICA

How do I set the temperature of my AMICA KB 15340 W refrigerator?

Use the rotary selector located on the control panel. The positions range from 0 (off) to 6 (maximum cold). A position of 3 to 4 is generally recommended for optimal preservation.

Can I reverse the door opening direction?

Yes, door reversal is possible. Follow the steps in the manual: remove the hinges, replace the door on the other side, and reassemble. Be careful to protect the door from scratches.

How do I defrost the refrigerator?

To defrost, set the thermostat to 0, unplug the appliance, open the door and wait about 30 minutes. Remove frost and water, then clean and dry the interior before restarting.

What should I do if the appliance is not cooling enough?

Check that the plug is properly connected, the thermostat is set to a position >0, the door closes correctly, and the appliance is not near a heat source. If the problem persists, contact customer service.

Which foods should not be stored in the refrigerator?

Cold-sensitive fruits and vegetables like bananas, avocados, tomatoes, and cucumbers, as well as potatoes and unripe fruits, should not be stored in the refrigerator.

Why is there water at the bottom of the refrigerator?

This may be due to a blocked drain channel. Clean the clogged opening. Also make sure that food does not touch the back wall, which can cause condensation.

How do I clean the interior of the refrigerator?

Unplug the appliance, remove food and shelves. Clean with a cloth soaked in warm water and mild detergent. Do not use abrasive products. Dry thoroughly before restarting.

What noises are normal?

Cracking, gurgling, or compressor operating noises are normal. If the appliance makes noise when touching furniture, move it away. A rubbing noise may come from incorrectly positioned drawers.

What is the energy consumption of this refrigerator?

The annual consumption is 109 kWh, which corresponds to energy class A+. This may vary depending on use and location.

How to install the appliance correctly?

Place it on a solid, level floor, away from heat sources and direct sunlight. Leave at least 30 mm of space at the back for ventilation. Wait 2 hours before plugging in if the appliance has been tilted.

USER MANUAL KB 15340 W AMICA

Exterior view of a modern office building (no signage)

FM061.3 / KB 15340 W

PL - INSTRUKCJA OBSŁUGI....2

Simple line drawing of a mechanical component with an inset showing a joint or connection (no text or symbols)

Line drawing of a wall socket and hand holding a plug (no text or symbols)

5

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, beverages, and cooking utensils.

ODSZRANIANIE, MYCIE I KONSERWACJA

Simple line drawing of a hand cleaning water droplets inside a container (no text or symbols)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram of a mechanical assembly with a circular inset showing a joint or connection (no text or labels)

2

Line drawing of a wall socket and electrical plug (no text or symbols)

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, dairy products, and beverages

Illustration of a hand cleaning water droplets in a container (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

The Amica appliance is a combination of exceptional user-friendliness and excellent efficiency. Prior to dispatch, each unit was carefully checked for its safety and operating capabilities.

Before starting the appliance, please read this operating manual carefully.

Note!

This fridge is intended for use at home only.

The manufacturer reserves the right to introduce modifications, which do not affect the operation of the appliance. The changes in the equipment, as well as the inside and outside decoration, which do not affect its functionality and safety are permissible.

TABLE OF CONTENTS

Construction and equipment of the appliance....40

Guidelines concerning the safety of use....41

Change in the door hinging....42

Installation....44

Operation and functions....46

Using the refrigerator efficiently....48

Defrosting, washing and maintenance....49

Trouble-shooting....50

Environmental protection....52

Specification....53

Example: model FM061.3 / KB 15340

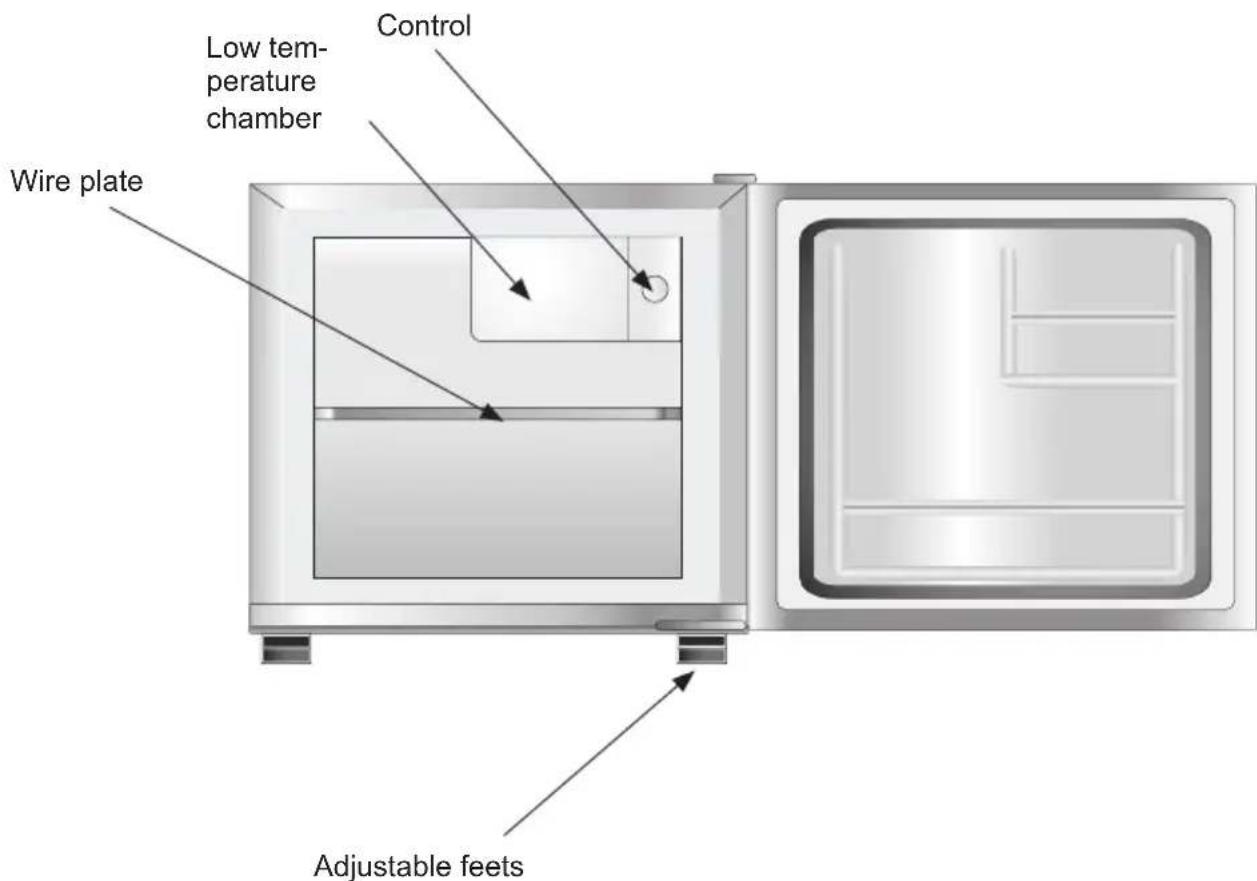

Low temperature chamber Control Wire plate Adjustable feet

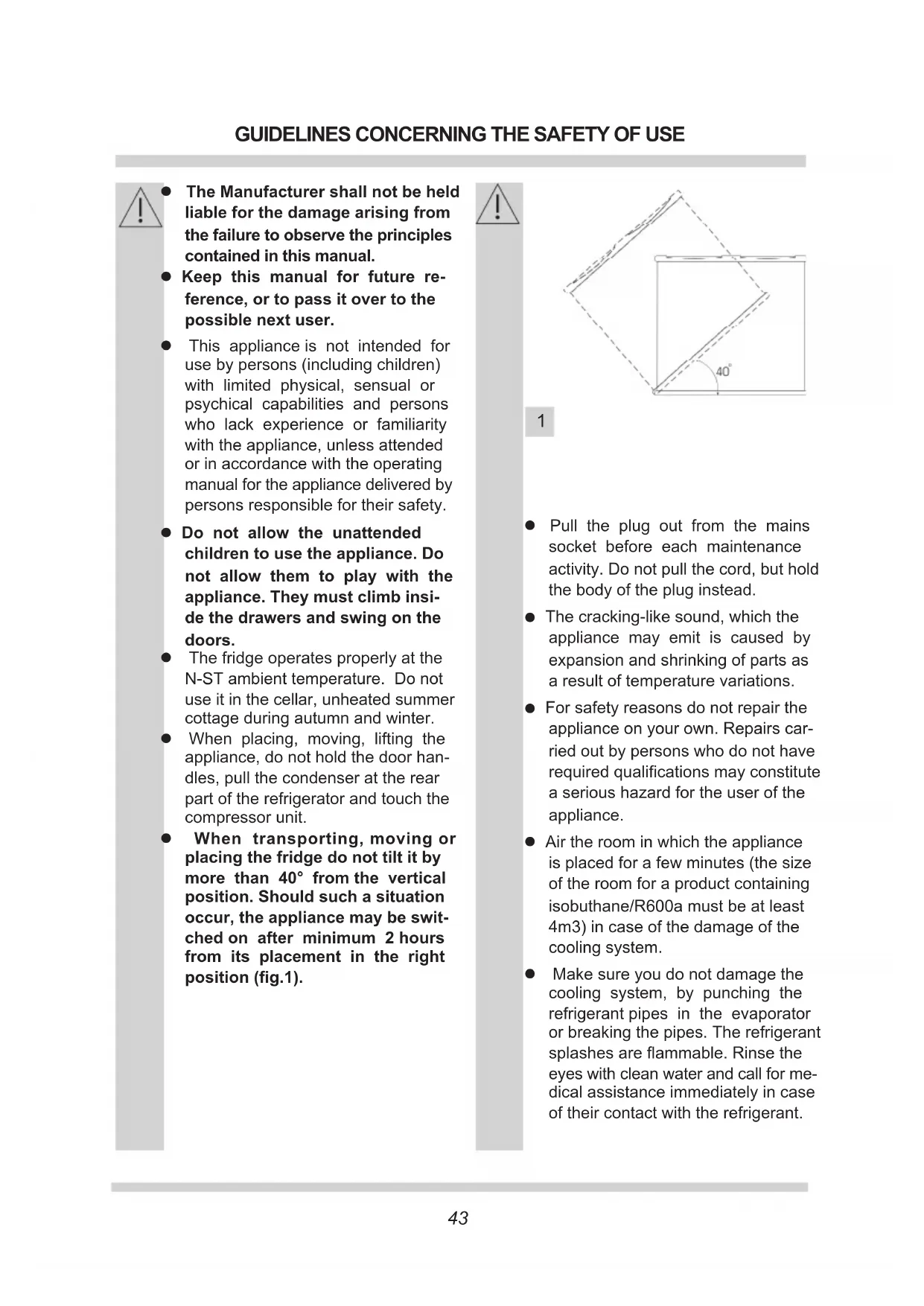

• The Manufacturer shall not be held liable for the damage arising from the failure to observe the principles contained in this manual.
• Keep this manual for future reference, or to pass it over to the possible next user.
• This appliance is not intended for use by persons (including children) with limited physical, sensual or psychical capabilities and persons who lack experience or familiarity with the appliance, unless attended or in accordance with the operating manual for the appliance delivered by persons responsible for their safety.
• Do not allow the unattended children to use the appliance. Do not allow them to play with the appliance. They must climb inside the drawers and swing on the doors.
• The fridge operates properly at the N-ST ambient temperature. Do not use it in the cellar, unheated summer cottage during autumn and winter.
• When placing, moving, lifting the appliance, do not hold the door handles, pull the condenser at the rear part of the refrigerator and touch the compressor unit.
• When transporting, moving or placing the fridge do not tilt it by more than 40^ from the vertical position. Should such a situation occur, the appliance may be switched on after minimum 2 hours from its placement in the right position (fig.1).

40°

1

• Pull the plug out from the mains socket before each maintenance activity. Do not pull the cord, but hold the body of the plug instead.
  ● The cracking-like sound, which the appliance may emit is caused by expansion and shrinking of parts as a result of temperature variations.
• For safety reasons do not repair the appliance on your own. Repairs carried out by persons who do not have required qualifications may constitute a serious hazard for the user of the appliance.
  ● Air the room in which the appliance is placed for a few minutes (the size of the room for a product containing isobuthane/R600a must be at least 4m3) in case of the damage of the cooling system.
  ● Make sure you do not damage the cooling system, by punching the refrigerant pipes in the evaporator or breaking the pipes. The refrigerant splashes are flammable. Rinse the eyes with clean water and call for medical assistance immediately in case of their contact with the refrigerant.

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

Installation before using the appliance for the first time

1. Take the product out of the package, remove the scotch tapes protecting the door and the equipment. The possibly remaining adhesive stains may be removed with a mild washing agent.
2. Do not throw away the polystyrene elements of the packaging. In the case of the necessity to transport the fridge, pack it in the polystyrene elements and film, as well as protect it with a scotch tape.
3. Clean the interior surface of the fridge and the elements of the equipment with a washing agent dissolved in lukewarm water, then wipe it dry.

4. Place the fridge on an even, flat and stable surface, in dry, aired and shadowy room, far from the heat sources such as an oven, cooktop, central heating radiator, central heating pipe, hot water installation, etc.

5. Make sure the appliance is placed in the horizontal position by screwing in 2 adjustable front legs (fig. 2)

Simple line drawing of a mechanical component with an inset showing a lever mechanism (no text or symbols)

2

1. In order to ensure easy opening of the door, the distance between the side wall of the appliance (from the side of the door hinges), and the wall should amount to: 50 mm.
2. Ensure adequate ventilation of the room and free air circulation from all sides of the appliance (fig. 3).

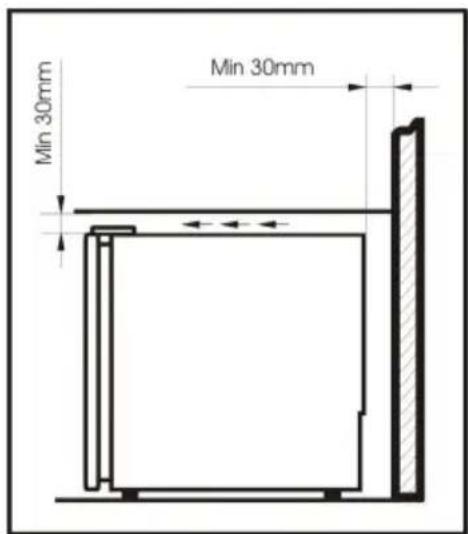

Minimal distances from the heat sources

• from the electric gas and other ovens
• 30 mm,
• from oil or coal fired ovens - 300 mm,
• from in-built ovens - 50 mm

Min 30mm Min 30mm

If there is no possibility to ensure the above-mentioned distances, provide an appropriate insulation board.

3

The rear wall of the refrigerator, in particular, the condenser and other elements of the cooling system may not contact other elements, which may damage them, (e.g. central heating pipe and the water supply pipe).

INSTALLATION AND OPERATING CONDITIONS OF THE APPLIANCE

It is prohibited to readjust or modify any parts of the unit. It is crucial not to damage the capillary tube visible in the compressor recess. The tube may not be bent, straightened and wound.

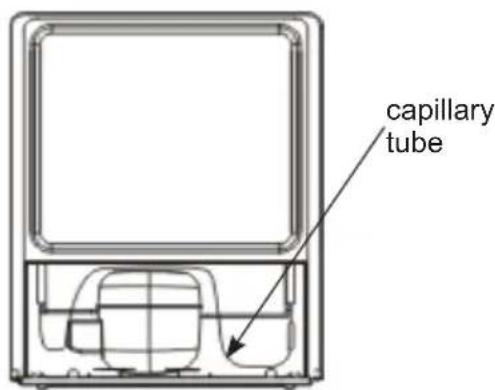

If the capillary tube is damaged by the user the guarantee will be void (fig. 4).

Do not use adapters, multiple sockets and two-wire extension leads. If it is necessary to use the extension lead, it must be equipped with a protection ring and a single socket and must have VDE/GS safety certificate.

4

capillary tube

Mains connection

• Before the appliance is connected to the mains, set the adjustment knob to the "0" position.

• The appliance is intended for connection to alternating current. The connection values for voltage (V) and frequency (Hz) are given on the nameplate in the cabinet. Power must be connected via a wall socket with switch. The wall socket should be easily accessible. All earthing requirements stipulated by the local electricity authority must be observed. The cabinet plug and wall socket should then give correct earthing. If in doubt, contact your local supplier or an authorised electrician.

• If the extension lead (with a protection ring and a safety symbol) is applied, its socket must be located at a safe distance from sinks and may not be exposed to water and other wastewater flooding.
  ● The data is provided on the rated plate located at the bottom of the wall inside the chamber.

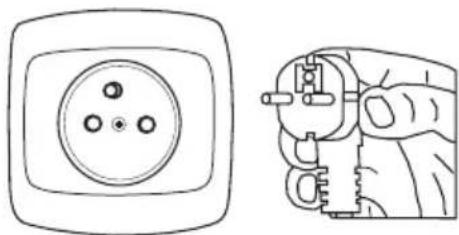

Mains disconnection

- Ensure the possibility of disconnecting the appliance from the mains by pulling out the plug or switching the two-pole switch off (fig. 5).

5

Line drawing of a wall socket and hand holding a plug (no text or symbols)

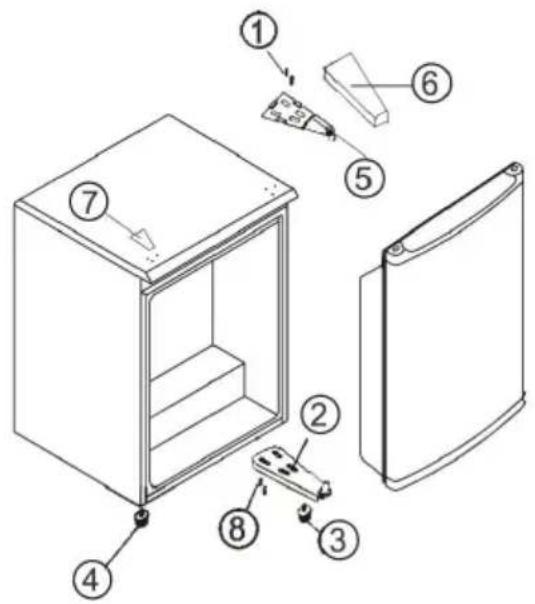

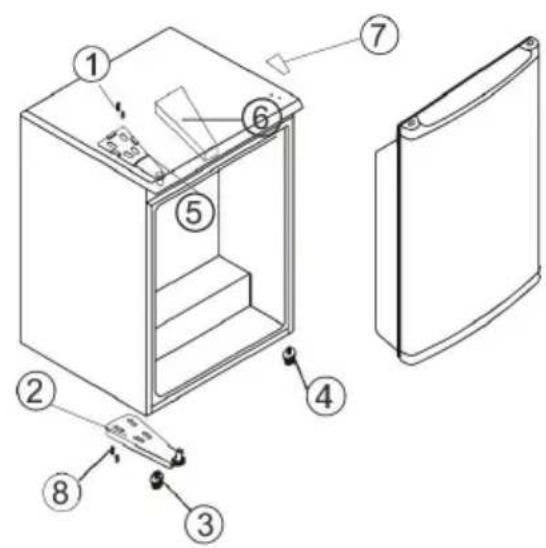

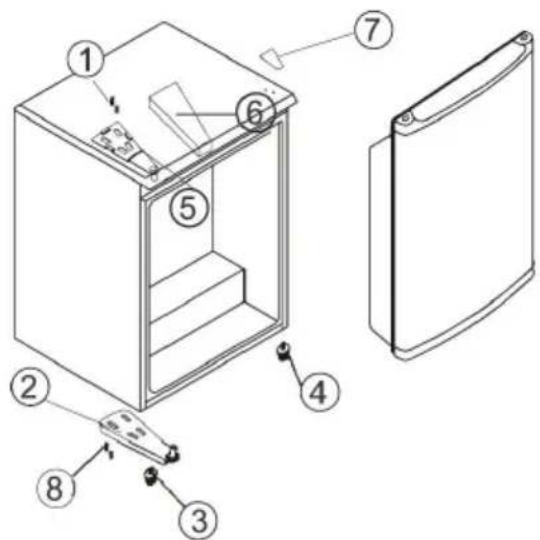

This bar refrigerator has the door hinges on the right. If you wish to change the opening direction, follow the instructions below:

1 Remove the upper hinge cover (6) first
2 Remove the two screws (1) that hold the upper hinge (5) (right side) to the frame. Take away the upper hinge (5).
3 Lift the door and place it on a padded surface to prevent scratching.
4 Remove the two screws (8) that hold the lower hinge (2), remove the lower hinge (2).
5 Remove the left front leg (4) and transfer it to the right side.
6 Remove the hole cover plate (7) on the right side.
7 Install the lower hinge (2) onto the left side of the lower frame with the two screws through the opposite two holes (8).
8 Set the door in its place making sure it rests on the door seat at the lower hinge (2).
9 While holding the door in the closed position secure the upper hinge (5) on the top left hand side with the two screws (1) through the opposite two holes. Do not tighten the two screws (1) until the top of the door is levelled with the counter top.
10 Install the upper hinge cover (6) on the upper hinge.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

FIGURE 1 Door opening from left side

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

FIGURE 1 Door opening from right side

1 Screw
2 Lower hinge
3 Levelling legs
4 Levelling legs
5 Upper hinge
6 Upper hinge cover
7 Hole cover plate
8 Opposite two holes

Control panel

OFF 1 2 3 4 5 6

Temperature adjustment

Turning the knob to a different setting changes the temperature in the fridge-freezer. Available knob settings:

• appliance switched off - OFF setting
• maximum temperature - 1 setting
• optimal temperature - 2-5 setting
• minimum temperature - 6 setting

Temperature inside the fridge

Do not change the temperature settings due to the change in the season of the year. The ambient temperature increase will be detected by the sensor and the compressor will be switched on automatically for a longer period of time in order to maintain the temperature set inside the chambers.

Minor changes in temperature

The slight changes in temperature are perfectly normal and may occur, for instance during the storage of great quantities of fresh products in the fridge, or when the door is open for a longer period of time. This will not affect the condition of the stored foodstuff, and the temperature will quickly return to its set value.

Turning the temperature control to "OFF" position stops the cooling cycle but does not shut off the power to the unit. To disconnect the appliance completely pull the power plug from mains socket.

If the unit is unplugged, it is turned off, or there is power outage, you must wait 3 to 5 minutes before restarting the unit. If you attempt to restart before this time delay, the unit will not start.

Fast cooling chamber is not intended for storing frozen food. It is intended for making and storing ice cubes.

Storage of food in the fridge

Observe the following recommendations to ensure the food remains fresh.

• The products should be placed on plates in containers or packed in food wrap.
  Distribute them evenly all over the she- lves.
• Pay attention whether the food contacts the rear wall, if so, it may cause frosting or wetting of the products.
• Do not put dishes with hot content into the fridge
  ● Products which take over foreign flavours easily such as butter, milk, white cheese and products with intense flavour, such as fish, smoked meat, hard cheese must be placed on shelves, packed in food wrap or in tightly sealed containers.
  ● Storage of vegetables containing significant quantity of water will cause the deposition of water steam on the vegetable containers, it does not impact the proper functioning of the fridge.
• Before putting the vegetables into the fridge, dry them well.
• Excessive moisture shortens the shelf life of vegetables, especially the leafed vegetables.
• Do not wash the vegetables before storing in the refrigerator. Washing removes the natural protection, therefore it is better to wash the vegetables directly before consumption.

Practical everyday tips

• Do not place fridges or freezers next to radiators, heaters, stoves or in direct sunlight.
• Make sure that air vents are not covered up and clean the dust off them once or twice a year.
• Select the right temperature: 6 to 8°C in your refrigerator and -18°C in your freezer is sufficient.
• When on holiday, turn up the temperature in your fridge.
• Only open your fridge or freezer when necessary. It helps if you know what food they contain and where it is located. Return food to the fridge or freezer as soon as possible after you have used it so that it doesn't warm up too much.
• Wipe out the inside of your fridge regularly with a cloth soaked in a mild detergent. Appliances which are not self-defrosting will require regular defrosting. Don't allow frost layers thicker than 10 mm to form.
• Keep the seal around the door clean, otherwise it won't shut properly. Always replace broken seals.

Understanding the stars

* Temperature is at least -6°C; sufficient to store frozen food for about a week. Drawers or compartments marked with one star used to be a feature of (mostly) cheaper fridges.
** Food can be stored at -12°C or below for 1-2 weeks without losing their taste. Not suitable for freezing food.
*** Mainly used to store foods at -18°C or below. Can also be used to freeze up to 1 kilogram of fresh food.
****This appliance is suitable for storing foods at -18°C or below and freezing larger quantities of fresh foods.

USING THE REFRIGERATOR EFFICIENTLY

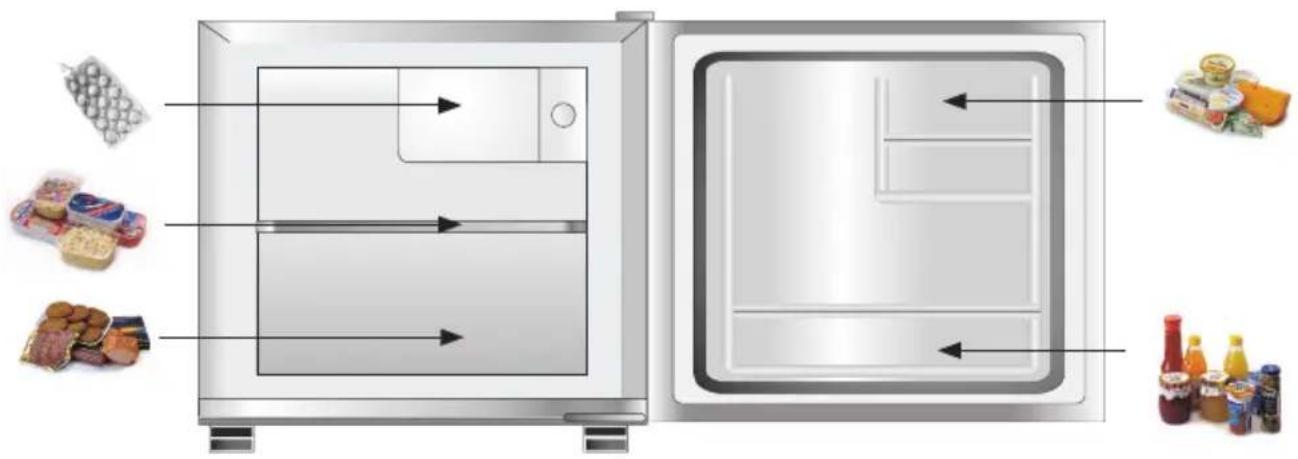

Storage zones in the refrigerator

- Due to the natural circulation of the air in the appliance, there are different temperature zones in the refrigerator chamber. - The coldest area is directly above the vegetables drawers. Use this area for all delicate and highly perishable food e.g.

• Fish, meat, poultry
• Sausage products, ready meals
• Dishes or baked goods containing eggs or cream
• Fresh dough, cake mixtures
• Pre-packed vegetable and other fresh food with a label stating it should be kept at a temperature of approx 4^ C.

- The warmest area is in the top section of the door. Use this for storing butter and cheese.

Food that should not be stored in a refrigerator

● Not all food is suitable for storing in the refrigerator. These include:

• Fruit and vegetables which are sensitive to cold, such as bananas, avocado, papaya, passion fruit, aubergines, peppers, tomatoes and cucumbers.
• Fruit which is not yet ripe
• Potatoes

Diagram of a refrigerator interior with labeled food items including snacks, dairy products, and beverages

- The appliance operates in cycles: it refrigerates (then the frost settles on the rear wall), and defrosts (water flows down the rear wall).

Disconnect the appliance from the mains before cleaning by removing the plug from the mains socket or switching off the fuse. Prevent water from penetrating the control panel or the light.

• Do not use defrosting aerosols. They may cause the formation of explosive mixture, or contain slovents which may damage the plastic components of the appliance and even be harmful to health.
  ● Make sure the water used for cleaning does not flow into the evaporation container through the discharge opening.

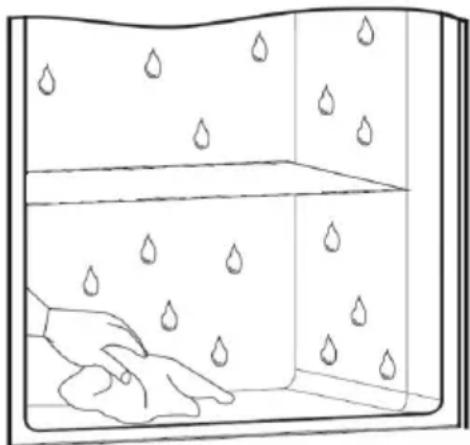

• The whole appliance, except for the door gasket must be cleaned with a mild cleaning detergent. The door gasket should be cleaned with water and wiped dry.
• Wash all the accessories (vegetable containers, door shelves, glass shelves, etc.).

You must not put an electric heater, a heating fan or a hair dryer into the fridge by any means.

1. Set the knob at "OFF" position, take out the plug from the mains socket.
2. Open the door and remove the food from the freezer.
3. After about 0.5h, it is possible to remove the white frost or water from the smooth wall surfaces (fig. 14).
4. Wash the interior of the freezer and wipe it dry.
5. Switch on the appliance as per the relevant point in the manual.

Simple line drawing of a hand cleaning water droplets inside a container (no text or symbols)

TROUBLE-SHOOTING

Problems Possible	causes Remedies
The appliance does not work	Electric circuit rupture -	check whether the plug is properly inserted into the socket- check whether the power cable of the appliance is not damaged- check whether there is voltage in the socket, by plugging another appliance, e.g. a night lamp- check whether the appliance is switched on by setting the thermostat to a position above 0.
Temperature inside the appliance is not low enough	Incorrect setting of the adjustment knob	- reset the knob to a higher position
	The ambient temperature is higher or lower than the N-ST climate range	- the appliance is adapted to operation in the N-ST climate range.
	The appliance is located at the sunlit place or near the heat sources	- move the appliance to another place. Observe the guidelines contained in the manual
	Too much warm food loaded at a time	- wait 72 hours until the food becomes cool (freezes) and the required temperature is reached inside the chamber
	Internal air circulation hindered	- place the food and containers in such a way that they do not touch the rear wall of the fridge
	The air circulation at the back of the appliance is hindered	- move the appliance min. 30 mm away from the wall
	Too much white frost accumulated on the freezing elements	defrost the freezer chamber
	The door of the fridge/freezer are opened too often and/or remain open for too long	- reduce the frequency of opening the door and/or shorten the time when door remains open
	The door does not close completely	- place the food and containers so that they would not interfere with door closed

TROUBLE-SHOOTING

Problems Possible causes	Remedies
	The compressor is switched on too rarely	- check whether the ambient temperature is not lower than 16°C
	Door gasket inserted incorrectly	- press the gasket in
The appliance works continuously	Incorrect setting of the adjustment knob	- reset the knob to a lower position
	See. "Temperature inside the appliance is not low enough for description of other possible causes	See. "Temperature inside the appliance is not low enough for description of other possible remedies
Water collects in the lower part of the appliance	The water discharge opening is clogged	- clean the discharge opening (see the operating manual – chapter entitled "Defrosting the fridge")
	Internal air circulation hindered	- place the food and containers in such a way as that they do not touch the rear wall of the fridge
The appliance generates unusual noise	Incorrect levelling of the appliance	- level the appliance properly
	The appliance touches furniture and/or other objects	- place the appliance at a location that ensures proper clearances around it

Certain sounds can be heard during normal use of the refrigerator, which do not affect its correct operation.

Sounds, which can be easily prevented:

• noise caused by the appliance which is not level - adjust the position with the adjustable turn-in front feet. Alternatively, place pads made of soft material under the rear rollers, especially when the appliance is placed on tiles.
• touching the adjacent piece of furniture - move the refrigerator away.
• creaking of the drawers or shelves - take out and put back the drawer or shelf.
  ●sounds of clinking bottles - move bottles apart.

Sounds heard during normal use are mainly due to operation of the thermostat, compressor (switching on) and cooling system (thermal expansion and contraction of the radiator caused by flow of the cooling agent).

Ozone layer protection

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

The refrigerants and fo-aming agents, which are 100% free of FCKW and FKW have been used for manufacturing our product. Therefore we help protecting the ozone layer and prevent the greenhouse effect increase. On the other hand, the innovative technology and environmentally friendly insulation help in reducing energy consumption.

Recycling of the packaging

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Our packaging are made of environmentally friendly materials, which can be reused:

• The external packaging is made of cardboard/foil
  ● The FCKW free shape of foamed polystyrene (PS)
  ● Polyethylene (PE) foils and bags

Elimination / disposal of the equipment

If the appliance is no longer in use, cut the connecting conduit off the used equipment before its scrapping.

This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment properly contributes to the avoidance of consequences harmful to the human health and natural environment, resulting from the presence of hazardous substances and improper storage and processing of such equipment.

SPECIFICATION

TYP FM061.3 / KB 15340 W
Manufacturer AMICA WRONKI S.A.
Type of the appliance fridge
Energy class ^1 A+
Annual power consumption kWh/year ^2	109
Net usable volume (I) fridge 47
Climate range ^4	N-ST
Noise level [dB(A) re1pW] 41
Supply voltage V/Hz 230V; 50Hz
H x W x D 525 x 475 x 445
Appliance weight (kg) 16

SPECIFICATION

^1) A++/A+ (=low consumption) to G (=high consumption).
^2) The energy consumption refers to the yearly consumption in kWh, indicated according to DIN EN 153. Deviations may occur in the practical operation of the appliance, depending on the use and place of its location.

^4) Climate range means that your set temperature is maintained at "normal" ambient temperature. Should the room temperature drop significantly below the defined scope, the appliance does not work so often and the undesirable temperature increase may occur dojść do niepożądanego wzrostu temperatury.

The information about the climate range of the appliance is provided on the rated plate. It indicates at which ambient temperature (that is, room temperature, in which the appliance is working) the operation of the appliance is optimal (proper).

Climate range Permissible ambient temperature
SN from +10°C to +32°C
N from +16°C to +32°C
ST from +16°C to +38°C
T from +16°C to +43°C

Manufacturer's declaration

The manufacturer hereby declares that the appliance fulfils the requirements of the following European directives:

● The Low Voltage Directive 2006/95/EC,
● The Electromagnetic Compatibility Directive 2004/108/EC,

and therefore it has been marked with a CC and assigned a declaration of conformity, which is made available to the market supervising authorities.

Vážení klienti,

Diagram of a mechanical assembly with a circular inset showing a joint or joint detail (no text or labels)

2

Line drawing of a wall socket and electrical plug (no text or symbols)

5

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, beverages, and cooking utensils.

Line drawing of a hand cleaning water droplets inside a container (no text or symbols)

Určování závad

Simple black-and-white line drawing of a tree with two roots and a cloud-like top (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram of a mechanical assembly with a bracket and circular inset showing a joint (no text or labels)

2

Line drawing of a wall socket and electrical plug (no text or symbols)

5

ZMENA SMERU OTVÁRANIA DVERÍ

Exploded view diagram of a refrigerator with numbered parts for identification

OBRÁZOK 1
Otváranie dverí z l'avej strany

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

OBRÁZOK 2
Otváranie dverí z pravej strany

Diagram of a refrigerator interior with labeled food items including snacks, beverages, and cooking utensils.

Line drawing of a hand reaching toward a container with water droplets (no text or symbols)

LOKALIZÁCIA ZÁVAD

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram showing a mechanical assembly with an inset close-up of a joint (no text or labels)

2

Line drawing of a wall socket and hand holding an electrical plug (no text or symbols)

5

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of an refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, beverages, and cooking utensils.

Line drawing of a hand cleaning a container with water droplets (no text or symbols)

Simple black-and-white line drawing of a tree with two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Simple line drawing of a mechanical component with an inset showing a joint or joint detail (no text or symbols)

2

Line drawing of a wall socket and electrical plug (no text or symbols)

5

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of an refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, beverages, and cooking utensils.

Line drawing of a hand cleaning water droplets inside a container (no text or symbols)

HIBÁK LOKALIZÁCIÓJA

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram of a mechanical assembly with a circular inset showing a joint or connection (no text or symbols)

2

Line drawing of a wall socket and electrical plug (no text or symbols)

5

Technical diagram of a refrigerator with numbered parts for identification and assembly reference

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, beverages, and cooking utensils.

Line drawing of a hand cleaning water droplets inside a container (no text or symbols)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Diagram showing a mechanical assembly with a magnified inset of a gear mechanism (no text or symbols)

2

Line drawing of a wall socket and hand holding a plug (no text or symbols)

5

INVERSION DU SENS D'OUVERTURE DE LA PORTE

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Turning the knob to a different setting changes the temperature in the fridge-freezer. Available knob settings:

• appliance switched off - OFF setting
  • maximum temperature - 1 setting
  • optimal temperature - 2-5 setting
  • minimum temperature - 6 setting

Diagram of a refrigerator interior with labeled food items including snacks, dairy products, and beverages

Line drawing of a hand cleaning water droplets inside a container (no text or symbols)

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.

Technical diagram showing a mechanical assembly with a circular inset view of a rotating component (no text or symbols)

2

Line drawing of a wall socket and hand holding a plug (no text or symbols)

5

Exploded view diagram of a refrigerator with numbered parts for identification

Technical diagram of a refrigerator with numbered parts for identification and assembly reference.

Diagram of a refrigerator interior with labeled food items including snacks, pastries, and beverages

ONTDOOIEN, WASSEN EN ONDERHOUD

Line drawing of a hand cleaning water droplets inside a container (no text or symbols)

STORINGEN VINDEN EN VERHELPEN

Simple black-and-white line drawing of a tree with cloud-like canopy and two wavy lines at the base (no text or symbols)

Simple line drawing of a recycling symbol (three chasing arrows), no text or labels present.
