| Product Type | Motherboard |
| Brand | ASRock |
| Model | Z87 Pro3 |
| Processor Socket | LGA1150 |
| Chipset | Intel Z87 |
| Compatible Processors | Core i7 / i5 / i3 / Xeon / Pentium / Celeron (4th gen Haswell) |
| Memory Type | DDR3 DIMM |
| Memory Slots | 4 (dual channel) |
| Maximum Memory | 32 GB |
| Supported Memory Frequency | DDR3 1066/1333/1600/1866(OC)/2133(OC)/2400(OC)/2800+(OC) |
| Expansion Slots | 1 x PCIe 3.0 x16, 1 x PCIe 2.0 x16, 2 x PCIe 2.0 x1, 2 x PCI |
| Integrated Graphics | Intel HD Graphics (depending on CPU), outputs VGA, DVI-D, HDMI |
| Audio | Realtek ALC892, 7.1-channel HD audio |
| Network | Gigabit Ethernet (Realtek RTL8111GR) |
| SATA Connectors | 6 x SATA 6 Gb/s (RAID 0/1/5/10 support) |
| USB Ports (rear panel) | 4 x USB 3.0, 2 x USB 2.0 |
| Internal USB Headers | 2 x USB 2.0 (4 ports), 1 x USB 3.0 (2 ports) |
| Fan Headers | 1 x CPU (4-pin), 1 x CPU (3-pin), 2 x chassis (4-pin), 1 x power (3-pin) |
| Power Connector | ATX 24-pin + ATX 12V 8-pin |
| BIOS | AMI UEFI BIOS multilingual, graphical support |
| Form Factor | ATX (305 mm x 216 mm) |
| Supported Operating Systems | Microsoft Windows 8.1/8/7 (32/64-bit) |
| Pricing and Availability | Varies by reseller, discontinued model |
| Maintenance and Cleaning | Clean with a dry antistatic cloth, avoid moisture |
| Safety | ESD protection, thermal management, overclocking at your own risk |
| Spare Parts and Repairability | Contact ASRock for parts, repair by professional |
Frequently Asked Questions - Z87 Pro3 ASROCK
User questions about Z87 Pro3 ASROCK
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Motherboard in PDF format for free! Find your manual Z87 Pro3 - ASROCK and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Z87 Pro3 by ASROCK.
USER MANUAL Z87 Pro3 ASROCK
Published March 2013
Copyright©2013 ASRock INC. All rights reserved.
Copyright Notice:
No part of this documentation may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser for backup purpose, without written consent of ASRock Inc.
Products and corporate names appearing in this documentation may or may not be registered trademarks or copyrights of their respective companies, and are used only for identification or explanation and to the owners' benefit, without intent to infringe.
Disclaimer:
Specifications and information contained in this documentation are furnished for informational use only and subject to change without notice, and should not be constructed as a commitment by ASRock. ASRock assumes no responsibility for any errors or omissions that may appear in this documentation.
With respect to the contents of this documentation, ASRock does not provide warranty of any kind, either expressed or implied, including but not limited to the implied warranties or conditions of merchantability or fitness for a particular purpose.
In no event shall ASRock, its directors, officers, employees, or agents be liable for any indirect, special, incidental, or consequential damages (including damages for loss of profits, loss of business, loss of data, interruption of business and the like), even if ASRock has been advised of the possibility of such damages arising from any defect or error in the documentation or product.
The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
CALIFORNIA, USA ONLY
The Lithium battery adopted on this motherboard contains Perchlorate, a toxic substance controlled in Perchlorate Best Management Practices (BMP) regulations passed by the California Legislature. When you discard the Lithium battery in California, USA, please follow the related regulations in advance.
"Perchlorate Material-special handling may apply, see www.dtsc.ca.gov/hazardouswaste/perchlorate"
ASRock Website: http://www.asrock.com
The terms HDMI ^™ and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.
HIGH-DEFINITION MULTIMEDIA INTERFACE

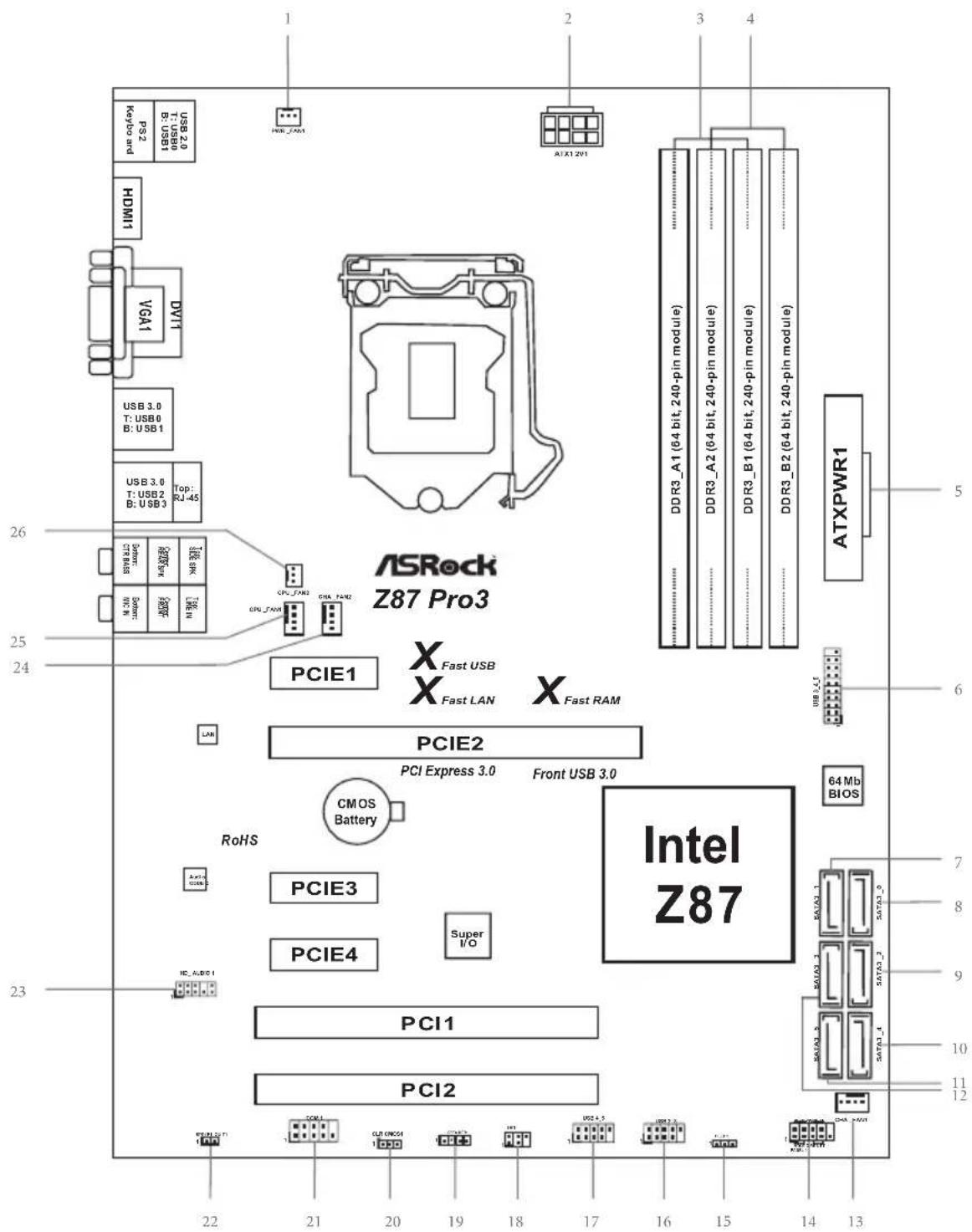

Motherboard Layout
No. Description
1 Power Fan Connector (PWR_FAN1)
2 ATX 12V Power Connector (ATX12V1)
3 2 x 240-pin DDR3 DIMM Slots (DDR3_A1, DDR3_B1)
4 2 x 240-pin DDR3 DIMM Slots (DDR3_A2, DDR3_B2)
5 ATX Power Connector (ATXPWR1)
6 USB 3.0 Header (USB3_4_5)

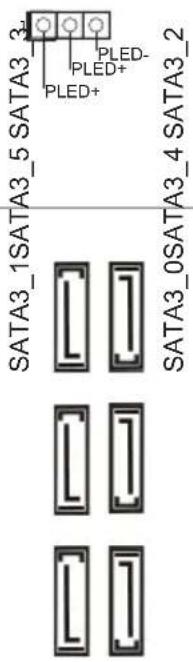

7 SATA3 Connector (SATA3_1)
8 SATA3 Connector (SATA3_0)
9 SATA3 Connector (SATA3_2)
10 SATA3 Connector (SATA3_4)
11 SATA3 Connector (SATA3_5)
12 SATA3 Connector (SATA3_3)
13 Chassis Fan Connector (CHA_FAN1)
14 System Panel Header (PANEL1)

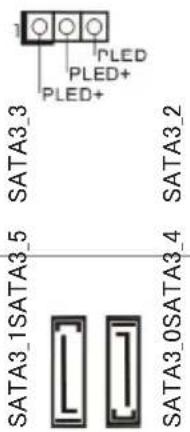

15 Power LED Header (PLED1)
16 USB 2.0 Header (USB2_3)
17 USB 2.0 Header (USB4_5)
18 Infrared Module Header (IR1)
19 Chassis Speaker Header (SPEAKER1)
20 Clear CMOS Jumper (CLRCMOS1)
21 COM Port Header (COM1)
22 SPDIF Out Connector (SPDIF_OUT)
23 Front Panel Audio Header (HD_AUDIO1)
24 Chassis Fan Connector (CHA_FAN2)
25 CPU Fan Connector (CPU_FAN1)
26 CPU Fan Connector (CPU_FAN2)
I/O Panel

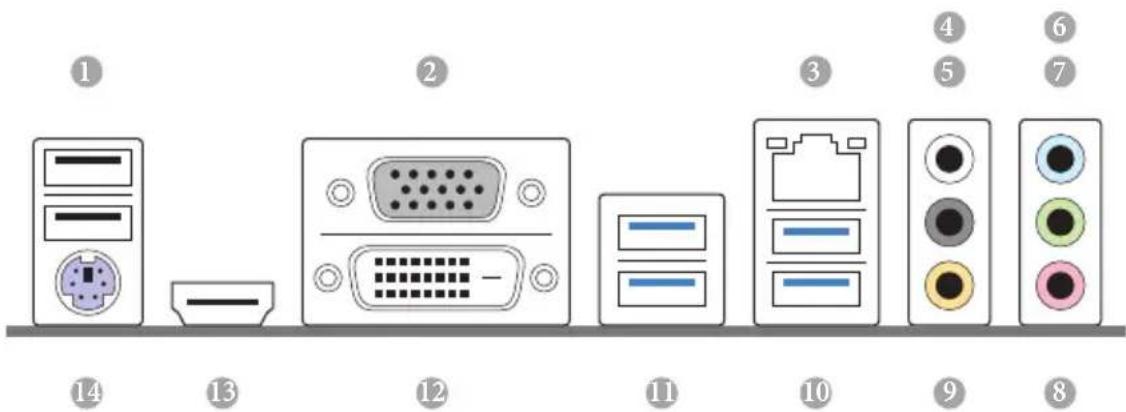

No. Description No. Description
1 USB 2.0 Ports (USB01) 8 Microphone (Pink)
2 D-Sub Port 9 Central / Bass (Orange)
3 LAN RJ-45 Port* 10 USB 3.0 Ports (USB3_23)
4 Side Speaker (Gray) 11 USB 3.0 Ports (USB3_01)
5 Rear Speaker (Black) 12 DVI-D Port
6 Line In (Light Blue) 13 HDMI Port
7 Front Speaker (Lime) ^** 14 PS/2 Keyboard Port
* There are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
ACT/LINK LED
LAN Port
| Activity / Link LED Speed LED | |
| Status Description Status Description | |
| Off No Link Off | 10Mbps connection |
| Blinking Data Activity Orange 100Mbps | |
| On Link Green 1Gbps connection | |
| connection | ||
** If you use a 2-channel speaker, please connect the speaker's plug into "Front Speaker Jack". See the table below for connection details in accordance with the type of speaker you use.
| Audio Output Channels | Front Speaker (No. 7) | Rear Speaker (No. 5) | Central / Bass (No. 9) | Side Speaker (No. 4) |
| 2 V -- -- -- | ||||
| 4 V V -- -- | ||||
| 6 V V V -- | ||||
| 8 V V V V |
To enable Multi-Streaming, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will find the "Mixer" tool on your system. Please select "Mixer ToolBox" click "Enable playback multi-streaming", and click "ok". Choose "2CH", "4CH", "6CH", or "8CH" and then you are allowed to select "Realtek HDA Primary output" to use the Rear Speaker, Central/Bass, and Front Speaker, or select "Realtek HDA Audio 2nd output" to use the front panel audio.
Chapter 1 Introduction
Thank you for purchasing ASRock Z87 Pro3 motherboard, a reliable motherboard produced under ASRock's consistently stringent quality control. It delivers excellent performance with robust design conforming to ASRock's commitment to quality and endurance.
Because the motherboard specifications and the BIOS software might be updated, the content of this documentation will be subject to change without notice. In case any modifications of this documentation occur, the updated version will be available on ASRock's website without further notice. If you require technical support related to this motherboard, please visit our website for specific information about the model you are using. You may find the latest VGA cards and CPU support list on ASRock's website as well. ASRock website http://www.asrock.com.
1.1 Package Contents
• ASRock Z87 Pro3 Motherboard (ATX Form Factor)
• ASRock Z87 Pro3 Quick Installation Guide
• ASRock Z87 Pro3 Support CD
• 2 x Serial ATA (SATA) Data Cables (Optional)
• 1 x I/O Panel Shield
1.2 Specifications
| Platform | ATX Form FactorAll Solid Capacitor design |
| CPU | Supports 4^th Generation Intel® CoreTM i7 / i5 / i3 / Xeon® / Pentium® / Celeron® in LGA1150 PackageDigi Power Design4 Power Phase DesignSupports Intel® Turbo Boost 2.0 TechnologySupports Intel® K-Series unlocked CPU |
| Chipset | Intel® Z87 |
| Memory | Dual Channel DDR3 Memory Technology4 x DDR3 DIMM slotsSupports DDR3 2800+(OC)/2400(OC)/2133(OC)/1866 (OC)/1600/1333/1066 non-ECC, un-buffered memoryMax. capacity of system memory: 32GB (see CAUTION)Supports Intel® Extreme Memory Profile (XMP)1.3/1.2 |
| Expansion Slot | 1 x PCI Express 3.0 x16 slot (PCIE2: x16 mode)3 x PCI Express 2.0 x1 slots2 x PCI slots |
| Graphics | Intel® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTruTM 3D, Intel® Clear Video HD Technology, Intel® InsiderTM , Intel® HD Graphics 4600Pixel Shader 5.0, DirectX 11.1Max. shared memory 1792MBThree VGA Output options: D-Sub, DVI-D and HDMISupports Triple Monitors |
- Supports HDMI Technology with max. resolution up to 1920x1200 @ 60Hz
- Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI (Compliant HDMI monitor is required)
• Supports HDCP function with DVI-D and HDMI ports
• Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI ports
Audio
• 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
• Premium Blu-ray audio support
LAN
• Gigabit LAN 10/100/1000 Mb/s
• Giga PHY Intel ^® I217V
• Supports Intel® Remote Wake Technology
• Supports Wake-On-LAN
• Supports Energy Efficient Ethernet 802.3az
- Supports PXE
Rear Panel I/O
• 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports
- 4 x USB 3.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Side Speaker / Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
| Storage | 6 x SATA3 6.0 Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel Rapid Storage Technology 12 and Intel Smart Response Technology), NCQ, AHCI and “Hot Plug” |
| Connector | 1 x IR header1 x COM port header1 x Power LED header2 x CPU Fan connectors (1 x 4-pin, 1 x 3-pin)2 x Chassis Fan connectors (2 x 4-pin)1 x Power Fan connector (3-pin)1 x 24 pin ATX power connector1 x 8 pin 12V power connector1 x Front panel audio connector1 x SPDIF Out connector2 x USB 2.0 headers (support 4 USB 2.0 ports)1 x USB 3.0 header (supports 2 USB 3.0 ports) |
| BIOS Feature | 64Mb AMI UEFI Legal BIOS with Multilingual GUI supportACPI 1.1 Compliance Wake Up EventsSMBIOS 2.3.1 SupportCPU, DRAM, PCH 1.05V Voltage Multi-adjustment |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), CyberLink MediaEspresso 6.5 Trial, Google Chrome Browser and Toolbar, Start8, MeshCentral, Splashtop Streamer, Intel® Extreme Tuning Utility (IXTU) |
| Hardware Monitor | CPU/Chassis Temperature SensingCPU/Chassis/Power Fan TachometerCPU/Chassis Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)CPU/Chassis Fan Multi-Speed ControlVoltage Monitoring: +12V, +5V, +3.3V, CPU Vcore |
| OS | Microsoft® Windows® 8 / 8 64-bit / 7 / 7 64-bit compliant |
Certifications
- FCC, CE, WHQL
- ErP/EuP Ready (ErP/EuP ready power supply is required)
* For detailed product information, please visit our website: http://www.asrock.com
Please realize that there is a certain risk involved with overclocking, including adjusting the setting in the BIOS, applying Untied Overclocking Technology, or using third-party overclocking tools. Overclocking may affect your system's stability, or even cause damage to the components and devices of your system. It should be done at your own risk and expense. We are not responsible for possible damage caused by overclocking.
Due to limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit operating systems. Windows® 64-bit operating systems do not have such limitations. You can use ASRock XFast RAM to utilize the memory that Windows® cannot use.
1.3 Unique Features
ASRock A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities, including XFast RAM, Dehumidifier, Good Night LED, FAN-Tastic Tuning, OC Tweaker and a whole lot more.
ASRock Instant Flash
ASRock Instant Flash is a BIOS flash utility embedded in Flash ROM. This convenient BIOS update tool allows you to update the system BIOS in a few clicks without preparing an additional floppy diskette or other complicated flash utility. Just save the new BIOS file to your USB storage and launch this tool by pressing
ASRock APP Charger
Simply by installing the ASRock APP Charger makes your iPhone/iPad/iPod Touch charge up to 40% faster than before on your computer. ASRock APP Charger allows you to quickly charge many Apple devices simultaneously and even supports continuous charging when your PC enters into Standby mode (S1), Suspend to RAM (S3), hibernation mode (S4) or power off (S5).
ASRock XFast USB
ASRock XFast USB can boost the performance of your USB storage devices. The performance may depend on the properties of the device.
ASRock XFast LAN
ASRock XFast LAN provides faster internet access, which includes the benefits listed below. LAN Application Prioritization: You can configure your application's priority ideally and add new programs to the list. Lower Latency in Game: After setting online game's priority higher, it can lower the latency in games. Traffic Shaping: You can watch Youtube HD videos and download simultaneously. Real-Time Analysis of Your Data: With the status window, you can easily recognize which data streams you are currently transferring.
ASRock XFast RAM
ASRock XFast RAM is included in A-Tuning. It fully utilizes the memory space that cannot be used under Windows® 32-bit operating systems. ASRock XFast RAM shortens the loading time of previously visited websites, making web surfing faster than ever. And it also boosts the speed of Adobe Photoshop 5 times faster. Another advantage of ASRock XFast RAM is that it reduces the frequency of accessing your SSDs or HDDs in order to extend their lifespan.
ASRock Crashless BIOS
ASRock Crashless BIOS allows users to update their BIOS without fear of failing. If power loss occurs during the BIOS updating process, ASRock Crashless BIOS will automatically finish the BIOS update procedure after regaining power. Please note that BIOS files need to be placed in the root directory of your USB disk. Only USB 2.0 ports support this feature.
ASRock OMG (Online Management Guard)
Administrators are able to establish an internet curfew or restrict internet access at specified times via OMG. You may schedule the starting and ending hours of internet access granted to other users. In order to prevent users from bypassing OMG, guest accounts without permission to modify the system time are required.
ASRock Internet Flash
ASRock Internet Flash downloads and updates the latest UEFI firmware version from our servers for you without entering Windows OS. Please setup network configuration before using Internet Flash.
ASRock UEFI System Browser
ASRock System Browser shows the overview of your current PC and the devices connected.
ASRock Dehumidifier Function
Users may prevent motherboard damages due to dampness by enabling "Dehumidifier Function". When enabling Dehumidifier Function, the computer will power on automatically to dehumidify the system after entering S4/S5 state.
ASRock Easy RAID Installer
ASRock Easy RAID Installer can help you to copy the RAID driver from the support CD to your USB storage device. After copying the RAID driver to your USB storage device, please change "SATA Mode" to "RAID", then you can start installing the OS in RAID mode.
ASRock Interactive UEFI
ASRock Interactive UEFI is a blend of system configuration tools, cool sound effects and stunning visuals. The unprecedented UEFI provides a more attractive interface and more amusement.
ASRock Fast Boot
With ASRock's exclusive Fast Boot technology, it takes less than 1.5 seconds to logon to Windows 8 from a cold boot. No more waiting! The speedy boot will completely change your user experience and behavior.
ASRock Restart to UEFI
Windows ^® 8 brings the ultimate boot up experience. The lightning boot up speed makes it hard to access the UEFI setup. ASRock Restart to UEFI allows users to enter the UEFI automatically when turning on the PC. By enabling this function, the PC will enter the UEFI directly after you restart.
ASRock On/Off Play Technology
ASRock On/Off Play Technology allows users to enjoy the great audio experience from the portable audio devices, such like MP3 player or mobile phone to your PC, even when the PC is turned off (or in ACPI S5 mode)! This motherboard also provides a free 3.5mm audio cable (optional) that ensures users the most convenient computing environment.
ASRock Good Night LED
ASRock Good Night LED technology offers you a better sleeping environment by extinguishing the unessential LEDs. By enabling Good Night LED in the BIOS, the Power/HDD LEDs will be switched off when the system is powered on. Good Night LED will automatically switch off the Power and Keyboard LEDs when the system enters into Standby/Hibernation mode as well.
ASRock USB Key
In a world where time is money, why waste precious time everyday typing usernames to log in to Windows? Why should we even bother memorizing those foot long passwords? Just plug in the USB Key and let your computer log in to windows automatically!
ASRock Home Cloud
This motherboard supports remote wake with the onboard Intel LAN, so you can connect with your PC from anywhere in the world. You will be able to power your PC on or turn it off, monitor and take control of it remotely with another smartphone, tablet or computer.
ASRock FAN-Tastic Tuning
ASRock FAN-Tastic Tuning is included in A-Tuning. Configure up to five different fan speeds using the graph. The fans will automatically shift to the next speed level when the assigned temperature is met.
ASRock Easy Driver Installer
For users that don't have an optical disk drive to install the drivers from our support CD, Easy Driver Installer is a handy tool in the UEFI that installs the LAN driver to your system via an USB storage device, then downloads and installs the other required drivers automatically.
Chapter 2 Installation
This is an ATX form factor motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that the motherboard fits into it.
Pre-installation Precautions
Take note of the following precautions before you install motherboard components or change any motherboard settings.
- Make sure to unplug the power cord before installing or removing the motherboard. Failure to do so may cause physical injuries to you and damages to motherboard components.
- In order to avoid damage from static electricity to the motherboard's components, NEVER place your motherboard directly on a carpet. Also remember to use a grounded wrist strap or touch a safety grounded object before you handle the components.
- Hold components by the edges and do not touch the ICs.
- Whenever you uninstall any components, place them on a grounded anti-static pad or in the bag that comes with the components.
- When placing screws to secure the motherboard to the chassis, please do not over-tighten the screws! Doing so may damage the motherboard.
2.1 Installing the CPU

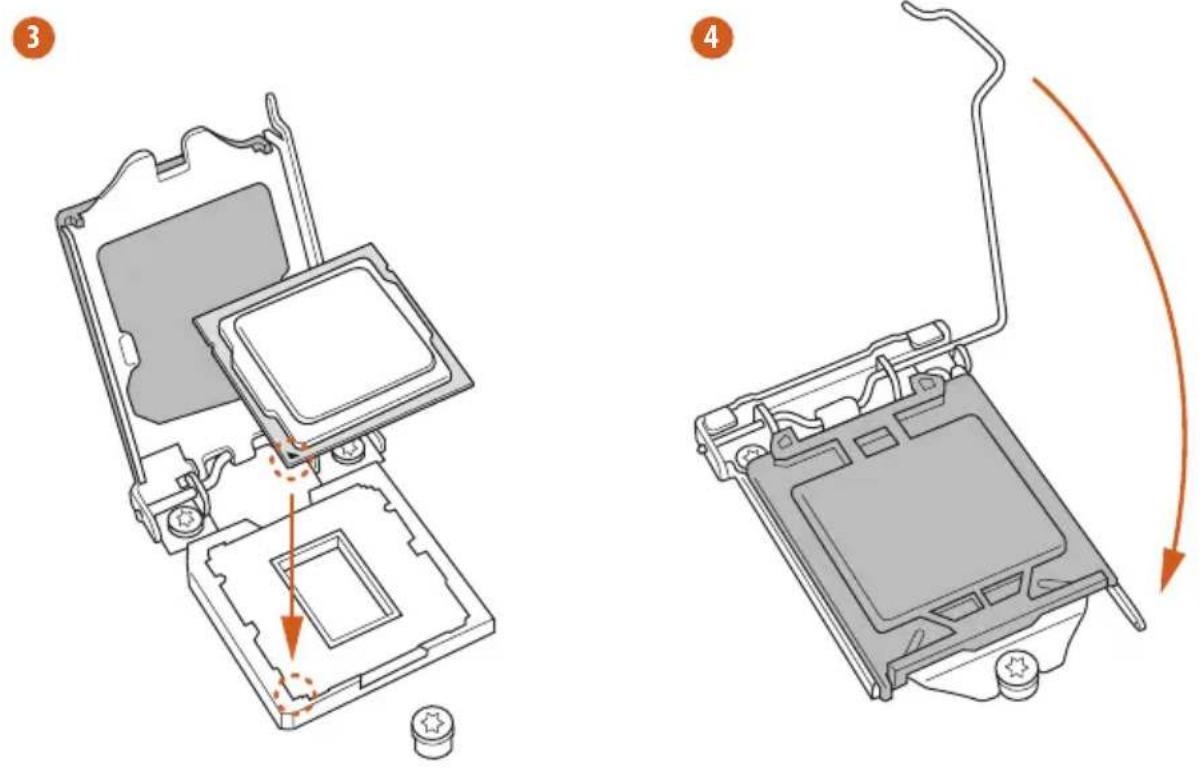

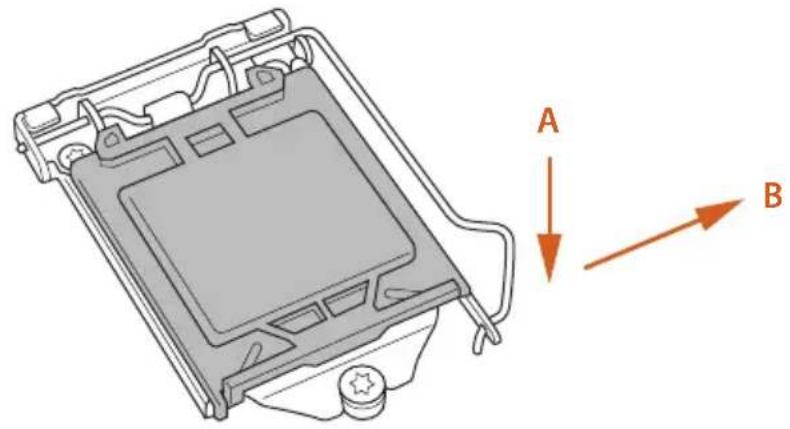

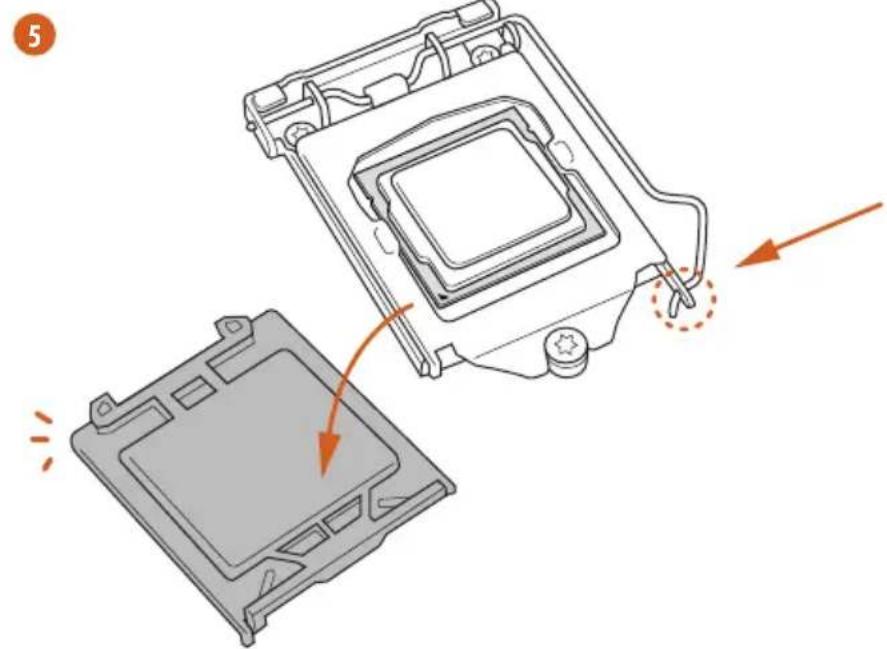

- Before you insert the 1150-Pin CPU into the socket, please check if the PnP cap is on the socket, if the CPU surface is unclean, or if there are any bent pins in the socket. Do not force to insert the CPU into the socket if above situation is found. Otherwise, the CPU will be seriously damaged.
- Unplug all power cables before installing the CPU.
1
Please save and replace the cover if the processor is removed. The cover must be placed if you wish to return the motherboard for after service.

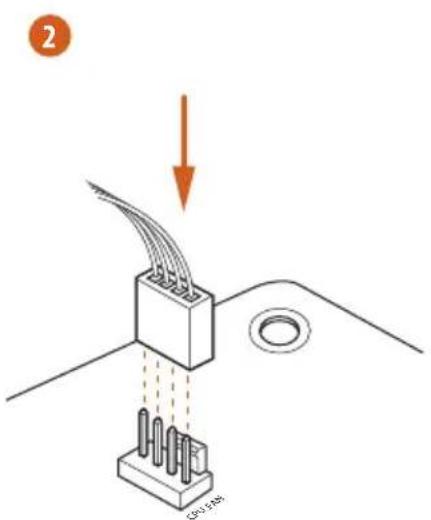

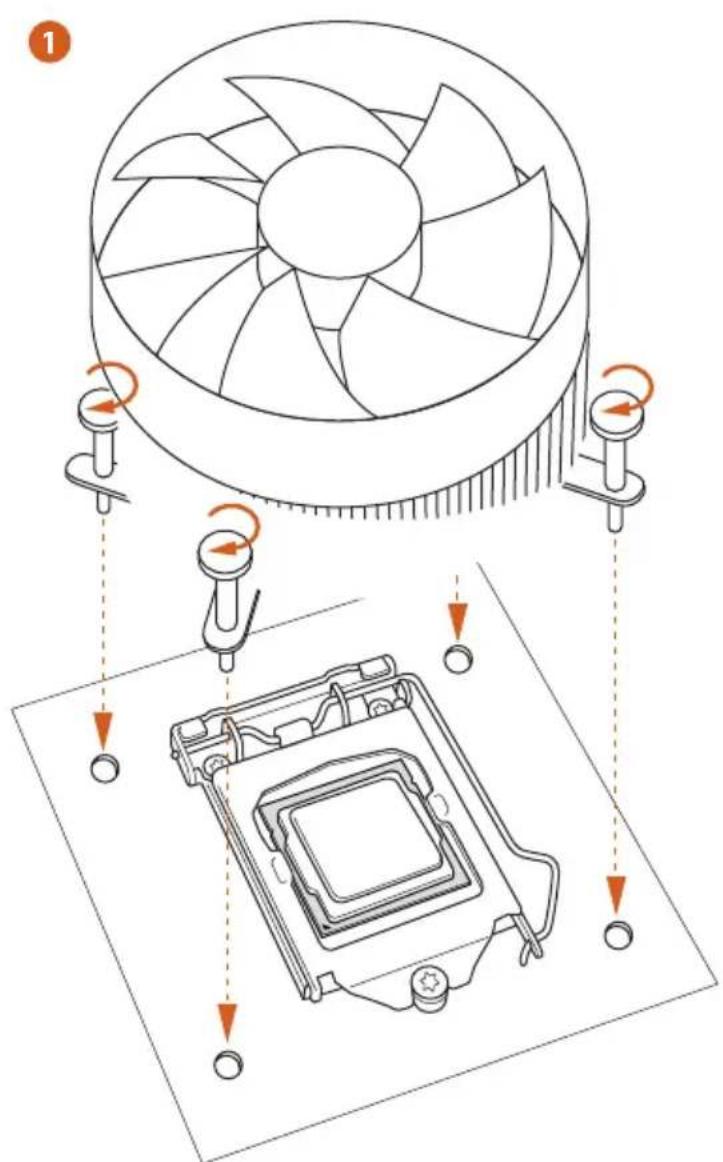

2.2 Installing the CPU Fan and Heatsink
2.3 Installing Memory Modules (DIMM)

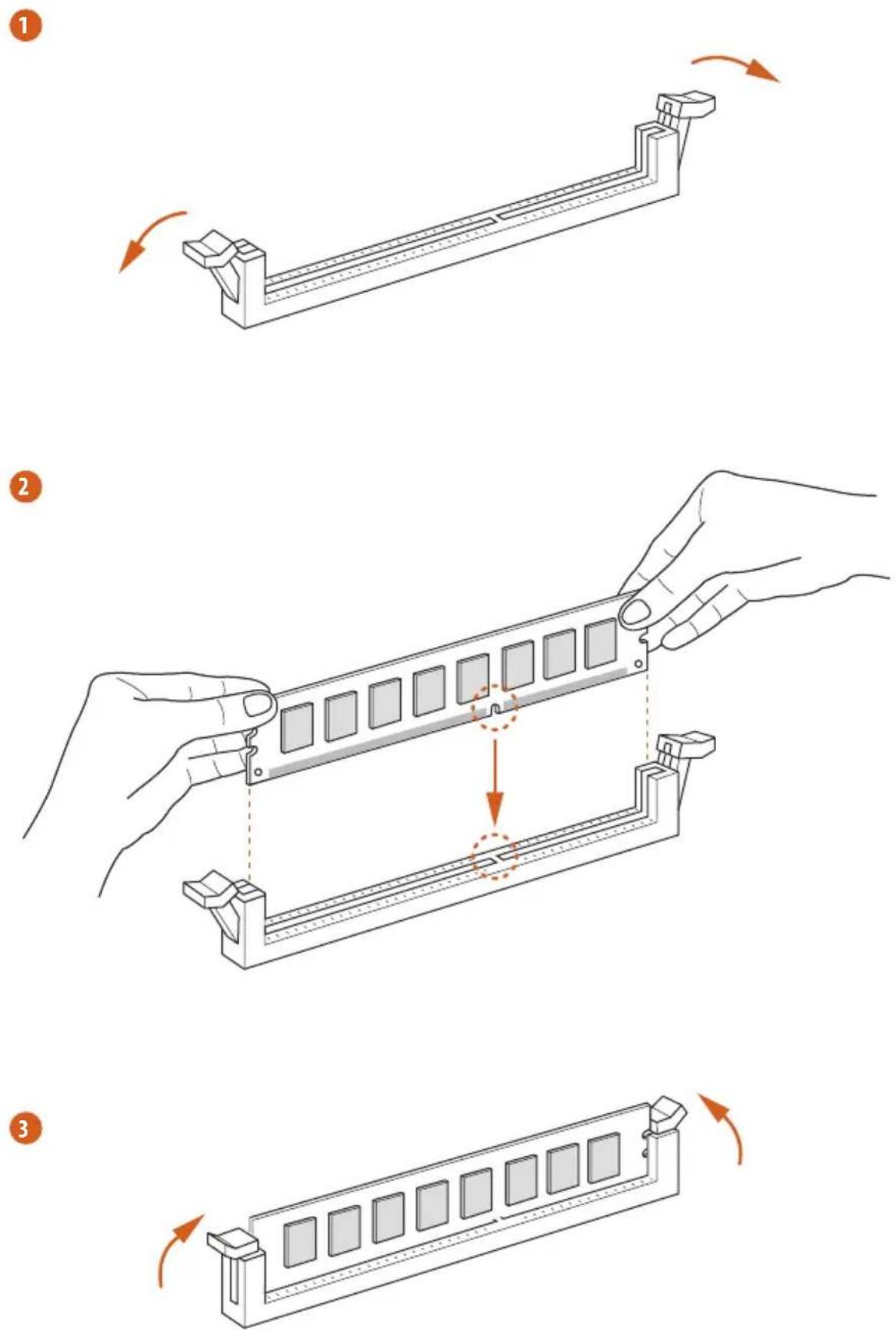

This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology.
- For dual channel configuration, you always need to install identical (the same brand, speed, size and chip-type) DDR3 DIMM pairs.
- It is unable to activate Dual Channel Memory Technology with only one or three memory module installed.
- It is not allowed to install a DDR or DDR2 memory module into a DDR3 slot; otherwise, this motherboard and DIMM may be damaged.
Dual Channel Memory Configuration
Priority DDR3_A1 DDR3_A2 DDR3_B1 DDR3_B2
| 1 Populated Populated | |||
| 2 Populated Populated | |||
| 3 Populated Populated Populated Populated |
The DIMM only fits in one correct orientation. It will cause permanent damage to the motherboard and the DIMM if you force the DIMM into the slot at incorrect orientation.
2.4 Expansion Slots (PCI and PCI Express Slots)
There are 2 PCI slots and 4 PCI Express slots on the motherboard.
Before installing an expansion card, please make sure that the power supply is switched off or the power cord is unplugged. Please read the documentation of the expansion card and make necessary hardware settings for the card before you start the installation.
PCI slot:
The PCI1 and PCI2 slots are used to install expansion cards that have 32-bit PCI interface.
PCIe slots:
PCIE1 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE2 (PCIe 3.0 x16 slot) is used for PCI Express x16 lane width graphics cards.
PCIE3 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.
PCIE4 (PCIe 2.0 x1 slot) is used for PCI Express x1 lane width cards.
2.5 Jumpers Setup
The illustration shows how jumpers are setup. When the jumper cap is placed on the pins, the jumper is "Short". If no jumper cap is placed on the pins, the jumper is "Open". The illustration shows a 3-pin jumper whose pin1 and pin2 are "Short" when a jumper cap is placed on these 2 pins.
Clear CMOS Jumper (CLRCMOS1)
(see p.1, No. 20)
Clear CMOSDefault
CLRCMOS1 allows you to clear the data in CMOS. To clear and reset the system parameters to default setup, please turn off the computer and unplug the power cord from the power supply. After waiting for 15 seconds, use a jumper cap to short pin2 and pin3 on CLRCMOS1 for 5 seconds. However, please do not clear the CMOS right after you update the BIOS. If you need to clear the CMOS when you just finish updating the BIOS, you must boot up the system first, and then shut it down before you do the clear-CMOS action. Please be noted that the password, date, time, and user default profile will be cleared only if the CMOS battery is removed.
2.6 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will cause permanent damage to the motherboard.
System Panel Header (9-pin PANEL1) (see p.1, No. 14)
Connect the power switch, reset switch and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables.
PWRBTN (Power Switch):
Connect to the power switch on the chassis front panel. You may configure the way to turn off your system using the power switch.
RESET (Reset Switch):
Connect to the reset switch on the chassis front panel. Press the reset switch to restart the computer if the computer freezes and fails to perform a normal restart.
PLED (System Power LED):
Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the system is in S1/S3 sleep state. The LED is off when the system is in S4 sleep state or powered off (S5).
HDLED (Hard Drive Activity LED):
Connect to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive is reading or writing data.
The front panel design may differ by chassis. A front panel module mainly consists of power switch, reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis front panel module to this header, make sure the wire assignments and the pin assignments are matched correctly.
Power LED Header
(3-pin PLED1)
(see p.1, No. 15)
Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 8)
(SATA3_1:
see p.1, No. 7)
(SATA3_2:
see p.1, No. 9)
(SATA3_3:
see p.1, No. 12)
(SATA3_4:
see p.1, No. 10)
(SATA3_5:
see p.1, No. 11)
Please connect the chassis power LED to this header to indicate the system's power status.
These six SATA3 connectors support SATA data cables for internal storage devices with up to 6.0 Gb/s data transfer rate.
USB 2.0 Headers
(9-pin USB2_3)
(see p.1, No. 16)
(9-pin USB4_5)
(see p.1, No. 17)
Besides two USB 2.0 ports on the I/O panel, there are two headers on this motherboard. Each USB 2.0 header can support two ports.
USB 3.0 Header
(19-pin USB3_4_5)
(see p.1, No. 6)
Besides four USB 3.0 ports on the I/O panel, there is one header on this motherboard. Each USB 3.0 header can support two ports.
Front Panel Audio Header (9-pin HD_AUDIO1) (see p.1, No. 23)
This header is for connecting audio devices to the front audio panel.
-
High Definition Audio supports Jack Sensing, but the panel wire on the chassis must support HDA to function correctly. Please follow the instructions in our manual and chassis manual to install your system.
-
If you use an AC'97 audio panel, please install it to the front panel audio header by the steps below:
A. Connect Mic_IN (MIC) to MIC2_L.
B. Connect Audio_R (RIN) to OUT2_R and Audio_L (LIN) to OUT2_L.
C. Connect Ground (GND) to Ground (GND).
D. MIC_RET and OUT_RET are for the HD audio panel only. You don't need to connect them for the AC'97 audio panel.
E. To activate the front mic, go to the "FrontMic" Tab in the Realtek Control panel and adjust "Recording Volume".
Chassis Speaker Header (4-pin SPEAKER1) (see p.1, No. 19)
Please connect the chassis speaker to this header.
SPDIF Out Connector (2-pin SPDIF_OUT1) (see p.1, No. 22)
Please connect the SPDIF_OUT connector of a HDMI VGA card to this header with a cable.
Chassis and Power Fan Connectors (4-pin CHA_FAN1) (see p.1, No. 13)
Please connect fan cables to the fan connectors and match the black wire to the ground pin.
(4-pin CHA_FAN2) (see p.1, No. 24)
(3-pin PWR_FAN1) (see p.1, No. 1)
CPU Fan Connectors (4-pin CPU_FAN1) (see p.1, No. 25)
(3-pin CPU_FAN2) (see p.1, No. 26)
This motherboard provides a 4-Pin CPU fan (Quiet Fan) connector. If you plan to connect a 3-Pin CPU fan, please connect it to Pin 1-3.
ATX Power Connector (24-pin ATXPWR1) (see p.1, No. 5)
This motherboard provides a 24-pin ATX power connector. To use a 20-pin ATX power supply, please plug it along Pin 1 and Pin 13.
ATX 12V Power Connector (8-pin ATX12V1) (see p.1, No. 2)
This motherboard provides an 8-pin ATX 12V power connector. To use a 4-pin ATX power supply, please plug it along Pin 1 and Pin 5.
Infrared Module Header (5-pin IR1) (see p.1, No. 18)
This header supports an optional wireless transmitting and receiving infrared module.
Serial Port Header (9-pin COM1) (see p.1, No. 21)
This COM1 header supports a serial port module.
1 Einleitung
(2-polig, SPDIF_OUT1)
Clear CMOS 점퍼
(CLRCMOS1)
(1페이지,20번 항목 참조)
Clear CMOS기본값
TM
i7 / i5 /
LAN
os
Short
Open
(CLRCMOS1)
(SATA3_1:
(SATA3_2:
(SATA3_3:
(SATA3_4:
(SATA3_5:
1.
2.
DUMMY SPEAKER
SPDIFOUT
FAN_SPEED_CONTROL
GND
+12V
CHA FAN SPEED
FAN SPEED CONTROL
1 简介
清除 CMOS 跳线
(CLRCMOS1)
(见第 1 页，第 20 个)
清除 CMOS默认
(OC)/1600/1333/1066 non-ECC, memori tanpa buffer
(lihat PERHATIAN)
Slot Ekspansi
Grafis
Clear CMOS Jumper (CLRCMOS1)
RESET (Switch Atur Ulang):
(Kipas Hening). Jika
daya ATX 4-pin, pasang
If you need to contact ASRock or want to know more about ASRock, you're welcome to visit ASRock's website at http://www.asrock.com; or you may contact your dealer for further information. For technical questions, please submit a support request form at http://www.asrock.com/support/tsd.asp
ASRock Incorporation
2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District,
Taipei City 112, Taiwan (R.O.C.)
ASRock EUROPE B.V.
Bijsterhuizen 3151
6604 LV Wijchen
The Netherlands
Phone: +31-24-345-44-33
Fax: +31-24-345-44-38
ASRock America, Inc.
13848 Magnolia Ave, Chino, CA91710
U.S.A.
Phone: +1-909-590-8308
Fax: +1-909-590-1026
For the following equipment:
Motherboard
| (Product Name) |
| Z87 Pro3 / ASRock |
| (Model Designation / Trade Name) |
ASRock Incorporation
| (Manufacturer Name) |
| 2F., No.37, Sec. 2, Jhongyang S. Rd., Beitou District, Taipei City 112, Taiwan (R.O.C.) |
(Manufacturer Address)
is herewith confirmed to comply with the requirements set out in the Council Directive on the Approximation of the Laws of the Member States relating to Electromagnetic Compatibility Directive (2004/108/EC) and Safety Directive (2006/95/EC), the following standards are applied:
EN 55022: 2006+A1:2007
EN 61000-3-2: 2009
EN 61000-3-3:2008
EN 55024: 1998 + A1:2001 + A2:2003
IEC 61000-4-2: 2008;
IEC 61000-4-3: 2010; IEC 61000-4-4: 2010;
IEC 61000-4-5: 2005; IEC 61000-4-6: 2008;
IEC 61000-4-8: 2009; IEC 61000-4-11: 2004;
☑ EN 60950-1:2005 + A1:2009
IEC 60950-1:2006 + A11:2009 + A1:2010 + A12:2011
The following manufacturer / importer or authorized representative established within the EUT is responsible for this declaration:
ASRock EUROPE B.V.
| (Company Name) |
| Bijsterhuizen 3151 6604 LV Wijchen The Netherlands |
(Company Address)
Person responsible for making this declaration:
(Name, Surname)
A.V.P
(Position / Title)
Apr. 19, 2013
(Date)
- Copyright Notice:
- Disclaimer:
- CALIFORNIA, USA ONLY
- No. Description
- No. Description No. Description
- Chapter 1 Introduction
- Package Contents
- Specifications
- Audio
- LAN
- Rear Panel I/O
- Certifications
- Unique Features
- ASRock A-Tuning
- ASRock Instant Flash
- ASRock APP Charger
- ASRock XFast USB
- ASRock XFast LAN
- ASRock XFast RAM
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock Internet Flash
- ASRock UEFI System Browser
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Interactive UEFI
- ASRock Fast Boot
- ASRock Restart to UEFI
- ASRock On/Off Play Technology
- ASRock Good Night LED
- ASRock USB Key
- ASRock Home Cloud
- ASRock FAN-Tastic Tuning
- ASRock Easy Driver Installer
- Chapter 2 Installation
- Pre-installation Precautions
- Installing the CPU
- Installing the CPU Fan and Heatsink
- Installing Memory Modules (DIMM)
- Dual Channel Memory Configuration
- Expansion Slots (PCI and PCI Express Slots)
- PCI slot:
- PCIe slots:
- Jumpers Setup
- Onboard Headers and Connectors
- PWRBTN (Power Switch):
- RESET (Reset Switch):
- PLED (System Power LED):
- HDLED (Hard Drive Activity LED):
- Einleitung
- 简介
- Slot Ekspansi
- Grafis
- RESET (Switch Atur Ulang):
- ASRock Incorporation
- ASRock EUROPE B.V.
- ASRock America, Inc.
Brand : ASROCK
Model : Z87 Pro3
Category : Motherboard
