USER MANUAL DO2013G DOMO

sind nicht in der Garantie eingeschlossen.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures which are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The warranty will only be valid if the

warranty application has been completed by the dealer at the time of purchase. All parts,

which are subject to wear, are excluded from the warranty

Geschäft, in dem Sie das Produkt gekauft haben.

RECYCLING INFORMATION The symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it shall be brought to the applicable collection

point for recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this

product, please contact your local city ofce, your household waste disposal service or

the shop where you purchased the product.DO2013G

oder einer gleichartig geschulten Person ersetzt werden, um Unglücke zu verhindern.

If the supply cord is damaged, it must be replaced by manufacturer of its service

agent or a similarly qualied person in order to avoid a hazard.

Jestliže je přívodní kabel poškozen, musí být opraven v odborném servisu. V žádném

“start/+30sec/conrm”.

Sie hören 5-mal einen Signalton, wenn der Kochvorgang vollständig beendet ist.DO2013G RECAUTIONARY MEASURES TO PREVENT EXPOSURE TO MICROWAVES Make sure the oven door is closed; using the oven with the door open can result in

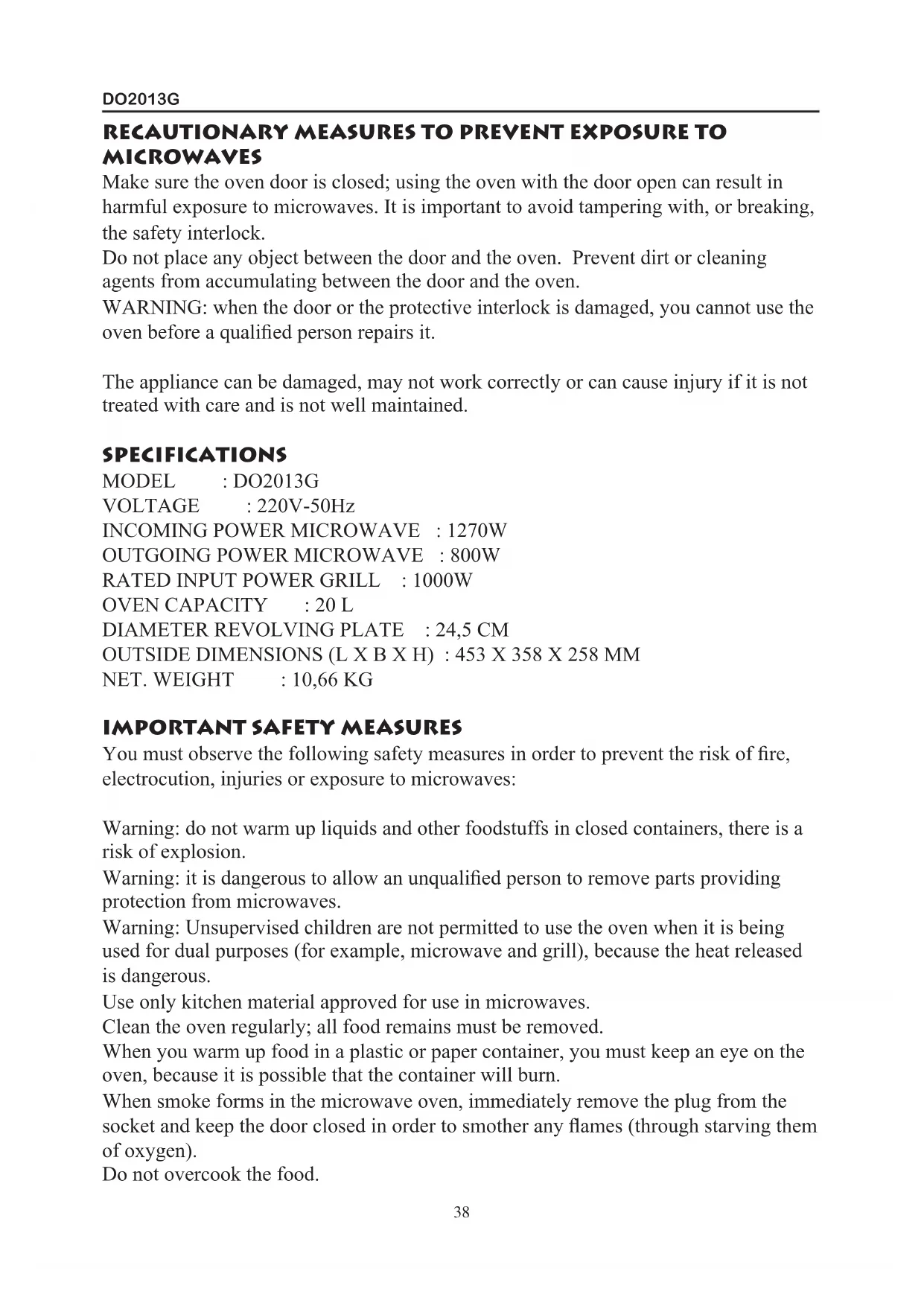

harmful exposure to microwaves. It is important to avoid tampering with, or breaking,

the safety interlock.

Do not place any object between the door and the oven. Prevent dirt or cleaning

agents from accumulating between the door and the oven.

WARNING: when the door or the protective interlock is damaged, you cannot use the

oven before a qualied person repairs it.

The appliance can be damaged, may not work correctly or can cause injury if it is not

treated with care and is not well maintained.

SPECIFICATIONS MODEL : DO2013G VOLTAGE : 220V-50Hz

INCOMING POWER MICROWAVE : 1270W OUTGOING POWER MICROWAVE : 800W RATED INPUT POWER GRILL : 1000W OVEN CAPACITY : 20 L DIAMETER REVOLVING PLATE : 24,5 CM OUTSIDE DIMENSIONS (L X B X H) : 453 X 358 X 258 MM NET. WEIGHT : 10,66 KG IMPORTANT SAFETY MEASURES You must observe the following safety measures in order to prevent the risk of re,

electrocution, injuries or exposure to microwaves:

Warning: do not warm up liquids and other foodstuffs in closed containers, there is a

Warning: it is dangerous to allow an unqualied person to remove parts providing

protection from microwaves.

Warning: Unsupervised children are not permitted to use the oven when it is being

used for dual purposes (for example, microwave and grill), because the heat released

Use only kitchen material approved for use in microwaves.

Clean the oven regularly; all food remains must be removed.

When you warm up food in a plastic or paper container, you must keep an eye on the

oven, because it is possible that the container will burn.

When smoke forms in the microwave oven, immediately remove the plug from the

socket and keep the door closed in order to smother any ames (through starving them

Do not overcook the food.

38DO2013G Do not use the oven to store things. Do not store bread, biscuits, etc, in the oven.

Remove wire fasteners and metal handles from packaging before placing a product in

Assemble the oven solely according to the ofcial instructions.

Eggs in their shells or whole hard-boiled eggs should not be warmed up in the

microwave oven. These could explode, even after the oven is switched off.

Use the appliance strictly according to the directions in the instruction manual. Do not

use harmful chemicals or noxious fumes in this appliance. This oven is to be used only

The appliance is not suitable for industrial or laboratory use.

When the electric lead is damaged it must be replaced by the manufacturer, by its after

sales service centre or by a qualied person in order to prevent accidents or damage.

Never keep the appliance outdoors.

Do not use the oven near water, in a damp space or near a swimming pool.

The oven may become warm during use. Keep the electric lead well away from hot

parts and do not cover the oven.

Do not let the lead hang over the edge of a table or counter.

If you fail to keep the oven clean it may result in damage to the appliance and possibly

lead to dangerous situations.

The content of baby bottles and baby food must always be shaken or stirred. In order

to prevent burns the temperature of foodstuffs must be checked before use.

The warming up of liquids can result in a delayed cooking reaction of the liquid. For

this reason, always be careful when you remove the container from the oven.

This appliance is not for use by persons, including children, with any kind of

impairment, such as, physical, sensorial or mental capacity. These persons are

not permitted to use the appliance if they have limited experience or insufcient

knowledge, unless they have received the necessary instructions for use or are

otherwise being supervised by people ensuring their safety.

Make sure that children cannot play with the appliance.

Do not place this appliance in a cupboard.

This appliance is not permitted for use with an external timer or separate remote

Do not use a steam cleaner to clean the appliance.

Do not use aggressive detergents or sharp objects to clean the glass in the door, this

can lead to cracks or damage to the glass

The door of the appliance may become warm during use.

This appliance is only for household use or environments of a similar character such

- kitchens that are used by personnel of shops, ofce or other similar professional

- Hotel rooms and motel rooms and other similar environments with a residential

KEEP THIS LIST OF WARNINGS FOR LATER REFERENCE IN ORDER TO AVOID THE RISK OF INJURIES Attention: Do not touch any (electrical) parts in the appliance’s interior. This can result

in serious injury or death. Do not dismantle the appliance.

Incorrect use of the appliance and the earthed plug can lead to electrocution. Do not

switch the appliance on before it has been correctly assembled and connected to an

This appliance must be connected to an earthed socket. When the appliance short-

circuits, the earthed socket ensures that the electricity is safely conducted and diverted.

If you are not absolutely certain about your electrical system at home, contact a

qualied electrician. In the event you need to make use of wiring for an extension,

always use a lead with 3 wires.

Your appliance is provided with a short electric lead to prevent tangling or accidents

from tripping over it.

In the event you use an extension lead you must make sure that the lead has at least the

same capacity as that of the oven.

The extension lead must be placed so that nobody will trip over it or get caught in it.

CLEANING Always make sure that the plug has been removed from the socket before you clean

After use, clean the inside of the oven with a damp cloth.

Clean the parts, such as grill, glass turntable/revolving plate, in warm water, using a

If dirty, you can clean the door, the interlock and the control panel, with a lightly

MATERIALS PERMITTED FOR USE IN THE MICROWAVE OVEN Here below is a list of objects that can or cannot be used in the appliance. In the

event you cannot nd the object you wish to use in the list below, you can apply the

following method to check whether the object is suitable for microwave use.

Fill a microwave-safe container with 250 ml of cold water and place this, together

with the object to be tested, in the microwave oven. Adjust the microwave to

maximum power for 1 min and switch on.

Feel the object carefully to test whether or not it is warm, if it is, it means it is not

suitable for use in the microwave oven.

TAKE CARE: never cook the object for longer than 1 min in the microwave.

Materials not permitted for use in the microwave oven

Aluminium foil: Only for covering food. Small pieces of foil can be used to lay on

top of food to prevent it from overcooking. Sparks can develop if the foil is placed too

close to the microwave’s sides. The foil must be at least 2,5 cm from the sides.

Grill grid: according to the instructions of this manual.

The underside of the grill grid must be placed at least 5 mm above the revolving glass

plate. Incorrect use can cause the revolving glass plate to crack.

Crockery: Only microwave-safe crockery. Do not use any crockery that displays

Glass jug/can: only use without lids. Only to use for lightly warming. Most glasses are

not heat-resistant and can break.

Glassware: heat-resistant oven glassware is permitted. Take care that the glass does

not contain metal decorations or metal parts. Do not use any cracked or damaged

Oven cooking bags: follow the manufacturer’s instructions. Do not close the bag with

a metal fastener. Make holes in the bag so that the steam can escape.

Plastic: only plastic suitable for the microwave. Follow the manufacturer’s

instructions. The words “microwave safe” must always be clearly visible on the

plastic. Some plastic containers become soft if food is heated in them. Cooking bags

and closed bags need to be pricked to allow steam to escape.

Plastic packaging: Only plastic that is microwave approved. It can be used for

covering the food so that it does not dry out. Always make sure that the food does not

Thermometer: only microwave-safe thermometers.

Materials permitted for use in the microwave oven

Aluminium dish: this can cause sparks. Lay the food on a microwave-safe dish.

Food container with metal handle(s): can cause sparks. Lay the food on a microwave-

Kitchen material made from metal or with metal nish. Metal shields the food from

microwave energy. Metal nishes can cause sparks.

Metal fasteners: can lead to sparks and can cause re in the oven.

Paper bags: can cause re in the oven.

Plastic foam: when exposed to high temperatures it can melt or contaminate the food

inside the plastic foam container.

Wood: wood dries out in the microwave and through this can burst or split.

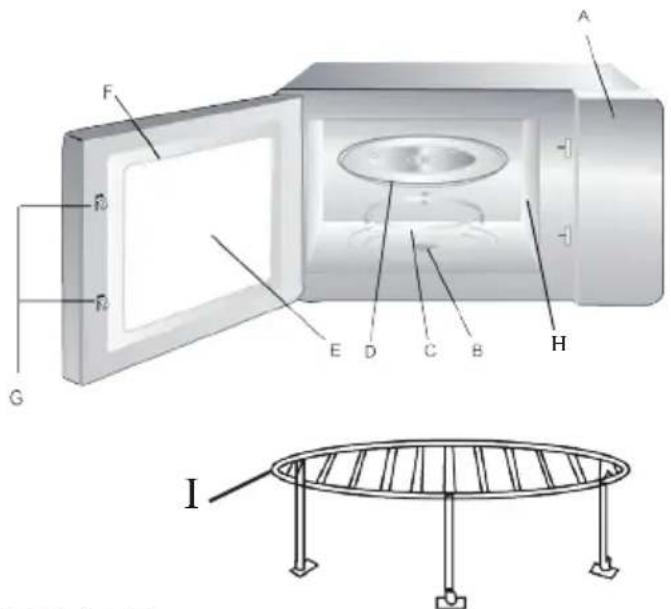

41DO2013G PARTS A. Control panel

C. Revolving plate ring

D. Glass revolving plate

E. Display window (for viewing inside)

ASSEMBLY OF THE REVOLVING PLATE First place the revolving plate ring in the middle of your microwave oven.

Place the revolving plate on the ring; make sure that the middle of the revolving ring

ts in the revolving plate support.

Never place the revolving plate upside down. Always make sure that the revolving

plate can turn freely steeds, without obstruction.

The revolving plate and ring must be used at all times during cooking.

All food and containers must, at all times, be placed on the glass plate during cooking.

When the glass plate or the ring display any cracks, you should immediately get in

touch with your nearest service centre.

ASSEMBLY Remove all packaging material and the accessories.

Examine the oven for any possible damage such as dents or damaged door. Do not use

the oven if it is damaged.

1. Choose a spot to place your microwave where there is sufcient space to allow for

the free circulation of air.

Make sure that a minimum distance of 10 cm is kept, at the rear and on the left and

right-hand sides, from the wall and any cupboard. One side of the microwave must be

left completely open.

An open space of at least 30 cm must be allowed above the microwave oven.

2. Never remove the legs underneath your oven.

3. Blocking the air intake and outlet can lead to damage to your appliance.

4. Keep the oven as far as away as possible from radio and TV.

5. Plug your oven into the socket, always check whether the voltage in your home

corresponds to the voltage stated on your appliance.

H IDO2013G Warning: Do not place the oven above a cooking stove or other heat producing

appliance(s), this can damage the appliance and your guarantee will not be valid.

The accessible part of your appliance may become warm during use.

INSTRUCTIONS FOR USE ADJUSTING THE CLOCK When you plug the microwave into the socket, “0:00” will appear on the display.

Press on the “clock/pre-set” button; the hour will begin to ash.

Turn the round dial to set the hour between 0 – 23.

Press on the “clock-pre-set” button; the minutes will begin to ash.

Turn the round dial to set the minutes between 0 – 59.

Press on the “clock/pre-set” button to conrm the hour set.

COOKING WITH THE MICROWAVE Press on the “micro/grill/combi” button to adjust the microwave power.

Press; 1x: P100, 2x: P80, 3x P50, 4x P30 or 5x P10.

You can also adjust the microwave power by turning the round dial.

Press on the “start/+30sec./conrm” button, to conrm the chosen microwave setting.

Turn the round dial to adjust the desired length of time.

Press on the “start/+30sec/conrm” button to start the cooking process.

The microwave power is divided as follows:

P100: 100% microwave power

P80: 80% microwave power

P50: 50% microwave power

P30: 30% microwave power

P10: 10% microwave power

COOKING WITH GRILL Press on the “micro/grill/combi” button; “P100” will appear on the display, turn the

round dial to select the grill, “G” will appear on the display.

Press on “start/+30sec/conrm” to conrm the grill setting.

Turn the round dial to adjust to the desired grilling time.

Press on “start/+30sec/conrm” to start the grill.

Note: the oven will give halfway through the set time a signal during the grilling

process, this is normal. For a better result with grilling, it is best to turn the food

product over. Close the door and, once again, press the “start/+30sec/conrm” button,

in order to carry on the grilling process after turning the product over.

If you do not want to turn the food over then you do not need to do anything else, the

grilling process will proceed automatically.

43DO2013G COMBINED COOKING Press on the “micro/grill/combi” button; “P100” will appear on the display.

Turn the round dial in order to select the desired combi cooking setting:

C-1: 55% microwave – 45% grill

C-2: 36% microwave – 64% grill

Press on the “start/+30sec/ conrm button, to conrm the selection.

Turn the round dial to adjust the timer.

Press on the “start/+30sec/conrm” button to start cooking.

FAST COOKING When the microwave oven is on the pause setting, you press once on the “start/+30sec/

The microwave will now heat at full power for 30 seconds.

Each time you repress the “start/+30sec/conrm” button the time duration of heating

will be increased by 30 seconds. In this way you can adjust the length of time to max.

You can also use the “start/+30sec/conrm” button during the use of the grill, the

combined cooking or defrosting functions in order to lengthen the cooking time.

The cooking time can also be adjusted if you turn the round dial counterclockwise

when the microwave is on the pause setting. When you press the “start/+30sec/

conrm” button the microwave will heat at 100% during the time set.

Note: the time settings cannot be adjusted with the “start/+30sec/conrm” button

during the automatic cooking programmes or during the defrosting by weight process.

DEFROSTING BY WEIGHT Press once on the “W.T./time defrost” button; “dEF1”will appear on the display.

Turn the round dial to select the weight of the foodstuff. The weight range selections

are from 100 to 2000g.

Press on the “start/+30sec/conrm” button to start defrosting.

DEFROSTING BY TIME Press twice on the “W.T./ time defrost” button; “dEF2” will appear on the display.

Turn the round dial to set the defrosting time.

Press op de “start/+30sec/conrm” button to start defrosting.

COOKING IN DIFFERENT STEPS You can adjust to a maximum of 2 steps. If one of the two steps is defrosting, you

must set this as the rst step. After each completed step you will hear a signal. The

automatic cooking programmes cannot be selected when using the function “cooking

in different steps”.

For example: if you wish rst to defrost food for 5 minutes and then to prepare it

for 7 minutes using the microwave power of 80%, you must carry out the following

Press twice on the “W.T./time defrost” button; “dEF2” will appear on the display.

Turn the round dial to set the time to 5 minutes.

Press on the “micro/grill/combi” button.

Turn the round dial to adjust the microwave power to 80%; “P80” will appear on the

Press on the start/+30sec/conrm” button to conrm the selection.

Turn the round dial to adjust the microwave so that it is set to heat for 7 minutes.

Press on the “start/+30sec/conrm” button to start the cooking process.

COOKING WITH TIMER First set the clock of your microwave oven to the present hour.

Select the desired cooking programme. You can select max. 2 steps. Do not set a

defrost function when you are cooking with the timer.

For example, you wish to cook for 7 minutes using 80% microwave power.

Press on the “micro/grill/combi” button.

Turn the round dial to set the microwave power to “P80”.

Press on the “start/+30sec/conrm” button to conrm the selection.

Turn the round dial to set the time to 7 minutes. Do NOT press now on the

“start/+30sec/conrm” button. But carry out the following instructions.

Press “clock/pre-set” button, the hour will begin to ash.

Turn the round dial to set the hour at which you want the microwave oven to start

Press on the “clock/pre-set” button; the minutes will begin to ash.

Set the minutes now.

Press NOW on the “start/+30sec/conrm” button to conrm the selection. When the

set time has been reached you will hear a signal, after which the cooking process

selected will start running.

Note: take care to adjust the present time rst, before using the timer.

AUTOMATIC COOKING PROGRAMMES Your microwave oven has 8 automatic cooking programmes, in order to select these,

carry out the following steps:

Turn the round dial clockwise in order to make a choice between “A-1” to “A-8”.

Press on the “start/+30sec/conrm” button to conrm the selected programme.

Turn the round dial to select the weight for the food to be cooked.

Press on the “start/+30sec/conrm” button to start the cooking process.

When the cooking programme nishes you will hear a signal.

Overview of the automatic cooking programmes.

45DO2013G A1: Warming up/heating

CHILDPROOF LOCK Press 3 seconds on the “stop/clear” button to engage the childproof lock.

You will hear a signal that conrms that the childproof lock is switched on and this is

will be lit up and visible in the display.

In order to disengage the childproof lock you press, again for 3 seconds, on the “stop/

clear” button. You will hear a signal conrming that the childproof lock is switched off

and the sign in the display will disappear.

CHECKING THE SETTINGS.

If during the cooking process you wish to check the microwave power you press on

the “micro/grill/combi” button. The selected power will appear for a few seconds on

If during use of the timer you wish to check the settings, you press on the “clock/pre-

set” button. The set time will be visible on the display for a few seconds.

If during the cooking process you press on the “clock/pre-set” button, the present time

will be visible for a few seconds.

EXTRA INFORMATION When you rst start to turn the round dial you will hear a signal.

If you have opened the door during the cooking process you must always press the

“start/+30sec/conrm” button again in order to let the cooking process continue.

If you do not press on the “start/+30sec/conrm button within 1 minute after setting

the desire cooking programme, the display settings will switch back to the present

time and the selection you made will be cancelled.

When you have pressed on one of your microwave’s buttons correctly you will hear a

signal. If you do not hear it then you have not pressed the button correctly.

You will hear a signal that repeats itself 5 times when the cooking process is

1x = 100%, 2x = 80%, 3x = 50%, 4x = 30%, 5x = 10% , potvrďte.

DOPLŃUJÍCÍ INFORMACE
