DO9111KR - Hand blender DOMO - Free user manual and instructions

Product type	Stand mixer
Brand	DOMO
Model	DO9111KR
Bowl capacity	Up to 2 kg of dough
Bowl material	Stainless steel
Included accessories	Flat beater, dough hook, whisk
Functions	Kneading, mixing, beating
Speed adjustment	Rotary speed selector
Multi-function head	With release for tilting
Max continuous use	10 minutes
Cooling time	30 minutes
Power supply	Mains (check voltage on device)
Cleaning	Motor unit: damp cloth; accessories: washable in water
Safety	Automatic stop on OFF, head release
Warranty	2 years
Spare parts	Available at Domo webshop

Frequently Asked Questions - DO9111KR DOMO

What is the maximum capacity of the mixing bowl?

The bowl can hold up to 2 kg of dough.

How long can I use the appliance continuously?

Do not exceed 10 minutes of continuous use, then allow to cool for 30 minutes.

What accessories are provided with the DO9111KR?

The appliance comes with a flat beater, a dough hook, and a whisk.

How do I attach an accessory to the head?

Slide the accessory onto the drive shaft, turn it a quarter turn counterclockwise and release to lock it.

Can I add ingredients while running?

Yes, you can add ingredients through the filling opening of the lid.

How do I clean the motor unit?

Never immerse the motor unit in water. Clean it with a soft, damp cloth.

What should I do if the power cord is damaged?

It must be replaced by the manufacturer, its service agent, or a qualified person to avoid any hazard.

Where can I buy spare parts?

Parts are available at the Domo webshop (http://webshop.domo-elektro.be) or at the point of sale.

Is the appliance guaranteed?

Yes, a 2-year warranty is granted from the date of purchase, upon presentation of the receipt.

Can I use the appliance with an external timer?

No, the appliance cannot be used with an external timer or remote control.

USER MANUAL DO9111KR DOMO

Red DOWO kitchen mixer with stainless steel bowl (no visible text or symbols)

DO9109KR-DO9111KR

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

Simple black line drawing of a plug with a curved cable (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Simple line drawing of a leaf-shaped object with a central stem (no text or symbols)

⑦89

O

Line drawing of a wireframe hat with a black base (no text or symbols)

O

Close-up of a medical or laboratory procedure image showing internal components (no visible text or symbols)

Blurred grayscale image with no discernible text, numbers, or symbols

Close-up of a mechanical component with no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

Simple line drawing of a decorative fan or mask with curved lines and a small tassel (no text or symbols)

⑦89

O

Line drawing of a wire mesh structure resembling a hairpin or windmill (no text or symbols)

O

AVANT LA PREMIÈRE UTILISATION

Blurred grayscale image of an indistinct object, possibly a device or tool, with no visible text or symbols.

Blurred grayscale image of an indistinct object with no visible text or symbols

Close-up of a hand operating a mechanical device with a metallic component (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols

Simple line drawing of a leaf-shaped object with internal curved lines (no text or symbols)

⑦89

O

Simple line drawing of a wire mesh head with a black base (no text or symbols)

O

Close-up of a mechanical component or tool with blurred background (no visible text or symbols)

Close-up of a mechanical component or tool with no visible text or symbols

Close-up of a mechanical component or tool with no visible text or symbols

Close-up of a mechanical component with no visible text or symbols

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.

• Only use the appliance for its intended use.
  • Always use the appliance on a steady, dry and level surface.

• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.

• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and hot parts or other heat sources.
• Before use, remove all packaging materials and any promotional stickers.
• Keep your fingers away from moving parts and the opening of the attachment.
• The appliance must be plugged into an earthed electrical socket.
• If you have to use an electrical extension lead, it must be earthed and placed in a way that no-one can trip over it.
• Do not put any accessories containing metal in a microwave oven.
• Switch off the appliance and disconnect from the power supply before changing accessories or approaching parts that move in use.
• Do not touch the whisk, mixer blade or kneading hook while the appliance is operating.
• Only use one attachment at a time.

- Do not operate the appliance for more than 10 minutes at one time. Allow 30 minutes rest before the next use.

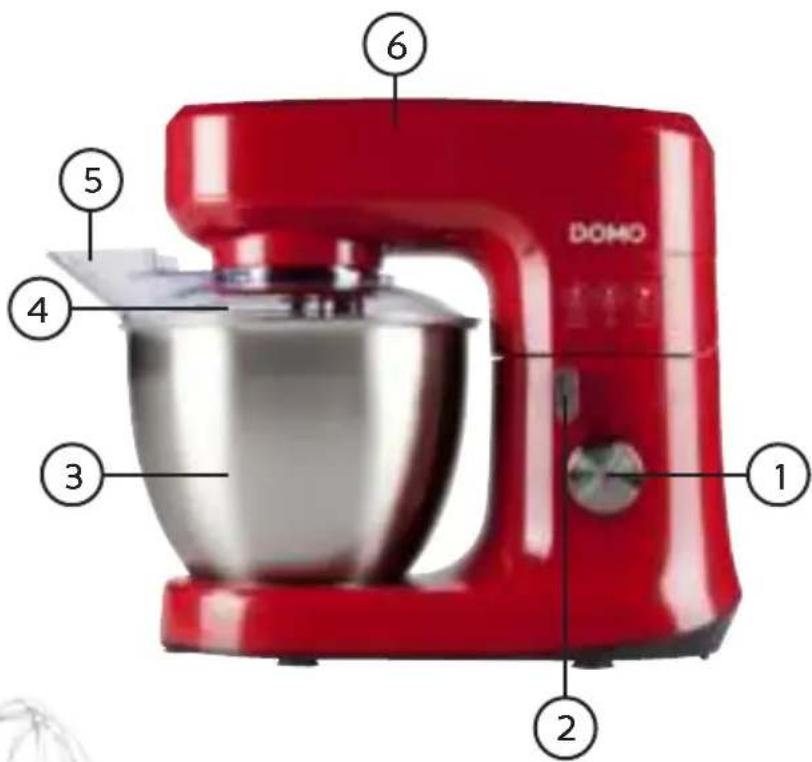

PARTS

1. Speed control
2. Release button multifunctional head
3. Stainless steel mixing bowl
4. Bowl lid
5. Fill opening
6. Multifunctional head
7. Beater
8. Dough hook
9. Balloon whisk

DOMO ① ② ③ ④ ⑤ ⑥

Simple line drawing of a decorative fan or mask with curved blades and a small teardrop base (no text or symbols)

⑦89

O

Simple wire mesh sculpture of a hairless head with a black base (no text or symbols)

O

BEFORE THE FIRST USE

Remove the appliance and the accessories from the packaging. Remove any promotional stickers.

Wash all removable parts in warm soapy water and dry thoroughly.

Never immerse the motor unit in water to avoid electrocution.

ASSEMBLY AND USE

Kneading/beating/whisking

Depending on the nature of the ingredients, the mixing bowl with lid can make 2 kg of dough.

1. Place the appliance on a flat, clean and dry surface.

2. Make sure that the plug is removed from the socket and that the speed control is set to 'OFF'

3. Turn the release button a quarter turn to the left, push the head up entirely and turn the release button to the right again, so that it points upwards, to lock the head.

4. Put the mixing bowl in the base and turn it clockwise so it locks. Put the ingredients into the bowl.

5. Choose the accessory you want to use: beater, dough hook, balloon whisk.

a. Attach the accessory to the head by sliding it around the axis.

b. Turn the accessory a quarter turn counterclockwise.

c. Release the accessory so that it falls into the lock position.

Blurred grayscale image of an indistinct object, possibly a device or tool, with no visible text or symbols.

Blurred grayscale image of an indistinct mechanical or industrial scene with no visible text or symbols

Close-up of a mechanical device with no visible text or symbols

Close-up of a metallic mechanical component with no visible text or symbols

1. Turn the release button a quarter turn to the left, push the head down entirely and turn the release button a quarter turn to the right again so that it point upwards, to lock the head.

2. Place the lid onto the bowl.

3. Put the plug into the socket and select the desired speed by turning the speed control knob.

4. During the preparation you can add ingredients through the fill opening in the lid. Caution: Do not use the appliance for longer than 10 minutes at a time. After 10 minutes of use, let the appliance cool down for 30 minutes before using it again.

5. To stop the appliance, turn the speed control knob to the 'OFF' position.

DISASSEMBLY

1. Remove the plug from the socket.

2. Remove the lid from the mixing bowl.

3. Turn the release button a quarter turn to the left, push the head up entirely and turn the release button to the right again, so that it points upwards, to lock the head.

4. Push the accessory out of the lock position and turn it a quarter turn clockwise. Slide the accessory off of the axis and remove the accessory. Remove the accessories carefully, since they may have sharp edges.

5. Turn the bowl counterclockwise out of the lock position and remove the bowl.

6. Turn the release button a quarter turn to the left, push the head down entirely and turn the release button a quarter turn to the right again so that it point upwards, to lock the head.

CLEANING

1. Always remove the plug from the socket before cleaning the appliance.
2. Never immerse the motor unit in water or under running water. Clean the motor unit with a soft, damp cloth.
3. Disassemble all accessories according to the instructions under the section ‘Disassembly’.
4. For quick cleaning, rinse the accessories under running water.
5. For thorough cleaning, wash, rinse and dry the accessories.

PRECAUCIONES IMPORTANTES

Simple line drawing of a leaf-like shape with a tassel (no text or symbols)

⑦89

O

Simple line drawing of a wire mesh structure resembling a dome or cage (no text or symbols)

O

Close-up of a mechanical component or tool with blurred background (no visible text or symbols)

Blurred grayscale image of an indistinct mechanical or industrial structure with no visible text or symbols

Close-up of a hand holding a small object, possibly a tool or device, in a kitchen setting (no visible text or symbols)

Close-up of a mechanical component with no visible text or symbols
