Piet Huysentruyt DO-9014M - Hand blender DOMO - Free user manual and instructions

Brand	DOMO
Model	Piet Huysentruyt DO-9014M
Product type	Immersion blender
Power	600 W (estimated)
Voltage	220-240 V ~ 50/60 Hz
Cable length	1.2 m (estimated)
Weight	0.8 kg (estimated)
Dimensions (L x W x H)	40 x 7 x 7 cm (estimated)
Shaft material	Stainless steel
Speeds	Variable speed + turbo
Included accessories	Blending shaft, whisk, chopper, measuring cup (500 ml)
Functions	Blending, chopping, whisking, preparing purees and sauces
Maximum operating temperature	100 °C
Warranty	2 years
Safety	Motor unit not submersible, use under supervision for children under 8 years
Care and cleaning	Unit: damp soft cloth; accessories: hot water and mild detergent, do not wash in dishwasher or under running water
Repairability	Replace damaged cable by a qualified professional

Frequently Asked Questions - Piet Huysentruyt DO-9014M DOMO

How to attach the blending shaft to the appliance?

Place the accessory on the motor unit and turn it to the left until it clicks. To remove, turn to the right.

Can I use the blender in boiling oil?

No, never use the appliance in boiling oil, as there is a risk of splashes and burns. The maximum operating temperature is 100 °C.

How to avoid splashes when blending?

Use a deep bowl and never fill the bowl more than two-thirds full. Immerse the blending shaft to a maximum of two-thirds of its length. Gently move up and down.

Can I wash the motor unit under water?

No, never immerse the motor unit in water. Clean it with a damp soft cloth and dry it thoroughly. The accessories can be washed in hot water with a mild detergent.

How to use the chopper?

Remove the chopper lid, place the blade on the central axis, fill the bowl, put the lid back on, screw the motor unit on top and press the on/off button. Be careful with the blade as it is very sharp.

Can the appliance be used by children?

Yes, from 8 years under supervision. Children must not play with the appliance. Cleaning must not be done by children under 8 years without supervision.

What to do if the power cord is damaged?

The cable must be replaced by the manufacturer, its service center or a qualified person to avoid any hazard. Do not use the appliance with a damaged cable.

What is the warranty period?

The warranty is 2 years from the date of purchase, covering manufacturing defects. Damages from improper use or normal wear are excluded.

Can I use an external timer or remote control?

No, the appliance must not be used with an external timer or separate remote control.

How to clean the accessories?

Wash the accessories in hot water with a mild detergent. Do not wash them under running water or in the dishwasher. Do not use abrasive products or metal sponges.

USER MANUAL Piet Huysentruyt DO-9014M DOMO

Piet Huysentruyt by DOMO

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, which are subject to wear, are excluded from the warranty.

Type nr. Apparaat

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or labels, representing waste sorting or disposal (no text present)

RECYCLING INFORMATIONEN

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

BELANGRIJKE VEILIGHEIDSVOORSCHRIFTEN

Close-up of a kitchen utensil with labeled parts (no text or symbols visible)

Clear glass pitcher with black handle, no visible text or symbols

REINIGING

Product photo of a blender with a whisk and stand, labeled parts 5 and 6 (no text or symbols on the objects themselves)

MODE D'EMPLOI

Clear glass pitcher with black handle, labeled '7' on side (no text or symbols on the object itself)

Product photo of a kitchen blender with a whisk, a side table, and a stand (no text or symbols visible)

GEBRAUCHSANWEISUNG

Clear glass pitcher with black handle and number 7 label (no text or symbols on the object itself)

MONTAGE DER ZUBEHÖRTEILE

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision.

Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
  • Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

Read this instruction booklet carefully to secure your safety:

1. Check the rating label to see if the tension complies with your electricity supply.
2. Never immerse the top part of the stick mixer in water or any other liquid. If the top part of your mixer should fall into water or any other liquid, don't, under any surcumstance, touch it but remove the plug from the socket immediately.
3. Turn on the appliance when the unit is already in the food you want to mix.
4. Attention : don't ever take the mixer out of the food when the mixer is still running.
5. Never use the appliance in hot oil or grease ( hot splash can cause burns)
6. Don't let the mixer run if it is not in any food.
7. Be very careful when using the appliance around children. Children must be kept an eye on, to make sure they don't play with the appliance.
8. Remove the plug from the socket when the appliance is not in use or before cleaning.
9. Don't use the mixer when parts are damaged. If any damage occurs return the unit back to the vendor for servicing.

When the power cord is damage it must be repaired by the after sales service or by a qualified person. Don't try to repair the unit yourself.

1. This stick mixer is made for use in foods and liquids with a temperature under 100^ C.

2. All damages or injuries that are a result of not following the instructions as described, are for your own account.

Neither the manufacturer, the importer or the supplier can be held accountable.

SAVE THESE INSTRUCTIONS

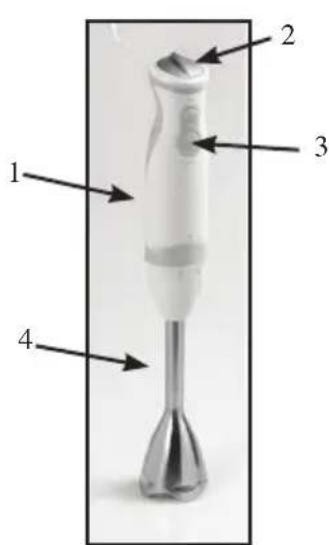

PARTS

1. Hand unit
2. Speed control
3. On/off switch / turbo switch
4. Mixing leg

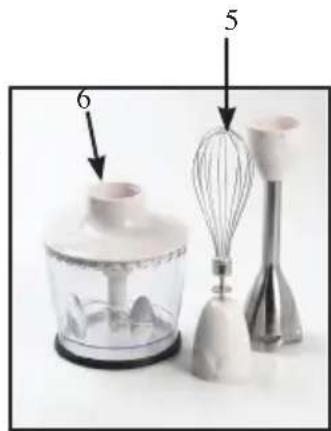

5. Beater
6. Chopper
7. Measuring cup with detachable handle

1 2 3 4

Product photo of a blender with a whisk and stand, labeled parts 5 and 6 (no text or symbols on the objects)

INSTRUCTIONS FOR USE

1. This mixer is suited for mixing drinks and other liquids, to mix small pieces of fruit or vegetables, to make sauce and for the preparation of mash and baby food.
2. For hygienic reasons, we recommend to clean the mixer before first use
3. Attention: to prevent overheating we recommend not to use the

mixer longer than 1 minute at a time. After one minute you should let the appliance cool for a minute, before using it again. When using the appliance like that for 5 minutes, you need to let it cool for 30 minutes.

1. When mixing use the included measuring cup or a high mixing bowl to prevent splashes
2. Slight up and downward movement will provide the best result when using the mixer, but make sure that the mixing accessoires are never more than 2/3 immersed in any food or liquid and also that the mixing bowl is only filled for 2/3 to prevent splashing.
3. You can determine the mixing speed with the speed control button on top of the unit. Press the on/off button to operate the unit.

Clear glass pitcher with black handle and label '7' (no text or symbols on the object itself)

ASSEMBLY OF ACCESSORIES

The mixer includes 3 accessories: a mixing leg, a beater and a chopper. For using one of these accessoires you have to place them onto the hand unit en turn the accessories to the left until it clicks. For removing the accessories turn it right.

USE OF THE CHOPPER

Remove the lid from the chopper. Check if the blade is correctly placed on the central pin in the chopper. Be very careful when handling the blade it is very sharp. When the blade is correctly placed, fill the chopper with the food you like to chop. Place the lid on the chopper. Place the hand unit on top of the lid and turn till it clicks. Press the on/off switch to chop the food.

CLEANING

The hand unit of the mixer can be cleaned with a soft damp cloth, if necessary with a mild detergent. Dry thoroughly after cleaning.

The accessories can be cleaned in warm water with a mild detergent, don't hold the accessories under running water.

Don't use any metal sponge or abrasive cleaner to clean your appliance.
