DO9206M - Hand blender DOMO - Free user manual and instructions

Product type	Immersion blender
Brand	DOMO
Model	DO9206M
Power source	Mains, 220-240 V ~ 50/60 Hz
Power	800 W (estimated)
Speeds	Variable with speed regulator and Turbo button
Functions	Blend, whisk
Included accessories	Blending shaft, whisk, whisk holder
Cord length	Short (do not use extension cord)
Maximum continuous use time	Blending: 1 minute; Whisking: 2 minutes
Cleaning the motor unit	Damp cloth only, do not immerse
Cleaning the blending shaft and whisk holder	Rinse under running water, do not submerge, do not wash in dishwasher
Cleaning the whisk	Dishwasher safe
Warranty	2 years (appliance), 6 months (accessories and wear parts)
Customer service	[phone], [e-mail]

Frequently Asked Questions - DO9206M DOMO

How to use the immersion blender?

Attach the blending shaft to the motor unit by turning it until it clicks. Plug in the appliance. Place the blender vertically in the bowl containing the ingredients (with liquid). Choose the speed with the regulator and hold the start/stop button pressed. You can also use the Turbo button for maximum speed. Do not blend for more than 1 minute at a time.

How to use the whisk?

Place the whisk in its holder, then attach the assembly to the motor unit. Plug in the appliance. Press the start/stop button to whisk. The more you press the button, the higher the speed. Release to stop. Do not whisk for more than 2 minutes at a time.

What accessories are included with the DO9206M?

The appliance comes with a blending shaft, a whisk, and a whisk holder.

How to clean the immersion blender?

Always unplug the appliance. The motor unit can be cleaned with a damp cloth (do not immerse). The blending shaft and whisk holder can be rinsed under running water but should not be submerged or washed in the dishwasher. Only the whisk is dishwasher safe. Dry completely before reassembling.

Can I blend hot foods?

Yes, but make sure not to exceed the maximum operating temperature (usually 80-90°C). Rinse the blades immediately after blending salty foods to avoid corrosion.

What is the power of the DO9206M blender?

The power is not specified in the manual. For an immersion blender of this range, it is estimated at around 800 W.

Can I use an extension cord?

No, the manual formally discourages the use of an extension cord. The cord is short for safety reasons.

What should I do if the appliance does not work?

Check that the outlet is powered and that the attachment is properly locked. If the problem persists, contact DOMO customer service at [phone] or by email at [e-mail]. Do not attempt to repair the appliance yourself.

How to adjust the blender speed?

Use the speed regulator on the motor unit. You can turn it while blending to adjust the speed. The Turbo button directly activates maximum speed.

What is the warranty period?

The appliance is guaranteed for 2 years from the date of purchase. Accessories and wear parts have a 6-month warranty. The warranty is granted upon presentation of the receipt.

USER MANUAL DO9206M DOMO

Close-up of a black and white DOME-branded hand mixer with a stand (no visible text or symbols on the device body)

DO9206M

Two black-and-white icons: a warning triangle with an exclamation mark and an open book (no text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign with a trash bin crossed out by two crossed lines, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this. In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

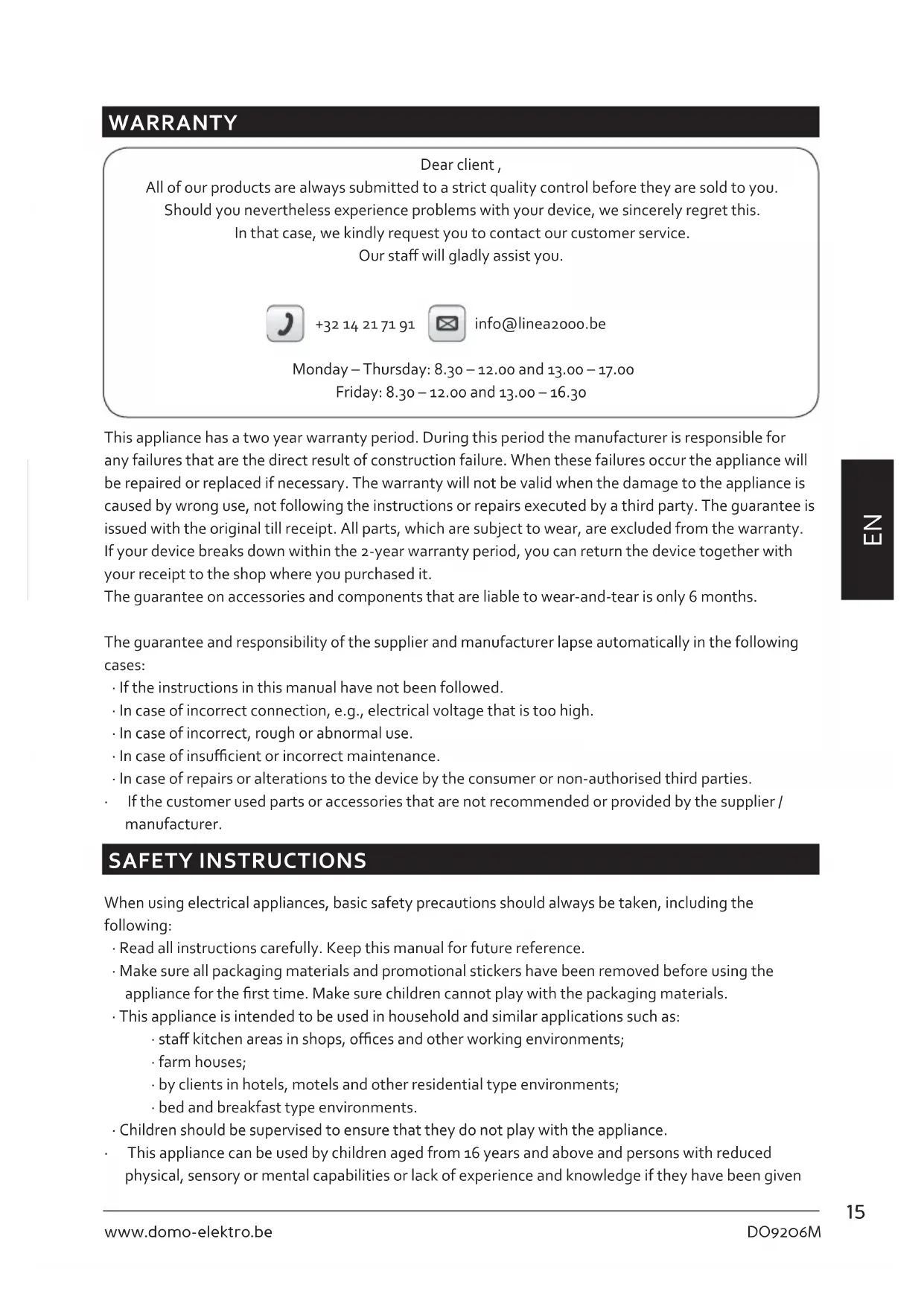

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

· This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

· Children should be supervised to ensure that they do not play with the appliance.

This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 16 and supervised.

• Keep the appliance and its cord out of reach of children younger than 16 years.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.
• Never leave the appliance unattended while it is functioning.
  · Do not use or store this appliance outdoors.
• Do not use this appliance for other than intended use.

- Check carefully that the voltage and frequency of the power net match the indications on the rating label of the appliance.

• The plug must be plugged into an appropriate outlet that is installed and grounded in accordance with all local standards and requirements.
• Only use the utensils delivered with the appliance.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

• Do not operate the appliance with wet hands.
• A short power supply cord is provided to reduce the risk of becoming entangled in or tripping over a longer cord. DO NOT USE WITH AN EXTENSION CORD.
• Unwrap the cord completely to prevent overheating of the cord.
• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.
• Do not allow the power cord supply to run underneath or around the unit.
• Do not use the appliance without ingredients.
• Handle with great care when using sharp accessories like knives. Only touch the accessories when they stopped moving inside the appliance.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

· SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

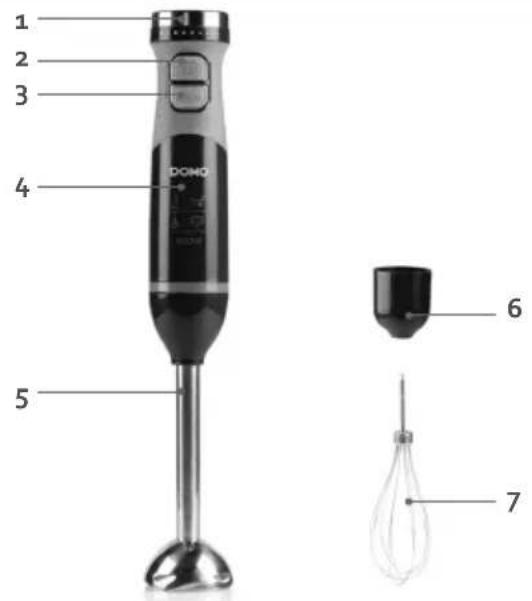

PARTS

1. Speed control
2. On/off button
3. Turbo button
4. Motor unit
5. Mixer
6. Beater holder
7. Beater

1 2 3 4 5 6 7

BEFORE THE FIRST USE

· Before use, remove all packaging materials and any promotional stickers.
· Clean the stick mixer before use. See chapter «Cleaning and maintenance»

USE

MIXER

The mixer is suited for making sauces, soups, mayonnaise, baby food, milkshakes and other mixed foods. Caution: do not mix food without adding any liquid.

1. Attach the mixer to the motor unit. Turn it and make sure it clicks into place.
2. Plug in the appliance in the wall socket.
3. Place the mixer upright in a bowl with ingredients. Do not hold the mixer in an angle to avoid splashes.
4. Select a speed with the speed control and press the on/off button to mix with the selected speed. Hold the button pressed. You can adjust the speed during mixing with the speed control. Or press the turbo button to start mixing immediately at full speed.
   Caution: do not mix for longer than 1 minute continuously.
5. After use, unplug the appliance. Remove the mixer by turning the mixer.

BEATER

The beater is suitable for beating egg whites, whipping cream, instant desserts, etc.

1. Place the beater into the beater holder.
2. Attach the beater to the motor unit. Turn it and make sure it clicks into place.

3. Select the speed with the speed controller and press the on/off button to beat. Keep it pressed in. It is also possible to adjust the speed with the speed controller while beating. Or push the turbo button to beat at full speed immediately.
   Caution: do not use the beater for longer than 1 minute at a time.

4. After use, unplug the appliance. Remove the beater by turning it.

CLEANING AND MAINTENANCE

· Always unplug the appliance before cleaning it.
· Never immerse the motor unit in water. Only wipe the motor unit clean with a damp cloth.
- Caution: after processing really salty food the blades should be rinsed immediately.
- Remove the mixer/beater from the appliance. Remove the beater from the beater holder. Clean it under running water. Don't use any abrasive or corrosive cleaners.
- Don't place the chopper and beater holder in water. These are not dishwasher safe.
· The beater without the holder is dishwasher safe.
- Be careful: the blades are very sharp.

ENVIRONMENTAL GUIDELINES

Prohibition sign with a trash bin crossed out and a black rectangular base, indicating no waste or discharge.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Prohibition sign with a trash bin crossed out and a black rectangle below, indicating no waste or plastic discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
