USER MANUAL DO2723CG DOMO

sind nicht in der Garantie eingeschlossen.

WARRANTY This appliance has a two year warranty period. During this period the manufacturer is

responsible for any failures which are the direct result of construction failure. When these

failures occur the appliance will be repaired or replaced if necessary. The warranty will

not be valid when the damage to the appliance is caused by wrong use, not following the

instructions or repairs executed by a third party. The warranty will only be valid if the

warranty application has been completed by the dealer at the time of purchase. All parts,

which are subject to wear, are excluded from the warranty

Geschäft, in dem Sie das Produkt gekauft haben.

RECYCLING INFORMATION The symbol on the product or on its packaging indicates that this product may not

be treated as household waste. Instead it shall be brought to the applicable collection

point for recycling of electrical and electronic equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the

environment and human health, which could otherwise be caused by inappropriate

waste handling of this product. For more detailed information about recycling of this

product, please contact your local city ofce, your household waste disposal service or

the shop where you purchased the product.DO2723CG Wanneer het elektrisch snoer beschadigd is, moet het vervangen worden door de

oder einer gleichartig geschulten Person ersetzt werden, um Unglücke zu verhindern.

If the supply cord is damaged, it must be replaced by manufacturer of its service

agent or a similarly qualied person in order to avoid a hazard.

5DO2723CG ZÁRUČNÍ LIST Pro záruku začínající dnem prodeje spotřebiče platí na území ČR tyto podmínky:

combi koken is 95 minuten.

geändert werden und der Knopf „start“ funktioniert.

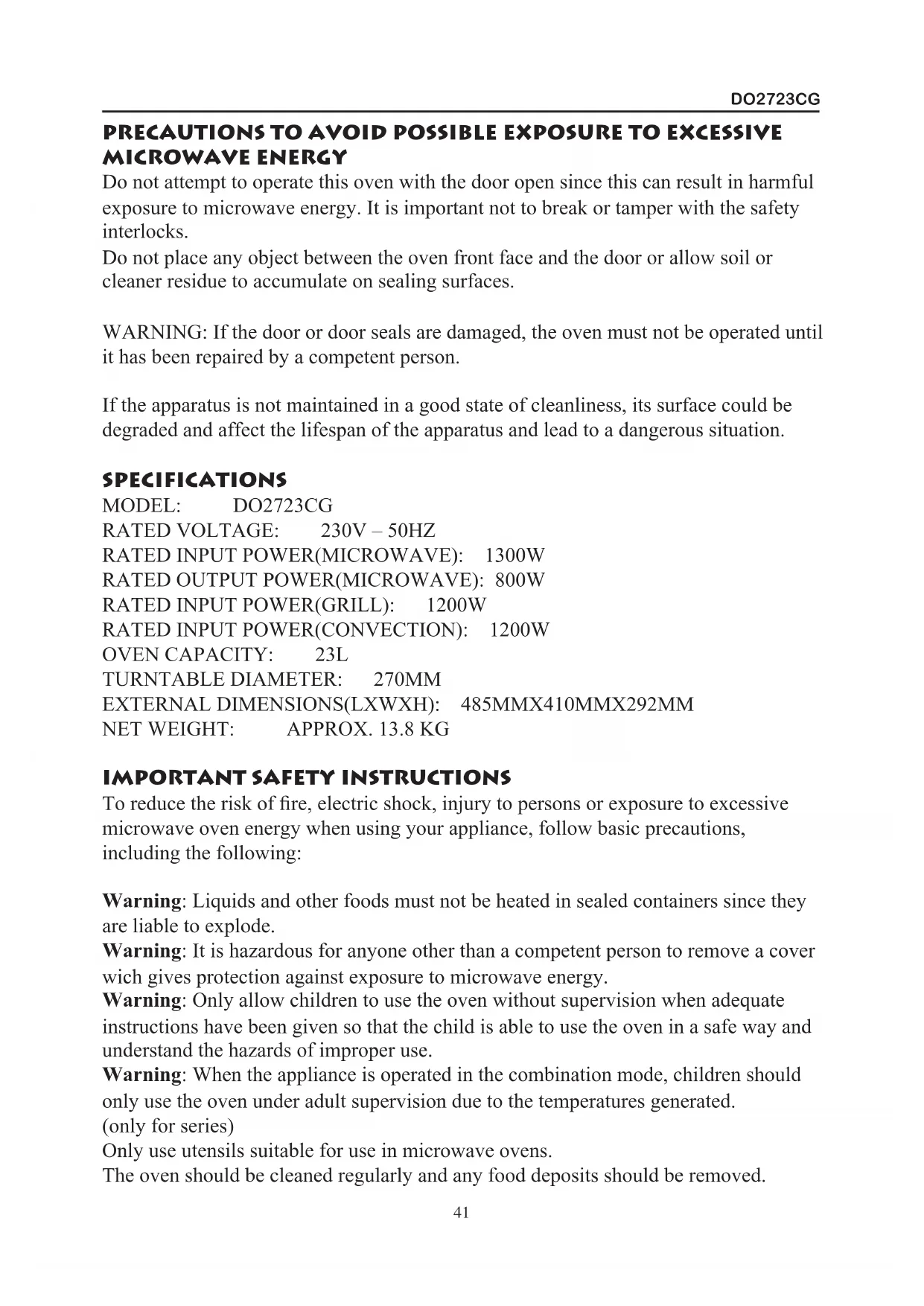

40DO2723CG PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door open since this can result in harmful

exposure to microwave energy. It is important not to break or tamper with the safety

Do not place any object between the oven front face and the door or allow soil or

cleaner residue to accumulate on sealing surfaces.

WARNING: If the door or door seals are damaged, the oven must not be operated until

it has been repaired by a competent person.

If the apparatus is not maintained in a good state of cleanliness, its surface could be

degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

SPECIFICATIONS MODEL: DO2723CG RATED VOLTAGE: 230V – 50HZ RATED INPUT POWER(MICROWAVE): 1300W RATED OUTPUT POWER(MICROWAVE): 800W RATED INPUT POWER(GRILL): 1200W RATED INPUT POWER(CONVECTION): 1200W OVEN CAPACITY: 23L TURNTABLE DIAMETER: 270MM EXTERNAL DIMENSIONS(LXWXH): 485MMX410MMX292MM NET WEIGHT: APPROX. 13.8 KG IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of re, electric shock, injury to persons or exposure to excessive

microwave oven energy when using your appliance, follow basic precautions,

including the following:

Warning: Liquids and other foods must not be heated in sealed containers since they

are liable to explode.

Warning: It is hazardous for anyone other than a competent person to remove a cover

wich gives protection against exposure to microwave energy.

Warning: Only allow children to use the oven without supervision when adequate

instructions have been given so that the child is able to use the oven in a safe way and

understand the hazards of improper use.

Warning: When the appliance is operated in the combination mode, children should

only use the oven under adult supervision due to the temperatures generated.

Only use utensils suitable for use in microwave ovens.

The oven should be cleaned regularly and any food deposits should be removed.

41DO2723CG When heating food in plastic or paper containers, keep an eye on the oven due to the

possibility of ignition.

If smoke is observed, switch off or unplug the appliance and keep the door closed in

order to stie any ames.

Do not overcook food.

Do not use the oven cavity for storage purposes. Do not store items, such as bread,

cookies, etc. inside the oven.

Remove wire twist-ties and metal handles from paper or plastic containers/bags before

placing them in the oven.

Install or locate this oven only in accordance with the installation instructions

Eggs in the shell and whole hard-boiled eggs should not be heated in microwave ovens

since they may explode, even after microwave heating has ended.

Use this appliance only for its intended uses as described in manual. Do not use

corrosive chemicals or vapors in this appliance. This oven is especially designed to

heat. It is not designed for industrial or laboratory use.

If the supply cord is damaged, it must be replaced by the manufacturer, its service

agent or similarly qualied persons in order to avoid a hazard.

Do not store or use this applaince outdoors.

Do not use this oven near water, in a wet basement or near a swimming pool.

The temperature of accessible sufaces may be high wne the appliance is operating.

The surfaces are liable to get hot during use. Keep cord away from heated surface, and

do not cover any evnets o nthe oven.

Do not let cord hang over edge of table or counter.

Failure to maintain the oven in a clean conditionc ould lead to deterioration of the

surface that could adversely affect the life of the appliance and possibly result in a

hazardous situation.

The contents of feeding bottles and balby food jars shall be stirred or shaken and the

temparture checked before cunsumption, in order to avoid burns.

Microwave hetaing of beverages can resut in delayed eruptive boiling, therefore take

care when handling the container.

The appliance is not intended for use by persons (including children) with reduced

physical, sensory or mental capabilities, or lack of experience and knowledge, unless

they have been given supervision or instructions concerning the use of the appliance

by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

the applainces are not intended to be operated by means of an external timer or

separate remote-control system.

Warnin : ensure that the appliance is switched off before replacing the lamp to avoid

the possiblilty of electric shock.

Accessible parts may become hot during use. Young children should be kept away. A

steam cleaner is not to be used.

Surface of a storage drawer can get hot.

42DO2723CG Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass

since they caon scratch the surface, which may result in shattering of the glass.

During use the appliance becomes hot. Care should be taken to avoid touching heating

elements inside the oven.

The door ort he outer suface may get hot when the appliance is operating.

TO REDUCE THE RISK OF INJURY TO PERSONS

- Touching some of the internal components can cause serious personal injury or

death. Do not disassemble this appliance.

- Improper use of the grounding can reslut i electric shock. Do not plug into an outlet

until applaince is properly installed and grounded.

- Be sure to unplug the appliance from the power supply.

- Clean the inside of the oven after using with a slightly damp cloth.

- Clena the accesories in the usual way in soapy water

- The door frame and seal and neighouring parts must be lceaned carefully with a

damp cloth when they are dirty.

- This appliance must be grounded. In the event of an electrical short circuit,

grounding reduces the risk of electric shock by providing an escape wire fort he

electric current. This applaince is equipped with a cord having a grounding wire with a

grounding plug. The plug must be plugged into an outlet that is properly installed and

grounded. Consult a qualied electrician or serviceman if thegrounding instructions

are not completely understood or if doubt exists as to whether the appliance is

properly grounded. I t is necessary to use an extension cord, use only a 3-wire

- A short power-supply cord is provided to reduce the risks resulting from becoming

entangled in or tripping over a longer cord.

- If a long cord set or extension cord is used, the marked electrical rating of the cord

set or extension cord should be at least as great as the electrical rating of the appliance.

The extension cord must be agroundingtype 3-wire cord.

Teh long cord should be arranged so that it will not drape over the counter top or

tabletop where it can be pulled on by children or tripped over unitentionally.

UTENSILS Caution : it is hazardous for anyone other than a competent person to carry out any

service or repair operation that involves the removal of a cover which gives protection

agains exposure to microwave energy.

There may be certain non-metaallic utensils that are not safe to use for microwaving.

If in doubt, you can test the utensil in question following the procedure below :

ll a microwave-safe container with 1 cup of cold water (250 ml) along with the

utensil in question.

Cook on maximum power for 1 minute.

Carfeully feel the utensil. If the empty utensil is warm, do not use it for microwave

Do not exceed 1 minute cooking time.

MATERIALS YOU CAN USE IN MICROWAVE OVEN

• Aluminum foil : Shielding only. Small smooth pieces can be used to cover thin

parts of meat or poultry to prevent overcooking. Arcing can occur if foil is too

close to oven walls. The foil should be at least 2,5 cm away from the oven walls.

• Browning dish : follow manufacturer’s instructions. The bottom of browning

dish must be at least 5 mm above the turntable. Incorrect usage may cause the

• Dinnerware : microwave-safe only. Follow manufacturer’s instructions. Do not

use cracked or chipped dishes.

• Glass jars : always remove lid. Use only to heat food until just warm. Most glass

jars are not heat resistant and may break.

• Glassware : heat-resistant oven glass ware only. Make sure there is no metallic

trim. Do no use cracked or chipped dishes.

• Oven cooking bags : follow manufacturer’s instructions. Do not close with metal

tie. Make slits to allow steam to escape.

• Plastic : microwave-safe only. Follow the manufacturer’s instructions. Should be

labeled „microwave safe“. Some plasic containers soften, as the food insdie gets

hot. ‚boiling bags“ and tightly colsed plastic bags should be slit, pierced or vented

as directed by package.

• Plastic wrap : microwave-safe only. Use to cover food during cooking to retain

moisture. Do not allow plastic wrap to touch food.

• Themrometers : microwave-safe only.

MATERIALS TO BE AVOIDED IN MICROWAVE OVEN

• Aluminum tray : may cause arcing. Transfer food into a microwave-safe dish.

• Food carton with metal handle : may cause arcing. Transfer food into microwave-

• Metal or meatl-trimmed utensils : metal shields the food from microwave energy.

Metal trim may cause arcing.

• Metal twist ties : may cause arcing and coiuld cause a re in the oven.

• Paper bags : may cause a re in the oven.

• Plastic foam : plastic foam may melt or cotaminate the liquid inside when

exposed to high temperature.

• Wood : wood will dry out when used in the microwave oven and may split or

44DO2723CG SETTING UP YOUR OVEN Remove the oven and all materials from the carton and oven cavity. Your oven comes

with the following accessories :

E. Observation window

F. Safety interlock system

TURNTABLE INSTALLATION Never place the glass tray upside down. The glass tray should never be restricted.

Both glass tray and turntable ring assembly must always be used during cooking.

If glass tray or turntable ring assembly cracks or breaks, contact your nearest

authorized service center.

COUNTERTOP INSTALLATION Remove all packing materials and accessories. Examinet he oven for any damage such

as dents or broken door. Do not install if oven is damaged.

Cabinet : remove any protective lm found on the microwave oven cabinet surface.

Do not remove the light brown mica cover that is attached to the oven cavity to protect

INSTALLATION Select a level surface that provides enough open space fort he intake and/or outlet

A minimum clearance of 7,5 cm is required between the oven and any adjacent walls.

One side must be open.

Leave a minimum of 30 cm clearance above the oven.

Do not remove the legs from the bottom of the oven.

Blocking the intake and/or outlet openings can damage the oven.

Place the oven as far away from radios and TV as possible. Operation of microwave

oven may cause interference to your radio or TV reception.

Plug your oven into a standard household outlet. Be sure the voltage and the frequence

ist he same as the vlotage and the frequence on the rating label.

A B C D E F GDO2723CG Warning :Do not install oven over a range cooktop or other heat-producing applaince.

If installed near or over a heat source, the oven could be damaged and the warranty

The accessible surface may be hot during operation.

OPERATION INSTRUCTION

When the microwave oven is electried, the oven will display „0:00“, buzzer will

should once and enter into the waiting states. Its setting rang is 0:00 - 23:59.

When in waiting state, press „Stop/clear/clock“ and „00“ will ash. At the same time „

Press „start“ to conrm. „ : „ashes.

How to modiy the clock : the Steps are the same as above mentioned.

Note : - after the unit is electried and the clock has not been set, time will not count

Durnig clock setting, if press „Stop/clear/clock“ , the setting will exit.

2. Microwave cooking

Select diffent microwave power level and set cooking time as you wish. There are 5

power levels available for choosing. Keep on pressing „microwave“ to choose the

Press „microwave“, the led will display „P100“ rst, „

„ indicator will light up. If

„Stop/clear/clock“ is pressed, it will go bakc to waiting state.

Turn the knob to input the cooking time. The max. time is 95 min.

If „Stop/clear/clock“ is pressed, it will go back to previous state.

Press „start“ to start cooking. The „ “ indicator will ash. If you press „Stop/clear/

clock“, the oven will Stopp working. At this time, press „Stop/ clear/clock“ again

or the time is paused for more than 5 minutes, it will turn back to the waiting state.

Press „start“ within 5 min, the oven goes on working and time counts down. Press

„microwave“ to check the microwave power for 3 sec. and then recover to the couting

When cooking is nished, the buzzer sounds ve times. And turn back to waiting

state. During cooking, each pressing on „start“ can increase the cooking time by 30

Keep on pressing „grill“ to choose grill power. „G-1“, „C-1“ and „C-2“, will be

displayed in order. At this moment, the symbols „ “ or „ “ will light.

Turn the knob to input the cooking time. The maximum time is 95 min.

Press „start“ to begin cooking. Time counts down. If you press „Stop/clear/clock“,

the oven will stop working. At this time, press „Stop/ clear/clock“ again or the time

is paused for more than 5 minutes, it will turn back to the waiting state. Press „start“

within 5 min, the oven goes on working and time counts down. Press „grill“ to check

the grill power for 3 sec. and then recover to the counting down state

The buzzer will sound when cooking time is nished, each pressing on „start“ can

increase the cooking time by 30 sec.

Note : if half the grill time passes, the oven sounds twice, and this is normal. In order

to have a better effect of grilling food, you should turn the food over, close the door,

and then press „start“ to continue cooking. If no operation, it will continue working.

„Grill“ pad instructions

Order Display Microwave grill

4. Defrost by weight

1) Press „DEFROST “ to choose the defrosting by weight function. “ “ and “ “

will light. “dEF1” will ash.If you keep on pressing this key, “dEF1”,”dEF2” will

2) Turn the knob to input the weight.”100”,”200”,”300”,”400”,”500”,”600”,”800”,

“1000”, “1200”, “1400”, “1600”, “1800” and “2000” will display.

3) Press “START “ to start defrosting.

If you press “STOP/CLEAR/CLOCK”, the unit stops working.

At this time, press “STOP/CLEAR/CLOCK” again or the time for pause is more

than 5 minutes, it will turn back to the waiting state.

47DO2723CG Press “START “ within 5 minutes, the unit goes on working and time counts down.

When it is nished, the buzzer sounds ve times and turn back to the waiting state.

4) When half the defrost time pass, the buzzer will sound twice to remind you to turn

the food over, if no action is taken, the unit will continue working and the defrost

1) Press “DEFROST” twice to choose the function of defrost by time.

“ “ and “ “ will light. “dEF2” displays.If you keep on pressing this key,

“dEF1”,”dEF2” will ash in order.

2) Turn the large round knob to input the cooking time.

3) Press “START “ to start defrosting. “ “ and “ “ indicators will ash.

Time counts down. If you press “STOP/CLEAR/CLOCK”, the unit stops working.

At this time, press “STOP/CLEAR/CLOCK” again or the time for pause is more

than 5 minutes, it will turn back to the waiting state.

Press “START” within 5 minutes, the unit goes on working and time counts down.

4) The defrosting power is P30. During this process,each pressing on “START “ can

increase 30 seconds. Buzzer will sound ve times when cooking nished.

1) When the unit is in waiting state,turn the knob to choose menu directly.

The LED is displayed from”A1” to “A10”.

2) Press “START” to conrm the menu.

3) Turn the knob to input the weight of the menu.

4) Press “START “ to start cooking.

When nished, the buzzer sounds ve times and turn back to the waiting state.

bread 100 100% grill

Roasted chicken 1000 C-2

A10 475 preheat at 160°C rst

Note : When roasting the chicken and 2/3 cooking time pass, the buzzer will sound

twice to tell you to open the door to turn the food over. If no operation, the oven

will continue cooking.

1) Press “CONVECTION” to choose the temperature of convection.

2) “ “ and “ C° “ will light. “100”,”110”....,”190” will be displayed in cycle.

3) Input the convection time by turning the large round knob. The maximum time can

be set is 95 minutes.

4) Press “START” to work.

Time counts down.If you press “STOP/CLEAR/CLOCK”, the unit stops working.

49DO2723CG At this time, press “STOP/CLEAR/CLOCK” again or the time for pause is more

than 5 minutes, it will turn back to the waiting state. Press “START” within 5 minutes,

the unit goes on working and time counts down.

If you press “CONVECTION”, you check the status and the temperature will be

displayed for 3 seconds, then time counts down.

5) During this process,each pressing on “START “ can increase 30 seconds.When

cooking nish, the buzzer will sound ve times and turn back to the waiting state.

1) Press “COMBINE” to choose the temperature. “ “, “ “ and “°C” will light.

“100”, “110”, ...”190” will be displayed in cycle. It will go back to the waiting state by

pressing “STOP/CLEAR/CLOCK”.

2) Input the time by turning the large round knob. The maximum time is 95 minutes.

3) Press “START “ to start working.

“:” stops ashing.Time counts down.

4) If you press “STOP/CLEAR/ CLOCK”, the unit stops working.

At this time, press “STOP/CLEAR/CLOCK” again or the time for pause is more

than 5 minutes, it will turn back to the waiting state. Press “START” within 5 minutes,

the unit goes on working and time counts down.

5) Press “COMBINE” to check the status and temperature will be displayed for 3

6) During this process,each pressing on “START “ can increase 30 seconds. the

buzzer will sound ve times when cooking nish and turn back to the waiting state.

9. Lock-out Function for Children

Lock: In waiting state, press “STOP/CLEAR/ CLOCK” and “ START “ at the same

time, there will be a long beep denoting entering into the children-lock state and LED

will display “ 0:00 “ or current time.

Lock quitting: In locked state, press “STOP/CLEAR/ CLOCK” and “START “ at the

same time, there will be a long “beep” denoting that the lock is released.

10. Special Specications

1) The maximum cooking time of “Microwave”,”Grill”, “Defrost by time” ,

“Convection” and “Combine” is 95 minutes.

2) When the door is open, the lamp will light. If it keeps opening in 10 minutes,

the lamp will be off and the display will change to waiting states .

3) When open the door in waiting states or during setting process, the inicial display

will stay the same.It can change and set too. But the “START” key will not work.

4) Close the door, the lamp will be off. The setting can be changed. And the “START”
