USER MANUAL DO453FR DOMO

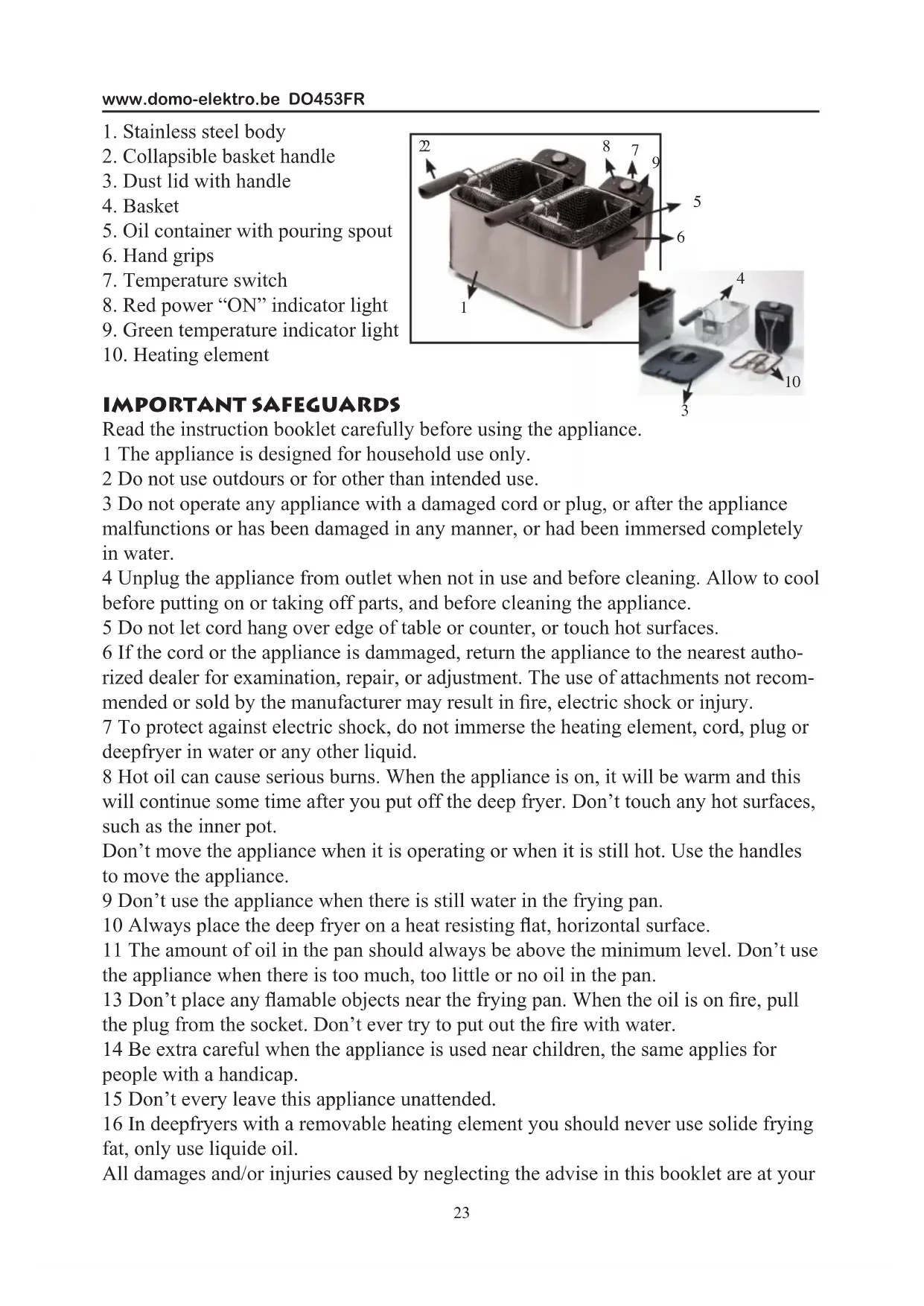

1. Stainless steel body

5. Oil container with pouring spout

IMPORTANT SAFEGUARDS Read the instruction booklet carefully before using the appliance. 1 The appliance is designed for household use only. 2 Do not use outdours or for other than intended use. 3 Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner, or had been immersed completely in water. 4 Unplug the appliance from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance. 5 Do not let cord hang over edge of table or counter, or touch hot surfaces. 6 If the cord or the appliance is dammaged, return the appliance to the nearest autho- rized dealer for examination, repair, or adjustment. The use of attachments not recom- mended or sold by the manufacturer may result in re, electric shock or injury. 7 To protect against electric shock, do not immerse the heating element, cord, plug or deepfryer in water or any other liquid. 8 Hot oil can cause serious burns. When the appliance is on, it will be warm and this will continue some time after you put off the deep fryer. Don’t touch any hot surfaces, such as the inner pot. Don’t move the appliance when it is operating or when it is still hot. Use the handles to move the appliance. 9 Don’t use the appliance when there is still water in the frying pan. 10 Always place the deep fryer on a heat resisting at, horizontal surface. 11 The amount of oil in the pan should always be above the minimum level. Don’t use the appliance when there is too much, too little or no oil in the pan. 13 Don’t place any amable objects near the frying pan. When the oil is on re, pull the plug from the socket. Don’t ever try to put out the re with water. 14 Be extra careful when the appliance is used near children, the same applies for people with a handicap. 15 Don’t every leave this appliance unattended. 16 In deepfryers with a removable heating element you should never use solide frying fat, only use liquide oil. All damages and/or injuries caused by neglecting the advise in this booklet are at your

2DO453FR www.domo-elektro.be own risk. Not the manufacturer or the importer or supplier can be held responsible. The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning the use of the appliance by a person responsible for their safety. ATTENTION : Never place the lit on the deep fryer, when it is in use. KEEP THIS INSTRUCTION BOOKLET.

USE OF THE APPLIANCE

1 Remove all packaging materials. 2 Before rst use clean the deep fryer according to the instructions. 3 Place the deep fryer on a horizontal, heat resistant surface. 4 Place the handle in the horizontal position until it clicks. 5 Open the lid and remove the basket. 6 Fill the frying pan with liquide oil, suitable for heating, until the oil level is situated between the “MIN” and “MAX” level indicated in the frying pan. Don’t ever use the appliance when there is too much or too little oil in the pan. 7 Place the basket back in the pan. 8 Place the plug in the outlet.(230V~50Hz). The red light will come on. 9 Put the appliance on by turning the temperature switch. 10 Select the desired temperature with the temperature switch. The oil will start to heat up. The green light will go off when the desired tempeature is reached. The deep fryer is now ready for use. When the temperature of the oil gets too low the indication light of the temperature will light up and go off again when the desired temperature is reached again. 11 Place the food you wish to fry in the basket, place the basket carefully back into the oil. Only place food into the basket until it is half full, for a better baking result. Note : to preserve the quality of the oil it is recommended to spice up the food after frying. 12 Remove the basket carefully out of the oil and check if the food is thoroughly coocked. 13 Let the food drip out for 10 to 12 seconds. AFTER USE 1 Remove the plug from the outlet. 2 Place the basket back in the frying pan. 3 Close the lid. 4 Wait for the deep fryer to cool down completely before storing it. 24www.domo-elektro.be DO453FR

CLEANING THE APPLIANCE

Unplug the appliance before cleaning it. CLEANING OF THE OUTSIDE OF THE APPLIANCE Clean the outside of the deep fryer after every use with a damp cloth, socked in a bit of soapy water. The control panel cannot be put in water or any other liquide. CLEANING OF THE INSIDE OF THE APPLIANCE Clean the inside of the deepfryer everytime you change the oil. Clean it as described below, to keep your deep fryer in optimal condition. 1 Remove the lid. 2 Take out the frying basket. 3 Remove the heating element from the pan 4 Pore the oil out of the pan through the spout. Remove the sticking parts with a household paper. The tough spots can be removed with a kitchen sponge, nylon brush or cloth, with mild soapy water. 5 The frying basket, lid with lter and frying pan are dishwasher safe. 6 Dry the lid, frying basket and pan thoroughy before placing them back into the deep fryer.

MAINTENANCE OF THE APPLIANCE

1 The temperature and the frequence in use are the most important factors for deterio- ration of the frying fat. 2 For tastful and healthy frying it is advisable to change the oil regularly. Furthermore will a regular changing of the oil make cleaning of the pot and the basket a lot easier. 3 Some foods such as foods coated with breadcrumbs or spicy foods and meats, can make the oil deteriorate faster. Change the oil when she gets dark or dirty or starts smoking or foams abnormally. 4 Change the oil completely, don’t mix old oil with new oil. 5 Regularly ltering the oil will improve the quality of the fried foods, but won’t make the oil deteriorate slower. 6 Store the frying fat in a cool dark place. When you rarely use your deep fryer, change the oil every 5 to 6 months. 7 Dispose of the frying oil according to the regulation in your town. Never pore old fat or oil into the sink or toilet. This can cause blockage of the drainpipe and is not eco- logically responsible. 25DO453FR www.domo-elektro.be RECOMMENDATIONS Deepfrying oil/fat Change after +/- Arachide oil 8 à 10 beurten Vegetable oil 10 à 12 beurten Olive oil 8 à 10 beurten Note : The above mentioned recommendations are for a average family and a normal use. CULINARY TIPS

PREPARATIONS OF A FEW RECIPES

Every heating up of the oil will diminish the quality of the fat. Switch off the deep fryer after every use. Replace the oil or fat regularly, especially when the fat is dark or dirty, or when it foams abnormally. FRENCH FRIES 1 Use thick not too new potatoes. Cut them up in slices. Clean the slices under running water and dry them off. 2 Bake your fries in two times :
