Product type	Oil-free fryer (air fryer)
Brand	DOMO
Model	DO539FR
Temperature range	80 °C to 220 °C (adjustable in 5 °C increments)
Timer	1 to 60 minutes (adjustable in 1 minute increments)
Automatic programs	8 programs: chicken, steak, fish, pastry, pizza, appetizer snacks, fries, vegetables
Shake function	"SHAKE" reminder halfway through cooking for even cooking
Display	Digital screen with temperature and time indication
Pause	Pause function via start/pause button
Automatic shut-off	Yes, at the end of cooking or when removing the basket
Warranty	2 years
Included accessories	Basket, grill, removable handle
Cleaning	Basket and grill washable in hot water with a non-abrasive sponge. Do not immerse the appliance.
Safety	Ventilation, do not cover, do not use oil in the basket, hot surfaces
Usage	Suitable for fries, snacks, meats, vegetables, pastries. Can reheat.
Capacity	Approximately 3 L (MAX mark in the basket)
Power supply	220-240 V ~ 50/60 Hz (estimated)
Power	1500 W (estimated)
Dimensions	Approximately 30 x 30 x 35 cm (estimated)
Weight	Approximately 4 kg (estimated)

Frequently Asked Questions - DO539FR DOMO

How to use the DO539FR fryer for the first time?

Before first use, remove all packaging and stickers. Clean the basket and grill with hot water and a little detergent, then dry them. Attach the handle by sliding it vertically until it clicks. Place the grill in the basket, do not pour oil. Plug in the appliance, a beep indicates standby mode. Set the temperature and timer, then press start.

Do I need to preheat the fryer?

No, it is not necessary to preheat the appliance. For frozen products, you can add 3 minutes to the cooking time.

Can you use oil in the fryer?

Never pour oil or fat into the basket. For crispier foods, you can brush the ingredients with a tablespoon of oil (olive, sunflower, peanut) or use a spray. Mix well before cooking.

How to clean the DO539FR fryer?

Unplug the appliance and let it cool for at least 30 minutes. Clean the outside with a damp cloth. Wash the basket and grill in hot water with a non-abrasive sponge. Clean the inside of the appliance with a soft sponge and the heating element with a brush. Dry all parts thoroughly.

What to do if the fryer does not turn on?

Check that the plug is properly inserted into a power outlet. Make sure you have set the temperature and timer. If the problem persists, contact DOMO customer service at [phone].

How to adjust the temperature and cooking time?

Press the temperature setting button (°C icon) and use the +/- buttons to choose between 80 and 220 °C (in 5 °C increments). Press the timer button (MIN icon) and set from 1 to 60 minutes (in 1 minute increments). Confirm by pressing start.

What are the available automatic programs?

The appliance offers 8 programs: chicken, steak, fish, pastry, pizza, appetizer snacks, fries, and vegetables. Press the Menu button until the desired program is selected, then start with start. The times and temperatures are preset but can be modified.

Why is white smoke coming out of the fryer?

White smoke may appear if you cook very fatty foods or if the basket was not cleaned properly after a previous use. This does not affect operation. Clean the basket and grill after each use to avoid this.

How to get crispy fries?

For crispy fries, use frying potatoes. Before cooking, soak them for 30 minutes in cold water to remove starch, then dry thoroughly. Add a tablespoon of oil and mix. Shake the fries every 5 minutes during cooking.

Can you bake cakes in the fryer?

Yes, you can use a suitable mold or oven dish. Place it on the grill. Use the 'bake' program at 165 °C for 20 minutes for a cake, or 160 °C for 15-20 minutes for muffins. Make sure the mold does not cover the entire grill for air circulation.

USER MANUAL DO539FR DOMO

Black DOMO air fryer with digital display and control buttons (no visible text or symbols on device body)

DO539FR

Handleiding Deli-fryer
Mode d'emploi Deli-fryer
Gebrauchsanleitung Deli-fryer
Instruction booklet Deli-fryer
Manual de instrucciones Deli-fryer
Istruzioni per l'uso Deli-fryer
Návod k použití Horkovzdušná fritéza Deli-Fryer
Návod na použitie Teplovzdušná fritéza Deli-Fryer

Two black-and-white icons: a triangular warning symbol with an exclamation mark and a stack of open books (no text or symbols present)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Simple line drawing of a faucet attached to a rectangular tank with a downward arrow indicating flow or movement (no text or symbols)

GEBRUIK

PROBLEEM EN OPLOSSING

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon (three chasing arrows) inside a rounded square frame, no text or labels present.

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Exploded view diagram of a black air fryer with labeled parts 1 to 5

10 8+ 8- °C MIN 9 11 7 6 8

AVANT LA PREMIÈRE UTILISATION

Simple line drawing of a water dispenser with faucet and handle (no text or symbols)

UTILISATION

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Line drawing of a water dispenser with faucet and outlet (no text or symbols)

GEBRAUCH

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g. electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
· In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

The appliance can become hot during use. Keep the power cord away from hot parts and don't cover the appliance.

• Make sure that all ingredients stay in the basket, so that they do not come into contact with the heating elements.
• Do not cover the air inlet or outlet when the appliance is switched on.
  · Never fill the frying pan with oil.
  · Do not touch the inside of the appliance when it is in use.
• Do not place the appliance against a wall or other appliances. Always leave a free space of at least 10 cm around the appliance.
  · Do not place anything on top of the appliance.
• When the appliance is operating, hot steam may escape from the air inlet and/or outlet. Keep your hands and face at a safe distance. Also be careful when taking the frying pan out of the fryer. Hot steam or air may escape.
• When you see dark smoke coming from the appliance, immediately pull the plug out of the socket. Wait until the smoke development has stopped before removint the frying pan from the fryer.
• Place the appliance on a flat, stable and heat-resistant surface.
• Let the appliance cool down for at least 30 minutes before moving or cleaning it.
• The equipment shall be touched only at intended handles and gripping surfaces, and use heat protection like gloves or similar. Surfaces other than intended gripping surfaces shall get sufficiently time to cool down before getting touched.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

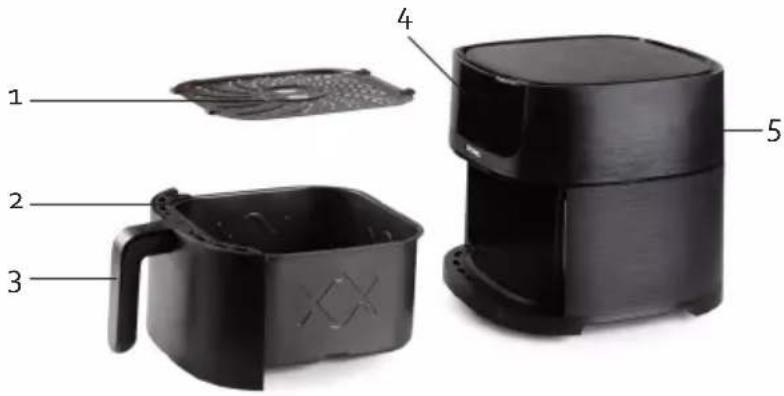

PARTS

1. Fryer grille
2. Frying pan
3. Handle
4. Control panel with display
5. Air inlet and outlet

CONTROL PANEL

1. On/Off button
2. Start/pause button
3. Menu button
4. Timer setting
5. Temperature setting
6. Automatically set programs

1 2 3 4 5

10 8+ 8- 9 °C MIN 11 7 6 8

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  · Clean the fryer and the grille with warm water, washing up liquid and a non-abrasive sponge.
  · Wipe the inside and outside of the fryer clean with a soft cloth.
• Caution: you may not add any frying oil or fat in the frying pan.

HANDLE INSTALLATION

The fryer handle does not come pre-installed and is located inside the fryer. Install it on the fryer once. Slide the handle into the fryer with a vertical downwards motion until it clicks into place.

Simple line drawing of a faucet attached to a rectangular tank with a downward arrow indicating flow or movement (no text or symbols)

USE

1. Place the appliance on a flat, stable and heat-resistant surface. Make sure that there is at least 30 cm of free space around the appliance.
2. Check that the grille is inserted in the fryer. Push the grille into place so that it sits level on the bottom. Do not place any oil or fat in the fryer.
3. Slide the frying pan with the empty grille inside the fryer. Caution: Never use the frying pan without the grille inside.
4. Plug the power cord into a socket. A beep indicates that the device is in standby mode.
5. Remove the deep fryer from the device. Place the ingredients in the deep fryer with the roaster.

Do not put too many ingredients in the appliance so that the ingredients do not touch the heating elements. Pay attention to the MAX indication in the deep fryer here.

1. Put the deep fryer with the filled roaster back in the device.
2. Press the on/off button to make the desired settings.
3. Press the temperature button to set the desired temperature. You will see °C' light up on the display. You can now set the desired temperature with the +/- buttons. The temperature can be set from 80 to 220°C. Each press of the button will increase/decrease the temperature by 5°C. You can see which temperature is selected on the display.
4. Press the timer button to set the desired timer. You will see 'MIN' light up on the display. You can now set the desired timer using the +/- buttons. The timer can be set from 1 to 60 minutes. Each press of the button will increase/decrease the time by 1 minute. You can see which timer is selected on the display.
5. Press the start/pause button to start. The motor in operation symbol will appear on the display. The motor in operation symbol remains visible on the display as long as the appliance is switched on. The set timer and temperature appear alternately on the display.

NOTE: You can pause the appliance if you want to add/remove ingredients during use or if you want to adjust the temperature or timer. Press the start/pause button. The icon will flash on and off on the display to let you know the appliance is paused. If you want the appliance to continue cooking, press this button again.

1. You can take the fryer basket out of the appliance in between to shake up the ingredients or to check how fried your food is. The appliance stops working automatically and will continue working (if the set time has not yet elapsed) when you slide the fryer basket back into the appliance.

The appliance is equipped with a function that acts as a reminder to the shake food, see chapter "Shake food reminder".

1. At the end, a bell will ring to indicate that your food is ready. The unit then switches off automatically. You can also turn the device off earlier by pressing the start/pause button and then pressing the power button to turn the device off completely.
2. Remove the deep fryer from the appliance and place it on a heat-resistant holder. You can put the food in a bowl or take it out of the deep fryer with heat-resistant tongs that do not scratch the non-stick coating of the deep fryer.

SHAKE FOOD REMINDER

The appliance is equipped with a function that reminds you to shake the food in the fryer during use to obtain an even frying result. Halfway through the frying process, the "SHAKE" symbol will light up on the display to remind you to shake or turn the food in the fryer. An audible signal will also sound. If you do nothing, the symbol will remain lit.

NOTE: The appliance does not pause automatically, it will only pause if you briefly remove the fryer from the appliance. It will continue working (if the timer is still running) once you slide the fryer back into the appliance.

COMMENTS

• An acoustic signal is emitted for each setting you set on the device.
• You can adjust the set temperature or time at any time while the unit is in operation.
• Excess oil is collected in the deep fryer.
• If your food is not ready after the set time has elapsed, you can always switch the appliance back on for a few minutes.

- After the appliance has been switched off, it will continue to run for a while to cool down. Then a beep sounds to indicate that the appliance is now completely off.

- There is no need to preheat the appliance. You can add three minutes to the desired baking time if necessary for frozen products.

· If you just want to warm something up in the device, you can set it to 150^ C for 10 minutes.

AUTOMATIC PROGRAMS

The device has 8 automatically set programs. To set one of these, press the menu button until you have selected the desired program. Press the start/pause button to activate this program. At the end, a bell will ring to indicate that your food is ready. The unit then switches off automatically.

If you want to switch to another programme during the selected programme, press the start/pause button to pause. Select the new programme via the menu button and press the start button again to start this new programme.

chicken	steak	fish	bake	pizza	party snack	french fries	vegetables
23 min. 12	min. 10 min.	30 min. 8 min.	7 min. 23 min.	in. 17 min.
200 °C 200	°C 195 °C 16	0°C 185 °C 2	00 °C 200 °C	160 °C

These programmes are only given as an indication. The results depend on the size, shape and amount of the food.

IMPORTANT FRYING TIPS

• It is recommended to shake the fries every 5 minutes, so that they are baked evenly. This also applies to other, smaller snacks that cover each other when they are inserted in the grille.
• You can add a table spoon of oil for a crunchier result, for instance olive oil, sunflower oil or groundnut oil. Mix this oil well with the raw fries before placing the fries in the grille. Other ingredients can be sprayed with oil or coated with oil with a brush. Always make sure that there is no excessive oil added in the grille or frying pan. Do not use too much oil. Then the fries will become less crisp and greasy.
• Put fresh, raw fries in water for 30 minutes before frying them, so that the starch of the potatoes is washed away. Dry them thoroughly afterwards.
  · Do not cook very greasy foods in this fryer.
• When you are preparing greasy ingredients, white smoke might come out of the appliance. However, this does not affect the operation of the appliance or the end result. Also when the fryer is not properly cleaned, or if any oil is left behind in the frying pan, white smoke might develop.
• Snacks that can be cooked inside an oven can also be cooked inside this fryer.
• Smaller quantities are fried more evenly than larger quantities.
• Thinner fries will be crispier than thicker fries.
• Place a baking tin or oven tray on the grille if you want to make a cake or quiche, or fragile or stuffed ingredients.
• You can also use this fryer to reheat ingredients. Set the fryer to 150^ C , for 10 minutes.
• Ingredients that need to be cooked at the same temperature can be placed inside the basket together and cooked together.
• Frozen products do not need to be thawed beforehand.
• You can use baking paper or aluminum foil or trays in the grille of the fryer, but do be very careful when you do this. Do not cover the whole bottom of the grille. The air should be able to circulate well

through the appliance, the grille and the ingredients. Also, there should be enough food on the paper or foil, so that it stays in place. Otherwise, the strong air flow will cause the paper or foil to be sucked into the heating elements, which could cause fire. Make sure that the baking paper or aluminum foil is larger than the food itself. However, the paper or foil should not come out of the grille.

- Oven snacks always give the best, crispiest result. But also frozen snacks suitable for a regular fryer can be fried in this appliance.

BAKING TIMES AND TEMPERATURES

The table below holds a few guidelines for cooking and frying different ingredients. Caution: these are merely guidelines. The times also depend on the quantity and thickness of the food. Also always take into account the above mentioned frying tips.

Fries, fresh first 18 min. 140°C
	then 12 min. 180°C
Fries, frozen 12-20 min. 200°C
Potato wedges 18-22 min. 180°C
Croquettes 15 min. 185°C
Cheese croquettes, frozen 12 min. 180°C
Chicken nuggets, fish sticks and other snacks 6-10 min.	200°C
Chicken fillet 15 min. 200°C
Chicken schnitzel, frozen	12 min. 180°C
Steak	8-12 min. 180°C
Fish	10-15 min.	180°C
Mushrooms	3-4 min.	180°C
Spring rolls	8-13 min.	200°C
Drumsticks	15-20 min. 180°C
Meatballs	6 min.	180°C
Hamburger	6-10 min. 180°C
Satay	10 min. 190°C
Prawns	6 min.	180°C
Egg, boiled hard	12 min. 160°C
Egg, boiled soft	6-7 min.	160°C
Vegetables 15 min. 200°C
Vegetable fries - hard	10-13 min.	200°C
Vegetable fries - soft	7 min.	200°C
Apples	7 min.	180°C
Banana	7 min.	200°C
Puff pastry snacks	10 min.	180°C
Ready to bake bread rolls	7 min.	200°C
Cake	20 min.	165°C
Muffins	15-20 min. 160°C

CLEANING AND MAINTENANCE

• Clean the appliance after each use.
  · Do not use any metal or abrasive cleaning products. These could damage the appliance.
• Unplug the appliance.
• Let the appliance cool down for at least 30 minutes before moving or cleaning it.
• Wipe the outside of the appliance clean with a damp cloth.

- Clean the frying pan and frying basket with warm water, some washing-up liquid and a non-abrasive sponge.

• Clean the inside of the appliance with warm water and a soft sponge.
• Clean the heating element with a brush to remove any food residues.
  · Dry all parts thoroughly.

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The appliance does not work. · Insert the mains plug into the wall socket. · Set the desired timer or temperature.
The ingredients in the fryer are not cooked. · Place fewer ingredients in the fryer. Smaller portions ensure a more even baking result. · Increase the timer or temperature.
The ingredients in the fryer are not cooked evenly. The recommendation is to shake the food regularly in the fryer or to turn the food.
The fried food is not crispy. · Only use preparations suitable for an oven or air fryer. · Coat the ingredients with oil for a crispier baking result.
Smoke is coming out of the appliance during operation.	You are using ingredients with too much oil or fat. Only use ingredients or preparations suitable for an oven or air fryer.

ENVIRONMENTAL GUIDELINES

Prohibition sign depicting a trash bin crossed out by a diagonal line, with a blank rectangular base below.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Exploded view diagram of a black air fryer with labeled parts 1 to 5

10 9 11 7 6 8

Simple line drawing of a water dispenser with faucet and handle (no text or symbols)

USO

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a water dispenser with faucet and handle (no text or symbols)

UTILIZZO

Prohibition sign depicting a trash bin crossed with a crossed-out line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a faucet lifting a container with a downward arrow (no text or symbols)

POUŽITÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Simple line drawing of a water dispenser with faucet and outlet (no text or symbols)

POUŽITIE

Prohibition sign with crossed-out trash bin and no text, indicating no waste or disposal restriction

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical milk containers on a plain white background (no text or symbols visible)

Three product photos: square cards, a clear glass coffee maker, and a rectangular baking bowl (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
