BR1012 - Toaster TRISTAR - Free user manual and instructions

Product type	2-slot toaster
Dimensions (approx.)	25 x 15 x 20 cm
Weight (approx.)	1 kg
Power supply	220-240 V ~ 50 Hz
Capacity	2 slices of bread
Browning setting	Positions 1 (light) to 6 (dark brown)
Defrost button	Yes
Reheat button	Yes
Cancel button	Yes
Lever	Automatic (pops up at end of cycle)
Crumb tray	Removable, empty regularly
Exterior cleaning	Soft dry cloth
Cord storage	Under the appliance
Safety	Automatic shut-off, lever pops up, do not immerse
Warranty	24 months
Use	Household use only, stable surface
Defrost	Special mode for frozen bread
Reheat	Mode for already toasted bread

Frequently Asked Questions - BR1012 TRISTAR

How to adjust the browning level?

Turn the Browning control knob (No. 3) from position 1 (lightly golden) to 6 (very dark). The center position gives a well-golden toast. Experiment according to your bread.

What to do if bread gets stuck in the toaster?

First unplug the appliance, then carefully remove the bread without using sharp or metal objects.

How to clean the toaster?

Unplug and let cool. Clean the exterior with a soft dry cloth. Regularly empty the crumb tray (No. 2) located under the appliance.

Can I toast frozen bread?

Yes, insert the frozen bread, set the browning level, then press the defrost button (No. 5). The indicator lights up and the bread will be toasted with the selected level.

How to reheat already toasted bread?

Place the bread in the toaster and press the reheat button (No. 6). The indicator lights up and the toasting time is determined automatically.

What to do if the appliance does not turn on?

Check that the plug is connected and the lever (No. 4) is fully pressed down. Make sure the crumb tray is properly in place. If the problem persists, contact customer service.

How to store the power cord?

When the appliance is not in use, wrap the cord under the appliance in the compartment provided for this purpose.

Does the toaster stop automatically?

Yes, the lever automatically pops up at the end of the toasting or reheating cycle. You can also press the cancel button (No. 7) to stop at any time.

Can I use non-recommended accessories?

No, using accessories not recommended by the manufacturer may cause injury and void the warranty.

How to empty the crumb tray?

Remove the crumb tray (No. 2) located under the appliance, empty it, and put it back before use. It is recommended to empty it at least once a week.

USER MANUAL BR1012 TRISTAR

White TRISTAR toaster with control knobs and a red indicator lights (no visible text or symbols on the device body)

NL Gebruikershandleiding HR Korisnički priručnik

UK User manual NO Brukermanual

Color controller Carriage handle

White TRISTAR toaster with control buttons and a red 'HOTOUT' indicator (no visible text or symbols on the device body)

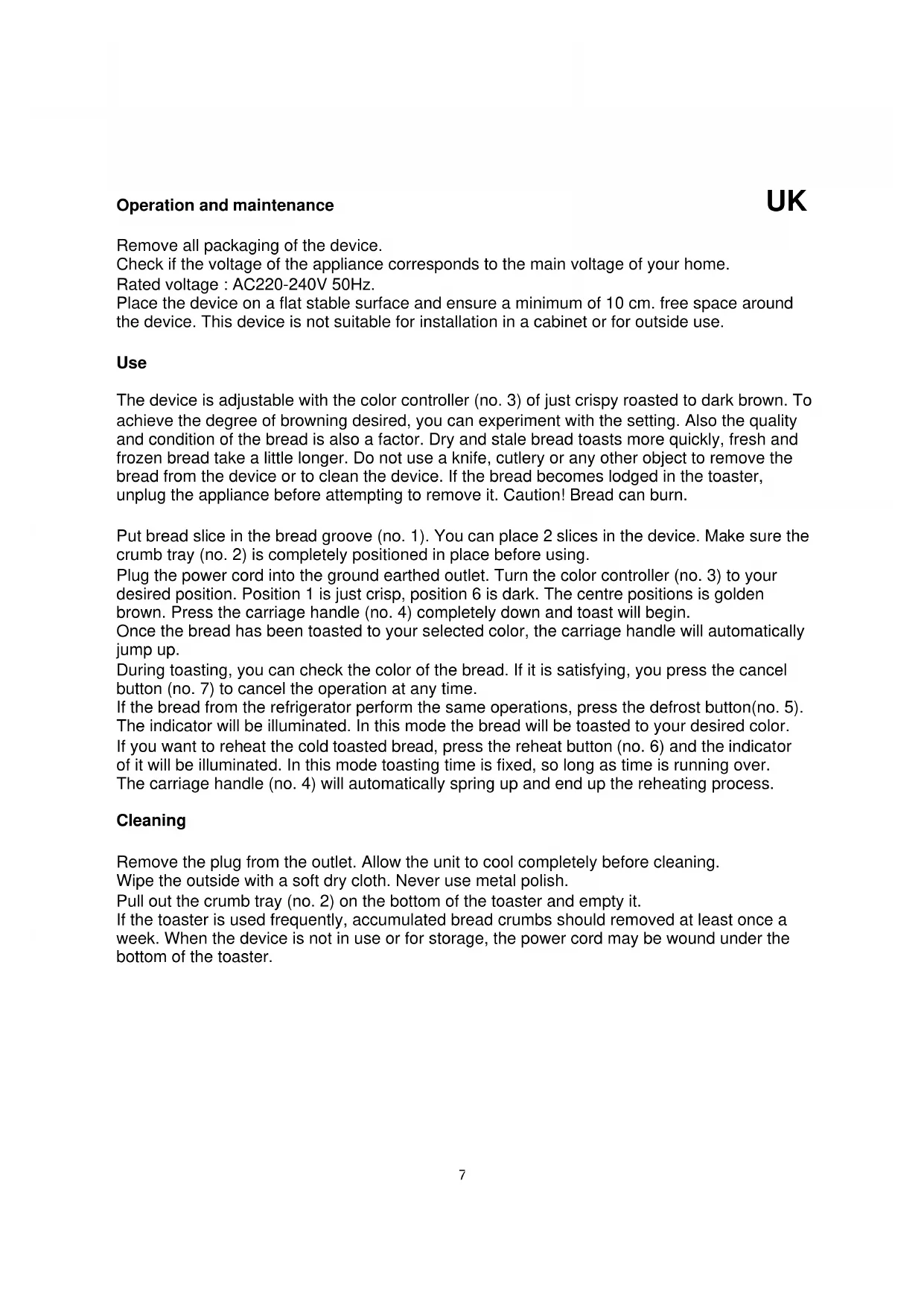

Operation and maintenance

UK

Remove all packaging of the device.

Check if the voltage of the appliance corresponds to the main voltage of your home.

Rated voltage : AC220-240V 50Hz.

Place the device on a flat stable surface and ensure a minimum of 10 cm. free space around the device. This device is not suitable for installation in a cabinet or for outside use.

Use

The device is adjustable with the color controller (no. 3) of just crispy roasted to dark brown. To achieve the degree of browning desired, you can experiment with the setting. Also the quality and condition of the bread is also a factor. Dry and stale bread toasts more quickly, fresh and frozen bread take a little longer. Do not use a knife, cutlery or any other object to remove the bread from the device or to clean the device. If the bread becomes lodged in the toaster, unplug the appliance before attempting to remove it. Caution! Bread can burn.

Put bread slice in the bread groove (no. 1). You can place 2 slices in the device. Make sure the crumb tray (no. 2) is completely positioned in place before using.

Plug the power cord into the ground earthed outlet. Turn the color controller (no. 3) to your desired position. Position 1 is just crisp, position 6 is dark. The centre positions is golden brown. Press the carriage handle (no. 4) completely down and toast will begin.

Once the bread has been toasted to your selected color, the carriage handle will automatically jump up.

During toasting, you can check the color of the bread. If it is satisfying, you press the cancel button (no. 7) to cancel the operation at any time.

If the bread from the refrigerator perform the same operations, press the defrost button(no. 5).

The indicator will be illuminated. In this mode the bread will be toasted to your desired color.

If you want to reheat the cold toasted bread, press the reheat button (no. 6) and the indicator of it will be illuminated. In this mode toasting time is fixed, so long as time is running over.

The carriage handle (no. 4) will automatically spring up and end up the reheating process.

Cleaning

Remove the plug from the outlet. Allow the unit to cool completely before cleaning.

Wipe the outside with a soft dry cloth. Never use metal polish.

Pull out the crumb tray (no. 2) on the bottom of the toaster and empty it.

If the toaster is used frequently, accumulated bread crumbs should remove at least once a week. When the device is not in use or for storage, the power cord may be wound under the bottom of the toaster.

IMPORTANT SAFEGUARDS

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plug or appliance in water or any other liquid.

- Unplug from outlet when not in use and before cleaning. Allow the device to cool before putting on or taking off parts. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner.

- The use of accessory attachments not recommended by the appliance manufacturer may cause injuries and invalidate any warranty you may have.

- Do not use outdoors, or on or near direct heat sources

- Do not let cord hang over edge of table or counter, or touch hot surfaces or come into contact with the hot parts or allow the product to be situated underneath or close to curtains, window coverings etc.

• This appliance is for household use only and only for the purpose it is made for.

• The appliance must be placed on a stable, level surface.

- This appliance is an attended appliance, and as such should never be left ON or whilst hot without adult supervision.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

- Bread may burn. Don't use this toaster near curtains or other combustible materials.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

Guarantee

• The device supplied by our Company is covered by 24 month guarantee starting on the date of purchase (receipt).
• During the life of the guarantee any fault of the device or its accessories to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!
• Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.
• If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

• Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

• Defects to consumables or parts subject to wearing, as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

• The guarantee lapses in case of unauthorized tampering.
• After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection

Packaging

The packaging is 100% recyclable, return the packaging separated.

Product

This device is equipped with a mark according to European Directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE). By ensuring that the product correctly as waste is processed, it helps you may have adverse consequences for the environment and human health.

EC declaration of conformity

This device is designed, manufactured and marketed in accordance with the safety objectives of the Low Voltage Directive "No 2006/95/EC, the protection requirements of the EMC Directive 2004/108/EC "Electromagnetic Compatibility" and the requirement of Directive 93/68/EEC.

Four safety symbols: no megaphone, no person with a child, hand holding a sign, and warning triangle.

Symbol of a trash bin crossed with diagonal lines and a blank rectangular block below (no text or labels)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Symbol of a waste bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)
