USER MANUAL CL1484 AudioSonic

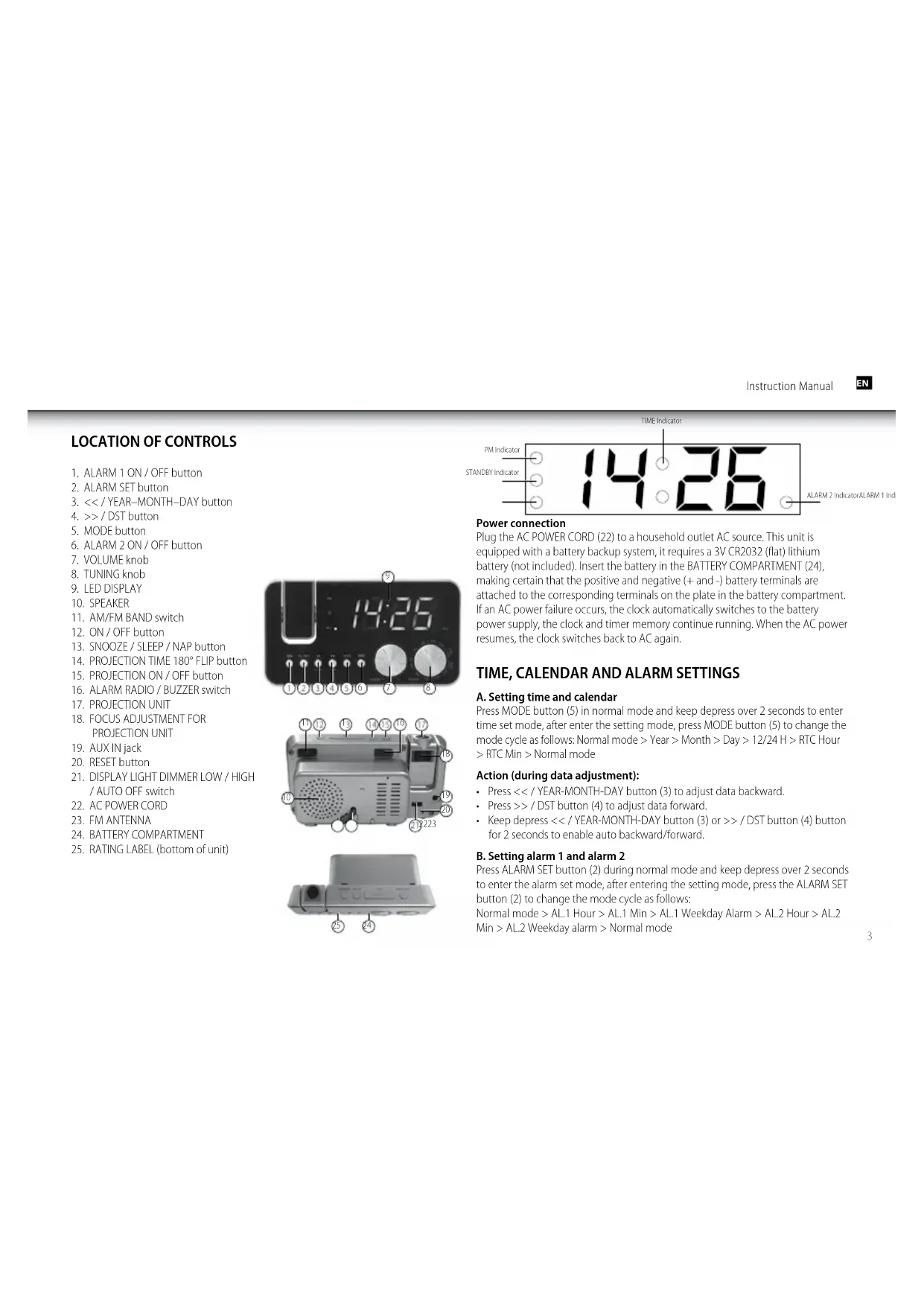

Power connection Plug the AC POWER CORD (22) to a household outlet AC source. This unit is equipped with a battery backup system, it requires a 3V CR2032 (flat) lithium battery (not included). Insert the battery in the BATTERY COMPARTMENT (24), making certain that the positive and negative (+ and -) battery terminals are attached to the corresponding terminals on the plate in the battery compartment. If an AC power failure occurs, the clock automatically switches to the battery power supply, the clock and timer memory continue running. When the AC power resumes, the clock switches back to AC again.

TIME, CALENDAR AND ALARM SETTINGS

A. Setting time and calendar Press MODE button (5) in normal mode and keep depress over 2 seconds to enter time set mode, after enter the setting mode, press MODE button (5) to change the mode cycle as follows: Normal mode > Year > Month > Day > 12/24 H > RTC Hour > RTC Min > Normal mode Action (during data adjustment):

• Press << / YEAR-MONTH-DAY button (3) to adjust data backward.

• Press >> / DST button (4) to adjust data forward.

• Keep depress << / YEAR-MONTH-DAY button (3) or >> / DST button (4) button for 2 seconds to enable auto backward/forward. B. Setting alarm 1 and alarm 2 Press ALARM SET button (2) during normal mode and keep depress over 2 seconds to enter the alarm set mode, after entering the setting mode, press the ALARM SET button (2) to change the mode cycle as follows: Normal mode > AL.1 Hour > AL.1 Min > AL.1 Weekday Alarm > AL.2 Hour > AL.2 Min > AL.2 Weekday alarm > Normal mode

Select alarm weekday mode as follows 1-5 Monday to Friday 1-7 Whole week 6-7 Saturday and Sunday 1-1 One day of the week Action (during data adjustment):

• Press << / YEAR-MONTH-DAY button (3) to adjust data backward.

• Press >> / DST button (4) to adjust data forward.

• Keep depress << / YEAR-MONTH-DAY button (3) or >> / DST button (4) button for 2 seconds to enable auto backward/forward. SETTING ALARM OUTPUT AND SWITCHING ALARM ON/OFF A. Setting the alarm output

• Set the ALARM RADIO / BUZZER switch (16) to the radio position to select wake up by radio or to the beep position to select wake up by buzzer.

• Set the DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF switch (21) to the AUTO OFF position (the display will switch off automatically in 15 seconds). When the alarm sounds, the display will automatically switch on again. B. Switching alarm on/off

• Press ALARM 1 ON / OFF button (1) to toggle on and off alarm output function.

• Press ALARM 2 ON / OFF button (6) to toggle on and off alarm output function. Alarm duration and snooze function A. Alarm duration

• Buzzer alarm or Radio alarm will continue output for 30 minutes if no key’s are pressed, then it will stop automatically and wait for same alarm time on the next day. B. Snooze function

• During alarming, press SNOOZE / SLEEP / NAP button (13) will enable snooze function, buzzer alarm or radio alarm will stop.

• Snooze interval is 9 minutes

• Snooze will continue unless the ON/OFF button (12) is pressed to end the radio- or buzzer alarm. The alarm will stop automatically after 30 minutes.

• Set the DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF switch (21) to the AUTO OFF position (the display will switch off automatically in 15 seconds). When the alarm sounds, the display will automatically switch on again. Press the SNOOZE / SLEEP / NAP button (13) to enable the snooze function, stopping the alarm and turning off the display. Change display content Press the << / YEAR-MONTH-DAY button (3) to switch to display the Year/Month/ Day, after 5 seconds timeout the display will switch back to time automatically. Sleep function When the radio is turned on, press the SNOOZE / SLEEP / NAP button (13) to turn on the sleep mode. The sleep time will keep flashing for 10 seconds, during that time press the SNOOZE / SLEEP / NAP button (13) again to change the duration from 90 to 15 minutes. Press the ON/OFF button (12) to cancel the sleep function. Nap function (countdown timer) When the radio is turned off, press SNOOZE / SLEEP / NAP button (13) to turn on NAP mode, the NAP time will keep flashing by 10 seconds, within 10 seconds and press SNOOZE / SLEEP / NAP button (13) button can change the duration from 90 min – 10 min. The alarm buzzer will sound for 30 min and then shut off automatically. To stop the alarm buzzer, press the ON/OFF button (12). Press the SNOOZE / SLEEP / NAP button (13) button has no effect during alarm operation. Press the ON/OFF button (12) to cancel the NAP function. Instruction ManualInstruction Manual

Display light dimmer When the radio is turned off, set the DISPLAY LIGHT DIMMER LOW / HIGH / AUTO OFF (21) to the AUTO OFF mode, the LED display will automatically turn off in 15 seconds. Press any key button to turn the display on. DST – Daylight Saving Time (summer- and wintertime) Press the >> / DST button (4) and hold it for 3 seconds to toggle between the summer- en wintertime. Radio operation

• Press the ON / OFF button (12) to turn the radio on.

• Set the AM/FM BAND switch (11) to the desired waveband.

• Select the station by using the TUNING knob (8).

• Turn the VOLUME knob (7) to adjust volume as required.

• Press the ON / OFF button (12) again to turn the radio off. Notes:

• The AM band uses an internal directional aerial, rotate the radio for best reception.

• Ensure that the FM antenna (23) is completely unrolled and extended for best FM reception. Aux in jack The AUX IN jack (19) can be used to playback alternate audio signal sources on the unit speakers. This AUX IN jack (19) requires a 3.5mm audio cable for an input signal (3.5mm audio cable is not included). SPECIFICATIONS Frequency : AM 530 – 1600 kHz / FM 88 – 108 MHz Battery backup : 1 x 3V CR2032 (flat) lithium battery (not included) Power source : AC230V - 50Hz, 5W Reset The RESET button (20) is located on the back of the unit. Use a ballpoint pen to press the RESET button (20) whenever you change the batteries, or when the unit is not performing as expected. This will return all settings to the default value, you will lose any stored data (alarm and clock settings). Projection unit

• Focus setting: to adjust the brightness / focus of the PROJECTION UNIT (17) use the FOCUS ADJUSTMENT FOR PROJECTION UNIT (18) until the projected time is clearly shown on the ceiling or wall.

• To flip the projected image by 180°, press the PROJECTION TIME 180° FLIP button (14). Notes:

• Projects time image on the ceiling or wall of a darkened room.

• Ideal projection distance is 3-9 feet/1-3 meters. Alarm battery back-up system This clock radio includes a alarm battery back-up circuit that can wake you up even if the power is ‘off’ at the selected wake up time. The clock display will be off and the radio will not operate, but a separate mini-buzzer will turn ‘on’ automatically to wake you up, even if you had selected the ‘wake to radio’ option. The alarm will sound for 30 seconds and then shut off automatically. To stop the alarm buzzer immediately, press the power on/off button. Pressing the snooze button has no effect during battery back-up alarm operation. WARNING

1. No flame sources, such as lighted candles, should be placed on the apparatus.

2. Do not place the product in closed bookcases or racks without proper ventilation.

3. The mains plug is used as the disconnect device, the disconnect device shall

remain readily operable.

4. The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, table-cloths, curtains, etc.

5. It shall not be exposed to dripping or splashing and that no objects filled with

liquids, such as vases, shall be placed on the apparatus.

6. Do not connect FM antenna to outside antenna.

7. The unit should not be exposed to direct sunlight, very high or low

temperature, moisture, vibrations or placed in dusty environment.

8. Do not use abrasive, benzene, thinner or other solvents to clean the surface

of the unit. To clean, wipe it will mild non-abrasive detergent solution and clean soft cloth.

9. Never attempt to insert wires, pins or other such objects into the vents or

opening of the unit.

10. Class I LED product.

Do not dispose of the device with the household waste. This product must be disposed of according to EU directive 2002/96/EC-WEEE (Waste Electrical and Electronic equipment). Return the device to a collection point. Observe the applicable regulations. Contact your municipality, if in doubt. caution

• Danger of explosion if battery is incorrectly replaced.

• Replace only with the same or equivalent type battery.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• Attention should be drawn to the environmental aspects of battery disposal.9
